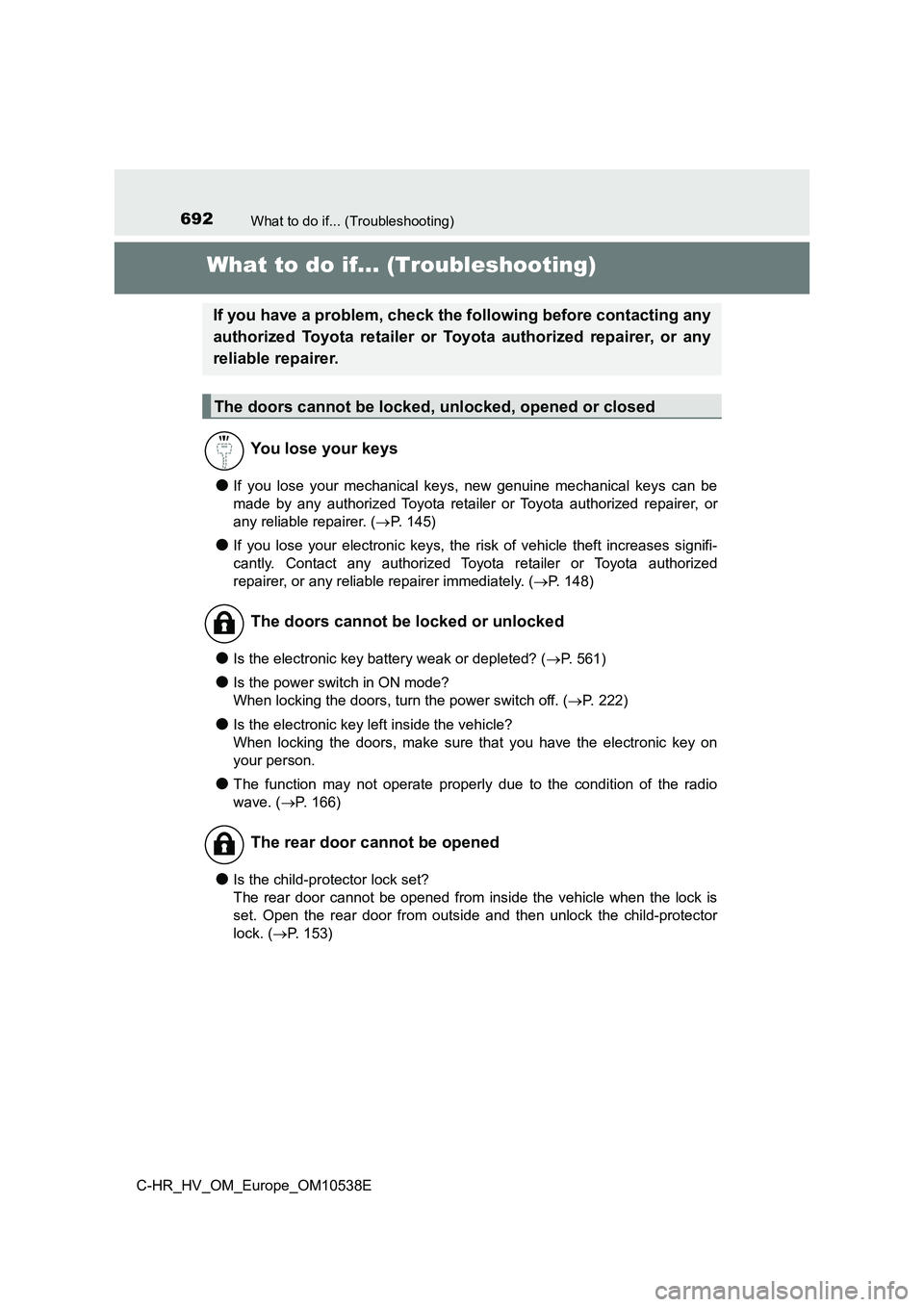

692What to do if... (Troubleshooting)
C-HR_HV_OM_Europe_OM10538E
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer. ( P. 145)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. ( P. 148)
●Is the electronic key battery weak or depleted? (P. 561)
●Is the power switch in ON mode?
When locking the doors, turn the power switch off. ( P. 222)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( P. 166)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 153)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

693What to do if... (Troubleshooting)
C-HR_HV_OM_Europe_OM10538E
●Did you press the power switch while firmly depressing the brake pedal?
( P. 221)
●Is the shift lever in P? (P. 2 2 4 )
●Is the electronic key anywhere detectable inside the vehicle? (P. 164)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
( P. 649)
●Is the 12-volt battery discharged? (P. 651)
●Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode. ( P. 233)
●Is the window lock switch pressed?
The power windows except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 193)
●The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for a
period of time. ( P. 2 2 3 )

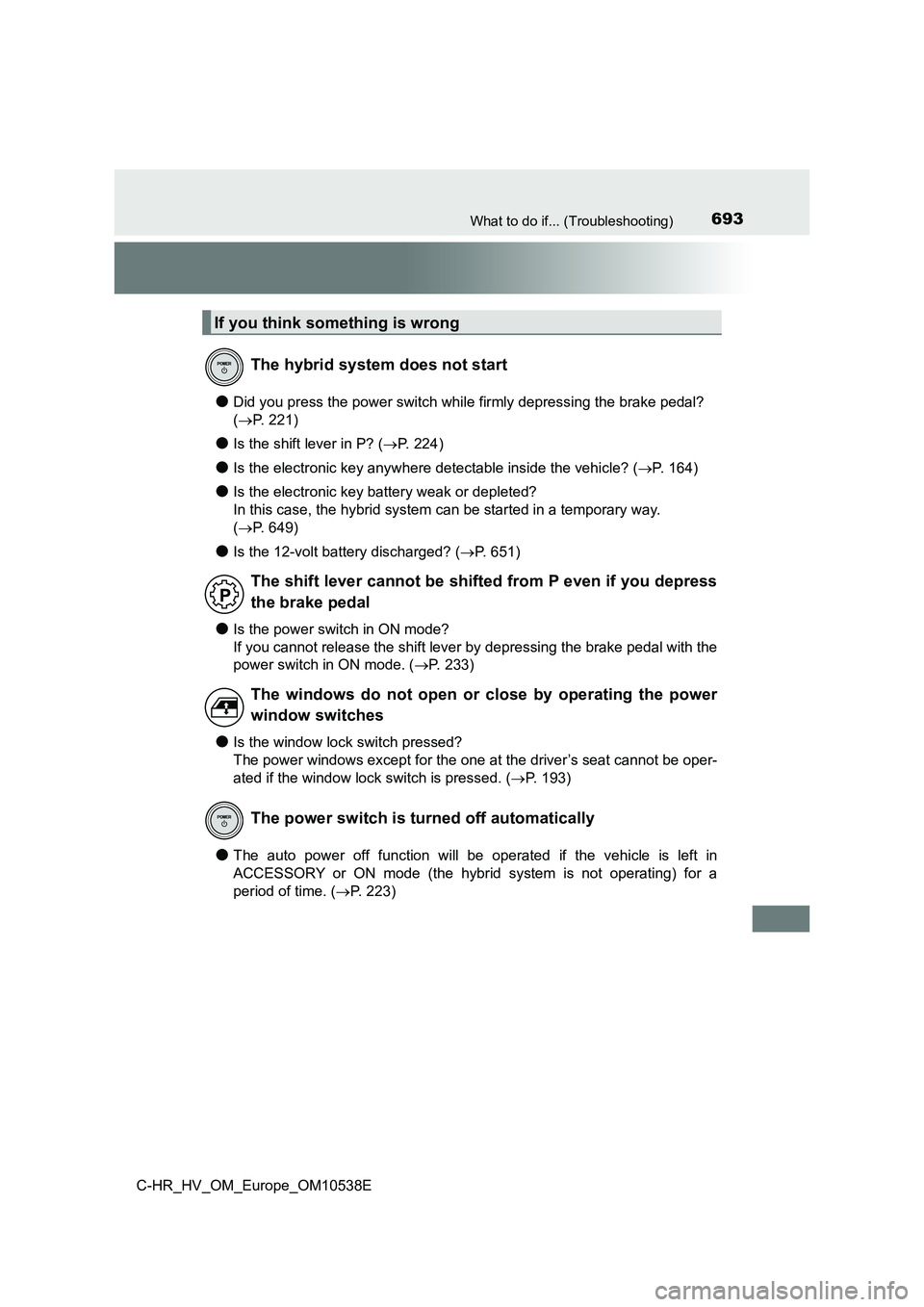

If you think something is wrong
The hybrid system does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically

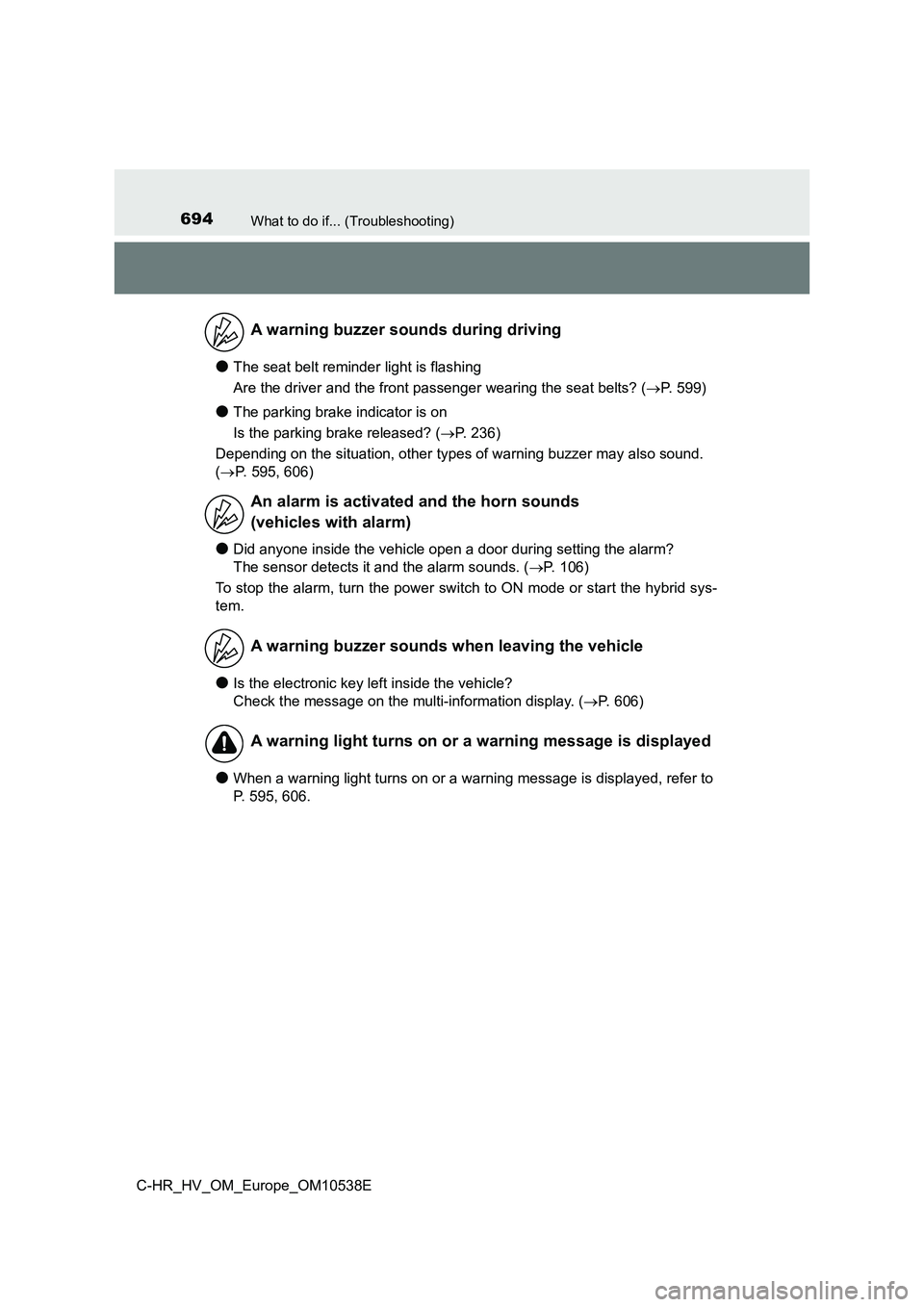

694What to do if... (Troubleshooting)
C-HR_HV_OM_Europe_OM10538E
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 599)
●The parking brake indicator is on
Is the parking brake released? ( P. 236)
Depending on the situation, other types of warning buzzer may also sound.
( P. 595, 606)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 106)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 606)
●When a warning light turns on or a warning message is displayed, refer to
P. 595, 606.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

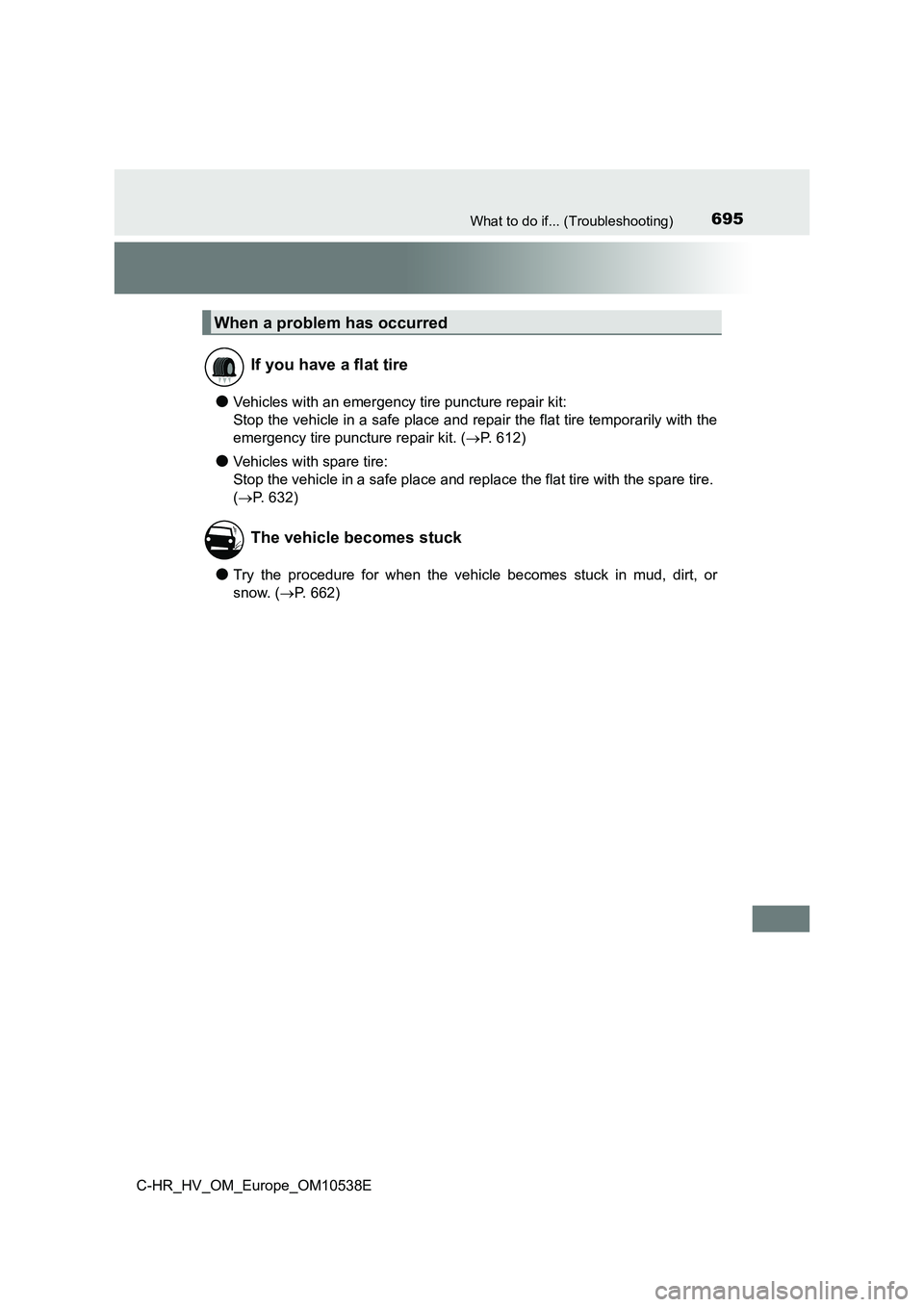

695What to do if... (Troubleshooting)
C-HR_HV_OM_Europe_OM10538E
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( P. 612)
●Vehicles with spare tire:
Stop the vehicle in a safe place and repl ace the flat tire with the spare tire.
( P. 632)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 662)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

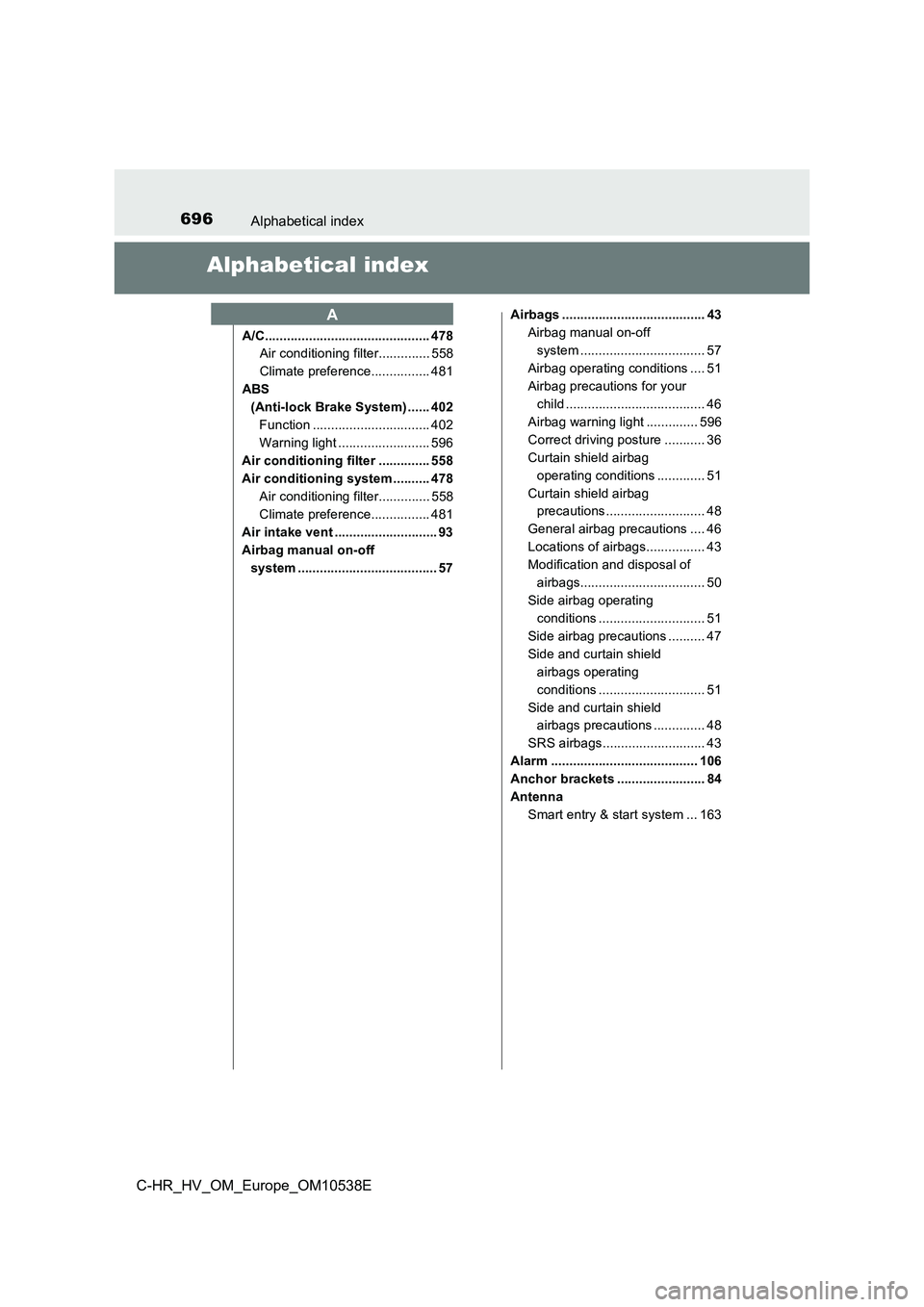

696Alphabetical index
C-HR_HV_OM_Europe_OM10538E
Alphabetical index
A/C............................................. 478
Air conditioning filter.............. 558
Climate preference................ 481
ABS
(Anti-lock Brake System) ...... 402
Function ................................ 402
Warning light ......................... 596
Air conditioning filter .............. 558
Air conditioning system .......... 478
Air conditioning filter.............. 558
Climate preference................ 481
Air intake vent ............................ 93
Airbag manual on-off
system ...................................... 57
Airbags ....................................... 43
Airbag manual on-off
system .................................. 57
Airbag operating conditions .... 51
Airbag precautions for your
child ...................................... 46
Airbag warning light .............. 596
Correct driving posture ........... 36
Curtain shield airbag
operating conditions ............. 51
Curtain shield airbag
precautions........................... 48
General airbag precautions .... 46
Locations of airbags................ 43
Modification and disposal of
airbags.................................. 50
Side airbag operating
conditions ............................. 51
Side airbag precautions .......... 47
Side and curtain shield
airbags operating
conditions ............................. 51
Side and curtain shield
airbags precautions .............. 48
SRS airbags............................ 43
Alarm ........................................ 106
Anchor brackets ........................ 84
Antenna
Smart entry & start system ... 163
A

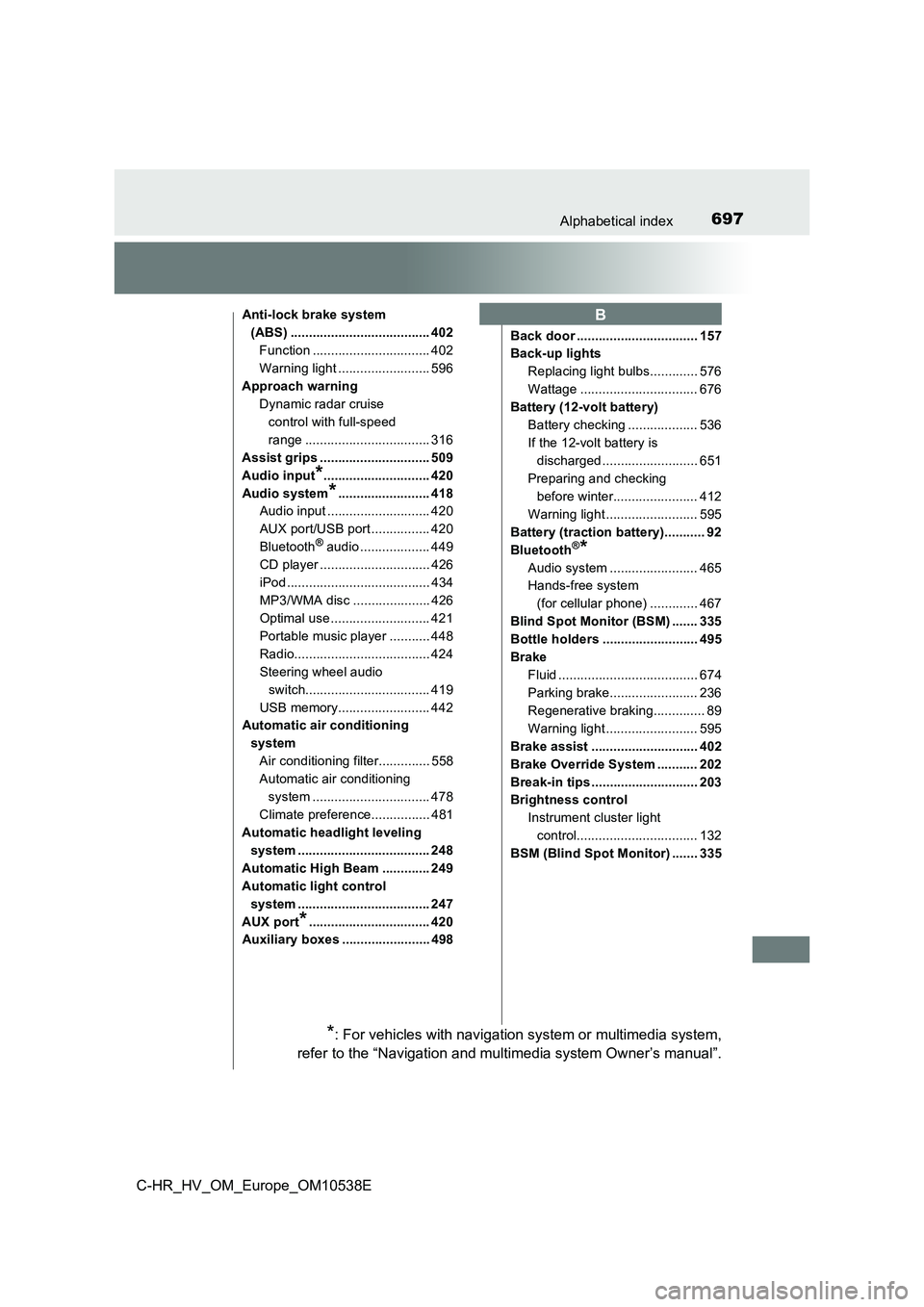

697Alphabetical index
C-HR_HV_OM_Europe_OM10538E
Anti-lock brake system
(ABS) ...................................... 402
Function ................................ 402
Warning light ......................... 596
Approach warning
Dynamic radar cruise
control with full-speed
range .................................. 316
Assist grips .............................. 509
Audio input*............................. 420
Audio system*......................... 418
Audio input ............................ 420
AUX port/USB port ................ 420
Bluetooth® audio ................... 449
CD player .............................. 426
iPod ....................................... 434
MP3/WMA disc ..................... 426
Optimal use ........................... 421
Portable music player ........... 448
Radio..................................... 424
Steering wheel audio
switch.................................. 419
USB memory......................... 442
Automatic air conditioning
system
Air conditioning filter.............. 558
Automatic air conditioning
system ................................ 478
Climate preference................ 481
Automatic headlight leveling
system .................................... 248
Automatic High Beam ............. 249
Automatic light control
system .................................... 247
AUX port*................................. 420
Auxiliary boxes ........................ 498
Back door ................................. 157
Back-up lights
Replacing light bulbs............. 576
Wattage ................................ 676
Battery (12-volt battery)
Battery checking ................... 536
If the 12-volt battery is
discharged .......................... 651
Preparing and checking
before winter....................... 412
Warning light ......................... 595
Battery (traction battery)........... 92
Bluetooth®*
Audio system ........................ 465
Hands-free system
(for cellular phone) ............. 467
Blind Spot Monitor (BSM) ....... 335
Bottle holders .......................... 495
Brake
Fluid ...................................... 674
Parking brake........................ 236
Regenerative braking.............. 89
Warning light ......................... 595
Brake assist ............................. 402
Brake Override System ........... 202
Break-in tips ............................. 203
Brightness control
Instrument cluster light
control................................. 132
BSM (Blind Spot Monitor) ....... 335
B
*: For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s manual”.

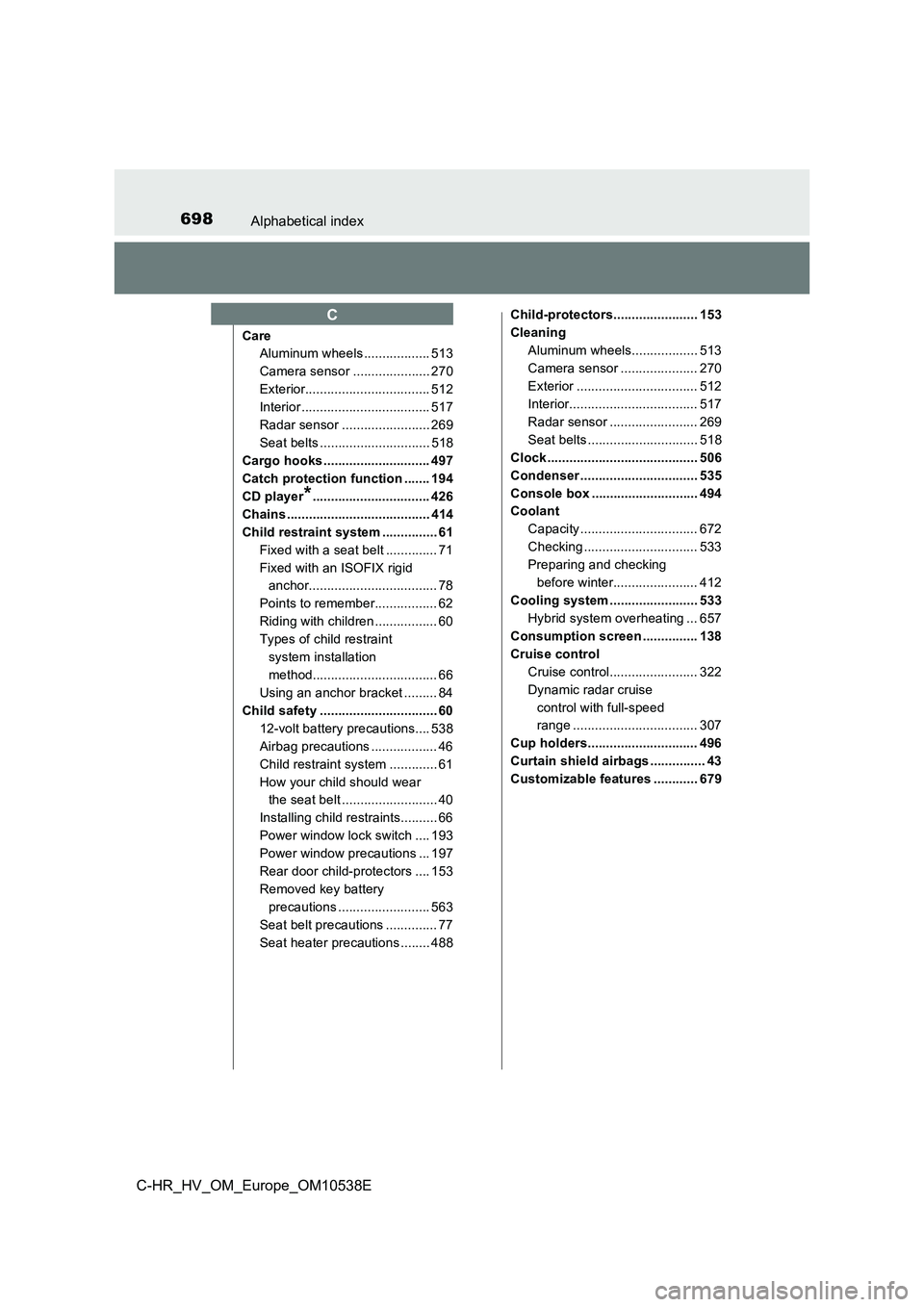

698Alphabetical index
C-HR_HV_OM_Europe_OM10538E
Care
Aluminum wheels .................. 513
Camera sensor ..................... 270
Exterior.................................. 512
Interior ................................... 517
Radar sensor ........................ 269
Seat belts .............................. 518
Cargo hooks ............................. 497
Catch protection function ....... 194
CD player*................................ 426
Chains ....................................... 414
Child restraint system ............... 61
Fixed with a seat belt .............. 71
Fixed with an ISOFIX rigid
anchor................................... 78
Points to remember................. 62
Riding with children ................. 60
Types of child restraint
system installation
method..... ............................. 66
Using an anchor bracket ......... 84
Child safety ................................ 60
12-volt battery precautions.... 538
Airbag precautions .................. 46
Child restraint system ............. 61
How your child should wear
the seat belt .......................... 40
Installing child restraints.......... 66
Power window lock switch .... 193
Power window precautions ... 197
Rear door child-protectors .... 153
Removed key battery
precautions ......................... 563
Seat belt precautions .............. 77
Seat heater precautions ........ 488
Child-protectors....................... 153
Cleaning
Aluminum wheels.................. 513
Camera sensor ..................... 270
Exterior ................................. 512
Interior................................... 517
Radar sensor ........................ 269
Seat belts .............................. 518
Clock ......................................... 506
Condenser ................................ 535
Console box ............................. 494
Coolant
Capacity ................................ 672
Checking ............................... 533
Preparing and checking
before winter....................... 412
Cooling system ........................ 533
Hybrid system overheating ... 657
Consumption screen ............... 138
Cruise control
Cruise control........................ 322
Dynamic radar cruise
control with full-speed
range .................................. 307
Cup holders.............................. 496
Curtain shield airbags ............... 43
Customizable features ............ 679
C

699Alphabetical index
C-HR_HV_OM_Europe_OM10538E

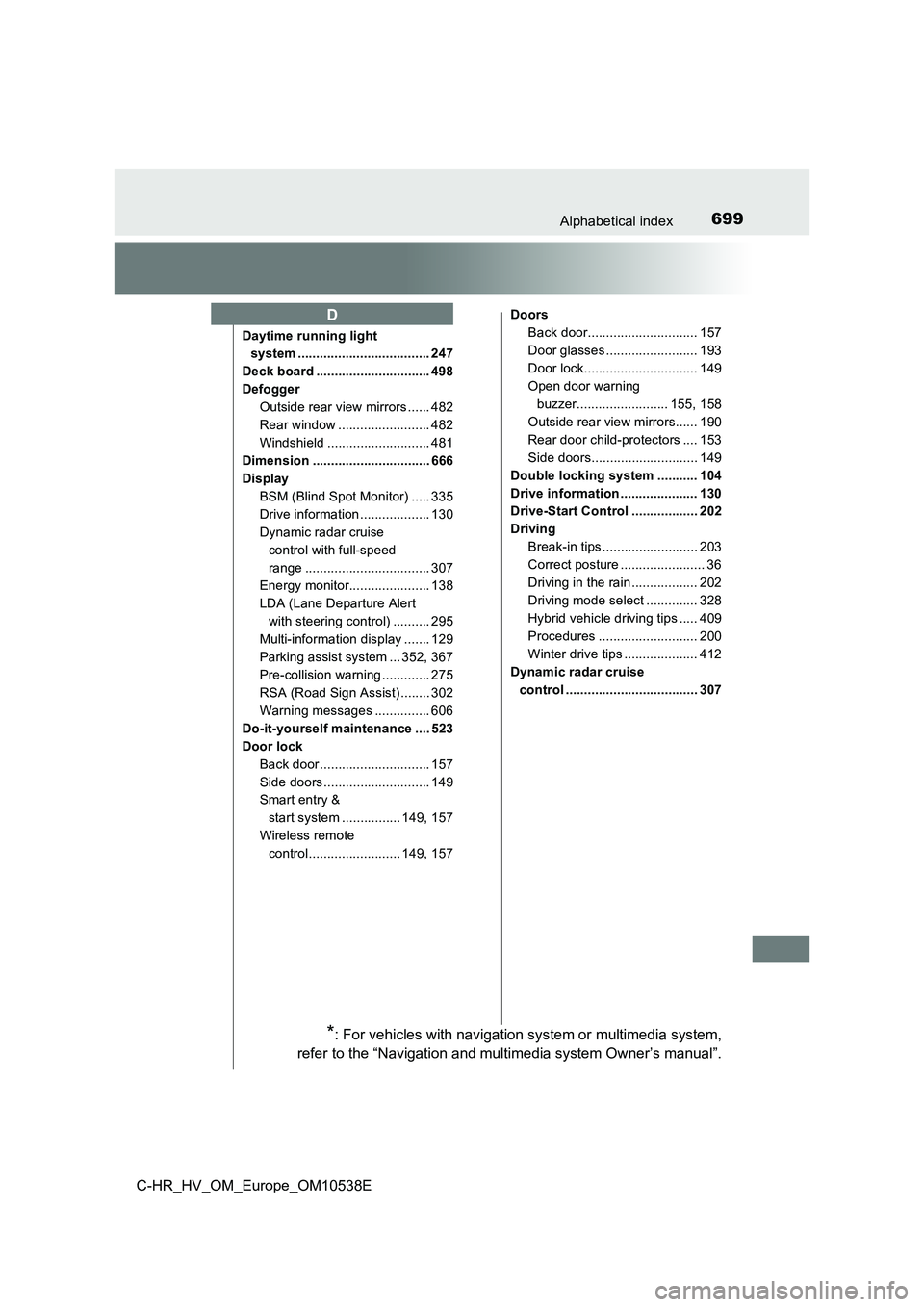

Daytime running light
system .................................... 247
Deck board ............................... 498
Defogger
Outside rear view mirrors ...... 482
Rear window ......................... 482
Windshield ............................ 481
Dimension ................................ 666
Display
BSM (Blind Spot Monitor) ..... 335
Drive information ................... 130
Dynamic radar cruise
control with full-speed
range .................................. 307
Energy monitor...................... 138
LDA (Lane Departure Alert
with steering control) .......... 295
Multi-information display ....... 129
Parking assist system ... 352, 367
Pre-collision warning ............. 275
RSA (Road Sign Assist) ........ 302
Warning messages ............... 606
Do-it-yourself maintenance .... 523
Door lock
Back door .............................. 157
Side doors ............................. 149
Smart entry &
start system ................ 149, 157
Wireless remote
control......................... 149, 157
Doors
Back door.............................. 157
Door glasses ......................... 193
Door lock............................... 149
Open door warning
buzzer......................... 155, 158
Outside rear view mirrors...... 190
Rear door child-protectors .... 153
Side doors............................. 149
Double locking system ........... 104
Drive information ..................... 130
Drive-Start Control .................. 202
Driving
Break-in tips .......................... 203
Correct posture ....................... 36
Driving in the rain .................. 202
Driving mode select .............. 328
Hybrid vehicle driving tips ..... 409
Procedures ........................... 200
Winter drive tips .................... 412
Dynamic radar cruise
control .................................... 307
D
*: For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s manual”.

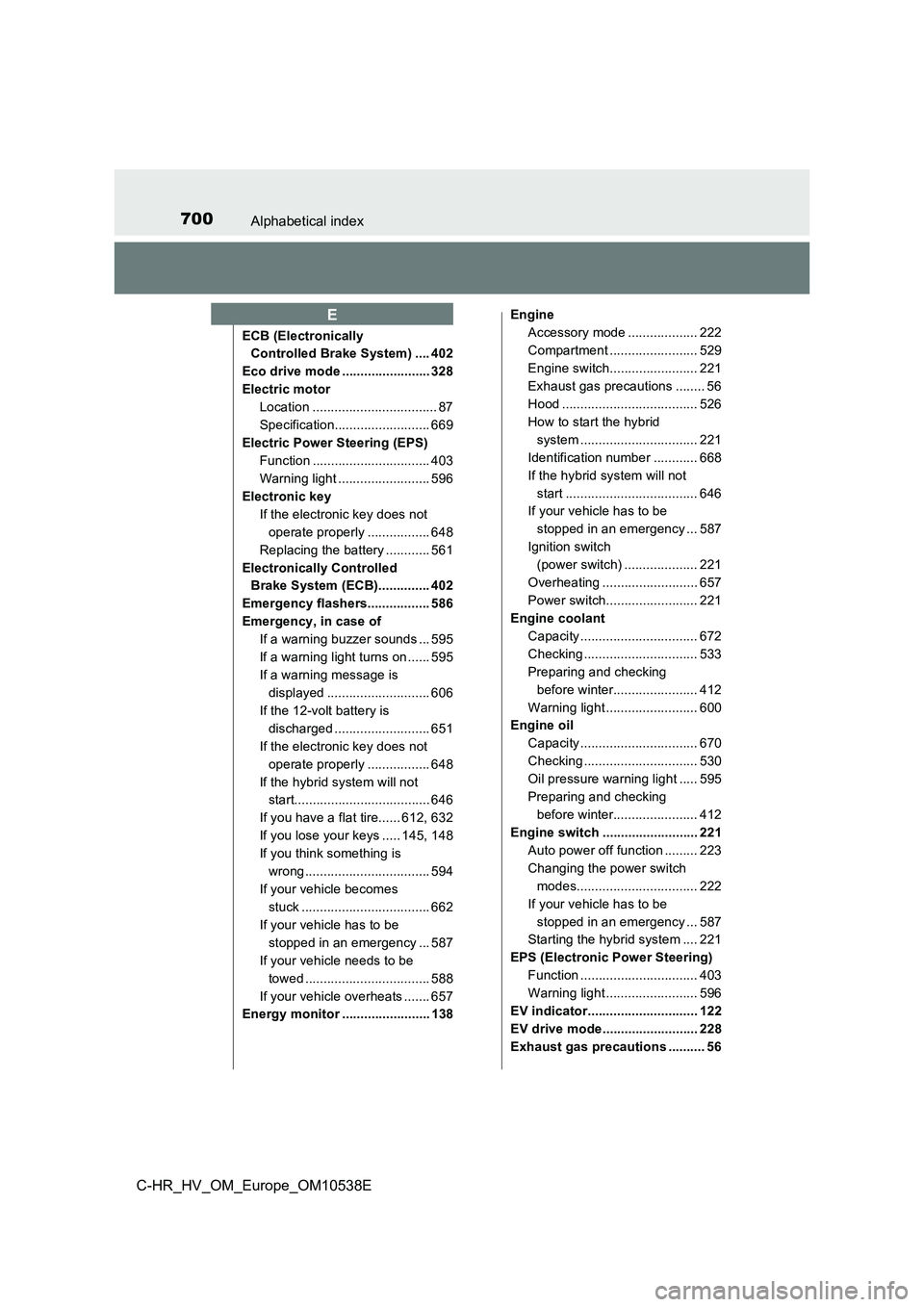

700Alphabetical index
C-HR_HV_OM_Europe_OM10538E
ECB (Electronically
Controlled Brake System) .... 402
Eco drive mode ........................ 328
Electric motor
Location .................................. 87
Specification.......................... 669
Electric Power Steering (EPS)
Function ................................ 403
Warning light ......................... 596
Electronic key
If the electronic key does not
operate properly ................. 648
Replacing the battery ............ 561
Electronically Controlled
Brake System (ECB).............. 402
Emergency flashers................. 586
Emergency, in case of
If a warning buzzer sounds ... 595
If a warning light turns on ...... 595
If a warning message is
displayed ............................ 606
If the 12-volt battery is
discharged .......................... 651
If the electronic key does not
operate properly ................. 648
If the hybrid system will not
start..................................... 646
If you have a flat tire...... 612, 632
If you lose your keys ..... 145, 148
If you think something is
wrong .................................. 594
If your vehicle becomes
stuck ................................... 662
If your vehicle has to be
stopped in an emergency ... 587
If your vehicle needs to be
towed .................................. 588
If your vehicle overheats ....... 657
Energy monitor ........................ 138
Engine
Accessory mode ................... 222
Compartment ........................ 529
Engine switch........................ 221
Exhaust gas precautions ........ 56
Hood ..................................... 526
How to start the hybrid
system ................................ 221
Identification number ............ 668
If the hybrid system will not
start .................................... 646
If your vehicle has to be
stopped in an emergency ... 587
Ignition switch
(power switch) .................... 221
Overheating .......................... 657
Power switch......................... 221
Engine coolant
Capacity ................................ 672
Checking ............................... 533
Preparing and checking
before winter....................... 412
Warning light ......................... 600
Engine oil
Capacity ................................ 670
Checking ............................... 530
Oil pressure warning light ..... 595
Preparing and checking
before winter....................... 412
Engine switch .......................... 221
Auto power off function ......... 223
Changing the power switch
modes................................. 222
If your vehicle has to be
stopped in an emergency ... 587
Starting the hybrid system .... 221
EPS (Electronic Power Steering)
Function ................................ 403
Warning light ......................... 596
EV indicator.............................. 122
EV drive mode.......................... 228
Exhaust gas precautions .......... 56
E
