TOYOTA CAMRY 1996 Owner's Manual

16
CAUTION!

Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.

Use only a genuine Toyota fuel
tank cap for replacement. It has a
built-in check valve to reduce fuel
tank vacuum.
To open the moon roof, push the
switch on the SLIDEº side. Pushing
on the opposite side will close it. To tilt
up the rear end of the moon roof, push
the switch on the UPº side. Pushing
on the opposite side will lower it.
The moon roof works when the ignition
switch is in the ONº position. However, if
both front doors are closed, it works for 60
seconds even after the ignition switch is
turned off. It stops working when either
front door is opened.
The moon roof will move while the switch
is being pushed and stop when released.
However, as a precaution when closing, it
stops at the three-quarters closed posi-
tion before fully closing. Therefore, re-
lease the switch and then push it again to
close it completely.
You may open the moon roof to any de-
sired position.
The sun shade can be opened or closed
manually. However, if you open the moon
roof, the sun shade will be opened togeth-
er with the moon roof.
Electric moon roof
ProCarManuals.com

17

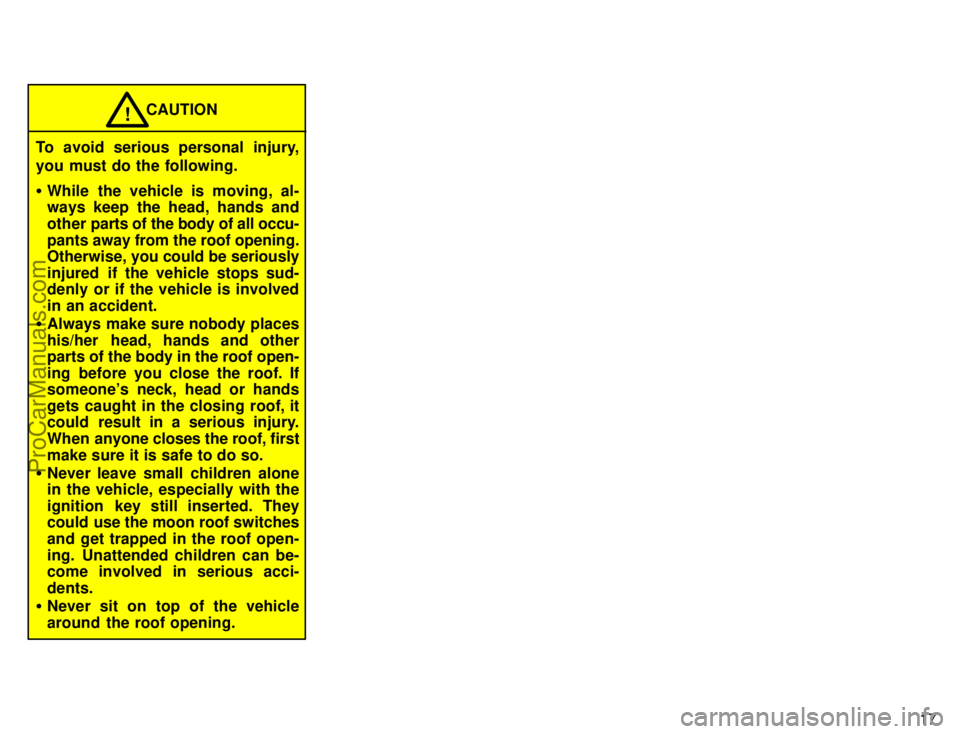

CAUTION!
To avoid serious personal injury,
you must do the following.

While the vehicle is moving, al-
ways keep the head, hands and
other parts of the body of all occu-
pants away from the roof opening.
Otherwise, you could be seriously
injured if the vehicle stops sud-
denly or if the vehicle is involved
in an accident.

Always make sure nobody places
his/her head, hands and other
parts of the body in the roof open-
ing before you close the roof. If
someone's neck, head or hands
gets caught in the closing roof, it
could result in a serious injury.
When anyone closes the roof, first
make sure it is safe to do so.

Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the moon roof switches
and get trapped in the roof open-
ing. Unattended children can be-
come involved in serious acci-
dents.

Never sit on top of the vehicle
around the roof opening.
ProCarManuals.com

18ProCarManuals.com

Part 1SeatsFront seatsÐ
ÐSeat adjustment precautions
19
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1-3
Seats, Seat belts,
Steering wheel
and Mirrors

Seats

Front seats

Rear seats

Head restraints

Seat belts

SRS airbags

Child restraint

Tilt steering wheel

Outside rear view mirrors

Anti-glare inside rear view
mirror

Vanity mirrors
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

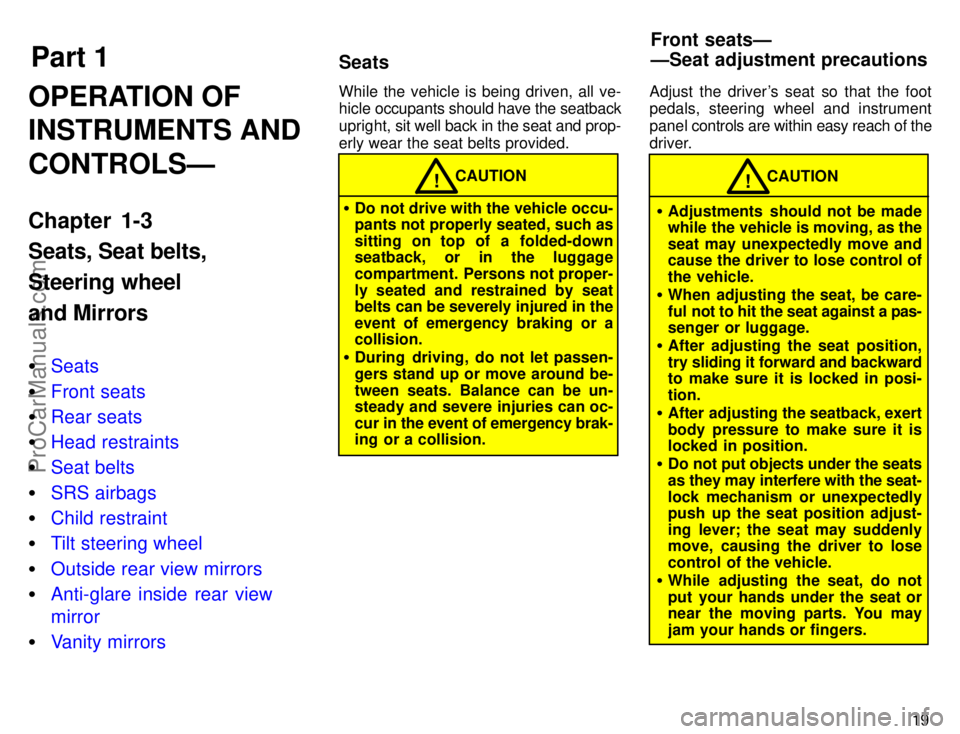

CAUTION!

Do not drive with the vehicle occu-
pants not properly seated, such as
sitting on top of a folded-down
seatback, or in the luggage
compartment. Persons not proper-
ly seated and restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.

During driving, do not let passen-
gers stand up or move around be-
tween seats. Balance can be un-
steady and severe injuries can oc-
cur in the event of emergency brak-
ing or a collision.Adjust the driver's seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of the
driver.
CAUTION!

Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.

When adjusting the seat, be care-
ful not to hit the seat against a pas-
senger or luggage.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, exert
body pressure to make sure it is
locked in position.

Do not put objects under the seats
as they may interfere with the seat-
lock mechanism or unexpectedly
push up the seat position adjust-
ing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.

While adjusting the seat, do not
put your hands under the seat or
near the moving parts. You may
jam your hands or fingers.
ProCarManuals.com

20
ADJUSTING SEAT POSITION
Pull the lock release lever up. Then
slide the seat to the desired position
with slight body pressure and release
the lever.
ADJUSTING SEATBACK ANGLE
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.

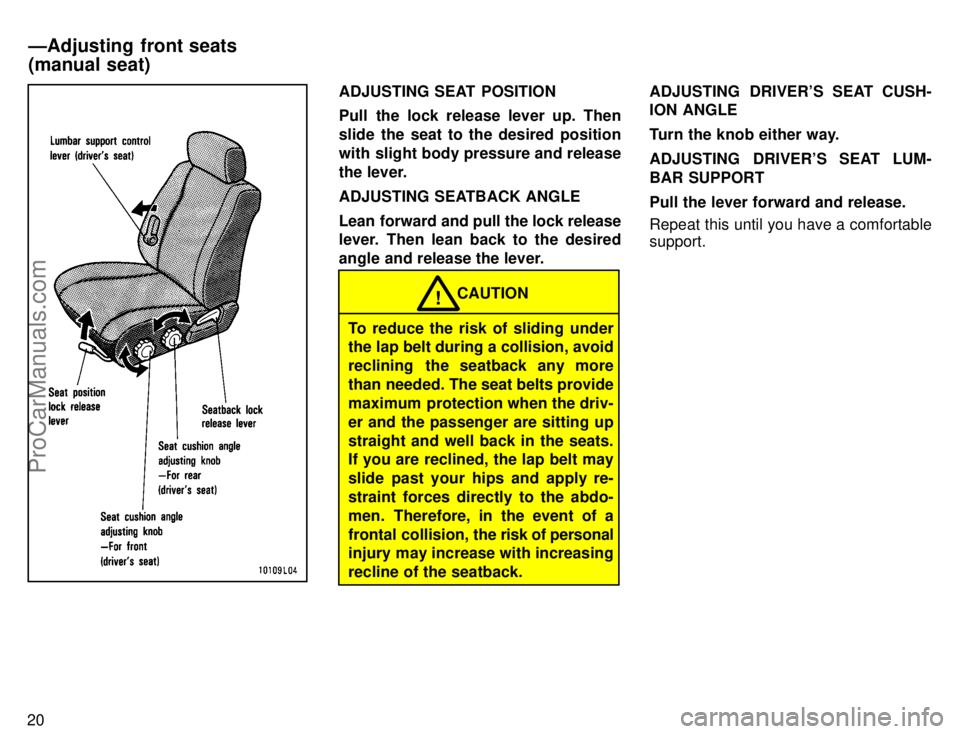

CAUTION!
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more
than needed. The seat belts provide
maximum protection when the driv-
er and the passenger are sitting up
straight and well back in the seats.
If you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdo-
men. Therefore, in the event of a
frontal collision, the risk of personal
injury may increase with increasing
recline of the seatback.ADJUSTING DRIVER'S SEAT CUSH-
ION ANGLE
Turn the knob either way.
ADJUSTING DRIVER'S SEAT LUM-
BAR SUPPORT
Pull the lever forward and release.
Repeat this until you have a comfortable
support.
ÐAdjusting front seats
(manual seat)
ProCarManuals.com

21
ADJUSTING SEAT POSITION
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the seat. It
might interfere with the seat movement.
ADJUSTING SEATBACK ANGLE
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.

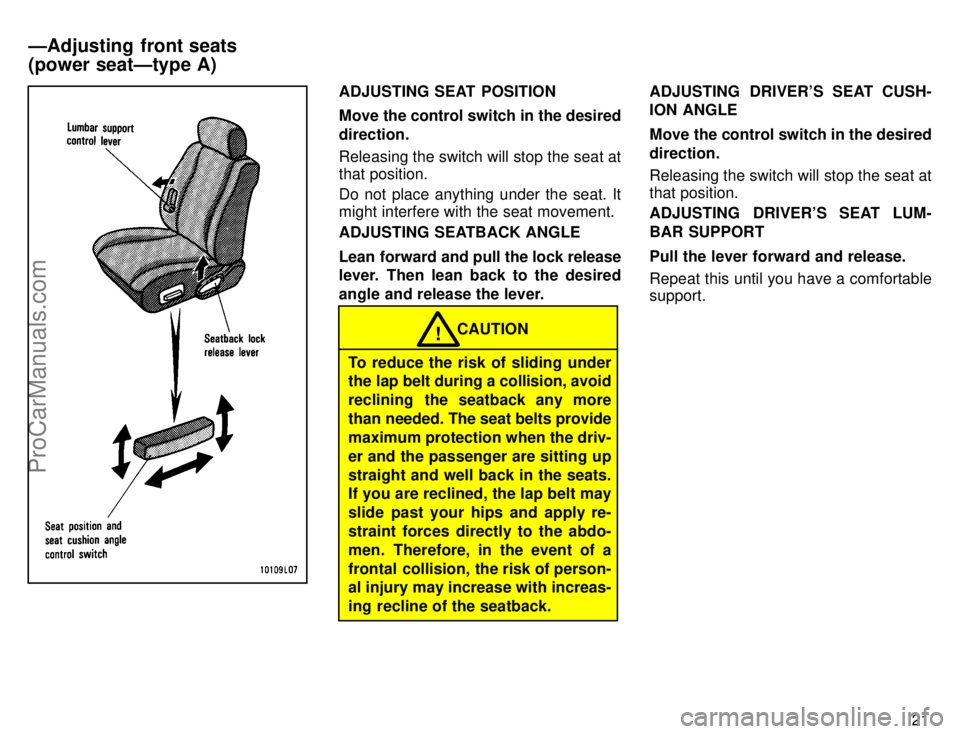

CAUTION!
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more
than needed. The seat belts provide
maximum protection when the driv-
er and the passenger are sitting up
straight and well back in the seats.
If you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdo-
men. Therefore, in the event of a
frontal collision, the risk of person-
al injury may increase with increas-
ing recline of the seatback.ADJUSTING DRIVER'S SEAT CUSH-
ION ANGLE
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
ADJUSTING DRIVER'S SEAT LUM-
BAR SUPPORT
Pull the lever forward and release.
Repeat this until you have a comfortable
support.
ÐAdjusting front seats
(power seatÐtype A)
ProCarManuals.com

22
ADJUSTING SEAT POSITION
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the seat. It
might interfere with the seat movement.
ADJUSTING SEATBACK ANGLE
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.

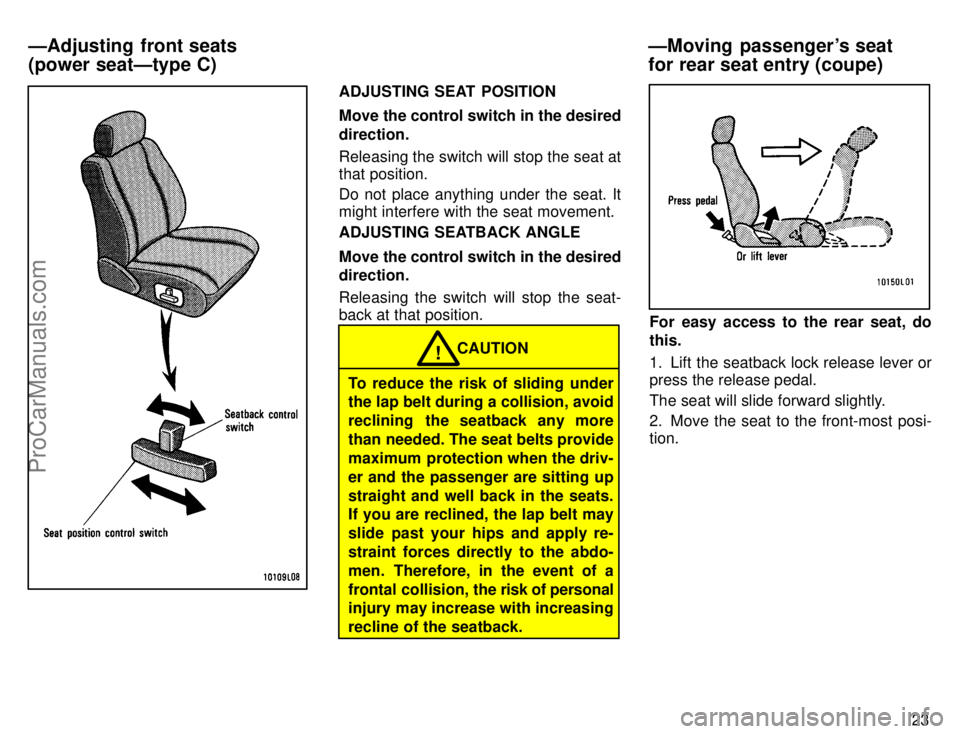

CAUTION!
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more
than needed. The seat belts provide
maximum protection when the driv-
er and the passenger are sitting up
straight and well back in the seats.
If you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdo-
men. Therefore, in the event of a
frontal collision, the risk of personal
injury may increase with increasing
recline of the seatback.ADJUSTING DRIVER'S SEAT CUSH-
ION ANGLE
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
ADJUSTING DRIVER'S SEAT LUM-
BAR SUPPORT
Pull the lever forward and release.
Repeat this until you have a comfortable
support.
ÐAdjusting front seats
(power seatÐtype B)
ProCarManuals.com

23
ADJUSTING SEAT POSITION
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the seat. It
might interfere with the seat movement.
ADJUSTING SEATBACK ANGLE
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
CAUTION!
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more
than needed. The seat belts provide
maximum protection when the driv-
er and the passenger are sitting up
straight and well back in the seats.
If you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdo-
men. Therefore, in the event of a
frontal collision, the risk of personal
injury may increase with increasing
recline of the seatback.
For easy access to the rear seat, do
this.
1. Lift the seatback lock release lever or
press the release pedal.
The seat will slide forward slightly.
2. Move the seat to the front-most posi-
tion.
ÐAdjusting front seats
(power seatÐtype C)ÐMoving passenger's seat
for rear seat entry (coupe)
ProCarManuals.com

24
Before entry, push the seat belt hanger
down as far as it will go if it is in the
raised position.
After passengers are in, lift up the seat-
back and return the seat until it locks.

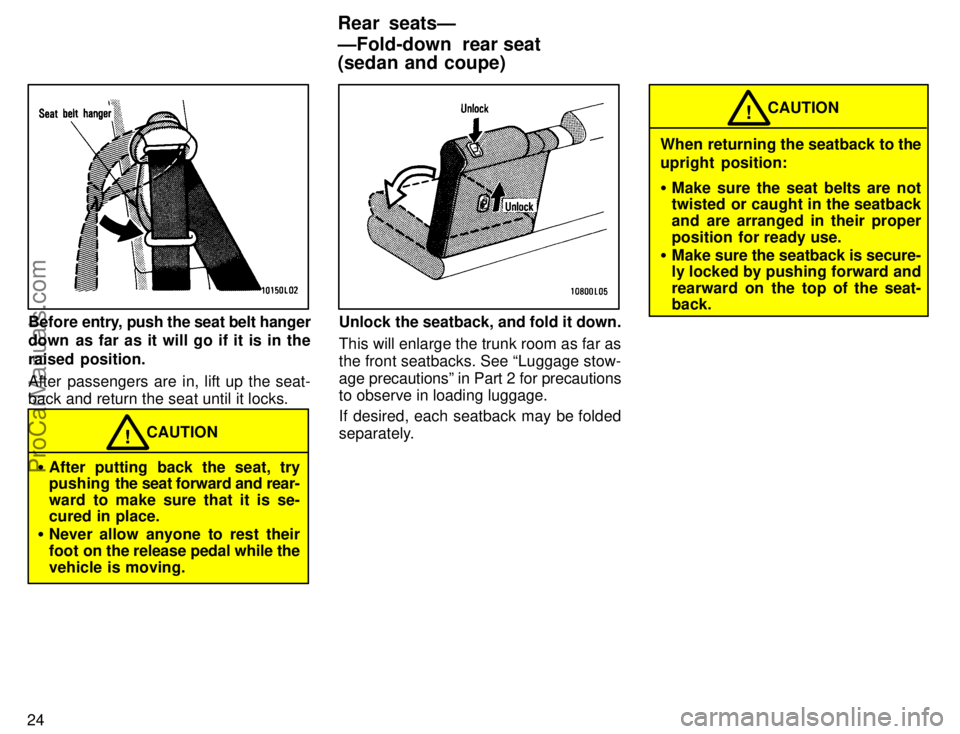

CAUTION!

After putting back the seat, try
pushing the seat forward and rear-
ward to make sure that it is se-
cured in place.

Never allow anyone to rest their
foot on the release pedal while the
vehicle is moving.
Unlock the seatback, and fold it down.
This will enlarge the trunk room as far as
the front seatbacks. See Luggage stow-
age precautionsº in Part 2 for precautions
to observe in loading luggage.
If desired, each seatback may be folded
separately.
CAUTION!
When returning the seatback to the
upright position:

Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position for ready use.

Make sure the seatback is secure-
ly locked by pushing forward and
rearward on the top of the seat-
back.
Rear seatsÐ
ÐFold-down rear seat
(sedan and coupe)
ProCarManuals.com

25
BEFORE FOLDING REAR SEAT
Stow the rear seat belts facing the di-
rection shown in the illustration.
This prevents them from falling out when
you fold the seatback.
NOTICE
The seat belts must be stowed
before you fold the seatback.
FOLDING REAR SEAT
1. Swing the bottom cushion up by
pulling the lock release strap.
It is hinged at the front edge, so just lift it
up.
If desired, each bottom cushion may be
lifted separately.
CAUTION!
When returning the bottom cushion
to its original position:

Make sure the seat belts are not
twisted or caught under the bot-
tom cushion and are arranged in
their proper position for ready
use.

Make sure the bottom cushion is
securely locked by trying to pull
up the edge of the cushion near
the lock release straps.
ÐFold-down rear seat (wagon)
ProCarManuals.com
