TOYOTA CAMRY 1996 Workshop Manual
Manufacturer: TOYOTA, Model Year: 1996, Model line: CAMRY, Model: TOYOTA CAMRY 1996Pages: 226, PDF Size: 4.66 MB
Page 51 of 226
46

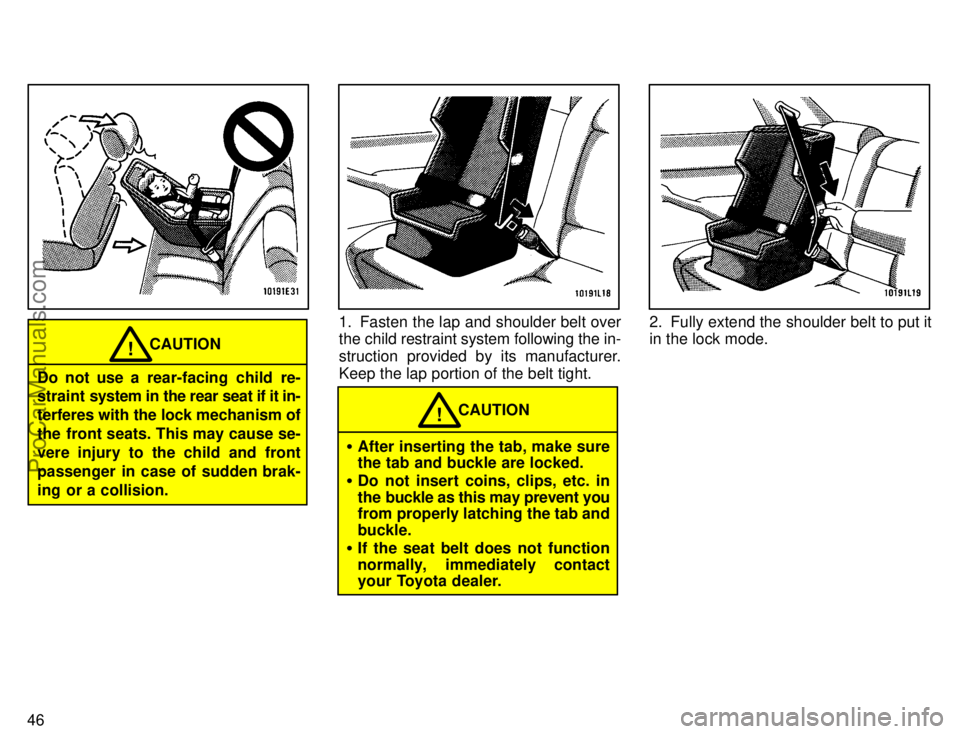

Do not use a rear-facing child re-
straint system in the rear seat if it in-
terferes with the lock mechanism of
the front seats. This may cause se-
vere injury to the child and front
passenger in case of sudden brak-
ing or a collision.
CAUTION!
1. Fasten the lap and shoulder belt over
the child restraint system following the in-
struction provided by its manufacturer.
Keep the lap portion of the belt tight.
CAUTION!
After inserting the tab, make sure
the tab and buckle are locked.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact
your Toyota dealer.
2. Fully extend the shoulder belt to put it
in the lock mode.
ProCarManuals.com
Page 52 of 226
47
3. Place the shoulder belt between the
vehicle seatback and the child restraint
system and allow it to retract. To hold the
child restraint system securely, let the
shoulder belt retract as far as it will go
while firmly pushing down the child re-
straint system.4. if your child restraint system requires
the use of a top strap, latch the hook onto
the anchor bracket and tighten the top
strap.
ProCarManuals.com
Page 53 of 226
48

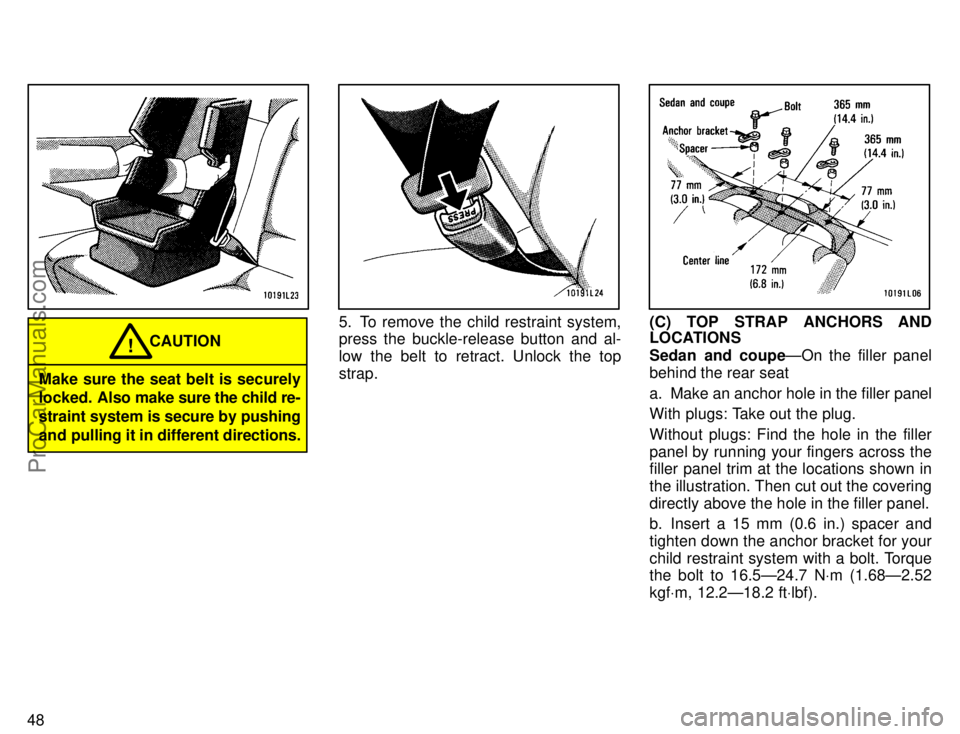

Make sure the seat belt is securely
locked. Also make sure the child re-
straint system is secure by pushing
and pulling it in different directions.
CAUTION!
5. To remove the child restraint system,
press the buckle-release button and al-
low the belt to retract. Unlock the top
strap.(C) TOP STRAP ANCHORS AND
LOCATIONS
Sedan and coupeÐOn the filler panel
behind the rear seat
a. Make an anchor hole in the filler panel
With plugs: Take out the plug.
Without plugs: Find the hole in the filler
panel by running your fingers across the
filler panel trim at the locations shown in
the illustration. Then cut out the covering
directly above the hole in the filler panel.
b. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 NVm (1.68Ð2.52
kgfVm, 12.2Ð18.2 ftVlbf).
ProCarManuals.com
Page 54 of 226
49 To comply with Canada Motor Vehicle
Safety Standards, vehicles sold in Cana-
da are provided with a bracket set in the
glovebox, designed for use with any of the
3 anchor locations shown in the illustra-
tion.
WagonÐOn the rear trim
a. Remove the rear trim and unplug the
connector of luggage compartment light.
b. Using the illustration as a guide, make
hole on the center of the cross mark in the
trim. Connect the connector of the lug-
gage compartment light and install the
trim.c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 NVm (1.68Ð2.52
kgfVm, 12.2Ð18.2 ftVlbf).
To comply with Canada Motor Vehicle
Safety Standards, vehicles sold in Cana-
da are provided with a bracket set in the
glovebox, designed for use with any of the
3 anchor locations shown in the illustra-
tion.
ProCarManuals.com
Page 55 of 226
50
(D) INSTALLATION ON FRONT SEAT

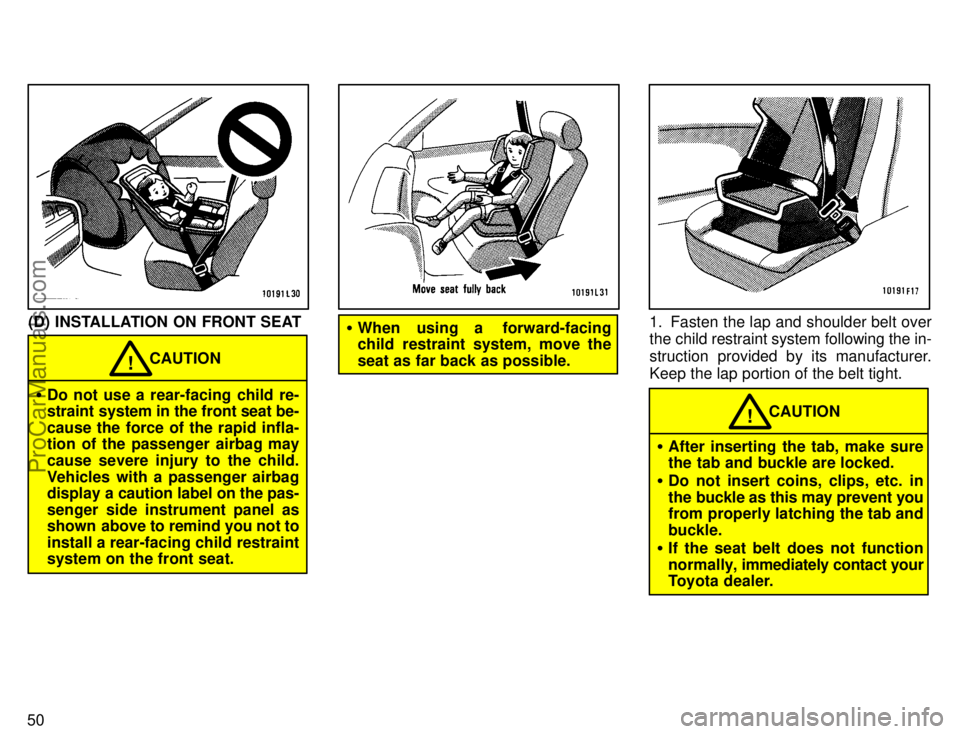

Do not use a rear-facing child re-
straint system in the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag may
cause severe injury to the child.
Vehicles with a passenger airbag
display a caution label on the pas-
senger side instrument panel as
shown above to remind you not to
install a rear-facing child restraint
system on the front seat.
CAUTION!
When using a forward-facing
child restraint system, move the
seat as far back as possible.1. Fasten the lap and shoulder belt over
the child restraint system following the in-
struction provided by its manufacturer.
Keep the lap portion of the belt tight.
CAUTION!
After inserting the tab, make sure
the tab and buckle are locked.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer.
ProCarManuals.com
Page 56 of 226
51
2. Fully extend the shoulder belt to put in
the lock mode.3. Place the shoulder belt between the
vehicle seatback and the child restraint
system and allow it to retract. To hold the
child restraint system securely, let the
shoulder belt retract as far as it will go
while firmly pushing down the child re-
straint system.4. If your child restraint system requires
the use of a top strap, latch the hook onto
the tab of the rear center belt and tighten
the top strap.
ProCarManuals.com
Page 57 of 226
52

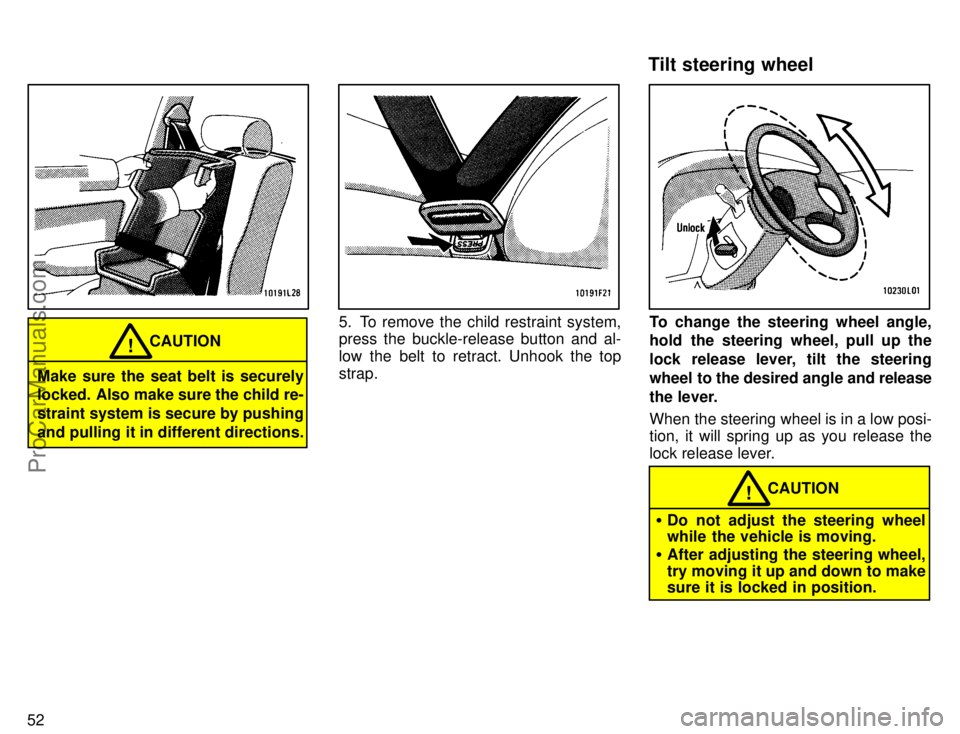

Make sure the seat belt is securely
locked. Also make sure the child re-
straint system is secure by pushing
and pulling it in different directions.
CAUTION!
5. To remove the child restraint system,
press the buckle-release button and al-
low the belt to retract. Unhook the top
strap.To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION!
Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Tilt steering wheel
ProCarManuals.com
Page 58 of 226
52
Make sure the seat belt is securely
locked. Also make sure the child re-
straint system is secure by pushing
and pulling it in different directions.
CAUTION!
5. To remove the child restraint system,
press the buckle-release button and al-
low the belt to retract. Unhook the top
strap.To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION!
Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Tilt steering wheel
ProCarManuals.com
Page 59 of 226
53
Adjust the mirror so you can see the
side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger's side.
It is a convex
mirror with a curved surface.
Any object seen in a convex mirror will
look smaller and farther away than when
seen in a flat mirror.
To adjust the rear view mirror, simply
operate the control lever.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the
mirror face. Use a spray de-icer to
free the mirror.
To adjust a power rear view mirror, first
place the master switch at Lº (left) or
Rº (right) depending on which mirror
needs adjusting, then push the con-
trol switch in the desired direction.
If the engine is not running, the key must
be in the ACCº position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the
mirror face. Use a spray de-icer to
free the mirror.
Outside rear view mirrorsÐÐRear view mirror remote
controlÐPower rear view mirror
control
ProCarManuals.com
Page 60 of 226
54
Pull the lever toward you to reduce
glare from the headlights of the ve-
hicle behind you during night driving.
Before adjusting the mirror to the position
with most clarity, push the day-night
change lever away from you (daylight
driving position).
Remember that by reducing glare you
also lose some rear view clarity.To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
Vanity mirrors Anti-glare inside rear view
mirror
ProCarManuals.com
