± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±29
2174 Author: Date:
INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
(a) Do a diagnostic system check.
(See page DI±626)
(b) Do a visual check which includes the following items with
the front passenger airbag assembly installed in the ve-
hicle.
Check cuts, minute cracks or marked discoloration on the
front passenger airbag assembly and instrument panel.
2. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
NOT DEPLOYED
(a) Do a diagnostic system check.
(See page DI±626)
(b) Do a visual check which includes the following items with
the front passenger airbag assembly removed from the
vehicle.

Check cuts, minute cracks or marked discoloration
on the front passenger airbag assembly.

Check cuts and cracks in wire harnesses, and for
chipping in connectors.

Check the deformation or cracks on the instrument
panel and instrument panel reinforcement.
HINT:

If the instrument panel or instrument panel reinforcement
is deformed or cracked, never repair it. Always replace it
with a new one.

There should be no interference between the instrument
panel and the front passenger airbag assembly.
CAUTION:
For removal and installation of the front passenger airbag
assembly, see page RS±28 and RS±38, and be sure to fol-
low the correct procedure.

RS±30
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2175 Author: Date:
3. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
DEPLOYED
(a) Do a diagnostic system check.
(See page DI±626)
(b) Do a visual check which includes the following items with
the front passenger airbag assembly removed from the
vehicle.

Check the deformation or cracks on the instrument
panel and instrument panel reinforcement.

Check the damage on the connector and wire har-
ness.
HINT:
If the instrument panel or instrument panel reinforcement is de-
formed or cracked, never repair it. Always replace it with a new
one.

RS05F±02
AB0152
SST
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±31
2176 Author: Date:
DISPOSAL
HINT:
When scrapping vehicle equipped with an SRS or disposing of
a front passenger airbag assembly, always first deploy the air-
bag in accordance with the procedure described below. If any
abnormality occurs with the airbag deployment, contact the
SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
When disposing of a front passenger airbag assembly with an
airbag deployed in a collision, follow the same procedure given
in step 1±(e) in ºDISPOSALº.
CAUTION:

Never dispose of a front passenger airbag assembly
which has an undeployed airbag.

The airbag produces a sizeable exploding sound
when it deploys, so perform the operation out±of±
doors and where it will not create a nuisance to
nearby residents.

When deploying the airbag, always use the specified
SST (SRS Airbag Deployment Tool). Perform the op-
eration in a place away from electrical noise.
SST 09082±00700

When deploying an airbag, perform the operation at
least 10 m (33 ft) away from the front passenger air-
bag assembly.

The front passenger airbag assembly is very hot
when the airbag is deployed, so leave it alone for at
least 30 minutes after deployment.

Use gloves and safety glasses when handling a front
passenger airbag assembly with deployed airbag.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front passenger airbag
assembly with deployed airbag.

AB0158
SSTBattery
H03287
H08317SST
R13455
10 m (33 ft) or more
H03286
RS±32
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2177 Author: Date:
1. AIRBAG DEPLOYMENT WHEN SCRAPPING VE-
HICLE
HINT:
Have a battery ready as the power source to deploy the airbag.
(a) Check functioning of the SST. (See page RS±18)
SST 09082±00700
(b) Disconnect the airbag connector.
(1) Remove the lower instrument cover inside the No.2
under cover.
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(2) Pull up the connector.
(3) Disconnect the airbag connector.
(c) Install the SST.
(1) Connect the connector of 2 SST to the front passen-
ger airbag assembly connector.
SST 09082±00700, 09082±00760
NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.
(2) Move the SST to at least 10 m (33 ft) away from the
front of the vehicle.
(3) Close all the doors and windows of the vehicle.
NOTICE:
Take care not to damage the SST wire harness.
(4) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the negative (±) termi-
nal.
(d) Deploy the airbag.
(1) Check that no one is inside the vehicle or within 10
m (33 ft) area around the vehicle.
(2) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.

W03619
AB0163
Wire Harness
Diameter
Stripped Wire Harness Section
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±33
2178 Author: Date:
(e) Dispose of the front passenger airbag assembly.
CAUTION:

The front passenger airbag assembly is very hot
when the airbag is deployed, so leave it alone for at
least 30 minutes after deployment.

Use gloves and safety glasses when handling a front
passenger airbag assembly with deployed airbag.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front passenger airbag
assembly with deployed airbag.
(1) When scrapping a vehicle, deploy the airbag and
scrap the vehicle with the front passenger airbag
assembly still installed.
(2) When moving a vehicle for scrapping which has a
front passenger airbag assembly with deployed air-
bag, use gloves and safety glasses.
2. DEPLOYMENT WHEN DISPOSING OF FRONT PAS-
SENGER AIRBAG ASSEMBLY ONLY
NOTICE:

When disposing of the front passenger airbag assem-
bly only, never use the customer's vehicle to deploy
the airbag.

Be sure to follow the procedure given below when de-
ploying the airbag.
HINT:
Have a battery ready as the power source to deploy the airbag.
(a) Remove the front passenger airbag assembly.
(See page RS±28)
CAUTION:

When removing the front passenger airbag assembly,
work must be started 90 seconds after the ignition
switch is turned to the ºLOCKº position and the nega-
tive (±) terminal cable is disconnected from the bat-
tery.

Store the front passenger airbag assembly with the
airbag deployment side facing upward.
(b) Using a service±purpose wire harness for the vehicle, tie
down the front passenger airbag assembly to the tire.
Wire harness: Stripped wire harness section
1.25 mm
2
or more (0.0019 in.2 or more)

W03519
L
M
W03652
2 times or more
R08582
Width
Inner
Diam. RS±34
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2179 Author: Date:
CAUTION:
If the front passenger airbag assembly is tied down with
too thin wire harness, it may snap. This is highly danger-
ous. Always use a wire harness which is at least 1.25 mm
2
(0.0019 in.2).
HINT:
To calculate the square of the stripped wire harness section:
Square = 3.14 X (Diameter)
2 divided by 4
(1) Install the 2 bolts with washers in the 2 bolt holes in
the front passenger airbag assembly,
Bolt:
L: 35.0 mm (1.387 in.)
M: 6.0 mm (0.236 in.)
Pitch: 1.0 mm (0.039 in.)
NOTICE:

Tighten the bolts by hand until the bolts become diffi-
cult to turn.

Do not tighten the bolts too much.
(2) Using 3 wire harness, wind the wire harness at least
2 times each around the bolts installed on the front
passenger airbag assembly.
(3) Position the front passenger airbag assembly in-
side the tire with the airbag deployment side facing
inside.
Tire size: Must exceed the following dimensions±
Width: 185 mm (7.28 in.)
Inner diameter: 360 mm (14.17 in.)
CAUTION:

Make sure that the wire harness is tight. It is very dan-
gerous if looseness in the wire harness results in the
front passenger airbag assembly coming free due to
the shock from the airbag deploying.

Always tie down the front passenger airbag assembly
with the airbag deployment side facing inside.
NOTICE:
The tire will be marked by the airbag deployment, so use a
redundant tire.

AB0158
Battery
SST
H04528
Tires
(5 or more)
R05403
R09690
Battery
SSTFront Passenger
Airbag Assembly
10 m (33 ft) or more
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±35
2180 Author: Date:
(c) Check functioning of the SST.
SST 09082±00700
(d) Place tires.
(1) Place at least 2 tires under the tire to which the front
passenger airbag assembly is tied.
(2) Place at least 2 tires over the tire to which the front
passenger airbag assembly is tied. The top tire
should have the wheel installed.
(3) Tie the tires together with 2 wire harness.
CAUTION:
Make sure that the wire harness is tight. It is very danger-
ous if loose wire harness result in the tires coming free due
to the shock from the airbag deploying.
HINT:
Place the SST connector and wire harness inside tires. Provide
at least 1 m (3 ft) of slack for the wire harness.
(e) Install the SST.
Connect the connector of 2 SST to the front passenger
airbag assembly connector.
SST 09082±00700, 09082±00760
NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.
(f) Deploy the airbag.
(1) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(±) terminal.
(2) Check that no one is within 10 m (33 ft) area around
the tire which the front passenger airbag assembly
is tied to.
(3) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.

R09687
RS±36
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2181 Author: Date:
(g) Dispose of the front passenger airbag assembly.
CAUTION:

The front passenger airbag assembly is very hot
when the airbag is deployed, so leave it alone for at
least 30 minutes after deployment.

Use gloves and safety glasses when handling a front
passenger airbag assembly with deployed airbag.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front passenger airbag
assembly with deployed airbag.
(1) Remove the front passenger airbag assembly from
the tire.
(2) Place the front passenger airbag assembly in a vi-
nyl bag, tie the end tightly and dispose of it in the
same way as other general parts.

RS018±17
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
RS±37
2182 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the front passenger airbag assembly, instrument panel or instrument panel
reinforcement.
CaseReplacing part
If the airbag has been deployed.Front passenger airbag assembly
If the front passenger airbag assembly has been found to be faulty in trouble-
shooting.Front passenger airbag assembly
If the front passenger airbag assembly has been found to be faulty during
checking items. (See page RS±29)Front passenger airbag assembly
If the instrument panel has been found to be faulty during checking items.
(See page RS±29)Instrument panel
If the instrument panel reinforcement has been found to be faulty during
checking items. (See page RS±29)Instrument panel reinforcement
If the front passenger airbag assembly has been dropped.Front passenger airbag assembly
CAUTION:
For replacement of the front passenger airbag assembly, see page RS±28 and RS±38. Be sure to fol-
low the correct procedure.

RS019±05
W03509
H03288
RS±38
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2183 Author: Date:

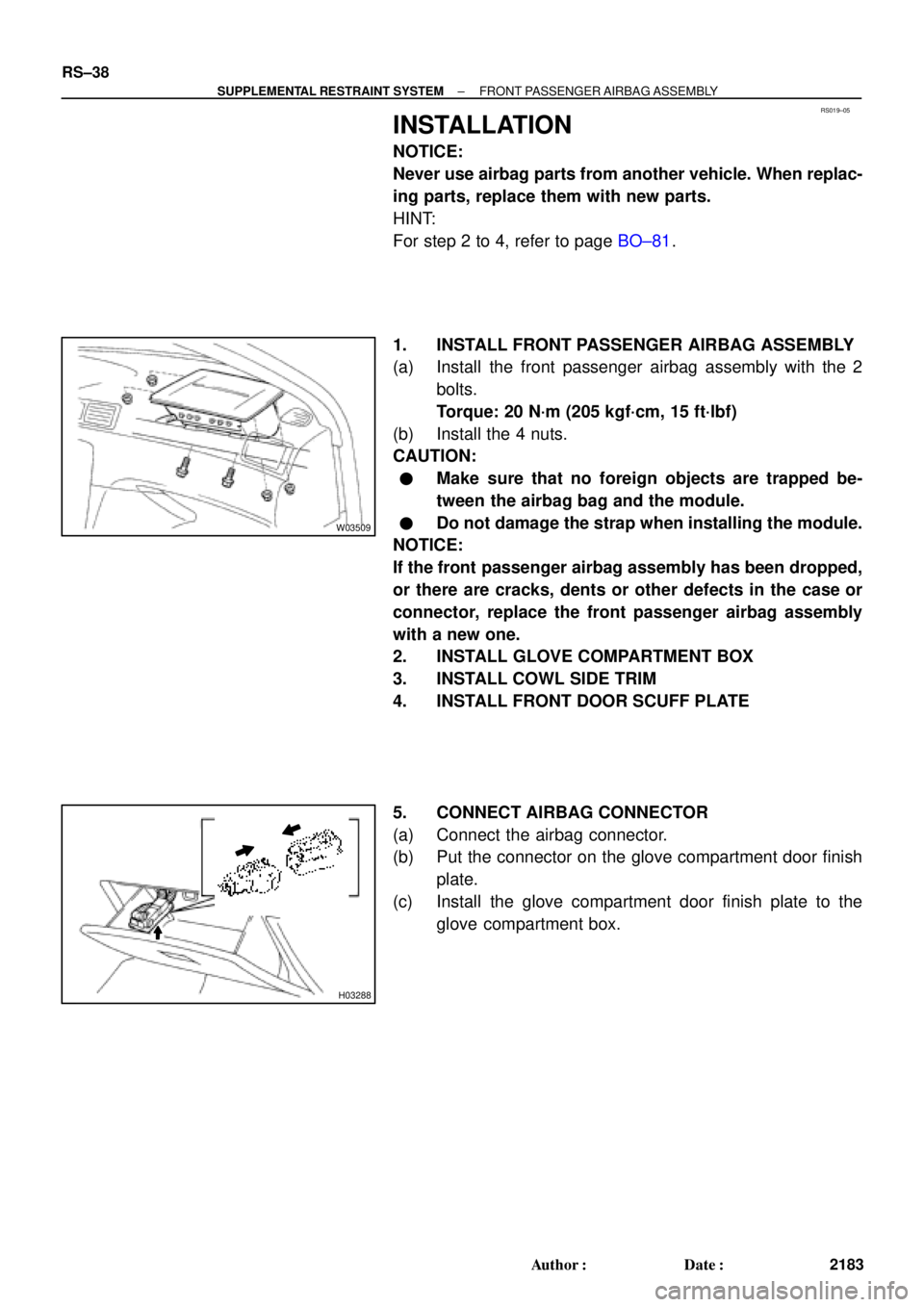

INSTALLATION
NOTICE:
Never use airbag parts from another vehicle. When replac-
ing parts, replace them with new parts.
HINT:
For step 2 to 4, refer to page BO±81.
1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
(a) Install the front passenger airbag assembly with the 2
bolts.
Torque: 20 N´m (205 kgf´cm, 15 ft´lbf)
(b) Install the 4 nuts.
CAUTION:

Make sure that no foreign objects are trapped be-
tween the airbag bag and the module.

Do not damage the strap when installing the module.
NOTICE:
If the front passenger airbag assembly has been dropped,
or there are cracks, dents or other defects in the case or
connector, replace the front passenger airbag assembly
with a new one.
2. INSTALL GLOVE COMPARTMENT BOX
3. INSTALL COWL SIDE TRIM
4. INSTALL FRONT DOOR SCUFF PLATE
5. CONNECT AIRBAG CONNECTOR
(a) Connect the airbag connector.
(b) Put the connector on the glove compartment door finish
plate.
(c) Install the glove compartment door finish plate to the
glove compartment box.
