TOYOTA CAMRY 1999 Service Repair Manual

RS05G±02
H08245

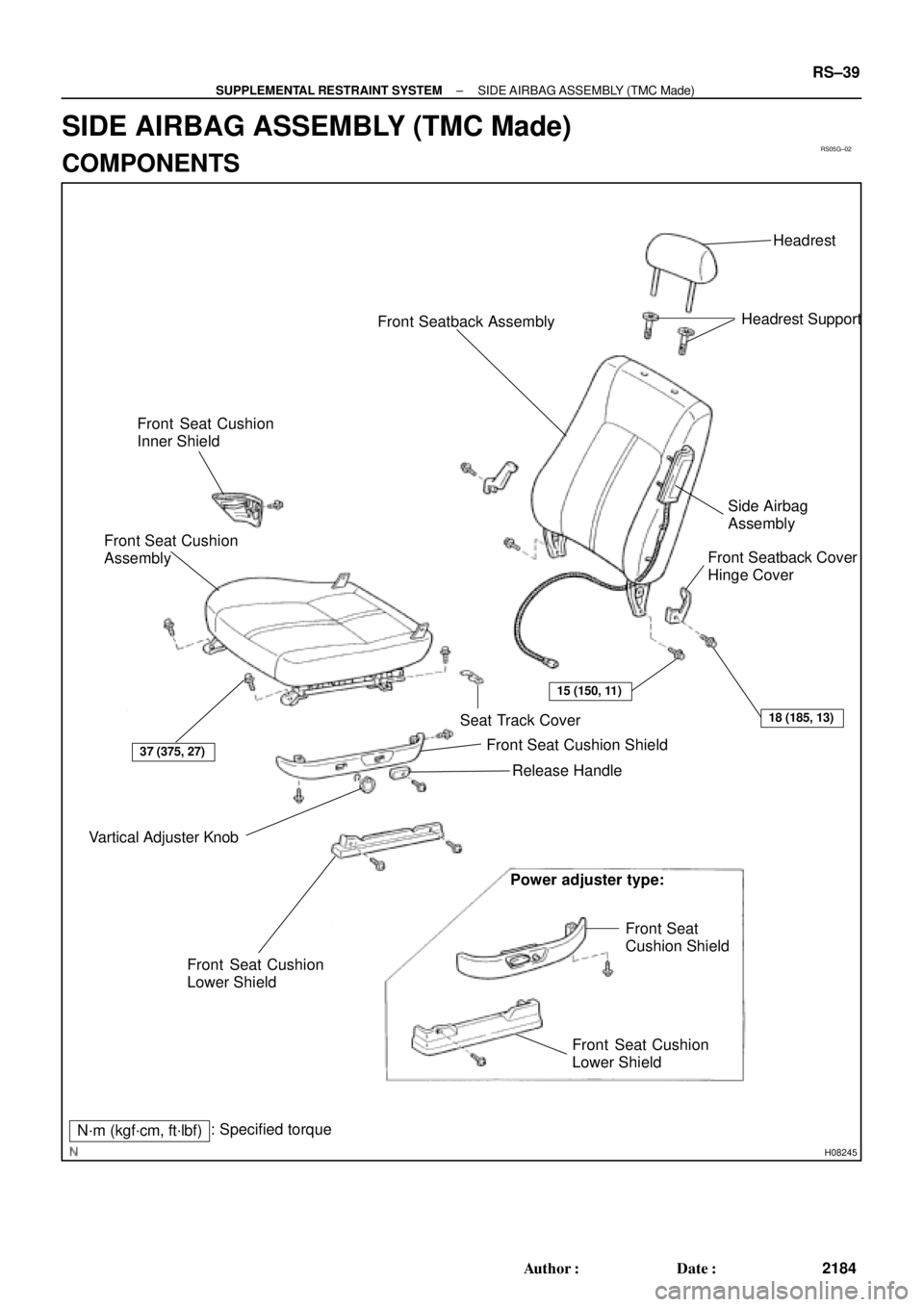

Headrest
Headrest Support
Side Airbag
Assembly
Front Seatback Cover
Hinge Cover
Front Seat Cushion Shield
Release Handle
Power adjuster type:
Front Seat
Cushion Shield
Front Seat Cushion
Lower Shield Vartical Adjuster Knob Front Seat Cushion
Inner Shield
Front Seat Cushion
Lower Shield
37 (375, 27)
15 (150, 11)
18 (185, 13)
N´m (kgf´cm, ft´lbf): Specified torqueFront Seatback Assembly
Front Seat Cushion
Assembly
Seat Track Cover
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±39
2184 Author: Date:
SIDE AIRBAG ASSEMBLY (TMC Made)
COMPONENTS

RS0EU±01
H02270
H02259
RS±40
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2185 Author: Date:
REMOVAL
NOTICE:

If the wiring connector of the SRS is disconnected
and the ignition switch is in ON or ACC position, DTCs
will be recorded.

Never use the airbag parts from another vehicle.
When replacing parts, replace them with new parts.
1. REMOVE FRONT SEAT
(a) Remove the 2 seat track covers and 4 bolts.
(b) Power adjuster type:
Disconnect the power seat and side airbag connectors.
(c) Manual adjuster type:
Disconnect the side airbag connector.
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(d) Remove the front seat.
NOTICE:
Be careful not to damage the body.
2. REMOVE FRONT SEAT CUSHION LOWER SHIELD
3. Manual adjuster type:
REMOVE RELEASE HANDLE
4. Manual adjuster type:
REMOVE VERTICAL ADJUSTER KNOB
5. Power adjuster type:
DISCONNECT CONNECTOR
Disconnect the connector from the power seat switch.
6. REMOVE FRONT SEAT CUSHION SHIELD
7. REMOVE FRONT SEAT CUSHION INNER SHIELD
8. REMOVE HEADREST
9. REMOVE HEADREST SUPPORT
10. REMOVE SEATBACK ASSEMBLY
(a) Remove the 4 bolts.
(b) Remove the hog rings.
(c) Remove the seatback assembly.

RS05I±02
H01608
Cross Section
H08274
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±41
2186 Author: Date:
INSPECTION
1. VEHICLE NOT INVOLVED IN COLLISION
(a) Do a diagnostic system check. (See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly installed in the vehicle.
Check that there are no cuts or frayed seams and outside
of seatback cover.
2. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
NOT DEPLOYED
(a) Do a diagnostic system check. (See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.

Check cuts and cracks of the side airbag assembly.

Check cuts and cracks in wire harnesses, and chip-
ping in connectors.
CAUTION:
For removal and installation of the seatback assembly, see
page RS±40 and RS±49. Be sure to follow the correct pro-
cedure.
3. VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
DEPLOYED
(a) Do a diagnostic system check.
(See page DI±626)
(b) Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.

Check the seatback installation part of the seat ad-
juster.

Check the damage to the connector and wire har-
ness.
HINT:
If the seat adjuster is deformed, never repair it. Always replace
it with a new one.

RS05J±02
AB0152
SST RS±42
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2187 Author: Date:
DISPOSAL
HINT:
When scrapping vehicles equipped with an SRS or disposing
of the side airbag assembly always first deploy the airbag in ac-
cordance with the procedure described below. If any abnormal-
ity occurs with the airbag deployment, contact the SERVICE
DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
When disposing of a side airbag assembly with an airbag
deployed in a collision, follow the same procedure given in step
1±(e) in ºDISPOSALº.
CAUTION:

Never dispose of a side airbag assembly which has
an undeployed airbag.

The airbag produces a sizeable exploding sound
when it deploys, so perform the operation out of
doors and where it will not create a nuisance to
nearby residents.

When deploying the airbag, always use the specified
SST (SRS Airbag Deployment Tool), perform the op-
eration in a place away from electrical noise.
SST 09082±00700

When deploying an airbag, perform the operation at
least 10 m (33 ft) away from the airbag assembly.

The side airbag assembly is very hot when the airbag
is deployed, so leave it alone for at least 30 minutes
after deployment.

Use gloves and safety glasses when handling side
airbag assembly with the deployed airbag.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a side airbag assembly with
the deployed airbag.

AB0158
Battery
SST
H01353
H01354
Battery
SST
R13455
10 m (33 ft) or more
H01326
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±43
2188 Author: Date:
1. AIRBAG DEPLOYMENT WHEN SCRAPPING VE-
HICLE
HINT:
Have a battery ready as the power source to deploy the airbag.
(a) Check functioning of the SST. (See page RS±18)
SST 09082±00700
(b) Disconnect the side airbag connector.
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(c) Install the SST.
(1) Connect the connector of 2 SST to the airbag con-
nector.
SST 09082±00700, 09082±00750
NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.
(2) Move the SST at least 10 m (33 ft) away from the
front of the vehicle.
(3) Close all the doors and windows of the vehicle.
NOTICE:
Take care not to damage the SST wire harness.
(4) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(±) terminal.
(d) Deploy the airbag.
(1) Check that no one is inside the vehicle or within 10
m (33 ft) area around the vehicle.
(2) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of SST activa-
tion switch lights up.

AB0163
Wire Harness
Diameter
Stripped Wire Harness Section RS±44
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2189 Author: Date:
(e) Dispose of side airbag assembly.
CAUTION:

The side airbag assembly is very hot when the airbag
is deployed, so leave it alone for at least 30 minutes
after deployment.

Use gloves and safety glasses when handling a side
airbag assembly with the deployed airbag.

Do not apply water, etc. to a side airbag assembly with
the deployed airbag.

Always wash your hands with water after completing
the operation.
When scrapping a vehicle, deploy the airbag and scrap
the vehicle with the side airbag assembly still installed.
2. DEPLOYMENT WHEN DISPOSING OF SIDE AIRBAG
ASSEMBLY
NOTICE:

When disposing of the side airbag assembly only,
never use the customer's vehicle to deploy the air-
bag.

Be sure to follow the procedure given below when de-
ploying the airbag.
HINT:
Have a battery ready as the power source to deploy the airbag.
(a) Remove the seatback assembly.
(b) Remove the side airbag assembly from the seatback as-
sembly.
CAUTION:
Store the side airbag assembly with the airbag deployment
side facing upward.
(c) Using a service±purpose wire harness tie down the side
airbag assembly.
Wire harness: Stripped wire harness section
1.25 mm
2
or more (0.0019 in2 or more)
CAUTION:
If a wire harness which is too thin or some other thing is
used to tie down the side airbag assembly, it may be
snapped by the shock when the airbag is deployed. This is
highly dangerous. Always use a wire harness for vehicle
use which is at least 1.25 mm
2 (0.0019 in2).
HINT:
To calculate the square of the stripped wire harness section:
Square = 3.14 x (Diameter)
2 divided by 4

H01333
H01334
H08326
Inner
Diam.Width
AB0158
SSTBattery
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±45
2190 Author: Date:
(1) Install the 2 nuts to the side airbag assembly.
(2) Wind the wire harness around the stud bolts of the
side airbag assembly as shown in the illustration.
(3) Position the side airbag assembly inside the tire
with the airbag deployment direction facing inside.
Tire size : Must exceed the following dimensions:±
Width 185 mm (7.28 in.)
Inner diameter 360 mm (14.17 in.)
CAUTION:

Make sure the wire harness is tight. It is very danger-
ous when a loose wire harness results in the side air-
bag assembly coming free due to the shock from the
airbag deploying.

Always tie down the side airbag assembly with the
airbag door facing inside.
NOTICE:
The tire will be marked by the airbag deployment, so when
disposing of the airbag use a redundant tire.
(d) Check functioning of the SST. (See page RS±18)
SST 09082±00700

H01336
Tires
(5 or More)
R05403
H0133710 m (33 ft) or more SSTBattery
Side Airbag
Assembly
H00544
RS±46
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2191 Author: Date:
(e) Place the tires.
(1) Place at least 2 tires under the tire to which the side
airbag assembly is tied.
(2) Place at least 2 tires over the tire to which the side
airbag assembly is tied. The top tire should have the
wheel installed.
(3) Tie the tires together with the 2 wire harnesses.
CAUTION:
Make sure that the wire harnesses are tight. It is very dan-
gerous when loose wire harnesses result in the tires com-
ing free due to the shock from the airbag deploying.
HINT:
Place the SST connector and wire harness inside tires. Secure
at least 1 m (3 ft) of slack for the wire harness.
(f) Install the SST.
Connect the connector of 2 SST to the side airbag assem-
bly connector.
SST 09082±00700, 09082±00750
(g) Deploy the airbag.
(1) Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(±) terminal.
(2) Check that no one is within 10 m (33 ft) area around
the tire which the side airbag assembly is tied to.
(3) Press the SST activation switch and deploy the air-
bag.
HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.
(h) Dispose of the side airbag assembly.
CAUTION:

The side airbag assembly is very hot when the airbag
is deployed, so leave it alone for at least 30 minutes
after deployment.

Use gloves and safety glasses when handling a side
airbag assembly with the deployed airbag.

Do not apply water etc. to a side airbag assembly with
the deployed airbag.

± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
RS±47
2192 Author: Date:

Always wash your hands with water after completing
the operation.
(1) Remove the side airbag assembly from the tire.
(2) Place the side airbag assembly in a vinyl bag, tie the
end tightly and dispose of it in the same way as oth-
er general parts disposal.

RS05K±02
RS±48
± SUPPLEMENTAL RESTRAINT SYSTEMSIDE AIRBAG ASSEMBLY (TMC Made)
2193 Author: Date:
REPLACEMENT
REPLACEMENT REQUIREMENTS
In the following cases, replace the seatback assembly or seatback cover.
CaseReplacing part
If the side airbag has been deployed.Seatback assembly
If the side airbag assembly has been found to be faulty in troubleshooting.Seatback assembly
If the side airbag assembly has cuts during checking items.
(See page RS±41)Seatback assembly
If the seatback cover has cuts and frayed seams during checking items.
(See page RS±41)Seatback cover
If the side airbag assembly has been found to be faulty during checking
items. (See page RS±41)Seatback assembly
If the seatback cover has been found to be faulty during checking items.
(See page RS±41)Seatback cover
If the seatback assembly has been dropped.Seatback assembly
CAUTION:
For removal and installation of the seatback assembly, see page RS±40 and RS±49. Be sure to follow
the correct procedure.
