TOYOTA CAMRY 2000 Service Repair Manual

COMBINATION METER
B2 BRAKE FLUID LEVEL WARNING SW
1±2 : Closed with the float down
C8 (A), C9 (B), C10 (C)
COMBINATION METER
(B) 2±GROUND : Approx. 12 volts with the ignition SW at ST position and the shift lever at P or N position (A/T)
Approx. 12 volts with the ignition SW at ST position and the clutch pedal depressed (M/T)
(A) 13, (C) 7±GROUND : Approx. 12 volts with the ignition SW at ON position
(B)11, (B) 12±GROUND: Always approx. 12 volts
(A) 2, (B) 9, (B) 16, (C) 5±GROUND : Always continuity
O1 OIL PRESSURE SW
1±GROUND : Closed with the oil pressure above approx. 20 kpa (2.8 psi, 0.2 kgf/cm
2)
P3 PARKING BRAKE SW
1±GROUND : Closed with the parking brake lever pulled up
W3 WATER TEMP. SENDER
1±GROUND : Approx. 160±240 W (50°C, 122°F)
Approx. 17.1±21.2 W (120°C, 248°F)
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
B226 (1MZ±FE)J531O129 (5S±FE)B228 (5S±FE)J7A31P127 (1MZ±FE)
C730J8B31P129 (5S±FE)
C8A30J1131P331
C9B30J1531R731
C10C30J1631V227 (1MZ±FE)
D6A30J2131V229 (5S±FE)D6B30J2431W127 (1MZ±FE)
D1030J2831W129 (5S±FE)
F1432J2931W327 (1MZ±FE)
J231J3031W329 (5S±FE)
J431O127 (1MZ±FE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1D20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)1G20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
1J20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1T20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
1W20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
2J22Cowl Wire and Engine Room J/B No.2 (Engine Compartment Left)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IF240Floor Wire and Instrument Panel Wire (Left Kick Panel)
IG140Instrument Panel Wire and Cowl Wire (Lower Finish Panel)IG240Instrument Panel Wire and Cowl Wire (Lower Finish Panel)
IG340Instrument Panel Wire and Cowl Wire (Under The Blower Motor)
II242Engine Wire and Cowl Wire (Under the Blower Motor)
IJ142Engine Wire and Instrument Panel Wire (Under the Blower Motor)
IK242Engine Room Main Wire and Cowl Wire (Right Kick Panel)
SERVICE HINTS

: GROUND POINTS
CodeSee PageGround Points Location
EB36 (1MZ±FE)Left Radiator Side SupportEB38 (5S±FE)Left Radiator Side Support
EC38 (5S±FE)Intake Manifold
ED36 (1MZ±FE)Rear Side of the Surge Tank
IF40Left Kick Panel
IG40Instrument Panel Brace LH
IH40Instrument Panel Brace RH
121213 9 8 7 6 5 4 3 2 1 10111213 12 8 7 5 4 3 2 1 9 10 116
16 11 10 9 8 5 4 3 2 1 12131467 1516 14 10 9 7 6 3 2 1 1112138 45 15
13 9 8 7 6 5 4 3 2 1 10111213 12 8 7 5 4 3 2 1 9 10 116
X
XX


8
XX


X


18


X

4
XXXX X
X X




14






12123



B B









BAAA AA
AAAAAAAAX X






DDDX







BBB



C7(TMMK Made) BLUEC8 (A)
C9 (B)
(TMMK Made) BROWNC10 (C)
(TMC Made) GRAY
D6 (A)
BLACK
F14 D10
BLACK
(Hint : See Page 7)J2BLACK ORANGE
(Hint : See Page 7)
(Hint : See Page 7)J4 J5GRAY
(Hint : See Page 7)J7 (A) B2 C8 (A)
C9 (B)
C10 (C)
D6 (B)
GRAY (TMC Made) BLUE
(TMC Made) (TMMK Made)
(TMC Made) BROWN
(TMMK Made)

COMBINATION METER

A
AA













FF





BB BB














AAAAAA






X

56






1
1132
12312
1
AA
AAAA










CCC






DDDEEE
AAA


AAA





B B









B
(Hint : See Page 7)
J24 J28 J29
GRAY GRAY GRAYP3BLACK
BLACK BLACK (5S±FE) GRAY(Hint : See Page 7)(Hint : See Page 7)
(Hint : See Page 7)J30 O1 P1 R7
V2 W1 W3
GRAYJ11BLACK BLACK
GRAY (Hint : See Page 7)(Hint : See Page 7)
(Hint : See Page 7)
(Hint : See Page 7)
(Hint : See Page 7)J8 (B) J15 J16
J21
1 (1MZ±FE) DARK GRAY
W3

MEMO

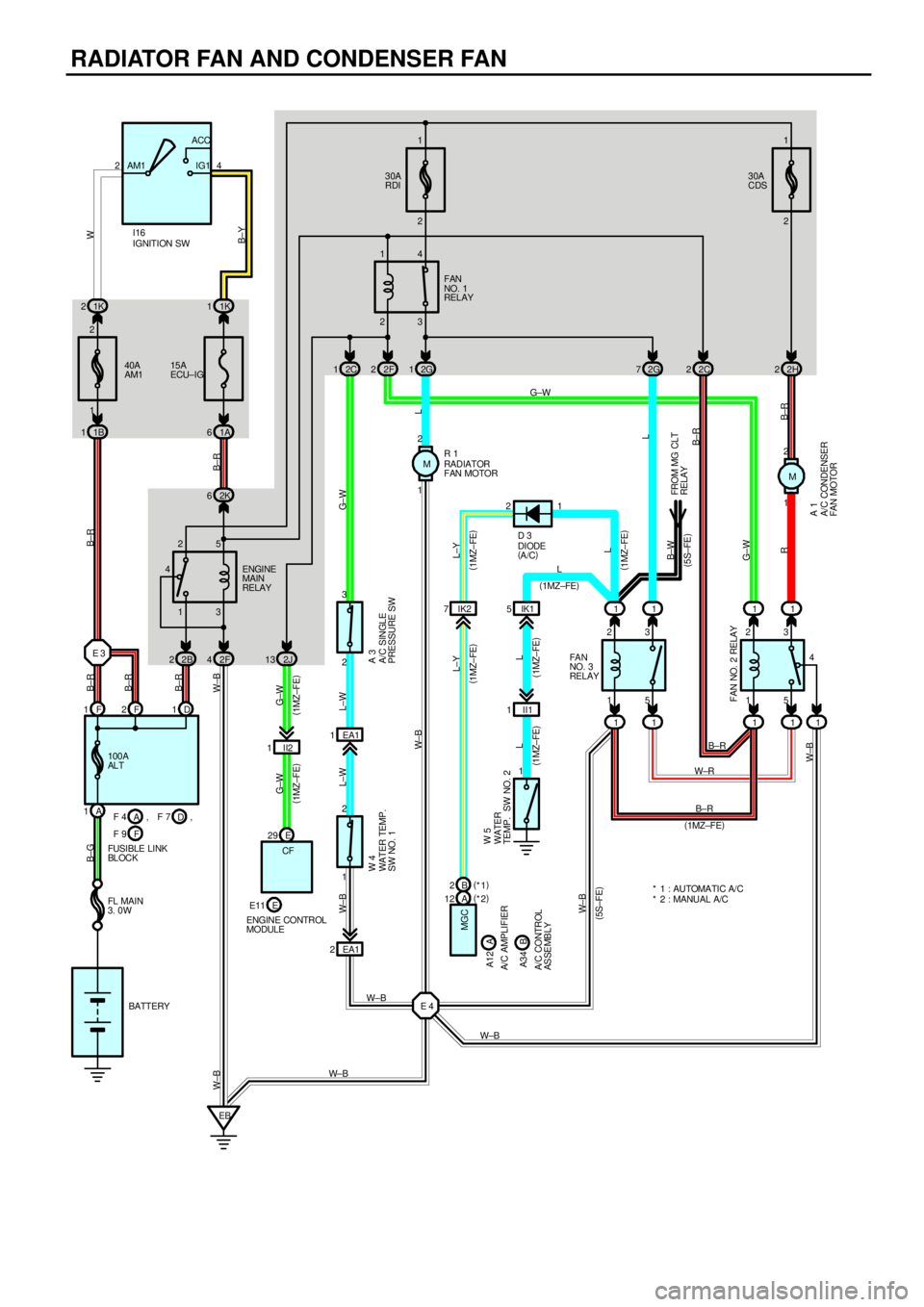

RADIATOR FAN AND CONDENSER FAN
40A
AM130A
CDS
15A
ECU±IG
1A 61K 1
15 2311
1115 23
4 11
111 13 4252K 6
2B 22F423 14
2F 22G1 30A
RDI
2 3
1 21 1 2
E 4 E 32C 12G 72C22H2
1B 11K 2
EA1 1IK1 5 IK2 7
II1 1
EA1 2 F 1F2D1
A 1
EB1 2
B±G B±R
B±R
B±R
W±B W±BB±R W
B±Y B±R
L G± W
W± BL±W L±W W± B
W±BR G±W
B±R L
B±R L
B±WL±Y
L L±Y
L
W± B
W± BW±B
W±BB±R W±RB±R G±W
(
1 MZ± FE) (
1 MZ± FE)L
(
1MZ±FE)
(
1MZ± FE) (
1 MZ± FE)
(
5S±FE)
(
1 MZ± FE)
(
5S±FE)
21
2
1
A 3
A/C SINGLE
PRESSURE SW W 4
WAT ER TEMP.
SW NO. 1
D 3
DIODE
(
A/C) R 1
RADIATOR
FAN MOTOR
WATER
TEMP. SW NO. 2 W 5
A/C CONDENSER
FAN MOTOR A 1FUSIBLE LINK
BL OC KIGNITION SW I16
FAN
NO. 1
RELAY
ENGINE
MAIN
RELAY
FROM MG CLT
RELAY
FA N
NO. 3
RELAY
FAN NO. 2 RELAY
BATTERY 100A
AL T
FL MAI N
3. 0W
MGC
(
1MZ±FE) 24AM1ACC
IG1
1 22 1
2J 13
II2 1
G±W G±W
CF
(
1MZ±FE) (
1MZ±FE)
E 29 D F 4
A, F 7
F 9 F
* 1 : AUTOMA TI C A/ C
* 2 : MANUAL A/C
E11
ENGINE CONTROL
MODULEE ,
A12
A/C AMPLIFIERA
A34
A/C CONTROL
AS SE MB LYB
A 12(
*2) B 2(
*1)M M

FAN MOTOR OPERATION (1MZ±FE)
With the ignition SW turned on, the current through the ECU±IG fuse flows to the FAN NO.1 relay (Coil side), FAN NO.2 relay
(Coil side) and FAN NO.3 relay (Coil side). Furthermore, the current through the FAN NO.1 relay (Coil side) or the FAN NO.2
relay (Coil side) flows to TERMINAL 3 of the A/C single pressure SW to TERMINAL 2 to TERMINAL 2 of the water temp. SW
No.1 to TERMINAL 1 to GROUND, causing the FAN NO.1 relay to turn off and the FAN NO.2 relay to turn on.
1. LOW SPEED OPERATION
Only when the A/C system is activated or the water temp. SW No.2 is turned on, the A/C condenser fan motor and the
radiator fan motor rotates at low speed.
When the A/C system is activated, the current from ECU±IG fuse flows to the FAN NO.3 relay (Coil side) to TERMINAL 1 of
the diode (A/C) to TERMINAL 2 to TERMINAL (A)12 of the A/C amplifier (Manual A/C) or (B) 2 of the A/C control assembly
(Automatic A/C) causing the FAN NO.3 relay to turn on. As a result, the current through the CDS fuse flows to TERMINAL 2
of the A/C condenser fan motor to TERMINAL 1 to TERMINAL 3 of the FAN NO.2 relay to TERMINAL 5 to TERMINAL 5 of
the FAN NO.3 relay to TERMINAL 3 to TERMINAL 2 of the radiator fan motor to TERMINAL 1 to GROUND. As this flowing in
series for the motors, the motors rotate at low speed.
When the water temp. SW No.2 is turned on, the current from ECU±IG fuse flows to the FAN NO.3 relay (Coil side) to
TERMINAL 1 of the water temp. SW No.2 to GROUND, causing the FAN NO.3 relay to turn on. As a result, the current
through the CDS fuse flows the same route as above, rotating the motors at low speed.
2. HIGH SPEED OPERATION
Only when the A/C single pressure SW is turned off or the water temp. SW No.1 is turned off, the A/C condenser fan motor
and the radiator fan motor rotate at high speed.
When the A/C single pressure SW is turned off, the current from the RDI fuse flows to the FAN NO.1 relay (Point side) to
TERMINAL 2 of the radiator fan motor to TERMINAL 1 to GROUND. At the same time, the current from the CDS fuse flows
to TERMINAL 2 of the A/C condenser fan motor to TERMINAL 1 to TERMINAL 3 of the FAN NO.2 relay to TERMINAL 4 to
GROUND.
As the current flowing in parallel for the motors as above, the motors rotate at high speed.
FAN MOTOR OPERATION (5S±FE)
With the ignition SW turned on, the current through the ECU±IG fuse flows to the FAN NO.1 relay (Coil side), FAN NO.2 relay
(Coil side). furthermore, the current through the FAN NO.1 relay (Coil side) or the FAN NO.2 relay (Coil side) flows to
TERMINAL 3 of the A/C single pressure SW to TERMINAL 2 to TERMINAL 2 of the water temp. SW No.1 to TERMINAL 1 to
GROUND, causing the FAN NO.1 relay to turn off and the FAN NO.2 relay to turn on.
1. LOW SPEED OPERATION
When the ignition SW is turned on and the A/C system is activated, the A/C condenser fan motor and the radiator fan motor
rotates at low speed.
When the A/C system is activated, the current from MG CLT relay flows to the FAN NO.3 relay (Coil side) to GROUND,
causing the FAN NO.3 relay to turn on. As a result, the current through the CDS fuse flows to TERMINAL 2 of the A/C
condenser fan motor to TERMINAL 1 to TERMINAL 3 of the FAN NO.2 relay to TERMINAL 5 to TERMINAL 5 of the FAN
NO.3 relay to TERMINAL 3 to TERMINAL 2 of the radiator fan motor to TERMINAL 1 to GROUND. As this flowing in series
for the motors, the motors rotate at low speed.
2. HIGH SPEED OPERATION
Only when the A/C single pressure SW is turned off or the water temp. SW No.1 is turned off, the A/C condenser fan motor
and the radiator fan motor rotate at high speed.
When the A/C single pressure SW is turned off, the current from the RDI fuse flows to the FAN NO.1 relay (Point side) to
TERMINAL 2 of the radiator fan motor to TERMINAL 1 to GROUND. At the same time, the current from the CDS fuse flows
to TERMINAL 2 of the A/C condenser fan motor to TERMINAL 1 to TERMINAL 3 of the FAN NO.2 relay to TERMINAL 4 to
GROUND.
As the current flowing in parallel for the motors as above, the motors rotate at high speed.
A3 A/C SINGLE PRESSURE SW
3±2 : Open above approx. 15.5 kgf/cm2
(224 psi, 1520 kpa)
Closed below approx. 12.5 kgf/cm2 (181 psi, 1225 kpa)
W4 WATER TEMP. SW NO.1
2±1 : Open above approx. 95°C (203° F)
W5 WATER TEMP. SW NO.2 (1MZ±FE)
1±GROUND : Closed above approx. 90°C (194°F)
SYSTEM OUTLINE
SERVICE HINTS

RADIATOR FAN AND CONDENSER FAN
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
A126 (1MZ±FE)E11E30I1630A128 (5S±FE)F4A26 (1MZ±FE)R127 (1MZ±FE)
A326 (1MZ±FE)F4A28 (5S±FE)R129 (5S±FE)A328 (5S±FE)F7D26 (1MZ±FE)W427 (1MZ±FE)
A12A30F7D28 (5S±FE)W429 (5S±FE)
A34B30F9F26 (1MZ±FE)W527 (1MZ±FE)
D326 (1MZ±FE)F9F28 (5S±FE)
: RELAY BLOCKS
CodeSee PageRelay Blocks (Relay Block Location)
124Engine Room R/B No.1 (Engine Compartment Left)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1A
1B20Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1K
()
2B
2C
2F22Engine Room Main Wire and Engine Room J/B No.2 (Engine Compartment Left)
2G
gg(g)
2H
2J22Cowl Wire and Engine Room J/B No 2 (Engine Compartment Left)2K22Cowl Wire and Engine Room J/B No.2 (Engine Compartment Left)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
EA136 (1MZ±FE)Engine Room Main Wire and Engine Room Main No 3 Wire (Radiator LH)EA138 (5S±FE)Engine Room Main Wire and Engine Room Main No.3 Wire (Radiator LH)
II142Engine Wire and Cowl Wire (Under the Blower Motor)II242Engine Wire and Cowl Wire (Under the Blower Motor)
IK142Engine Room Main Wire and Cowl Wire (Right Kick Panel)IK242Engine Room Main Wire and Cowl Wire (Right Kick Panel)
: GROUND POINTS
CodeSee PageGround Points Location
EB36 (1MZ±FE)Left Radiator Side SupportEB38 (5S±FE)Left Radiator Side Support
: SPLICE POINTS
CodeSee PageWire Harness with Splice PointsCodeSee PageWire Harness with Splice Points
E336 (1MZ±FE)Cowl WireE436 (1MZ±FE)Engine Room Main WireE338 (5S±FE)Cowl WireE438 (5S±FE)Engine Room Main Wire

2 1


23


X
X






X12




12
















X




29









X




1
1
12X2
4
X


2 1
12
121















X




29









X





2


X
















XX
XX
GRAY BLACK ORANGE
ORANGE (* 1) BLACK (1MZ±FE California)
F4 (A)
F7 (D)
ORANGEI16GRAY (1MZ±FE) GRAY
(5S±FE) GRAY* 1 : 1MZ±FE Except California
A1 A3 A12 (A)
D3 E11 (E) E11 (E)
F9 (F) R1 W4
W4 W5A34 (B)

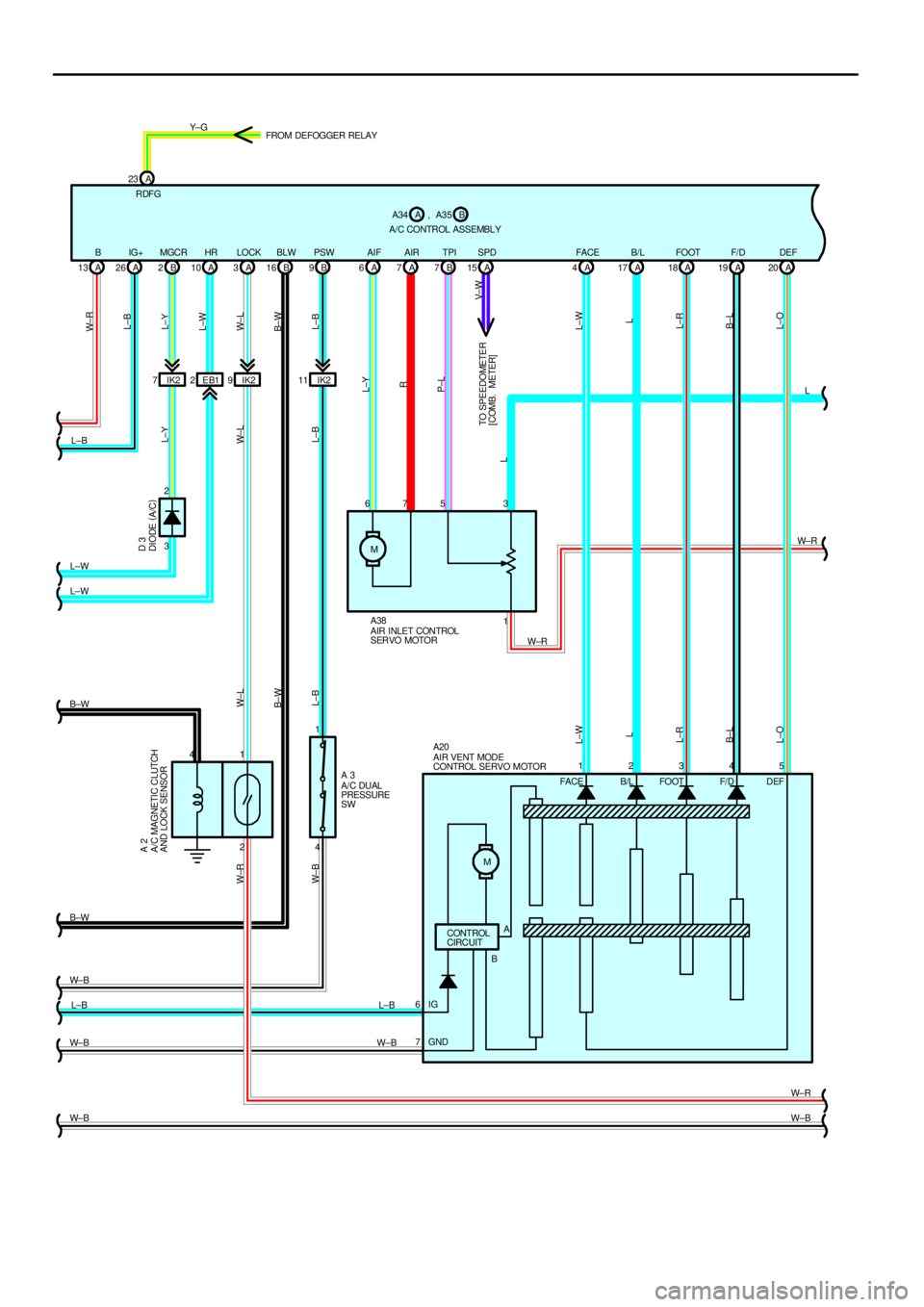

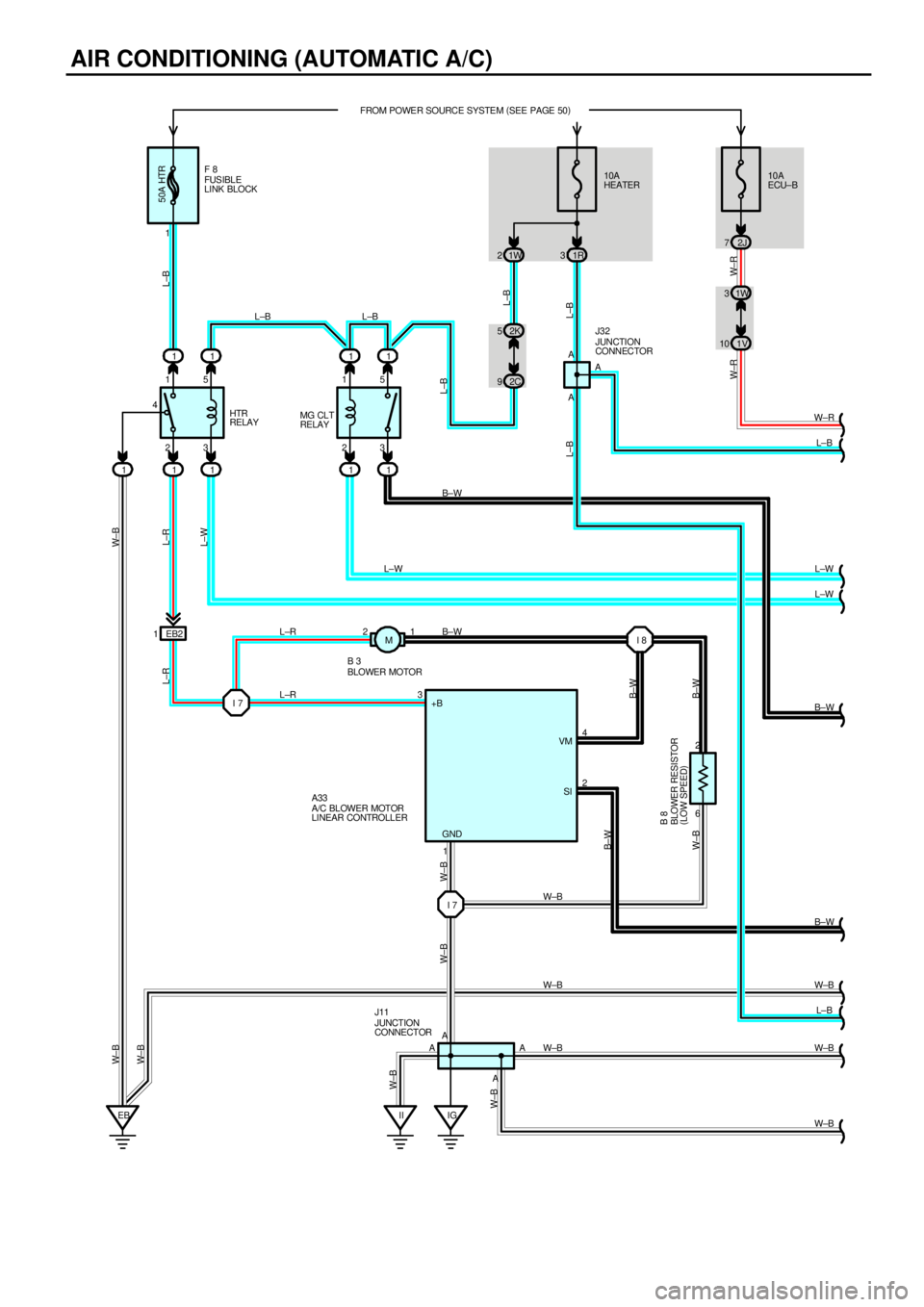

AIR CONDITIONING (AUTOMATIC A/C)
