TOYOTA CAMRY 2000 Service Repair Manual

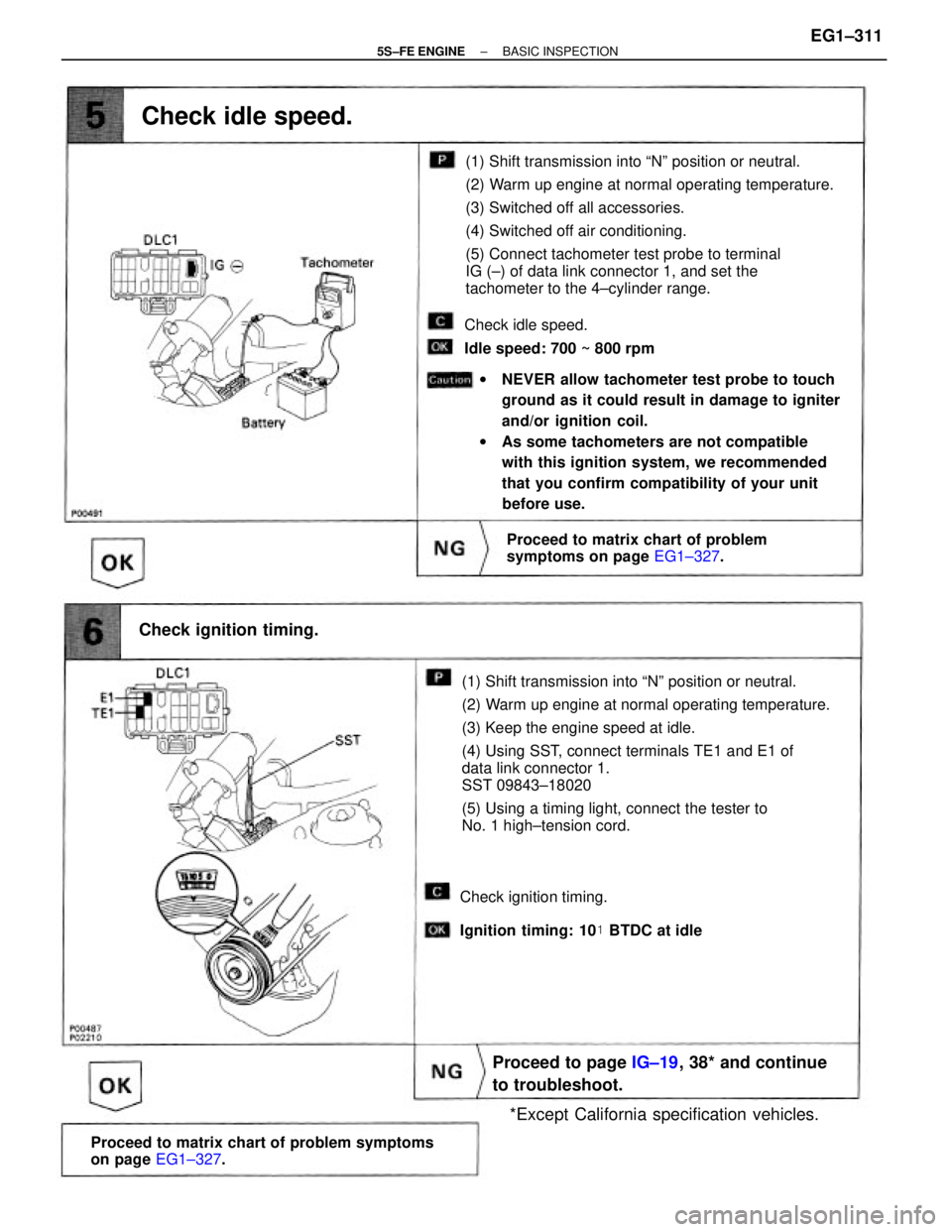

(1) Shift transmission into ªNº position or neutral.
(2) Warm up engine at normal operating temperature.
(3) Keep the engine speed at idle.
(4) Using SST, connect terminals TE1 and E1 of
data link connector 1.
SST 09843±18020
(5) Using a timing light, connect the tester to
No. 1 high±tension cord.(1) Shift transmission into ªNº position or neutral.
(2) Warm up engine at normal operating temperature.
(3) Switched off all accessories.
(4) Switched off air conditioning.
(5) Connect tachometer test probe to terminal
IG (±) of data link connector 1, and set the
tachometer to the 4±cylinder range.
wNEVER allow tachometer test probe to touch
ground as it could result in damage to igniter
and/or ignition coil.
wAs some tachometers are not compatible
with this ignition system, we recommended
that you confirm compatibility of your unit
before use.
Proceed to matrix chart of problem symptoms
on page EG1±327.
Proceed to page IG±19, 38* and continue
to troubleshoot.
Proceed to matrix chart of problem
symptoms on page EG1±327.
*Except California specification vehicles. Check ignition timing.
Check idle speed.
Check idle speed.
Idle speed: 700 ~ 800 rpm
Check ignition timing.
Ignition timing: 10
BTDC at idle
± 5S±FE ENGINEBASIC INSPECTIONEG1±311

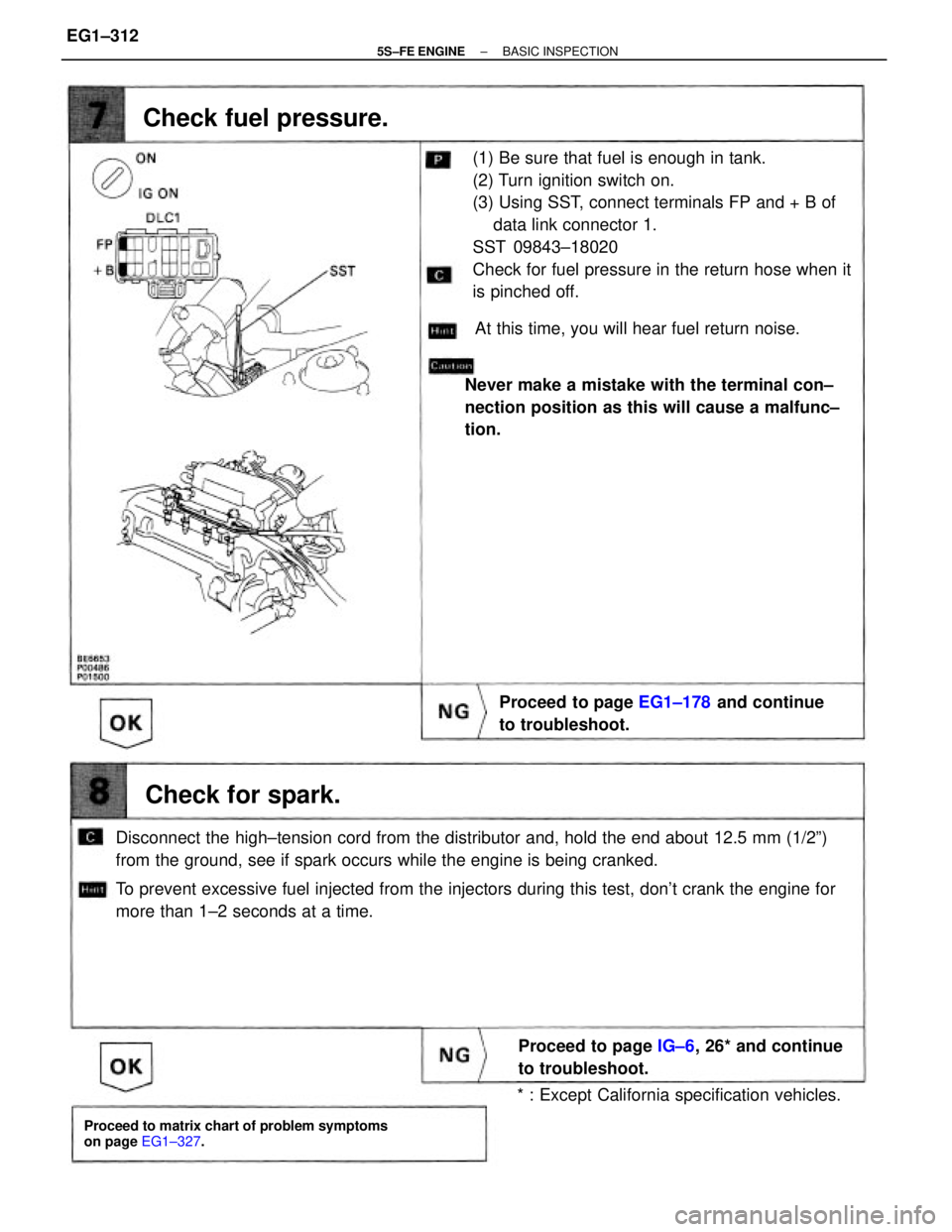

(1) Be sure that fuel is enough in tank.
(2) Turn ignition switch on.
(3) Using SST, connect terminals FP and + B of
data link connector 1.
SST 09843±18020
Check for fuel pressure in the return hose when it
is pinched off.
Disconnect the high±tension cord from the distributor and, hold the end about 12.5 mm (1/2º)
from the ground, see if spark occurs while the engine is being cranked.
To prevent excessive fuel injected from the injectors during this test, don't crank the engine for
more than 1±2 seconds at a time.Never make a mistake with the terminal con±
nection position as this will cause a malfunc±
tion.
Proceed to matrix chart of problem symptoms
on page EG1±327.
Proceed to page EG1±178 and continue
to troubleshoot.
Proceed to page IG±6, 26* and continue
to troubleshoot.
* : Except California specification vehicles.
Check fuel pressure.
Check for spark.
At this time, you will hear fuel return noise.
± 5S±FE ENGINEBASIC INSPECTIONEG1±312

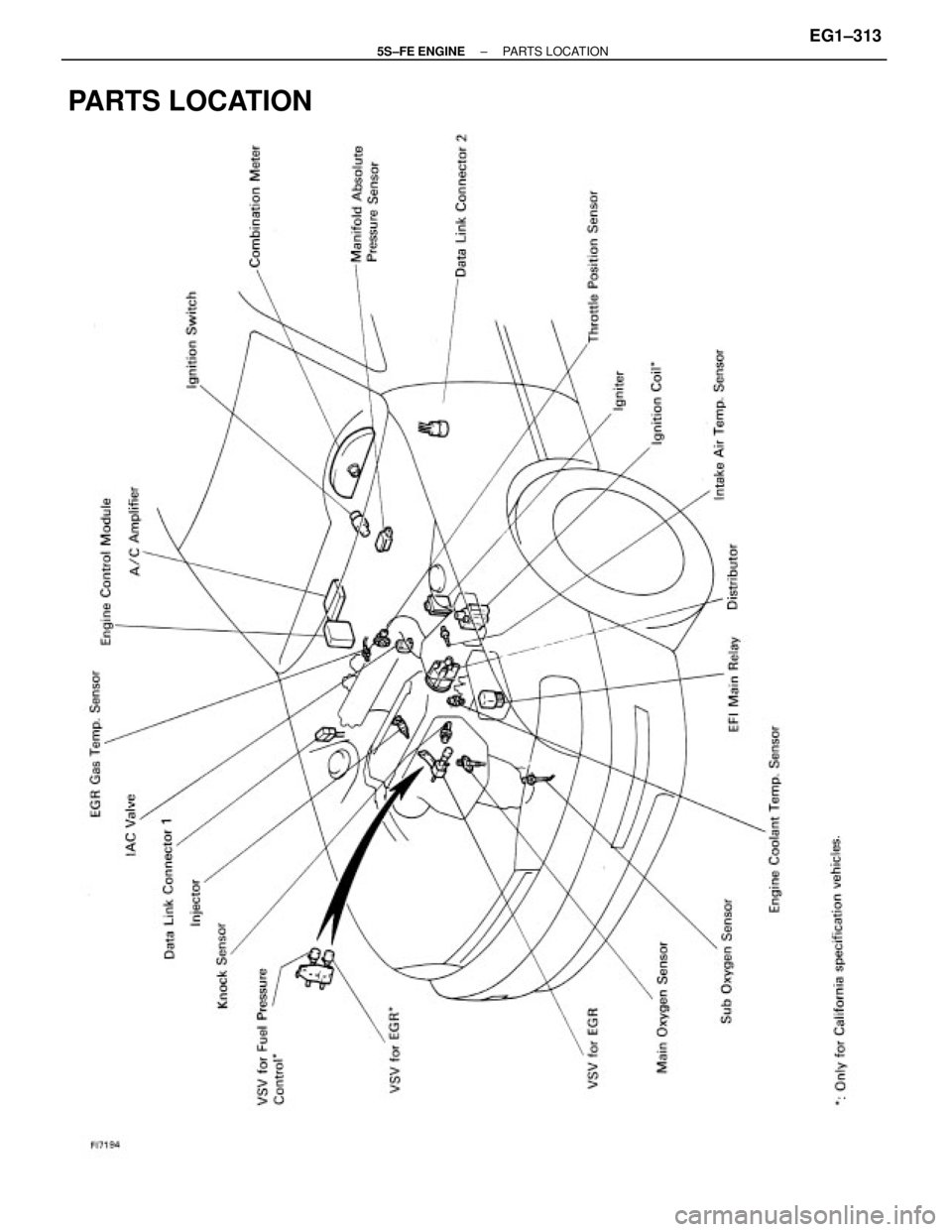

PARTS LOCATION
± 5S±FE ENGINEPARTS LOCATIONEG1±313

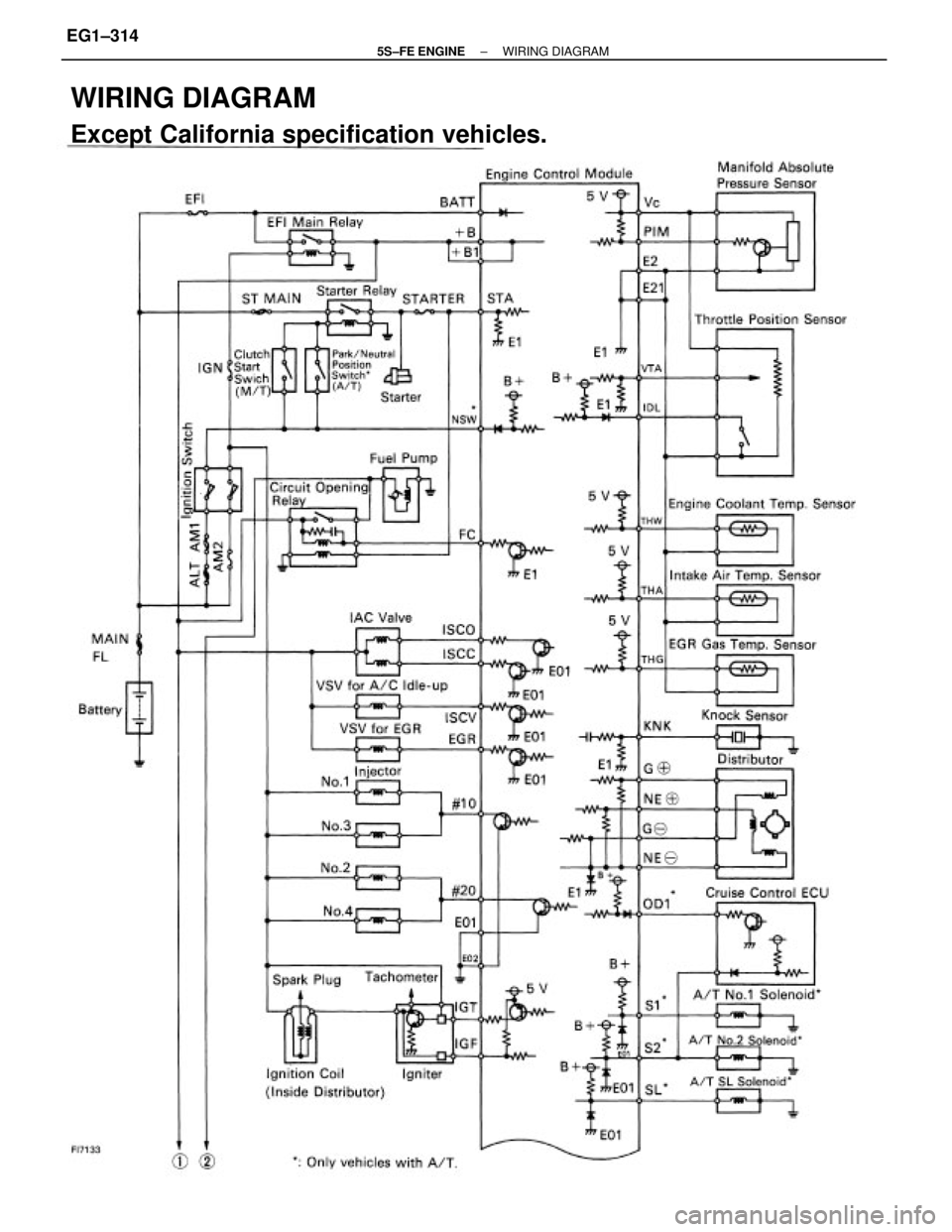

WIRING DIAGRAM
Except California specification vehicles.

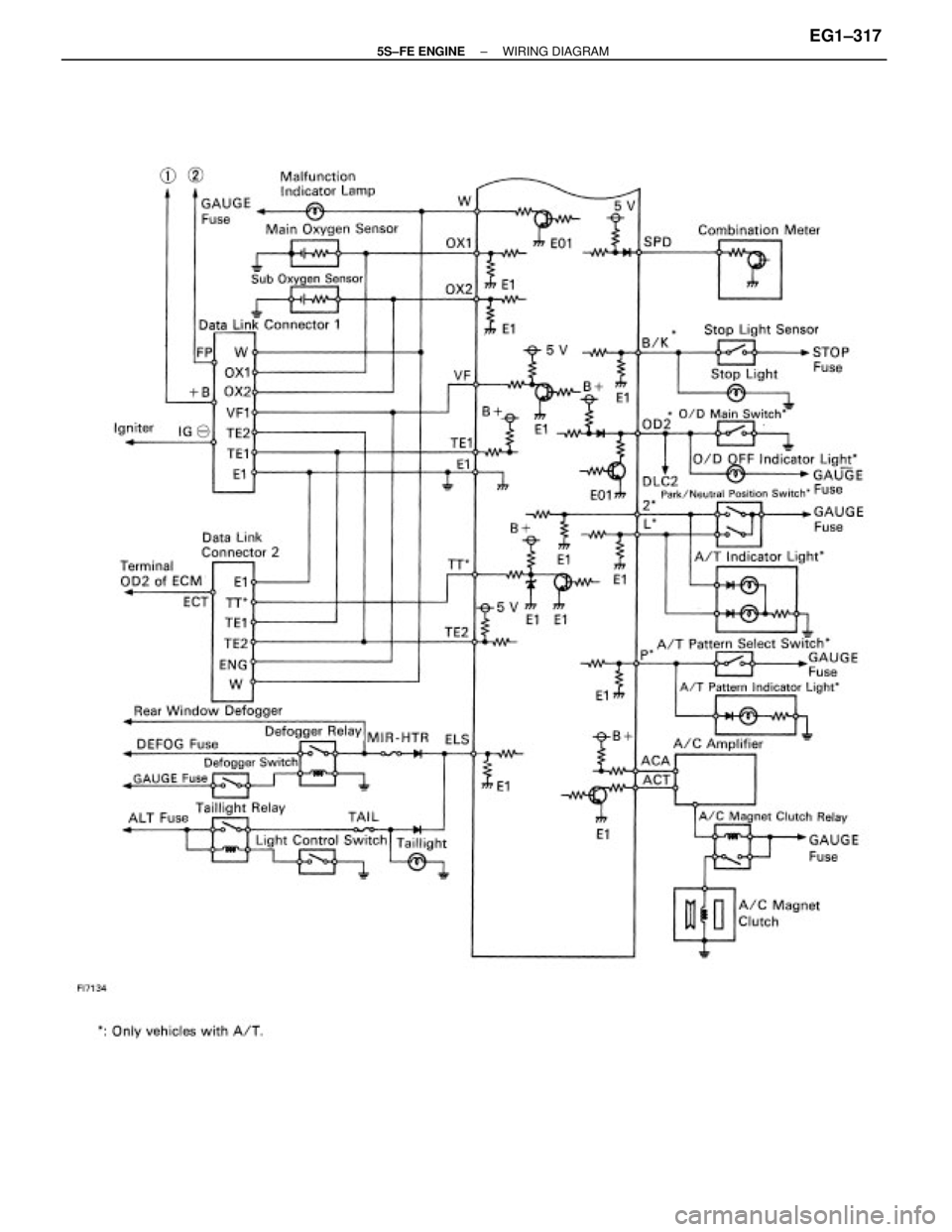

± 5S±FE ENGINEWIRING DIAGRAMEG1±314

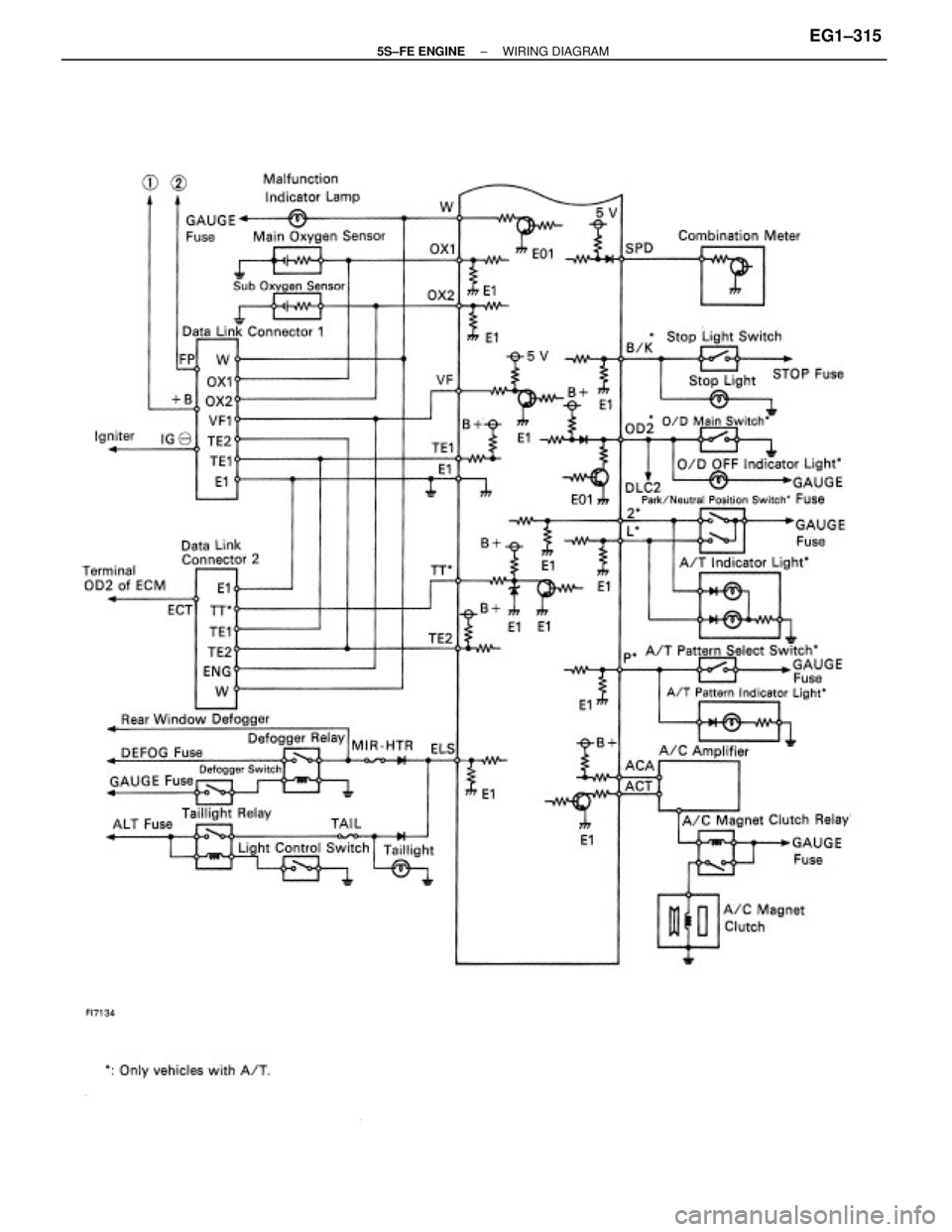

± 5S±FE ENGINEWIRING DIAGRAMEG1±315

WIRING DIAGRAM (Cont'd)
Only for California specification vehicles.

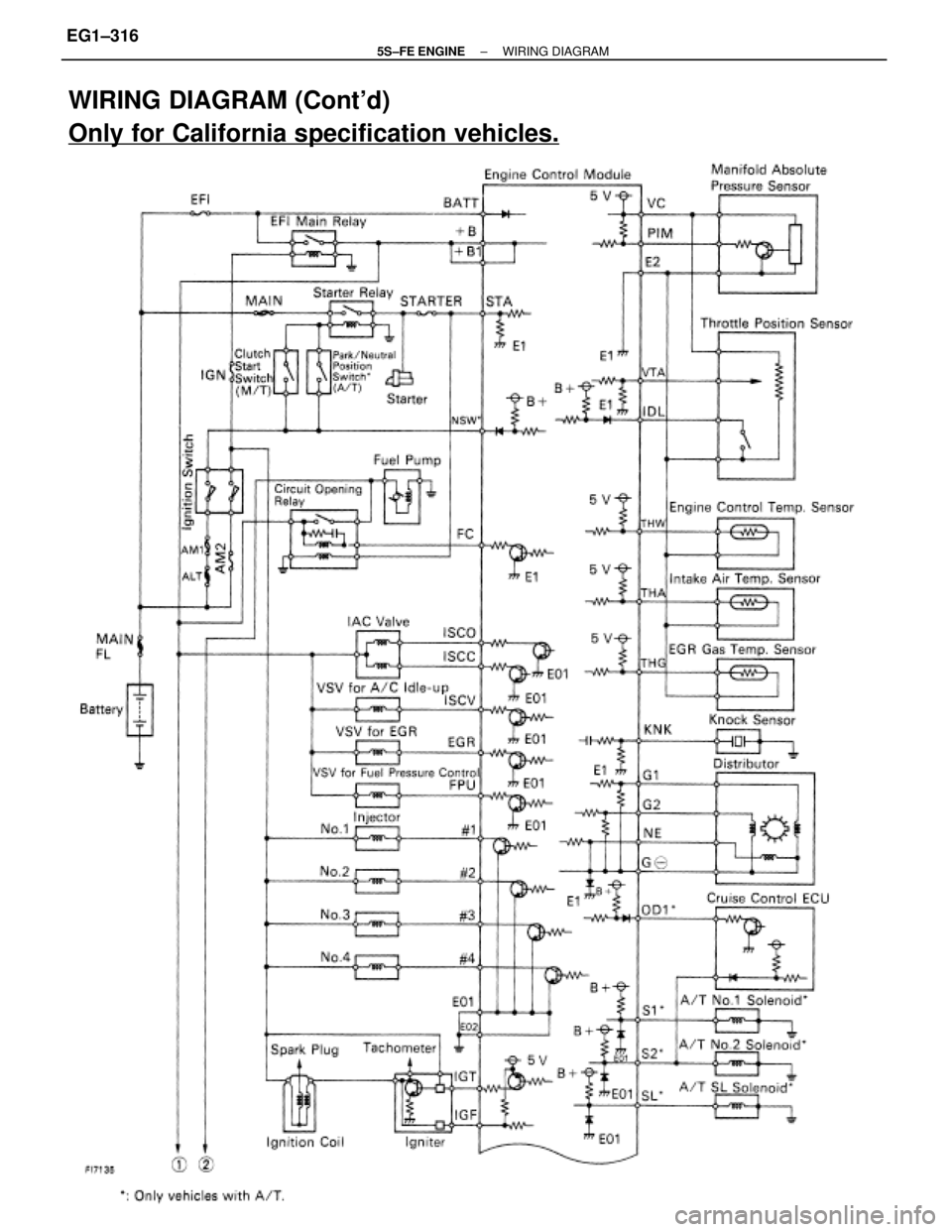

± 5S±FE ENGINEWIRING DIAGRAMEG1±316

± 5S±FE ENGINEWIRING DIAGRAMEG1±317

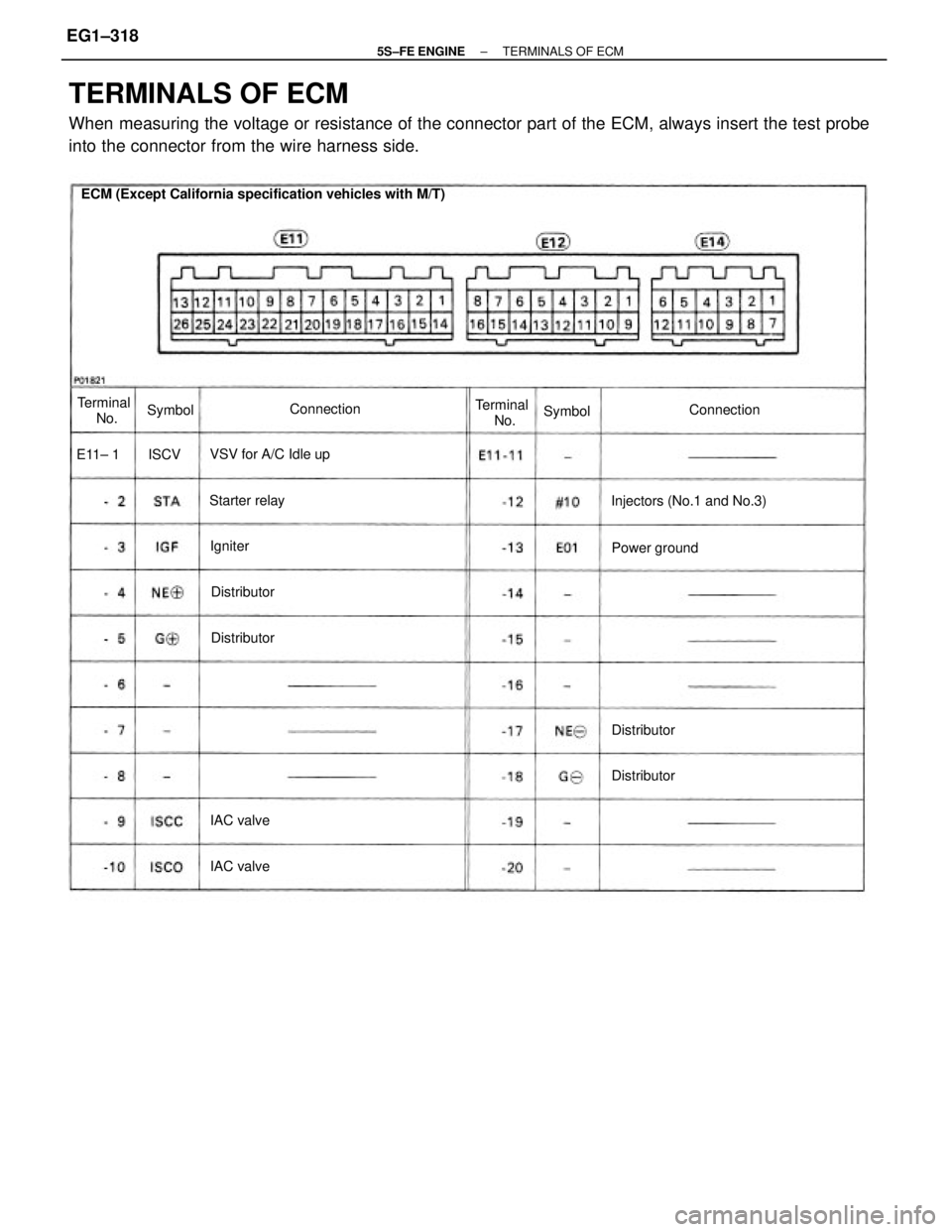

TERMINALS OF ECM
When measuring the voltage or resistance of the connector part of the ECM, always insert the test probe
into the connector from the wire harness side.
ECM (Except California specification vehicles with M/T)
Injectors (No.1 and No.3) VSV for A/C Idle upTerminal
No. Terminal
No.
Power ground Starter relayConnection
Connection
Distributor
Distributor
Distributor
Distributor
IAC valve
IAC valveSymbol Symbol
Igniter E11± 1 ISCV
± 5S±FE ENGINETERMINALS OF ECMEG1±318

wManifold absolute pressure sensor
wThrottle position sensor Manifold absolute pressure sensor
wDefogger relay
wTaillight relay Engine coolant temp. sensorData link connector 1 and 2
Data link connector 1 and 2Malfunction indicator lamp Injectors (No.2 and No.4)
No.1 vehicle speed sensorThrottle position sensor
Throttle position sensorIntake air temp. sensorEG R gas temp. sensor
Circuit opening relay
Main oxygen sensor
Data link connector 1Sub oxygen sensor Terminal
No.Terminal
No.
A/C amplifier
EFI main relayEFI main relay Sensor ground
Sensor groundA/C amplifier
Power ground
ECM groundConnection Connection
VSV for EG R
Knock sensorSymbol Symbol
Battery Igniter
± 5S±FE ENGINETERMINALS OF ECMEG1±319

ECM (California specification vehicles and except California specification vehicles with A/T)
*
: Only for California specification vehicles.
*: Except California specification vehicles with A/T.wManifold absolute pressure sensor
wThrottle position sensor

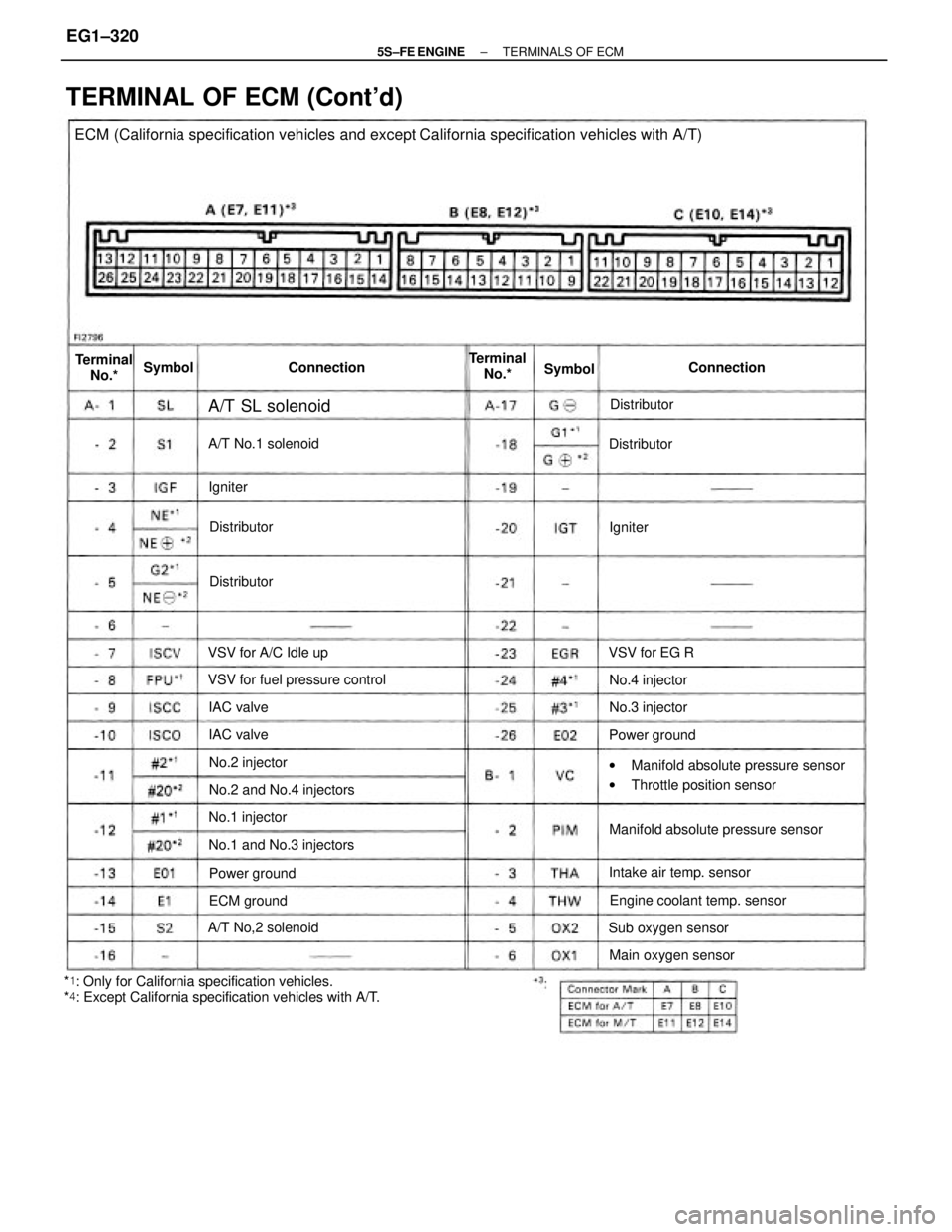

TERMINAL OF ECM (Cont'd)
Manifold absolute pressure sensor VSV for fuel pressure control
Engine coolant temp. sensor No.2 and No.4 injectors
No.1 and No.3 injectors
Intake air temp. sensor VSV for A/C Idle up
Main oxygen sensor Sub oxygen sensor A/T No.1 solenoid
A/T No,2 solenoid Terminal
No.*
A/T SL solenoid
Power ground
Power ground No.2 injector
No.1 injectorNo.4 injector
No.3 injector
ECM groundVSV for EG RConnection Connection
DistributorDistributor
Distributor Distributor
IAC valve IAC valveSymbol Symbol
Igniter IgniterTerminal
No.*
± 5S±FE ENGINETERMINALS OF ECMEG1±320
