Page 321 of 4770

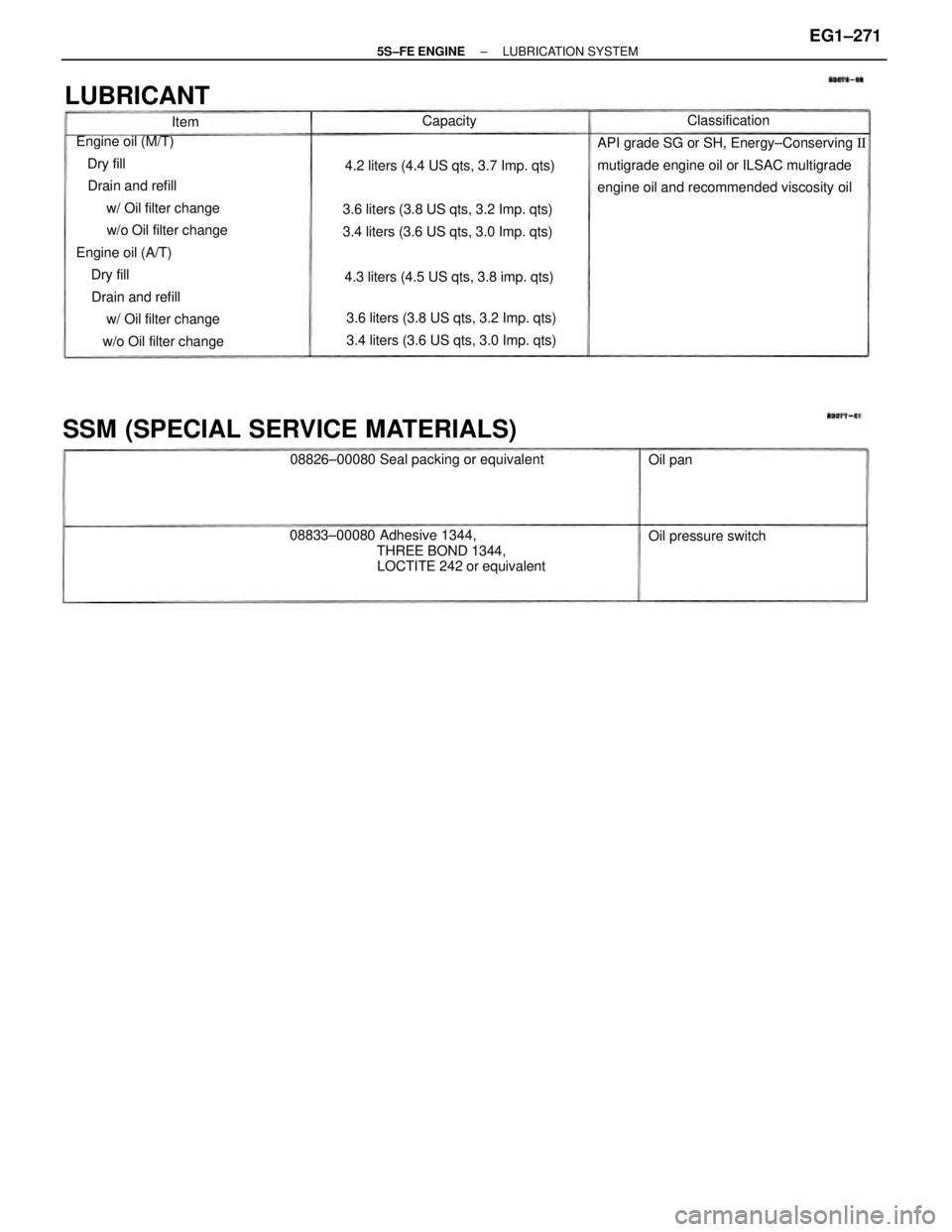

TOYOTA CAMRY 2000  Service Repair Manual Engine oil (M/T)
   Dry fill
   Drain and refill
        w/ Oil filter change
        w/o Oil filter change
Engine oil (A/T)
    Dry fill
    Drain and refill
        w/ Oil filter change
       w/o O

Page 322 of 4770

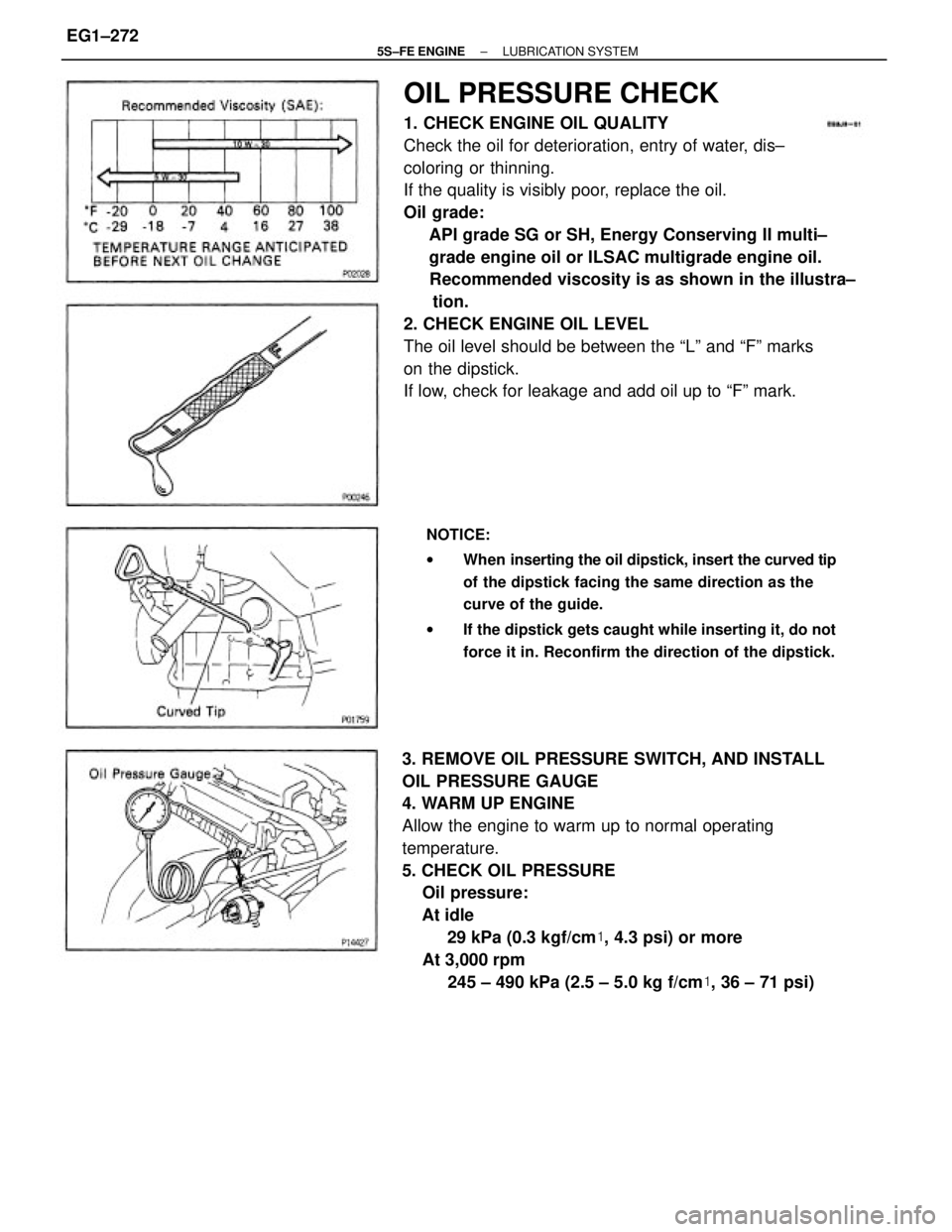

TOYOTA CAMRY 2000  Service Repair Manual OIL PRESSURE CHECK
1. CHECK ENGINE OIL QUALITY
Check the oil for deterioration, entry of water, dis±
coloring or thinning.
If the quality is visibly poor, replace the oil.
Oil grade:
     API grade S

Page 323 of 4770

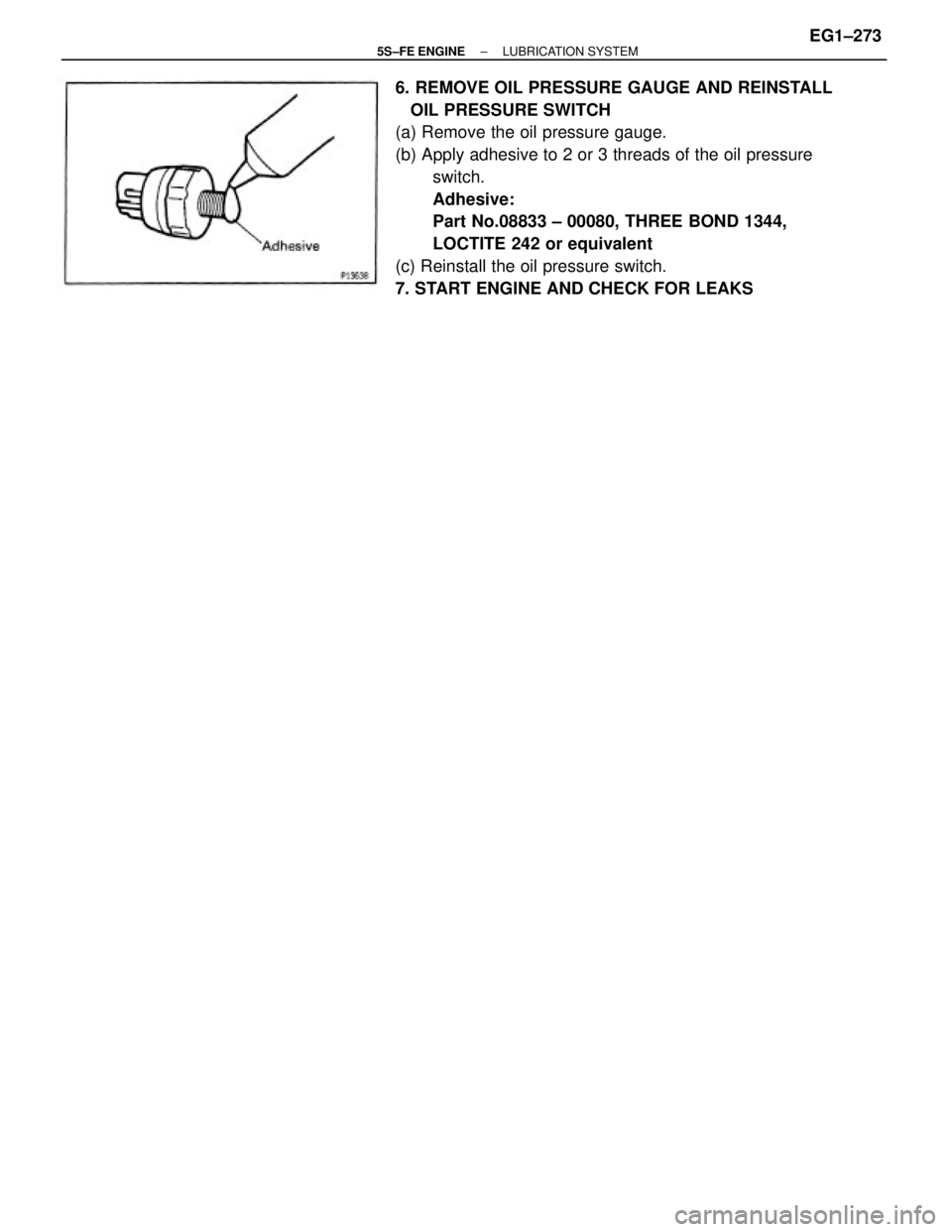

TOYOTA CAMRY 2000  Service Repair Manual 6. REMOVE OIL PRESSURE GAUGE AND REINSTALL
   OIL PRESSURE SWITCH
(a) Remove the oil pressure gauge.
(b) Apply adhesive to 2 or 3 threads of the oil pressure
switch.
Adhesive:
Part No.08833 ± 00080,

Page 324 of 4770

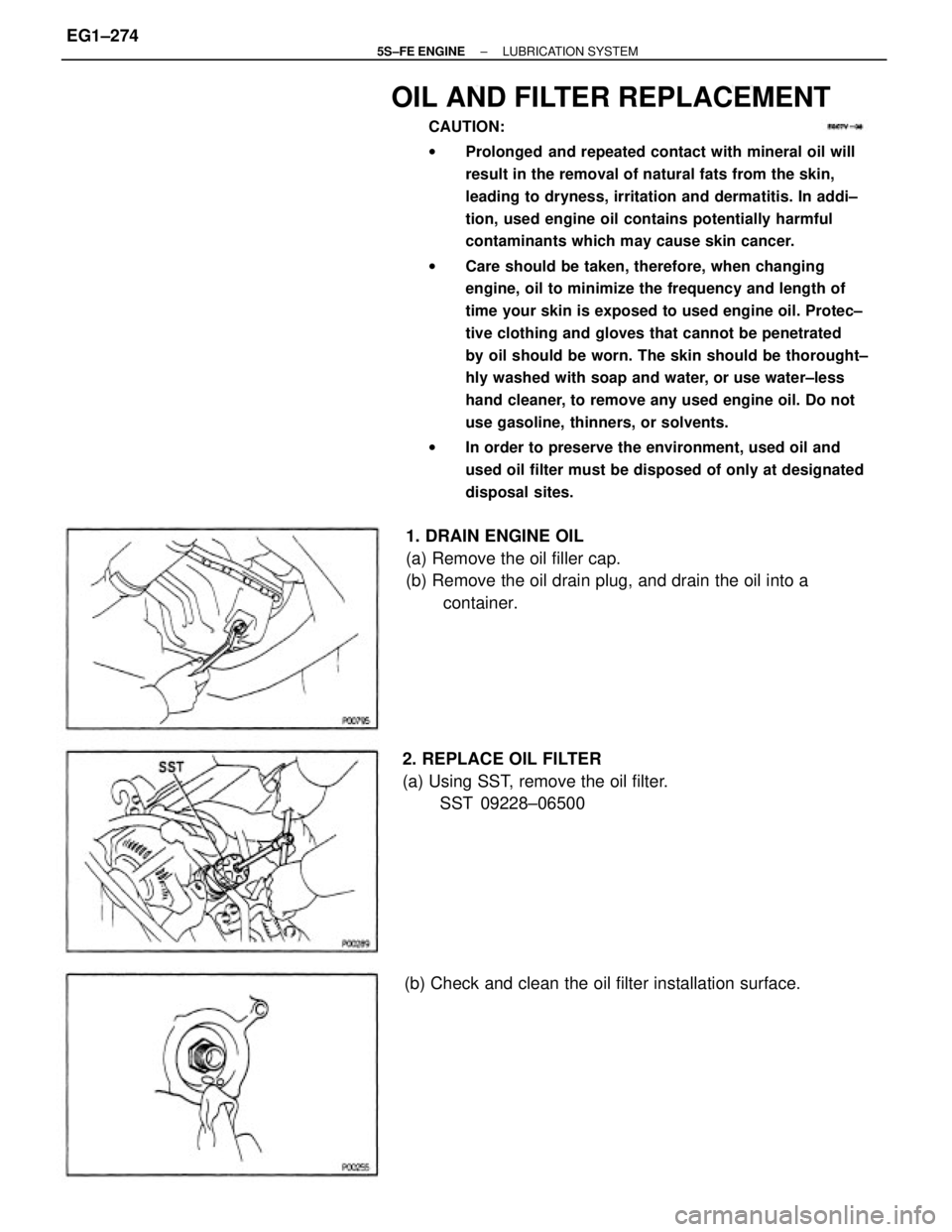

TOYOTA CAMRY 2000  Service Repair Manual OIL AND FILTER REPLACEMENT
CAUTION:
wProlonged  and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and dermatitis. In addi±

Page 325 of 4770

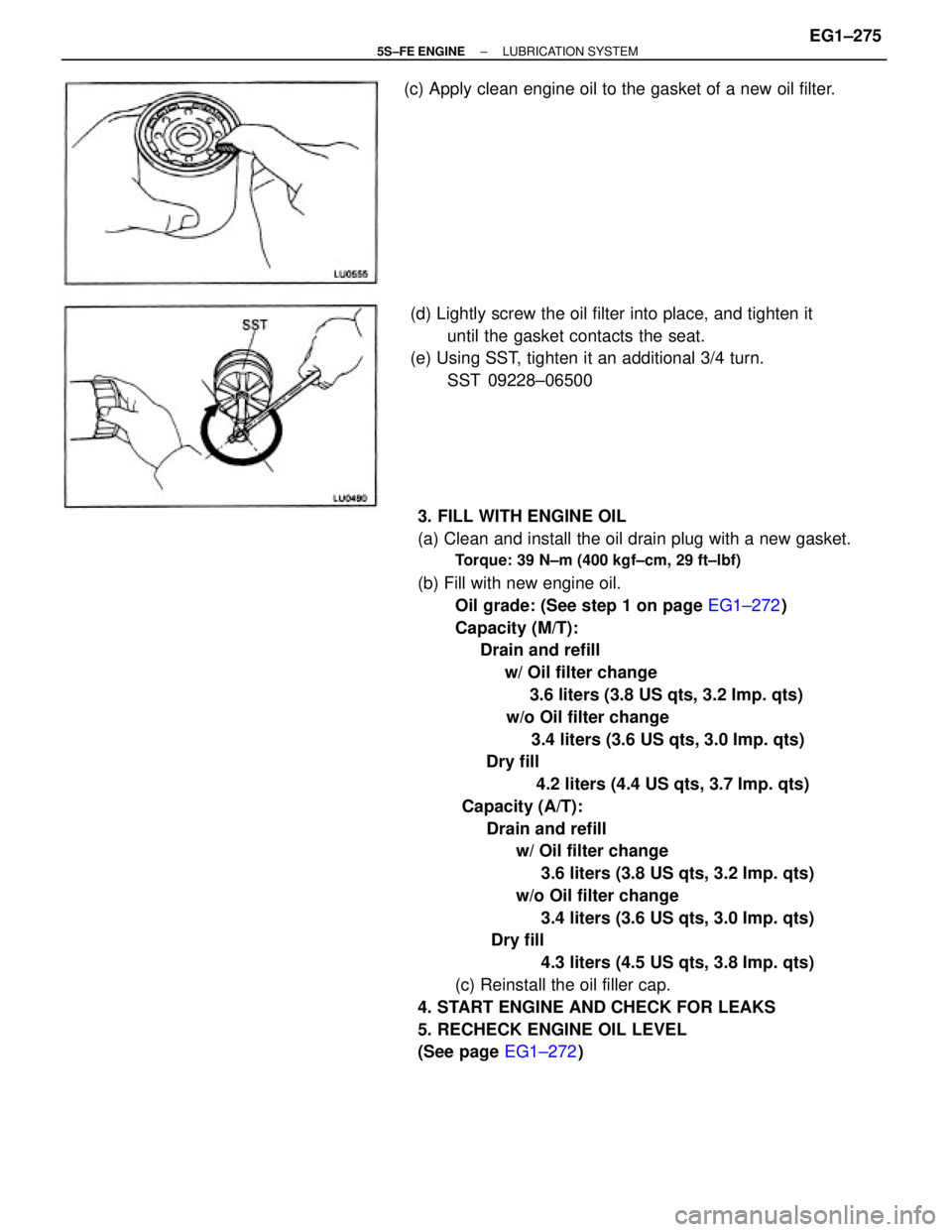

TOYOTA CAMRY 2000  Service Repair Manual 3. FILL WITH ENGINE OIL
(a) Clean and install the oil drain plug with a new gasket.
Torque: 39 N±m (400 kgf±cm, 29 ft±lbf)
(b) Fill with new engine oil.
Oil grade: (See step 1 on page EG1±272)
Cap

Page 326 of 4770

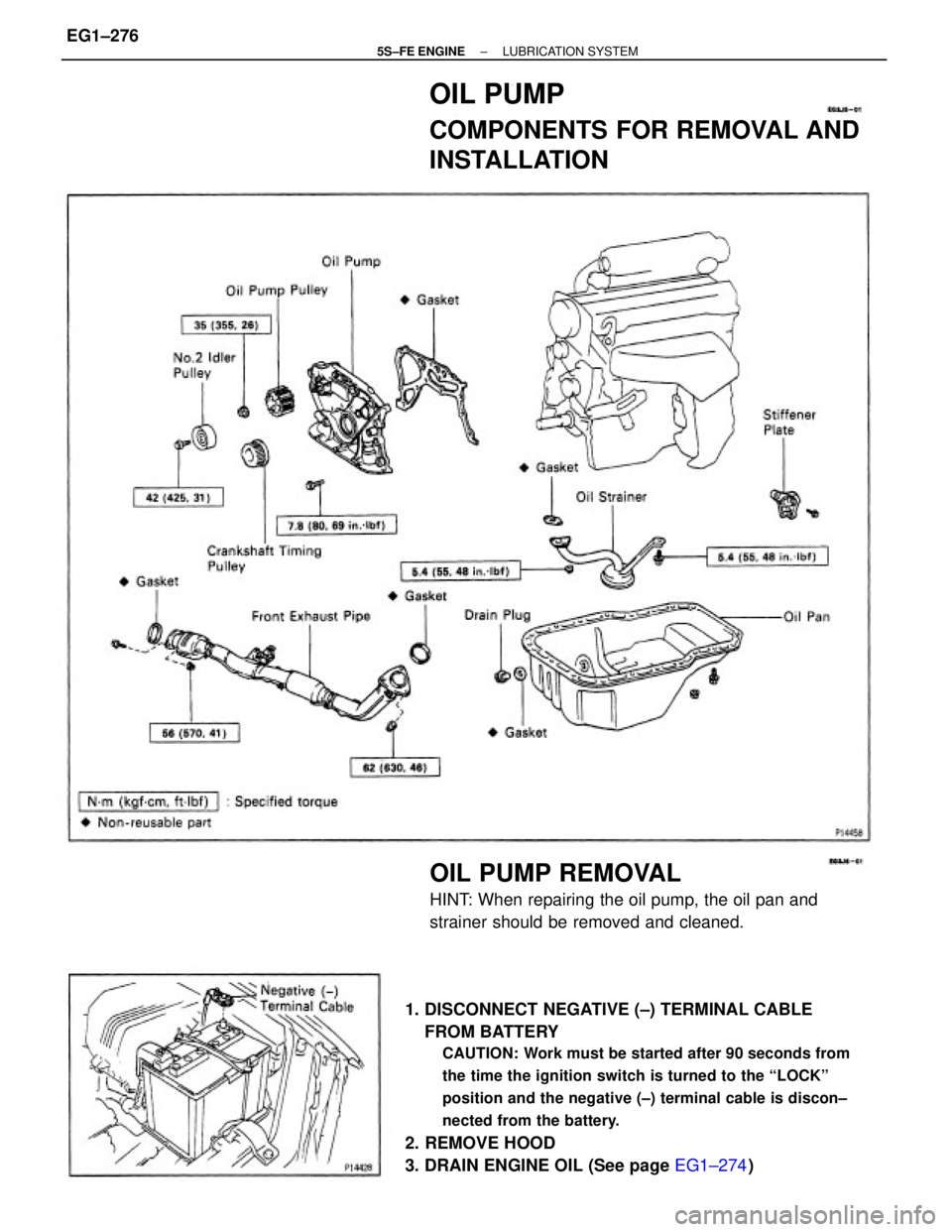

TOYOTA CAMRY 2000  Service Repair Manual 1. DISCONNECT NEGATIVE (±) TERMINAL CABLE
    FROM BATTERY
CAUTION: Work must be started after 90 seconds from
the time the ignition switch is turned to the ªLOCKº
position and the negative (±) te

Page 327 of 4770

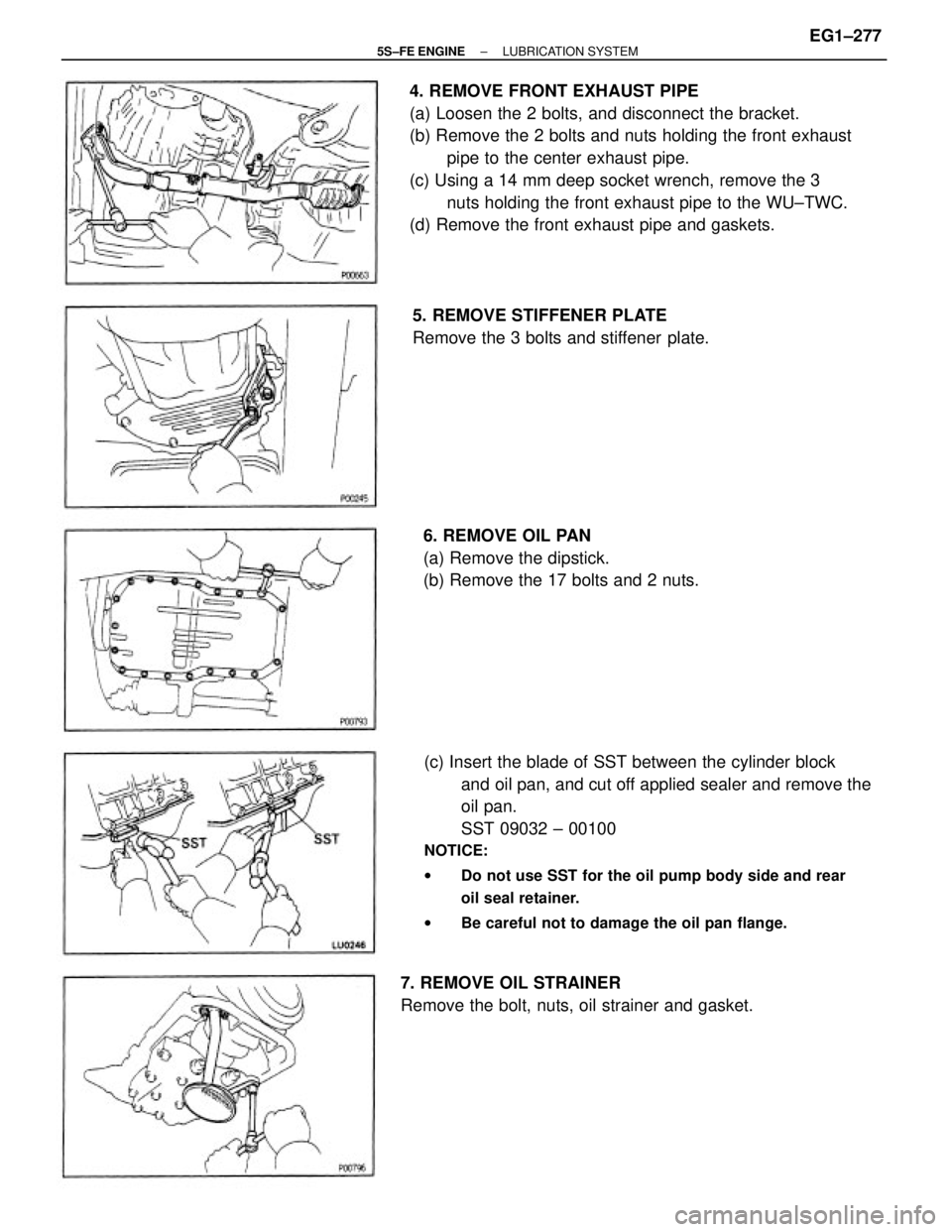

TOYOTA CAMRY 2000  Service Repair Manual (c) Insert the blade of SST between the cylinder block
and oil pan, and cut off applied sealer and remove the
oil pan.
SST 09032 ± 00100
NOTICE:
wDo not use SST for the oil pump body side and rear
oi

Page 328 of 4770

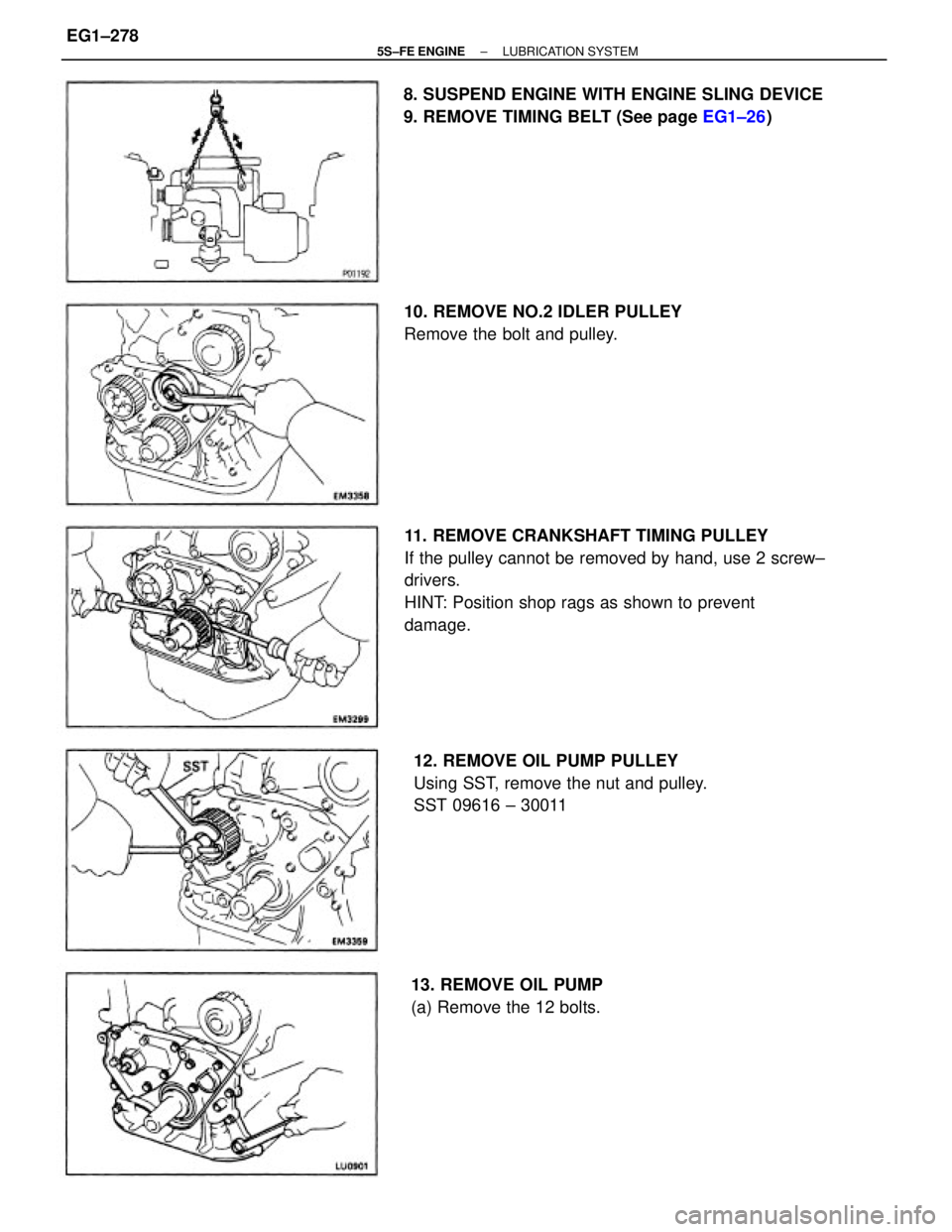

TOYOTA CAMRY 2000  Service Repair Manual 11. REMOVE CRANKSHAFT TIMING PULLEY
If the pulley cannot be removed by hand, use 2 screw±
drivers.
HINT: Position shop rags as shown to prevent
damage.
12. REMOVE OIL PUMP PULLEY
Using SST, remove th

Page 329 of 4770

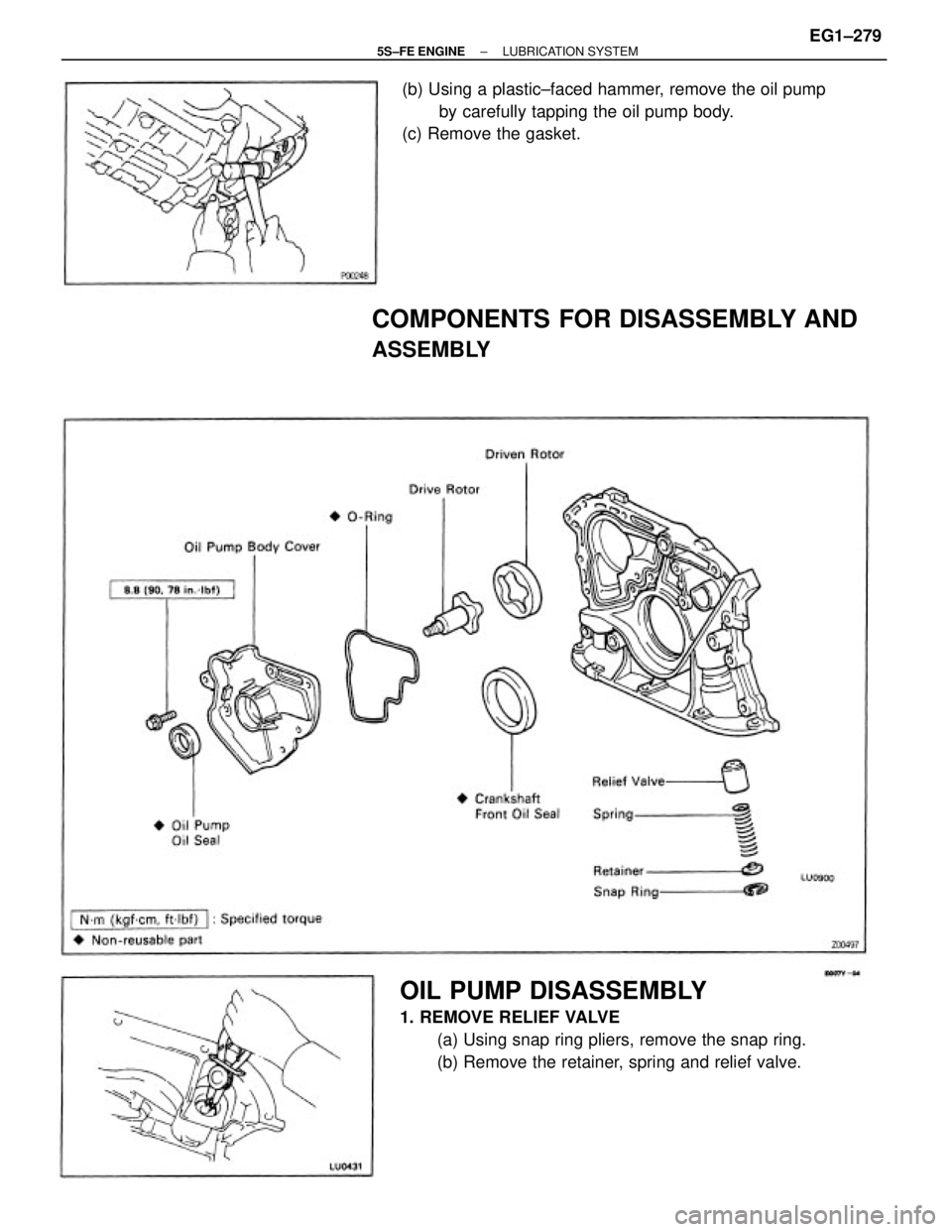

TOYOTA CAMRY 2000  Service Repair Manual OIL PUMP DISASSEMBLY
1. REMOVE RELIEF VALVE
(a) Using snap ring pliers, remove the snap ring.
(b) Remove the retainer, spring and relief valve. (b) Using a plastic±faced hammer, remove the oil pump
b

Page 330 of 4770

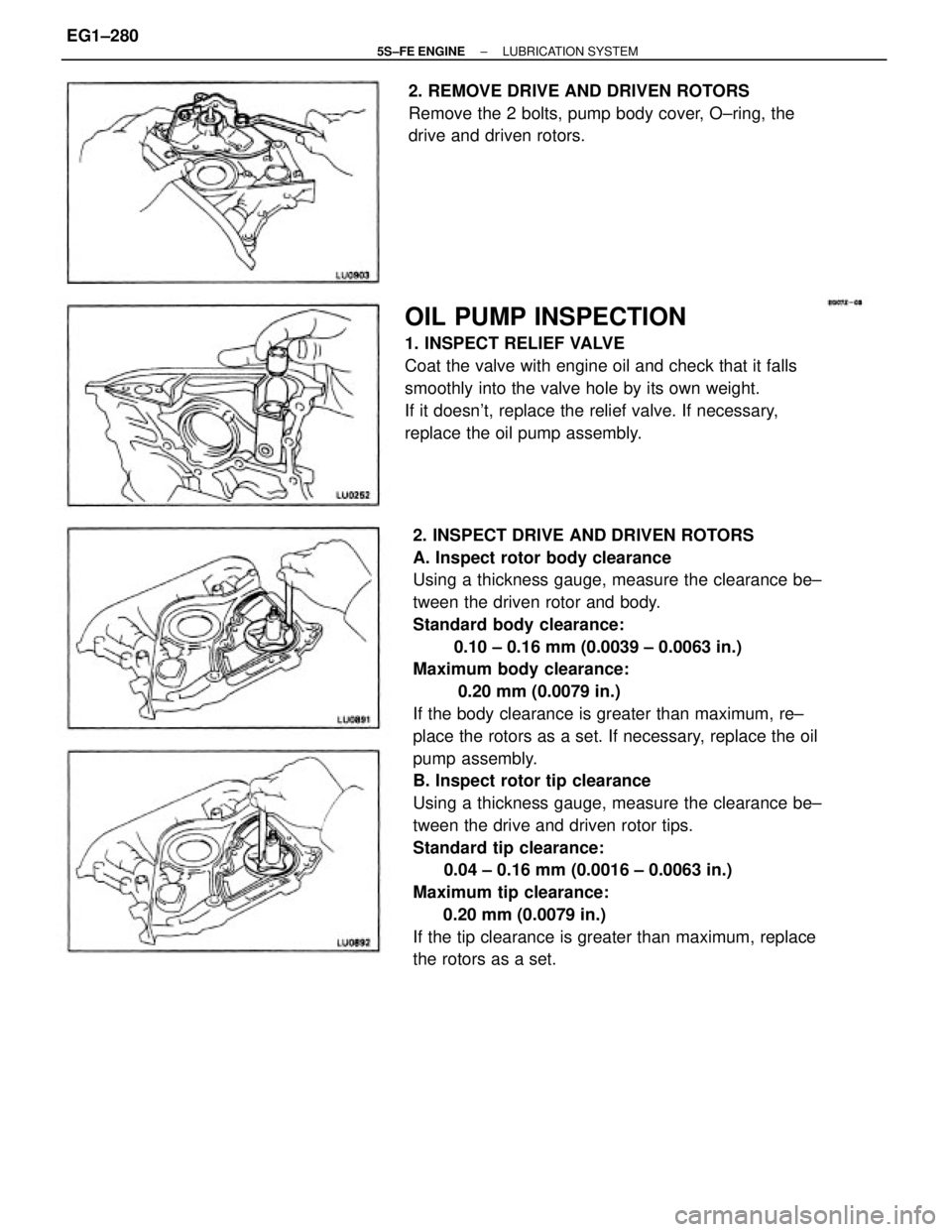

TOYOTA CAMRY 2000  Service Repair Manual 2. INSPECT DRIVE AND DRIVEN ROTORS
A. Inspect rotor body clearance
Using a thickness gauge, measure the clearance be±
tween the driven rotor and body.
Standard body clearance:
        0.10 ± 0.16 mm
