TOYOTA CAMRY 2000 Service Repair Manual

SCANTOOL IMMOBILIZER KEY CODE UTILITY ± SS001±99 April 9, 1999
Page 9 of 9
2. Confirm the instruction on Screen B
and press the (ENTER) key.
3. At ªAUTO REGIST. CLOSUREº
(Screen C), the Auto Registration
Closure Information will be displayed.
Press the (ENTER) key to finish.Auto
Registration
Closure
(Continued)

Toyota Supports ASE CertificationPage 1 of 2
SS001-03Title:
DIAGNOSTIC TESTER CONTROLLER
AREA NETWORK (CAN) INTERFACE
MODULE
Models:
All Models
Technical Service
BULLETIN
September 8, 2003

Over the next four model years, all Toyota vehicles will begin using an all±new diagnostic
communication protocol, Controller Area Network (CAN). CAN will be introduced on the
2004 Prius this fall. A CAN Interface Module has been distributed to all dealers as an
essential Special Service Tool (SST) and will allow the Diagnostic Tester to communicate
with CAN±equipped vehicles. Please use the following instructions to install the new CAN
Interface Module as soon as it arrives at your dealership.
NOTE:
Version 10.2a or later Diagnostic Tester Software must be used to enable
communication with CAN±equipped vehicles. Version 10.2a will be distributed to
dealers via TIS before CAN±equipped vehicles arrive at dealers.
There is no need to remove the CAN Interface Module when working with non±CAN
systems or older software versions (Version 10.1a or earlier). The Diagnostic Tester
will communicate with all DLC3/J1962 based systems with the CAN Interface
Module installed.
All Models
SPECIAL SERVICE TOOLS (SSTs)PART NUMBERQUANTITY
Toyota Diagnostic Tester Kit*
010012711
CAN Interface Module Kit*
010027441
12 Megabyte Diagnostic Tester Program Card
with version 10.2a Software (or later)*01002593-0051
* Essential SSTs.
NOTE:
Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards or SSTs may
be ordered by calling SPX/OTC at 1-800-933-8335.
OP CODEDESCRIPTIONTIMEOFPT1T2
N/ANot Applicable to Warranty±±±±
SPECIAL SERVICE TOOLS
Introduction
Applicable
Vehicles
Required
SSTs
Warranty
Information

DIAGNOSTIC TESTER CONTROLLER AREA NETWORK (CAN) INTERFACE ± SS001-03September 8, 2003
Page 2 of 2
Program Card With Version
10.2a (or Later) Software
CAN Interface Module Kit
(P/N 01002744)
Grey
CAN Interface Module
CAN Interface Module Is Used for
ALL DLC3/J1962 CommunicationThe Original DLC3 (OBDII
Connector P/N 02001643)
Cable Is No Longer Used. Black DLC Cable
(P/N 02001637)
Vehicle Interface
Module (VIM)
DLC1
(Check Connector)
CableDLC2
(TDCL)
Cable
1. Remove the original DLC3 Cable and store it in the Diagnostic Tester storage case.
2. Connect the CAN Interface Module to the DLC Cable.
3. Use the Diagnostic Tester with the CAN Module installed for all DLC3/J1962 based
vehicle communication.
4. If you experience problems with the Diagnostic Tester or CAN Interface Module,
please contact Toyota Special Service Tool Customer Support at 1±800±933±8335.
NOTE:
There is no need to remove the CAN Interface Module when working with non±CAN
systems or older software versions (Version 10.1a or earlier). The Diagnostic Tester
will communicate with all DLC3/J1962 based systems with the CAN Interface
Module installed.
For DLC1 and DLC2 communication you must continue to use the Vehicle Interface
Module (VIM). Installation
Procedure

TOYOTA MOTOR SALES U.S.A., INC.
WIRE HARNESS REPAIR KIT ªBº
The new Wire Harness Repair Kit ªBº has been released as an essential Special Service Tool (SST)
to supplement the original Wire Harness Repair Kit. This kit holds an initial supply of 21 new type
electrical terminals and connectors as well as the necessary supplies and small tools for most elec-
trical repairs.
The Wire Harness Repair Kit manual has been updated and now contains an illustrated catalog of
all terminals and connectors available for Toyota vehicles. Connector Replacement Guidelines, a
Connector/Terminal Usage Guide, and a Connector Quick Reference Chart have been added as
additional reference. This manual is the only reference available which provides information on
properly identifying connectors and terminals.
When components/supplies need to be replaced, refer to page 21 in the manual or the reverse side
of this TSB. Note: The manual is no longer available through the Toyota Non-Parts System. It is
available separately under part number 410094 by calling OTC at 1-800-933-8335.
Page 1 of 2
SPECIAL
SERVICE TOOLS
SS94-002
AUGUST 12, 1994
ALL MODELS

Page 2 of 2
WIRE HARNESS REPAIR KIT ªBº
PARTS REPLACEMENT ORDERING INFORMATION:
The following parts can be ordered through Toyota Motor Sales on a normal parts order:
Part Number Description Part Number Description
82998-12010 Repair Splice 82998-12470 Repair Splice
82998-12030 Repair Splice 82998-12490 Repair Splice
82998-12050 Repair Splice 82998-12020 Repair Splice
82998-12070 Repair Splice 82998-12040 Repair Splice
82998-12090 Repair Splice 82998-12060 Repair Splice
82998-12110 Repair Splice 82998-12080 Repair Splice
82998-12130 Repair Splice 82998-12100 Repair Splice
82998-12150 Repair Splice 82998-12120 Repair Splice
82998-12170 Repair Splice 82998-12140 Repair Splice
82998-12190 Repair Splice 82998-12160 Repair Splice
82998-12210 Repair Splice 82998-12180 Repair Splice
82998-12230 Repair Splice 82998-12200 Repair Splice
82998-12250 Repair Splice 82998-12220 Repair Splice
82998-12270 Repair Splice 82998-12240 Repair Splice
82998-12290 Repair Splice 82998-12260 Repair Splice
82998-12310 Repair Splice 82998-12280 Repair Splice
82998-12330 Repair Splice 82998-12300 Repair Splice
82998-12350 Repair Splice 82998-12320 Repair Splice
82998-12370 Repair Splice 82998-12340 Repair Splice
82998-12390 Repair Splice 82998-12360 Repair Splice
82998-12410 Repair Splice 82998-12380 Repair Splice
82998-12430 Repair Splice 82998-12400 Repair Splice
82998-12450 Repair Splice 82998-12420 Repair Splice
216824 Silicon Tape 82998-12440 Repair Splice
00204-34130 18/22 Splice 82998-12460 Repair Splice
00204-34137 14/16 Splice 82998-12480 Repair Splice
00204-34138 10/12 Splice 82998-12500 Repair Splice
The following parts can be ordered from OTC Tool & Equipment Division, SPX Corporation, 655
Eisenhower Drive, Owatonna, Minnesota 55060:
Part Number Description Part Number Description
62164 Tool Box Kit A 310032 Wire Stripper
(Toyota) 310033 Terminal Pick
310044 Tool Box Kit B 216820 Terminal Gauge
(Toyota) 216822 Terminal Gauge
62166 Tool Box (Lexus) 00002-217681 Terminal Pick
310031 Crimper (Kit A) 00002-217958 Terminal Pick
AMP47100-1 Crimper (Kit B) 410094 Repair Manual
All remaining parts can be purchased from a local supplier.

TSB
When inspecting or making brake booster push rod adjustments with SST 09737±00010,
it is necessary to assure proper tool configuration prior to use. The SST has a reversible
center plunger that allows it to function on a wide range of Toyota vehicles. Prior to using,
verify that it is configured correctly for the application by checking the master cylinder
outer diameter at the point illustrated below. The dimensions for the SST, Part Number
09737±00010, are also shown in the illustrations below.
PART NUMBER PART NAME
09737±00010 Brake Booster Push Rod Gauge (SST)
OPCODE DESCRIPTION TIME OPN T1 T2
N/A Not applicable to warranty ± ± ± ±
SPECIAL SERVICE TOOLS
September 26, 1997
Title:
BRAKE BOOSTER PUSH ROD GAUGE (SST)
Models:
All Models
Page 1 of 1
SS002±97
Introduction
Parts
Information
Warranty
Information

Toyota Supports ASE CertificationPage 1 of 2
SS002±99Title:
1999 SPECIAL SERVICE TOOLS
Models:
All '98 & '99 Models
Technical Service
BULLETIN
July 9, 1999

This TSB contains information regarding Special Service Tools (SSTs) distributed or
added to the SST program during 1999 model year. Both the Essential and Available
SSTs are listed by tool number, tool name, and model application.
Special Service Tools can be ordered through the Toyota SST Program by calling
1±800±933±8335.
All 1998 and 1999 MY Toyota Vehicles.
1999 ESSENTIAL SPECIAL SERVICE TOOLS
TOOL NUMBERTOOL NAMEAPPLICATION
09521±25021±1Rear Axle Shaft Puller AttachmentLand Cruiser
09631±12090Seal Ring ToolLand Cruiser
09710±28012±01Front Suspension Bushing Tool SetLand Cruiser
02002±02XXXHaweka Flange Plate
Note: XXX is Spindle Shaft Size
Land Cruiser
09950±60030±01Replacer Set #3Land Cruiser
09999±00310Toyota Spare Tire Lock KitLand Cruiser,
T100, Tacoma
09999±00305
Part of Kit #
09999±00310Spare Tire Lock Adapter
(Toyota/Lexus Dual Dealers)T100
09268±21010±01Fuel Hose PullerCorolla ('99)
SPECIAL SERVICE TOOLS
Introduction
Applicable
Vehicles
1999 Essential
Special Service
Tools

1999 SPECIAL SERVICE TOOLS ± SS002-99 July 9, 1999
Page 2 of 2
1999 ESSENTIAL SPECIAL SERVICE TOOLS
TOOL NUMBERTOOL NAMEAPPLICATION
01001895±U05ScanTool Software
(Annual Reprogramming &
Site License)All Models
1999 ESSENTIAL SPECIAL SERVICE TOOLS
TOOL NUMBERTOOL NAMEAPPLICATION
09710±01031
Part of Kit #
09710±22021Upper Arm Bushing Replacer (Part of Set)RAV4
09710±22021Upper Arm Bushing Replacer SetLand Cruiser
TOY280341Rivet Nut ToolAll Models
TOY280087Homelink TesterAll Models
00002±MLR6872AEvap Tester'99 MY with
EVAP
Service Port
1999 Essential
Special Service
Tools (Cont'd)
1999 Available
Special Service
Tools

Toyota Supports ASE CertificationPage 1 of 10
SS002-02Title:
MIDTRONICS BATTERY TESTER
SOFTWARE UPDATE
Models:
All Models & Model Years Through Current
Technical Service
BULLETIN
June 7, 2002

The internal software of the Midtronics Battery Tester can now be periodically updated to
support future models. New updates will include new battery warranty codes and testing
information.
The Technical Information System (TIS) will be the primary distribution method for battery
tester software updates. Utilizing the new Midtronics Update Wizard (MUW) and the new
essential SST (Midtronics Battery Tester Adapter), you will be able to quickly and easily
update your Midtronics Battery Tester.
This bulletin will show you how to use and install the Midtronics Update Wizard to update
the Midtronics tester software.
All models and model years through current.
SPECIAL SERVICE TOOLS (SSTs)PART NUMBERQUANTITY
Midtronics Battery Tester*00002±MP815±T1
Midtronics Battery Tester Adapter*00002±DMPUC1
* Essential SSTs.
OP CODEDESCRIPTIONTIMEOPNT1T2
N/ANot Applicable to Warranty±±±±
The Midtronics Battery Tester Software Update is a 2-step process:
1. Installing the Midtronics Update Wizard (MUW).
The Midtronics Update Wizard (MUW) is an application that only needs to be installed
on the PC one time. This bulletin will provide the steps to install the MUW.
2. Using the Midtronics Update Wizard (MUW).
The Midtronics Update Wizard (MUW) will be used with each battery tester software
update. The Update Wizard will walk you through each step to connect the PC to the
tester and perform the update.
SPECIAL SERVICE TOOLS
Introduction
Applicable
Vehicles
Required
Tools &
Material
Warranty
Information
Process
Overview

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 2 of 10
Before Installation or Use of the Midtronics Update Wizard (MUW):

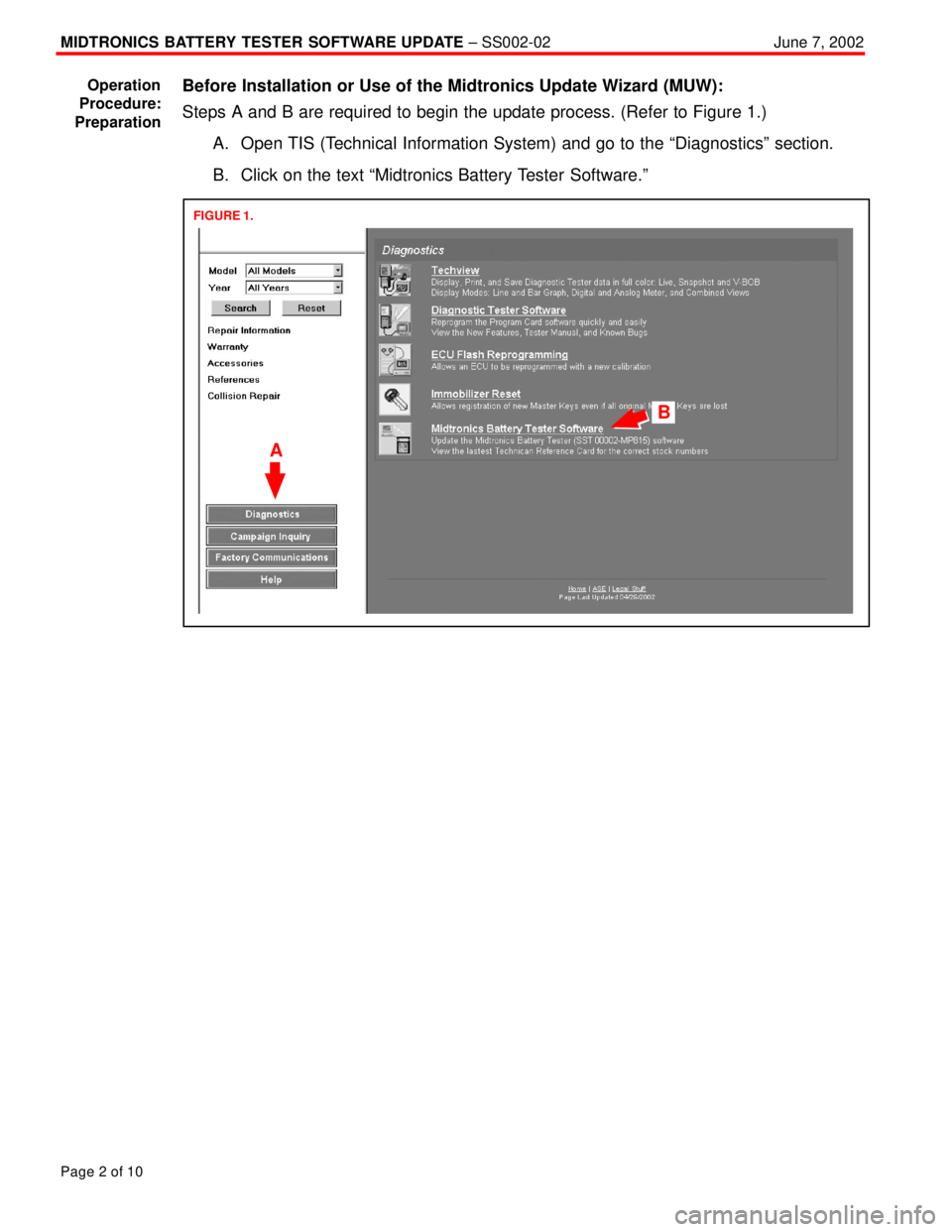

Steps A and B are required to begin the update process. (Refer to Figure 1.)
A. Open TIS (Technical Information System) and go to the ªDiagnosticsº section.
B. Click on the text ªMidtronics Battery Tester Software.º
A
FIGURE 1.
B
Operation
Procedure:
Preparation
