MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 3 of 10
1. Installing the Midtronics Update Wizard (MUW).
NOTE:
The Midtronics Update Wizard only needs to be installed once and must be installed
before the rest of the update process can take place. If this step is already complete,
continue on to step 2.
A. Click on the text ªInstall MUW.º (Figure 2.)
B. The file download window will appear. Click on ªRun this program from it's current
location.º
C. Click the ªOKº button.
D. Allow the Update Wizard to perform its self±installation. This will take only a few
minutes.
B
C
FIGURE 2.
A
Operation
Procedure

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 4 of 10
2. Using the Midtronics Update Wizard (MUW).
A. Click on the latest version of production software. (Figure 3.) This will begin the
software update process.
B. The next screen to appear will be the first screen of the software update. Click
ªNextº to continue.
A
FIGURE 3.
B
Operation
Procedure
(Continued)

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 5 of 10

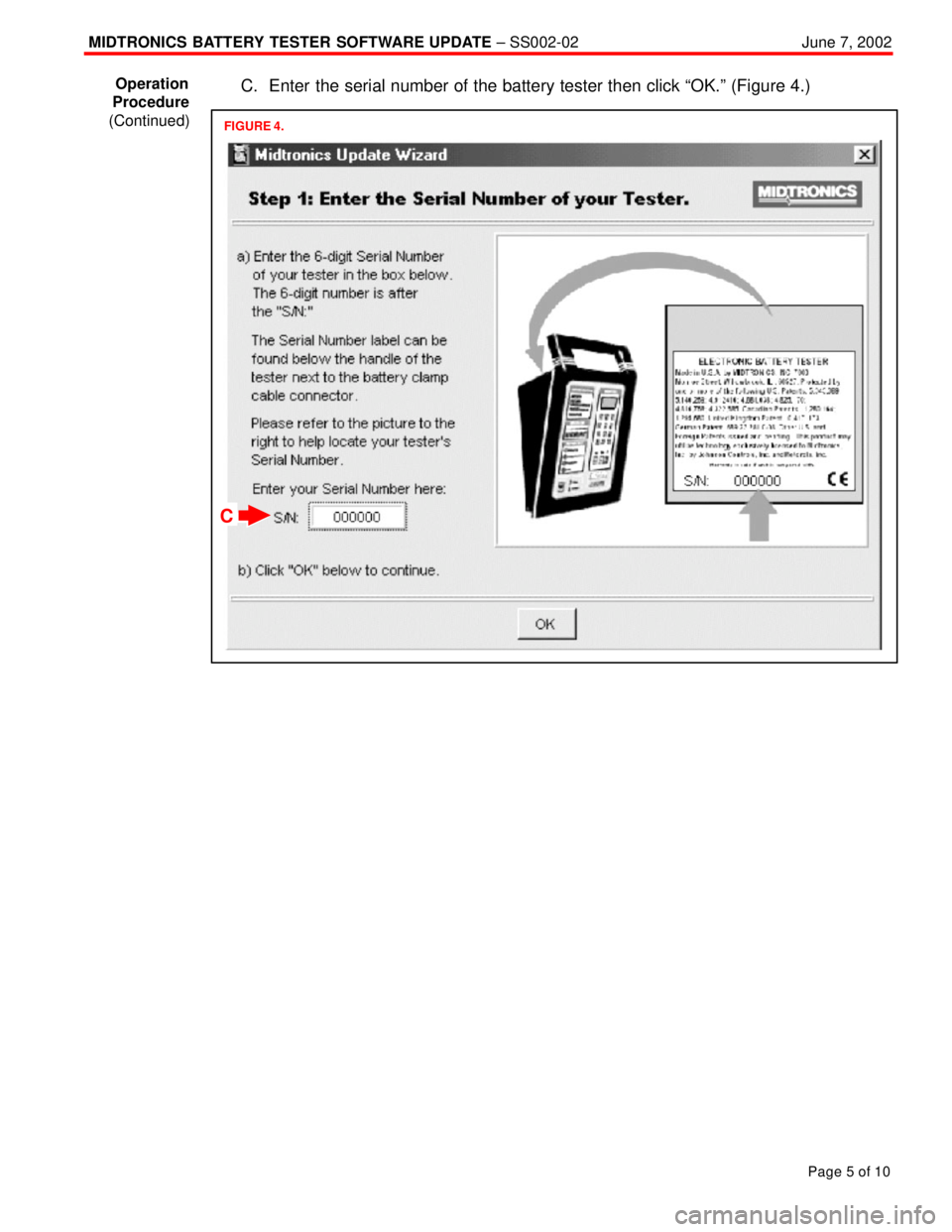

C. Enter the serial number of the battery tester then click ªOK.º (Figure 4.)
FIGURE 4.
C
Operation
Procedure
(Continued)

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 6 of 10
D. Connect the Midtronics Battery Tester to TIS as instructed (Figure 5), then click
ªNext.º
NOTE:
Connecting the Midtronics Battery Tester to the TIS station will require the use of SST
00002±DMPUC. This is an adapter that allows the TIS RS±232 cable to plug into the
Battery Tester. (Figure 5.)
FIGURE 5.
D
Operation
Procedure
(Continued)

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 7 of 10

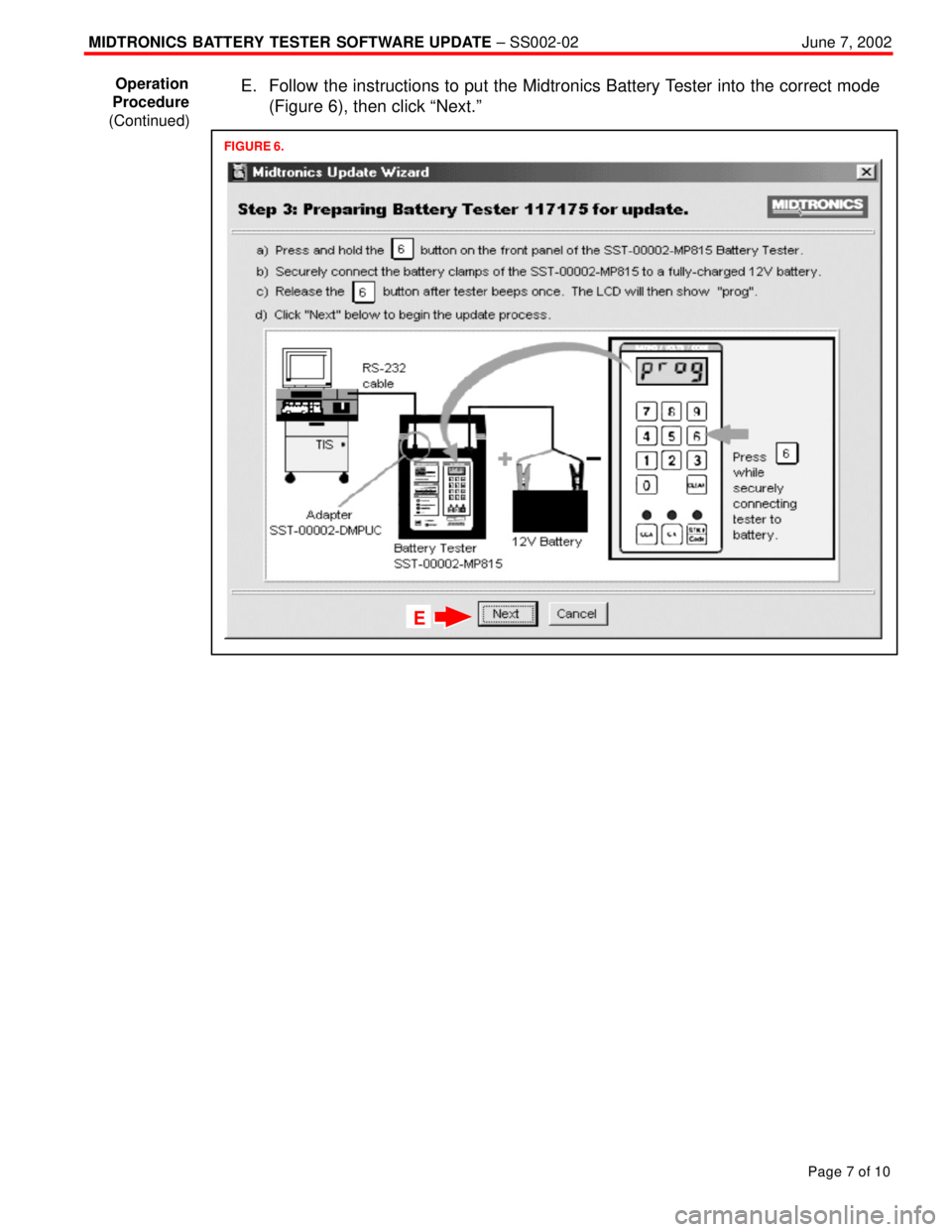

E. Follow the instructions to put the Midtronics Battery Tester into the correct mode
(Figure 6), then click ªNext.º
FIGURE 6.
E
Operation
Procedure
(Continued)

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 8 of 10

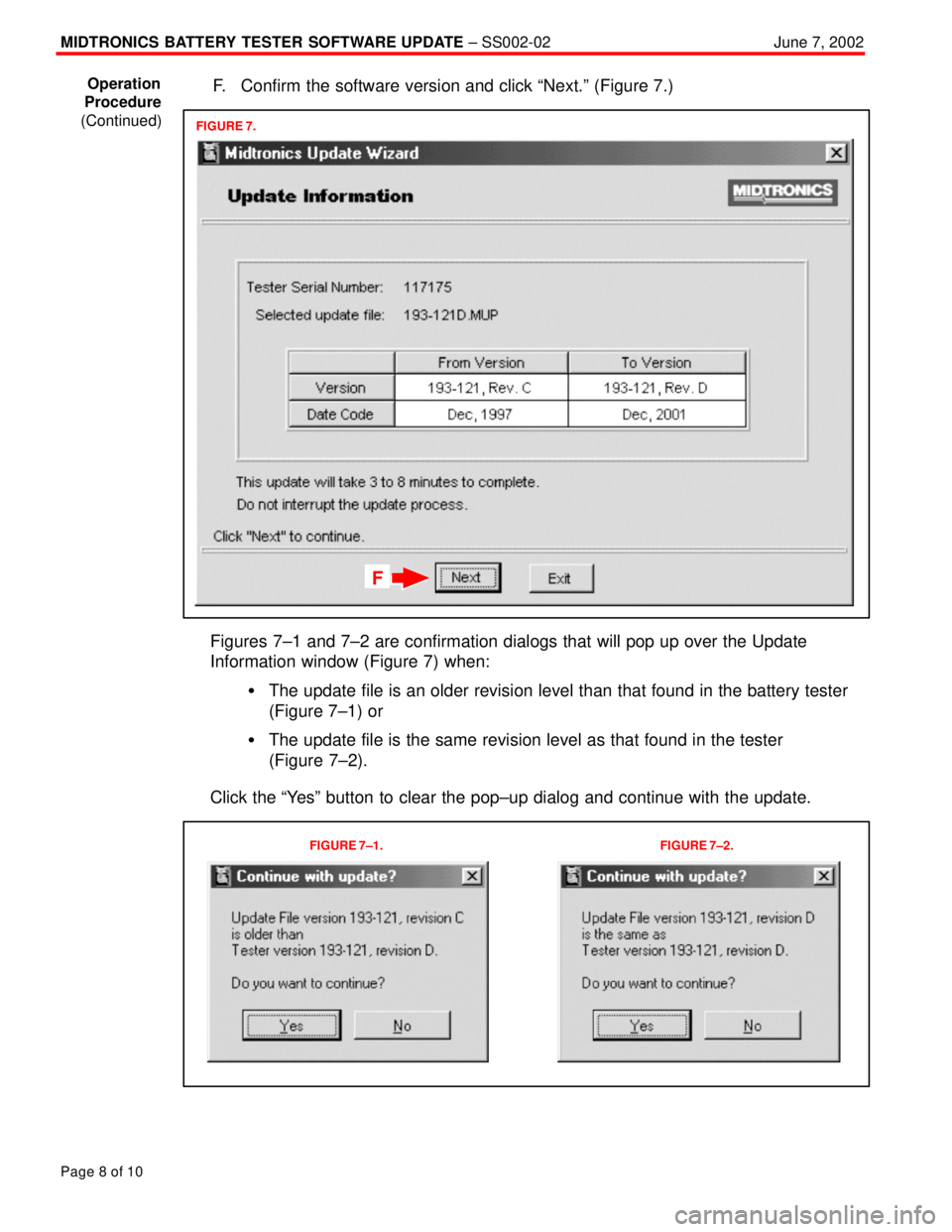

F. Confirm the software version and click ªNext.º (Figure 7.)
FIGURE 7.
F
Figures 7±1 and 7±2 are confirmation dialogs that will pop up over the Update
Information window (Figure 7) when:
The update file is an older revision level than that found in the battery tester
(Figure 7±1) or
The update file is the same revision level as that found in the tester
(Figure 7±2).
Click the ªYesº button to clear the pop±up dialog and continue with the update.
FIGURE 7±1. FIGURE 7±2.
Operation
Procedure
(Continued)

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 9 of 10
G. The Midtronics Update Wizard (MUW) will now update the Midtronics Battery
Tester software. (Figure 8.)
NOTE:
Do not interrupt this process (it will take approximately 5 minutes).
FIGURE 8.
Operation
Procedure
(Continued)

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE ± SS002-02June 7, 2002
Page 10 of 10
H. Upon successful completion, the Update Results screen will display ªNo errorsº
and the update is now complete. Click on the ªExitº button. (Figure 9.)
FIGURE 9.
H
Your Midtronics Battery Tester is now updated and ready for use.
NOTE:
BE SURE TO REGULARLY CHECK TIS FOR FUTURE UPDATES:
The Midtronics Battery Tester OE Stock Number Card will no longer be printed and
shipped. It will be distributed through TIS from now on.
Latest versions of Tester update software will be available on TIS. Operation
Procedure
(Continued)

Toyota Supports ASE CertificationPage 1 of 1
SS003±98Title:
RIVET NUT TOOL
Models:
All Models
Technical Service
BULLETIN
December 11, 1998

Toyota Motor Sales is making available a tool suitable for installing Rivet Nuts as required
by some DIO accessories, such as wind deflectors, roof Racks, and running boards. The
tool is available from Owatonna Tool Company, also known as OTC.
All models requiring Rivet Nuts for the installation of an accessory.
OTC PART NUMBERPART NAMENOTE
00002±95161Rivet Nut ToolMandrels for 5, 6 and 8 mm Rivet Nuts included*
* Also includes a molded plastic carrying case, not shown
Rivet Nut Tool may be ordered by calling the OTC Order Desk at 1±800±933±8335. The
introductory price for this tool is $460.00.
OP CODEDESCRIPTIONTIMEOPNT1T2
N/ANot Applicable to Warranty ±±±±
SPECIAL SERVICE TOOLS
Introduction
Affected
Vehicles
Part Number
Information
Ordering
Procedure
Warranty
Information

TOYOTA MOTOR SALES U.S.A., INC.
Beginning in 1996, Toyota will be standardizing the size of many of its oil filters to the three inch
industry standard. This new filter size is slightly larger than the existing 75mm diameter filter
presently used on many Toyota models. This larger filter will require a three inch oil filter wrench
for easy removal.
Three inch oil filter wrenches are readily available from parts stores and tool dealers, however, for
your convenience, OTC will make this new filter wrench available under P/N 00002±17001. Dealer
cost is $5.75. To order, please call OTC at 1±800±933±8335.
NEW OIL FILTER WRENCHPage 1 of 1
NOVEMBER 10, 1995
SPECIAL SERVICE
TOOLS
SS95±004
ALL MODELS
