Overview of Touch Screen and Switches
Switch operation
This system is operated mainly by the
switches on the screen. To prevent
damage to the screen, lightly touch
switches on the screen with your fin-
ger. When you touch a switch on the
screen or push a button, a beep
sounds.INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.

5
Symbols, Switches and Buttons
L00003
Current vehicle position mark
Indicates the current position.
For details, see page 37.
MAP/VOICE tab
Touch this tab to repeat voice
guidance, cancel one touch
scroll and start guidance. For
details, see page 38.
DEST tab
Touch this tab to display the
Destination screen. For details,
see page 6.
MENU tab
Touch this tab to display the
“Menu” screen. This screen
allows you to make
adjustments or correct settings
of various options and
functions.
TILT button
Push this button to tilt the
display. For details, see page
2.
DISPLAY button
Push this button to display the
“Display” screen. For details,
see page 121.
GPS mark (Global Positioning
System)
Whenever your vehicle is
receiving signals from the GPS,
this mark is displayed. For
details, see page 59.
Map/Guidance
Push this switch to change the
screen mode. For details, see
page 34.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. If you input more
than two destinations, it
displays the distance and time
to the next destination.
Touching this indication will
change it to the distance and
time to the other destinations.
The direction will be indicated
when your vehicle is off the
route.
INFO button
Push this button to display the
“Information Menu” screen. For
details, see pages 1, 107, 114
and 122. Current street name
Turn on this function to indicate
the current street name. For
details, see page 106.
NAVI button
Push this button to turn the
navigation screen on.Northup or headingup symbol
and scale of map
Indicates a map view with north up
or heading up. Touching this symbol
changes the map orientaton. The
figure also indicates the map scale.
For details, see page 59.

6
Changing the route
guidance
When you touch this switch, the “Change
route” screen will appear. For details, see
page 49.Onetouch registration of
marked point
To register the current vehicle position as
a marked point. For details, see page 82.Display of point of
interest
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For
details, see page 51.
Zoom in/zoom out
These switches magnify or reduce the
map scale. For details, see page 57.

Camry_Navi_U (L/O 0108)
12002 MY CAMRY NAVI_U (OM33559U)
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Your navigation system2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Inputting letters and numbers 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to move the cursor 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Destination input Explains 11 ways to input your destination 6
. . . . . .
Explains 11 ways to input your destination
Setting and deleting destination 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting preferred road 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Route guidance screen 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route overview 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Route preview 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Current position display 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Voice guidance 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Typical voice guidance prompts 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering your home 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Registering preset destinations 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Displaying POI 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Turn list 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Map appearance 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Map scale 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Screen scrolling 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Orientation of the map 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Limitations of the navigation system 59
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 62
. . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

Camry_Navi_U (L/O 0108)
22002 MY CAMRY NAVI_U (OM33559U)
L00004
You can adjust the angle of the dis-
play by pushing the
“TILT” button.
Each push of the
“TILT” button will
tilt the display to position 1, 2, 3 and
then back to 0 in that order.
If you turn the ignition switch off, the dis-
play will automatically move back to position
0. The display will automatically resume the
previous position you used when the ignition
switch is turned to the “ACC” or “ON” posi-
tion.
CAUTION
Take care not to jam your fingers
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct th e display while it
is tilting. It could damage your navi-
gation system.
The navigation system is operated by
switches on the screen and the but-
tons located on the front face around
the screen. When you touch a switch
or push a button, a beep sounds.
When using the switches on the touch
screen, please use only light pressure
with your finger to protect the screen
from damage. Do not use objects other
than your finger to touch the screen.
L00013
To type in an address etc., directly touch
alphabet keys on the screen. If you touch
a wrong letter, dele te it using the
switch. Touching the switch erases
one letter.
Your navigation system Inputting letters and numbers

Camry_Navi_U (L/O 0108)
32002 MY CAMRY NAVI_U (OM33559U)
Touching the “List” switch will change
the screen to a display of the database
items that match the name or address
that you have entered on the screen. The
number of matching items is shown to
the right side of the screen. If the match-
ing item is more than 9,999, the system
displays
“” on the screen.
To input numerals, touch the
“0–9”
switch and the display will change the
screen to number input display.
L00014
Touching the “A–Z” switch changes the
screen back to the previous name input
display.
L00015
When a list is displayed, you can scroll
or page through the list by using the
appropriate switch.
To shift to the next or previous
page.
To scroll up or down one item
at a time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name
is too long for the display.
To u c h , and the name will
scroll to the end of the name.
Touching will scroll the
name to the beginning of the
name.

Camry_Navi_U (L/O 0108)
62002 MY CAMRY NAVI_U (OM33559U)
Touch the “DEST” tab on the screen
and the “Destination” screen appears.
L00018
The “Destination” screen allows you to
select the area to search for your des-
tination.
Touch the
“Change” switch on the
“Destination” screen to display a map
of the United States and Canada divid-
ed into 11 areas. See page 62 for map
database information and updates.
L00019
Touch one of the “US1” through
“CAN” switches to select a search
area. Touch the
“OK” switch and the
“Destination” screen returns.
Once you choose the area to search, you
can use one of 11 different methods to
enter your destination. USA
SwitchStates included in the search
area
US1Idaho
Oregon
Washington
US2California
Nevada
US3
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
US4
Iowa
Kansas
Minnesota
Missouri
Nebraska
North Dakota
South Dakota
US5Oklahoma
Te x a s
US6
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
Destination input

Camry_Navi_U (L/O 0108)
102002 MY CAMRY NAVI_U (OM33559U)
11. By Map Selection: You can select a destination simply by touching the location on the displayed map. See page 24 for the
detailed steps.
INFORMATION
 When inputting the destination, the
response to the switch may be
slow.
 “Point of Interest” are mainly reg-
istered in “Detailed map coverage
areas”. The registration is made
based on the NavTech “Standard
POI Inclusion List”.
 If there is no point registered,
switches such as “Marked Point”,
“Previous Destination” or “Pre-
vious Starting Point” are dimmed
and not available.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route
or a route without traffic conges-
tion.
 Route guidance may not be avail-
able if there is no road data for
the specified location.When setting the destination, you
should use the map on a scale of
one half mile or smaller.
 To select an “Address”, “Point of
Interest”, “Freeway Entrance/Exit”
or “Intersection” in a different
area, it is necessary to change the
search area.
CAUTION
While you are driving, be sure to
follow traffic regulations and keep
the road condition in mind. If a traf-
fic sign on the road has been
changed, the route guidance may
provide wrong information.
Touch the switch on the Destina-
tion input screen.
The screen changes and displays the
map location of your home.
Guidance starts from your current posi-
tion to your home immediately after you
touch the
switch during driving.
For the steps to register your home, see
”Registering your home” on page 40.
Destination input by HOME

Camry_Navi_U (L/O 0108)
112002 MY CAMRY NAVI_U (OM33559U)
Touch any of — (preset des-
tination) switches on the “Destination”
screen.
The screen changes and displays the
map location of the preset destination.
Guidance starts from your current posi-
tion to the preset destination immediately
after you touch the preset destination
switch.
For the steps to register a preset destina-
tion, see “Registering preset destination”
on page 44.
L00020
There are 2 ways to input a destina-
tion by address. Touch the
“Address” switch on the
destination screen. The “Address”
screen appears, and then you can in-
put a house number.

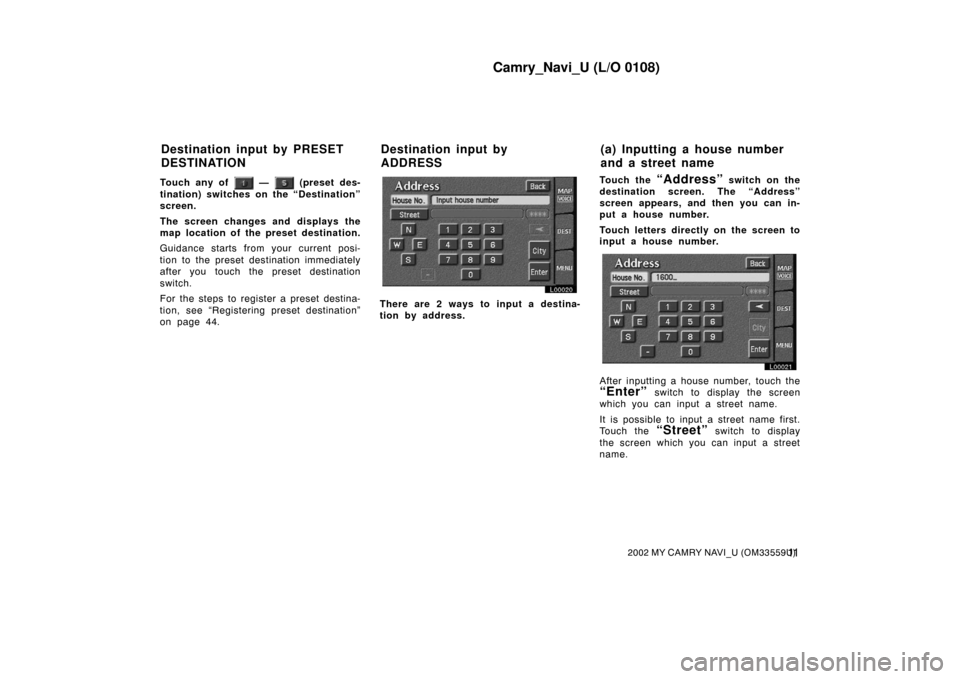

Touch letters directly on the screen to
input a house number.
L00021
After inputting a house number, touch the
“Enter” switch to display the screen
which you can input a street name.
It is possible to input a street name first.
Touch the
“Street” switch to display
the screen which you can input a street
name.
Destination input by PRESET
DESTINATION Destination input by
ADDRESS(a) Inputting a house number
and a street name

Camry_Navi_U (L/O 0108)
122002 MY CAMRY NAVI_U (OM33559U)
L00022
After each letter is input, the system
searches the database for street names
that match. Alphabet keys are dimmed if
the database does not have a match for
the next letter in the remaining list of
matching street names.
When you input numerals, touch the
“0–9” switch to display the screen
for numeral input.
Based on your input, the number of
matching sites appears at the top right of
the screen. After the number decreases
to some extent, touch the
“List” switch
to display the street selection list. If the
number of matches decreases to 4 or
less, the screen changes automatically to
the selection list.
L00015
When you find your desired street
name, touch
of the item. The
screen changes and displays the map
location of the selected destination
and the route preference. (See “(a) En-
tering Destination” on page 25.)
If the same address exists in more than
one city, the current screen changes to
the “City Select” screen. Select or enter
your desired city.
L00023
If you input a street name first, the
screen changes. You can then input the
house number.
L00024
If the above screen appears, you can
select an address range on that screen.
