TOYOTA CAMRY 2002 XV30 / 7.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2002, Model line: CAMRY, Model: TOYOTA CAMRY 2002 XV30 / 7.GPages: 293, PDF Size: 5.53 MB
Page 1 of 293
AP_Camry_U (L/O 0201)
i2002 MY CAMRY_U (OM33567U)
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner ’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS: Toyota Customer Assistance Center Toll free:1 800 331 4331
CANADIAN OWNERS:Toyota Canada Customer Interaction Centre Toll free:1 888 TOYOTA 8 (1 888 869 6828)
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
©2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyo ta
Motor Corporation.
Page 2 of 293
AP_Camry_U (L/O 0201)
ii2002 MY CAMRY_U (OM33567U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.
Page 3 of 293
AP_Camry_U (L/O 0201)
iii2002 MY CAMRY_U (OM33567U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota limited
warranties: New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s War-
ranty Information Booklet”, or “Owner ’s Manual Supple-
ment”.
Your responsibility for maintenance
It is the owner ’s responsibility to make sure that the speci-
fied maintenance is performed. Section 6 gives details of
these maintenance requirements. Also included in Section
6 is general maintenance. For scheduled maintenance in-
formation, please refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.
Accessories, spare parts andmodification of your Toyota
A wide variety of non −genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non −genuine
Toyota products. Modification with non −genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.
Page 4 of 293
AP_Camry_U (L/O 0201)
iv2002 MY CAMRY_U (OM33567U)
Spark ignition system of yourTo y o t a
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference −Causing Equipment
Standard.
Installation of a mobile two way radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system, cruise
control system, anti −lock brake system, traction control
system, vehicle skid control system, SRS airbag system
and seat belt pretensioner system, be sure to check with
your Toyota dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
Page 5 of 293
AP_Camry_U (L/O 0201)
12002 MY CAMRY_U (OM33567U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 7
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 6 of 293
AP_Camry_U (L/O 0201)

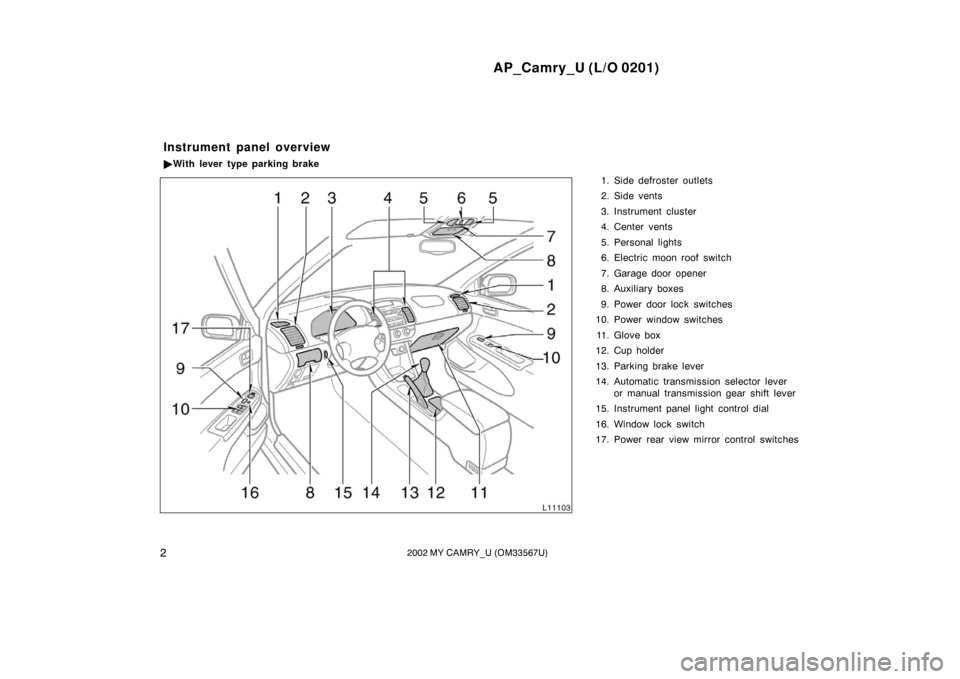

22002 MY CAMRY_U (OM33567U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Cup holder
13. Parking brake lever
14. Automatic transmission selector lever or manual transmission gear shift lever
15. Instrument panel light control dial
16. Window lock switch
17. Power rear view mirror control switches
Instrument panel overview
With lever type parking brake
Page 7 of 293
AP_Camry_U (L/O 0201)

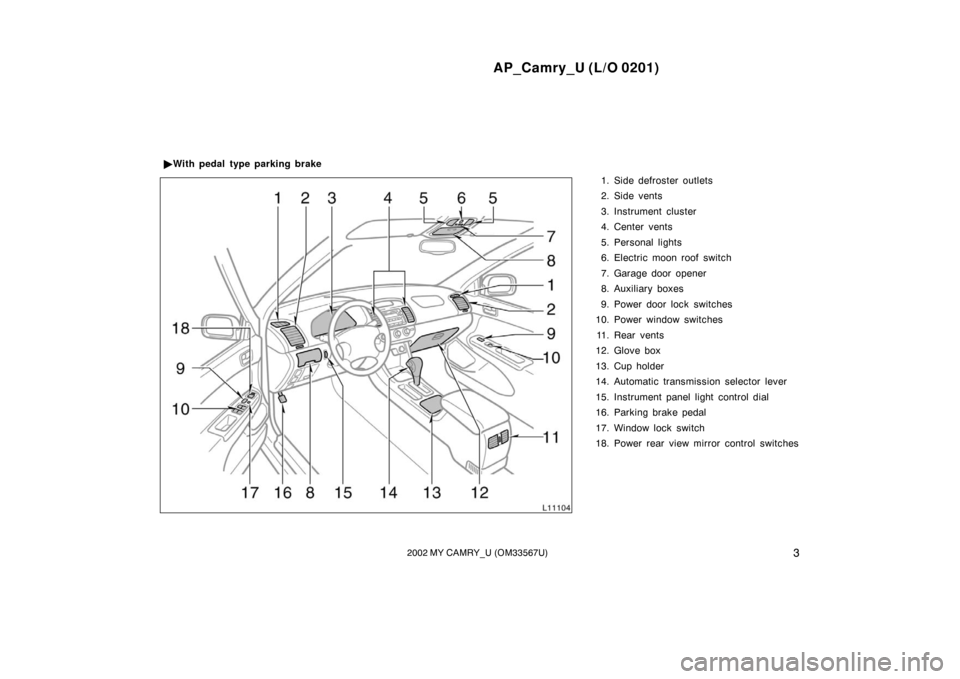

32002 MY CAMRY_U (OM33567U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11. Rear vents
12. Glove box
13. Cup holder
14. Automatic transmission selector lever
15. Instrument panel light control dial
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches
With pedal type parking brake
Page 8 of 293
AP_Camry_U (L/O 0201)

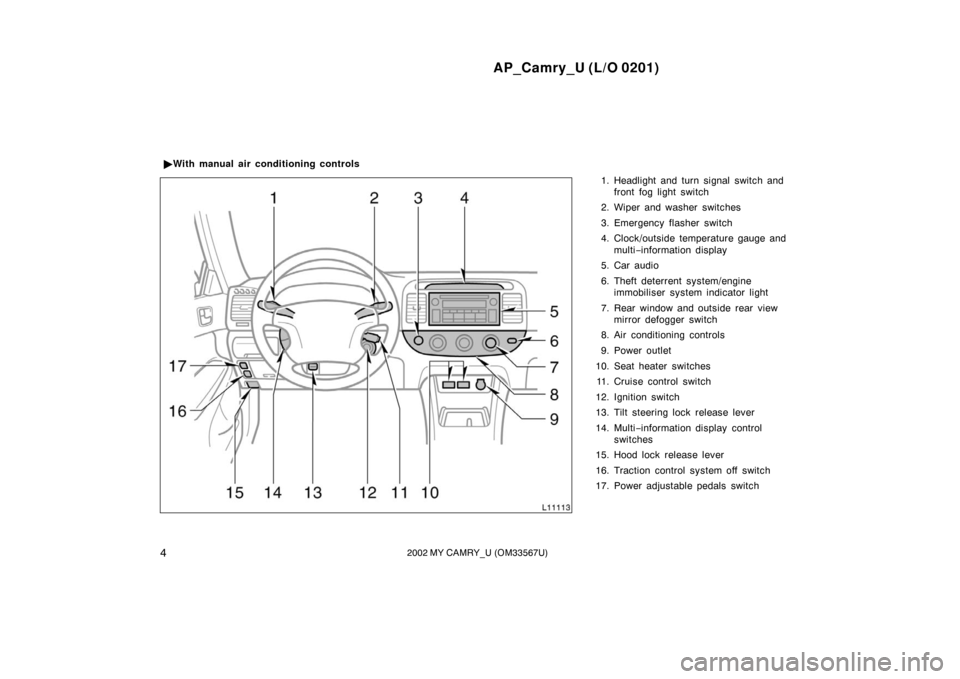

42002 MY CAMRY_U (OM33567U)
1. Headlight and turn signal switch andfront fog light switch
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature gauge and multi −information display
5. Car audio
6. Theft deterrent system/engine immobiliser system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Power outlet
10. Seat heater switches 11. Cruise control switch
12. Ignition switch
13. Tilt steering lock release lever
14. Multi −information display control
switches
15. Hood lock release lever
16. Traction control system off switch
17. Power adjustable pedals switch
With manual air conditioning controls
Page 9 of 293
AP_Camry_U (L/O 0201)
52002 MY CAMRY_U (OM33567U)
1. Headlight and turn signal switch andfront fog light switch
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature gauge and multi −information display
5. Car audio
6. Theft deterrent system/engine immobiliser system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Power outlet
10. Seat heater switches 11. Cruise control switch
12. Ignition switch
13. Tilt steering lock release lever
14. Multi −information display control
switches
15. Hood lock release lever
16. Traction control system off switch
17. Power adjustable pedals switch
With automatic air conditioning controls
Page 10 of 293
AP_Camry_U (L/O 0201)

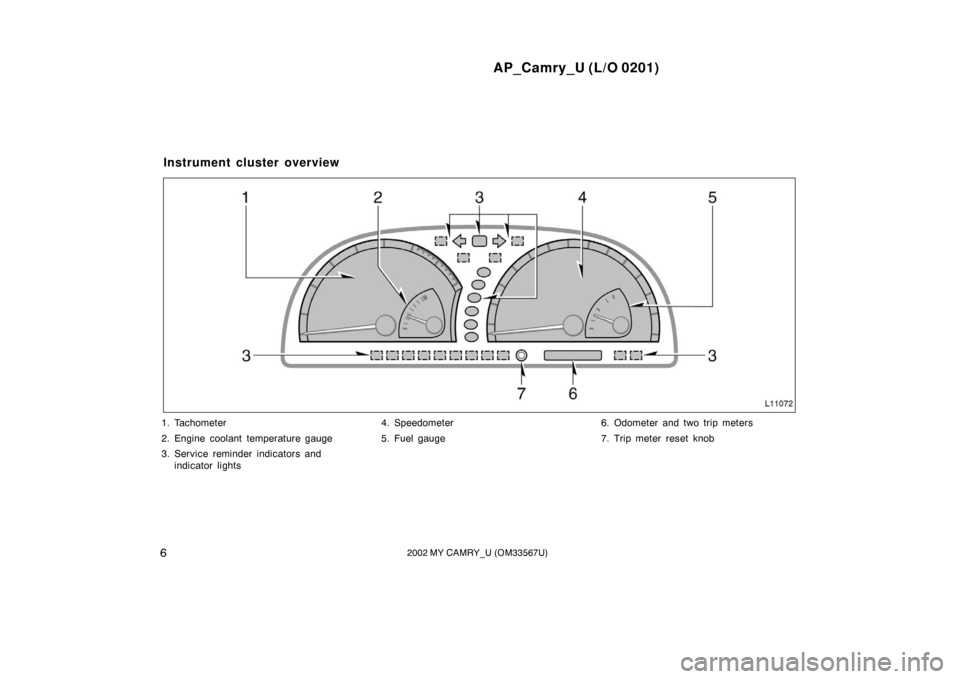

62002 MY CAMRY_U (OM33567U)
1. Tachometer
2. Engine coolant temperature gauge
3. Service reminder indicators andindicator lights 4. Speedometer
5. Fuel gauge
6. Odometer and two trip meters
7. Trip meter reset knob
Instrument cluster overview
