TOYOTA CAMRY 2002 XV30 / 7.G Navigation Manual

Camry_Navi_U (L/O 0108)
i2002 MY CAMRY NAVI_U (OM33559U)
Foreword
Thank you for your purchase of the Navigation System. Please read this manual ca refully to ensure proper use. Keep this
manual stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologica lly advanced vehicle accessories ever developed. The system
receives satellite signals from the Global Po sitioning System (GPS) operated by the U.S. Department of Defense. Using these
signals and other vehicle sensors, the syst em can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The syste m is
designed to direct you to a destination that is unfamiliar to you in efficient manners. The routes are generated from a large
database that includes all roads contained in AAA state maps along with detailed street coverage for many major metropolitan
areas. The calculated routes ar e neither the shortest routes nor routes wit hout traffic congestion. Your own personal local
knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes more than 50 point of interest categories to allow you to easily select destinations
such as restaurants and banks. If a destination is not in the database, you can enter the street address or a major intersection
close to it and the system will route you there. The system will provide both a visual map and audio instructions. The audio
instructions will announce the dist ance and direction to go when you are approachi ng a fork or intersection. These voice instruc-
tions will help you keep your eyes on the road and are time d to provide enough time to allow you to maneuver, change lanes or
slow down.
Please be aware that all current vehicle navigation systems have certain li mitations that may affect their ability to
perform properly. The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle
condition or other circumstances. For more information on the limitations of the system, refer to pages 59 through 61.
 2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written pe rmission of Toyota Motor Corporation.

1
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with
the following marks.
CAUTION
This is a warning against something
that may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to avoid or reduce
the risk to yourself and other
people.
NOTICE
This is a warning against something
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its
equipment.
INFORMATION
This provides additional information.
Initial screen
UN001
When you start the engine or turn the
ignition switch to “ACC”, the initial “TO-
YOTA” screen appears and the system
begins operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen appears.
L00002
Touch either “English” or “French” to
select a language. Read and follow the
instructions.
When you touch the
“I agree”
switch on the screen, the “map”
screen appears.
You can access this screen when you
push the
“INFO” button and touch the
“Language” switch. Then you can
select a language.

2
Safety Instruction
L00002
To use your system as safely as pos-
sible, follow all the safety tips shown be-
low.
This system is intended to assist you in
reaching your destination and, if used
properly, can do so. You, as the driver,
are solely responsible for the safe opera-
tion of your vehicle and the safety of
your passengers.
Do not use any feature of this system to
the extent it distracts you from safe dri-
ving. Your first priority while you are driv-
ing should always be the safe operation
of your vehicle. While you are driving, be
sure to observe all traffic regulations.Before attempting to use this system
while you are driving, learn how to use
it and become thoroughly familiar with it.
Read the entire Navigation System Manu-
al to make sure you understand the sys-
tem. Do not allow others to use this sys-
tem until they have read and understood
these and other instruct
ions in this manu-
al.
For your safety, some functions may be-
come inoperable when you start driving.
Unavailable switches are dimmed. You
can input your destination and select your
route only when the vehicle is not mov-
ing.
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is dr iving. Inattention
to the road and traffic may cause
an accident.
While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind. If
a traffic sign on the road has been
changed, route guidance may pro-
vide wrong information such as
the direction of a one way street.

3
While you are driving, listen to the voice
instructions as much as possible and
glance at the screen briefly and only
when it is safe. However, do not totally
rely on voice guidance. Use it just for
your information. If the system cannot
determine your current position correctly,
there is a possibility of incorrect, late or
non−voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street
closures, etc.) frequently change. There-
fore, before you fo llow any instruction
from the system, look to see whether you
can comply with the in struction safely and
legally.
This system cannot warn you about such
things as the quality of a neighborhood,
condition of streets, and availability of
emergency services. If you are unsure
about the safety of an area, don’t drive
into it. Under no circumstances is this
system a substitute for the driver’s
personal judgement. We recommend that you obtain updated
map data, when it becomes available, in
order to help use the system as effective-
ly and safely as possible.
Use this system only in locations where
it is legal to do so. Some states/prov-
inces may have laws prohibiting video
screens within sight of the driver.

4
Overview of Touch Screen and Switches
Switch operation
This system is operated mainly by the
switches on the screen. To prevent
damage to the screen, lightly touch
switches on the screen with your fin-
ger. When you touch a switch on the
screen or push a button, a beep
sounds.INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.

5

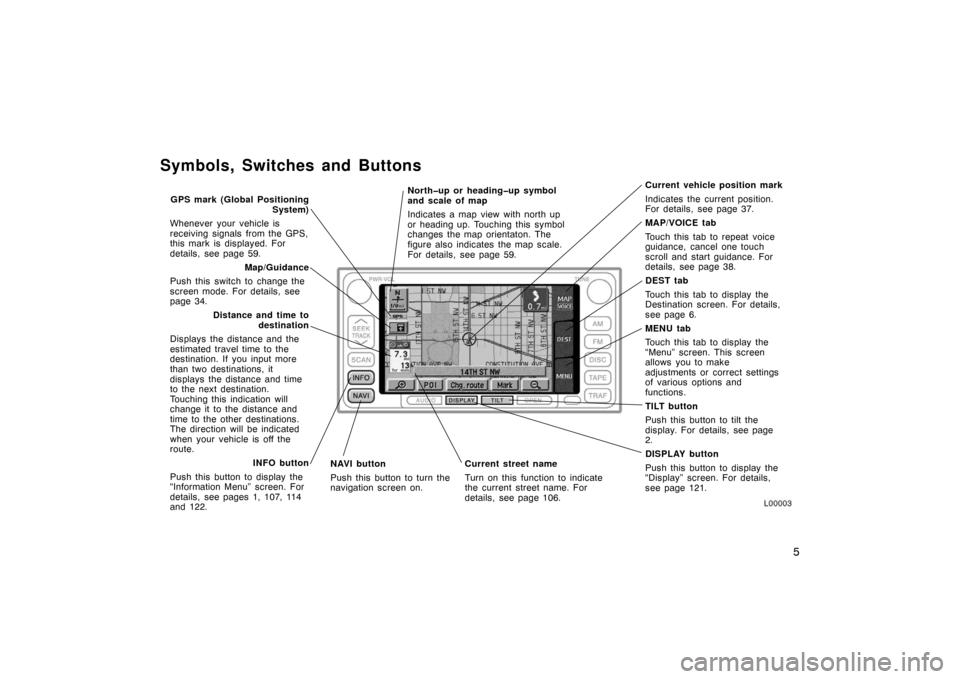

Symbols, Switches and Buttons
L00003
Current vehicle position mark
Indicates the current position.
For details, see page 37.
MAP/VOICE tab
Touch this tab to repeat voice
guidance, cancel one touch
scroll and start guidance. For
details, see page 38.
DEST tab
Touch this tab to display the
Destination screen. For details,
see page 6.
MENU tab
Touch this tab to display the
“Menu” screen. This screen
allows you to make
adjustments or correct settings
of various options and
functions.
TILT button
Push this button to tilt the
display. For details, see page
2.
DISPLAY button
Push this button to display the
“Display” screen. For details,
see page 121.
GPS mark (Global Positioning
System)
Whenever your vehicle is
receiving signals from the GPS,
this mark is displayed. For
details, see page 59.
Map/Guidance
Push this switch to change the
screen mode. For details, see
page 34.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. If you input more
than two destinations, it
displays the distance and time
to the next destination.
Touching this indication will
change it to the distance and
time to the other destinations.
The direction will be indicated
when your vehicle is off the
route.
INFO button
Push this button to display the
“Information Menu” screen. For
details, see pages 1, 107, 114
and 122. Current street name
Turn on this function to indicate
the current street name. For
details, see page 106.
NAVI button
Push this button to turn the
navigation screen on.Northup or headingup symbol
and scale of map
Indicates a map view with north up
or heading up. Touching this symbol
changes the map orientaton. The
figure also indicates the map scale.
For details, see page 59.

6
Changing the route
guidance
When you touch this switch, the “Change
route” screen will appear. For details, see
page 49.Onetouch registration of
marked point
To register the current vehicle position as
a marked point. For details, see page 82.Display of point of
interest
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For
details, see page 51.
Zoom in/zoom out
These switches magnify or reduce the
map scale. For details, see page 57.

Camry_Navi_U (L/O 0108)
12002 MY CAMRY NAVI_U (OM33559U)
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Your navigation system2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Inputting letters and numbers 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to move the cursor 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Destination input Explains 11 ways to input your destination 6
. . . . . .
Explains 11 ways to input your destination
Setting and deleting destination 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting preferred road 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Route guidance screen 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route overview 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Route preview 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Current position display 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Voice guidance 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Typical voice guidance prompts 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering your home 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Registering preset destinations 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Displaying POI 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Turn list 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Map appearance 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Map scale 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Screen scrolling 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Orientation of the map 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Limitations of the navigation system 59
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 62
. . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

Camry_Navi_U (L/O 0108)
22002 MY CAMRY NAVI_U (OM33559U)
L00004
You can adjust the angle of the dis-
play by pushing the
“TILT” button.
Each push of the
“TILT” button will
tilt the display to position 1, 2, 3 and
then back to 0 in that order.
If you turn the ignition switch off, the dis-
play will automatically move back to position
0. The display will automatically resume the
previous position you used when the ignition
switch is turned to the “ACC” or “ON” posi-
tion.
CAUTION
Take care not to jam your fingers
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct th e display while it
is tilting. It could damage your navi-
gation system.
The navigation system is operated by
switches on the screen and the but-
tons located on the front face around
the screen. When you touch a switch
or push a button, a beep sounds.
When using the switches on the touch
screen, please use only light pressure
with your finger to protect the screen
from damage. Do not use objects other
than your finger to touch the screen.
L00013
To type in an address etc., directly touch
alphabet keys on the screen. If you touch
a wrong letter, dele te it using the
switch. Touching the switch erases
one letter.
Your navigation system Inputting letters and numbers

Camry_Navi_U (L/O 0108)
32002 MY CAMRY NAVI_U (OM33559U)
Touching the “List” switch will change
the screen to a display of the database
items that match the name or address
that you have entered on the screen. The
number of matching items is shown to
the right side of the screen. If the match-
ing item is more than 9,999, the system
displays
“” on the screen.
To input numerals, touch the
“0–9”
switch and the display will change the
screen to number input display.
L00014
Touching the “A–Z” switch changes the
screen back to the previous name input
display.
L00015
When a list is displayed, you can scroll
or page through the list by using the
appropriate switch.
To shift to the next or previous
page.
To scroll up or down one item
at a time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name
is too long for the display.
To u c h , and the name will
scroll to the end of the name.
Touching will scroll the
name to the beginning of the
name.
