phone TOYOTA CAMRY 2002 XV30 / 7.G Navigation Manual

Camry_Navi_U (L/O 0108)
162002 MY CAMRY NAVI_U (OM33559U)

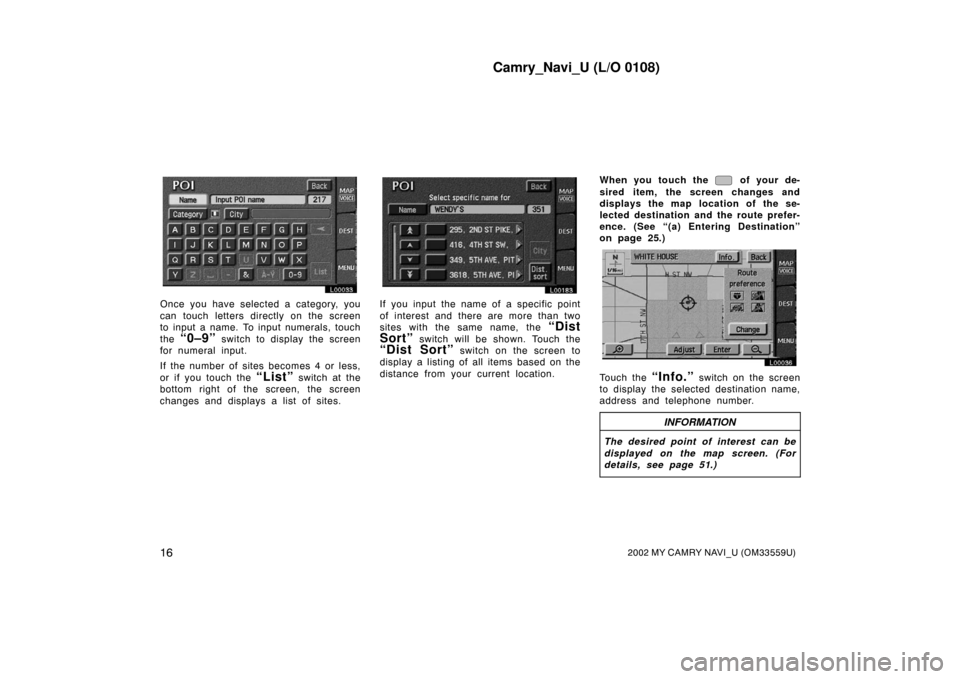

L00033
Once you have selected a category, you
can touch letters directly on the screen
to input a name. To input numerals, touch
the
“0–9” switch to display the screen
for numeral input.
If the number of site s becomes 4 or less,
or if you touch the
“List” switch at the
bottom right of the screen, the screen
changes and displays a list of sites.
L00183
If you input the name of a specific point
of interest and there are more than two
sites with the same name, the
“Dist
Sort”
switch will be shown. Touch the
“Dist Sort” switch on the screen to
display a listing of all items based on the
distance from your current location. When you touch the
of your de-
sired item, the screen changes and
displays the map lo cation of the se-
lected destination and the route prefer-
ence. (See “(a) Entering Destination”
on page 25.)
L00036
Touch the “Info.” switch on the screen
to display the selected destination name,
address and telephone number.
INFORMATION
The desired point of interest can be
displayed on the map screen. (For
details, see page 51.)

Camry_Navi_U (L/O 0108)
212002 MY CAMRY NAVI_U (OM33559U)

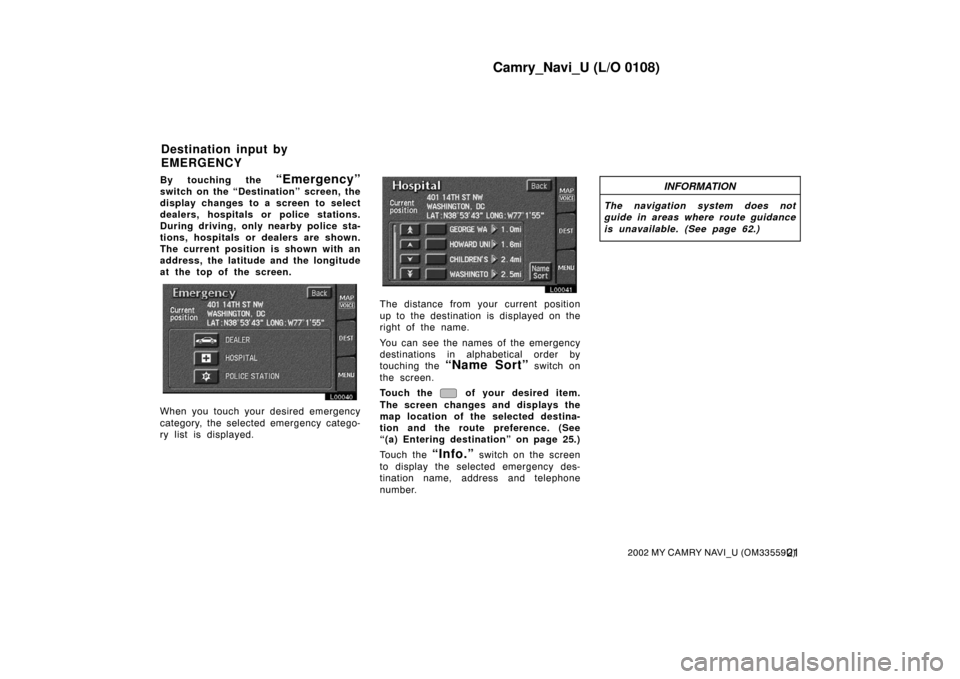

By touching the “Emergency”
switch on the “Destination” screen, the
display changes to a screen to select
dealers, hospitals or police stations.
During driving, only nearby police sta-
tions, hospitals or dealers are shown.
The current position is shown with an
address, the latitude and the longitude
at the top of the screen.
L00040
When you touch your desired emergency
category, the selected emergency catego-
ry list is displayed.
L00041
The distance from your current position
up to the destination is displayed on the
right of the name.
You can see the names of the emergency
destinations in alphabetical order by
touching the
“Name Sort” switch on
the screen.
Touch the
of your desired item.
The screen changes and displays the
map location of the selected destina-
tion and the route preference. (See
“(a) Entering destination” on page 25.)
Touch the
“Info.” switch on the screen
to display the selected emergency des-
tination name, address and telephone
number.
INFORMATION
The navigation system does not
guide in areas where route guidance
is unavailable. (See page 62.)
Destination input by
EMERGENCY

Camry_Navi_U (L/O 0108)
482002 MY CAMRY NAVI_U (OM33559U)
L00084
You can change the name, location and
phone number of the preset destination in
the same way as editing marked points.
Touch the
“Change” switch. (See
page 76.) DELETING THE PRESET
DESTINATIONS
1. Touch the
“MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00080
2. Touch the “Delete” switch of preset destinations 1~5.

Camry_Navi_U (L/O 0108)
762002 MY CAMRY NAVI_U (OM33559U)
L00104
A screen similar to that for destination
input appears. Input the address of the
marked point in the same way as any
destination input. See pages 10 through
24.
3. After you finish registering the marked point, touch the
“Back” switch.
INFORMATION
Up to 100 marked points can be regis-
tered.Once a marked point is registered, you
can edit the icon, name or telephone
number.
(b) Editing marked points

Camry_Navi_U (L/O 0108)
792002 MY CAMRY NAVI_U (OM33559U)
CHANGING THE NAME
L00108
Touch alphabet or numeral keys direct-
ly to input the name.
After you finish your entry, touch the
“OK” switch.
The previous screen will be displayed. If you
touch the
“Off” switch of “Show name”,
the name of the marked point will not be
shown on the map. CHANGING THE PHONE NUMBER
L00110
Touch numeral keys directly.
After you finish your entry, touch the
“OK” switch.
The previous screen will be displayed. CHANGING THE POSITION
L00111
Touch the arrows to scroll to your de-
sired point on the map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will return.
After you finish any editing, touch the
“Back” switch on the first screen of
“Edit marked points”.

Camry_Navi_U (L/O 0108)
11 22002 MY CAMRY NAVI_U (OM33559U)

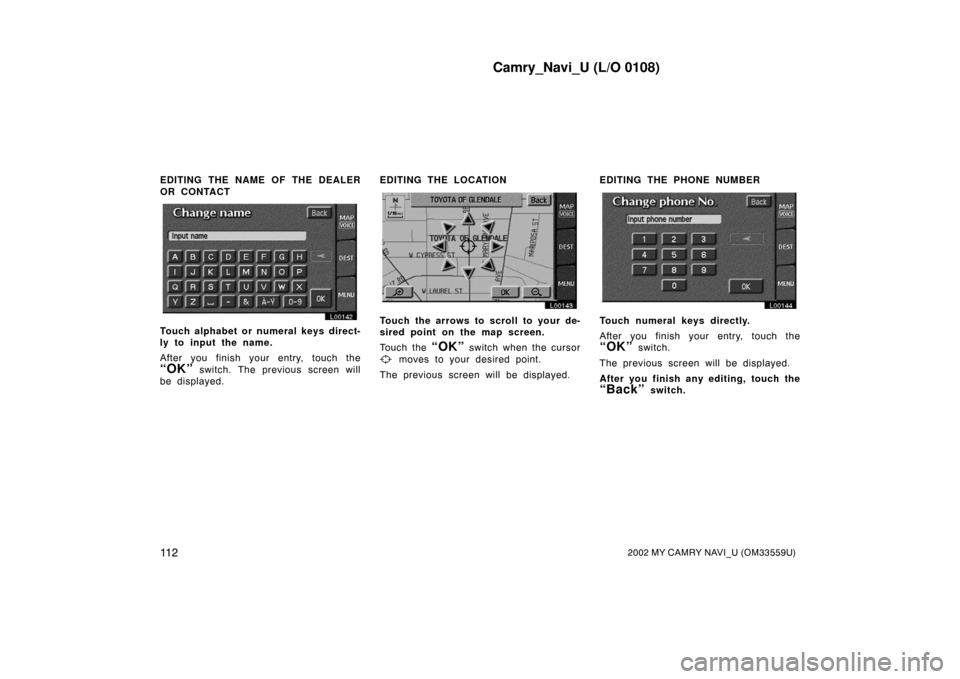

EDITING THE NAME OF THE DEALER
OR CONTACT
L00142
Touch alphabet or numeral keys direct-
ly to input the name.
After you finish your entry, touch the
“OK” switch. The previous screen will
be displayed. EDITING THE LOCATION
L00143
Touch the arrows to scroll to your de-
sired point on the map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will be displayed. EDITING THE PHONE NUMBER
L00144
Touch numeral keys directly.
After you finish your entry, touch the
“OK” switch.
The previous screen will be displayed.
After you finish any editing, touch the
“Back” switch.

Camry_Navi_U (L/O 0108)
1422002 MY CAMRY NAVI_U (OM33559U)
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio
system which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
FM
Fading and drifting stations—Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi
−path—FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel each
other out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is anot her strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causin
g the radio station to
sound alternately strong and weak.
Station interference—When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the
broadcast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE
PLAYER AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts reg-
ularly.
A dirty tape head or tape path can
decrease sound quality and tangle
your cassette tapes. The easiest way
to clean them is by using a cleaning
tape. (A wet type is recommended.)
Car audio system operating
hints
