5
Symbols, Switches and Buttons
L00003
Current vehicle position mark
Indicates the current position.
For details, see page 37.
MAP/VOICE tab
Touch this tab to repeat voice
guidance, cancel one touch
scroll and start guidance. For
details, see page 38.
DEST tab
Touch this tab to display the
Destination screen. For details,
see page 6.
MENU tab
Touch this tab to display the
“Menu” screen. This screen
allows you to make
adjustments or correct settings
of various options and
functions.
TILT button
Push this button to tilt the
display. For details, see page
2.
DISPLAY button
Push this button to display the
“Display” screen. For details,
see page 121.
GPS mark (Global Positioning
System)
Whenever your vehicle is
receiving signals from the GPS,
this mark is displayed. For
details, see page 59.
Map/Guidance
Push this switch to change the
screen mode. For details, see
page 34.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. If you input more
than two destinations, it
displays the distance and time
to the next destination.
Touching this indication will
change it to the distance and
time to the other destinations.
The direction will be indicated
when your vehicle is off the
route.
INFO button
Push this button to display the
“Information Menu” screen. For
details, see pages 1, 107, 114
and 122. Current street name
Turn on this function to indicate
the current street name. For
details, see page 106.
NAVI button
Push this button to turn the
navigation screen on.Northup or headingup symbol
and scale of map
Indicates a map view with north up
or heading up. Touching this symbol
changes the map orientaton. The
figure also indicates the map scale.
For details, see page 59.

Camry_Navi_U (L/O 0108)
372002 MY CAMRY NAVI_U (OM33559U)
L00071
Touch the “Edit” switch to display
the “Edit route preview” screen.
To next POI: Preview the next POI.
To next
: Preview the next destination.
Delete: Delete the POI icon.
Select POI: Select the POI icon.
Touch the
“OK” switch after selection.
L00074
The current vehicle position mark ap-
pears in the center of the map screen.
You can return to this map screen
showing your current position at any
time from any screen by touching the
“MAP/VOICE” tab on the screen.
During driving, the current vehicle posi-
tion mark is fixed in the center of the
screen and the map moves.
If you move the map with a “one −touch”
scroll (see page 58 for details), the cur-
rent vehicle position mark continues to
track your current location.
INFORMATION
When you use the “onetouch” scroll
feature, the current vehicle position
mark may disappear from the screen.
Move the map with a “onetouch”
scroll again or touch the
“MAP/
VOICE”
tab on the screen to return
to the current vehicle position map
location display.
The current position is automatically
set as your vehicle receives signals
from the GPS (Global Positioning Sys-
tem). If your current position is not
correct, it is automatically corrected
after your vehicle receives signals
from the GPS.
INFORMATION
After the battery disconnection, or
on a new vehicle, the current posi-
tion may not be correct. As soon as
the system receives signals from the
GPS, the correct current position is
displayed.
If you must correct the current position
manually, follow the steps on page 88.
Current position display

Camry_Navi_U (L/O 0108)
602002 MY CAMRY NAVI_U (OM33559U)
L00102
When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement
of objects on the instrument panel may
obstruct the GPS signals.
The installation of window tinting may
also obstruct the GPS signals. Most win-
dow tinting contains some metallic con-
tent that will interfere with the GPS signal
reception. We recommend not to use the
window tinting on vehicles equipped with
navigation systems.The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving good GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur
in some cases.
When driving on a small angled Y
−
shaped road.
When driving on a spiral road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When freeway and surface streets run
in parallel.
After moving by ferry or vehicle carri-
er.
When a long route is searched during
high speed driving.
When driving without setting the cur-
rent position calibration correctly.
After repeating a change of directions
by going forward and backward, or
turning on a turntable in the parking
lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with the tire chains
installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the fact ory specifications.
(a) Accurate current vehicle
position may not be shown in
the following cases:

Camry_Navi_U (L/O 0108)
612002 MY CAMRY NAVI_U (OM33559U)
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For the informa-
tion on setting the current position
calibration, see page 88.
When turning at a wrong intersection
off the designated route guidance
If you set more than one destination
but skip any of them, auto reroute will
display a route returning to the des-
tination on the previous route when
you try to skip any of the destinations.
When turning at an intersection, there
is no route guidance.
When passing through the intersection,
there is no route guidance.
During automatic rerouting, the route
guidance may not be available for the
next turn to the right or left.
It may take a long time to operate
auto reroute during high speed driving.
In auto reroute, a detour route may be
shown.
After auto reroute, the route may not
be changed.
An unnecessary U−turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination in-
cludes gravel, unpaved roads or al-
leys, the route guidance may not be
shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regu-
lations prohibiting the entry of the ve-
hicle that vary by time or season or
other reason.
The road and map data stored in your
navigation system may not be com-
plete or may not be the latest release.
When replacing the tire(s), perform cal-
ibration. See page 88 for detailed in-
formation.
(b) Inappropriate route
guidance may occur in the
following cases:

Camry_Navi_U (L/O 0108)
882002 MY CAMRY NAVI_U (OM33559U)

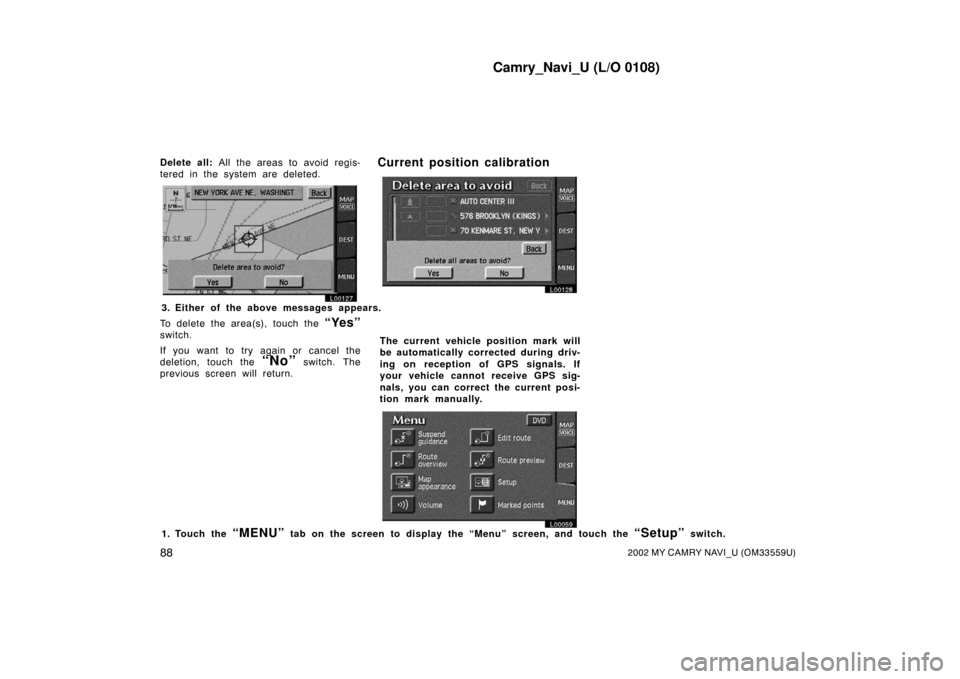

Delete all: All the areas to avoid regis-
tered in the system are deleted.
L00127
L00128
3. Either of the above messages appears.
To delete the area(s), touch the
“Yes”
switch.
If you want to try again or cancel the
deletion, touch the
“No” switch. The
previous screen will return. The current vehicle position mark will
be automatically corrected during driv-
ing on reception of GPS signals. If
your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion mark manually.
L00059
1. Touch the “MENU” tab on the screen to display
the “Menu” screen, and touch the “Setup” switch.
Current position calibration

Camry_Navi_U (L/O 0108)
1312002 MY CAMRY NAVI_U (OM33559U)
L00171
(a) Listening to the radio
Push these buttons to choose either
an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
L00170
Turn the knob clockwise to step up
the station band or counterclockwise
to step down.
Your radio automatically changes to ste-
reo reception when a stereo broadcast is
received. “ST” appears on the screen. If
the signal becomes weak, the radio re-
duces the amount of channel separation
to prevent the weak signal from creating
noise. If the signal becomes extremely
weak, the radio switches from stereo to
mono reception. In this case, “ST” disap-
pears from the screen.
Z00002
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the station selector switch es (16) and hold it until a beep is heard. This sets the station to the switch
and the frequency appears on the switch
—Radio operation

Camry_Navi_U (L/O 0108)
1332002 MY CAMRY NAVI_U (OM33559U)
Z00005
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—only select stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS
information. “RDS SRCH” switch
This switch allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “TYPE” switch for details
on program types).
By touching this button at the FM mode,
RDS is turned on and the radio is
switched to FM type mode. During the
program type search, “RDS SEARCH” will
be shown on the screen. Also at this
time, “FM TYPE” will appear on the
screen to indicate that the station selec-
tor switches are for program type.
After searching for all the available RDS
stations, the radio will activate the pre-
viously used program type. If the pre-
viously used program type is not avail-
able, or if the radio has not yet
performed a program type search, the
radio will activate the first available pro-
gram type that has stations in memory.
The radio will preset the stations of the
current program type into the preset but-
tons.
These are accessible through the “TYPE”
switch. If more than 6 stations are found,
the radio will load the 6 strongest sta-
tions signal of the program type into the
presets.If no RDS stations are found, “No RDS
Stations Found” will be displayed and the
beep sounds. Then the radio will return
to the previous FM mode and frequency.
“Alert”
This type of announcement warns of na-
tional or local emergencies. You will not
be able to turn off alert announcements.
Alert announcements will come on even
if RDS mode is turned off. “Alert” ap-
pears on the screen when an alert an-
nouncement plays. The radio uses TA
volume during these announcements.
When an alert announcement comes on
the tuned radio station or a related net-
work station, you will hear it even if the
volume is muted or a cassette tape or
compact disc is playing. If the radio tunes
to a related network station for an alert
announcement, it will return to the origi-
nal station when the announcement is
finished. If the cassette tape or compact
disc player is playing, play will stop for
the announcement and resume when the
announcement is finished.
