The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (high)900560A
Headlights (low)900651B
Front fog lights900651B
Parking, front side
marker and front
turn signal lights
345730/8C
Tail and rear side
marker lights1943.8C
Rear turn signal
lights92118C
Stop/tail lights305727/7C
Back −up lights92118C
License plate lights—5C
High mounted
stoplight92118C
Personal lights—4.9C
Interior light
(type A)—8D
Interior light
(type B)—5D
Vanity lights—1.4D
Glove box light—5C
Light bulbsBulb
No.WTy p e
Trunk light (type A)—5C
Trunk light (type B)—3D
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs
D: Double end bulbs

AP_Camry_U (L/O 0201)
2682002 MY CAMRY_U (OM33567U)
Low beam (outside)High beam (inside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

AP_Camry_U (L/O 0201)
2692002 MY CAMRY_U (OM33567U)

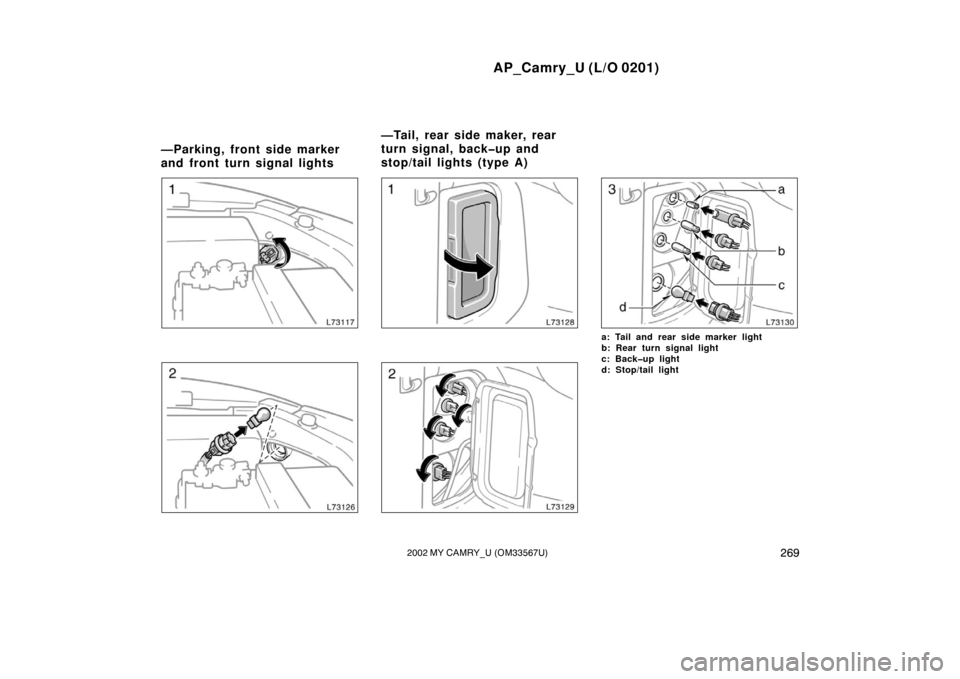

a: Tail and rear side marker light
b: Rear turn signal light
c: Backup light
d: Stop/tail light
—Parking, front side marker
and front turn signal lights—Tail, rear side maker, rear
turn signal, backup and
stop/tail lights (type A)

AP_Camry_U (L/O 0201)
2702002 MY CAMRY_U (OM33567U)

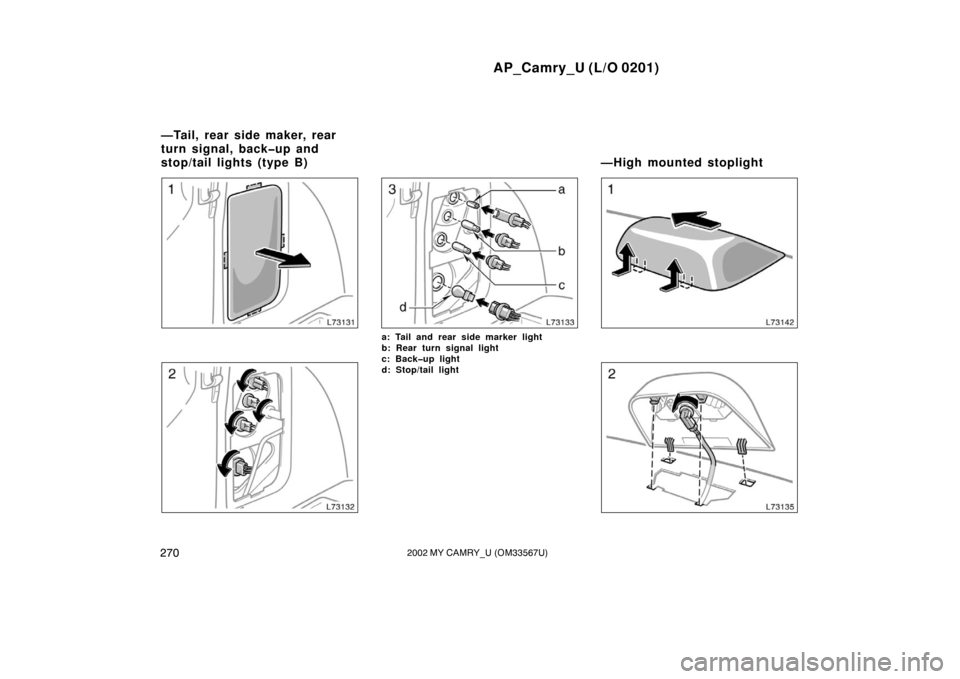

a: Tail and rear side marker light
b: Rear turn signal light
c: Backup light
d: Stop/tail light
—Tail, rear side maker, rear
turn signal, backup and
stop/tail lights (type B) —High mounted stoplight

AP_Camry_U (L/O 0201)
2712002 MY CAMRY_U (OM33567U)
If either the left or right front fog or
license plate lights burns out, contact
your Toyota dealer.
NOTICE
Do not try to replace the front fog or
license plate light bulbs by yourself.
You may damage the vehicle.
—Front fog and license plate
lights

AP_Camry_U (L/O 0201)
2732002 MY CAMRY_U (OM33567U)
SPECIFICATIONS
Dimensions and weight274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

AP_Camry_U (L/O 0201)
2742002 MY CAMRY_U (OM33567U)
Model:2AZ− FE and 1MZ −FE
Type:
2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
1MZ −FE engine
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
1MZ −FE engine
87.5 83.0 (3.44 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
1MZ −FE engine 2995 (182.8)
Dimensions and weight
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1 mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗
1: Unladen vehicle∗2: With 205/65R15 tires∗3: With 215/60R16 tires 1490 (58.7)
∗
2
1500 (59.1)∗3
4805 (189.2)
1795 (70.7)
2720 (107.1)
1545 (60.8)
1535 (60.4)
410 (900)
Engine

AP_Camry_U (L/O 0201)
2752002 MY CAMRY_U (OM33567U)
Fuel type:2AZ− FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
1MZ −FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
2AZ− FE engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
1MZ −FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT− 33−73F (used belt), Ibf:
1MZ −FE engine 11520 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2AZ− FE engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
1MZ −FE engine
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Oil grade: API grade SJ “Energy −Conserving”, SL
“Energy −Conserving” or ILSAC
multigrade engine oil is recommended.

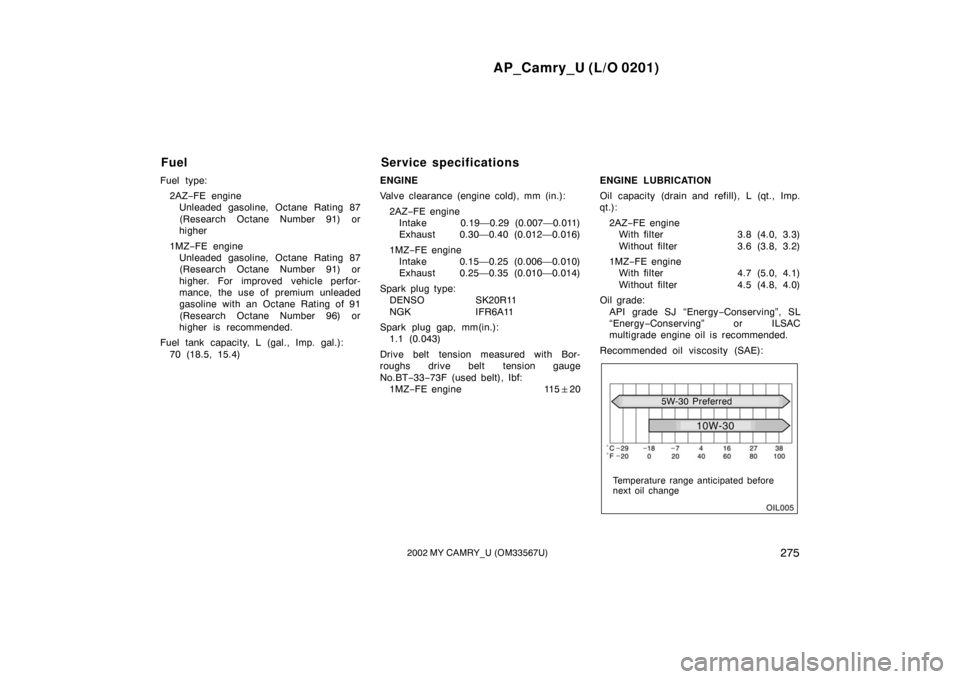

Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
Fuel Service specifications

AP_Camry_U (L/O 0201)
2762002 MY CAMRY_U (OM33567U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):2AZ− FE engine 6.2 (6.6, 5.4)
1MZ −FE engine 9.2 (9.8, 8.1)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene− glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8V Fully charged
12.2—12.4V Half charged
11.8—12.0V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Note: If replacement is necessary, make
sure to do so with a battery that meets
the same standard as the original. CLUTCH
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90 AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
2AZ− FE engine 3.9 (4.1, 3.4)
1MZ −FE engine 3.5 (3.7, 3.1)
Fluid type: Automatic transmission fluid Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only Toyota Genuine ATF Type T −IV
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Type TIV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.

AP_Camry_U (L/O 0201)
2772002 MY CAMRY_U (OM33567U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):Fixed type 63 (2.5)
Adjustable type (in frontmost position)
59 (2.3)
Pedal free play, mm (in.): Fixed type 1—6 (0.04—0.24)
Adjustable type (in frontmost position) 1—8 (0.04—0.31)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Lever type parking brake
Parking brake adjustment when pulled
with the force of 196 N (20 kgf, 44 lbf):6—9 clicks
Pedal type parking brake
Parking brake adjustment when de-
pressed with the force of 300 N (31 kgf,
67 lbf):3—6 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3 STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
