Type 1: AM·FM ETR radio/cassette player/
compact disc playerType 2: AM·FM ETR radio/cassette player/
compact disc auto changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1·2”, “FM”, “TAPE” or “CD”
to turn on that function without pushing
“PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1·2”, “FM”, “TAPE” or “CD”
if the system is already on but you want
to switch from one function to another.
ReferenceUsing your audio system—
—Some basics
Page 129 of 293
AP_Camry_U (L/O 0201)
1252002 MY CAMRY_U (OM33567U)
YOUR COMPACT DISC AUTO CHANGER
(type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. (The player will auto-
matically eject a disc if the label side is
down.) The compact disc auto changer will
play from track 1 through the end of the
disc. Then it will play from track 1 of the
next disc.
The changer is intended for use with 12
cm (4.7 in.) discs only.

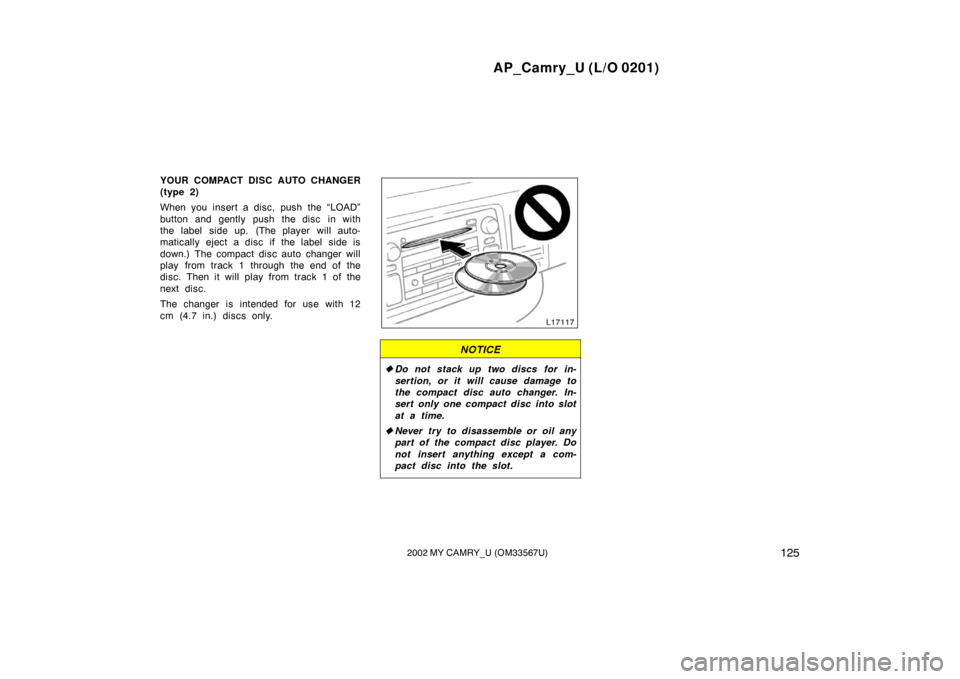

NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc auto changer. In-
sert only one compact disc into slot
at a time.
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.
Page 137 of 293
AP_Camry_U (L/O 0201)
1332002 MY CAMRY_U (OM33567U)
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast−forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc auto changer
If you want to fast −forward or reverse a
compact disc track, push and hold the
fast −forward or reverse button. When you
release the button, the compact disc auto
changer will resume playing.
AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to AM.
MODE (manual tone and sound balance
adjustment function)
Each time you push the MODE knob, the
mode changes. To adjust the tone and
balance, turn the knob. BASS: Adjusts low
−pitched tones. The dis-
play ranges from −5 to 5.
MID: Adjusts mid −pitched tones. The dis-
play ranges from −5 to 5.
TREBLE: Adjusts high− pitched tones. The
display ranges from −5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from L7 to R7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from F7 to R7.
CD (Compact disc)
Push “CD” to switch from radio or cas-
sette operation to compact disc auto
changer operation. If the audio system is
off, you can turn on the compact disc
auto changer by pushing “CD”. In both
cases, a disc must already be loaded in
the auto changer.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. If the auto changer or another unit
equipped with the player malfunctions,
your audio system will display one of the
six following error messages.
Error codes
“WAIT”:
The compact disc auto changer
unit may be too hot due to temperature.
Allow the auto changer to cool down.
“Err 1”: The disc may be dirty, damaged
or inserted incorrectly (up −side down).
Clean disc and re −insert.
“Err 2”: The compact disc auto changer
is empty. Insert a disc.
“Err 3”: There is trouble inside the sys-
tem. Eject the disc or magazine. Set the
disc or magazine again.
“Err 4”: Over−current. Ask your Toyota
dealer to inspect.
“OPEn”: The compact disc auto changer
lid of another unit is open. Close the com-
pact disc auto changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
Page 138 of 293
AP_Camry_U (L/O 0201)
1342002 MY CAMRY_U (OM33567U)
DISC
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push “
”. “” will appear on the
display. Push the button again to turn off
Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push “FM” to turn on the radio to FM
band. “FM1”, “FM2” or “FM TYPE” will
appear on the display. This system allows
you to set twelve FM stations, two for
each of the six preset button. If the RDS
is off or RDS stations are not preset to
the preset buttons, “FM TYPE” will not
appear on the display.
If the audio system is off, you can turn
on the radio by pushing “FM”. Also, push
“FM” to switch from cassette or compact
disc operation to FM.
LOAD
This button is used to load the compact
discs in the compact disc auto changer
which is integrated with the radio and cas-
sette player. This compact disc auto
changer can store up to 6 di scs.
The key must be in the “ACC” or “ON”
position for the load function. Loading one compact disc only—
To load one compact disc only, quickly
push and release the button. If you hold
the button too long (if the audio system
is on at this time, you hear a beep.), the
mechanism will change to the mode for
loading multiple compact discs. After
pushing the button, insert a compact disc.
After the disc is loaded, the shutter of the
slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds.
Loading multiple compact di
scs—
To load multiple compact discs, push and
hold (until you hear a beep when the au-
dio system is on). After pushing the but-
ton, insert the first compact disc. After the
disc is loaded, the shutter of the slot will
close. After a few seconds, the shutter
will automatically open again so the next
disc can be inserted. The same process
can be applied for loading the rest of the
discs.
If no compact disc is inserted, the shutter
will close after 15 seconds.
Page 139 of 293
AP_Camry_U (L/O 0201)
1352002 MY CAMRY_U (OM33567U)
MSG (Message)
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “MSG” will be displayed. At
this time, push “MSG” button to view the
text message. The message display will
be canceled if any button that affects the
display is pushed. To view the message
again, push the “MSG” button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64−character messages. To
store a message in memory, push and
hold the “MSG” button until you hear a
beep.
If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“MSG” button momentarily. This will dis-
play the most recent message. A second
push of the “MSG” button while the most
stored message(s) are displayed begins
with the newest one. If no messages have been stored, or if
there are no more messages to be re-
called, “NO MSG STORED” will appear on
the display, and the message display will
be canceled. The display then returns to
show the program service name. The
message display will be canceled if you
activate any function that affects the dis-
play.
Message display can be canceled by
pressing any of the following buttons:
“AM”, “FM”, “CD”, “TAPE”, “SEEK”, any
preset, “SCAN”, any audio control, “RDS”,
or “TYPE”. If the current station is not a
traffic program and traffic announcements
is off, pushing “TRAF” will cancel the dis-
play. The message will be canceled after
the entire message has been displayed.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RDS (Radio Data System)
Your audio system is equipped with Radio
Data Systems (RDS). RDS station provid-
ing good reception is automatically se-
lected if current reception worsens.To turn on the RDS, push and hold this
button until you hear a beep, the RDS
turns on and “RDS” will appear on the
display. At this time, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will appear on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found,
“NOTHING” will appear on the display and
you will hear a beep, and the display
returns to previous mode.
To turn the RDS off, push the button until
you hear a beep again.
If the FM radio, cassette player or com-
pact disc auto changer is on, pushing this
button will turn RDS on or off.
Page 140 of 293
AP_Camry_U (L/O 0201)
1362002 MY CAMRY_U (OM33567U)
RAND (Random)
There are two random features—you can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release “RAND”.
“
” will appear on the display. The
disc you are listening to will play in ran-
dom order. If you hear a beep, the auto
changer will play all the tracks in the
magazine in random order. To turn off the
random feature, push this button again.
To randomly play all the tracks in the
magazine:
Push and hold “RAND” until you hear a
beep. “
” will appear on the display
and the auto changer will perform all the
tracks on all the discs in the magazine in
random order. To turn off the random fea-
ture, push this button again. RPT (Repeat)
Cassette Player
Push “RPT” while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically rewind
and replay. To turn off the repeat feature,
push this button again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc auto changer
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” while the
track is playing. “
” will appear on
the display. If you hear a beep, the auto
changer will repeat the whole disc. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again. Repeating a disc:
Push and hold “RPT” until you hear a
beep. “
” will appear on the display.
The auto changer will repeat all the tracks
on the disc you are listening to. When the
disc ends, the auto changer will automati-
cally go back to the top track of the disc
and replay. To turn off the repeat feature,
push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.
To scan all the frequencies:
Quickly push and release “SCAN”. The
radio will find the next station up the sta-
tion band, stay there for 5 seconds, and
then scan again to the next preset. To
select a station, push “SCAN” again. If
you hear a beep, the radio will scan the
preset stations.
Page 141 of 293
AP_Camry_U (L/O 0201)
1372002 MY CAMRY_U (OM33567U)
Compact disc auto changer
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the auto
changer will scan all the tracks on the
disc you are listening to. If you hear a
beep, the auto changer will scan the first
track of all the discs in the magazine. To
select a track, push “SCAN” again. If the
auto changer scanned all the tracks on
the disc, it will stop scanning.
Scanning the first track of all the discs in
the magazine:
Push “SCAN” until you hear a beep.
“
” will appear on the display and
the auto changer will scan the first track
of the next disc. To select a disc, push
the “SCAN” again. If the auto changer has
scanned all the di scs, it will stop scan-
ning. SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release the “
” or “ ” side of “SEEK”.
Do this again to find the station after that.
Cassette Player
By using this button you can skip up or
down to locate a song or recording.
You can select up to 9 recordings (includ-
ing current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings. ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
Page 142 of 293
AP_Camry_U (L/O 0201)
1382002 MY CAMRY_U (OM33567U)
TRACK (Track up/down button):
compact disc auto changer
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, quickly push the down side of the
button one time.
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off.
By pushing “TRAF” button, “TRAF SEEK”
appears on the display and the radio will
start seeking any traffic program station.
When a traffic program station is found,
“< >” will be displayed (
will hear a beep.
After the traffic announcement program is
over, a beep sounds and the display re-
turns to the previous mode.If no traffic program station is found, “NO
TRAF INFO” appears on the display for a
few seconds and the display returns to
the previous mode. However, if the
“TRAF” button is pushed when the cas-
sette player or compact disc player is on,
the radio will start seeking traffic program
stations.
TA volume memory function—The volume
level when receiving the traffic announce-
ment is memorized.
When “TA” is received next time, the sys-
tem compares the volume before “TA” is
received and the memorized TA volume
and automatically selects the louder vol-
ume. However, the range of volume
memory is limited: if the volume received
previously is less than the minimum, this
volume will be used.
You can adjust the volume independently
from the memorized TA volume range
while receiving a TA station.
Traffic announcement can be canceled by
turning RDS off, or pressing the “TRAF”
button again.TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.
TYPE (Program Types)
When you push the “TYPE” button while
receiving an RDS station, the current pro-
gram type appears on the display.
Each time you push the “TYPE” button,
the program type changes as in the fol-
lowing:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC
ALERT (Emergency message)
ALERT: If an emergency broadcast is re-
ceived during reception of anything other
than AM broadcasting, you will hear a
beep and “ALERT” appears on the display.
Page 144 of 293
AP_Camry_U (L/O 0201)
1402002 MY CAMRY_U (OM33567U)
Use high−quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Use only compact discs labeled as
shown above. CD −R (CD −Recordable),
CD− RW (CD −Re −writable) and personal
computer use CD −ROMs may not be
playable on your compact disc player.
Type 2 only—Your compact disc auto
changer is intended for use with 12 cm
(4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
Page 145 of 293
AP_Camry_U (L/O 0201)
1412002 MY CAMRY_U (OM33567U)
Your automatic changer or compact
disc player cannot play special shaped
or low−quality compact discs such as
those shown here. Do not use them as
the changer or player could be dam-
aged.
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint −free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
