OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Ignition switch light 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Personal lights 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Windshield wipers and washer 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 94
. . . . . . . . . . . .
SECTION 1 4

AP_Camry_U (L/O 0201)
932002 MY CAMRY_U (OM33567U)
When all the doors are unlocked with the
key or wireless remote control transmitter
simultaneously, the ignition switch light
comes on for about 15 seconds and then
fade out, even if the door is not opened.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened for 20 minutes or more.
To turn on the front personal lights,
push the lens. To turn the lights off,
push the lens once again.To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
Personal lights Windshield wipers and washer

AP_Camry_U (L/O 0201)
942002 MY CAMRY_U (OM33567U)
With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 266 in
Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.

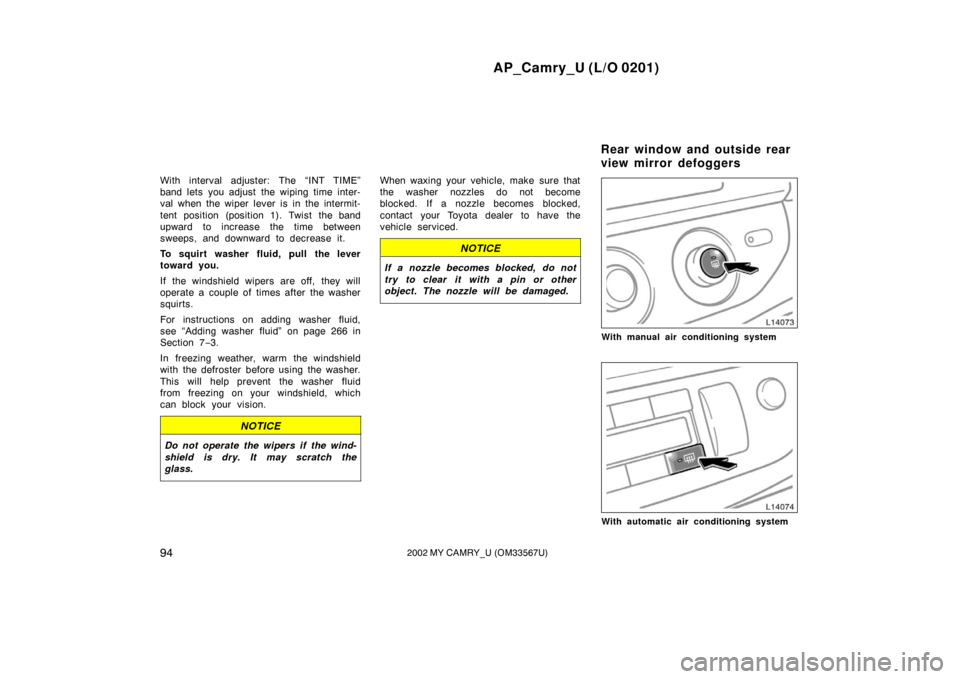

With manual air conditioning system
With automatic air conditioning system
Rear window and outside rear
view mirror defoggers

AP_Camry_U (L/O 0201)
2802002 MY CAMRY_U (OM33567U)
24. ECUB 10 A: Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system
25. DOME 7.5 A: Ignition switch light, inte-
rior light, personal lights, trunk light,
vanity lights, garage door opener,
clock, outside temperature gauge, mul-
ti −information display
26. CIG 15 A: Cigarette lighter
27. ECUACC 5 A: Power rear view mir-
rors, clock, multi −information display
28. RAD NO.2 10 A: Car audio system,
navigation system
29. POWER POINT 15 A: Power outlets
30. RAD NO.1 20 A: Car audio system,
navigation system
31. GAUGE1 10 A: Gauges and meters,
clock, outside temperature gauge, mul-
ti −information display, shift lock system,
seat belt reminder lights
32. ECUIG 10 A: SRS airbag system,
power windows, anti −lock brake system
33. WIPER 25 A: Windshield wipers 34. HTR 10 A:
Air conditioning systems
35. MIR HTR 10 A: Outside rear view mir-
ror heaters
36. AM1 5 A: Starting system
37. FOG 15 A: Front fog lights
38. SUNSHADE 15 A: No circuit
39. GAUGE2 10 A: Auto anti−glare inside
rear view mirror, compass, electric
moon roof, back −up lights, automatic
transmission indicator lights, automatic
light control system, cruise control sys-
tem
40. PANEL 10 A: Glove box light, clock,
outside temperature gauge, multi −infor-
mation display, instrument cluster
lights, instrument panel lights, over-
drive− off indicator light
41. TAIL 10 A: Tail lights, parking lights,
license plate lights
42. PWR NO.4 20 A: Rear passenger ’s
power window (left side)
43. PWR NO.2 20 A: Front passenger ’s
door lock system, front passenger ’s
power window
44. OBD 7.5 A: On−board diagnosis sys-
tem
45. SEAT HTR 20 A: Seat heaters
46. WASHER 15 A: Windshield washer 47. FAN RLY 10 A:
Electric cooling fans
48. STOP 15 A: Stop lights, high mounted
stoplight, anti −lo
ck brake system,
cruise control system
49. FUEL OPEN 5 A: No circuit
50. DOOR NO.2 25 A: Multiplex commu-
nication system (power door lock sys-
tem, auto −door locking system, wire-
less remote control system)
51. AMP 25 A: No circuit
52. PWR NO.3 20 A: Rear passenger’s
power window (right side)
Fuses (type B)
53. MAIN 40 A: “HEAD LH LWR”, “HEAD
RH LWR”, “HEAD LH UPR”, “HEAD LH
UPR” and “DRL” fuses
54. ABS NO.2 40 A: Anti−lock brake sys-
tem, vehicle skid control system, trac-
tion control system, brake assist sys-
tem
55. RDI 30 A: Electric cooling fan
56. CDS 30 A: Electric cooling fan
57. HTR 50 A: Air conditioning system
58. ADJ PDL 30 A: Power adjustable ped-
als
