navigation system TOYOTA CAMRY 2006 XV40 / 8.G Navigation Manual

06 CAMRY NAVI_U (L/O 0507)
37
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Touch the switch of the desired destina-
tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See
“ — Enter-
ing destination” on page 42.)

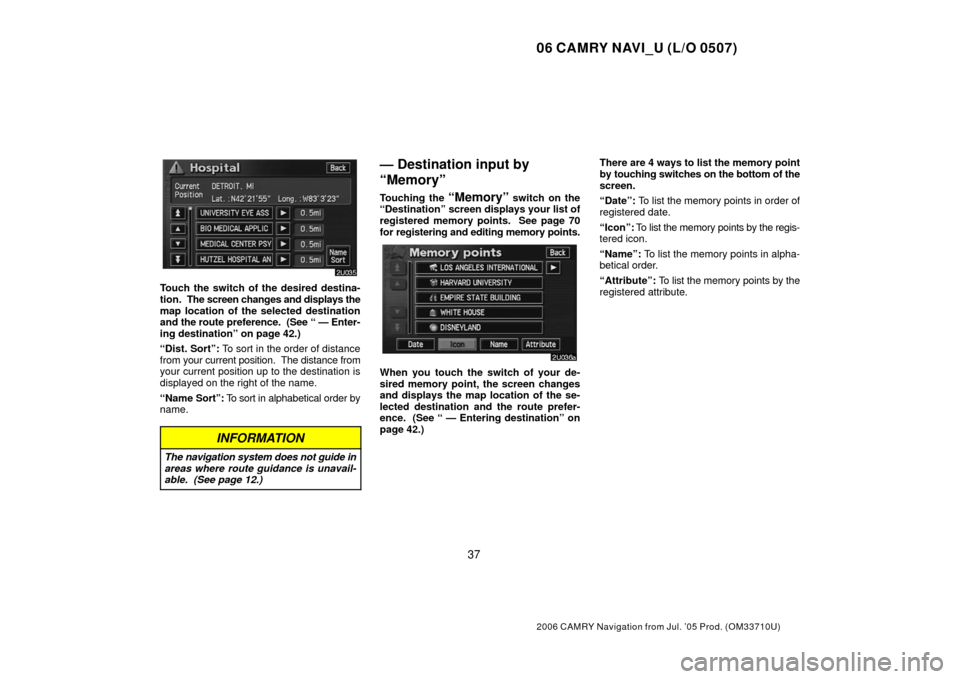

“Dist. Sort”: To sort in the order of distance
from your current position. The distance from
your current position up to the destination is
displayed on the right of the name.
“Name Sort”: To sort in alphabetical order by
name.
INFORMATION
The navigation system does not guide in
areas where route guidance is unavail-
able. (See page 12.)
— Destination input by
“Memory”
Touching the “Memory” switch on the
“Destination” screen displays your list of
registered memory points. See page 70
for registering and editing memory points.
When you touch the switch of your de-
sired memory point, the screen changes
and displays the map location of the se-
lected destination and the route prefer-
ence. (See “ — Entering destination” on
page 42.) There are 4 ways to list the memory point
by touching switches on the bottom of the
screen.
“Date”:
To list the memory points in order of
registered date.
“Icon”: To list the memory points by the regis-
tered icon.
“Name”: To list the memory points in alpha-
betical order.
“Attribute”: To list the memory points by the
registered attribute.

06 CAMRY NAVI_U (L/O 0507)
43
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
To change the route before starting
guidance
ROUTE PREFERENCE
You can change route preference by touching
the
“Change” switch on SCREEN A.
You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing conditions, touch the
“OK” switch.
INFORMATION
 Even if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in some
cases.
 If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
To select the desired route from three routes,
touch the
“3 Routes” switch on SCREEN
B.
Touch the “Quick1”, “Quick2” or“Short” switch to select the desired
route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.
“Short”: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.

06 CAMRY NAVI_U (L/O 0507)
45
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver.
4.2 miles
0.25 miles
1“Proceed about 4 miles to the traf-
fic circle.”
2“In a quarter of a mile, traf fic circle
ahead, and then 3rd exit ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
One −way road
One −way road
∗: The system indicates a U −turn if the dis-
tance between two one −way roads (of oppo-
site directions) is less than 50 feet (15 m) in
residential areas or 164 feet (50 m) in non −
residential areas.
1“In half of a mile, make a legal U −
turn.”
2“Make a legal U −turn ahead.”
3(Beep sound only)

06 CAMRY NAVI_U (L/O 0507)
46
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
The system announces your approach to the
final destination.
1“Your destination is ahead.”
2“You have arrived at your destina-
tion. The route guidance is now
finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
 If you did not hear the voice guidance
command, touch the
“MAP/
VOICE” button to hear it again.
 To adjust the voice guidance volume,
see page 67.
Setting and deleting
destination
(a) Adding destinations
You can add destinations and search
again for the routes.
1. Touch the “Route” switch.
2. Touch the “Add” switch of “Destina-
tion”.

06 CAMRY NAVI_U (L/O 0507)
47
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
3. Input an additional destination in the
same way as the destination input. (See
page 24.)
4. Touch the desired “Add” switch to
determine the arrival order of the addition-
al destination.
(b) Reordering destinations
When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch the
“Route” switch.
2. Touch the “Reorder” switch of “Des-
tination”.
3. Select the destination in the order of
arrival by touching the switch of destina-
tions.
Reordered number of arrival is displayed on
the right side of the screen.
When you finish selecting the destinations,
touch the
“OK” switch. The system
searches for the guidance route again, and
displays the entire route. Even if you do not
touch the
“OK” switch, the entire route is
displayed automatically within a few seconds
when order is fixed.

06 CAMRY NAVI_U (L/O 0507)
48
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
(c) Deleting destination
You can delete a set destination.
1. Touch the
“Route” switch.
2. Touch the “Delete” switch of “Des-
tination”.
3. When more than one destination is set,
a list will appear on the screen. Touch the
destination on the screen you wish to de-
lete. “Delete
All”: To delete all destinations on the
list.
4. A message appears to confirm your re-
quest to delete. To delete the destina-
tion(s), touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you touch the
“No” switch, the previous
screen will return.
5. If more than one destination is set,
touch the
“OK” switch after deleting the
destinations. The system searches for the
guidance route again, and displays the en-
tire route.
Setting and deleting route
(a) Adding preferred road
You can add points you wish to pass
through.
1. Touch the “Route” switch.
2. Touch the “Add” switch of “Preferred
road”.

06 CAMRY NAVI_U (L/O 0507)
50
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
“Delete All”: To delete all the listed preferred
road.
4. A message appears to confirm your re-
quest to delete. To delete the preferred
road, touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you want to try again or cancel deletion,
touch the
“No” switch. The previous screen
will return.
5. If more than one preferred road is set,
touch the
“OK” switch after deleting the
preferred road. The system searches for
the guidance route again, and displays en-
tire route.
(c) Search condition
You can designate the route conditions of
the route to the destination.
1. Touch the
“Route” switch.
2. Touch the “Search Condition”switch. The “Search Condition” screen
appears.
3. Touch the “Quick”, “Quick1”,“Quick2” or “Short” switch and touch
the “OK” switch.
The entire route from the starting point to the
destination is displayed.
“Guide”: To start guidance.
“Route”: To add or change a route. (For de-
tails, see pages 46 and 48.)

06 CAMRY NAVI_U (L/O 0507)
51
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

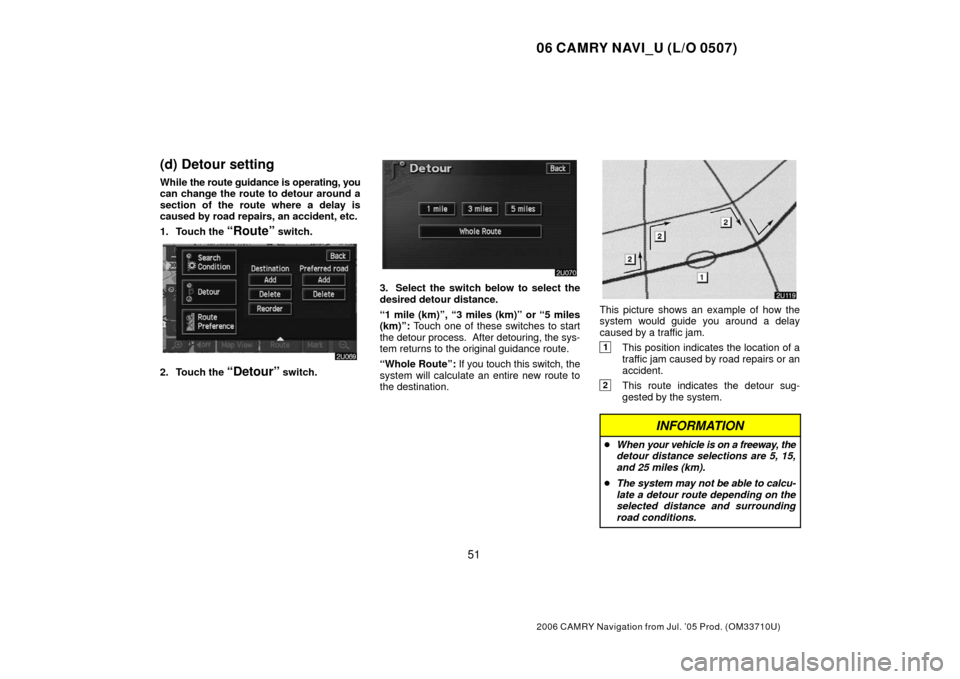

(d) Detour setting
While the route guidance is operating, you
can change the route to detour around a
section of the route where a delay is
caused by road repairs, an accident, etc.
1. Touch the
“Route” switch.
2. Touch the “Detour” switch.
3. Select the switch below to select the
desired detour distance.
“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these switches to start
the detour process. After detouring, the sys-
tem returns to the original guidance route.
“Whole Route”: If you touch this switch, the
system will calculate an entire new route to
the destination.
This picture shows an example of how the
system would guide you around a delay
caused by a traffic jam.
1This position indicates the location of a
traffic jam caused by road repairs or an
accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
 When your v ehicle is on a freeway, the
detour distance selections are 5, 15,
and 25 miles (km).
 The system may not be able to calcu-
late a detour route depending on the
selected distance and surrounding
road conditions.

06 CAMRY NAVI_U (L/O 0507)
52
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

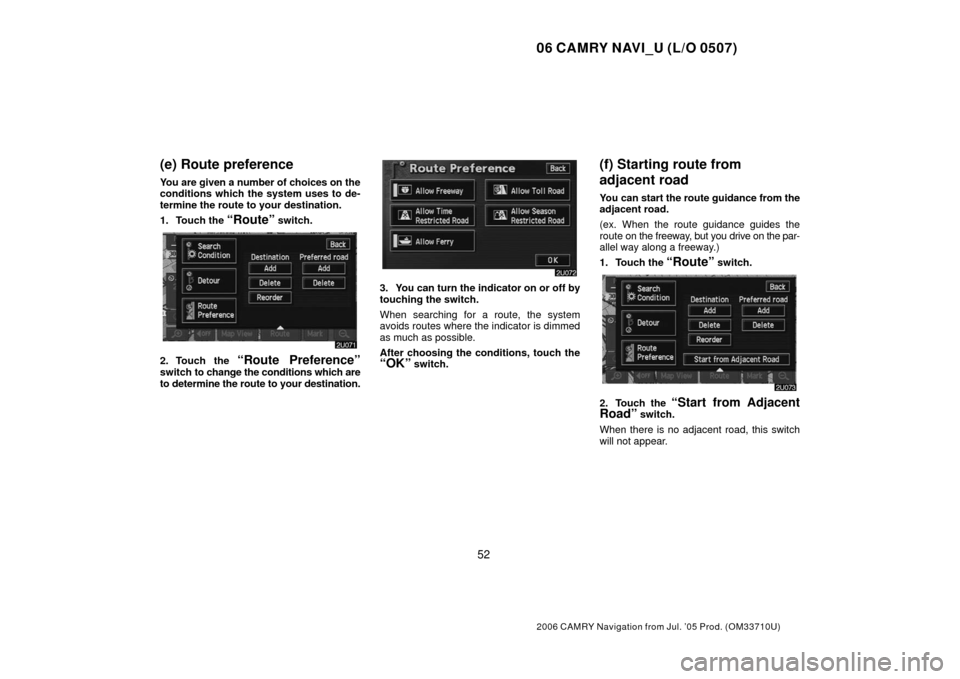

(e) Route preference
You are given a number of choices on the
conditions which the system uses to de-
termine the route to your destination.
1. Touch the
“Route” switch.
2. Touch the “Route Preference”switch to change the conditions which are
to determine the route to your destination.
3. You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing the conditions, touch the
“OK” switch.
(f) Starting route from
adjacent road
You can start the route guidance from the
adjacent road.
(ex. When the route guidance guides the
route on the freeway, but you drive on the par-
allel way along a freeway.)
1. Touch the
“Route” switch.
2. Touch the “Start from Adjacent
Road” switch.
When there is no adjacent road, this switch
will not appear.

06 CAMRY NAVI_U (L/O 0507)
67
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Volume
You can use voice guidance when ap-
proaching a destination.
You can adjust the volume of the voice or turn
off voice guidance.
Push the “MENU” button to display the
“Menu” screen, and touch the “Volume”
switch.
To adjust the volume, select the desired level
by touching the appropriate number.
If you do not need voice guidance, touch the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive V olume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.
User selection
The system can memorize the following
settings for up to three users.
Map direction
Map scale
Guidance mode
Setup
Volume
Language
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.
