navigation system TOYOTA CAMRY 2006 XV40 / 8.G Navigation Manual

06 CAMRY NAVI_U (L/O 0507)
80
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
(c) Deleting area to avoid
1. Touch the “Delete” switch of the
“Areas to Avoid” to display the “Delete
Area to Avoid” screen.
2. Touch the area you wish to delete from
the list.
“Delete all”: To delete all registered areas to
avoid in the system.
3. To delete, touch the
“Yes” switch. To
cancel the deletion, touch the
“No”
switch.
Setup
You can set the items shown on the “Set-
up” screen.
1. Push the
“MENU” button.
2. To display the “Setup” menu screen,
touch the
“Setup” switch. Touch the
items you wish to set.
3. Touch the “OK” switch on the screen
and then the previous screen will be dis-
played.
“Default”: This switch initializes all of the set-
tings.
“Calibration”: You can adjust the current ve-
hicle position mark manually.
“Distance”: You can select “km” or “miles” as
the distance unit.
“Estimated Travel Time”: You can set the
system to display the travel time to the des-
tination on the route guidance screen.
“Auto Reroute”: You can set the system to
automatically search for a new route to the
destination.
“Adjust T ime Zone”: You can select your de-
sired time zone.
“Auto V oice Guidance”: You can set the au-
tomatic voice guidance.

06 CAMRY NAVI_U (L/O 0507)
81
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
“Voice Guidance in All Modes”: You can set
the voice guidance in all modes.
“Notify Traffic Restriction”: You can select
notification of seasonal restrictions.
“Intersection Guidance”: You can select
ON or OFF to display intersection guidance.
“Guidance Screen on Freeway”: You can
select ON or OFF to display the guidance
screen on the freeway.
“Street Name on Scroll Map”: You can se-
lect ON or OFF to display the street name on
the scroll map.
“Display Building Shape”: You can select
ON or OFF to display the building shape on
the map screen.
“
Function”: You can set to display or
not to display each switch and current street
name on the map screen.
“Show POI Icons”: You can choose 6 icons
displayed on “Show POI Icons” top screen.
“Previous Point”: You can delete the pre-
vious destination.
“Map Color (Day)”: You can select the de-
sired map color.
“Map Color (Night)”: You can select the de-
sired map color.
“Screen Animation”: You can set some
screen displays to be animated.
Current position calibration
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
1. Push the “MENU” button to display
the “Menu” screen, and then touch the
“Setup” switch.
2. Touch the “Adjust” switch of “Cal-
ibration”.
3. Touch the “Position/Direction”
switch.
INFORMATION
For additional information on the accu-
racy of a current vehicle position, see
“Limitations of the navigation system”
on page 10.

06 CAMRY NAVI_U (L/O 0507)
85
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
Auto reroute
When the “Auto Reroute” feature is turned
on, the system will automatically search
for a new route to the destination if you
stray from the guidance route. This fea-
ture does not operate while you are driving
on roads where guidance is not available.
To turn the “Auto Reroute” mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch.
3. Touch the “On” switch of “Auto
Reroute”.
The selected switch is highlighted in green.
INFORMATION
If your vehicle strays from the guidance
route, the system searches for a new
route to the destination. The new route
may or may not take you back to the pre-
vious route depending on how far you
are off the original guidance route.
Adjusting time zone
1. Push the “MENU” button.
2. Touch the “Setup” switch.

06 CAMRY NAVI_U (L/O 0507)
88
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
3. Touch the “On” switch of “V oice Guid-
ance in All Modes” and touch the
“OK”switch.
Notifying traffic restriction
When the “Notify Traffic Restriction” fea-
ture is turned on, the system notifies you
of traffic or seasonal restrictions.
To turn the “Notify Traffic Restriction”
mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

06 CAMRY NAVI_U (L/O 0507)
89
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
3. Touch the “On” switch of “Notify Traf-
fic Restriction” and touch the
“OK”
switch.

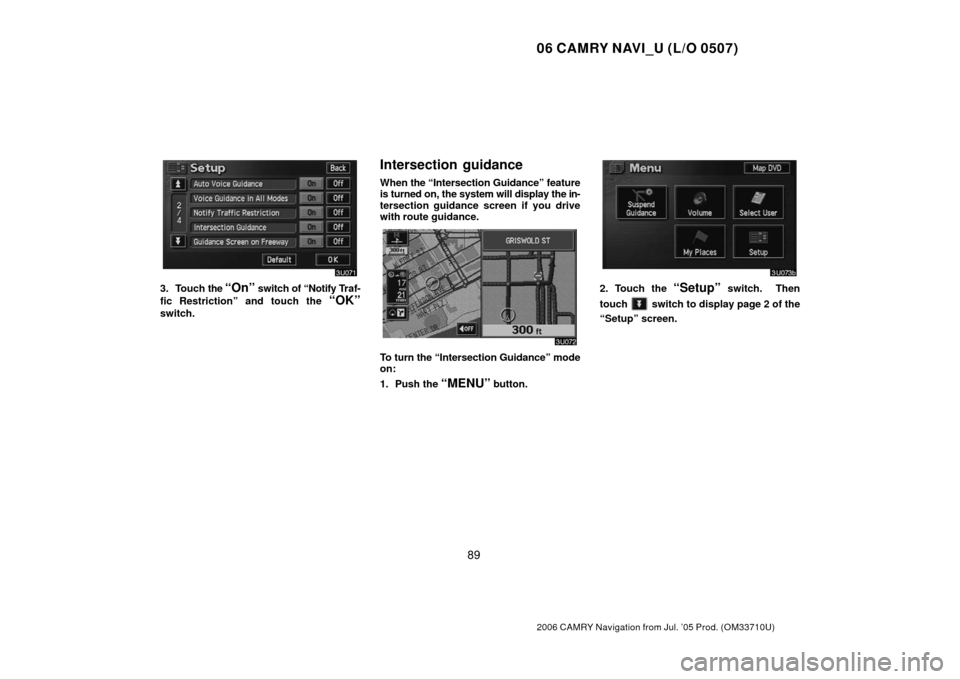

Intersection guidance
When the “Intersection Guidance” feature
is turned on, the system will display the in-
tersection guidance screen if you drive
with route guidance.
To turn the “Intersection Guidance” mode
on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

06 CAMRY NAVI_U (L/O 0507)
90
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
3. Touch the “On” switch of “Intersec-
tion Guidance” and touch the
“OK”switch.

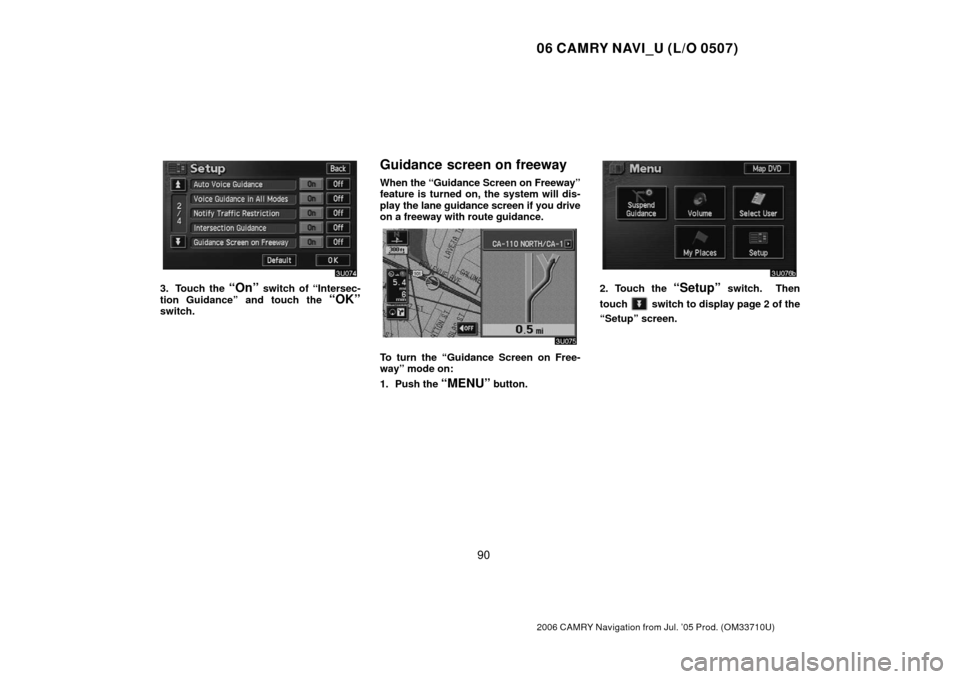

Guidance screen on freeway
When the “Guidance Screen on Freeway”
feature is turned on, the system will dis-
play the lane guidance screen if you drive
on a freeway with route guidance.
To turn the “Guidance Screen on Free-
way” mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

06 CAMRY NAVI_U (L/O 0507)
91
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
3. Touch the “On” switch of “Guidance
Screen on Freeway” and touch the
“OK”switch.

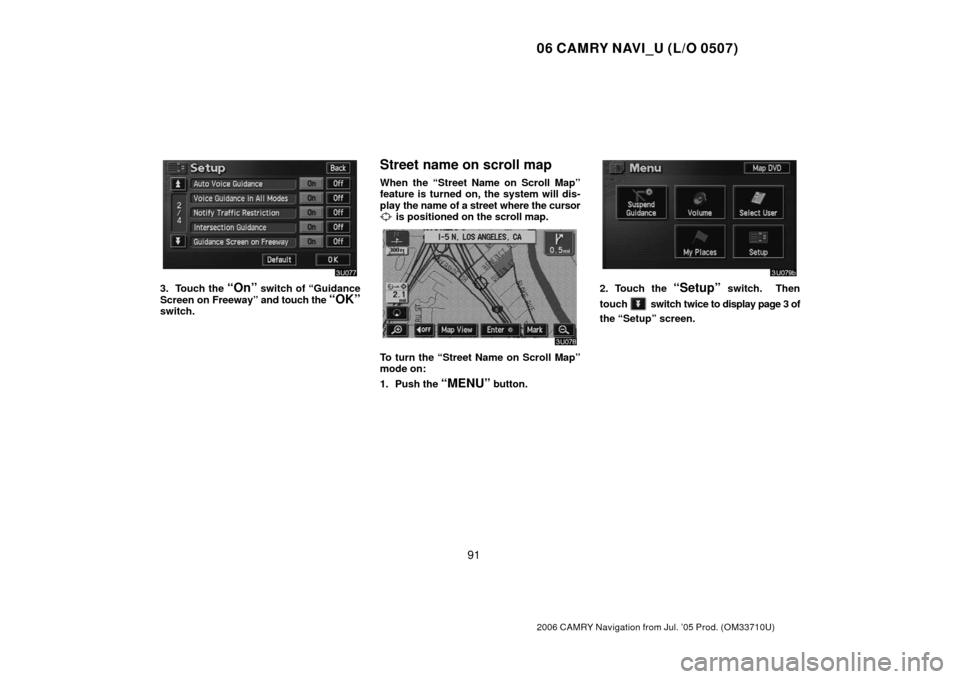

Street name on scroll map
When the “Street Name on Scroll Map”
feature is turned on, the system will dis-
play the name of a street where the cursor
is positioned on the scroll map.
To turn the “Street Name on Scroll Map”
mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.

06 CAMRY NAVI_U (L/O 0507)
92
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)
3. Touch the “On” switch of “Street
Name on Scroll Map” and touch the
“OK”switch.

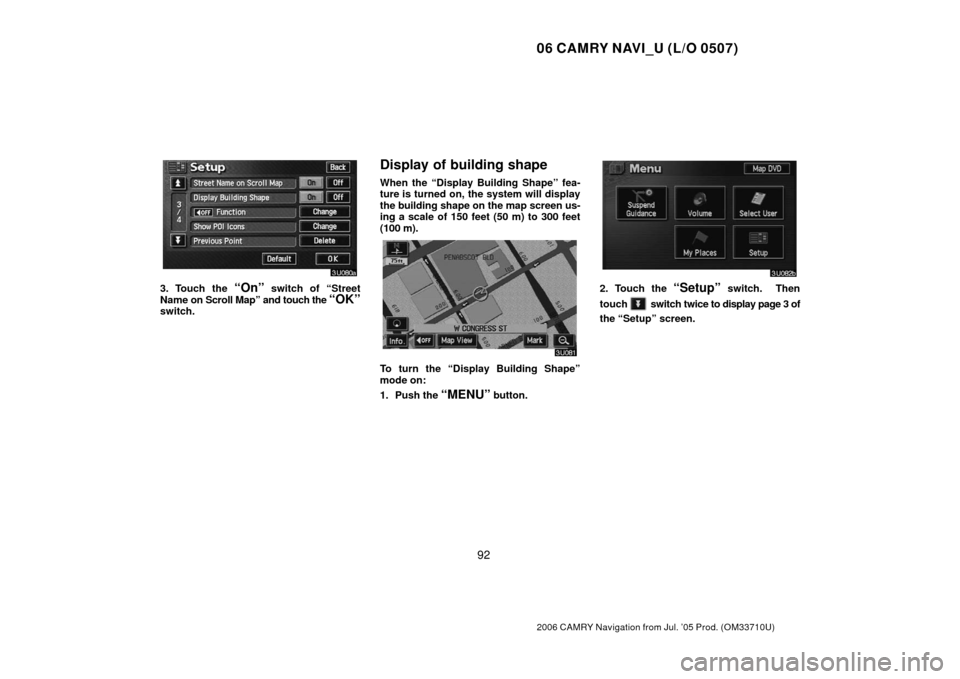

Display of building shape
When the “Display Building Shape” fea-
ture is turned on, the system will display
the building shape on the map screen us-
ing a scale of 150 feet (50 m) to 300 feet
(100 m).
To turn the “Display Building Shape”
mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.

06 CAMRY NAVI_U (L/O 0507)
100
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

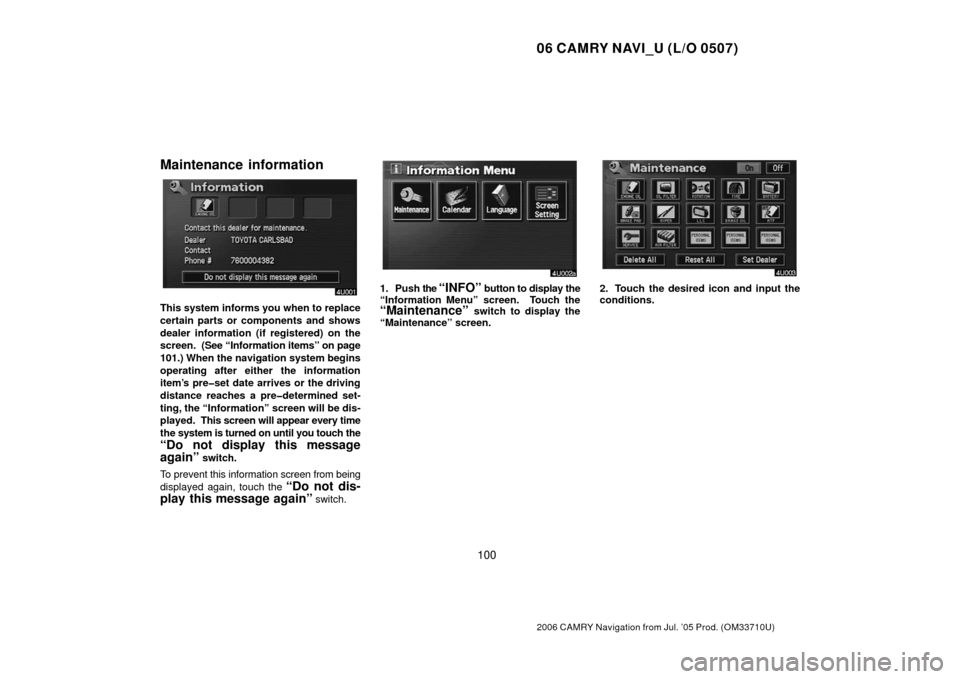

Maintenance information
This system informs you when to replace
certain parts or components and shows
dealer information (if registered) on the
screen. (See “Information items” on page
101.) When the navigation system begins
operating after either the information
item’s preset date arrives or the driving
distance reaches a predetermined set-
ting, the “Information” screen will be dis-
played. This screen will appear every time
the system is turned on until you touch the
“Do not display this message
again”
switch.
To prevent this information screen from being
displayed again, touch the
“Do not dis-
play this message again”
switch.
1. Push the “INFO” button to display the
“Information Menu” screen. Touch the
“Maintenance” switch to display the
“Maintenance” screen.
2. Touch the desired icon and input the
conditions.

06 CAMRY NAVI_U (L/O 0507)
101
2006 CAMRY Navigation from Jul. ’05 Prod. (OM33710U)

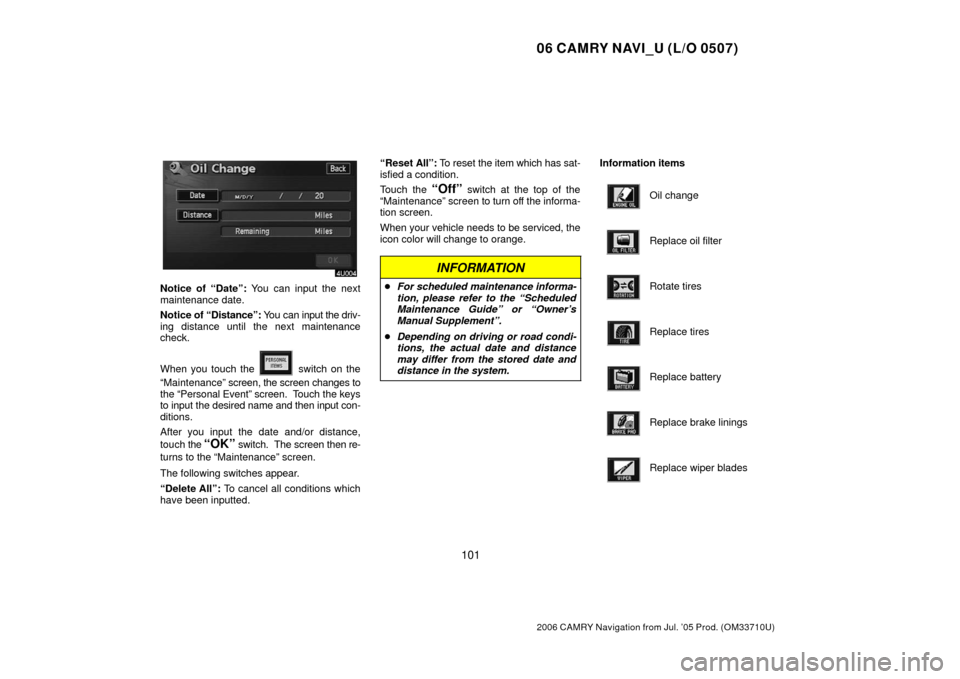

Notice of “Date”: You can input the next
maintenance date.
Notice of “Distance”: You can input the driv-
ing distance until the next maintenance
check.
When you touch the
switch on the
“Maintenance” screen, the screen changes to
the “Personal Event” screen. Touch the keys
to input the desired name and then input con-
ditions.
After you input the date and/or distance,
touch the
“OK” switch. The screen then re-
turns to the “Maintenance” screen.
The following switches appear.
“Delete All”: To cancel all conditions which
have been inputted. “Reset
All”: To reset the item which has sat-
isfied a condition.
Touch the
“Off” switch at the top of the
“Maintenance” screen to turn off the informa-
tion screen.
When your vehicle needs to be serviced, the
icon color will change to orange.
INFORMATION
 For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
 Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.
Information items
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades
