TOYOTA CAMRY 2006 XV40 / 8.G Owners Manual

’06Camry_U (L/O 0507)
153
2006 CAMRY from July ‘05 Prod. (OM33708U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

Ty p e 2

’06Camry_U (L/O 0507)
154
2006 CAMRY from July ‘05 Prod. (OM33708U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK/TRACK” button.) Push and hold
down the button until you hear a
beep—this will set the station to the but-
ton. The button number will appear on the
display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM” or “FM1·2” button.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
While the ignition is in “LOCK”, you can
eject a cassette or disc but you cannot
reinsert it.
(Program)
Push “
” (preset button 5) to select
the other side of a cassette tape. The
display indicates which side is currently
selected (“
” indicates top side, “”
indicates bottom side).
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fastforward but-
tons)
Cassette player
Push “
” (preset button 2) to fast −for-
ward a cassette tape. “FF” will appear on
the display. Push “
” (preset button 1)
to rewind a tape. “REW” will appear on
the display.
To stop the tape while it is fast −forward-
ing, push “
” or “TAPE” button. To stop
the tape while it is rewinding, push “
”
or “TAPE” button. If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast
−forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc player
Push and hold “
” (preset button 2) or
“
” (preset button 1) to fast −forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push “AM” button to turn on the radio and
select the AM band. “AM” will appear on
the display.
CD (Compact disc)
Push the “CD” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.

’06Camry_U (L/O 0507)
155
2006 CAMRY from July ‘05 Prod. (OM33708U)
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”: The compact disc player unit
may be too. Allow the player to cool
down.
“Err 1”: The disc may be dirty, damaged
or inserted incorrectly (up− side down).
Clean the disc and re −insert it.
“Err 3”: There is trouble inside the sys-
tem. Eject the disc. Set the disc again.
“Err 4”: Over−current. Ask your Toyota
dealer to inspect.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 5) or “ ” (preset
button 6) until the number of the disc you
want to listen appears on the display. Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 6). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM1·2
Push “FM1·2” button to turn on the radio
and select the FM band. “FM1” or “FM2”
will appear on the display. This system
allows you to set twelve FM stations, two
for each button. MODE (Tone and sound balance adjust-
ment function)
Each time you push the “MODE” knob, the
mode changes. To adjust the tone and
balance, turn the knob.
BASS: Adjusts low
−pitched tones. The dis-
play ranges from −5 to 5.
MID: Adjusts mid −pitched tones. The dis-
play ranges from −5 to 5.
TREBLE: Adjusts high −pitched tones. The
display ranges from −5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from L7 to R7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from F7 to R7.
PWR·VOL (Power and Volume)
Push the “PWR·VOL” knob to turn the
audio system on and off. Turn the
“PWR·VOL” knob to adjust the volume.

’06Camry_U (L/O 0507)
156
2006 CAMRY from July ‘05 Prod. (OM33708U)
RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 4). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 4)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. RPT (Repeat)
Cassette player
Push “RPT” (preset button 3) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically be rewound and replayed. To
turn off the repeat feature, push this but-
ton again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 3) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again. With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 3)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To select a station,
push “SCAN” button again.

’06Camry_U (L/O 0507)
157
2006 CAMRY from July ‘05 Prod. (OM33708U)
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. If you hear a beep, you held the
button too long, and the radio will scan
the preset stations. The radio will find the
next station up the station band, stay
there for 5 seconds, and then scan again.
To select a station, push “SCAN” button
again.
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track on the next disc. To stop scanning,
push this button again. If the player has
scanned all the di scs, it will stop scan-
ning.
SEEK/TRACK (Seeking/Tracking up or
down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “ ” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording. When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.

’06Camry_U (L/O 0507)
158
2006 CAMRY from July ‘05 Prod. (OM33708U)
TA P E
Push the “TAPE” button to play a cassette
tape.
TUNE (Tuning)
Push and release the “” or “ ” side of
“TUNE” button to step up or down the
frequency.
If you push and hold the “ ” or “ ” side
of the “TUNE” button, the radio will contin-
ue seeking up or down for frequencies
and will stop at the next frequency that it
finds after the button is released. Press
the button again to resume the search.

’06Camry_U (L/O 0507)
159
2006 CAMRY from July ‘05 Prod. (OM33708U)

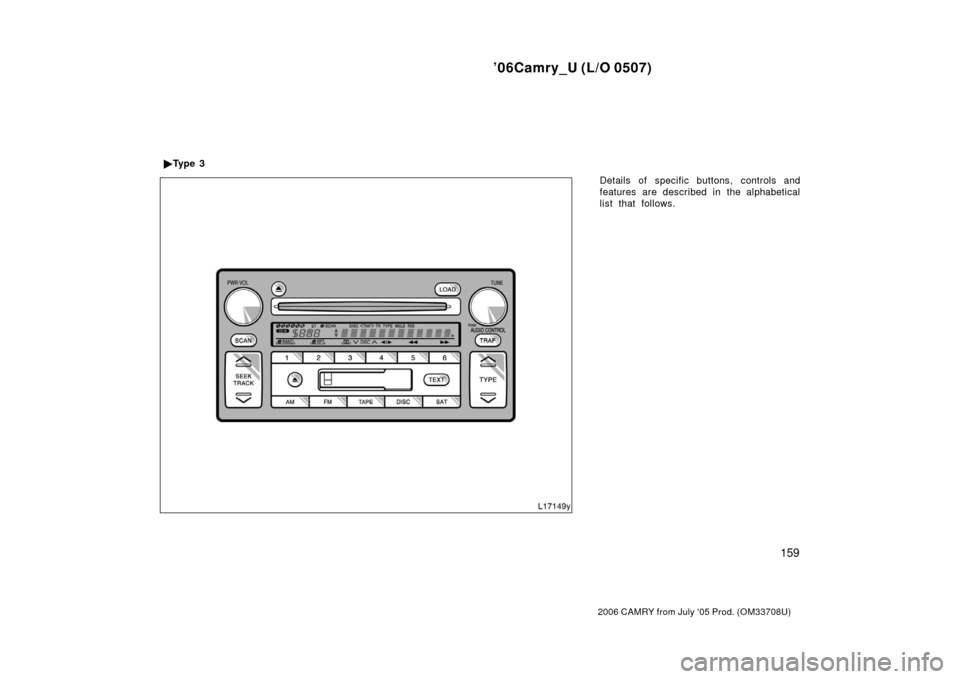

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

Ty p e 3

’06Camry_U (L/O 0507)
160
2006 CAMRY from July ‘05 Prod. (OM33708U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM” or “FM” button.)
XM satellite radio
∗—
These buttons are used to preset and
tune in radio channels.
To preset a channel to a button: Tune in
the desired channel. (See “TUNE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the channel to the button. The preset but-
ton number will appear on the display. To recall a preset channel: Push the but-
ton for the channel you want. The preset
button number and channel number will
appear on the display.
This radio can store three XM channels
for each button. (The display will show
“SAT1”, “SAT2” or “SAT3” when you push
“SAT” button.)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
(Eject button)
Cassette player
This button is used to eject a cassette.
Compact disc player
This button is used to eject one or all
compact discs.
To eject the current compact disc, push
and release the compact disc eject button.
To eject a specific disc, push “ ” (preset
button 3) or “ ” (preset button 4) until the
number of the disc you want to eject is
displayed. Push and release the eject but-
ton. To eject all discs at a time, press and
hold the eject button until you hear a
beep. The last compact disc played before
pushing the button will be ejected first. If
the ejected disc is not removed for a long
time, the eject function will be cancelled.
(Program)
Push “
” (preset button 4) to select
the other side of a cassette tape. The
display indicates which side is currently
selected (“
” indicates the top side, “”
indicates the bottom side).
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast −forwarding.

’06Camry_U (L/O 0507)
161
2006 CAMRY from July ‘05 Prod. (OM33708U)
(Reverse/Fastforward button)
Cassette player
Push “
” (preset button 6) to fast −for-
ward a cassette tape. “FF” will appear on
the display. Push “
” (preset button 5)
to rewind a tape. “REW” will appear on
the display.
To stop the tape while it is fast −forward-
ing, push “
” or “TAPE” button. To stop
the tape while it is rewinding, push “
”
or “TAPE” button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast −forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc player
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast −forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display. AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low
−pitched tones. The dis-
play ranges from −5 to 5.
MID: Adjusts mid −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played. Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.

’06Camry_U (L/O 0507)
162
2006 CAMRY from July ‘05 Prod. (OM33708U)
 DISC
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1” or “FM2”
will appear on the display. This system
allows you to set twelve FM stations, two
for each of the preset button. LOAD
This button is used to load the compact
discs in the compact disc player. This
player can store up to six discs.
To load one compact disc only, quickly
push and release the button, then insert
a compact disc. After the disc is loaded,
the shutter of the slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds.
To load multiple compact discs, push and
hold the button (until you hear a beep
when the audio system is on), then insert
the first compact disc. After the disc is
loaded, the shutter of the slot will close.
After a few seconds, the shutter will auto-
matically open again so the next disc can
be inserted. The same process can be
applied for loading the rest of the di
scs.
If the player is full of discs, “DISC FULL”
will appear on the display.
If no compact disc is inserted, the shutter
will close after 15 seconds. PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again.
