TOYOTA CAMRY 2006 XV40 / 8.G Owners Manual

’06Camry_U (L/O 0507)
163
2006 CAMRY from July ‘05 Prod. (OM33708U)
RDS (Radio Data System) display
The radio will automatically switch to the
RDS mode to receive an RDS station
while turned to FM broadcasts. “RDS” will
appear on the display.
RPT (Repeat)
Cassette player
Push “RPT” (preset button 2) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly. Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again. SAT
∗ (Satellite radio)
Push the “SAT” button to turn on the radio
and select the XM band. “SAT1”, “SAT2”
or “SAT3” will appear on the display. This
system allows you to set eighteen XM
channels, three for each of the preset
button.
Error messages
If the satellite radio tuner malfunctions,
your audio system will display following
error messages.
“ANTENNA”:
The XM antenna is not connected.
Check whether the XM antenna cable
is attached securely.
A short −circuit occurs in the antenna or
the surrounding antenna cable. See a
Toyota certified dealer.

’06Camry_U (L/O 0507)
164
2006 CAMRY from July ‘05 Prod. (OM33708U)
“UPDATING”:
You have not subscribed to the XM
satellite radio. The radio is being up-
dated with the latest encryption code.
Contact the XM satellite radio for sub-
scription information. When a contact is
canceled, you can choose the “CH000”
and all free−to−air channels.
The premium channel you selected is
not authorized. Wait for about 2 sec-
onds until the radio returns to the pre-
vious channel or “CH001”. If it does
not change automatically, select anoth-
er channel. If you want to listen to the
premium channel, contact the XM satel-
lite radio.
“NO SIGNAL”: The XM signal is too
weak at the current location. Wait until
your vehicle reaches a location with a
stronger signal. “LOADING”:
The unit is acquiring audio
or program information. Wait until the unit
has received the information.
“OFF AIR”: The channel you selected is
not broadcasting any programming. Select
another channel.
“”: The channel you selected is no
longer available. Wait for about 2 seconds
until the radio returns to the previous
channel or “CH001”. If it does not change
automatically, select another channel.
The XM Listener Care Center is also
available on the phone, please call (800)
852− 9696 during the following hours:
Monday—Saturday: 7 a.m.—1 a.m.
Sunday: 12 p.m.—12 a.m.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details. SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.

’06Camry_U (L/O 0507)
165
2006 CAMRY from July ‘05 Prod. (OM33708U)
XM satellite radio∗—
You can either scan the currently selected
channel category or scan only the preset
channels for that band.
To scan the preset channels:
Push and hold the “SCAN” button until
you hear a beep. “SCAN” appears on the
display. The radio will tune in the next
preset channel up the band, stay there for
5 seconds, and then move to the next
preset channel. To stop scanning, push
this button again.
To scan the currently selected channel
category:
Quickly push and release the “SCAN” but-
ton. “SCAN” appears on the display. The
radio will find the next channel in the
same channel category up the band, stay
there for 5 seconds, and then scan again.
To stop scanning, push this button again.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track on the next disc. To stop scanning,
push this button again. If the player has
scanned all the di scs, it will stop scan-
ning. SEEK/TRACK (Seeking/Tracking up or
down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
XM satellite radio
∗—
To select the next channel within the cur-
rent channel category, push the “ ” or
“  ” side of the “SEEK/TRACK” button.
Repeat until a desired channel is found.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.

’06Camry_U (L/O 0507)
166
2006 CAMRY from July ‘05 Prod. (OM33708U)
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
Compact disc player
Use this button to skip up or down to a
different track.
Push “” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time. ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape.
TEXT
Radio
This button is operational in RDS mode.
When an RDS station transmits a text
message, “MSG” will appear on the dis-
played.
To display the text message, first push
the “TEXT” button to change the radio
station display. Then push the “TEXT” but-
ton once more to display, and the mes-
sage will appear on the display.
If the entire the message is not displayed,
“
” will appear on the display. To display
the rest of the message, push and hold
the “TEXT” button until you hear a beep.
After the entire message has been dis-
played, the message will disappear.
The message display will be canceled if
any button that affects the display is
pushed.
If no messages are received, “NO
MESSAGE” will appear on the display, and
the display returns to the previous mode.
The message display will be canceled if
you activate any function that affects the
display.
XM satellite radio
∗ 1—
When you push the “TEXT” button, the
display changes as follows:
CH NAME → TITLE (SONG/PROGRAM
TITLE) → NAME (ARTIST NAME/
FEATURE) → CH NUMBER → CH NAME
Up to 10 alphanumeric characters can be
displayed. (Some information will not be
fully displayed.)

’06Camry_U (L/O 0507)
167
2006 CAMRY from July ‘05 Prod. (OM33708U)
The message display will be canceled if
any button that affects the display is
pushed.
If there is no song/program title or artist
name/feature associated with the channel
at that time, “−−−−−” will appear on the
display.
This XM tuner supports “Audio Services”
(Music and Talk) of only XM satellite radio
and “Text Information”
∗ 2 linked to the re-
spective audio services.
∗ 1: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details.
∗ 2: Text Information includes, Channel
Name, (Artist) Name, (Song) Title and
Category Name. Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear. TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off. This button is
operational only in FM mode.
By pushing the “TRAF” button, “TRAF
SEEK” will flash on the display and the
radio will seek a traffic program station.
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, “NO
TRAFINFO” appears on the display, and
the display returns to the previous mode
and a beep sound.
To cancel the traffic announcement, push
this button again.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.
XM satellite radio
∗—
Turn the “TUNE” knob clockwise to step
up the channel. Turn the knob counter-
clockwise to step down the channel.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.

’06Camry_U (L/O 0507)
168
2006 CAMRY from July ‘05 Prod. (OM33708U)
TYPE
When you push the “” or “” side of
the “TYPE” button while receiving an RDS
station, the current program type appears
on the display.
Each time you push “ ” or “ ” side of
this button, the program type changes as
in the following:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC (Miscellaneous)
ALERT (Emergency message)
With the program type displayed, push the
“SEEK/TRACK” or “SCAN” button. You can
seek or scan for the station broad casting
the same type of program. XM satellite radio
∗—
When you push the “ ” or “” side of
the “TYPE” button while receiving a XM
channel, the current channel category ap-
pears on the display.
When the channel category appears, push
either “ ” or “ ” side of the “TYPE” but-
ton to switch to the next or previous cate-
gory.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.

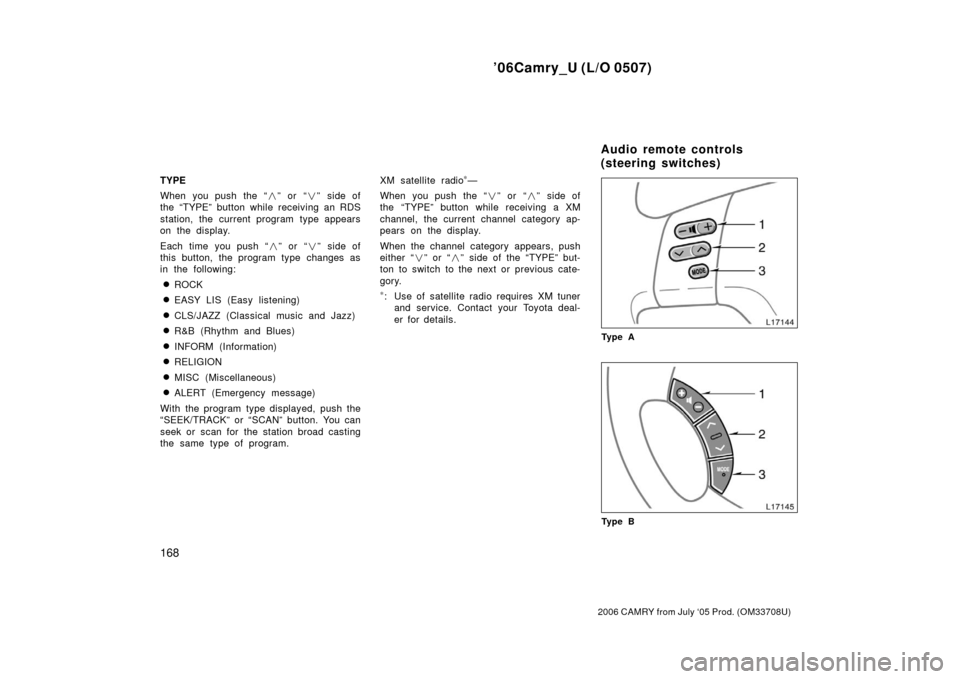

Ty p e A
Ty p e B
Audio remote controls
(steering switches)

’06Camry_U (L/O 0507)
169
2006 CAMRY from July ‘05 Prod. (OM33708U)
Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.1. Volume control switch
2. “ ” switch
3. “MODE” switch 1. Volume control switch
Push “+” side to increase the volume. The
volume continues to increase while the
switch is being pushed.
Push “ −” side to decrease the volume.
The volume continues to decrease while
the switch is being pushed.
2. “   ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “ ” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release the switch, the
radio will begin seeking up or down for a
station. Do this again to find the next
station. XM satellite radio∗—
To select a preset channel, push the “ ”
or “ ” side of the switch. Repeat until a
desired channel is found.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
Cassette player
This switch has the following features—
To skip up or down to a different track in
either direction:
Quickly push and release the “ ” or “ ”
side of the switch.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.

’06Camry_U (L/O 0507)
170
2006 CAMRY from July ‘05 Prod. (OM33708U)
To f a s t−forward or reverse:
Push and hold the “ ” side of the switch
to fast− forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast −forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast −forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.
With compact disc changer only—
Push and hold the “ ” or “” side of the
switch until the disc you want to listen to
is set. 3. “MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode se-
quentially if the desired mode is ready to
use.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until the system
turns off.NOTICE
To ensure correct audio system op-
erations:
 Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Audio system operating hints

’06Camry_U (L/O 0507)
171
2006 CAMRY from July ‘05 Prod. (OM33708U)
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
XM
∗
Alternation or modifications carried out
without appropriate authorization may in-
validate the user ’s right to operate the
equipment.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable
protection against harmful interfer-
ence in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio commu-
nications. However, there is no guar-
antee that interference will not occur
in a particular installation.

’06Camry_U (L/O 0507)
172
2006 CAMRY from July ‘05 Prod. (OM33708U)
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of
the following measures:
—Reorient or relocate the receiving
antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experi-
enced radio/TV technician for help.CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Use high −quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
