TOYOTA CAMRY 2007 XV40 / 8.G Owner's Manual

’07Camry_U (L/O 0608)
13
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Smart key system30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 2

’07Camry_U (L/O 0608)
14
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Ty p e A
Ty p e B
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—
These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built−in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Type B only—This key is fitted with the
wireless remote control transmitter. For
information on use of the wireless re-
mote control transmitter, see “Wireless
remote control” on page 20 in this Sec-
tion.
2. Sub key (gray)—
This key will not work in the glove box,
trunk and the door located behind the
rear seat armrest (on some models).
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (with key cylindertype
ignition switch)

’07Camry_U (L/O 0608)
15
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.Do not bend the key grip.

’07Camry_U (L/O 0608)
16
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.The key consists of an electronic key
and a mechanical key. The mechanical
key is for emergency use. If the elec-
tronic key does not operate, you can
open the driver ’s door using the me-
chanical key.
1. Electronic keys—These keys can lock
or unlock all the doors and can open
the trunk by using the wireless remote
control function or entry function of the
smart key system.
2. Mechanical keys—These keys can lock
or unlock the driver’s door, the glove
box and the door located behind the
rear seat armrest.
Keys (with smart key system)

’07Camry_U (L/O 0608)
17
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Spare keys should not be left in the
cabin. In the event that a spare key is
left in the cabin, the smart key system
will remain actuated even after the
doors have been locked. Under these
circumstances, the trunk can be opened
even after the driver has exited and
locked the vehicle, increasing the dan-
ger of theft. (Refer to “OPENING
TRUNK WITH SMART KEY SYSTEM” on
page 46 in this Section.)
To protect items locked in the trunk or the
glove box when using valet parking, leave
the electronic key with the attendant. Keep
the mechanical key with you. For details
about locking the trunk opener switch, see
“—Luggage security system” on page 47
in this Section.
A transponder chip for engine immobilizer
system has been placed in the electronic
keys. These chips are needed to enable
the system to function correctly, so be
careful not to lose these keys.CAUTION
People with implanted pacemakers
or cardiac defibrillators should keep
away from the smart key system
antennas, because the radio waves
may affect the operation of such
devices. For the antenna locations
see “ANTENNA LOCATION” on page
32 in this Section.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the entry function can
be disabled. See “DISABLING THE
SMART KEY SYSTEM” on page 36
in this Section.
NOTICE
When using a electronic key contain-
ing a transponder chip, observe the
following precautions:
Do not affix any material that cuts
off electromagnetic waves (such as
a metal seal) on the electronic key.
Do not knock the electronic key
hard against other objects.
Do not leave the electronic key ex-
posed to high temperatures for a
long period, such as on the dash-
board or hood under direct sun-
light.
Do not put the electronic key in
water or wash it in an ultrasonic
washer.
Do not keep the electronic key to-
gether with the products emitting
electromagnetic waves such as a
cellular phone.

’07Camry_U (L/O 0608)
18
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
USING A MECHANICAL KEY
When you use the mechanical key push
the release button and take out the me-
chanical key as shown. Be sure to put the
mechanical key back when not it use.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.The engine immobilizer system is a
theft prevention system using an elec-
tronic code. The transponder chip in
the key has an electronic code and
transmits the code to the vehicle. Only
when the electronic code in the chip
corresponds to the register ID code for
the vehicle, the engine immobilizer sys-
tem will be canceled and the engine
will start.
Engine immobilizer system

’07Camry_U (L/O 0608)
19
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The engine immobilizer system is automat-
ically set when:
Vehicles with key cylinder−type ignition
switch—The key is removed from the igni-
tion switch.
Vehicles with smart key system—The igni-
tion switch is turned off.
The indicator light will start flashing to
show that the system is set.If any of the following indicator conditions
occur, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 49 in this Section.)
The indicator light does not start flash-
ing under the following situations.
Vehicles with key cylinder−type ignition
switch—When the key is removed from
the ignition switch.
Vehicles with smart key system—When
the ignition switch is turned off.
The indicator light flashes inconsistent-
ly.
The engine immobilizer system is automat-
ically canceled when:
Vehicles with key cylinder−type ignition
switch—
You insert the key to the ignition switch.
Vehicles with smart key system—
You enter the vehicle carrying a key with
smart key system and press the “ENGINE
START STOP” switch (engine switch).
Even if the key battery is discharged, the
engine can be started. See “Smart key
system” on page 30 in this Section.When the system is canceled, the indica-
tor light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key (vehicles with key cylin-
der−type ignition switch) or electronic key
(vehicles with smart key system). Howev-
er, there is a limit to the number of addi-
tional keys your Toyota dealer can make
for you.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.

’07Camry_U (L/O 0608)
20
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
For vehicles sold in U.S.A.
Key cylindertype ignition switch
FCC ID: MOZRI20BTY
FCC ID: MOZRI21BTY
Smart key system
FCC ID: NI4TMIMB1

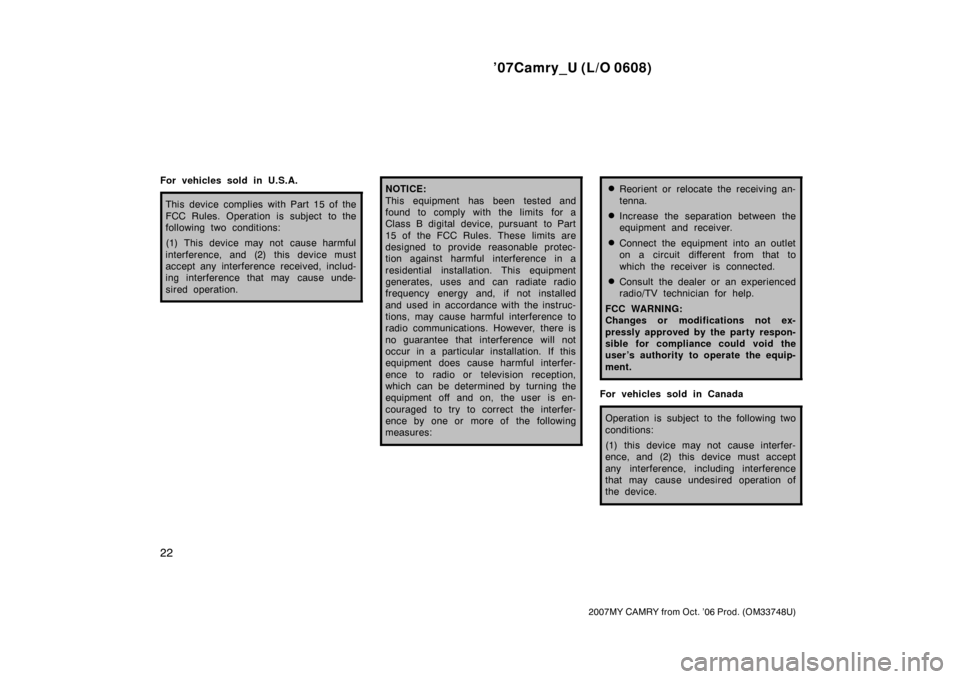

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system

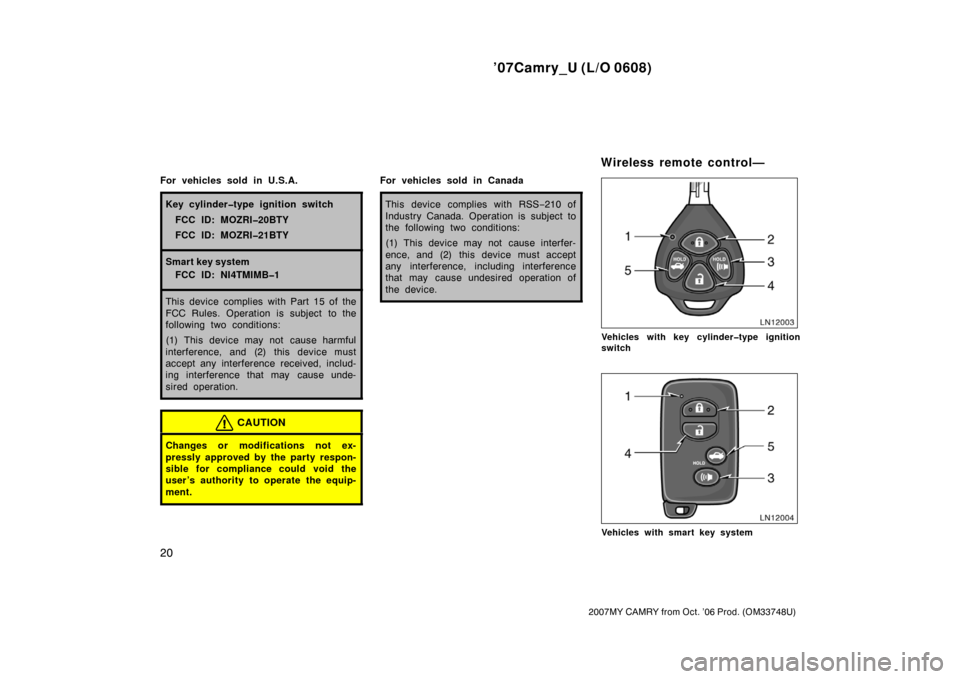

Wireless remote control—

’07Camry_U (L/O 0608)
21
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Indicator light
2. Lock switch
3. Alarm switch
4. Unlock switch
5. Trunk opener switchThe wireless remote control function is
designed to lock or unlock all the
doors, open the trunk lid, or activate
the alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
When the switch is operated, the indicator
light flashes once. If not, the battery may
be discharged. Replace the battery at the
earliest opportunity.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage the key.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys (for vehicles with key cylinder−
type ignition switch) or 5 wireless remote
control transmitters (for vehicles with
smart key system) for the same vehicle.
Contact your Toyota dealer for detailed
information.If the wireless remote control transmitter
does not actuate the doors, or does not
operate from a normal distance, or if the
indicator on the transmitter is dimmed or
does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on pages 26 or 28 in this Sec-
tion.
If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (See “If you lose
your keys” on page 356 in Section 4.)
It is possible to disable the wireless re-
mote control system. For details, contact
your Toyota dealer.

’07Camry_U (L/O 0608)
22
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
