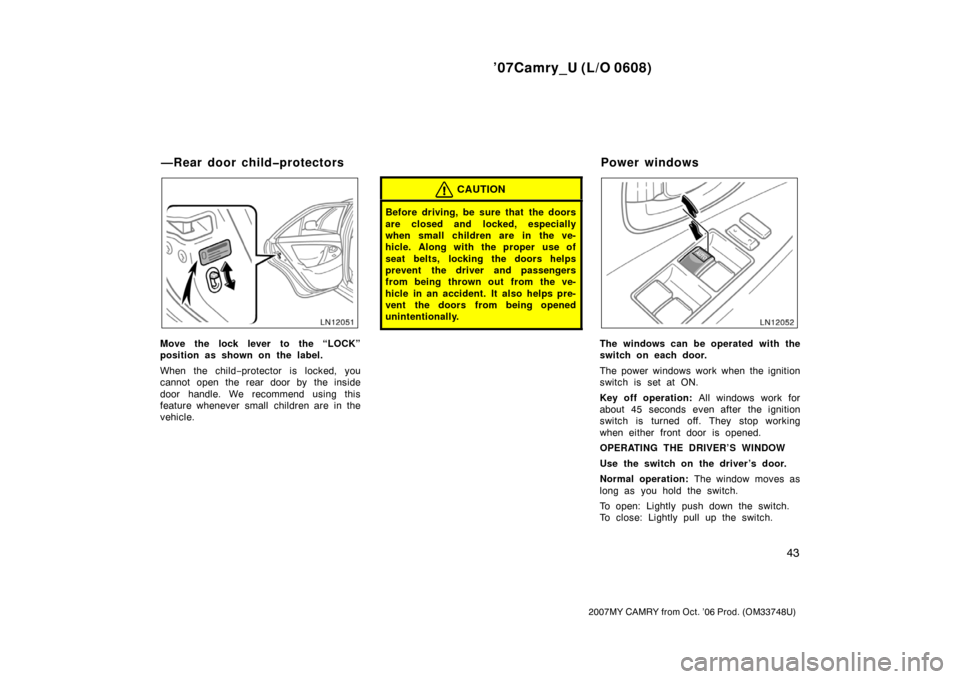

Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is set at ON.
Key off operation: All windows work for
about 45 seconds even after the ignition
switch is turned off. They stop working
when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
—Rear door childprotectors Power windows

’07Camry_U (L/O 0608)
44
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Type A (to open only)
Type B (to open and close)

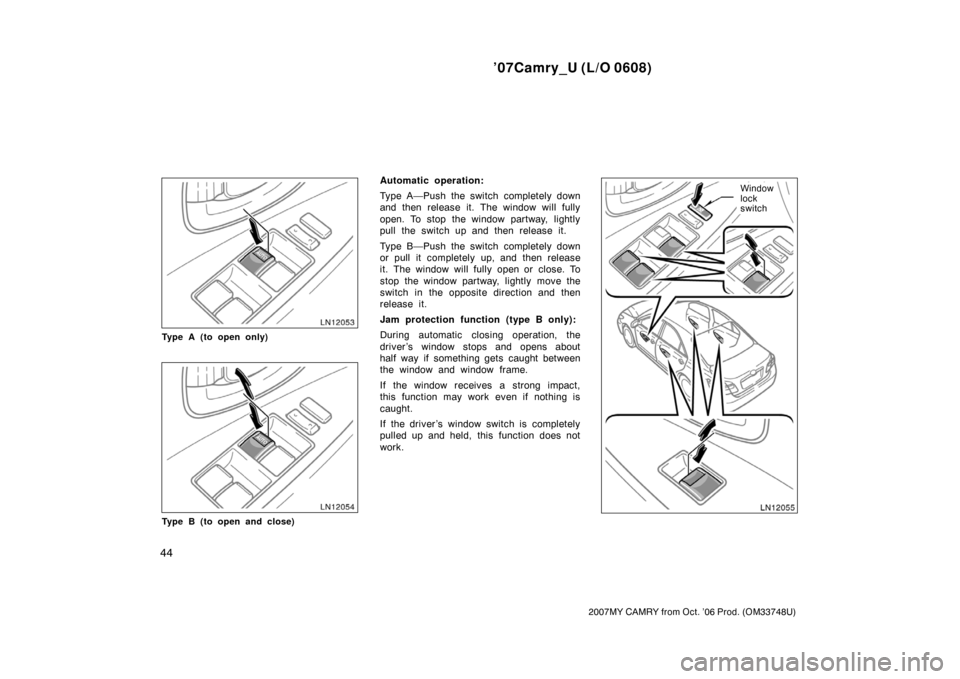

Automatic operation:
Type A—Push the switch completely down
and then release it. The window will fully
open. To stop the window partway, lightly
pull the switch up and then release it.
Type B—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Jam protection function (type B only):
During automatic closing operation, the
driver ’s window stops and opens about
half way if something gets caught between
the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
If the driver ’s window switch is completely
pulled up and held, this function does not
work.Window
lock
switch

’07Camry_U (L/O 0608)
45
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the window fully closed.

’07Camry_U (L/O 0608)
46
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system

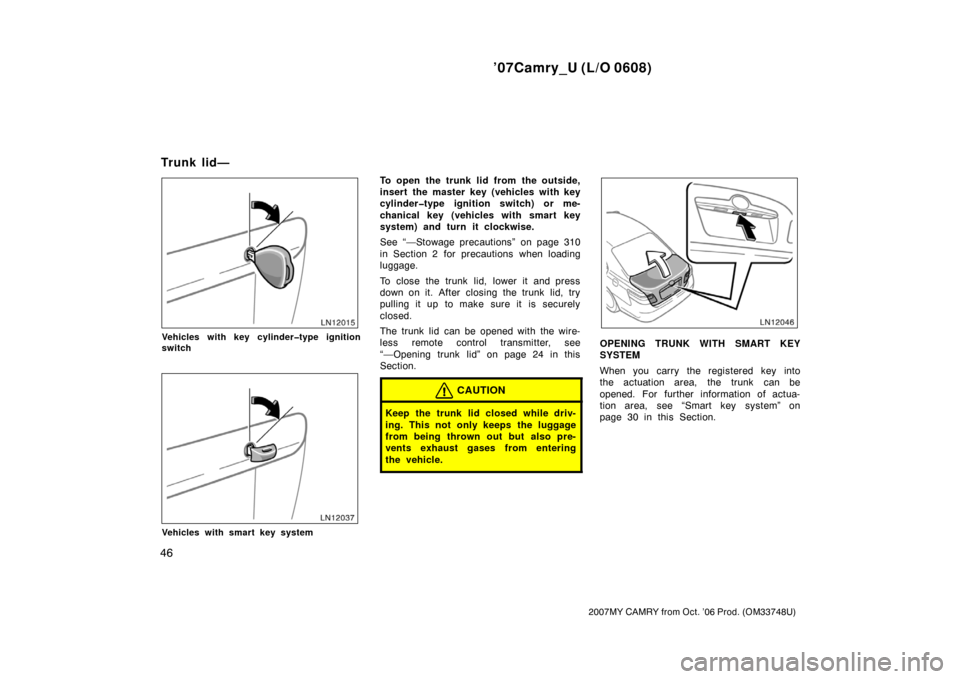

To open the trunk lid from the outside,
insert the master key (vehicles with key
cylindertype ignition switch) or me-
chanical key (vehicles with smart key
system) and turn it clockwise.
See “—Stowage precautions” on page 310
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 24 in this
Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
OPENING TRUNK WITH SMART KEY
SYSTEM
When you carry the registered key into
the actuation area, the trunk can be
opened. For further information of actua-
tion area, see “Smart key system” on
page 30 in this Section.
Trunk lid—

’07Camry_U (L/O 0608)
47
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
A warning buzzer may sound when:
The key is brought into the cabin after
the trunk is opened, and the trunk is
then closed.
The key is near the trunk when the
trunk is closed.
The buzzer may sound even when the key
is not in the trunk. This does not indicate
a problem. However, under these circum-
stances, the trunk cannot be opened using
the smart key system. Open the trunk
using other methods.
If you left the key in the trunk and close
it when all side doors are locked, a beep
will sound continuously for 2 seconds. You
can open the trunk pushing the trunk
opener switch without carrying another
key. However, in some instances, the
beep may not sound when the trunk is
closed depending on the location of the
key in the trunk. In addition, when the
doors are open or unlocked, the beep may
not sound when the trunk is closed. When
closing the trunk, make sure that the key
is not left in it.

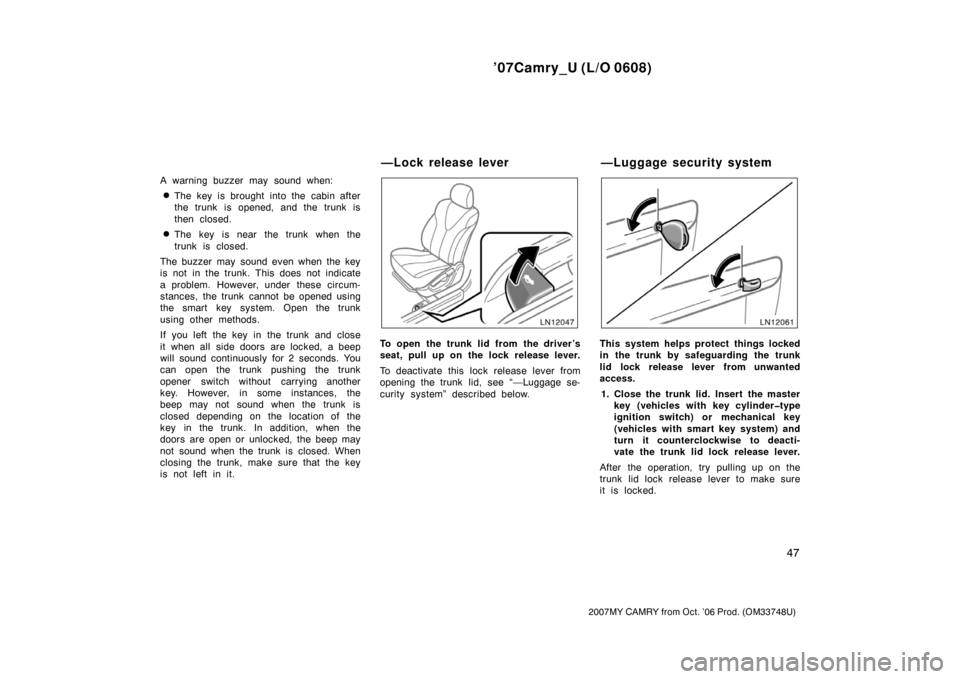

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.This system helps protect things locked
in the trunk by safeguarding the trunk
lid lock release lever from unwanted
access.
1. Close the trunk lid. Insert the master
key (vehicles with key cylindertype
ignition switch) or mechanical key
(vehicles with smart key system) and
turn it counterclockwise to deacti-
vate the trunk lid lock release lever.
After the operation, try pulling up on the
trunk lid lock release lever to make sure
it is locked.
—Lock release lever —Luggage security system

’07Camry_U (L/O 0608)
48
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
2. Vehicles with trunk storage exten-
sion—After closing the door located
behind the rear seat armrest, insert
the master key (vehicles with key
cylindertype ignition switch) or me-
chanical key (vehicles with smart key
system) and turn it clockwise to lock
the door.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.

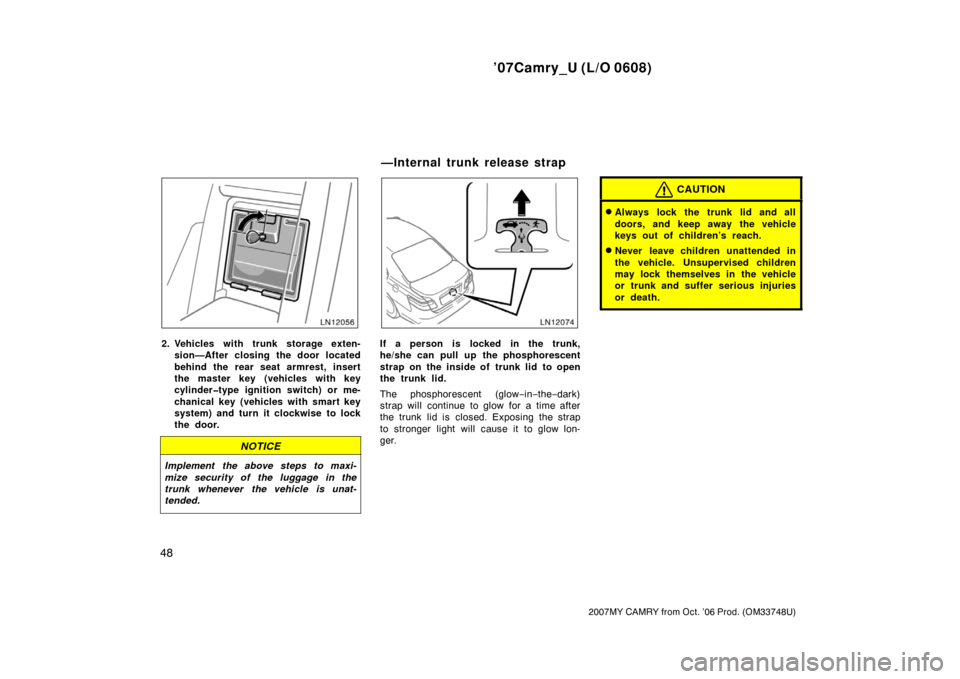

If a person is locked in the trunk,
he/she can pull up the phosphorescent
strap on the inside of trunk lid to open
the trunk lid.
The phosphorescent (glow−in−the−dark)
strap will continue to glow for a time after
the trunk lid is closed. Exposing the strap
to stronger light will cause it to glow lon-
ger.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Internal trunk release strap

’07Camry_U (L/O 0608)
49
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

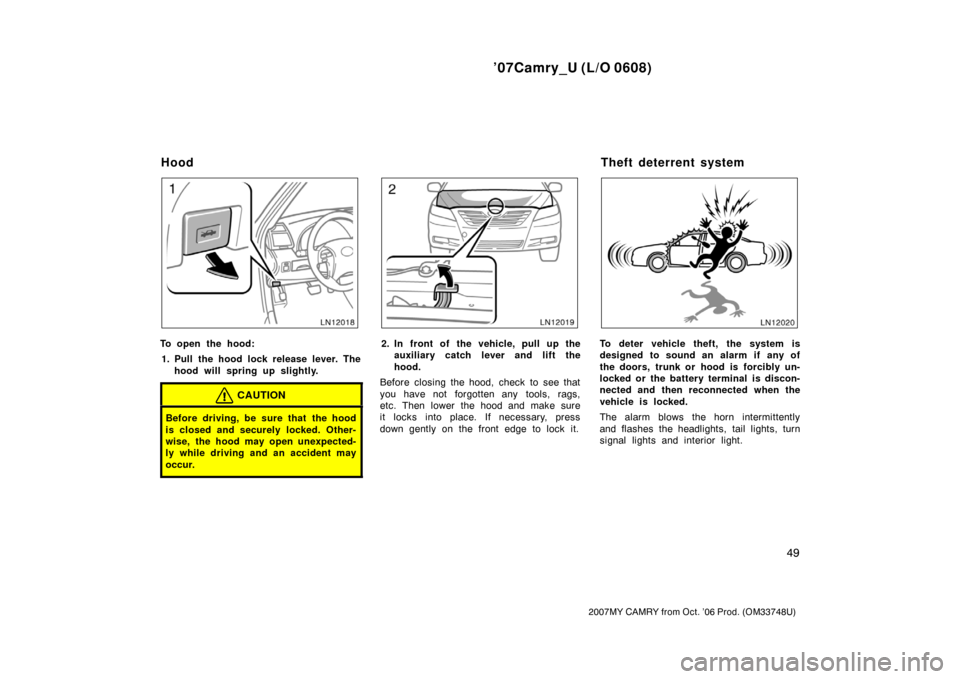

To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights, turn
signal lights and interior light.
HoodTheft deterrent system

’07Camry_U (L/O 0608)
50
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
SETTING THE SYSTEM
1. Vehicles with key cylinder−type ignition
switch—The key is removed from the
ignition switch.
Vehicles with smart key system—The
ignition switch is turned off.
The engine immobilizer system is set and
the indicator light will start flashing. (For
details, see “Engine immobilizer system”
on page 18 in this Section.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.The indicator light will remain on when all
the doors, trunk and hood are closed and
locked.
The theft deterrent system will automati-
cally be set after 30 seconds. When the
system is set, the indicator light will start
flashing again.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key, wireless remote control
or entry function of the smart key sys-
tem.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.All the doors will be automatically locked
again when the following two conditions
are met:
If any of the doors is unlocked without
the key, wireless remote control or
entry function of the smart key system.
If the key is not in the ignition switch
(vehicles with key cylinder−type ignition
switch) or the ignition switch is set to
off (vehicles with smart key system).
After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Set the ignition switch to ON.
Unlock any of the doors with the key
or wireless remote control.
Open the trunk with the key, wireless
remote control or entry function of the
smart key system.

’07Camry_U (L/O 0608)
51
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key, wireless remote control or entry
function of the smart key system. Be
sure to wait until the indicator light
starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other
doors, trunk and hood. When testing
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

’07Camry_U (L/O 0608)
52
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be stored on
the back side of the fuel filler door.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
