TOYOTA CAMRY 2009 XV40 / 8.G Owners Manual

5
When trouble arises
391
5-2. Steps to take in an emergency

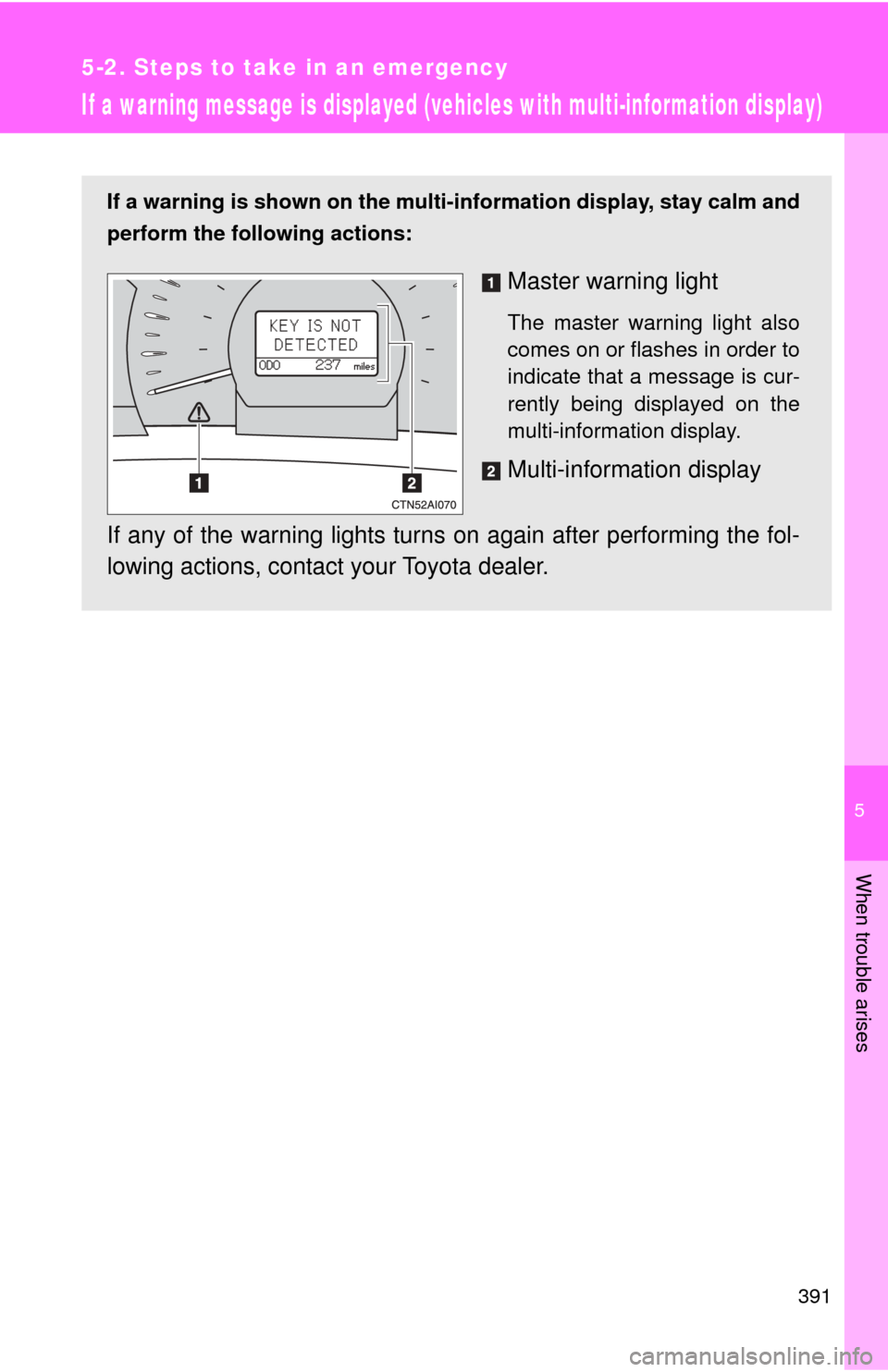

If a warning message is displayed (vehicles with multi-information display)
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights turn s on again after performing the fol-
lowing actions, contact your Toyota dealer.

392 5-2. Steps to take in an emergency
Stop the vehicle immediately.● The following warning indicates the possibility of damage to the
vehicle that may lead to an acci dent. Immediately stop the vehicle
in a safe place and cont act your Toyota dealer.
● The following warning indicates the possibility of damage to the
vehicle that may lead to an acci dent. Immediately stop the vehicle
in a safe place and allow the engine to cool.
Warning messageDetails
Indicates an abnormal engine oil pressure.
A buzzer also sounds.
The warning light may turn on if the engine oil
pressure is too low.
Warning messageDetails
Indicates that the engine coolant temperature is
too high.
A buzzer also sounds.

5
When trouble arises
393
5-2. Steps to take in an emergency
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning messageDetails

(vehicles with smart key system) Indicates a malfunction in the steering lock sys-
tem.
A buzzer also sounds.
Indicates a malfunction in the TRAC and VSC
systems (if equipped).
A buzzer also sounds.

394 5-2. Steps to take in an emergency
Follow the correction procedures.After taking the specif ied steps to correct the suspected problem,
check that the warning light turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of 3
mph [5 km/h]). Make sure that all of the
doors are closed.
Indicates that the
hood is not fully
closed.
A buzzer sounds to
indicate that hood is
not fully closed (with
the vehicle having
reached a speed of 3
mph [5 km/h]). Close the hood.

5
When trouble arises
395
5-2. Steps to take in an emergency

Indicates that the
trunk is not fully
closed.
A buzzer sounds to
indicate that the trunk
is not fully closed (with
the vehicle having
reached a speed of 3
mph [5 km/h]). Close the trunk.
Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch OFF
[vehicles with smart
key system] or the
engine switch OFF
[vehicles without
smart key system],
and the driver's door
open).
A buzzer also sounds. Close the moon roof.
Indicates that the
parking brake is still
engaged with the
vehicle having
reached a speed of
more than 3 mph (5
km/h).
A buzzer also sounds. Release the parking
brake.
Indicates that the
washer fluid level is
low.
A buzzer also sounds. Add washer fluid.
Warning messageDetailsCorrection procedure

396 5-2. Steps to take in an emergency
(U.S.A. only)Indicates that the
engine oil is sched-
uled to be changed.
A buzzer also sounds.
Check the engine oil,
and change if neces-
sary.
Comes on approxi-
mately 4500 miles
(7200 km) after the
engine oil is changed.
(The indicator will not
work properly unless
the oil maintenance
data has been reset).
(U.S.A. only) Indicates that the
engine oil should be
changed.
A buzzer also sounds.
Check and change the
engine oil.
Comes on approxi-
mately 5000 miles
(8000 km) after the
engine oil is
changed (and the oil
maintenance data
has been reset).
■ Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. ( →P. 323)
Warning messageDetailsCorrection procedure

5
When trouble arises
397
5-2. Steps to take in an emergency
Follow the correction procedures (vehicles with smart key system).
After taking the specif
ied steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once⎯ (Comes on for 8 sec-
onds)
Indicates that
the electronic
key is not pres-
ent when the
“ENGINE
START STOP”
switch is
pressed.
Confirm the
location of the
electronic key.
Once3 times
Indicates that a
door other than
the driver’s door
has been
opened and
closed with the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.
Confirm the
location of the
electronic key.

398 5-2. Steps to take in an emergency
Once3 times
Indicates that
the driver’s door
has been
opened or
closed with the
shift lever in P,
the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area. Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
OnceContinuous
(Displayed alternately)
Indicates that
the driver’s door
has been
opened or
closed (with the
shift lever not in
P, the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area).
• Shift the shift
lever to P.
• Confirm the location of the
electronic key.
Once⎯
Indicates that
the key battery
is low.
Replace the
battery.
(
→P. 353)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises
399
5-2. Steps to take in an emergency
Once⎯
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
turned twice to
ACCESSORY
mode from OFF.Press the
“ENGINE
START STOP”
switch while
depressing the
brake pedal.
Once⎯
Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch. Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

400
5-2. Steps to take in an emergency

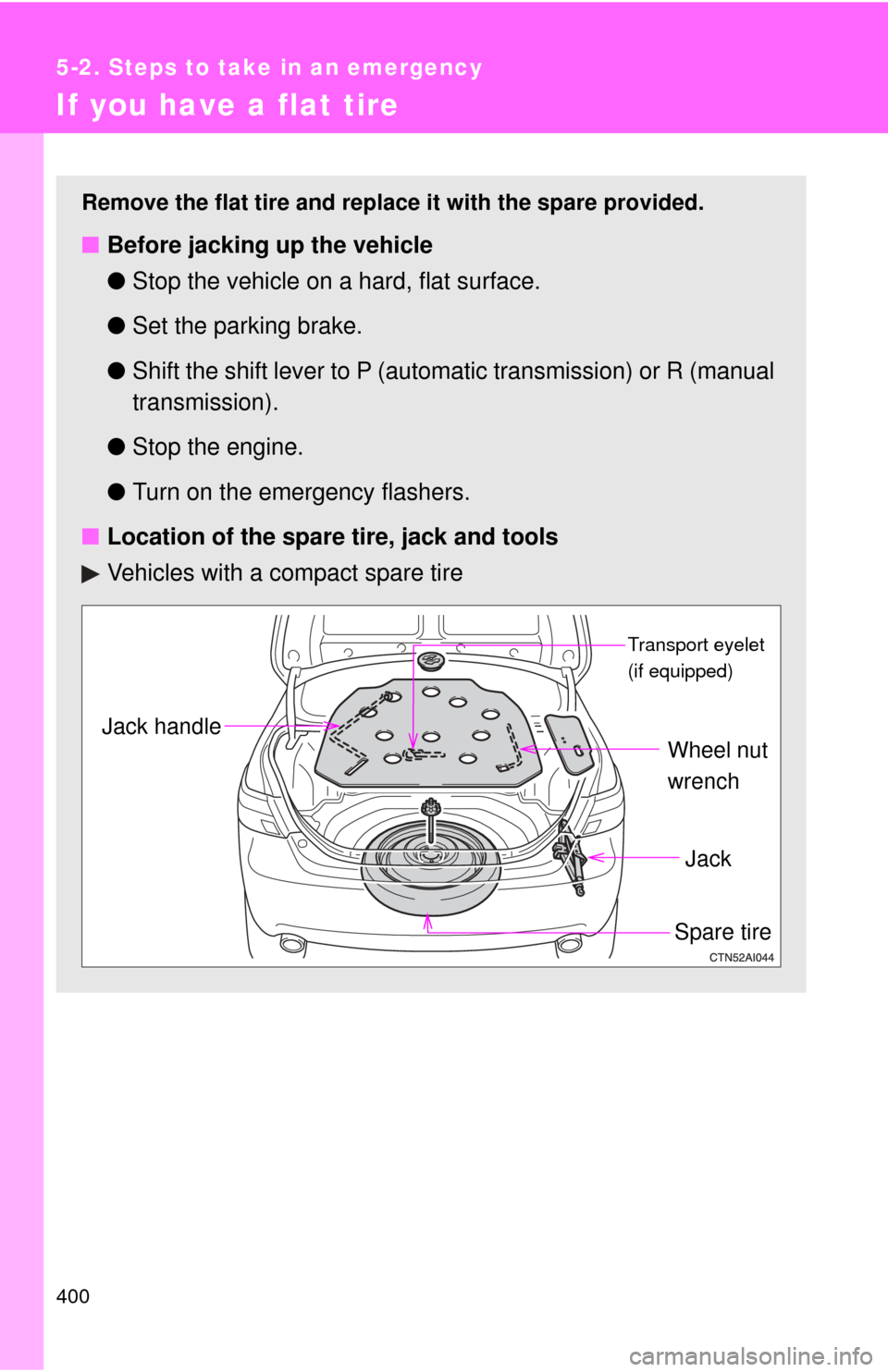

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (autom atic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Vehicles with a compact spare tire
Transport eyelet
(if equipped)
Spare tireJack
Wheel nut
wrench
Jack handle
