engine TOYOTA CAMRY 2009 XV40 / 8.G Owners Manual
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2009, Model line: CAMRY, Model: TOYOTA CAMRY 2009 XV40 / 8.GPages: 480, PDF Size: 6.44 MB
Page 2 of 480
TABLE OF CONTENTSIndex
2
1-1. Key information .................. 24Keys ..................................... 24
1-2. Opening, closing
and
locking the
doors and
trunk .................................. 26
Smart key system................. 26
Wireless remote control ....... 38
Doors.................................... 42
Trunk .................................... 47
1-3.
Adjustable components
(seats, mirrors,
steering wheel)
................. 50
Front seats ........................... 50
Rear seats ............................ 52
Head restraints ..................... 54
Seat belts ............................. 56
Steering wheel ..................... 64
Anti-glare inside rear view mirror .................................. 65
Outside rear view mirrors ..... 67
1-4. Opening a
nd closing the
window
s ............................ 69
Power windows .................... 69
Moon roof ............................. 71
1-5. Refueling ............................. 74 Opening the fuel tank cap .... 74 1-6. Theft deterrent system ....... 78
Engine immobilizer system ................................ 78
Alarm .................................... 80
Theft prevention labels (for U.S.A.) ......................... 82
1-7. Safety information .............. 83 Correct driving posture ......... 83
SRS airbags ......................... 85
Front passenger occupant classification system ........... 97
Child restraint systems ....... 102
Installing child restraints ..... 106
2-1. Driving procedures........... 116 Driving the vehicle .............. 116
Engine (ignition) switch (vehicles with smart
key system) ...................... 126
Engine (ignition) switch (vehicles without smart
key system) ...................... 130
Automatic transmission ...... 133
Manual transmission........... 137
Turn signal lever ................. 138
Parking brake ..................... 139
2-2. Instrument cluster ............ 141 Gauges and meters ............ 141
Indicators and warning lights ................................. 145
Multi-information display ..... 149
1Before driving
2When driving
Page 4 of 480
TABLE OF CONTENTSIndex
4
3-5.Using the storage
features
........................... 267
List of storage features....... 267
• Glove box ......................... 268
• Console box ..................... 268
• Cup holders ...................... 270
• Auxiliary boxes ................. 272
3-6. Other interior features ..... 275 Sun visors .......................... 275
Vanity mirrors ..................... 276
Clock .................................. 277
Ashtrays ............................. 278
Power outlet ....................... 279
Seat heaters ....................... 281
Armrest............................... 283
Rear sunshade ................... 284
Trunk storage extension (vehicles with reclining
rear seat) .......................... 285
Floor mat ............................ 286
Trunk features .................... 287
Garage door opener ........... 288
Compass ............................ 293 4-1. Maintenance and care ...... 298
Cleaning and protecting the vehicle exterior ................. 298
Cleaning and protecting the vehicle interior .................. 300
4-2. Maintenance ...................... 303 Maintenance requirements .................... 303
General maintenance ......... 305
Emission inspection and maintenance (I/M)
programs .......................... 308
4-3.
Do-it-yourself
maintenance
................... 309
Do-it-yourself service precautions ....................... 309
Hood ................................... 313
Positioning a floor jack........ 314
Engine compartment .......... 316
Tires.................................... 334
Tire inflation pressure ......... 344
Wheels................................ 348
Air conditioning filter ........... 350
Key battery ......................... 353
Checking and replacing fuses ................................. 357
Light bulbs .......................... 368
4Maintenance and care
Page 5 of 480
1
2
3
4
5
6
7
5
5-1. Essential information ....... 374If your vehicle needs to be towed ........................... 374
If you think something is wrong ................................ 377
Fuel pump shut off system .............................. 378
Event data recorder ............ 379
5-2. Steps to take
in an
emergency
....................... 381
If a warning light turns on or a warning buzzer
sounds... .......................... 381
If a warning message is displayed (vehicles with
multi-information
display) ............................. 391
If you have a flat tire............ 400
If the engine will not start .... 411
If the shift lever cannot be shifted from P (automatic
transmission) .................... 413
If you lose your keys ........... 414
If the electronic key does not operate properly
(vehicles with smart key
system) ............................. 415
If the battery is discharged ........................ 417
If your vehicle overheats ..... 421
If the vehicle becomes stuck ................................. 424 6-1. Specifications ................... 428
Maintenance data (fuel, oil level, etc.) ........... 428
Fuel information.................. 439
Tire information .................. 442
6-2. Customization................... 454 Customizable features........ 454
6-3. Initialization....................... 458 Items to initialize ................. 458
Reporting safety defects for U.S. owners ................ 460
Seat belt instructions for Canadian owners
(in French) ........................ 461
Abbreviation list ........................ 466
Alphabetical index .................... 467
What to do if... .......................... 477
5When trouble arises6Vehicle specifications
7For owners
Index
Page 15 of 480

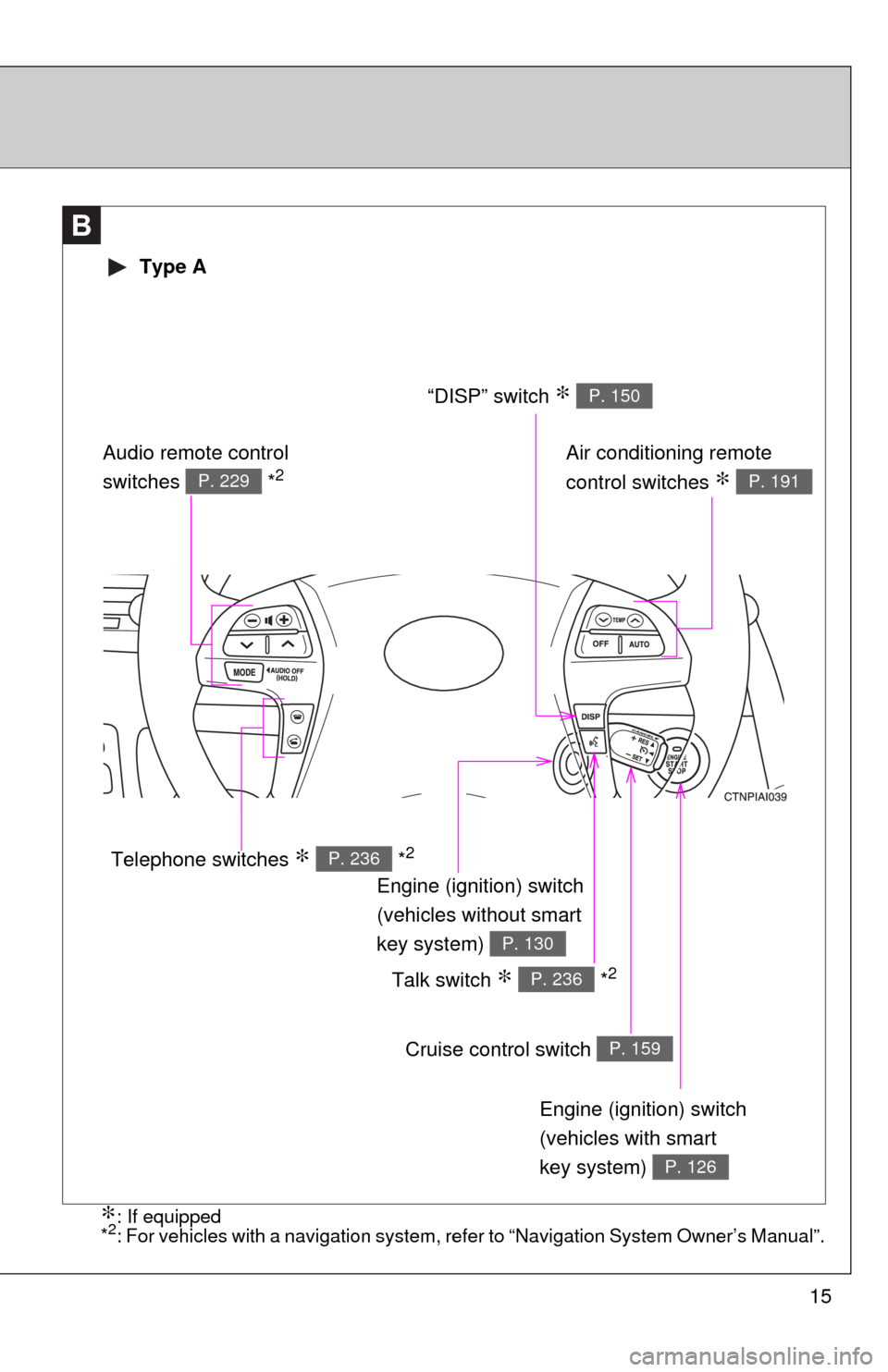

15
B
Engine (ignition) switch
(vehicles with smart
key system)
P. 126
Cruise control switch P. 159
Talk switch ∗ *2P. 236
Air conditioning remote
control switches
∗ P. 191
Engine (ignition) switch
(vehicles without smart
key system)
P. 130
“DISP” switch ∗ P. 150
Telephone switches ∗ *2P. 236
Audio remote control
switches *2P. 229
Type A
∗: If equipped
*2: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
Page 16 of 480

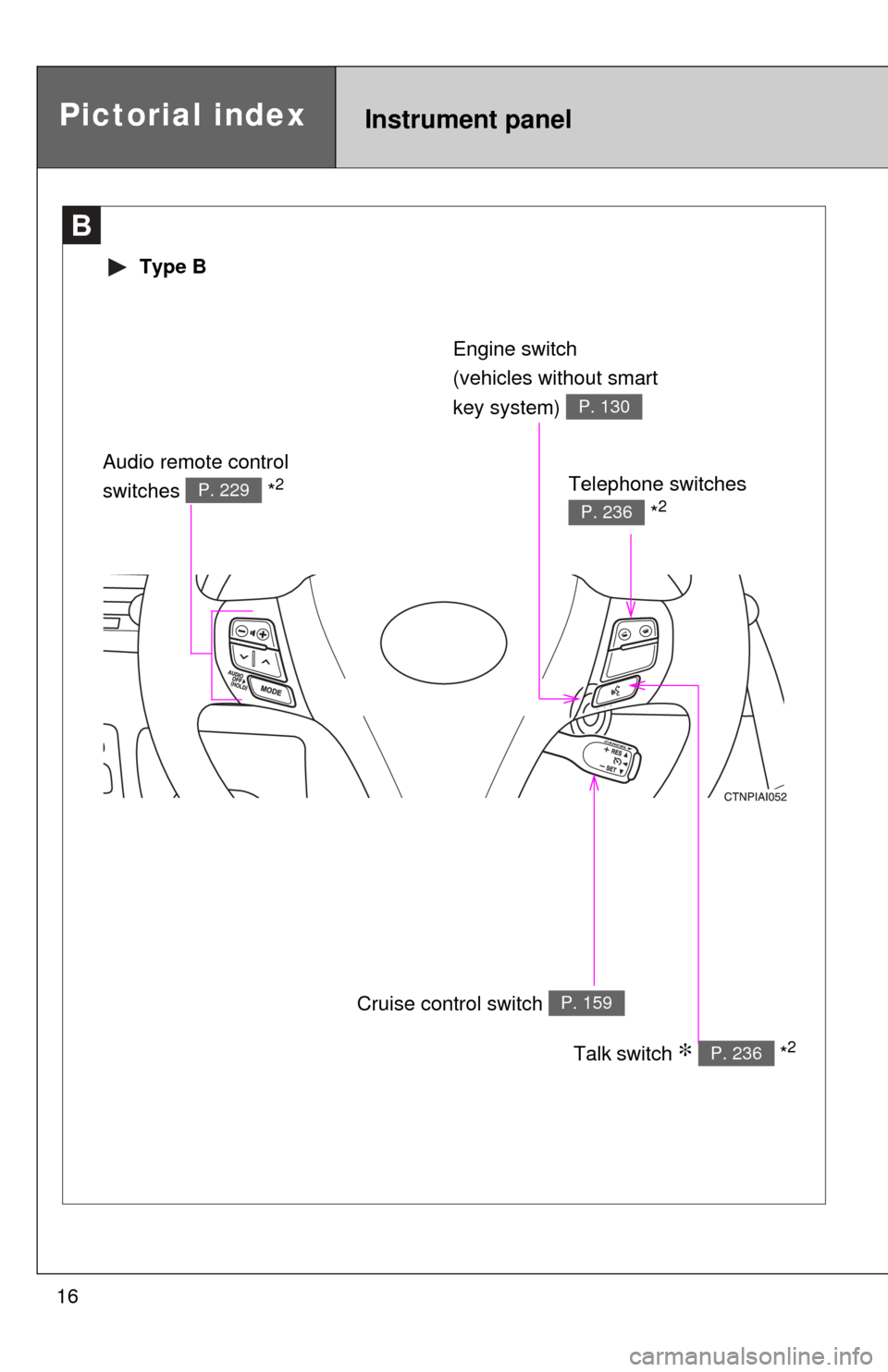

16
B
Type B
Cruise control switch P. 159
Talk switch ∗ *2P. 236
Engine switch
(vehicles without smart
key system)
P. 130
Telephone switches *2P. 236
Audio remote control
switches *2P. 229
Pictorial indexInstrument panel
Page 23 of 480

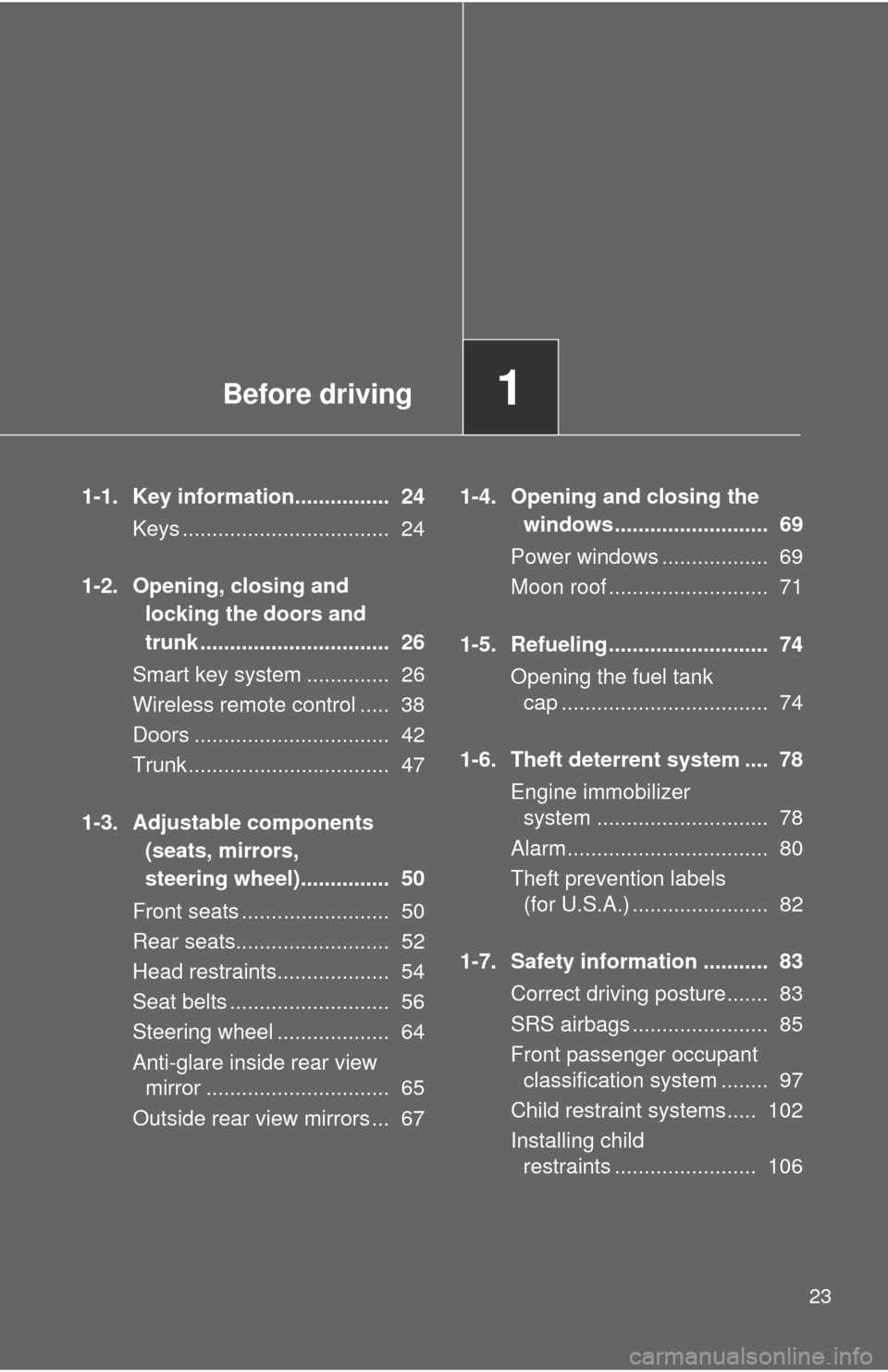

Before driving1
23
1-1. Key information................ 24Keys ................................... 24
1-2. Opening, closing and locking the doors and
trunk ................................ 26
Smart key system .............. 26
Wireless remote control ..... 38
Doors ................................. 42
Trunk .................................. 47
1-3. Adjustable components (seats, mirrors,
steering wheel)............... 50
Front seats ......................... 50
Rear seats.......................... 52
Head restraints................... 54
Seat belts ........................... 56
Steering wheel ................... 64
Anti-glare inside rear view mirror ............................... 65
Outside rear view mirrors ... 67 1-4. Opening and closing the
windows.......................... 69
Power windows .................. 69
Moon roof ........................... 71
1-5. Refueling........................... 74 Opening the fuel tank cap ................................... 74
1-6. Theft deterrent system .... 78 Engine immobilizer system ............................. 78
Alarm.................................. 80
Theft prevention labels (for U.S.A.) ....................... 82
1-7. Safety information ........... 83 Correct driving posture....... 83
SRS airbags ....................... 85
Front passenger occupant classification system ........ 97
Child restraint systems..... 102
Installing child restraints ........................ 106
Page 26 of 480
26
1-2. Opening, closing and locking the doors and trunk

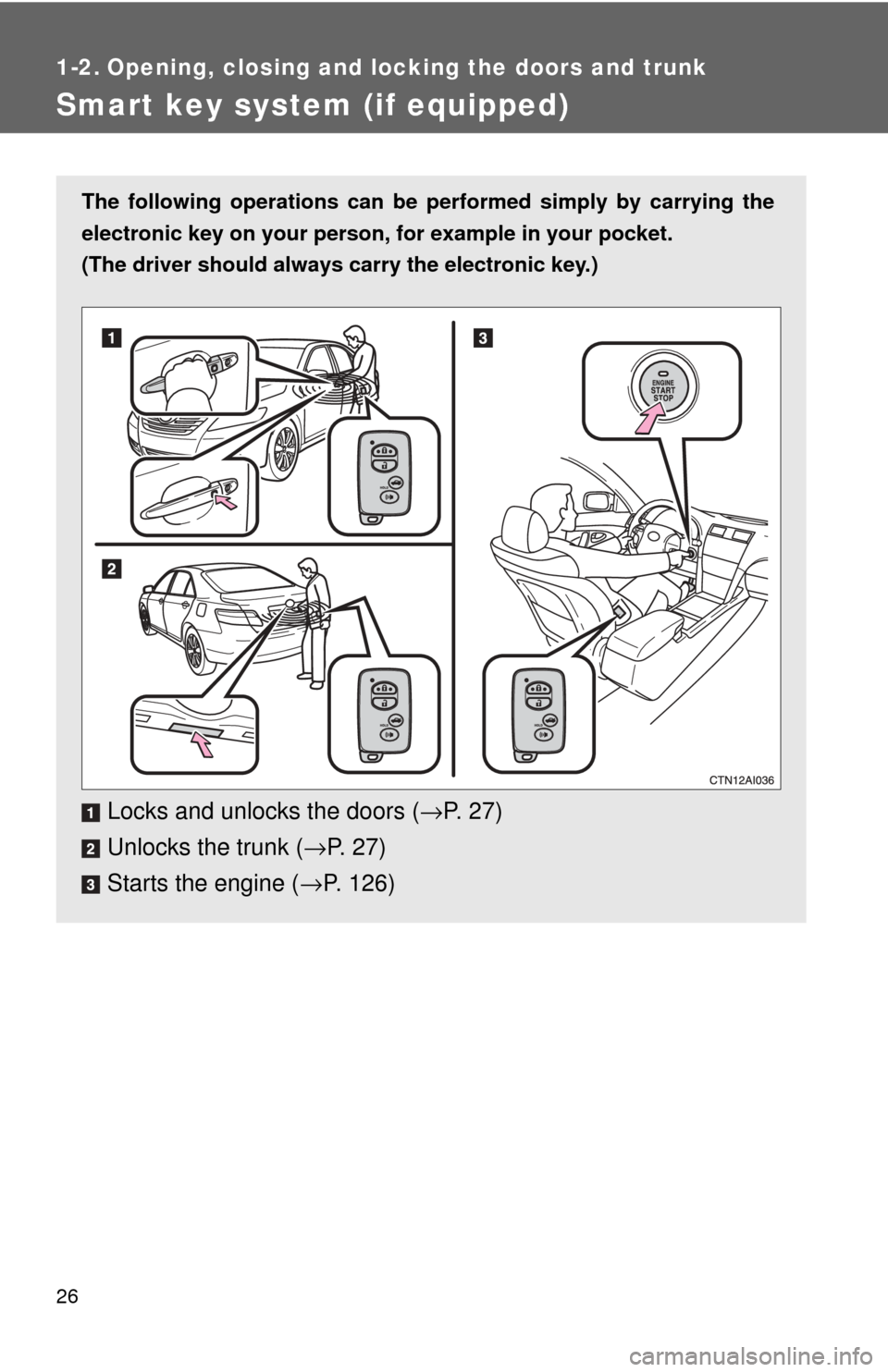

Smart key system (if equipped)
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( →P. 2 7 )
Unlocks the trunk ( →P. 2 7 )
Starts the engine ( →P. 126)
Page 29 of 480
29
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Effective range (areas within which the electronic key is
detected)
When locking or unlockingthe doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handles. (Only the
doors detecting the key can
be operated.)
When starting the engineor changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
When unlocking the trunk
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
the trunk release button.
Page 31 of 480
31
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is off, press and
hold , , or for approximately 5 seconds while
pressing the button on the key.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)
Unlock the doors using the electronic key and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(→P. 80)
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver's door han-
dle to unlock only the
driver's door. Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger's
door handle except the
driver’s door handle to
unlock all doors
Hold the front passenger's
door handle to unlock all
doors Exterior: Beeps twice
Interior: Pings once
STEP3
Page 33 of 480
33
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Note for the smart key system
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, package tray, floor, or in the auxiliary box of the driver's side instrument panel or glove box
when the engine is started or “ENGINE START STOP” switch modes
are changed.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the engine if the electronic key is near the window.
● The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash. (The doors will automatically
be locked after approximately 60 seconds if the doors are not opened
and closed.)
● Gripping the door handle when wearing a glove may not unlock the door.
● If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
■ When the vehicle is not dr iven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
