TOYOTA CAMRY 2010 XV40 / 8.G Owners Manual

5
When trouble arises
449
5-2. Steps to take in an emergency
(U.S.A. only)
Indicates that the
engine oil is sched-
uled to be changed.
A buzzer also sounds.
Check the engine oil,
and change if neces-
sary.
Comes on approxi-
mately 4500 miles
(7200 km) after the
engine oil is changed.
(The indicator will not
work properly unless
the oil maintenance
data has been reset).
(U.S.A. only) Indicates that the
engine oil should be
changed.
A buzzer also sounds.
Check and change the
engine oil.
Comes on approxi-
mately 5000 miles
(8000 km) after the
engine oil is
changed (and the oil
maintenance data
has been reset).
■ Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. ( P. 371)
Warning messageDetailsCorrection procedure

450 5-2. Steps to take in an emergency
Follow the correction procedures (vehicles with smart key system).
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once (Comes on for 8 sec-
onds)
Indicates that
the electronic
key is not
present when
the “ENGINE
START STOP”
switch is
pressed.
Confirm the
location of the
electronic key.
Once3 times
Indicates that a
door other than
the driver’s door
has been
opened and
closed with the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.
Confirm the
location of the
electronic key.

5
When trouble arises
451
5-2. Steps to take in an emergency
Once3 times

Indicates that
the driver’s door
has been
opened and
closed with the
shift lever in P,
the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area. Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
Continuous
Continuous
(Displayed alternately)
Indicates that
the driver’s door
has been
opened and
closed (with the
shift lever not in
P, the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area).
• Shift the shift
lever to P.
• Confirm the location of the
electronic key.
Once
Indicates that
the key battery
is low.
Replace the
battery.
(
P. 401)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

452 5-2. Steps to take in an emergency
OnceIndicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
turned twice to
ACCESSORY
mode from OFF.Press the
“ENGINE
START STOP”
switch while
depressing the
brake pedal.
Once
Indicates that
the electronic
key does not
operate prop-
erly.P. 470
Once
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises
453
5-2. Steps to take in an emergency
Once
Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch. Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

454
5-2. Steps to take in an emergency

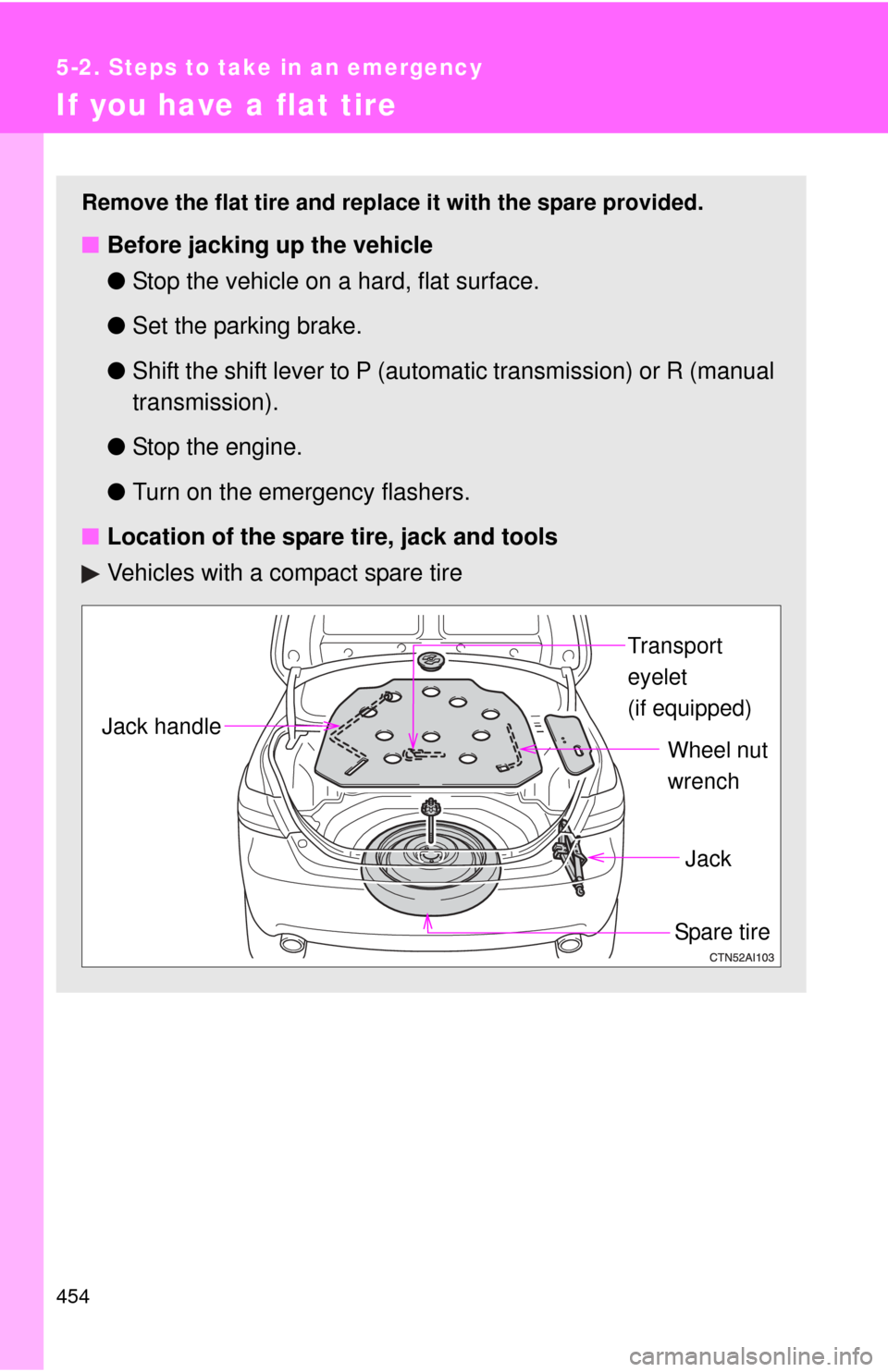

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Vehicles with a compact spare tire
Transport
eyelet
(if equipped)
Spare tireJack
Wheel nut
wrench
Jack handle

5
When trouble arises
455
5-2. Steps to take in an emergency
Taking out the jack
Remove the jack cover.
Remove the hook.
Vehicles with a full-size spare tire
Transport
eyelet
(if equipped)
Spare tire Jack
Wheel nut
wrench
Jack handle
STEP1
STEP2

456 5-2. Steps to take in an emergency
Taking out the spare tireRemove the luggage floor cover.
Loosen the nut and remove it.
Remove the spare tire cover.
Loosen the bolt and remove it.
Remove the spacer (with alu-
minum wheels).
STEP1
STEP2

5
When trouble arises
457
5-2. Steps to take in an emergency
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
STEP1
Flat tire
Wheel
chock posi- tions
Front
Left-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
Rear
Left-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire
STEP2

458 5-2. Steps to take in an emergency
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP3
STEP4
STEP5
STEP6
