TOYOTA CAMRY 2010 XV40 / 8.G Owners Manual

509
6-1. Specifications
6
Vehicle specifications
*: Table 1
 Occupant loading and distri bution for vehicle normal load
for various designated seating capacities
Tire related termMeaning
Tread That portion of a tire that comes into contact
with the road
Tread rib A tread section running circumferentially
around a tire
Tread separation Pulling away of the tread from the tire carcass
Treadwear indicators
(TWI) The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture The fixture used to hold the wheel and tire
assembly securely
during testing
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehi- cle
2 through 4 2 2 in front
5 through 10 3 2 in front, 1 in second
seat
11 through 15 5 2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 7 2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

510
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart key
system
(
P. 27) Smart key system On Off
Operation signal
(Emergency flashers)
On Off
Operation signal
(Buzzer) On Off
Wireless
remote con-
trol
(
P. 38) Wireless remote control On Off
Unlocking operation
Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step.
Automatic door lock
function to be activated
if door is not opened
after being unlocked On Off
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences.
Programming these preferences
requires specialized equipment and may be performed by your Toy-
ota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer.

511
6-2. Customization
6
Vehicle specifications
Wireless
remote con-
trol
(
P. 3 8 )
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Operation signal
(Buzzer) On Off
Door lock buzzer On Off
Panic function On Off
Trunk unlocking func-
tion
(vehicles with smart key
system only) On Off
Trunk unlocking opera-
tion
(vehicles with smart key
system)
Press and hold
Press twice
One short press
Trunk unlocking opera-
tion
(vehicles without smart
key system) Press and
briefly hold Press twice
One short press
Press and hold
ItemFunctionDefault settingCustomized setting

512 6-2. Customization
Door lock
(
P. 42)Unlocking using a key
Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step.
Speed-detecting auto-
matic door lock function Off On
Opening driver's door
unlocks all doors Off On
Shifting gears to P
unlocks all doors. (auto-
matic transmission) On Off
Shifting gears to posi-
tion other than P locks
all doors. (automatic
transmission) On Off
Automatic
light control
system
(
P. 159) Light sensor sensitivity Level 3 Level 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 seconds0 seconds
60 seconds
90 seconds
Lights
(
P. 159) Daytime running light
system (U.S.A. only)
On Off
ItemFunctionDefault settingCustomized
setting

513
6-2. Customization
6
Vehicle specifications
Illumination
(
P. 313)
Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Vehicles with smart key
system: Operation after
the “ENGINE START
STOP” switch turned
OFF
Vehicles without smart
key system: Operation
after the engine switch
turned to the “LOCK”
position On Off
Seat belt
reminder
(
P. 435) Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting

514
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance data
(U.S.A. only) After changing engine oil P. 371
Tire pressure warning
system (U.S.A. only) When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
P. 384
The following items must be initia
lized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

For owners7
515
Reporting safety defects for U.S. owners .............. 516
Seat belt instructions for Canadian owners
(in French) ..................... 517

516
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain
other information about motor vehicle safety from http://
www.safercar.gov .

517
7
For owners

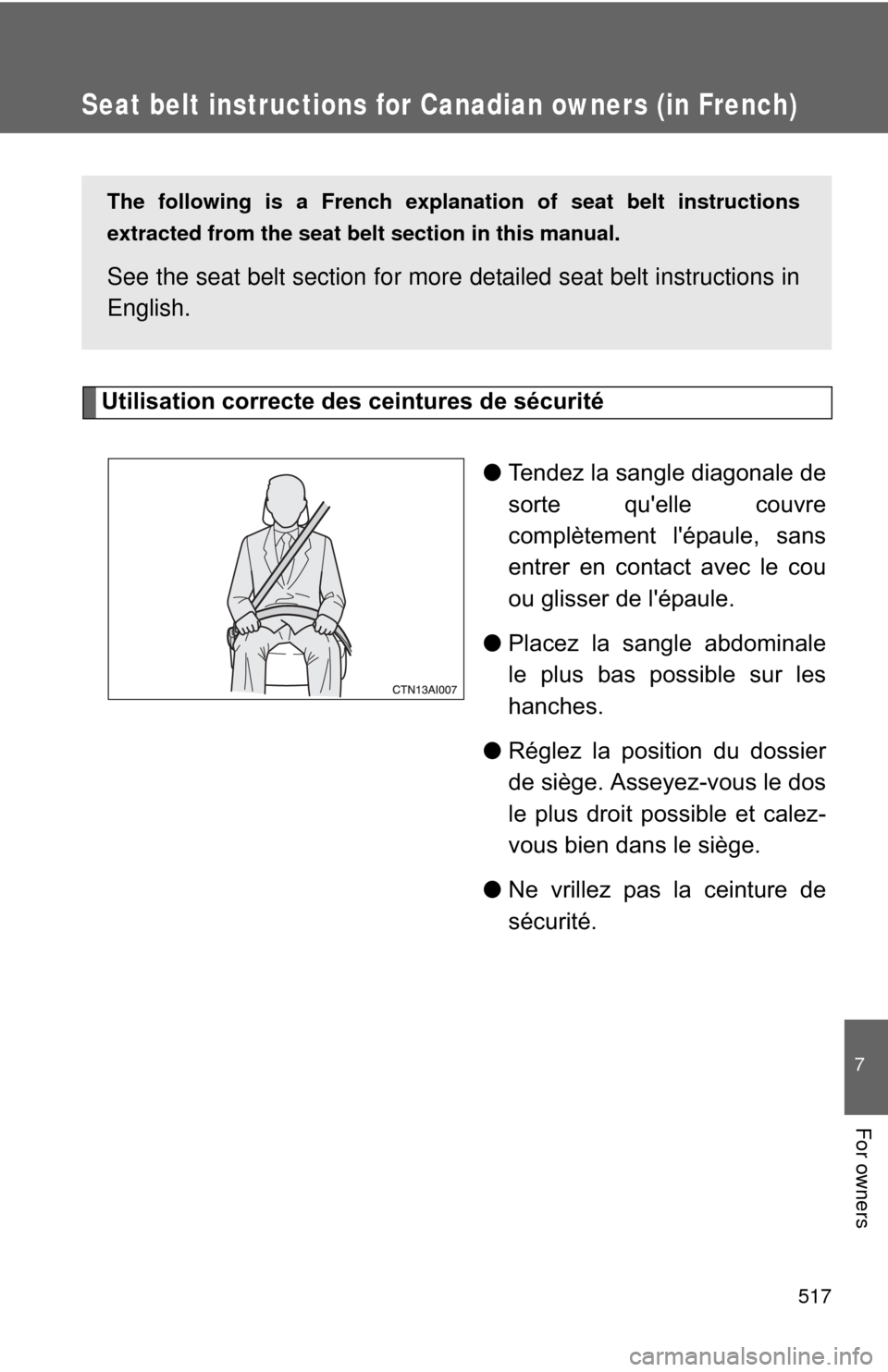

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Tendez la sangle diagonale de
sorte qu'elle couvre
complètement l'épaule, sans
entrer en contact avec le cou
ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.

518
Guide de confort de ceinture de sécurité (siège arrière extérieur)Si la sangle diagonale gêne la personne au niveau du cou, utilisez le
guide confort de la ceinture de sécurité. Sortez le guide confort de sa
poche.
Engagez la ceinture dans le
guide.
Le cordon élastique doit passer
sous la ceinture de sécurité.
Bouclez, positionnez et lâchez la
ceinture de sécurité.
1ÉTAPE
2ÉTAPE
3ÉTAPE
