549

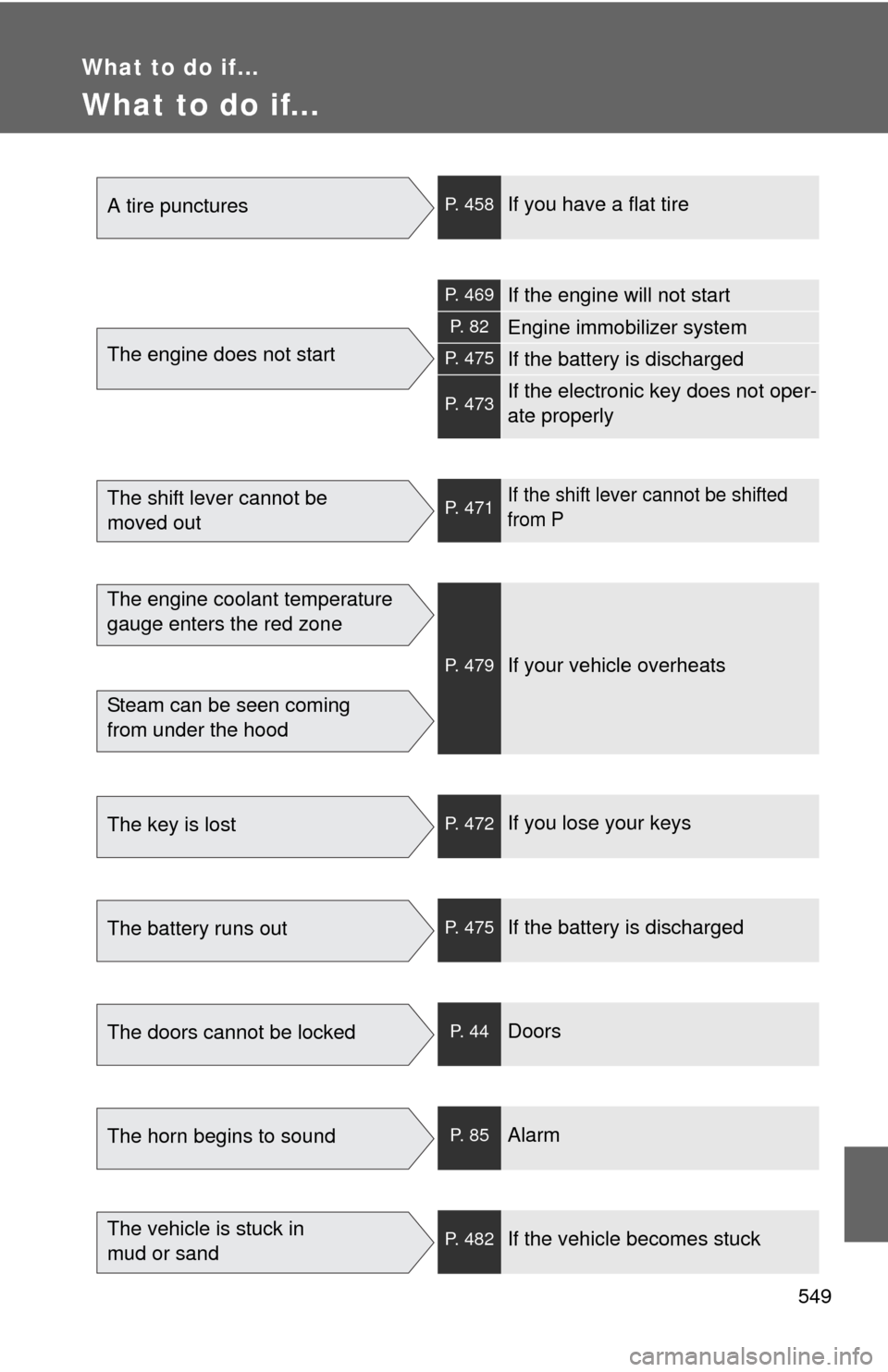

What to do if...
What to do if...
A tire puncturesP. 458If you have a flat tire
The engine does not start
P. 469If the engine will not start
P. 8 2Engine immobilizer system
P. 475If the battery is discharged
P. 473If the electronic key does not oper-
ate properly
The shift lever cannot be
moved outP. 471If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 479If your vehicle overheats
The key is lostP. 472If you lose your keys
The battery runs outP. 475If the battery is discharged
The doors cannot be lockedP. 4 4Doors
The horn begins to soundP. 8 5Alarm
The vehicle is stuck in
mud or sandP. 482If the vehicle becomes stuck

550 What to do if...

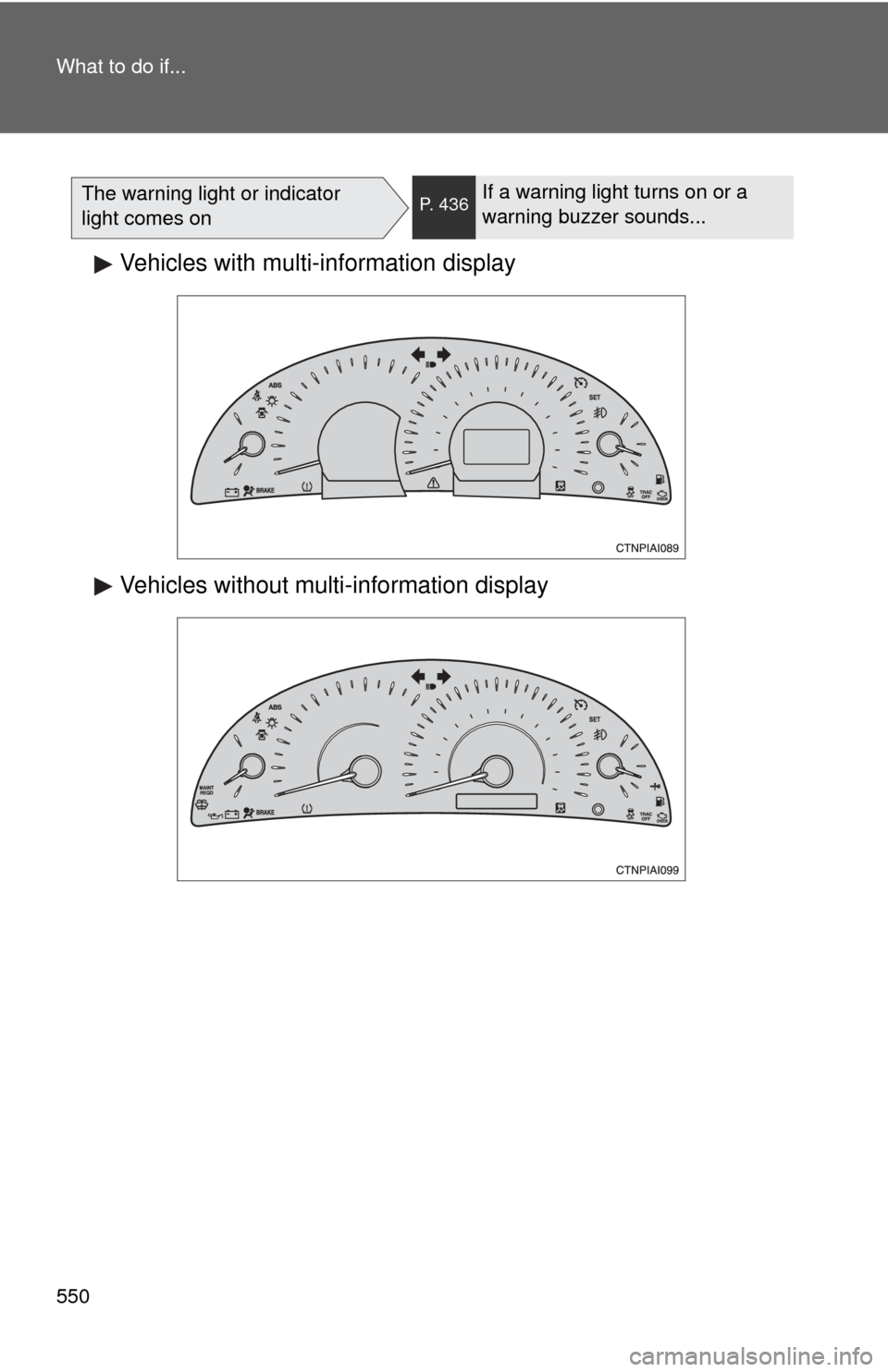

The warning light or indicator
light comes onP. 436If a warning light turns on or a
warning buzzer sounds...
Vehicles with multi-information display
Vehicles without multi-information display

551
What to do if...
■
Warning lights
P. 437
or
P. 4 3 6P. 437
P. 4 3 7P. 439
P. 4 3 7P. 439
P. 439
or
P. 4 3 7P. 439
P. 4 3 7P. 439
P. 439
or
P. 4 3 7P. 439
P. 4 3 9P. 442
*: The light flashes to indicate a malfunction.
Brake system warning
lightCruise control indicator
light
*
Slip indicator light
Charging system warn-
ing lightTire pressure warning
light
Low engine oil pressure
warning lightLow windshield washer fluid
warning light
Malfunction indicator
lampOpen door warning light
Low fuel level warning
light
SRS warning lightDriver’s seat belt
reminder light
ABS warning lightFront passenger’s seat belt
reminder light
Master warning light
Maintenance required
reminder lightSmart key system warn-
ing light
The warning message is
displayedP. 448If a warning message is displayed

552
GAS STATION INFORMATION
Hood lock release lever
P. 3 6 8
Fuel filler door openerP. 7 9Tire inflation pressure
P. 497
Auxiliary catch leverP. 368Trunk openerP. 4 9Fuel filler door P. 7 9
Fuel tank capacity
(Reference) 18.5 gal. (70 L, 15.4 Imp. gal.)
Fuel type
Unleaded gasoline only P. 80, 490
Cold tire inflation pressure P. 497
Engine oil
capacity
(Drain and refill

reference)
2.5 L 4-cyl-
inder
(2AR-FE)
engine qt. (L, Imp. qt.)
With filter 4.7 (4.4, 3.9)
Without filter 4.2 (4.0, 3.5)
3.5 L V6
(2GR-FE)
engine With filter 6.4 (6.1, 5.4)
Without filter 6.0 (5.7, 5.0)
Engine oil type
P. 491
