TOYOTA CAMRY 2012 XV50 / 9.G Navigation Manual

11
1. NAVIGATION OPERATION
1
QUICK GUIDE

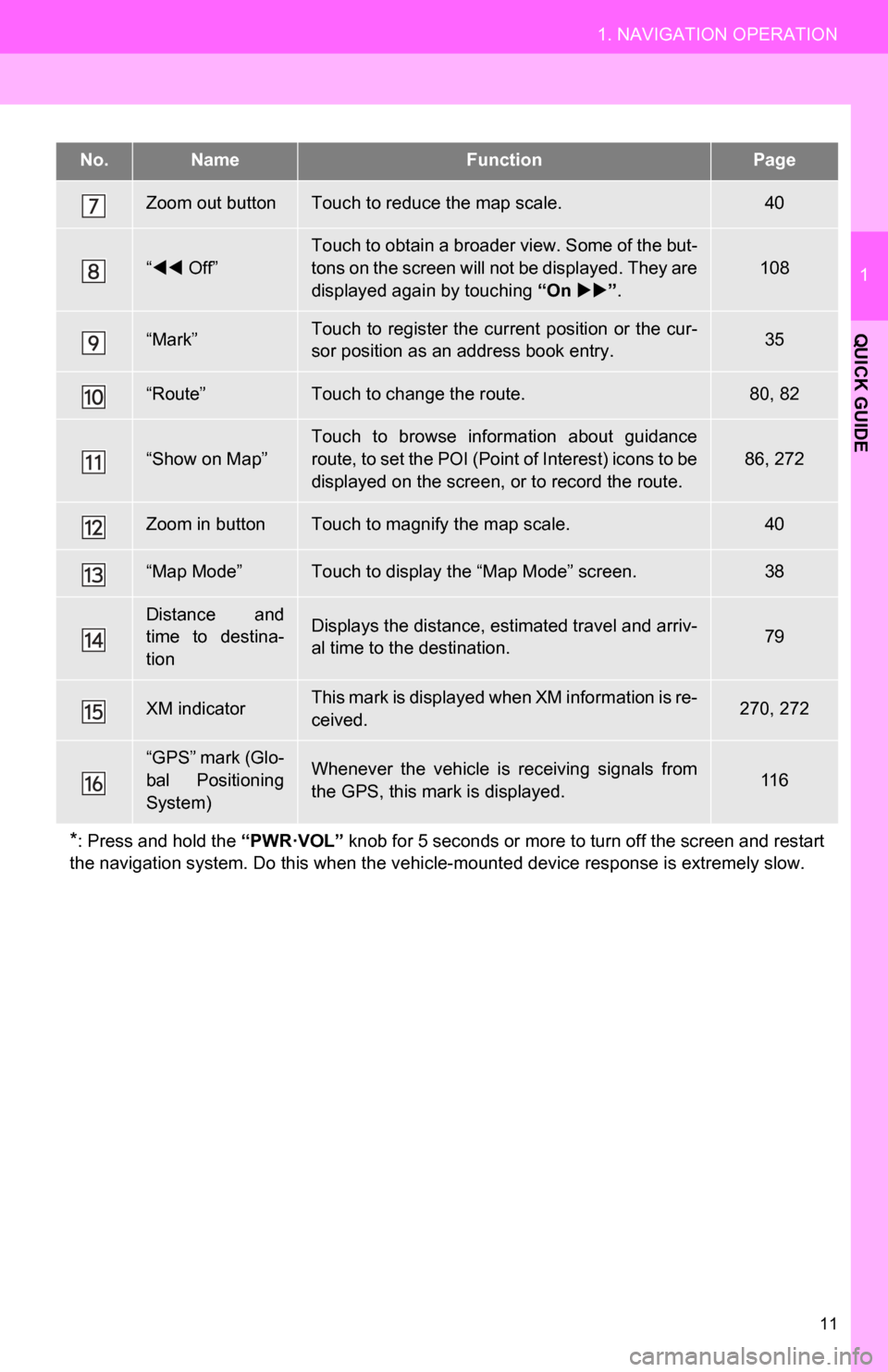

Zoom out buttonTouch to reduce the map scale.40
“ Off”Touch to obtain a broader view. Some of the but-
tons on the screen will not be displayed. They are
displayed again by touching “On  ”.108
“Mark”Touch to register the current position or the cur-
sor position as an address book entry.35
“Route”Touch to change the route.80, 82
“Show on Map”
Touch to browse information about guidance
route, to set the POI (Point of Interest) icons to be
displayed on the screen, or to record the route.
86, 272
Zoom in buttonTouch to magnify the map scale.40
“Map Mode”Touch to display the “Map Mode” screen.38
Distance and
time to destina-
tionDisplays the distance, estimated travel and arriv-
al time to the destination.79
XM indicatorThis mark is displayed when XM information is re-
ceived.270, 272
“GPS” mark (Glo-
bal Positioning
System)Whenever the vehicle is receiving signals from
the GPS, this mark is displayed.11 6
*: Press and hold the “PWR·VOL” knob for 5 seconds or more to turn off the screen and restart
the navigation system. Do this when the vehi cle-mounted device response is extremely slow.
No.NameFunctionPage

12
1. NAVIGATION OPERATION
2. REGISTERING HOME
Press the “DEST” button.
Touch “Go Home”.
If a home address has not been regis-
tered, it can be registered by touching
“Go Home”.
Touch “Yes”. There are 4 different methods to
search your home. (See “DESTI-
NATION SEARCH” on page 56.)
Touch “Enter”.
The “Edit Home” screen is displayed.
1
2
3
4
5

13
1. NAVIGATION OPERATION
1
QUICK GUIDE
Touch “OK”.
Registration of home is complete.
Home can also be registered by touch-
ing “Navigation” on the “Setup” screen.
(See “REGISTERING HOME” on page
91.)
The name, location, phone number and
icon can be changed. (See “EDITING
HOME” on page 91.)
The registered points can be used on
the “Destination” screen. (See “DESTI-
NATION SEARCH BY HOME” on page
57.)
6

14
1. NAVIGATION OPERATION
3. REGISTERING PRESET DESTINATIONS
Press the “DEST” button.
Touch one of the preset destina-
tion buttons.
A preset destination can be set to any
preset destination button that has not
yet been set.
Touch “Yes”.There are 4 different methods to
search preset destinations. (See
“DESTINATION SEARCH” on
page 56.)
Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
1
2
3
4
5

15
1. NAVIGATION OPERATION
1
QUICK GUIDE
Touch “OK”.
Registration of preset destinations is
complete.
Preset destinations can also be regis-
tered by touching “Navigation” on the
“Setup” screen. (See “REGISTERING
PRESET DESTINAT IONS” on page 93.)
The name, location, phone number and
icon can be changed. (See “EDITING
PRESET DESTINAT IONS” on page 93.)
The registered points can be used on
the “Destination” screen. (See “DESTI-
NATION SEARCH BY PRESET DESTI-
NATIONS” on page 57.)
6

16
1. NAVIGATION OPERATION
4. OPERATION FLOW: GUIDING THE ROUTE
Press the “DEST” button.
There are 10 different methods to
search destinations. (See “DES-
TINATION SEARCH” on page 56.)
 Page 1
 Page 2 Touch “Go to ”.
The navigation system performs a
search for the route.
Touch “OK”, and start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 70.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3
4

17
1. NAVIGATION OPERATION
1
QUICK GUIDE
5. SETTING HOME AS THE DESTINATION
Press the “DEST” button.
Touch “Go Home”.
“Go Home” can be used if your home
address has been registered. (To regis-
ter home, see “REGISTERING HOME”
on page 91.)
Your home address is set as the desti-
nation. The navigation system performs
a search for the route.
Touch “OK”, and start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 70.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3

18
2. FUNCTION INDEX

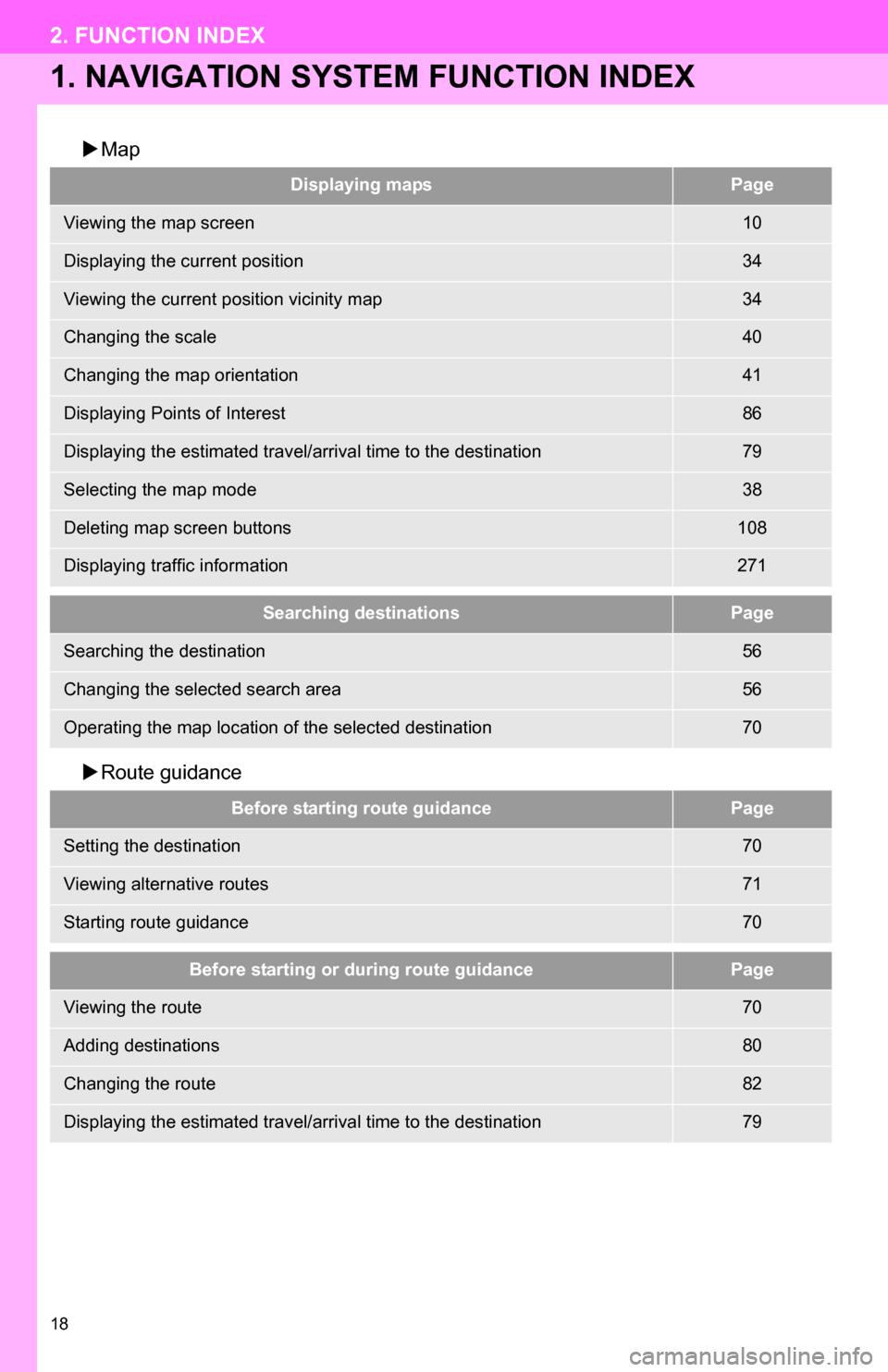

1. NAVIGATION SYSTEM FUNCTION INDEX
Map
 Route guidance
Displaying mapsPage
Viewing the map screen10
Displaying the current position34
Viewing the current position vicinity map34
Changing the scale40
Changing the map orientation41
Displaying Points of Interest86
Displaying the estimated travel/arrival time to the destination79
Selecting the map mode38
Deleting map screen buttons108
Displaying traffic information271
Searching destinationsPage
Searching the destination56
Changing the selected search area56
Operating the map location of the selected destination70
Before starting route guidancePage
Setting the destination70
Viewing alternative routes71
Starting route guidance70
Before starting or during route guidancePage
Viewing the route70
Adding destinations80
Changing the route82
Displaying the estimated travel/arrival time to the destination79

19
2. FUNCTION INDEX
1
QUICK GUIDE
Useful functions
During route guidancePage
Pausing route guidance85
Adjusting route guidance volume52
Deleting the destination81
Displaying the entire route map83
Address bookPage
Registering address book entries95
Marking icons on the map96
InformationPage
Displaying vehicle maintenance111
Hands-free system (for cellular phone)Page
Initiating Bluetooth®122
Making a call on a Bluetooth® phone130
Receiving a call on the Bluetooth® phone136
Voice command systemPage
Operating the system with your voice242

20
3. QUICK REFERENCE

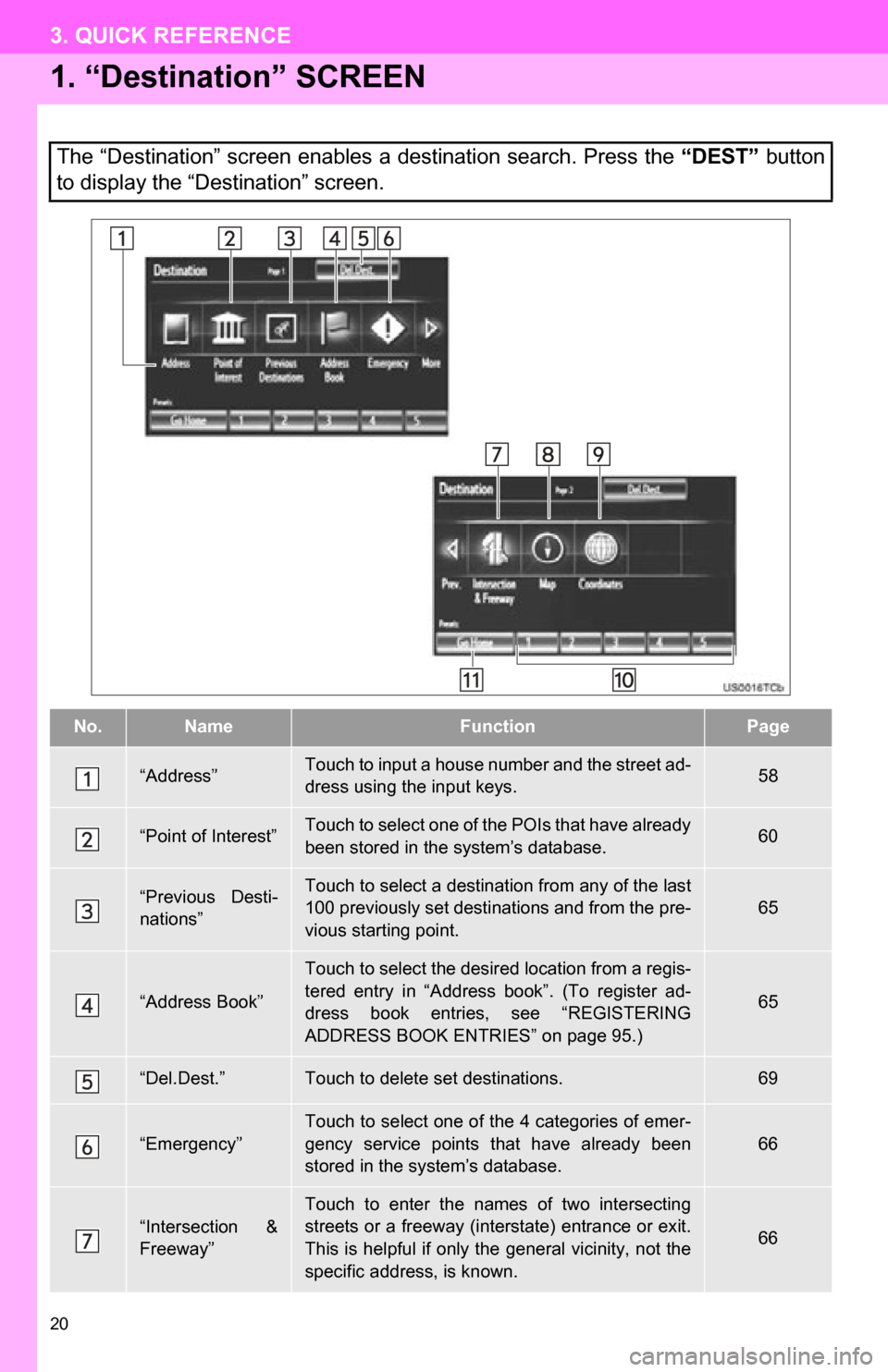

1. “Destination” SCREEN
The “Destination” screen enables a destination search. Press the “DEST” button
to display the “Destination” screen.
No.NameFunctionPage
“Address”Touch to input a house number and the street ad-
dress using the input keys.58
“Point of Interest”Touch to select one of the POIs that have already
been stored in the system’s database.60
“Previous Desti-
nations”Touch to select a destination from any of the last
100 previously set destinations and from the pre-
vious starting point.
65
“Address Book”
Touch to select the desired location from a regis-
tered entry in “Address book”. (To register ad-
dress book entries, see “REGISTERING
ADDRESS BOOK ENTRIES” on page 95.)
65
“Del.Dest.”Touch to delete set destinations.69
“Emergency”
Touch to select one of the 4 categories of emer-
gency service points that have already been
stored in the system’s database.
66
“Intersection &
Freeway”Touch to enter the names of two intersecting
streets or a freeway (interstate) entrance or exit.
This is helpful if only the general vicinity, not the
specific address, is known.
66
