TOYOTA CAMRY 2012 XV50 / 9.G Quick Reference Guide

Quick Re f eRence Guide
custome R expe Rience cente R
1- 8 0 0 - 3 31- 4 3 31
00505-QRG12- cAm
camry
2 0 1 2
11-TCS-04978_QRG_Camry_2_0F_lm.indd 18/31/11 9:26 PM
printed in u. s. A . 3/12
12-tcs-05975

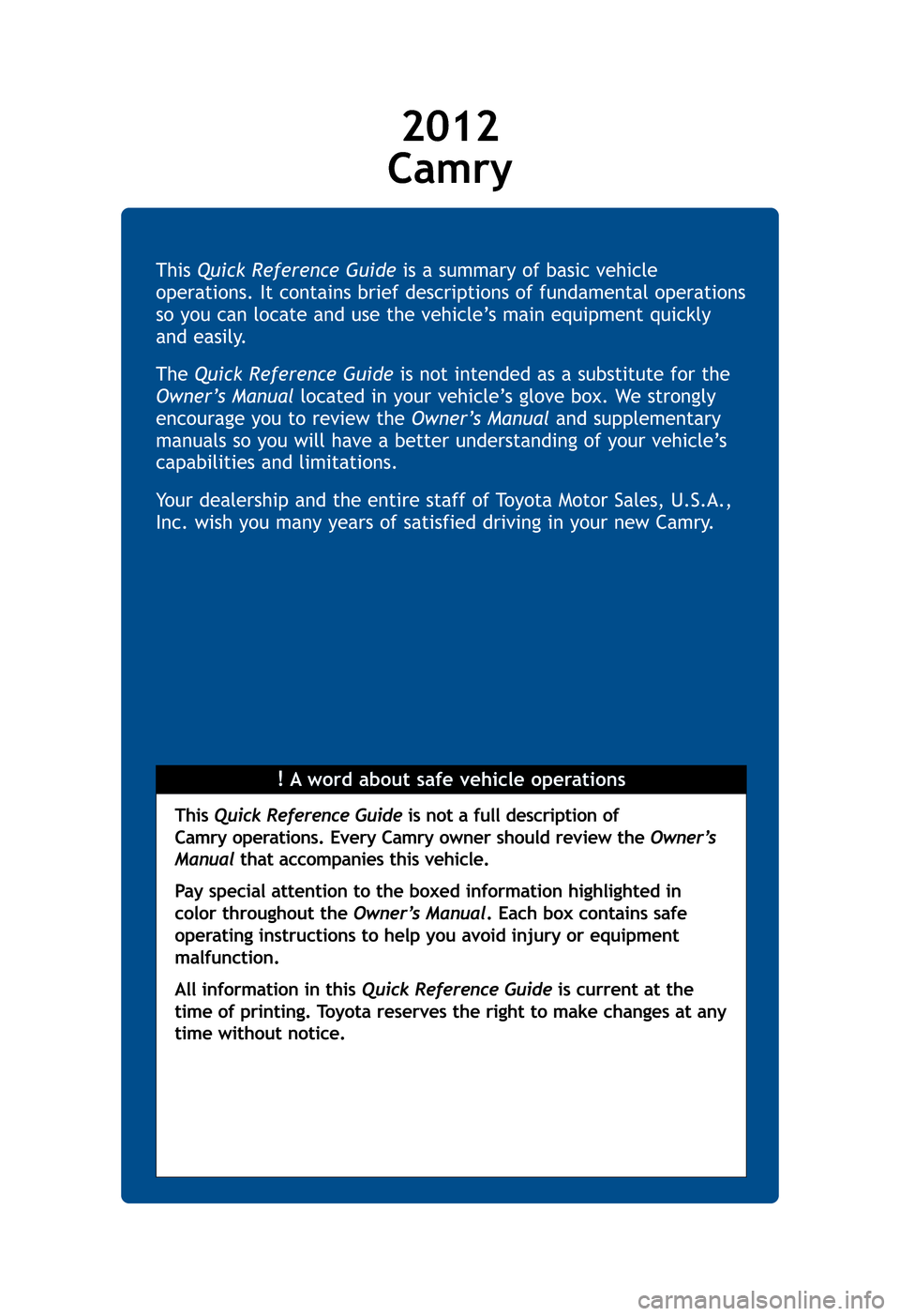

!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Camry.
This Quick Reference Guideis not a full description of
Camry operations. Every Camry owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual . Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2012
CamryIND
OVE
F E AT
SAF
EME
1Visi2 Prog
info
3Hom
resize-2012Camry.qxd 8/31/11 9:28 PM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1

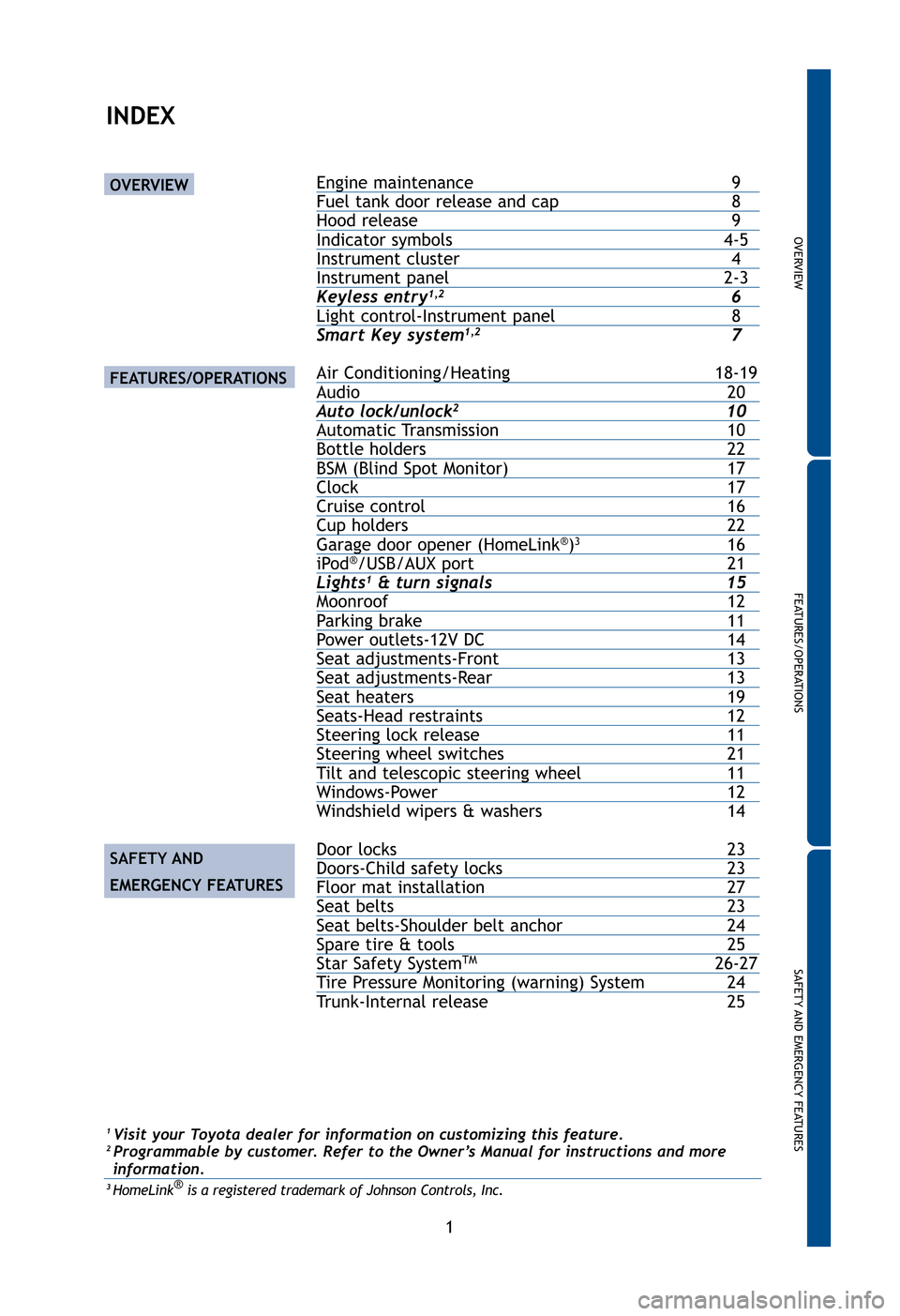

INDEX
Engine maintenance 9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20Auto lock/unlock210Automatic Transmission10Bottle holders22BSM (Blind Spot Monitor)17Clock 17Cruise control16Cup holders22Garage door opener (HomeLink®)316iPod®/USB/AUX port21Lights1& turn signals15Moonroof 12Parking brake11Power outlets-12V DC14Seat adjustments-Front13Seat adjustments-Rear13Seat heaters 19Seats-Head restraints12Steering lock release 11Steering wheel switches21Tilt and telescopic steering wheel11Windows-Power 12
Windshield wipers & washers 14
Door locks 23Doors-Child safety locks23Floor mat installation27Seat belts23Seat belts-Shoulder belt anchor24Spare tire & tools 25Star Safety SystemTM26-27Tire Pressure Monitoring (warning) System24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
resize-2012Camry.qxd 8/31/11 9:29 PM Page 1

2
OVERVIEW

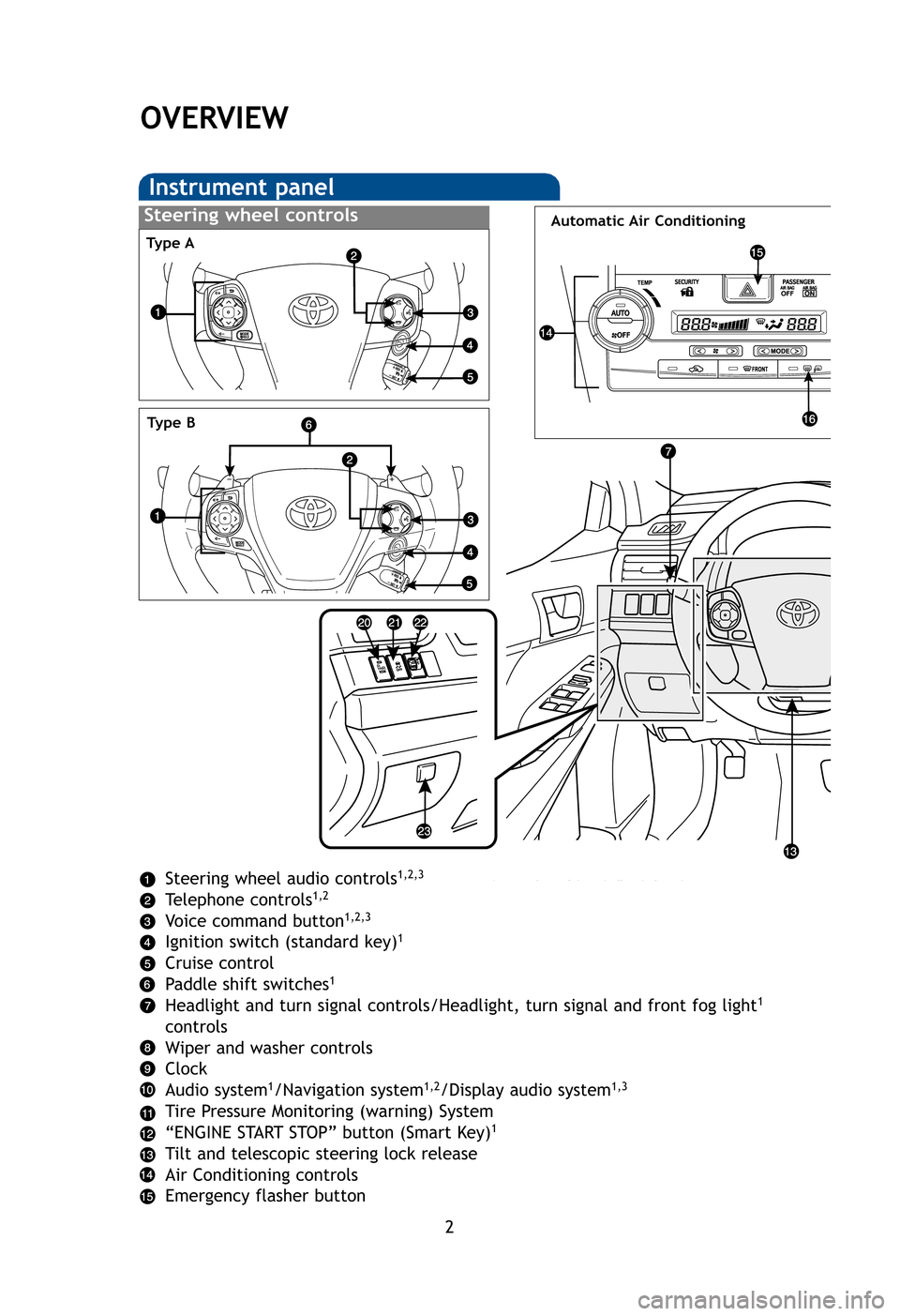

Instrument panel
Steering wheel audio controls1,2,3
Telephone controls1,2
Voice command button1,2,3
Ignition switch (standard key)1
Cruise control
Paddle shift switches1
Headlight and turn signal controls/Headlight, turn signal and front fog \
light1
controls
Wiper and washer controls
Clock
Audio system
1/Navigation system1,2/Display audio system1,3
Tire Pressure Monitoring (warning) System
“ENGINE START STOP” button (Smart Key)1
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
O
1
A
S
B
V
H
C
1
2
3
NOT
Syst
Steering wheel controlsAutomatic Air Conditioning
Type AType B
resize-2012Camry.qxd 8/31/11 9:30 PM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

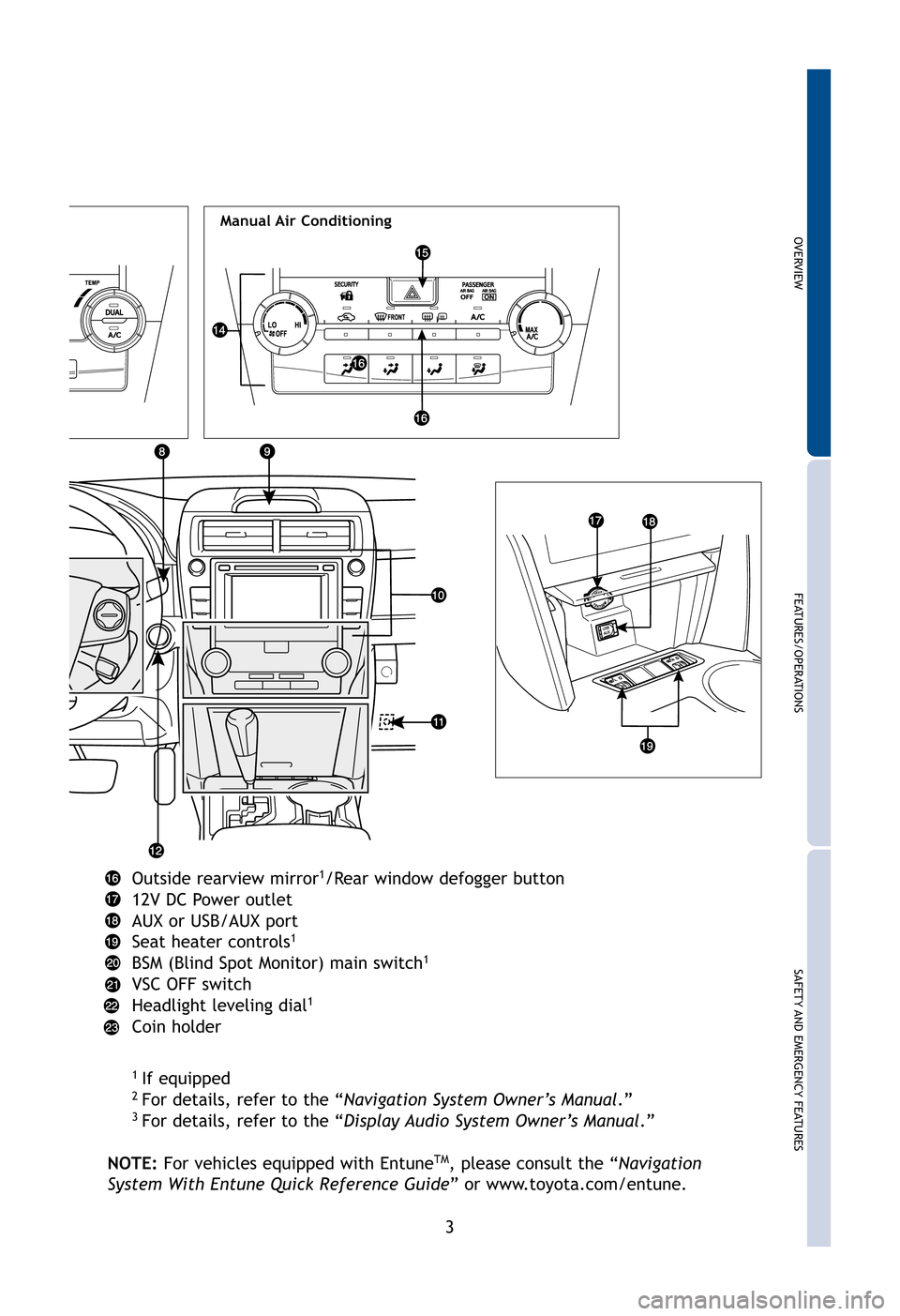

Outside rearview mirror1/Rear window defogger button
12V DC Power outlet
AUX or USB/AUX port
Seat heater controls
1
BSM (Blind Spot Monitor) main switch1
VSC OFF switch
Headlight leveling dial1
Coin holder
1If equipped2For details, refer to the “ Navigation System Owner’s Manual .”3For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “ Navigation
System With Entune Quick Reference Guide ” or www.toyota.com/entune.
Manual Air Conditioning
resize-2012Camry.qxd 8/31/11 9:30 PM Page 3

4
OVERVIEW

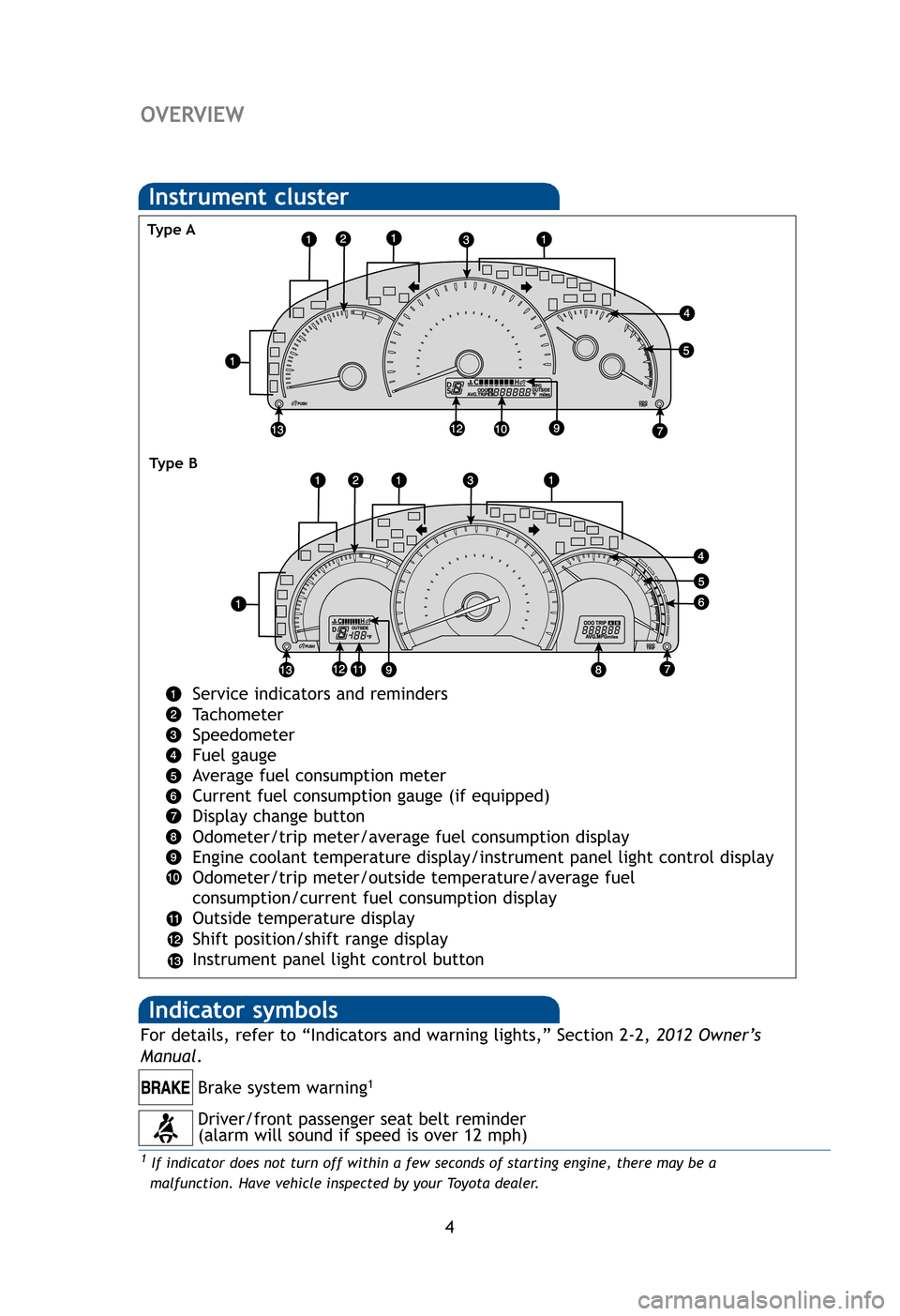

Instrument cluster
Service indicators and reminders
Tachometer
Speedometer
Fuel gauge
Average fuel consumption meter
Current fuel consumption gauge (if equipped)
Display change button
Odometer/trip meter/average fuel consumption display
Engine coolant temperature display/instrument panel light control displa\
y
Odometer/trip meter/outside temperature/average fuel
consumption/current fuel consumption display
Outside temperature display
Shift position/shift range display
Instrument panel light control button
2If th3 Lighthe
Driver/front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Type A
Type B
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2012 Owner’s
Manual .
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
resize-2012Camry.qxd 8/31/11 9:47 PM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
ay

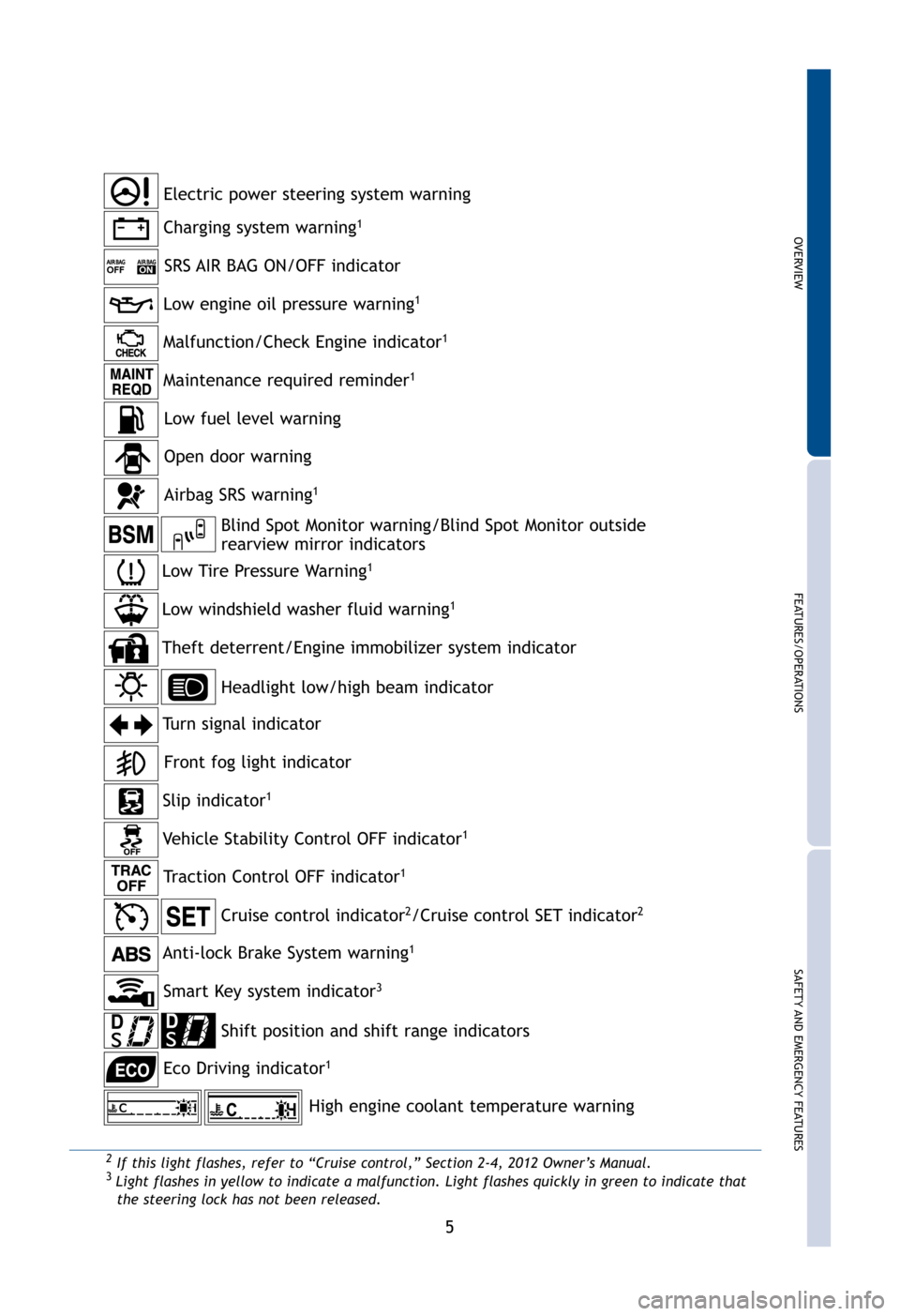

Charging system warning1
SRS AIR BAG ON/OFF indicator
2If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.3 Light flashes in yellow to indicate a malfunction. Light flashes quickly\
in green to indicate thatthe steering lock has not been released.
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Low windshield washer fluid warning1
Electric power steering system warning
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Maintenance required reminder1
Low fuel level warning
Front fog light indicator
Smart Key system indicator
3
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
Shift position and shift range indicators
Eco Driving indicator
1
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators
High engine coolant temperature warning
resize-2012Camry.qxd 8/31/11 9:47 PM Page 5

6
OVERVIEW

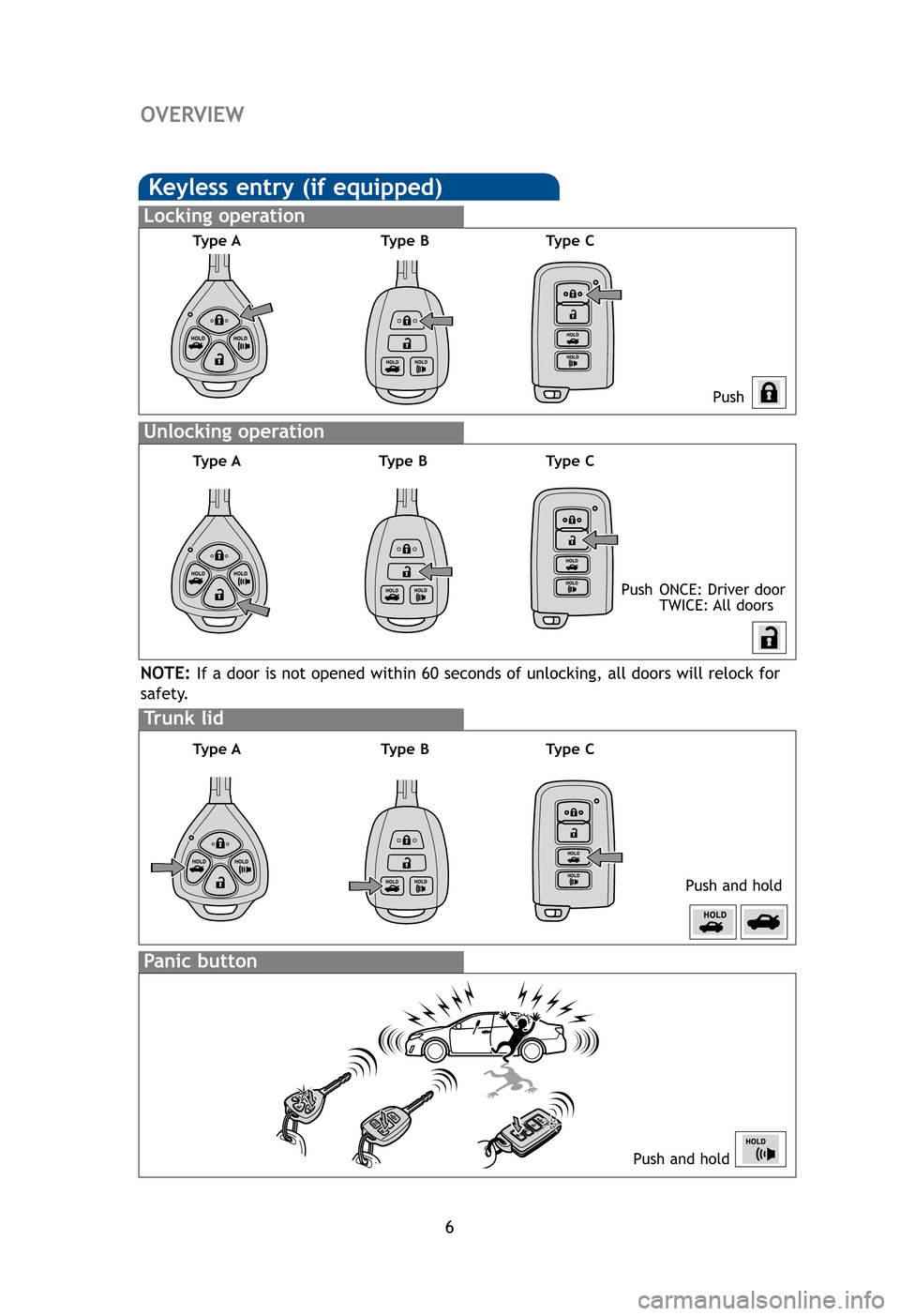

Keyless entry (if equipped)
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Type A Type B
Sm
Star
AC
ON
OF
NOT
With
chan
* Dri
all
NOT
Pow
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will r\
elock for
safety.
Trunk lid
Push and holdTr u
Loc
Carr
Fro
Carr
Type C
Type A
Type A Type B
Type B Type C
Type C
resize-2012Camry.qxd 8/31/11 9:31 PM Page 6

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
doorrs

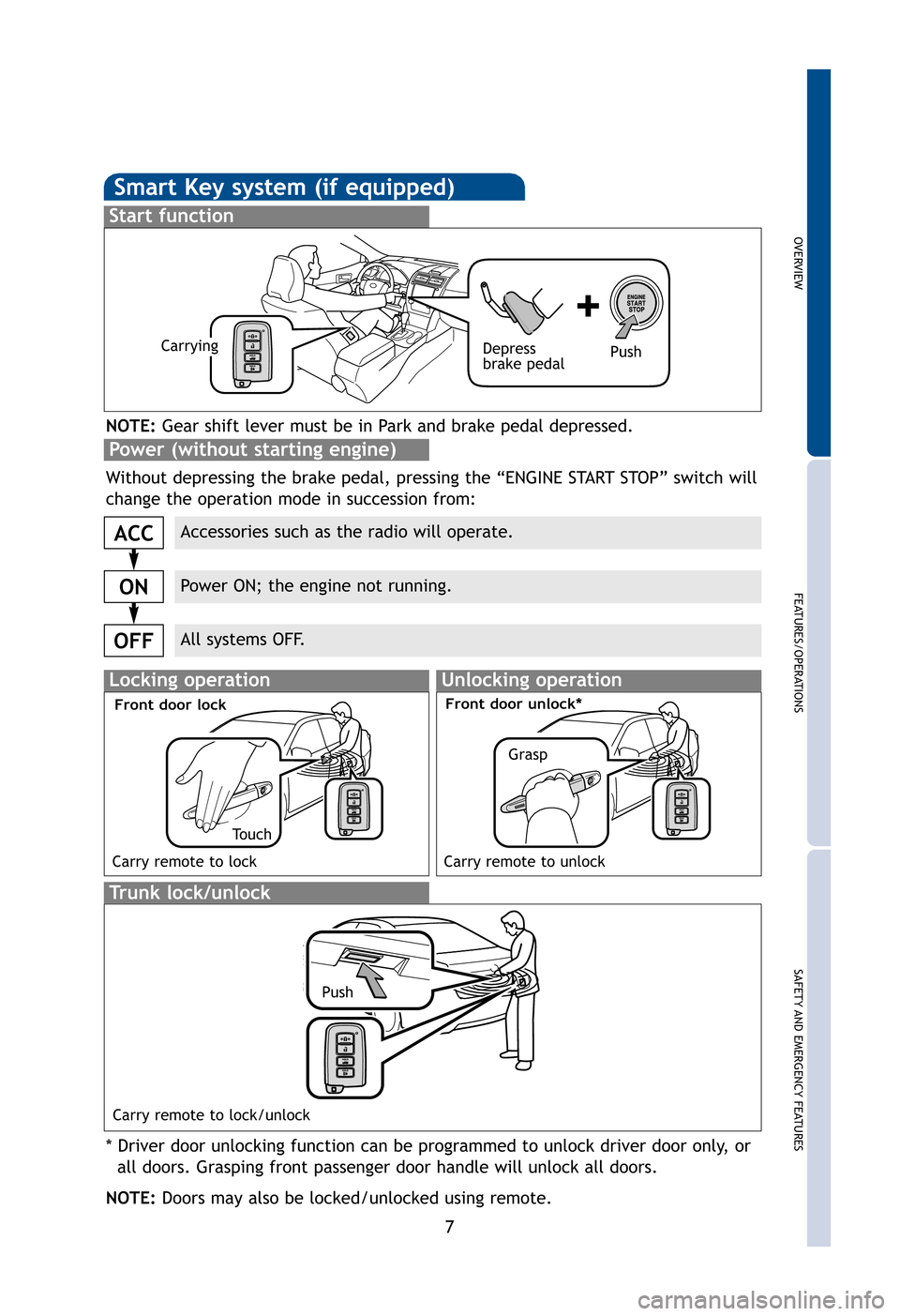

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will
change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
for
oldTrunk lock/unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to lock/unlock
Front door unlock*
TouchGrasp
resize-2012Camry.qxd 8/31/11 9:32 PM Page 7

8

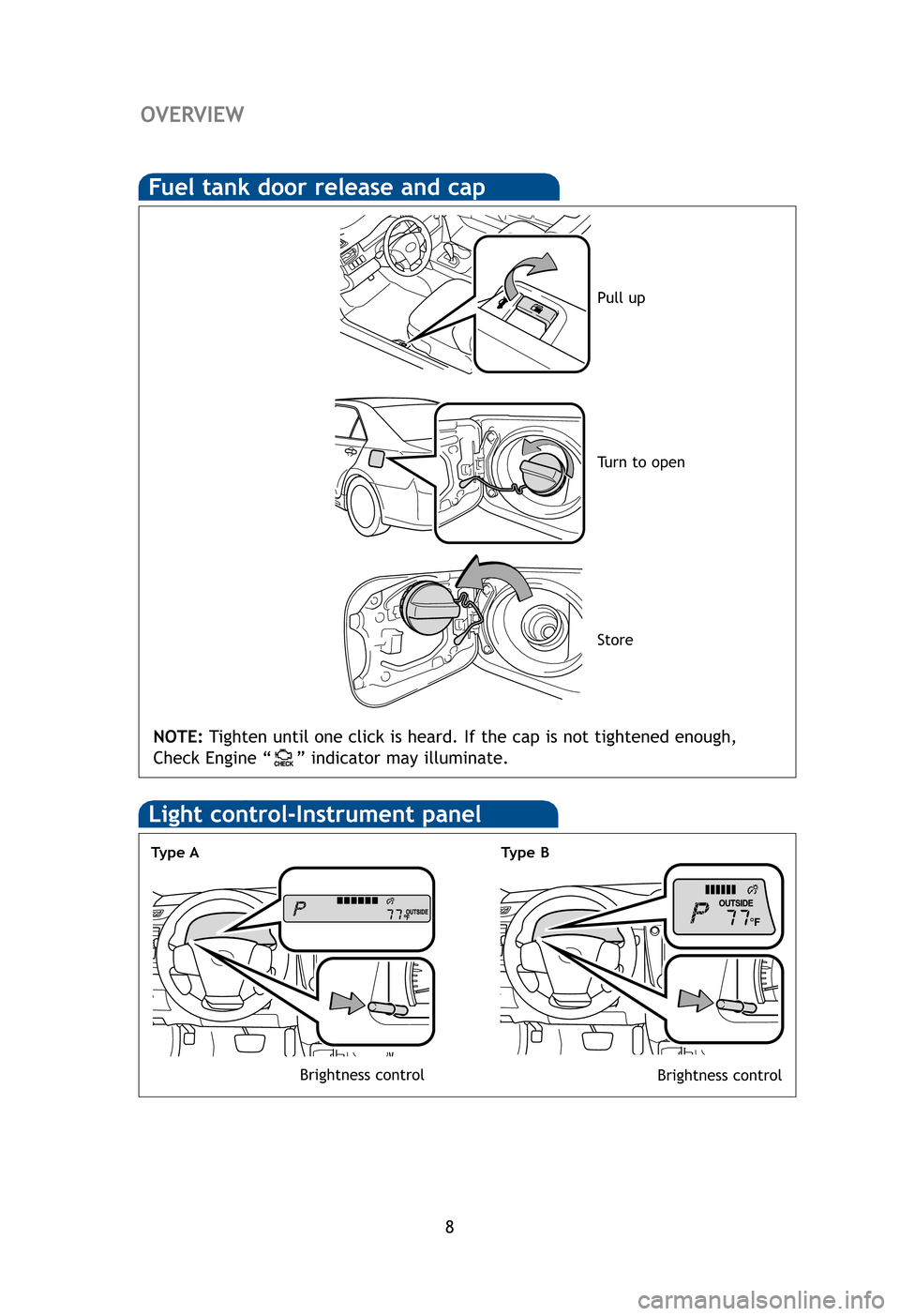

HoFuel tank door release and cap
NOTE:Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Pull up
Turn to open
Store
E
E
E
W
NOT
Light control-Instrument panel
Brightness control
En
4 cy
OVERVIEW
Type AType B
Brightness control
resize-2012Camry.qxd 8/31/11 9:32 PM Page 8
