TOYOTA CAMRY 2012 XV50 / 9.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9

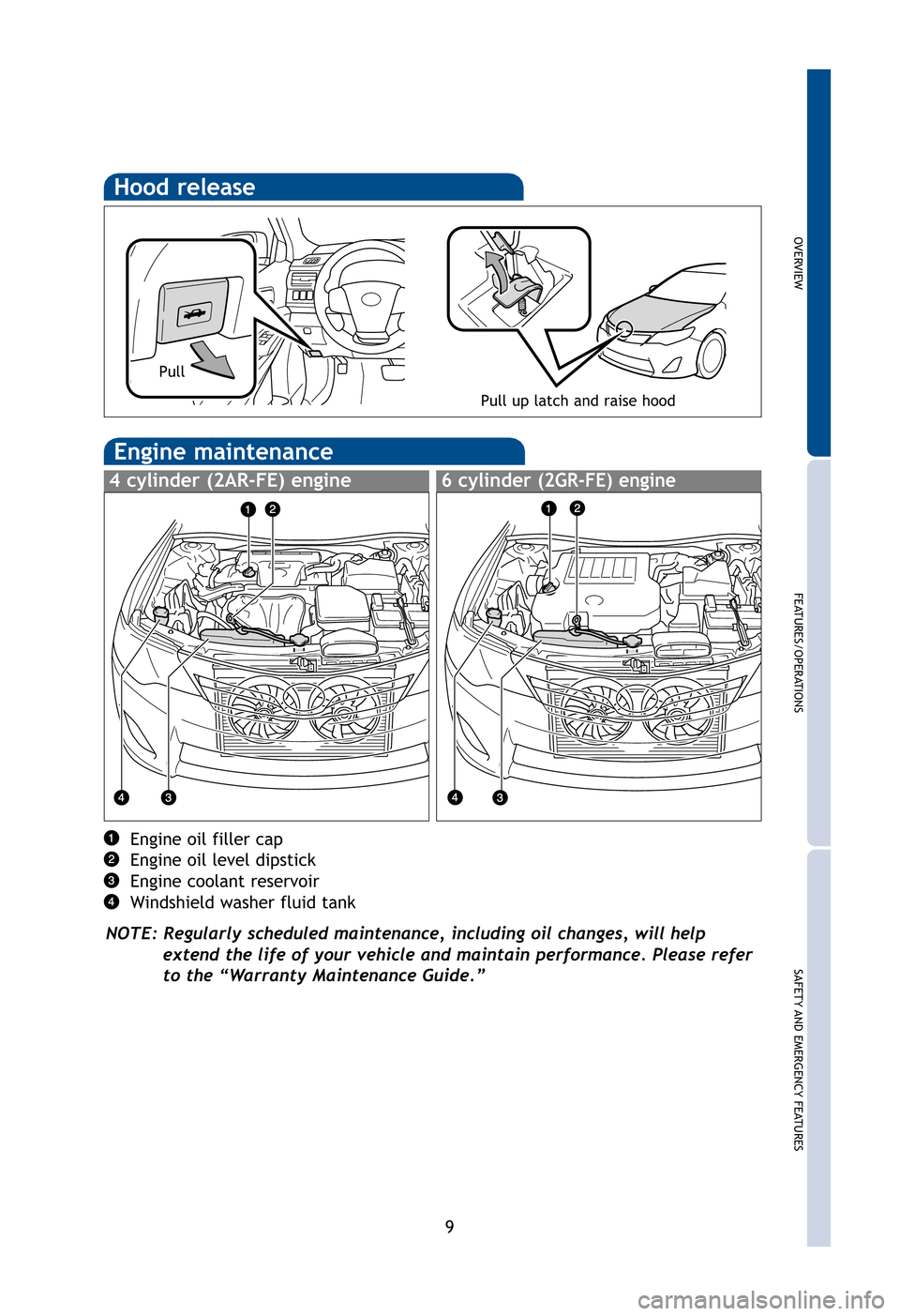

Hood release
Pull up latch and raise hood
Pull
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
4 cylinder (2AR-FE) engine6 cylinder(2GR-FE) engine
trol
resize-2012Camry.qxd 8/31/11 9:33 PM Page 9

10
FEATURES/OPERATIONS

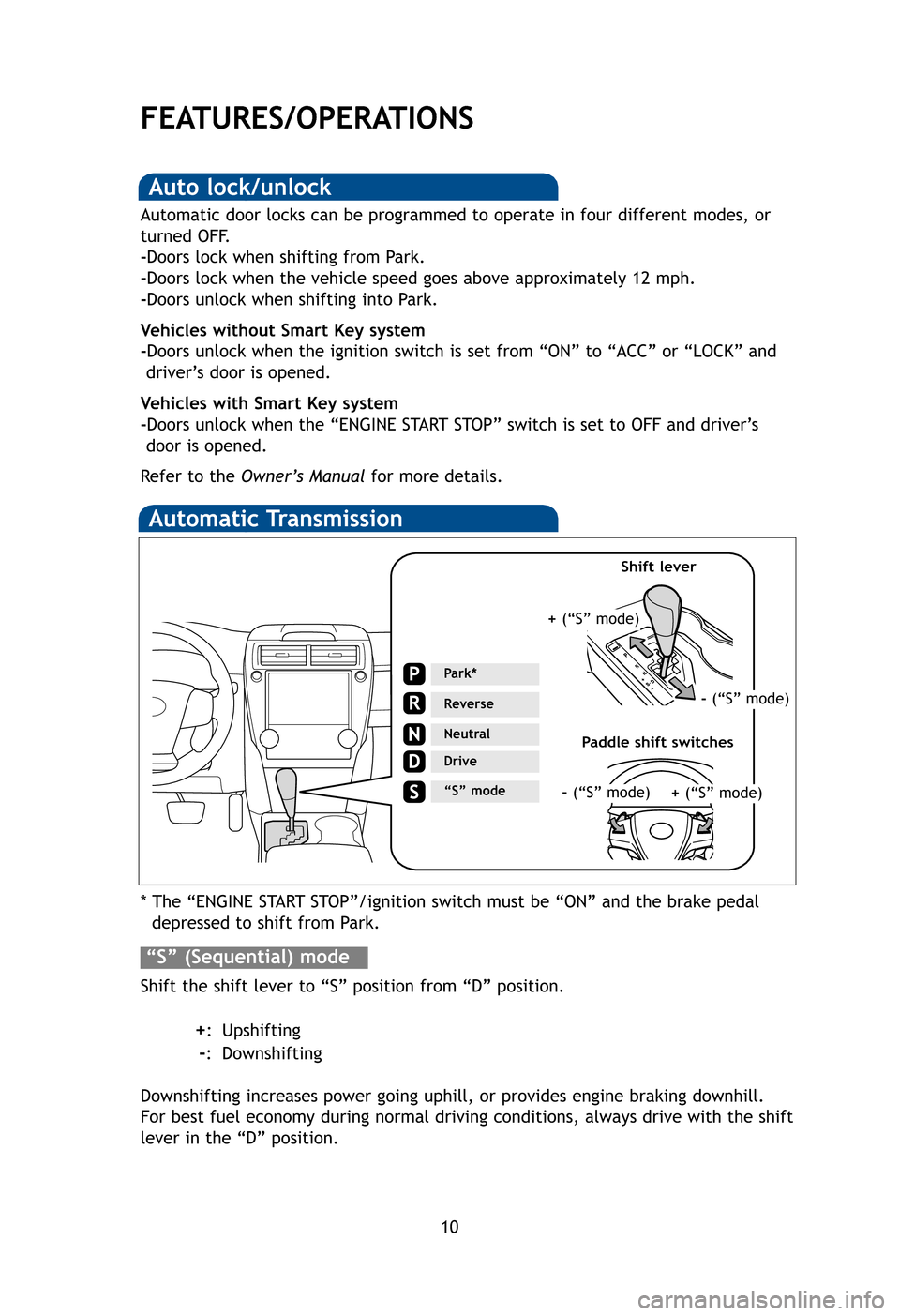

Automatic Transmission
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedaldepressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
“S” (Sequential) mode
Ste
Sma
Pa
Park*
Reverse
Neutral
Drive
N

Auto lock/unlock
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC”\
or “LOCK” and driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Hold
NOT
Til
* Ge
“EN
not
wil
+ (“S” mode)
-(“S” mode)
+ (“S” mode)-(“S” mode)
Paddle shift switches Shift lever
resize-2012Camry.qxd 8/31/11 9:33 PM Page 10

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
.shift

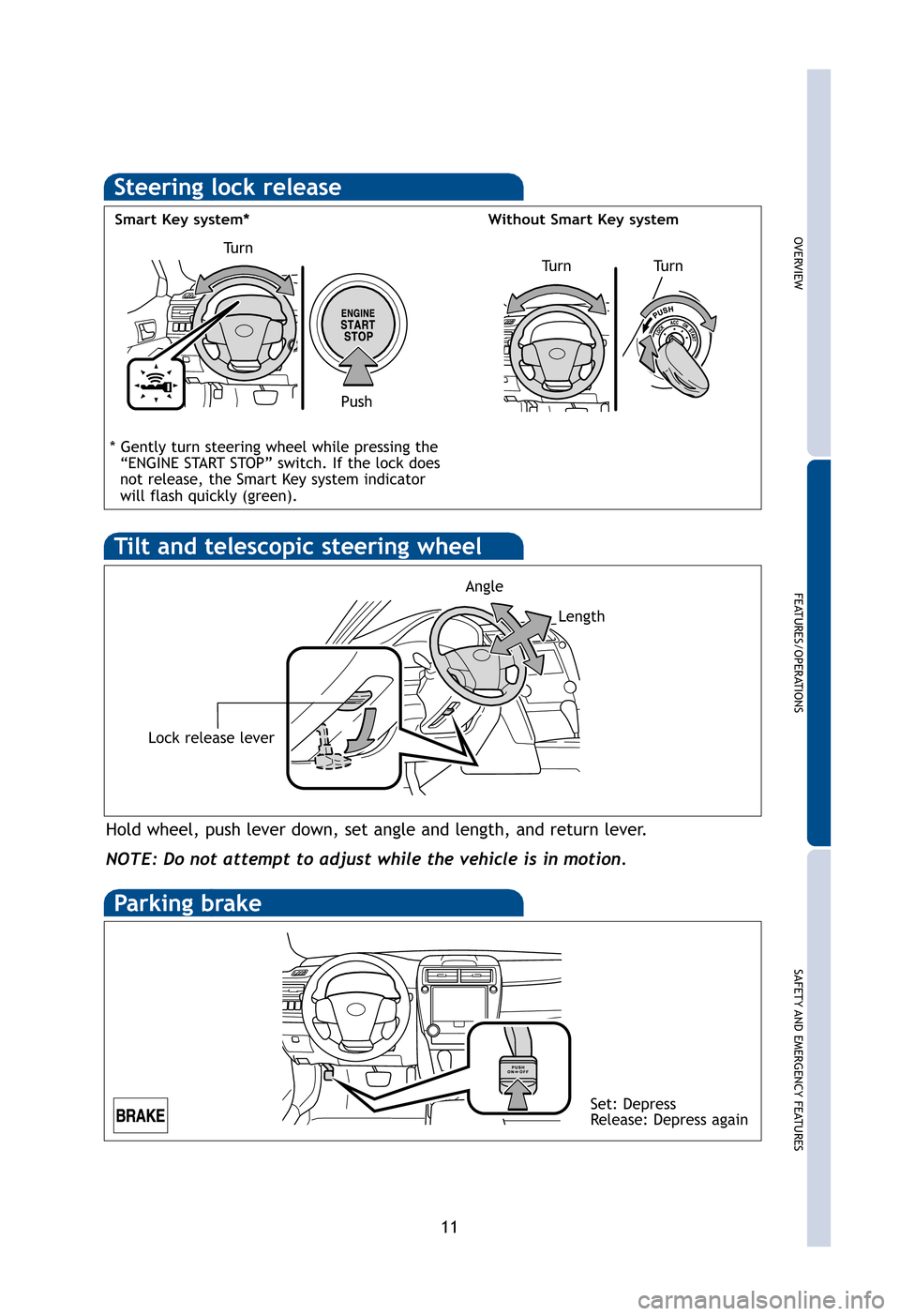

Steering lock release
Turn
Turn
Smart Key system*
Without Smart Key system
Push
Turn
Parking brake
or
nd
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
* Gently turn steering wheel while pressing the “ENGINE START STOP” switch. If the lock does
not release, the Smart Key system indicator
will flash quickly (green).
Angle
Length
ode)
)
resize-2012Camry.qxd 8/31/11 9:33 PM Page 11

12
FEATURES/OPERATIONS

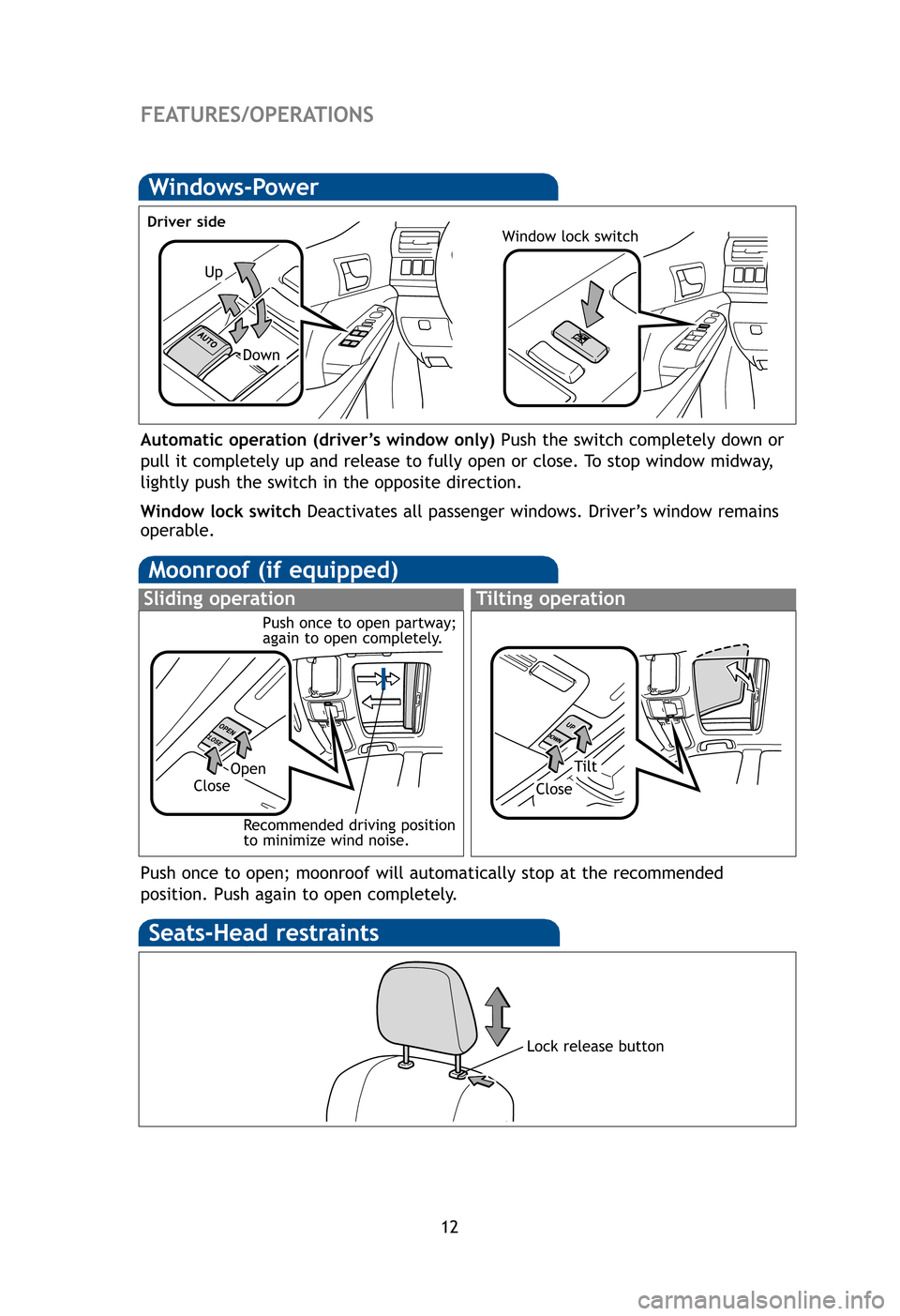

Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended driving position
to minimize wind noise.
Se
Man
S
H
S
S
L
Se
Refe
Seats-Head restraints
Lock release button
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic operation (driver’s window only) Push the switch completely down or
pull it completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.
resize-2012Camry.qxd 8/31/11 9:34 PM Page 12

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

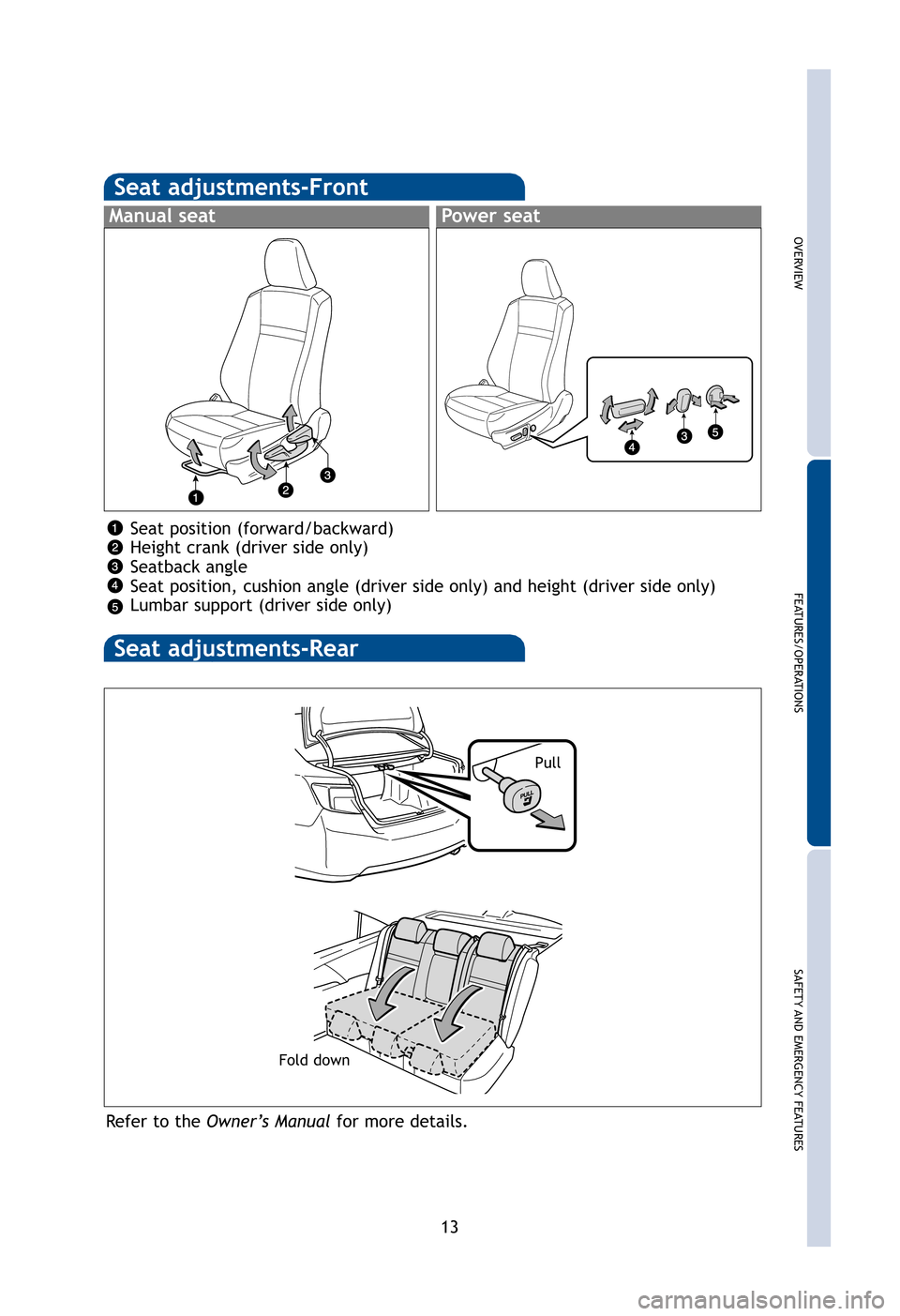

Seat adjustments-Front
Manual seatPower seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver si\
de only)
Lumbar support (driver side only)
Seat adjustments-Rear
Pull
Fold down
Refer to the Owner’s Manual for more details.
or
y,
ns
resize-2012Camry.qxd 8/31/11 9:34 PM Page 13

14

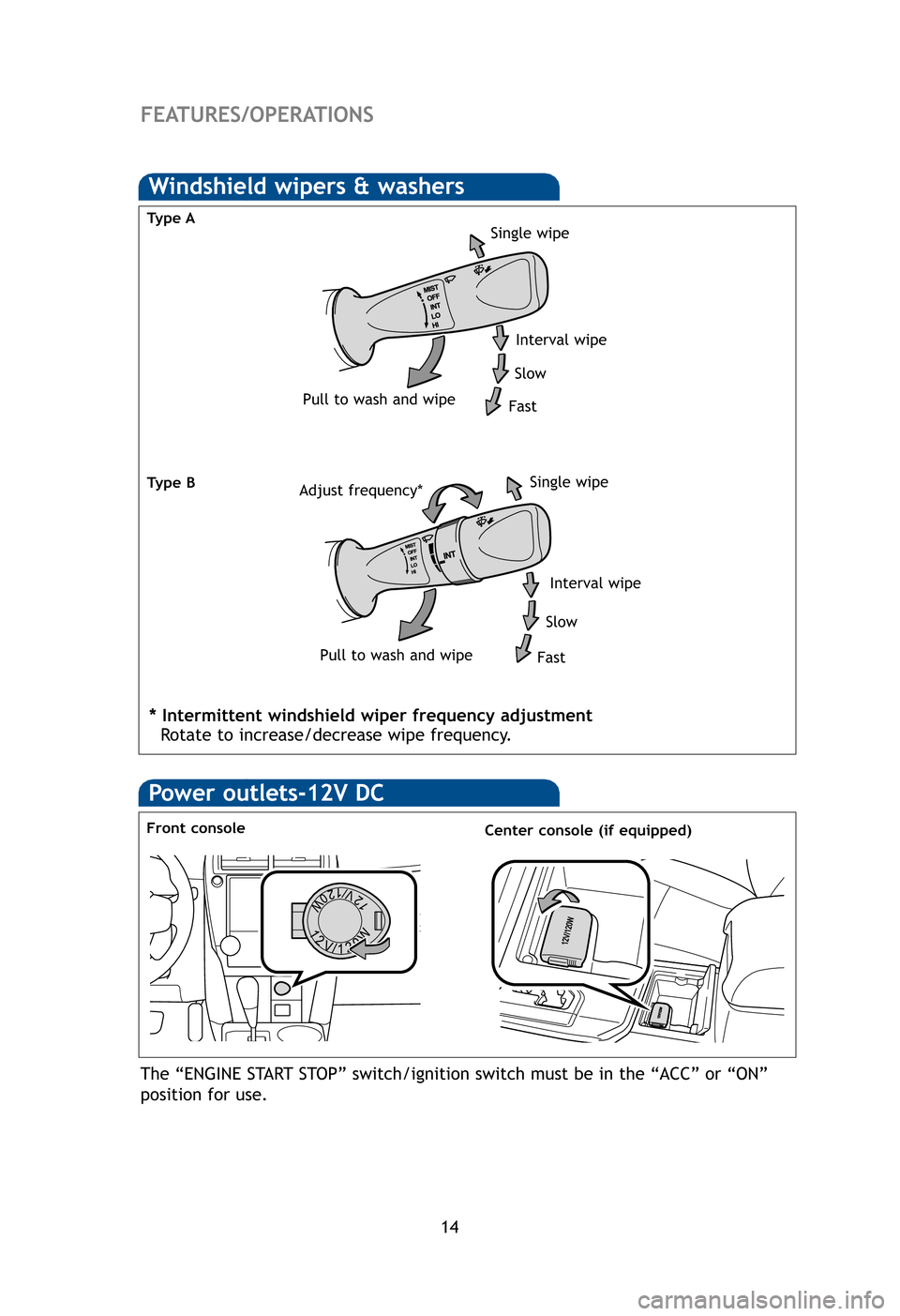

Power outlets-12V DC
Front console
The “ENGINE START STOP” switch/ignition switch must be in the “ACC” or “ON”
position for use.
Center console (if equipped)
Lig
Tu r
Hea
Fro
-Dared
-Au aft
Par
Windshield wipers & washers
Adjust frequency*
Pull to wash and wipeSingle wipe
Interval wipe
Slow
Fast
Fron
FEATURES/OPERATIONS
* Intermittent windshield wiper frequency adjustmentRotate to increase/decrease wipe frequency.
Type A
Type B
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Ty p
Ty p
Pa
resize-2012Camry.qxd 8/31/11 9:35 PM Page 14

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
”
Lights & turn signals
Turn signals
Headlights
High beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system (Type B only) Automatically turns lights off
after 30-second delay, or lock switch on remote may be pushed after locking.
Parking lights
Right turn
Lane change
Lane change Left turn High beam
flasher
Auto
DRL OFF
Turn
Front fog lights come on only when the headlights are on low beam.
Type B
Type A
Headlights
Parking lights
DRL OFFLow beam
resize-2012Camry.qxd 8/31/11 9:35 PM Page 15

16
FEATURES/OPERATIONS

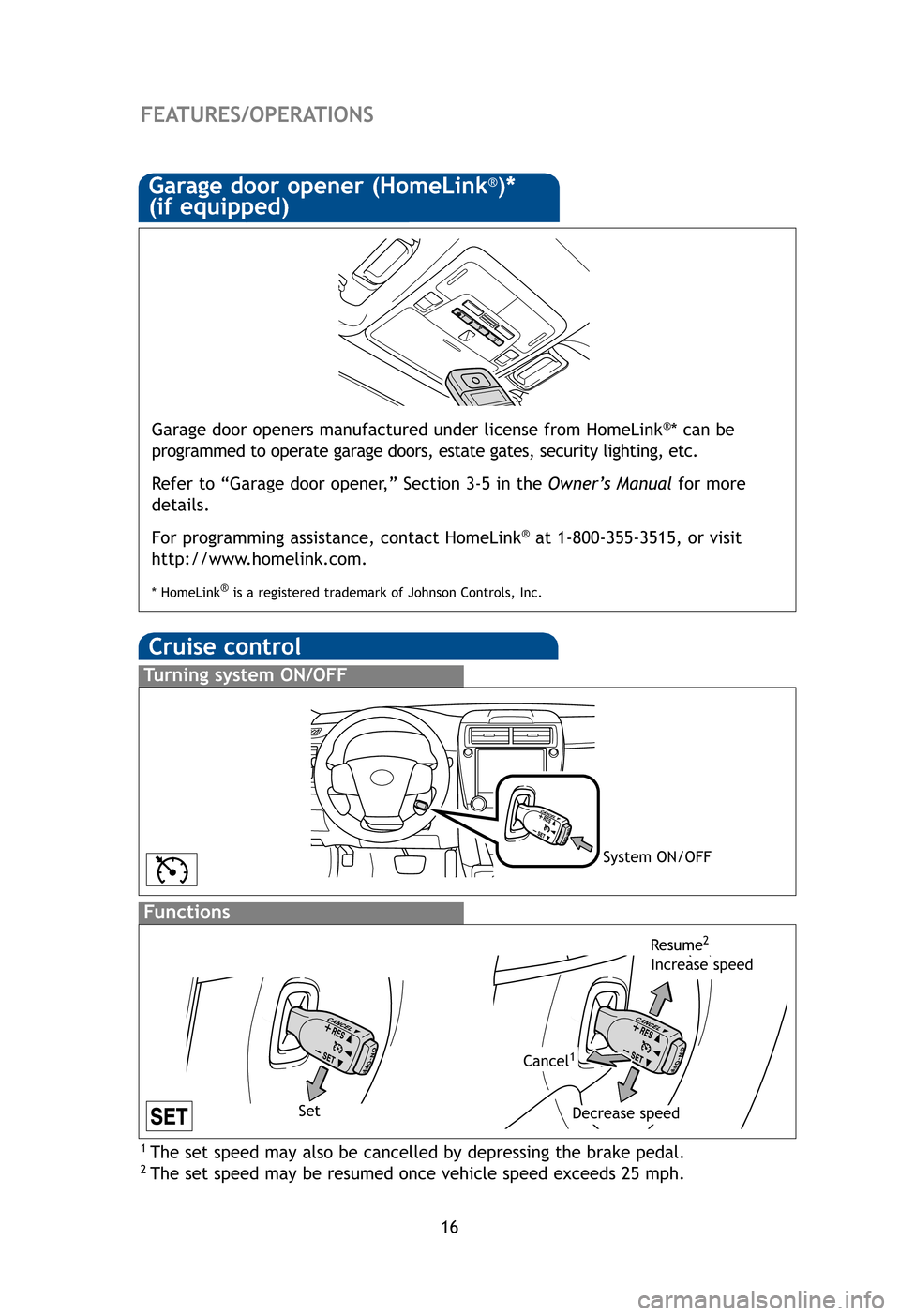

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manualfor more
details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Set
BS
The
chan
in an
(the
rearv
Refe
to u
Clo
resize-2012Camry.qxd 8/31/11 9:35 PM Page 16

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

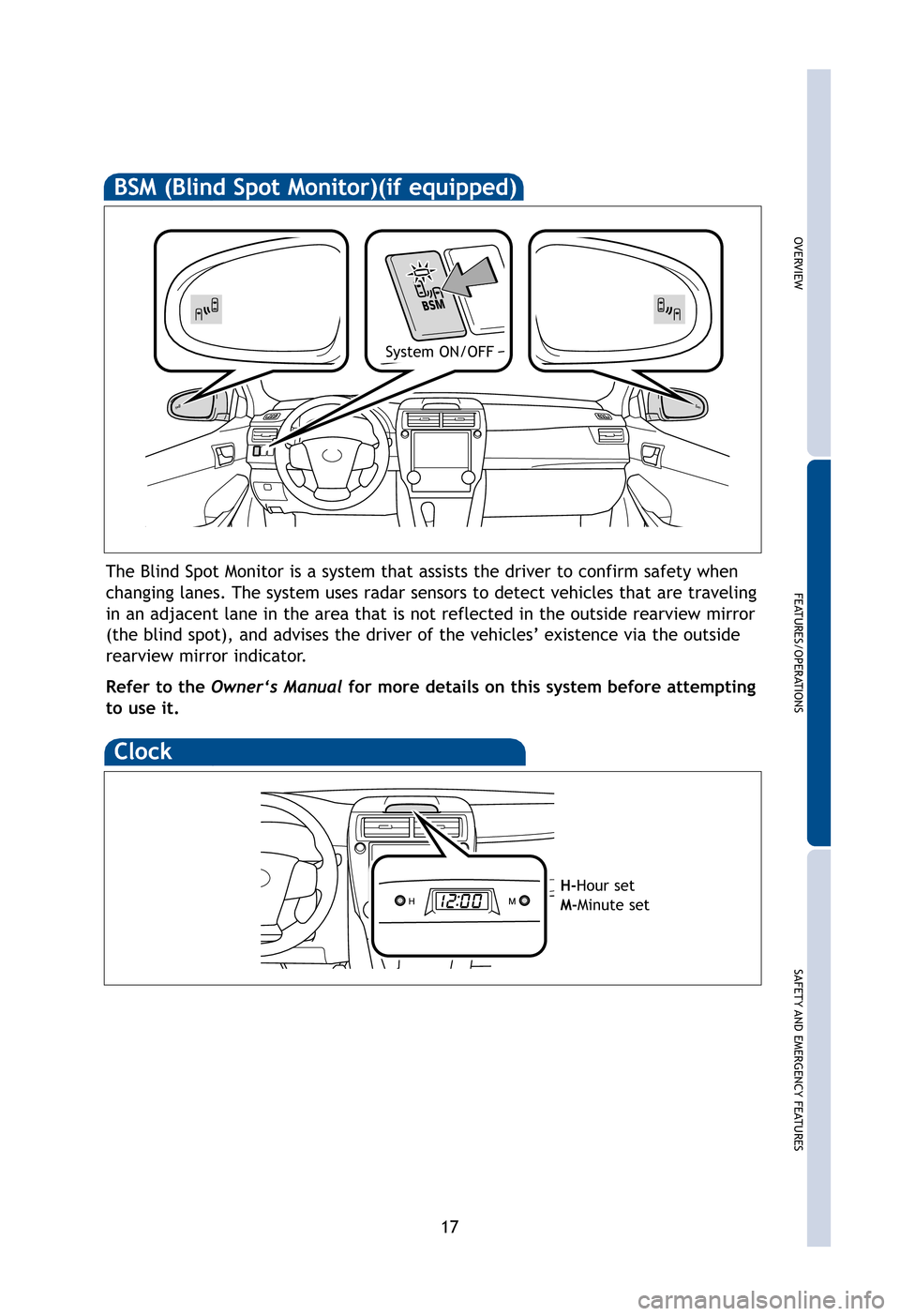

BSM (Blind Spot Monitor)(if equipped)
The Blind Spot Monitor is a system that assists the driver to confirm sa\
fety when
changing lanes. The system uses radar sensors to detect vehicles that are traveling
in an adjacent lane in the area that is not reflected in the outside rea\
rview mirror
(the blind spot), and advises the driver of the vehicles’ existence via the outside
rearview mirror indicator.
Refer to the Owner‘s Manualfor more details on this system before attempting
to use it.
System ON/OFF
Clock
H-Hour set
M-Minute set
resize-2012Camry.qxd 8/31/11 9:36 PM Page 17

18

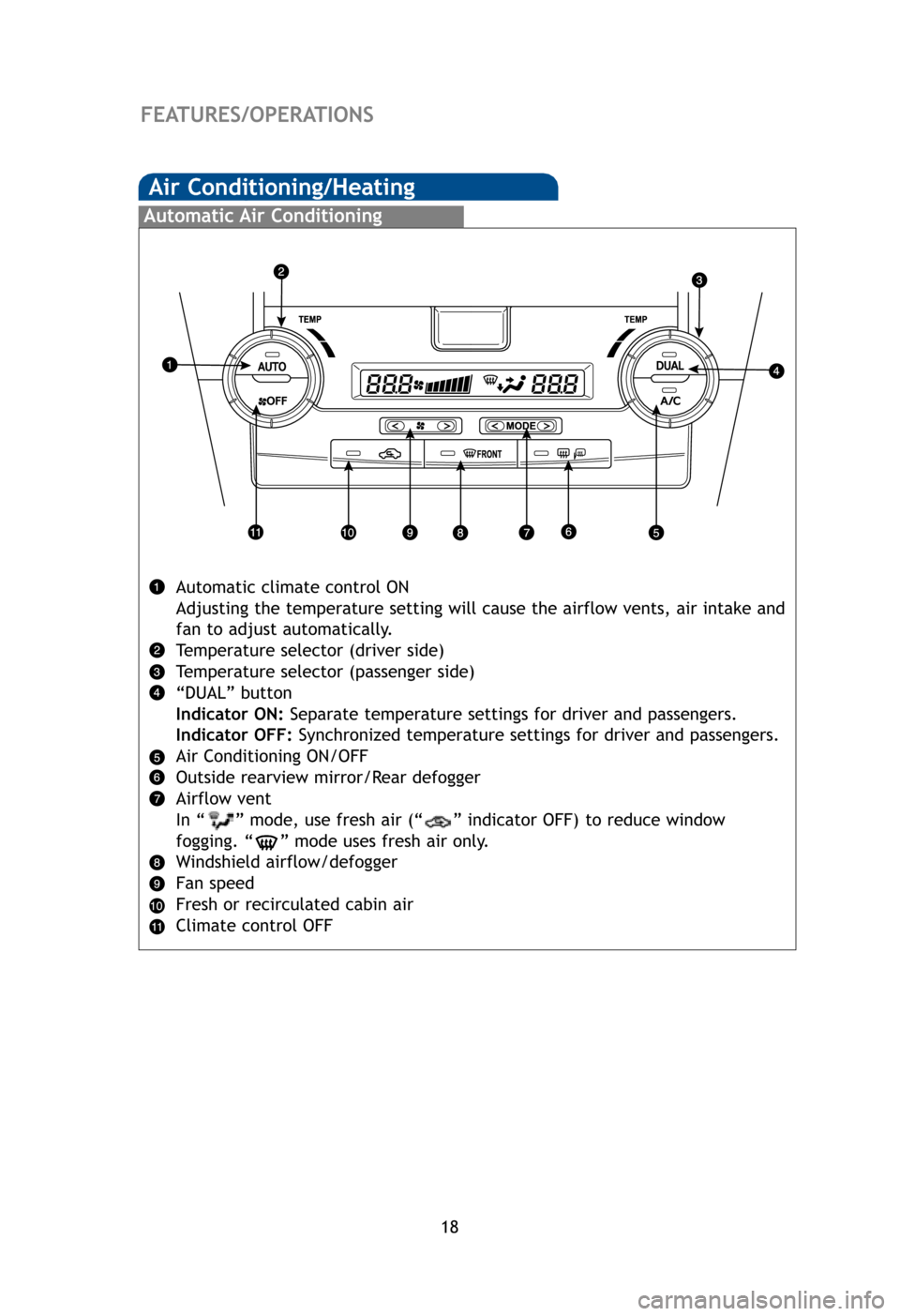

Automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air inta\
ke and
fan to adjust automatically.
Temperature selector (driver side)
Temperature selector (passenger side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and passengers.
Indicator OFF: Synchronized temperature settings for driver and passengers.
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Windshield airflow/defogger
Fan speed
Fresh or recirculated cabin air
Climate control OFF
FEATURES/OPERATIONS
Air Conditioning/HeatingMan
Se
resize-2012Camry.qxd 8/31/11 9:36 PM Page 18
