WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in accordance with
aftermarket parts certification
regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air Conditioning System
•Compressor †
• Condenser †
• Evaporator †
• Associated Parts †
Air/Fuel Metering System
•Air/fuel ratio feedback control system
• Cold-start enrichment system
• Deceleration control system
• Electronic fuel injection system
components
– Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
• Intake manifold and intake air surge
tank
Catalyst System
•Catalytic converter and protector
(8/80)
• Constricted fuel filler neck
• Exhaust manifold
• Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
•Charcoal canister
• Diaphragm valve
• Fuel filler cap
• Fuel tank
• Vapor liquid separator
† Excluding Camry 4–cylinder models certified as partial zero-emission vehicles (PZEV).
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail17

Exhaust Gas Recirculation
(EGR) System
•EGR gas temperature sensor
• EGR valve
• Associated parts
Ignition System
•Distributor and internal parts
• Ignition coil and ignitor
• Ignition wires
• Spark plugs*
Positive Crankcase Ventilation
(PCV) System
•Oil filler cap
• PCV valve or orifice
Other Parts Used in Above
Systems
•Data link connector (8/80)
• Hoses, clamps, fittings, tubing and
mounting hardware
• Malfunction indicator light and bulb
(8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and
valves
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manualand this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused by
lack of maintenance is not covered by this
warranty.
When maintenance and repairs are paid
for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However, any
failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
* Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
18Your Warranties in Detail

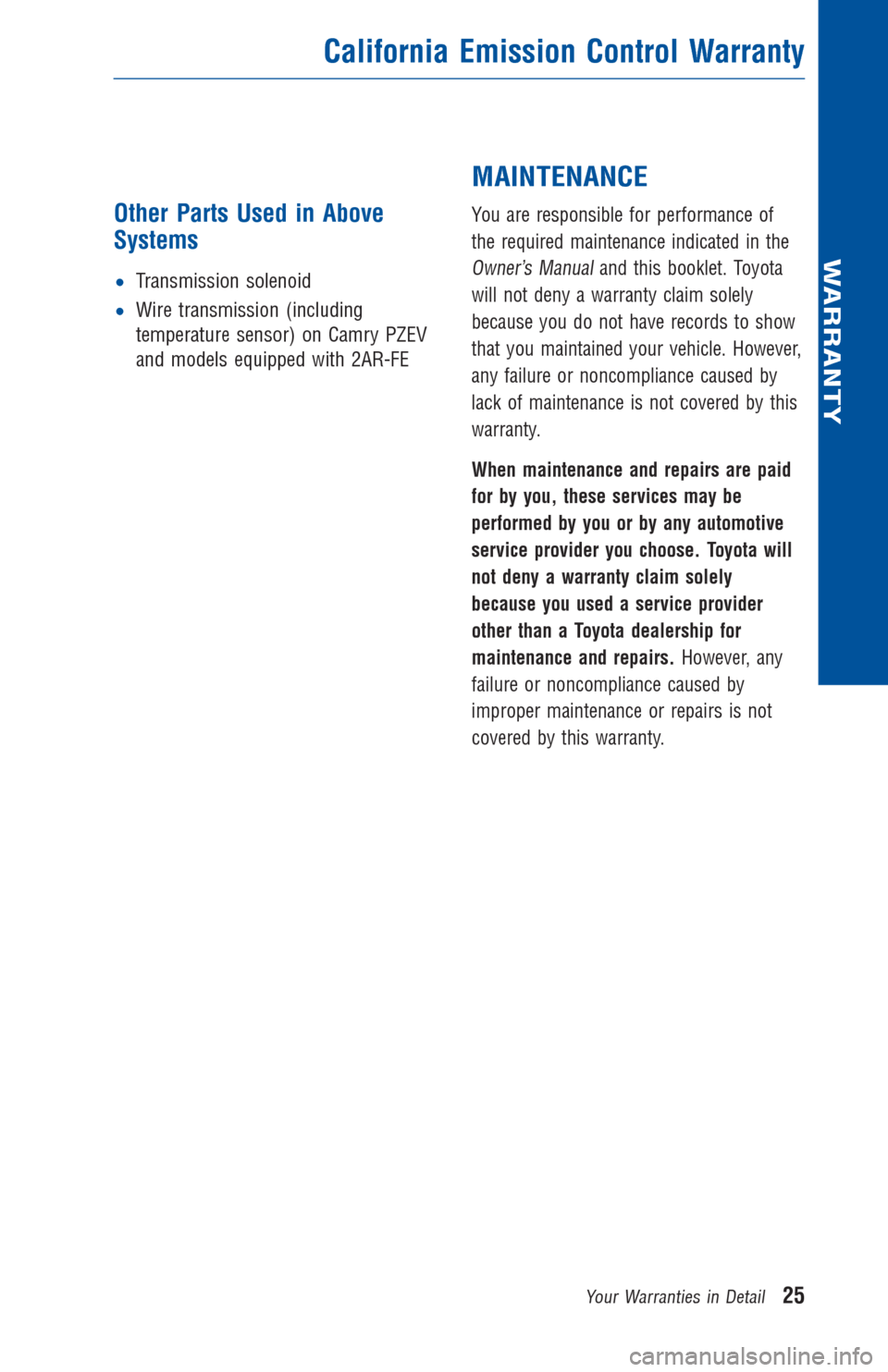

Other Parts Used in Above
Systems
•Transmission solenoid
• Wire transmission (including
temperature sensor) on Camry PZEV
and models equipped with 2AR-FE
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manualand this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused by
lack of maintenance is not covered by this
warranty.
When maintenance and repairs are paid
for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However, any
failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
California Emission Control Warranty
WARRANTY
Your Warranties in Detail25
