TOYOTA CAMRY 2017 XV50 / 9.G Navigation Manual

201
3. WHAT TO DO IF...
CAMRY_NAVI_U_OM33C67U
PHONE
7

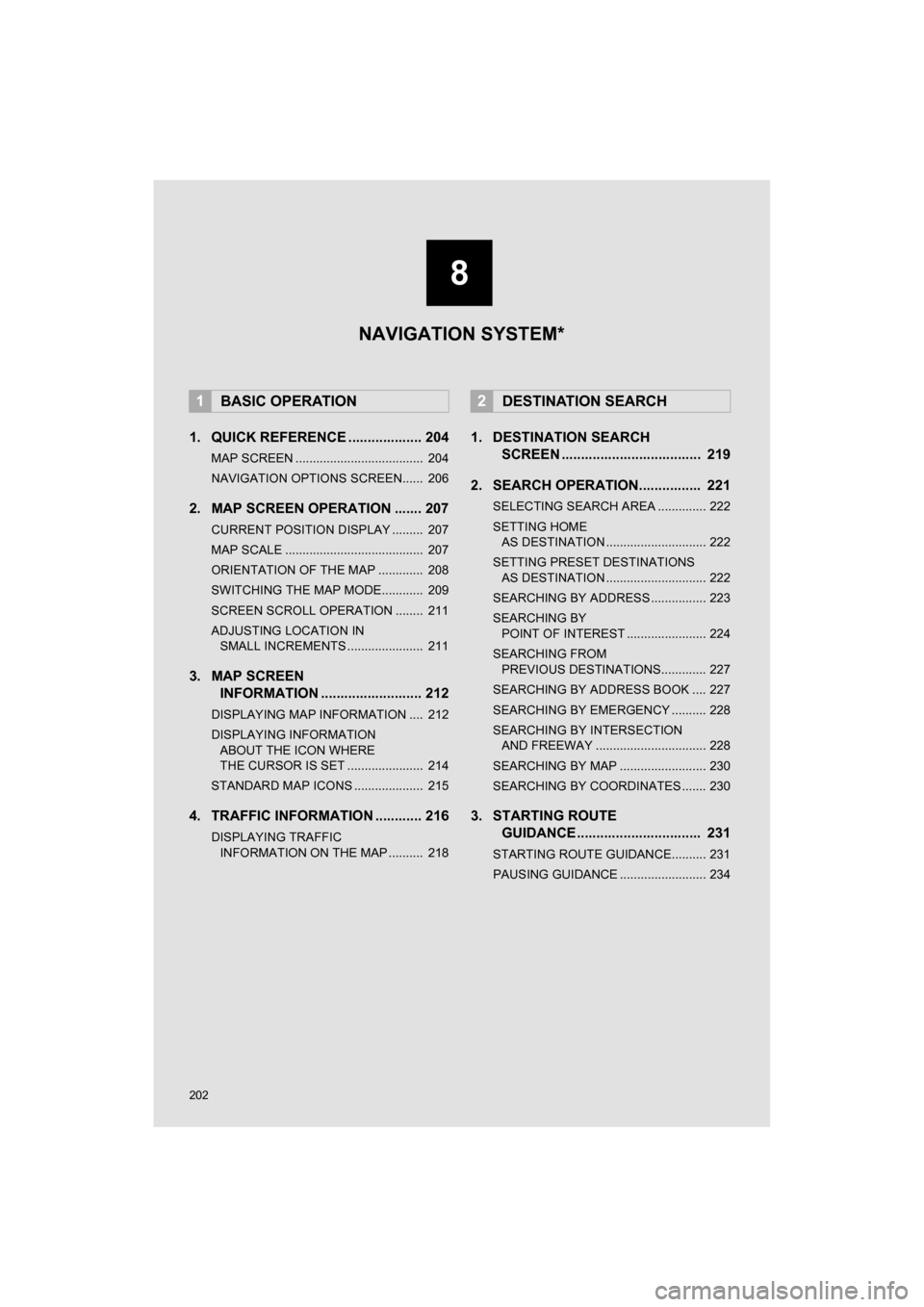

202
CAMRY_NAVI_U_OM33C67U
1. QUICK REFERENCE ................... 204
MAP SCREEN ..................................... 204
NAVIGATION OPTIONS SCREEN...... 206
2. MAP SCREEN OPERATION ....... 207
CURRENT POSITION DISPLAY ......... 207
MAP SCALE ........................................ 207
ORIENTATION OF THE MAP ............. 208
SWITCHING THE MAP MODE............ 209
SCREEN SCROLL OPERATION ........ 211
ADJUSTING LOCATION IN SMALL INCREMENTS ...................... 211
3. MAP SCREEN INFORMATION .......................... 212
DISPLAYING MAP INFORMATION .... 212
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 214
STANDARD MAP ICONS .................... 215
4. TRAFFIC INFORMATION ............ 216
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 218
1. DESTINATION SEARCH SCREEN .................................... 219
2. SEARCH OPERATION.. .............. 221
SELECTING SEARCH AREA .............. 222
SETTING HOME
AS DESTINATION ............................. 222
SETTING PRESET DESTINATIONS AS DESTINATION ............................. 222
SEARCHING BY ADDRESS ................ 223
SEARCHING BY POINT OF INTEREST ....................... 224
SEARCHING FROM PREVIOUS DESTINATIONS............. 227
SEARCHING BY ADDRESS BOOK .... 227
SEARCHING BY EMERGENCY .......... 228
SEARCHING BY INTERSECTION AND FREEWAY ................................ 228
SEARCHING BY MAP ......................... 230
SEARCHING BY COORDINATES ....... 230
3. STARTING ROUTE GUIDANCE ....... ......................... 231
STARTING ROUTE GUIDANCE.......... 231
PAUSING GUIDANCE ......................... 234
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM*

8

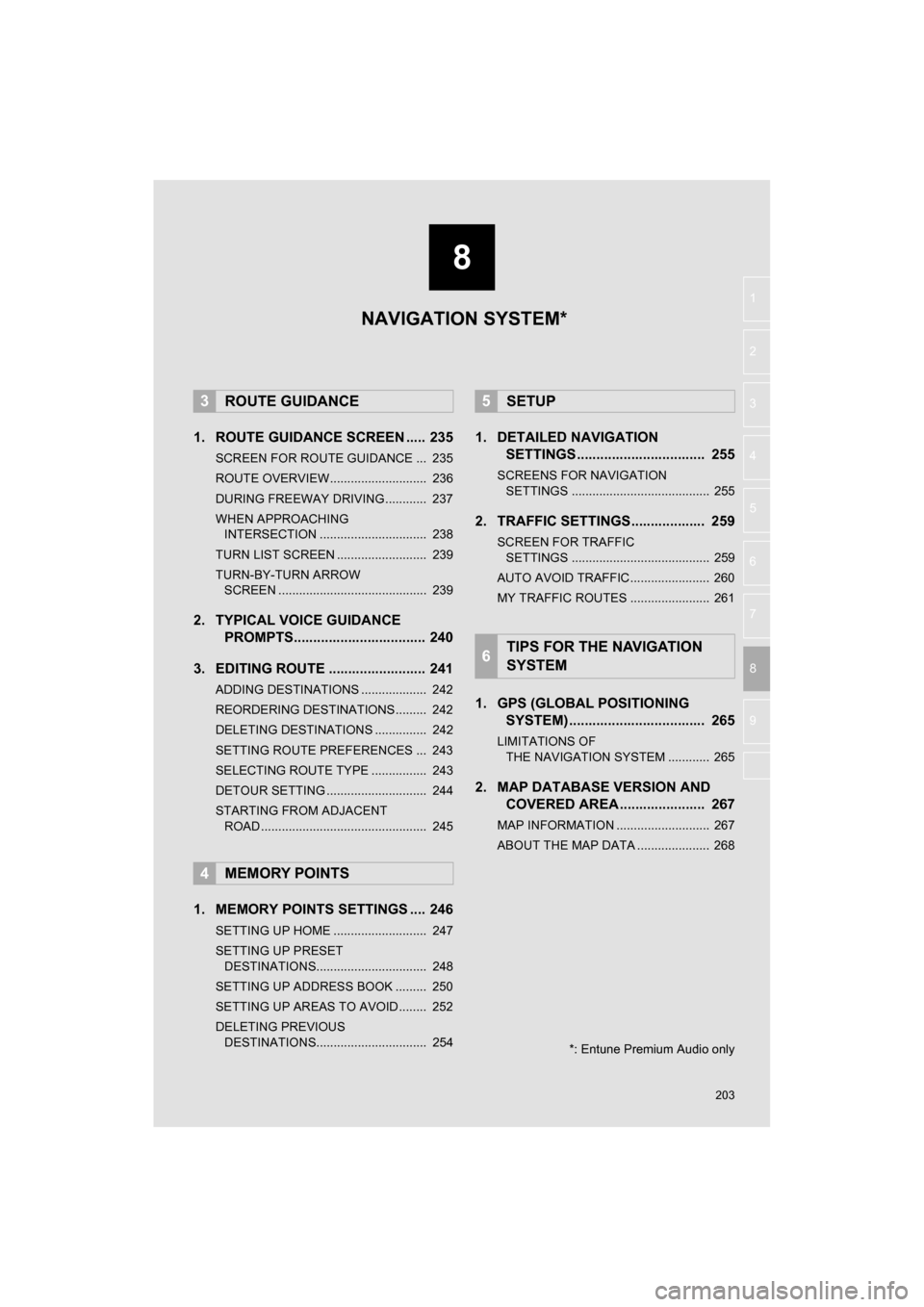

203
CAMRY_NAVI_U_OM33C67U
4
5
6
7
9
1
2
3
8
1. ROUTE GUIDANCE SCREEN ..... 235
SCREEN FOR ROUTE GUIDANCE ... 235
ROUTE OVERVIEW............................ 236
DURING FREEWAY DRIVING............ 237
WHEN APPROACHING INTERSECTION ............................... 238
TURN LIST SCREEN .......................... 239
TURN-BY-TURN ARROW SCREEN ........................................... 239
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 240
3. EDITING ROUTE ......................... 241
ADDING DESTINATIONS ................... 242
REORDERING DESTINATIONS ......... 242
DELETING DESTINATIONS ............... 242
SETTING ROUTE PREFERENCES ... 243
SELECTING ROUTE TYPE ................ 243
DETOUR SETTING ............................. 244
STARTING FROM ADJACENT ROAD ................................................ 245
1. MEMORY POINTS SETTINGS .... 246
SETTING UP HOME ........................... 247
SETTING UP PRESET DESTINATIONS................................ 248
SETTING UP ADDRESS BOOK ......... 250
SETTING UP AREAS TO AVOID ........ 252
DELETING PREVIOUS DESTINATIONS................................ 254
1. DETAILED NAVIGATION SETTINGS ................................. 255
SCREENS FOR NAVIGATION
SETTINGS ........................................ 255
2. TRAFFIC SETTINGS................... 259
SCREEN FOR TRAFFIC SETTINGS ........................................ 259
AUTO AVOID TRAFFIC....................... 260
MY TRAFFIC ROUTES ....................... 261
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 265
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 265
2. MAP DATABASE VERSION AND COVERED AREA ...................... 267
MAP INFORMATION ........................... 267
ABOUT THE MAP DATA ..................... 268
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: Entune Premium Audio only

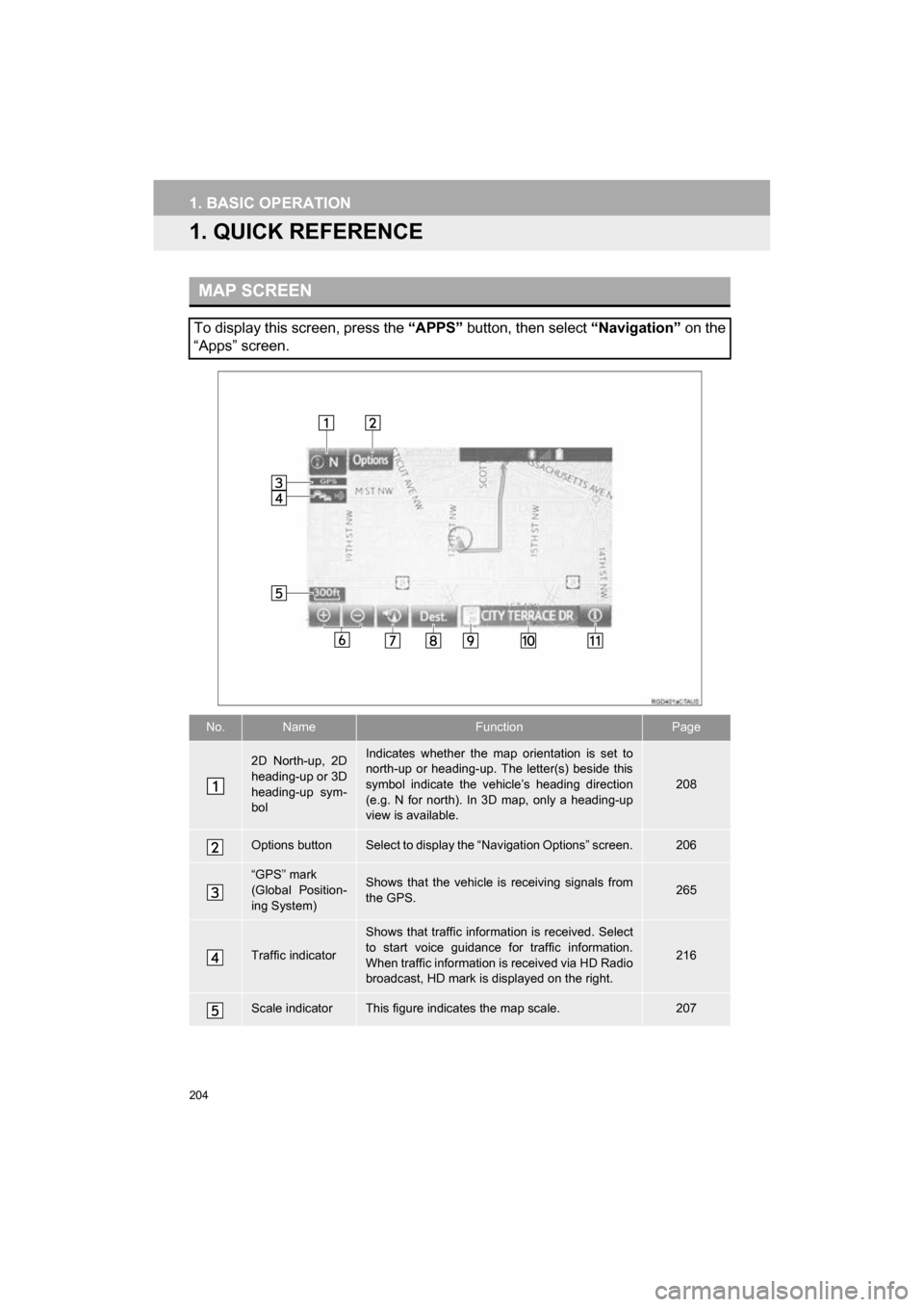

204
CAMRY_NAVI_U_OM33C67U
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
208
Options buttonSelect to display the “Navigation Options” screen.206
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.265
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
216
Scale indicatorThis figure indicates the map scale.207

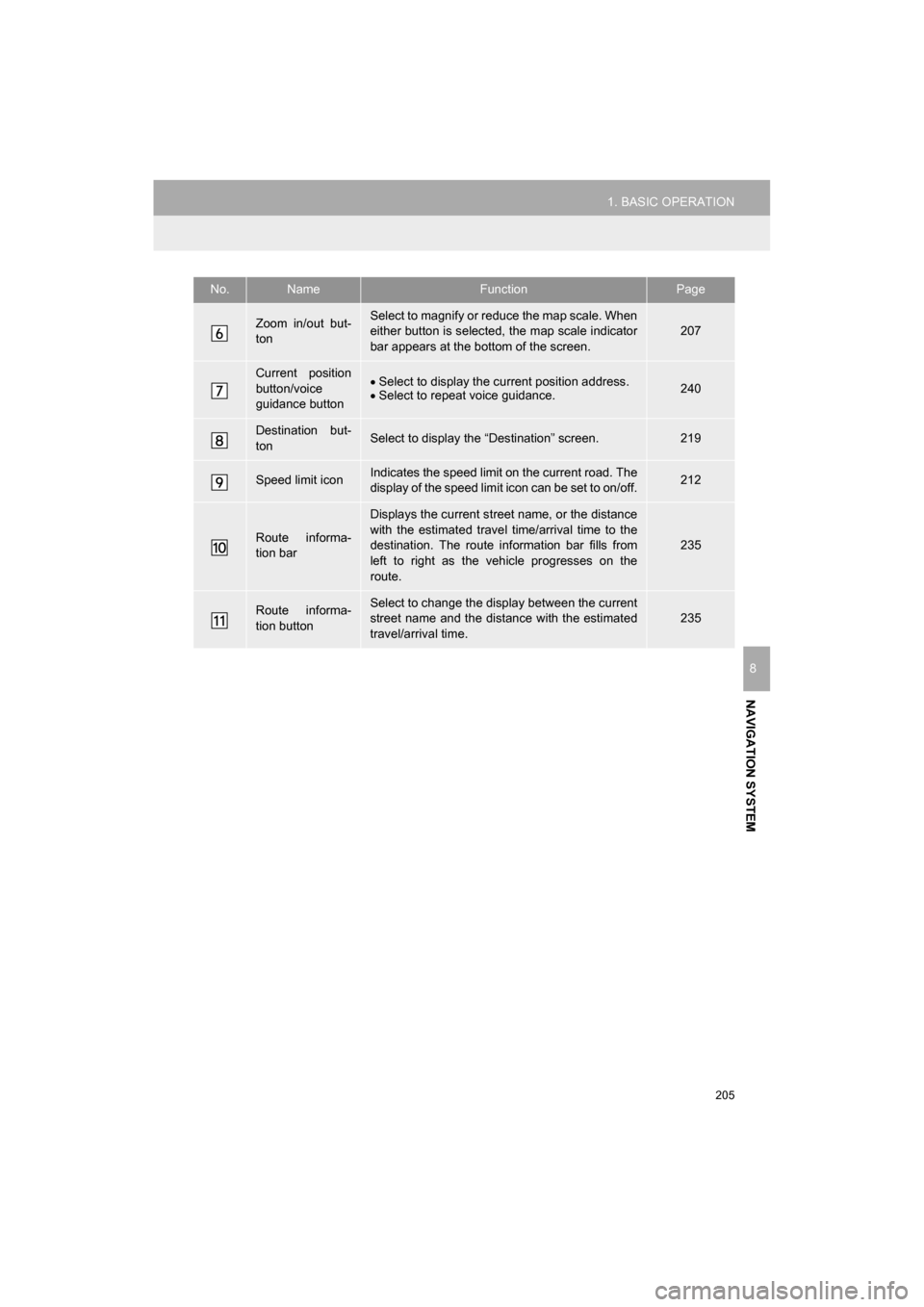

205
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.207
Current position
button/voice
guidance buttonSelect to display the current position address.
 Select to repeat voice guidance.240
Destination but-
tonSelect to display the “Destination” screen.219
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.212
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
235
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
235
No.NameFunctionPage

206
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.209
Select to change the displayed map information such as POI icons,
route trace, speed limit, etc.212
Select to display the map version and coverage area.267
Select to edit the set route.241
Select to pause or resume route guidance.234
Select to display the overview of the entire route.236

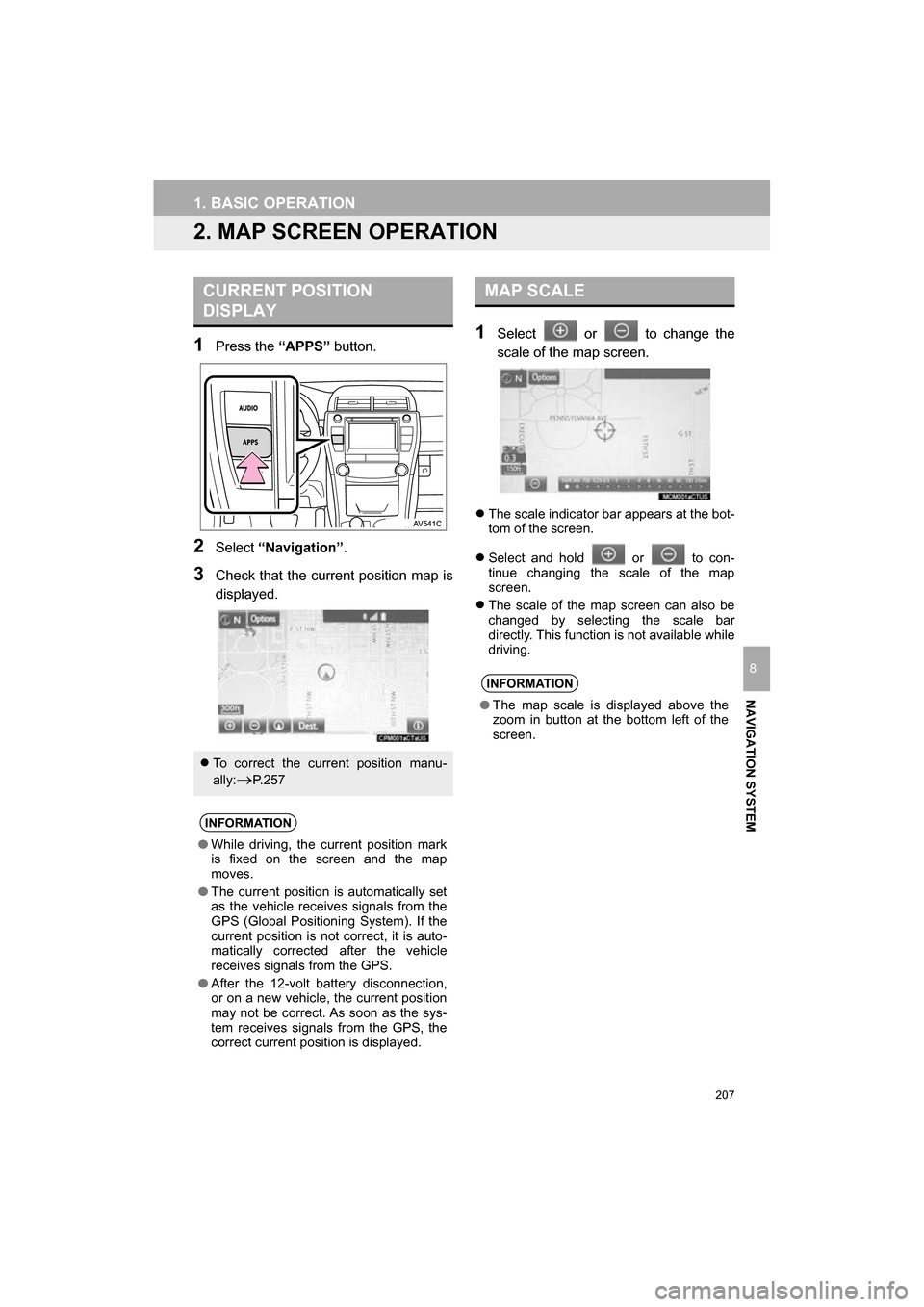

207
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 5 7
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

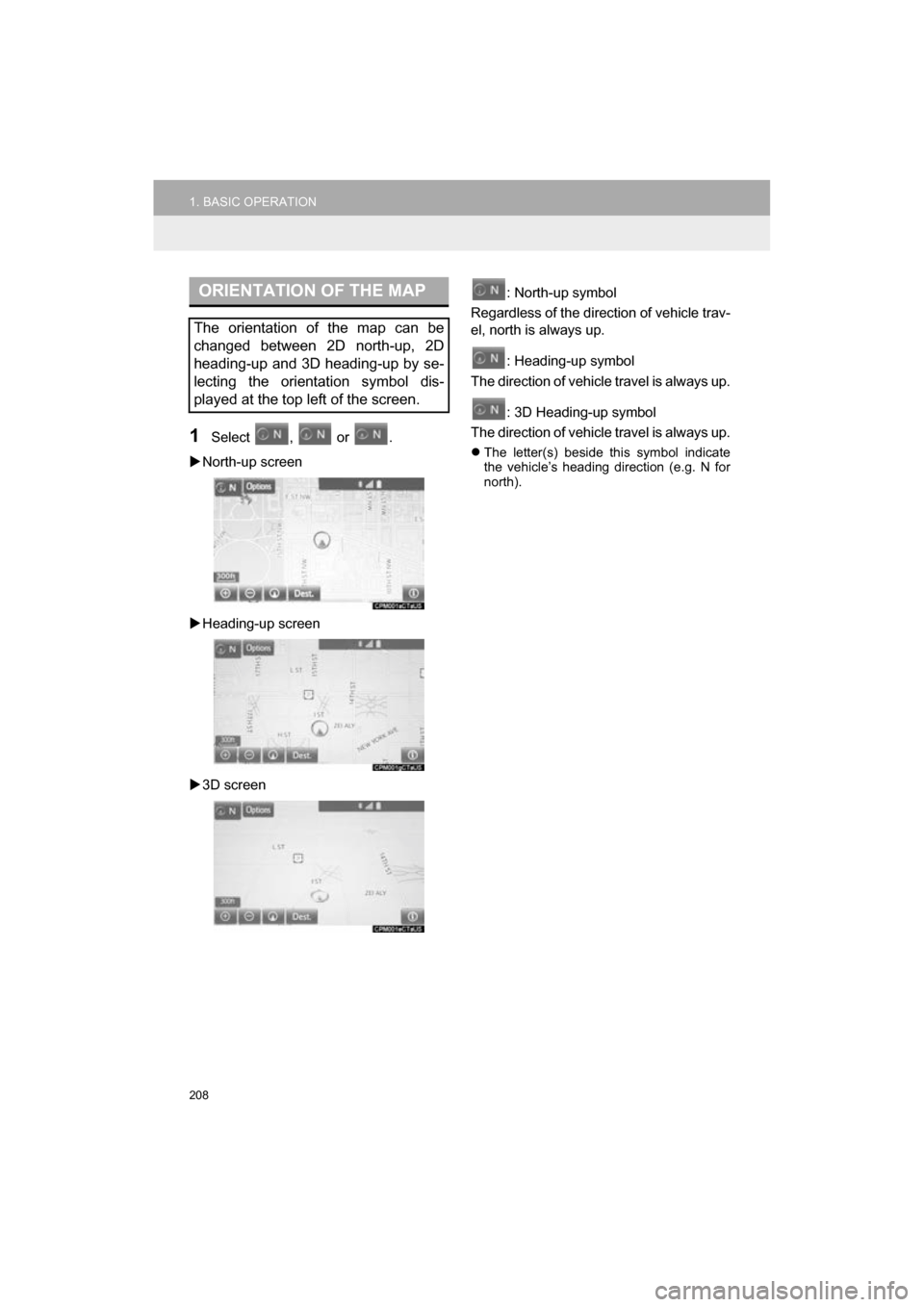

208
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
1Select , or .
 North-up screen
 Heading-up screen
 3D screen : North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up. The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.

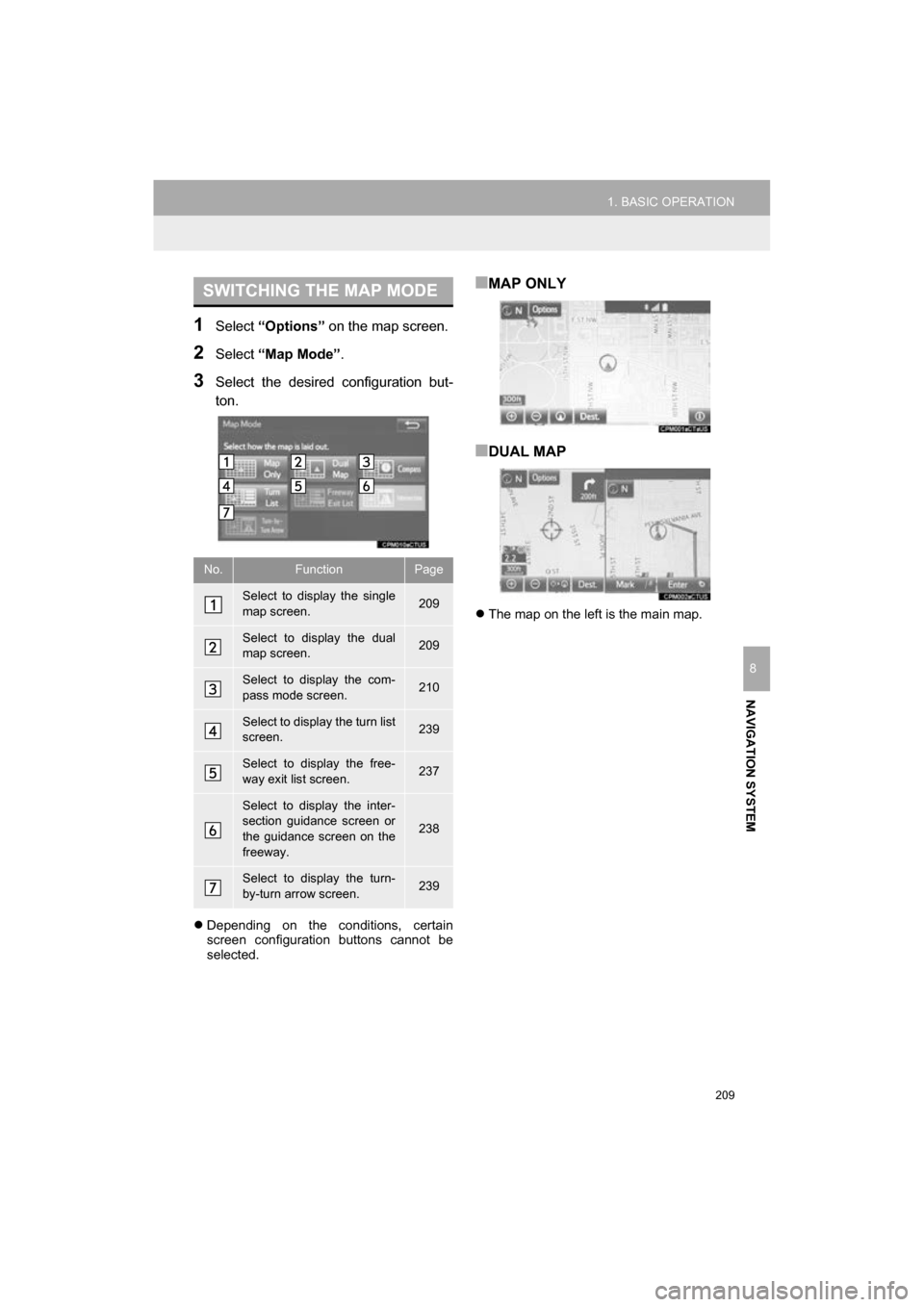

209
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION SYSTEM
8
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 209
Select to display the dual
map screen.209
Select to display the com-
pass mode screen.210
Select to display the turn list
screen.239
Select to display the free-
way exit list screen.237
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
238
Select to display the turn-
by-turn arrow screen.239

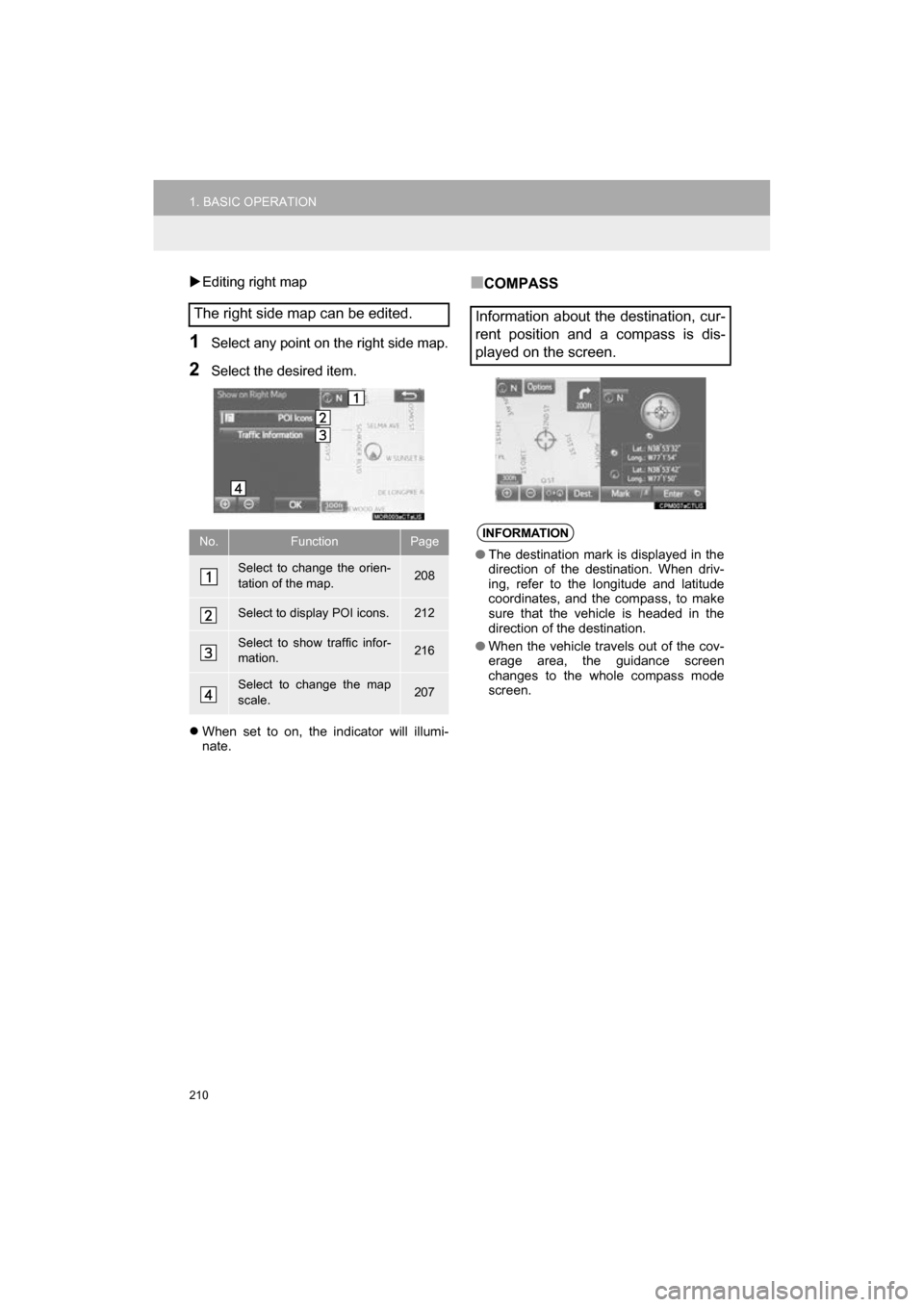

210
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
Editing right map
1Select any point on the right side map.
2Select the desired item.
 When set to on, the indicator will illumi-
nate.
■COMPASS
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.208
Select to display POI icons.212
Select to show traffic infor-
mation. 216
Select to change the map
scale.207
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
INFORMATION
● The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.
