TOYOTA CAMRY 2018 Owners Manual (in English)

1313-1. Key information
3
Operation of each component
CAMRY_U (01999-06139)■
Key battery depletion
Vehicles without a smart key system
● The standard battery life is 1 to 2 years.
● Even if the key is not used, the battery may become depleted and the fol-
lowing symptoms may occur. Replace the battery with a new one when nec-
essary. (→P. 466)
• The wireless remote control function does not operate.
• The area in which the wireless remote control function can be operated becomes smaller.
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops.
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( →P. 466)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To reduce key battery depletion when the electronic key is to not be used for
long periods of time, set the electronic key to the battery-saving mode.
(→P. 151)
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appl iances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ Replacing the battery
→P. 466
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.

1323-1. Key information
CAMRY_U (01999-06139)■

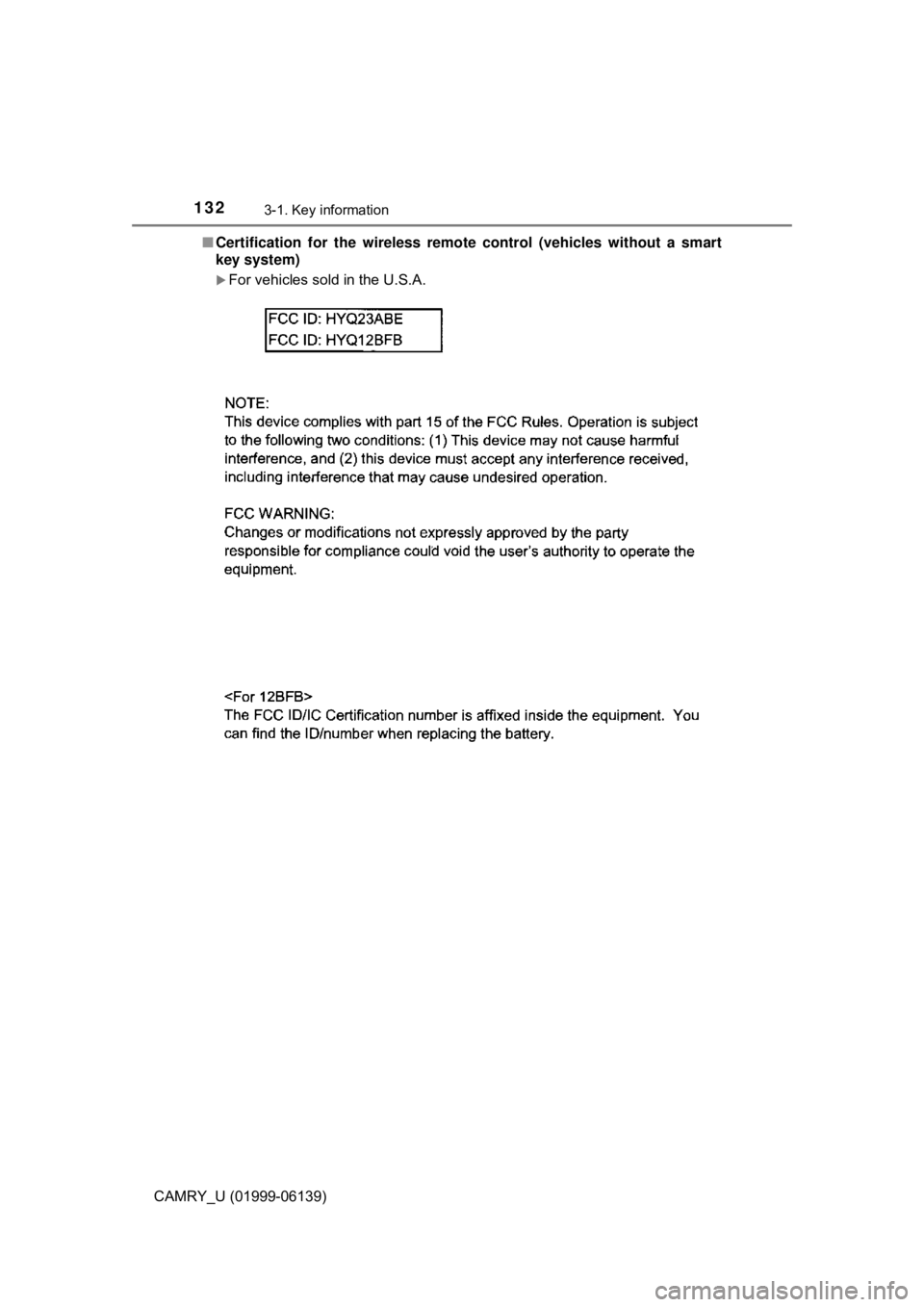

Certification for the wireless remote control (vehicles without a smart
key system)
For vehicles sold in the U.S.A.

1333-1. Key information
3
Operation of each component
CAMRY_U (01999-06139)

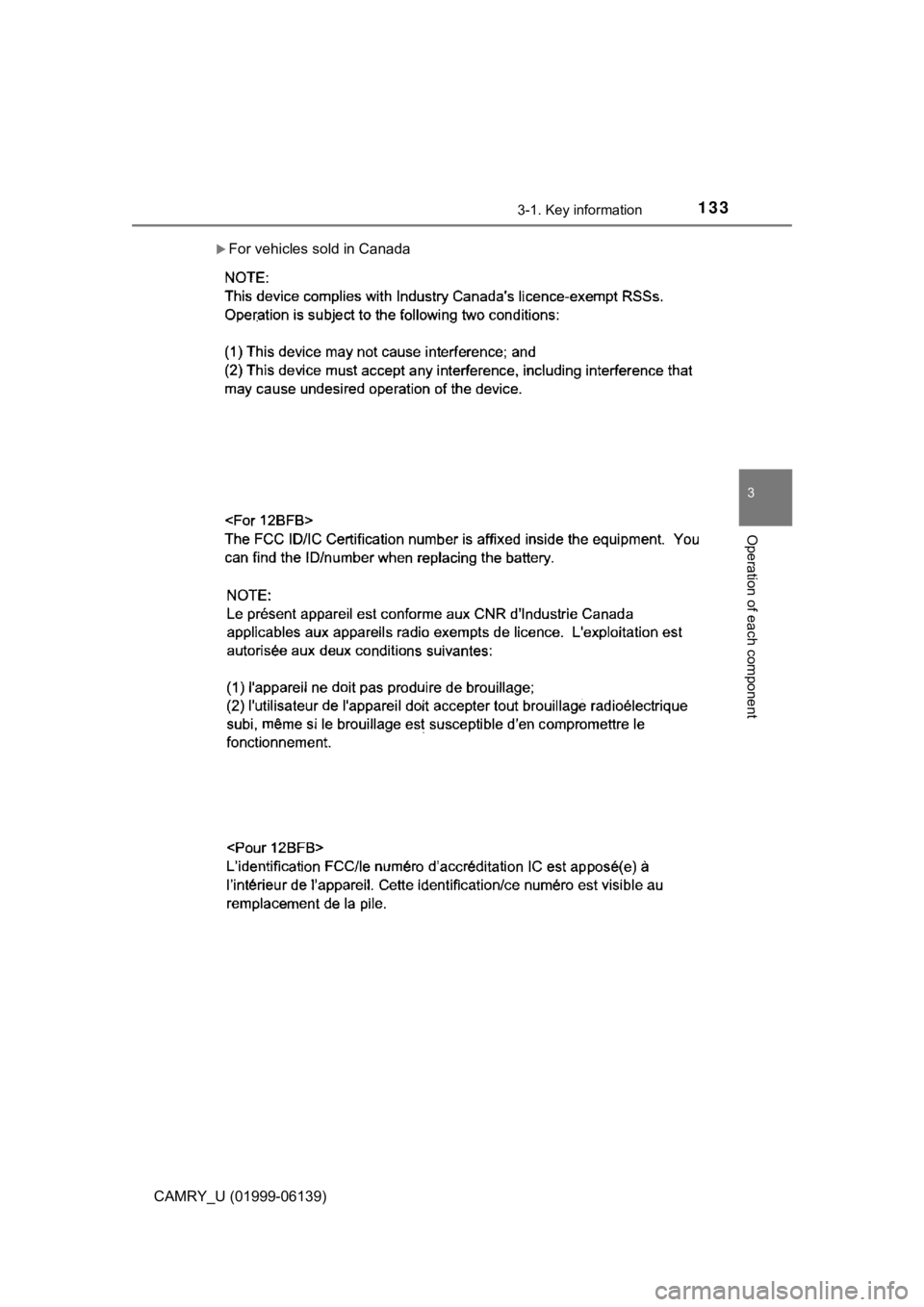

For vehicles sold in Canada

1343-1. Key information
CAMRY_U (01999-06139)■
Certification for wireless remote control (vehicles with a smart key sys-
tem)
→P. 155
NOTICE
■ To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
● Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that were provided with your vehicle.

135
3
Operation of each component
CAMRY_U (01999-06139)
3-2. Opening, closing and locking the doors
◆Smart key system (if equipped)
Carry the electronic key to enable this function.Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
the front passenger’s door
handle to unlock all the
doors.
*
Make sure to touch the sensor on the back of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*: The door unlock settings can be changed. ( →P. 141)
Touch the lock sensor (the indentation on the side of the door
handle) to lock the doors.
Check that the door is securely locked.
Doors
Unlocking and locking the doors from the outside
1
2

1363-2. Opening, closing and locking the doors
CAMRY_U (01999-06139)
◆Wireless remote controlLocks all the doors
Check that the door is securely locked.
Unlocks all the doors
Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.
Press and hold to open the windows
*2 and the moon roof*1, 2 or pan-
oramic moon roof.
*1, 2 ( →P. 171, 175, 179)
*1: If equipped
*2: This setting must be customized at your Toyota dealer.
Vehicles without a smart key
systemVehicles with a smart key sys-
tem
1
2

1373-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (01999-06139)
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart key systemLocks all the doors
Turn and hold to close the win-
dows
*2 and moon roof.*1, 2
(→ P. 171, 175)
Unlocks the door
Turning the key unlocks the
driver's door. Turning the key
again unlocks the other
doors.
Turn and hold to open the windows
*2 and moon roof.*1, 2
(→P. 171, 175)
*1: If equipped
*2: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. ( →P. 526)
1
2

1383-2. Opening, closing and locking the doors
CAMRY_U (01999-06139)
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof or panoramic moon roof:
A buzzer sounds to indicate that the windows and moon roof or panoramic
moon roof are operating.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by th e lock sensor on the surface of the
door handle (vehicles with a smart key system)
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ Alarm (if equipped)
Locking the doors will set the alarm system. ( →P. 74)
■ If the smart key system or the wireless remote control does not operate
properly (vehicles with a smart key system)
Use the mechanical key to lock and unlock the doors. ( →P. 526)
Replace the key battery with a new one if it is depleted. ( →P. 466)
When the door cannot be locked even if
the lock sensor on the surface of the door
handle is touched by a finger, touch the
lock sensor with the palm.
When gloves are being worn, remove the
gloves.

1393-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (01999-06139)
◆Door lock switchesLocks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if eit her of the front doors is open and
the key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if t he engine switch is in ACCESSORY
or IGNITION ON mode, or the elec tronic key is left inside the vehi-
cle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1403-2. Opening, closing and locking the doors
CAMRY_U (01999-06139)

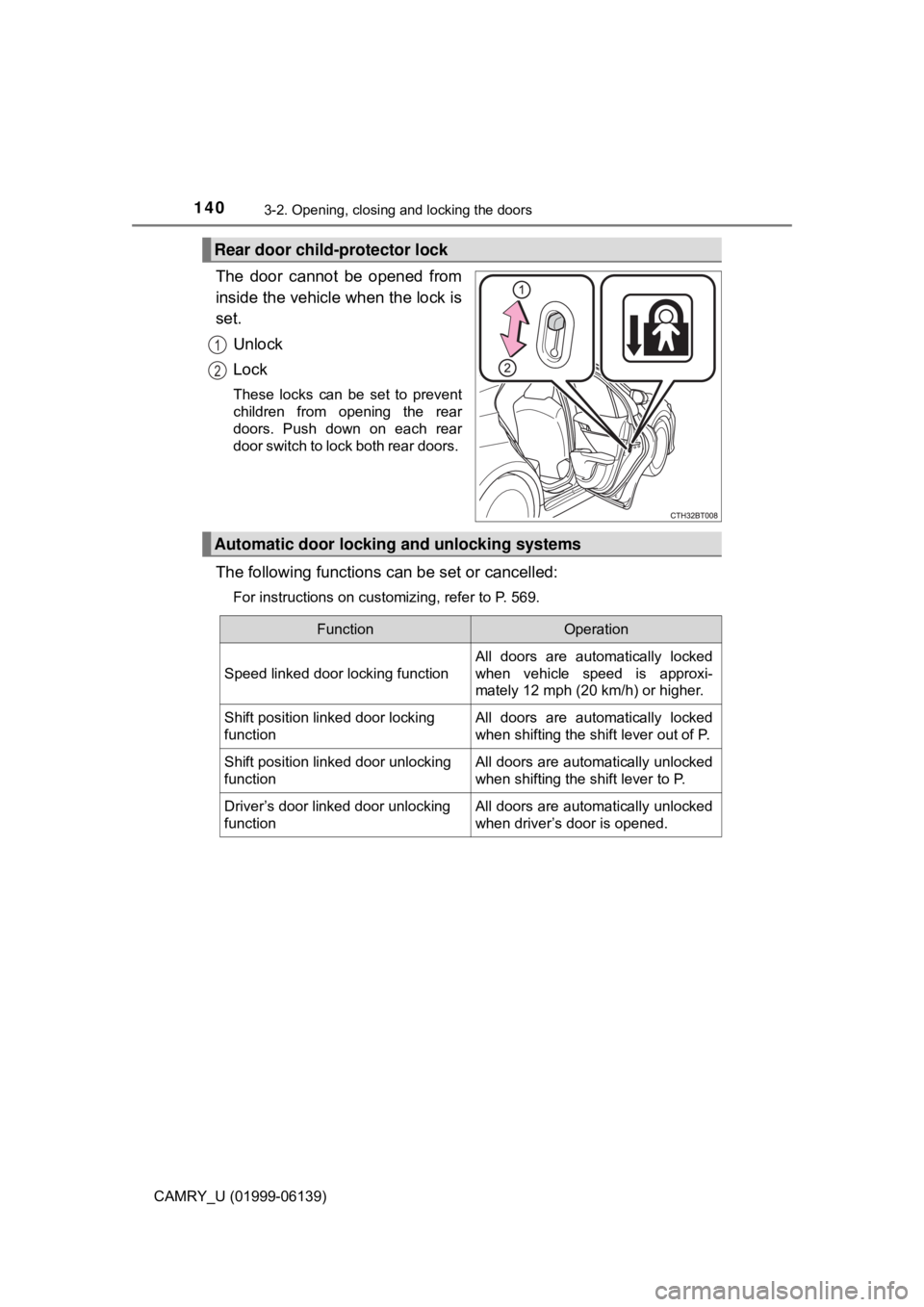

The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
The following functions can be set or cancelled:
For instructions on customizing, refer to P. 569.
Rear door child-protector lock
1
2
Automatic door lockin g and unlocking systems
FunctionOperation
Speed linked door locking function
All doors are automatically locked
when vehicle speed is approxi-
mately 12 mph (20 km/h) or higher.
Shift position linked door locking
functionAll doors are automatically locked
when shifting the shift lever out of P.
Shift position linked door unlocking
functionAll doors are automatically unlocked
when shifting the shift lever to P.
Driver’s door linked door unlocking
functionAll doors are automatically unlocked
when driver’s door is opened.
