TOYOTA CAMRY 2019 Owners Manual (in English)

2019
QUICK REFERENCE GUIDE
CAMRY

CAMRY 2019

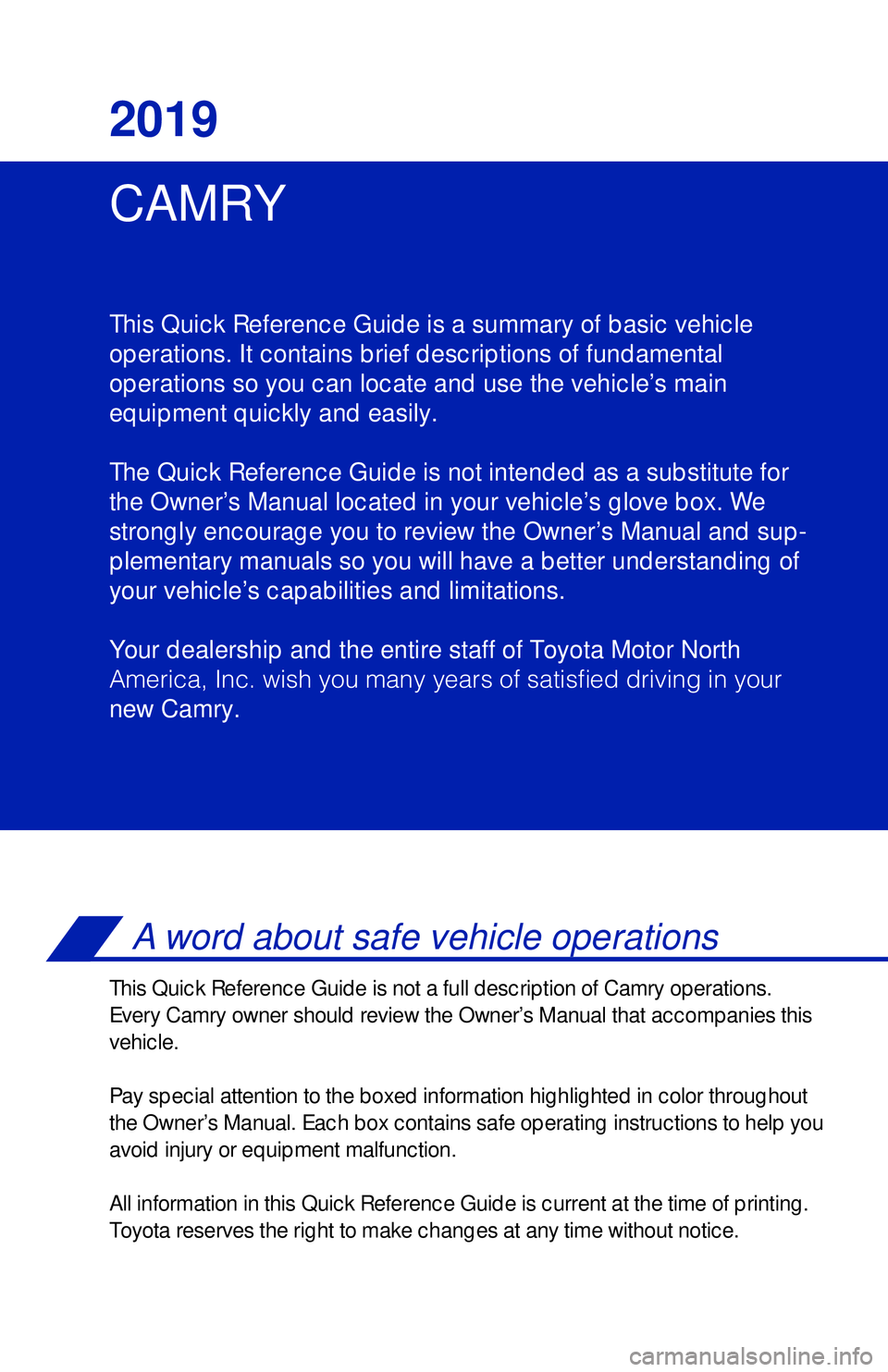

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Camry.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Camry operations.
Every Camry owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

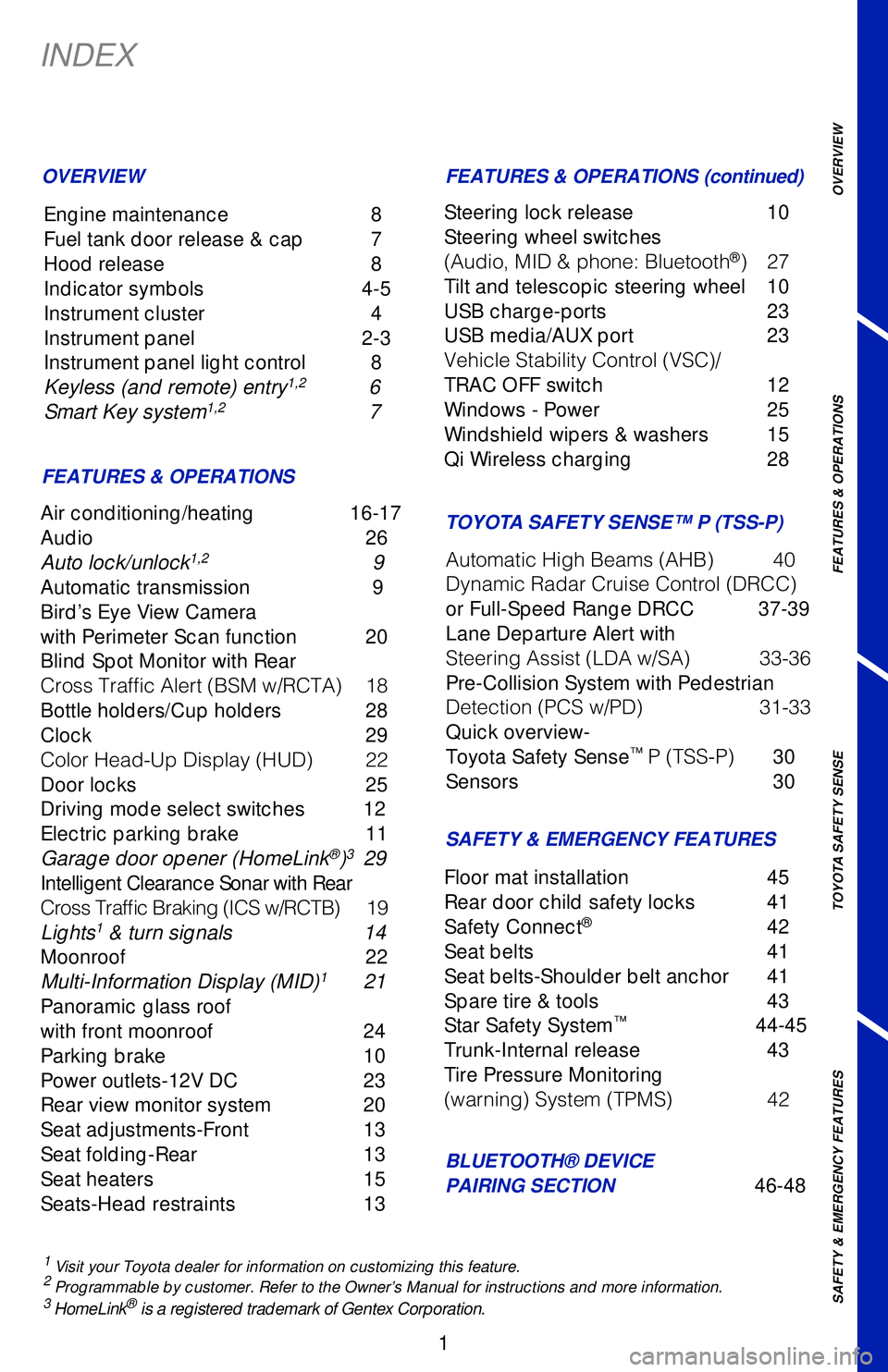

INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless (and remote) entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
BLUETOOTH® DEVICE
PAIRING SECTION
46-48 Air conditioning/heating 16-17
Audio 26
Auto lock/unlock
1,2 9
Automatic transmission 9
Bird’s Eye View Camera
with Perimeter Scan function 20
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU #4.X3$5"

Bottle holders/Cup holders 28
Clock 29
$PMPS)FBE6Q%JTQMBZ )6%

Door locks 25
Driving mode select switches 12
Electric parking brake 11
Garage door opener (HomeLink
®)3 29
Intelligent Clearance Sonar with Rear
$SPTT5SBGmD#SBLJOH *$4X3$5#

Lights
1 & turn signals 14
Moonroof 22
Multi-Information Display (MID)
1 21
Panoramic glass roof
with front moonroof 24
Parking brake 10
Power outlets-12V DC 23
Rear view monitor system 20
Seat adjustments-Front 13
Seat folding-Rear 13
Seat heaters 15
Seats-Head restraints 13Floor mat installation 45
Rear door child safety locks 41
Safety Connect
® 42
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 43
Star Safety System
™ 44-45
Trunk-Internal release 43
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4

FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ P (TSS-P)
Steering lock release 10
Steering wheel switches
"VEJP
.*%QIPOF#MVFUPPUI
®

Tilt and telescopic steering wheel 10
USB charge-ports 23
USB media/AUX port 23
7FIJDMF4UBCJMJUZ$POUSPM 74$

TRAC OFF switch 12
Windows - Power 25
Windshield wipers & washers 15
Qi Wireless charging 28
"VUPNBUJD)JHI#FBNT ")#

%ZOBNJD3BEBS$SVJTF$POUSPM %3$$

or Full-Speed Range DRCC 37-39
Lane Departure Alert with
4UFFSJOH"TTJTU -%"X4"

Pre-Collision System with Pedestrian
%FUFDUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™1 5441
30
Sensors 30

Steering wheel controls
2
OVERVIEW

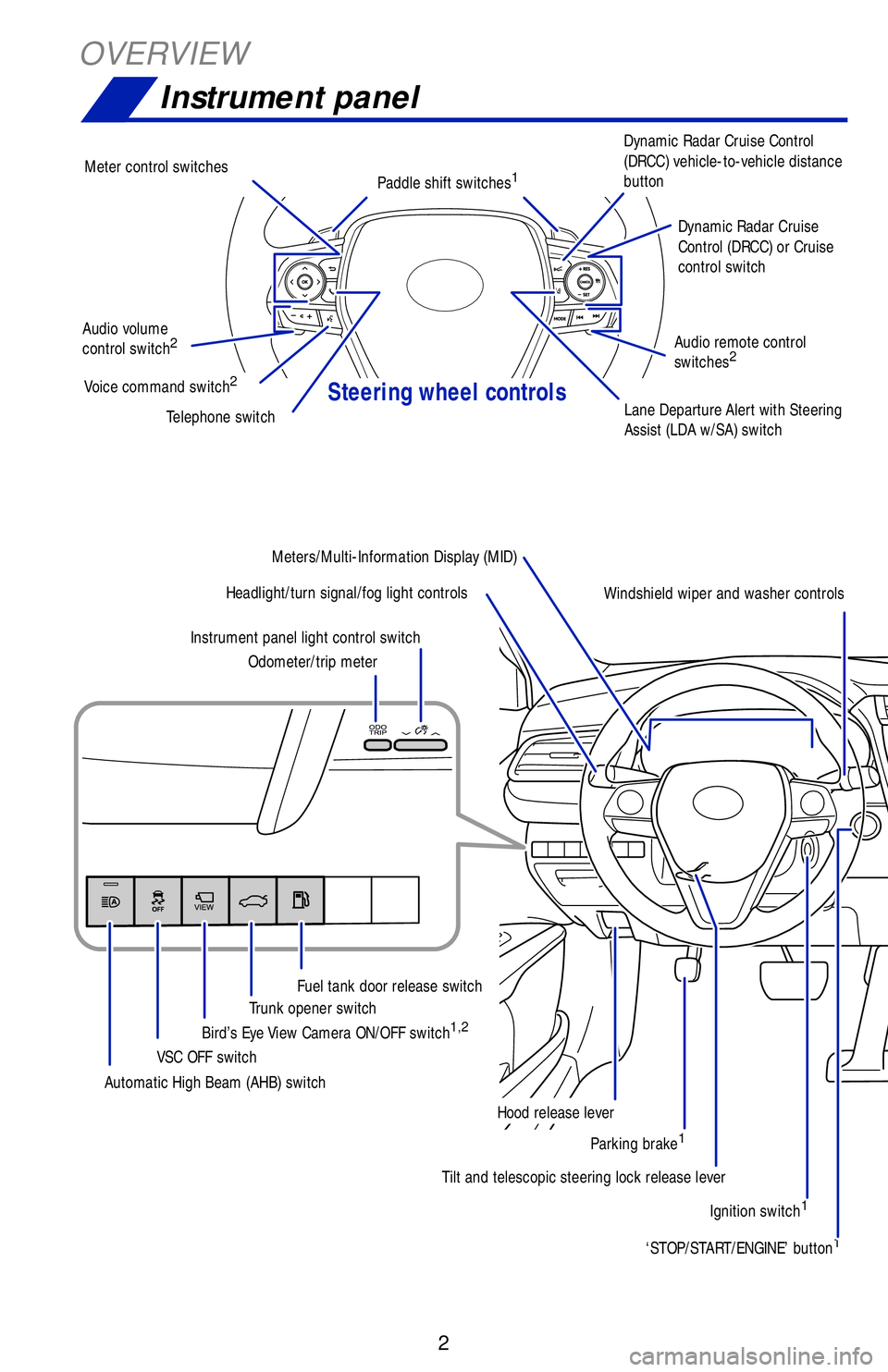

Instrument panel
Tilt and telescopic steering lock release lever
Ignition switch
1
Headlight/turn signal/fog light controls
Automatic High Beam (AHB) switchVSC OFF switchBird’s Eye View Camera ON/OFF switch
1,2Trunk opener switchFuel tank door release switch Odometer/trip meter Instrument panel light control switch
‘STOP/START/ENGINE’ button
1
Hood release leverDynamic Radar Cruise
Control (DRCC) or Cruise
control switch Dynamic Radar Cruise Control
(DRCC) vehicle-to-vehicle distance
button
Lane Departure Alert with Steering
Assist (LDA w/SA) switch Audio volume
control switch
2
Telephone switchAudio remote control
switches
2
Paddle shift switches1
Windshield wiper and washer controls Meters/Multi-Information Display (MID) Meter control switches
Voice command switch2
Parking brake1

3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1
If equipped.2
For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/entune for additional audio/multimedia resources.

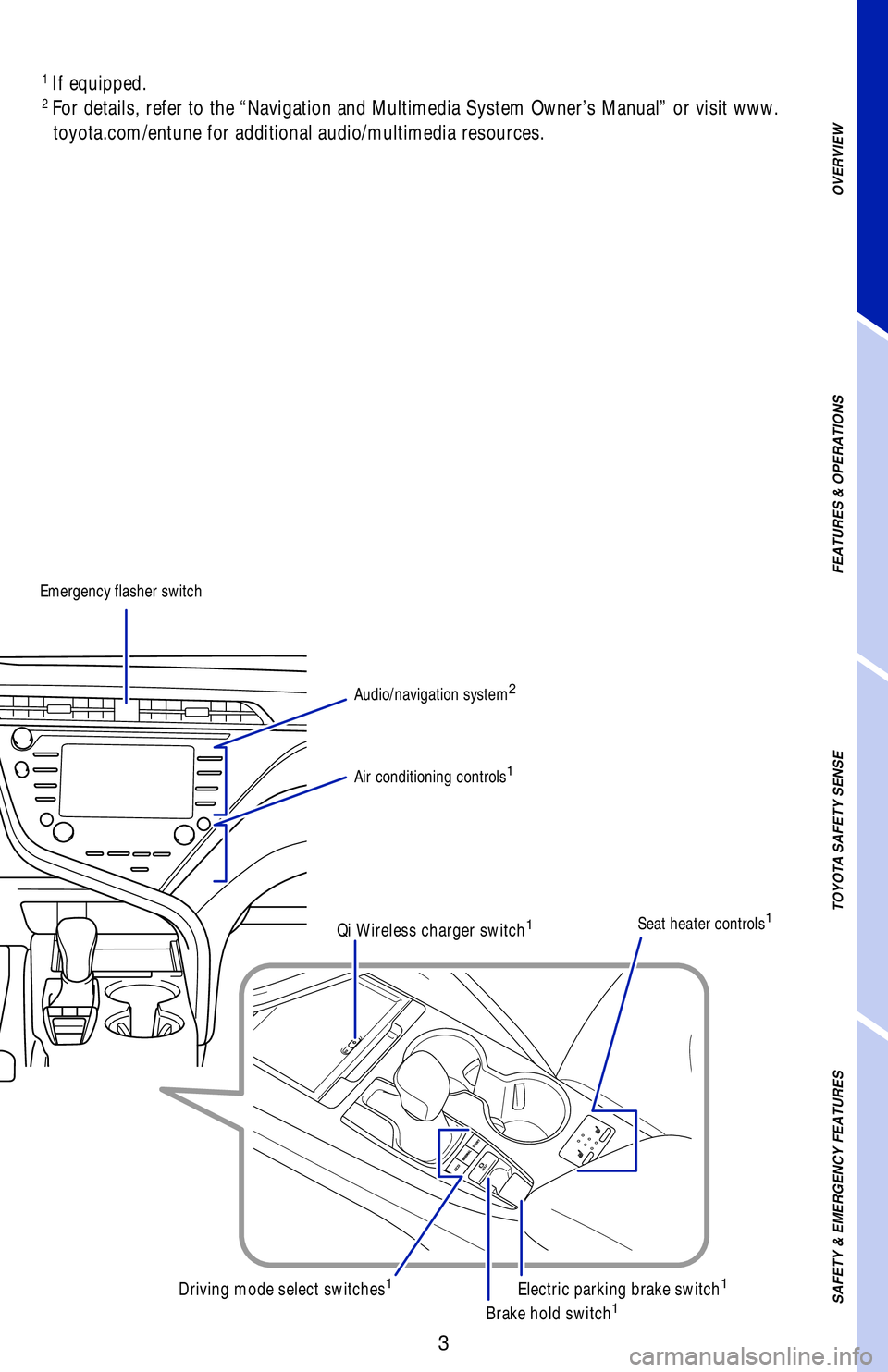

Emergency flasher switch
Air conditioning controls
1
Electric parking brake switch1
Brake hold switch1Driving mode select switches1
Seat heater controls1
Audio/navigation system2
Qi Wireless charger switch1

4
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Airbag SRS warning1
OVERVIEW

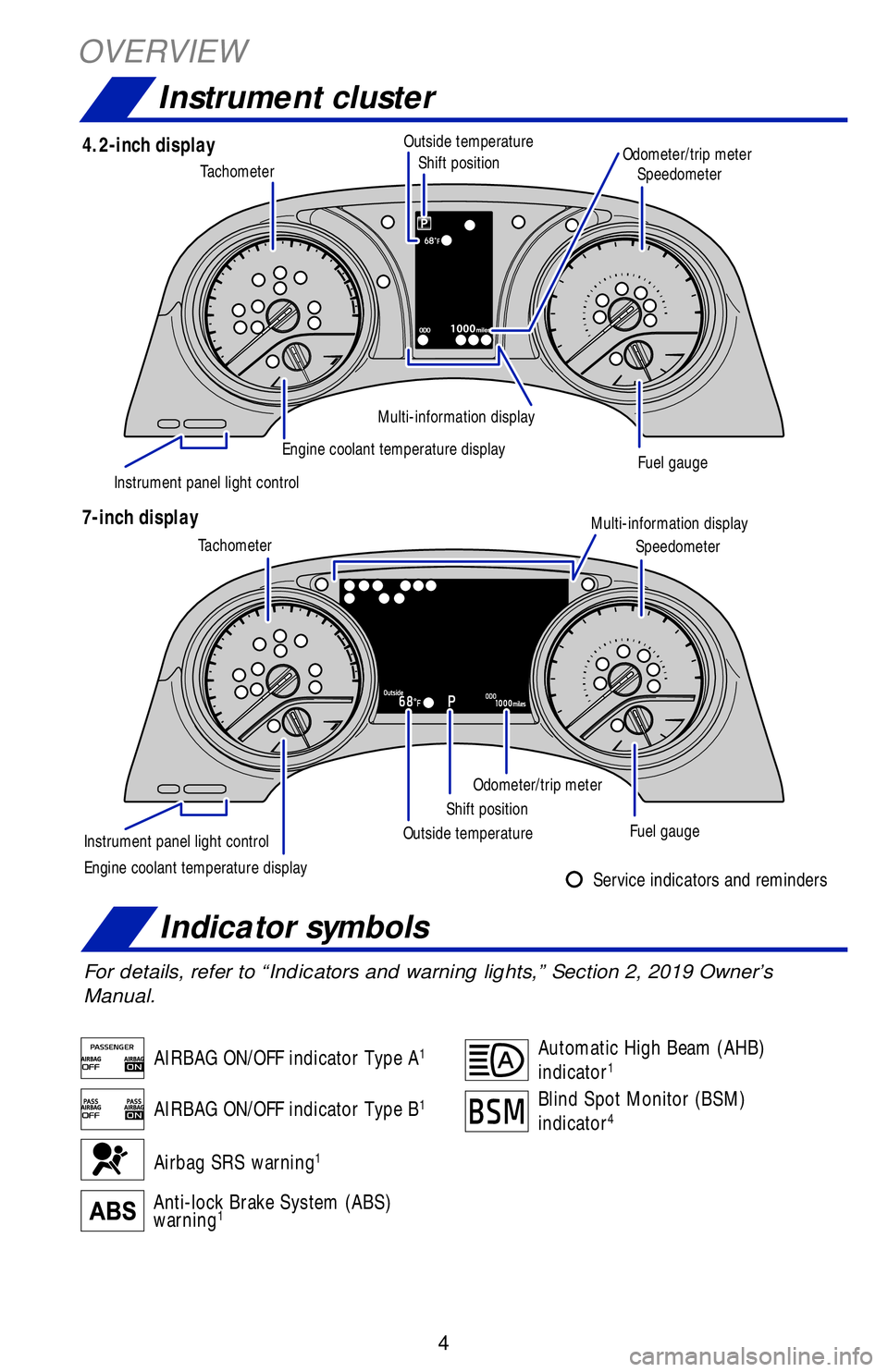

Instrument cluster
Automatic High Beam (AHB)
indicator1
Blind Spot Monitor (BSM)
indicator4
Anti-lock Brake System (ABS)
warning1
AIRBAG ON/OFF indicator Type A1
AIRBAG ON/OFF indicator Type B1
Indicator symbols
TachometerTachometerOutside temperature
Outside temperatureSpeedometer
Speedometer Odometer/trip meter
Odometer/trip meter Shift position
Shift positionFuel gauge
Fuel gauge Multi-information display
Multi-information display Engine coolant temperature display
Engine coolant temperature displayInstrument panel light control
Instrument panel light control
Service indicators and reminders
4.2-inch display
7-inch display

5

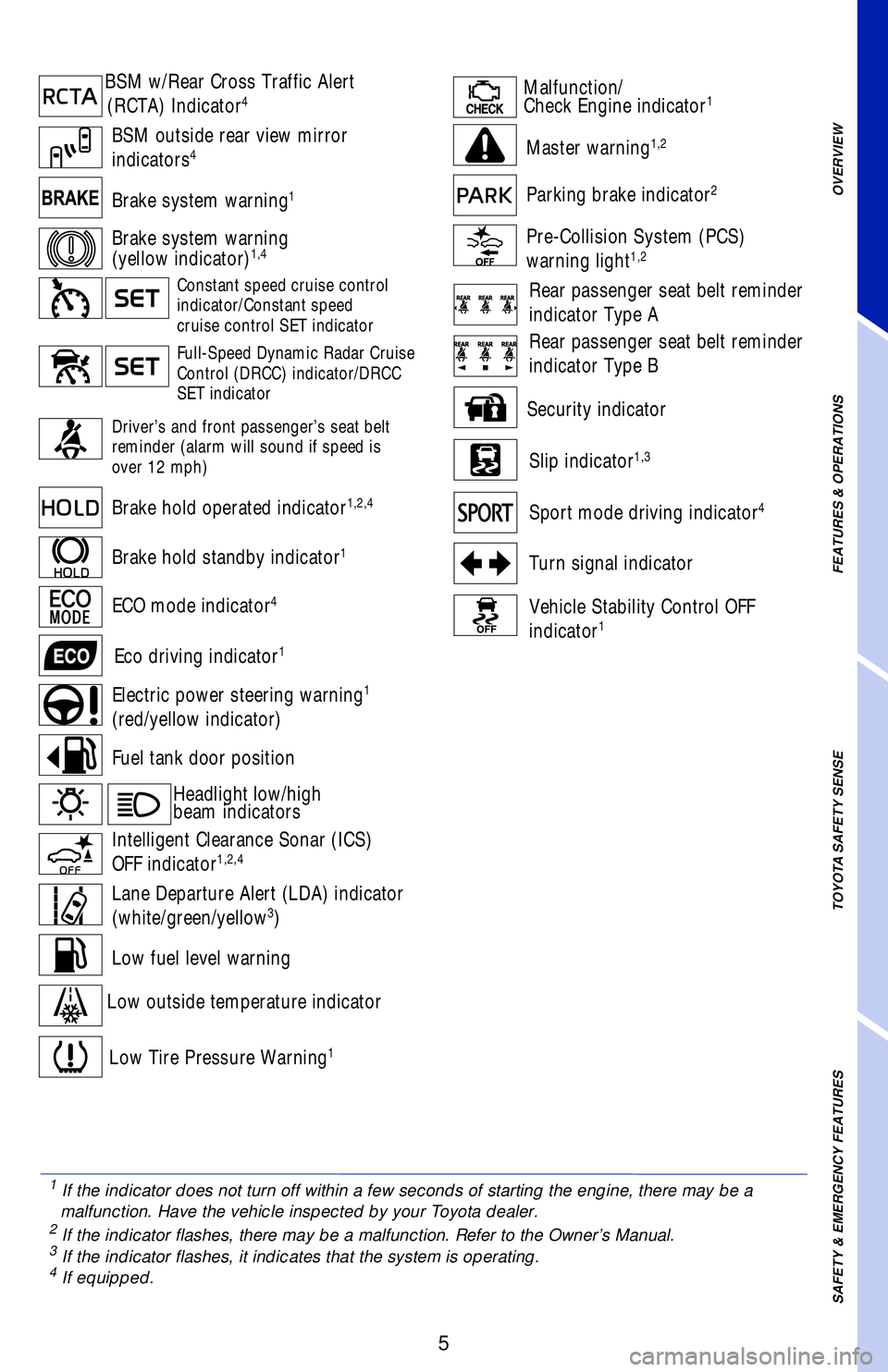

Full-Speed Dynamic Radar Cruise
Control (DRCC) indicator/DRCC
SET indicator
Brake system warning1
Malfunction/
Check Engine indicator1
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Low Tire Pressure Warning1
Low fuel level warning
Security indicator
Fuel tank door positionMaster warning
1,2
Headlight low/high
beam indicators
Turn signal indicator
Pre-Collision System (PCS)
warning light1,2
Slip indicator1,3
Vehicle Stability Control OFF
indicator1
Eco driving indicator1
Parking brake indicator2
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Rear passenger seat belt reminder
indicator Type A
Rear passenger seat belt reminder
indicator Type B
Brake hold operated indicator1,2,4
Brake hold standby indicator1
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator4
BSM outside rear view mirror
indicators4
Brake system warning
(yellow indicator)1,4
Lane Departure Alert (LDA) indicator
(white/green/yellow3)
Electric power steering warning1
(red/yellow indicator)
Sport mode driving indicator4
ECO mode indicator4
Low outside temperature indicator
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

6

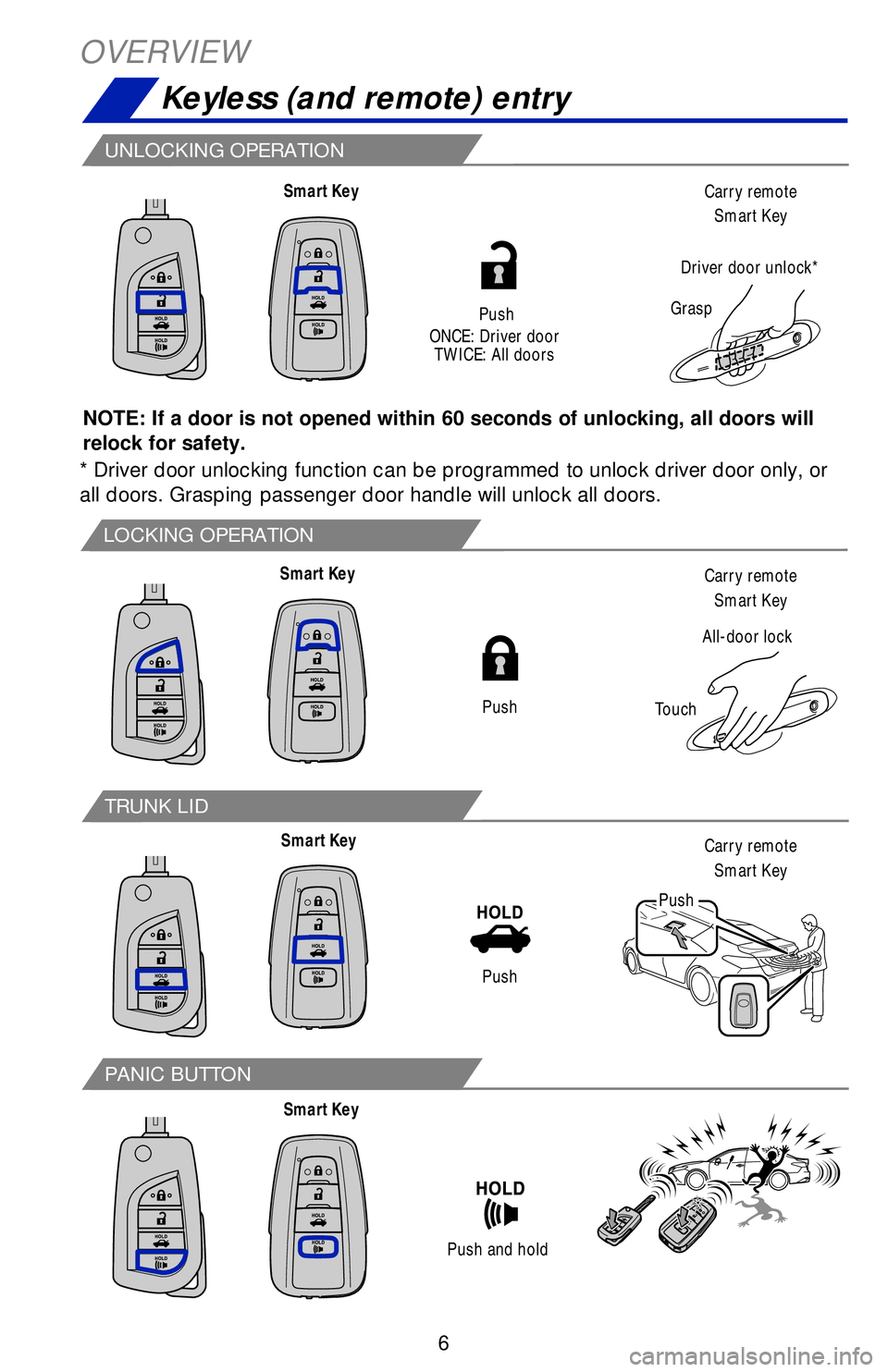

LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
OVERVIEW
Keyless (and remote) entry
All-door lock
Touch
Smart Key
Smart Key
Smart Key
Smart KeyCarry remote
Smart Key
Carry remote
Smart Key
Carry remote
Smart Key Grasp
Driver door unlock*
Push
ONCE: Driver door
TWICE: All doors
Push
Push
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.

7

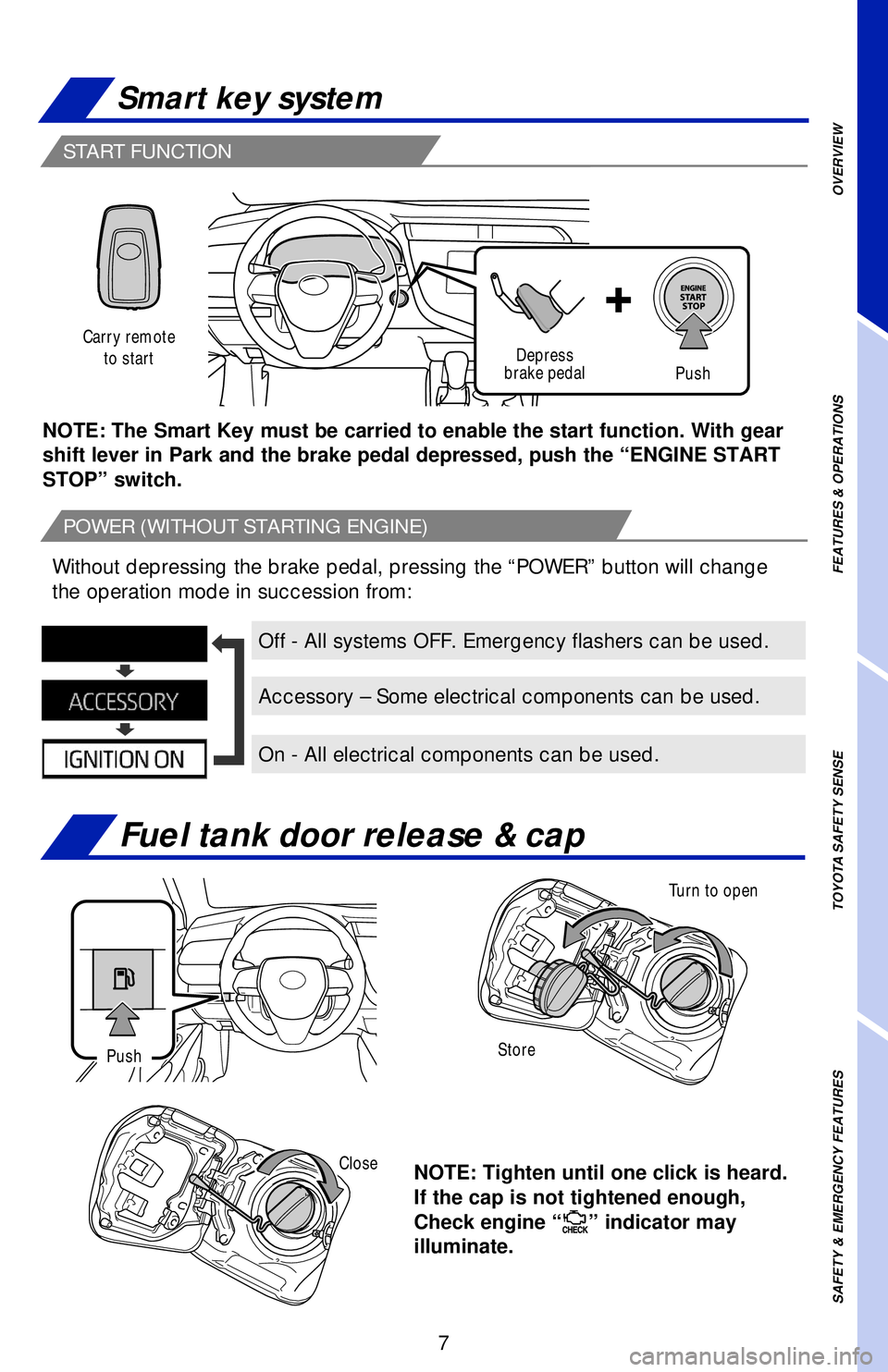

START FUNCTION
Fuel tank door release & cap
Smart key system
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check engine “
” indicator may
illuminate.
Turn to open
Store
Push
Close
Carry remote
to startDepress
brake pedalPush
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
POWER (WITHOUT STARTING ENGINE)
Without depressing the brake pedal, pressing the “POWER” button will change
the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.

8

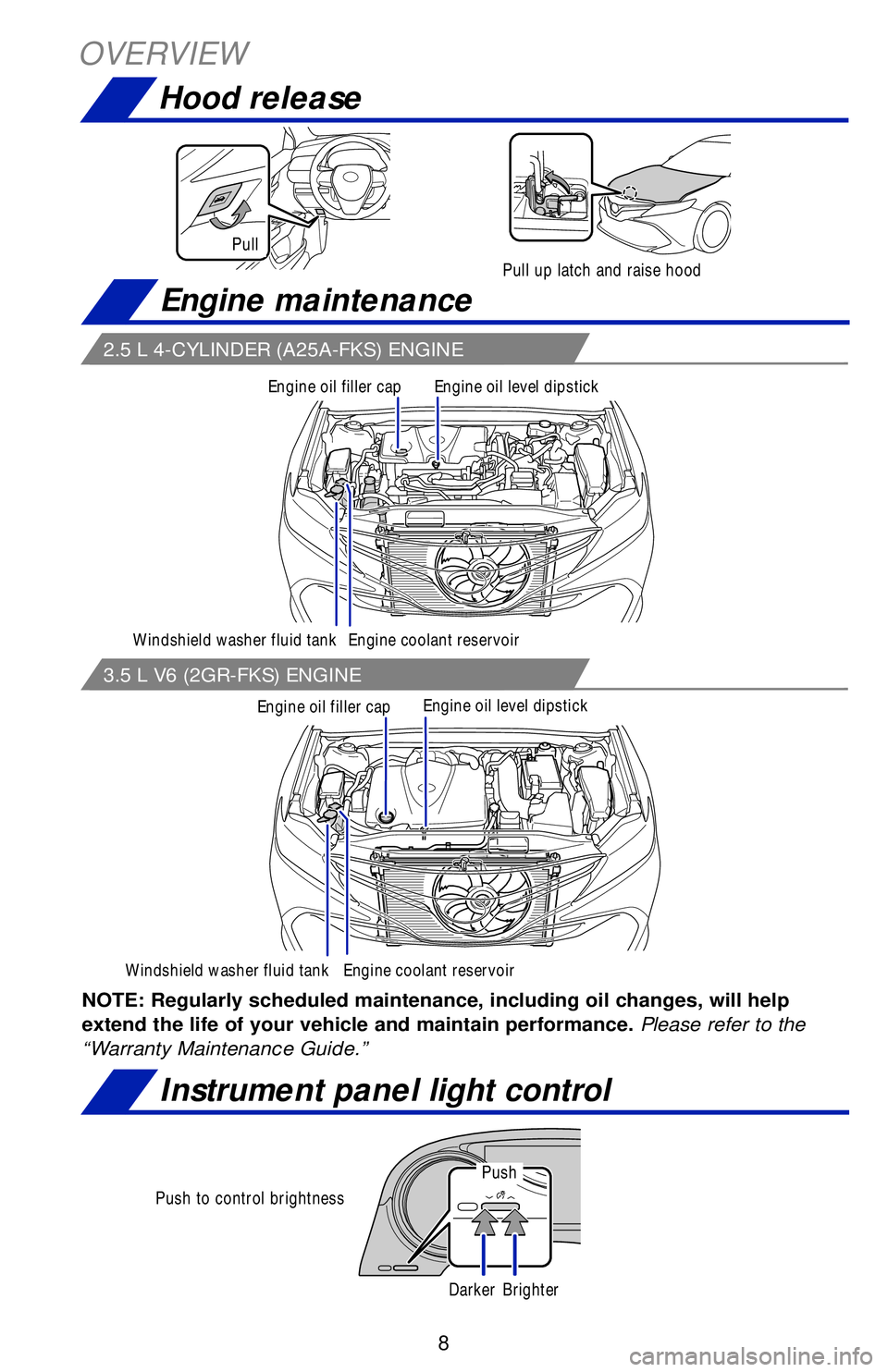

OVERVIEW
Hood release
Engine maintenance
Instrument panel light control
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
2.5 L 4-CYLINDER (A25A-FKS) ENGINE
3.5 L V6 (2GR-FKS) ENGINE
Push to control brightness
Push
DarkerBrighter
Windshield washer fluid tank
Windshield washer fluid tankEngine oil level dipstick
Engine oil level dipstick Engine coolant reservoir
Engine coolant reservoir
Engine oil filler cap
Engine oil filler cap
Pull up latch and raise hood
Pull
