4145-4. Other interior features
CAMRY_HV_EE

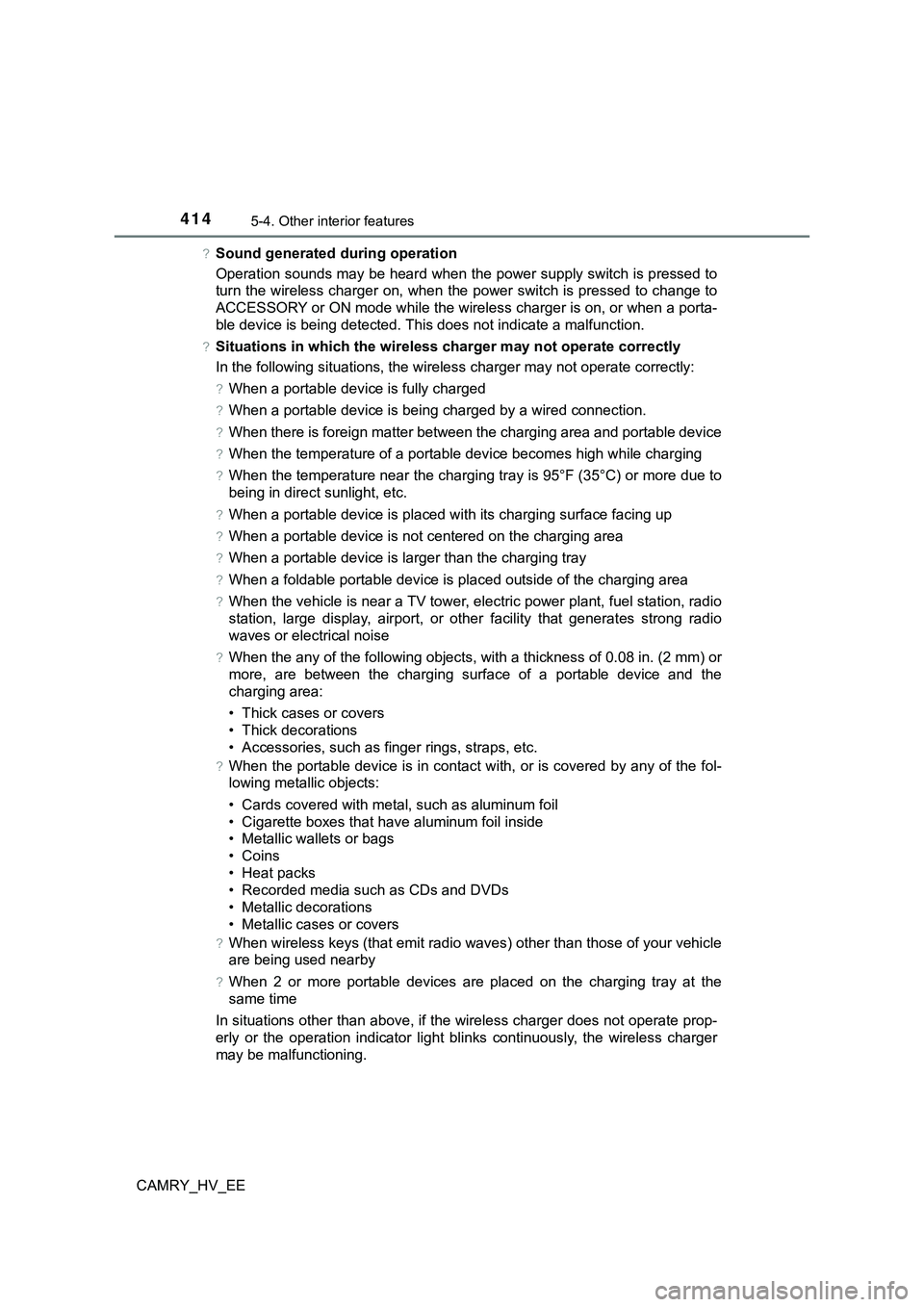

?Sound generated during operation
Operation sounds may be heard when the power supply switch is pressed to
turn the wireless charger on, when the power switch is pressed to change to
ACCESSORY or ON mode while the wireless charger is on, or when a porta-
ble device is being detected. This does not indicate a malfunction.
?Situations in which the wireless charger may not operate correctly
In the following situations, the wireless charger may not operate correctly:
?When a portable device is fully charged
?When a portable device is being charged by a wired connection.
?When there is foreign matter between the charging area and portable device
?When the temperature of a portable device becomes high while charging
?When the temperature near the charging tray is 95°F (35°C) or more due to
being in direct sunlight, etc.
?When a portable device is placed with its charging surface facing up
?When a portable device is not centered on the charging area
?When a portable device is larger than the charging tray
?When a foldable portable device is placed outside of the charging area
?When the vehicle is near a TV tower, electric power plant, fuel station, radio
station, large display, airport, or other facility that generates strong radio
waves or electrical noise
?When the any of the following objects, with a thickness of 0.08 in. (2 mm) or
more, are between the charging surface of a portable device and the
charging area:
• Thick cases or covers
• Thick decorations
• Accessories, such as finger rings, straps, etc.
?When the portable device is in contact with, or is covered by any of the fol-
lowing metallic objects:
• Cards covered with metal, such as aluminum foil
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Heat packs
• Recorded media such as CDs and DVDs
• Metallic decorations
• Metallic cases or covers
?When wireless keys (that emit radio waves) other than those of your vehicle
are being used nearby
?When 2 or more portable devices are placed on the charging tray at the
same time
In situations other than above, if the wireless charger does not operate prop-
erly or the operation indicator light blinks continuously, the wireless charger
may be malfunctioning.

4185-4. Other interior features
CAMRY_HV_EE

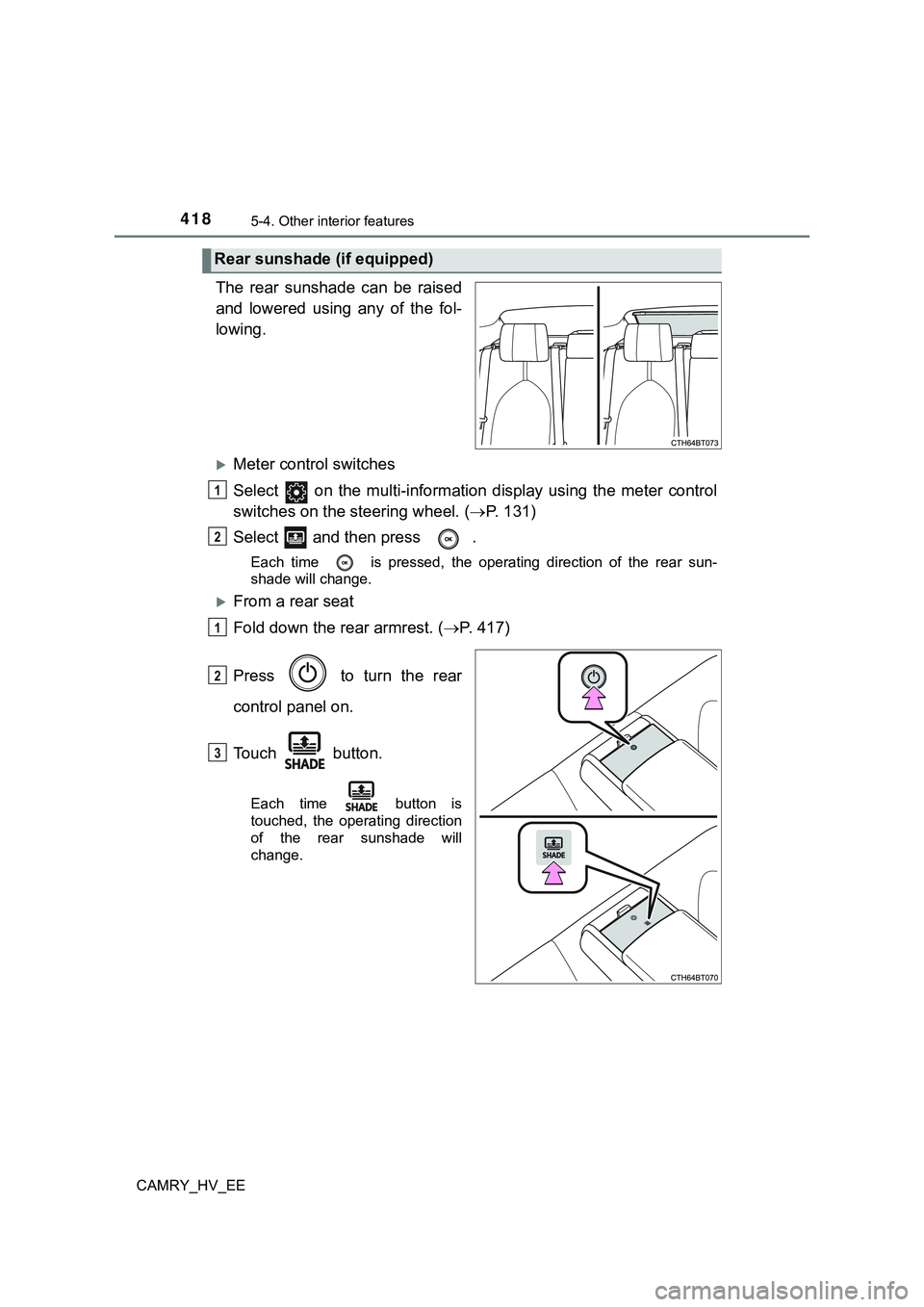

The rear sunshade can be raised
and lowered using any of the fol-
lowing.
Meter control switches
Select on the multi-information display using the meter control
switches on the steering wheel. (P. 131)
Select and then press .
Each time is pressed, the operating direction of the rear sun-
shade will change.
From a rear seat
Fold down the rear armrest. (P. 417)
Press to turn the rear
control panel on.
Touch button.
Each time button is
touched, the operating direction
of the rear sunshade will
change.
Rear sunshade (if equipped)
1
2
1
2
3
