TOYOTA CAMRY CNG 2000 User Guide

’00CAMRY CNG (L/O9908)
112000 CAMRY CNG (OM33519U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’00CAMRY CNG (L/O9908)
122000 CAMRY CNG (OM33519U)

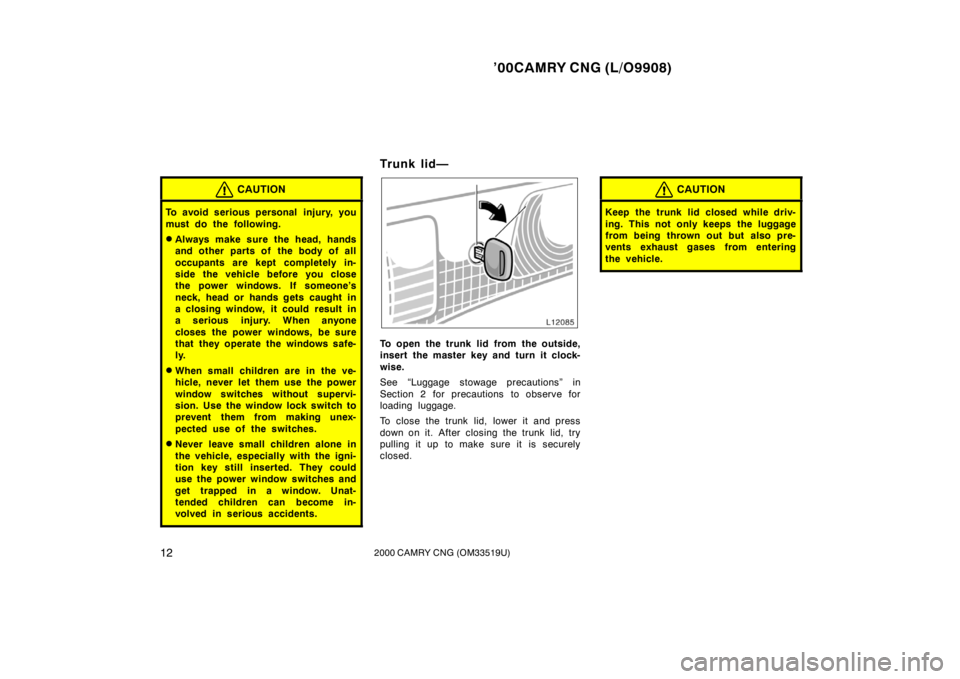

CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Trunk lid—
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” in
Section 2 for precautions to observe for
loading luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

’00CAMRY CNG (L/O9908)
132000 CAMRY CNG (OM33519U)
—Lock release lever
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
—Luggage security system
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

’00CAMRY CNG (L/O9908)
142000 CAMRY CNG (OM33519U)
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.When refueling, you must use a special
nozzle that meets ANSI/AGA
NGV−1−1994 standards.
There are three types of nozzles. Use
a P36 type nozzle for this vehicle. If a
P36 nozzle is not available at a nearby
CNG station, you may use another type
of nozzle, but you cannot expect to get
a completely full tank with it.
For your safety, ask and follow the in-
structions at the refueling station when
refueling.
Before starting to refuel, wipe off mud
or dirt that may be deposited around
the fuel receptacle.
You will hear a chattering noise from the
tank when it is being filled, but this is
quite normal.
If you hear fuel leaking from the fuel re-
ceptacle, stop refueling immediately and
have your authorized Toyota CNG dealer
check the fuel receptacle.
For information on CNG stations, refer to
the station “Refueling station information”
on page iii in the beginning of this manu-
al.
CAUTION
In order to safety refuel and avoid
serious personal injury, ask the
CNG station staff to refuel the ve-
hicle with CNG for you.
Do not start the engine while refuel-
ing. As the natural gas is flam-
mable, an explosion or a fire could
occur. Also, do not smoke or allow
open flames when refueling.
If you smell or hear fuel leaking
while refueling, immediately stop re-
fueling. Do not refuel it until after
the leak has been repaired.
Refueling—
—Refueling precaution

’00CAMRY CNG (L/O9908)
152000 CAMRY CNG (OM33519U)
This indicates that the refueling plug
door is on the left side of your vehicle.There are two ways of natural gas re-
fueling: high and low speed. This manu-
al explains typical high speed refueling.
As for the low speed refueling method,
follow the instructions provided by the
manufacturer for the refueling equipments.
1. To open the refueling plug door, pull
the lever up.
When refueling, turn off the engine.2. Remove the rubber cap.
Check there is no mud or dirt around the
fuel receptacle.
—Refueling method
(high speed refueling)

’00CAMRY CNG (L/O9908)
162000 CAMRY CNG (OM33519U)
3. Fit the filling nozzle securely on the
fuel receptacle.
There are various types of filling nozzles
so follow the instructions at each CNG
station.4. Turn the valve lever to fasten the
nozzle to the fuel receptacle and to
start filling the tank.5. Refueling will stop automatically
when the tank is full. When discon-
necting the filling nozzle, follow the
instructions of the refueling station.
Reverse the procedure to disconnect the
nozzle after filling the tank.
When disconnecting the filling nozzle, you
may hear a brief hissing sound as a small
amount of fuel escapes, but this is nor-
mal.

’00CAMRY CNG (L/O9908)
172000 CAMRY CNG (OM33519U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbags 29. . . . . . . . . . . . . . . . . . . . . . . .
Child restraint36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti−glare inside rear view mirror 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 3

’00CAMRY CNG (L/O9908)
182000 CAMRY CNG (OM33519U)
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

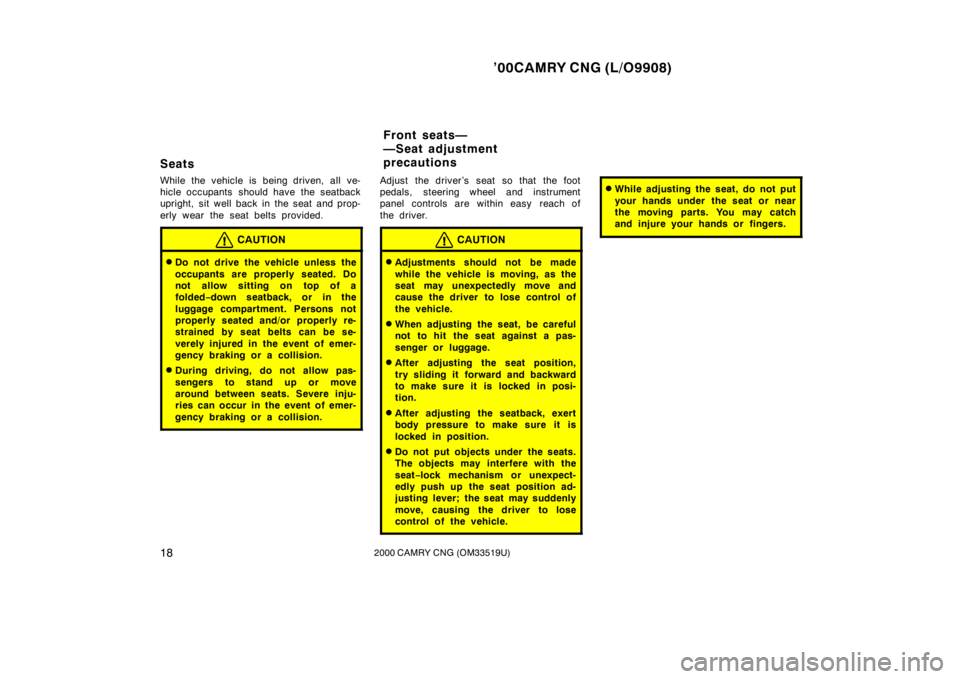

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded−down seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat−lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
Front seats—
—Seat adjustment
precautions

’00CAMRY CNG (L/O9908)
192000 CAMRY CNG (OM33519U)
—Adjusting front seats
1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight body
pressure and release the lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT CUSHION HEIGHT ADJUSTING
KNOB
Turn the knob either way.

’00CAMRY CNG (L/O9908)
202000 CAMRY CNG (OM33519U)
Head restraints
Front
Rear
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraint only—You can also
move the head restraint forward or back-
ward. If such adjustment is desired, pull
or push on the top of the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat belts—
—Seat belt precautions
