TOYOTA CAMRY CNG 2000 Owner's Guide

’00CAMRY CNG (L/O9908)
312000 CAMRY CNG (OM33519U)

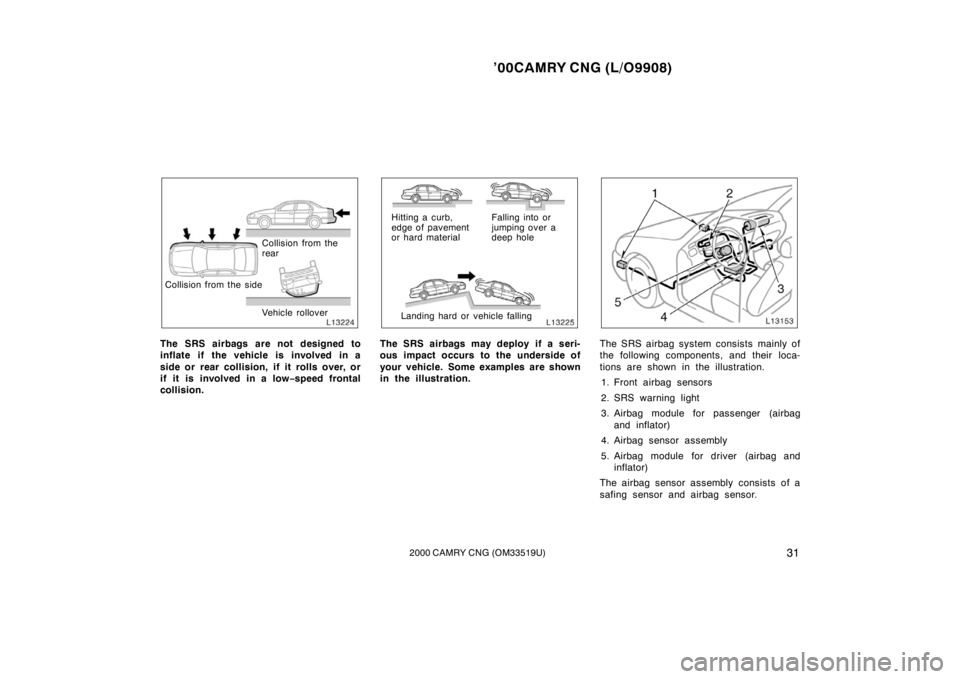

Collision from the
rear
Collision from the side
Vehicle rollover
The SRS airbags are not designed to
inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or
if it is involved in a low−speed frontal
collision.
Hitting a curb,
edge of pavement
or hard materialFalling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS airbags may deploy if a seri-
ous impact occurs to the underside of
your vehicle. Some examples are shown
in the illustration.The SRS airbag system consists mainly of
the following components, and their loca-
tions are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for passenger (airbag
and inflator)
4. Airbag sensor assembly
5. Airbag module for driver (airbag and
inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.

’00CAMRY CNG (L/O9908)
322000 CAMRY CNG (OM33519U)
In a severe frontal impact, sensors detect
deceleration and the system triggers the
airbag inflators. Then a chemical reaction
in the inflators quickly fills the airbags
with non−toxic gas to help restrain the
forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non−toxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.A crash severe enough to inflate the air-
bags may break the windshield as the
vehicle buckles. In vehicles with a pas-
senger airbag the windshield may also be
damaged by absorbing some of the force

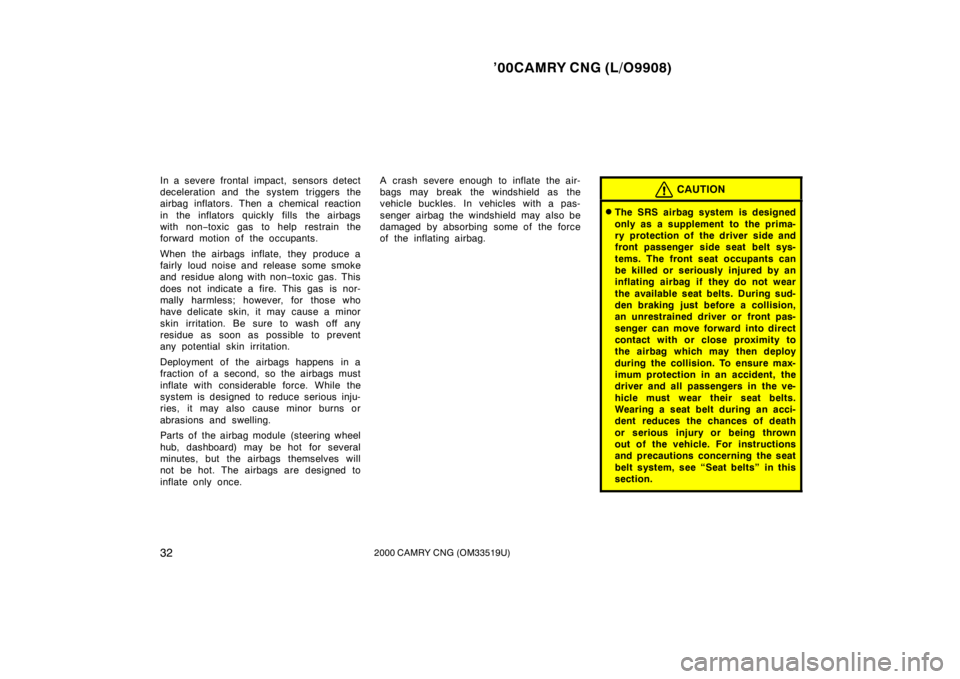

of the inflating airbag.CAUTION
The SRS airbag system is designed
only as a supplement to the prima-
ry protection of the driver side and
front passenger side seat belt sys-
tems. The front seat occupants can
be killed or seriously injured by an
inflating airbag if they do not wear
the available seat belts. During sud-
den braking just before a collision,
an unrestrained driver or front pas-
senger can move forward into direct
contact with or close proximity to
the airbag which may then deploy
during the collision. To ensure max-
imum protection in an accident, the
driver and all passengers in the ve-
hicle must wear their seat belts.
Wearing a seat belt during an acci-
dent reduces the chances of death
or serious injury or being thrown
out of the vehicle. For instructions
and precautions concerning the seat
belt system, see “Seat belts” in this
section.

’00CAMRY CNG (L/O9908)
332000 CAMRY CNG (OM33519U)

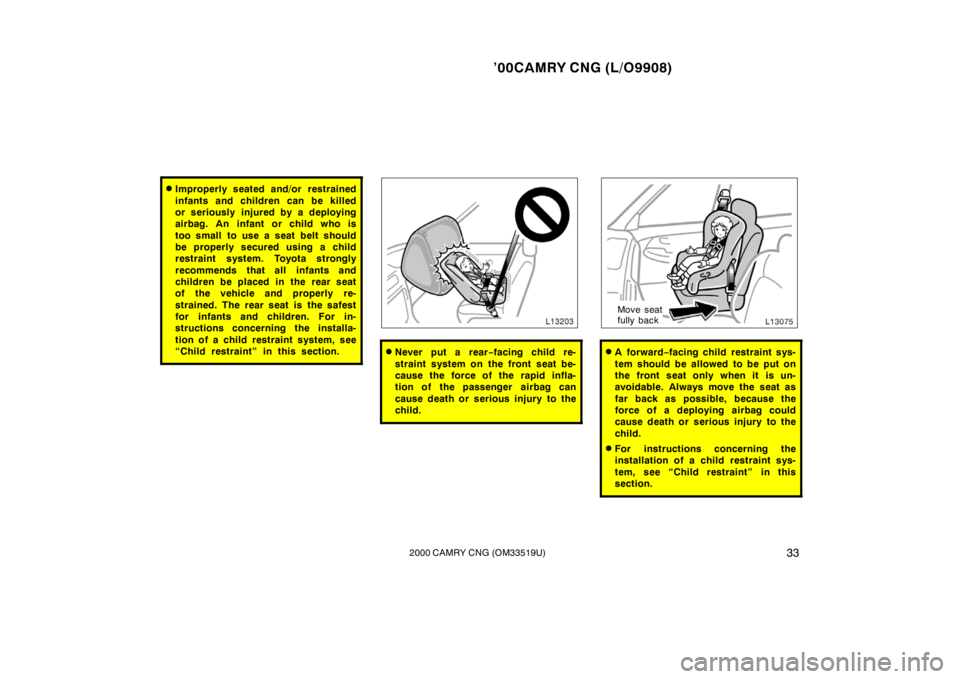

Improperly seated and/or restrained
infants and children can be killed
or seriously injured by a deploying
airbag. An infant or child who is
too small to use a seat belt should
be properly secured using a child
restraint system. Toyota strongly
recommends that all infants and
children be placed in the rear seat
of the vehicle and properly re-
strained. The rear seat is the safest
for infants and children. For in-
structions concerning the installa-
tion of a child restraint system, see
“Child restraint” in this section.
Never put a rear−facing child re-
straint system on the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.
Move seat
fully back
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child.
For instructions concerning the
installation of a child restraint sys-
tem, see “Child restraint” in this
section.

’00CAMRY CNG (L/O9908)
342000 CAMRY CNG (OM33519U)

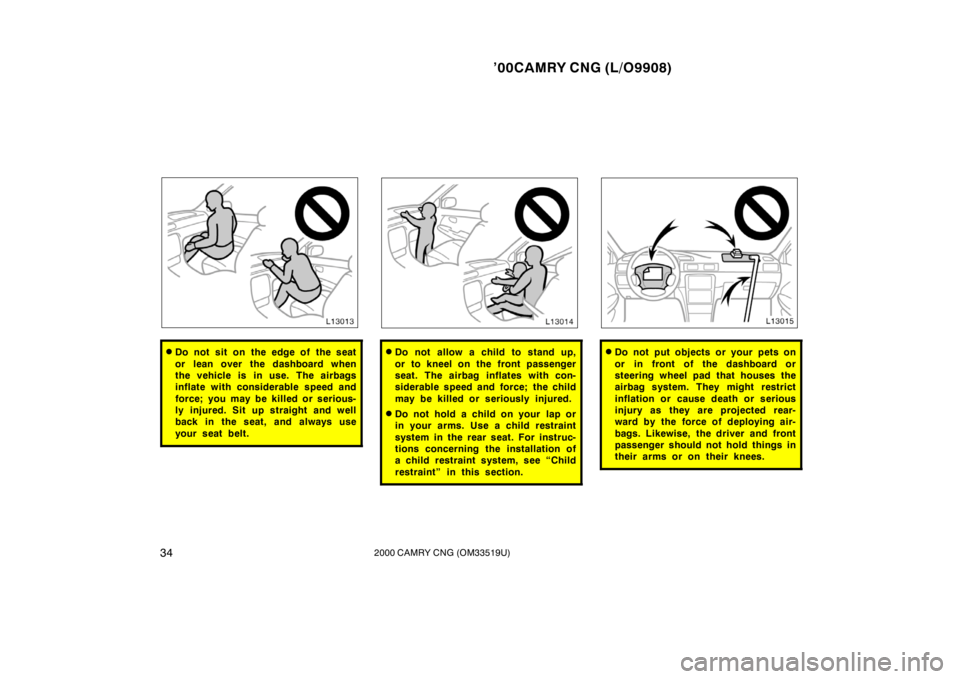

Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use. The airbags
inflate with considerable speed and
force; you may be killed or serious-
ly injured. Sit up straight and well
back in the seat, and always use
your seat belt.Do not allow a child to stand up,
or to kneel on the front passenger
seat. The airbag inflates with con-
siderable speed and force; the child
may be killed or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” in this section.
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
airbag system. They might restrict
inflation or cause death or serious
injury as they are projected rear-
ward by the force of deploying air-
bags. Likewise, the driver and front
passenger should not hold things in
their arms or on their knees.

’00CAMRY CNG (L/O9908)
352000 CAMRY CNG (OM33519U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing any of these may cause sud-
den SRS airbag inflation or disable
the system, which could result in
death or serious injury.
Failure to follow these instructions
can result in death or serious injury.NOTICE
Do not perform any of the following
changes without consulting your
authorized Toyota CNG dealer. Such
changes can interfere with proper
operation of the SRS airbag system in
some cases.
Installation of electronic devices
such as a mobile two−way radio,
cassette tape player or compact
disc player
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This SRS airbag system has a service
reminder indicator to inform the driver of
operating problems. If either of the
following conditions occurs, this indicates
a malfunction of the airbags. Contact your
authorized Toyota CNG dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or the light remains on.
The light comes on while driving.

’00CAMRY CNG (L/O9908)
362000 CAMRY CNG (OM33519U)
In the following cases, contact your autho-
rized Toyota CNG dealer as soon as pos-
sible:
The SRS airbags have been inflated.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your authorized
Toyota CNG dealer.
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” for
details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops,
children must be properly re-
strained using a seat belt or child
restraint system depending on the
age and size of the child. Holding
a child in your arms is not a sub-
stitute for a child restraint system.
In an accident, the child can be
crushed against the windshield, or
between you and the vehicle’s inte-
rior.
Child restraint—
—Child restraint precautions

’00CAMRY CNG (L/O9908)
372000 CAMRY CNG (OM33519U)

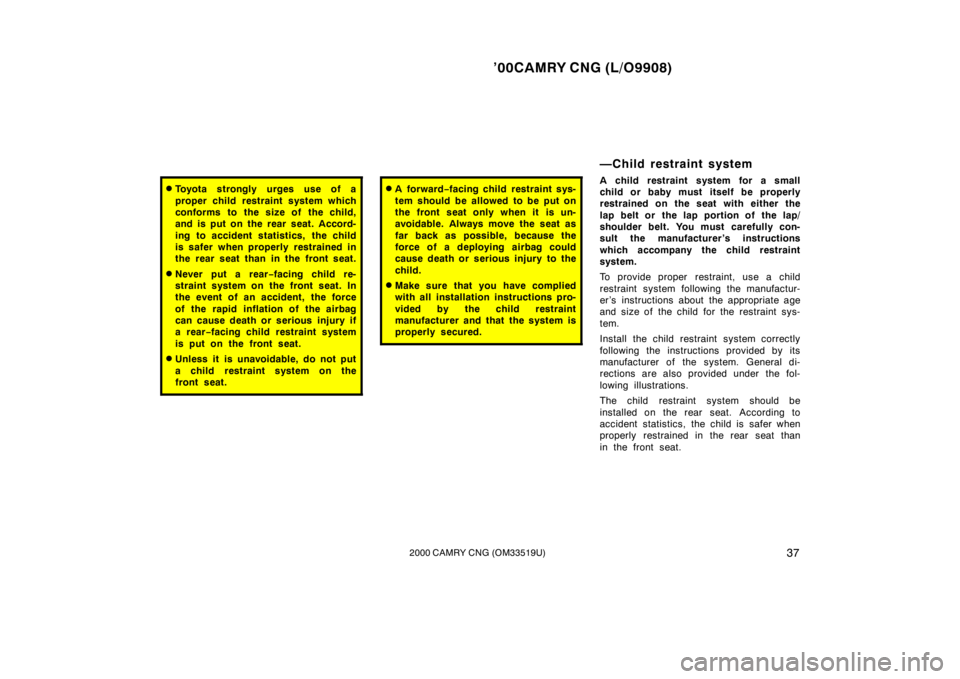

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
and is put on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never put a rear−facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear−facing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put
a child restraint system on the
front seat.
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child.
Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured.
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer ’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the restraint sys-
tem.

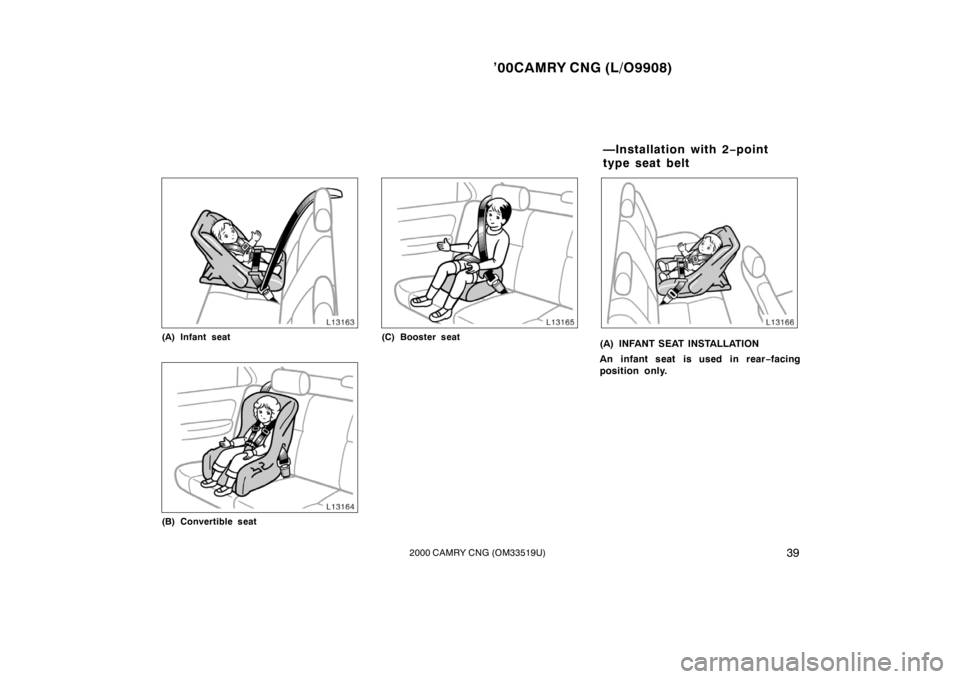

Install the child restraint system correctly
following the instructions provided by its
manufacturer of the system. General di-
rections are also provided under the fol-
lowing illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.

’00CAMRY CNG (L/O9908)
382000 CAMRY CNG (OM33519U)
CAUTION
Never put a rear−facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear−facing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put
a child restraint system on the
front seat.
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child.
After installing the child restraint
system, make sure it is secured in
place following the manufacturer ’s
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
—Types of child restraint
system

’00CAMRY CNG (L/O9908)
392000 CAMRY CNG (OM33519U)
(A) Infant seat
(B) Convertible seat
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat is used in rear−facing
position only.
—Installation with 2−point
type seat belt

’00CAMRY CNG (L/O9908)
402000 CAMRY CNG (OM33519U)
CAUTION
Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism of
the front seats. This can cause severe
injury to the child and front passen-
ger in case of sudden braking or a
collision.
1. Run the center lap belt through or
around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
authorized Toyota CNG dealer im-
mediately. Do not use the seat until
the seat belt is fixed.
