TOYOTA CAMRY CNG 2000 Owners Manual

’00CAMRY CNG (L/O9908)
1912000 CAMRY CNG (OM33519U)
Use a Phillips−head screwdriver. Remove
and install the cover clips as shown in
the following illustrations.Removing the cover clips
Installing the cover clips

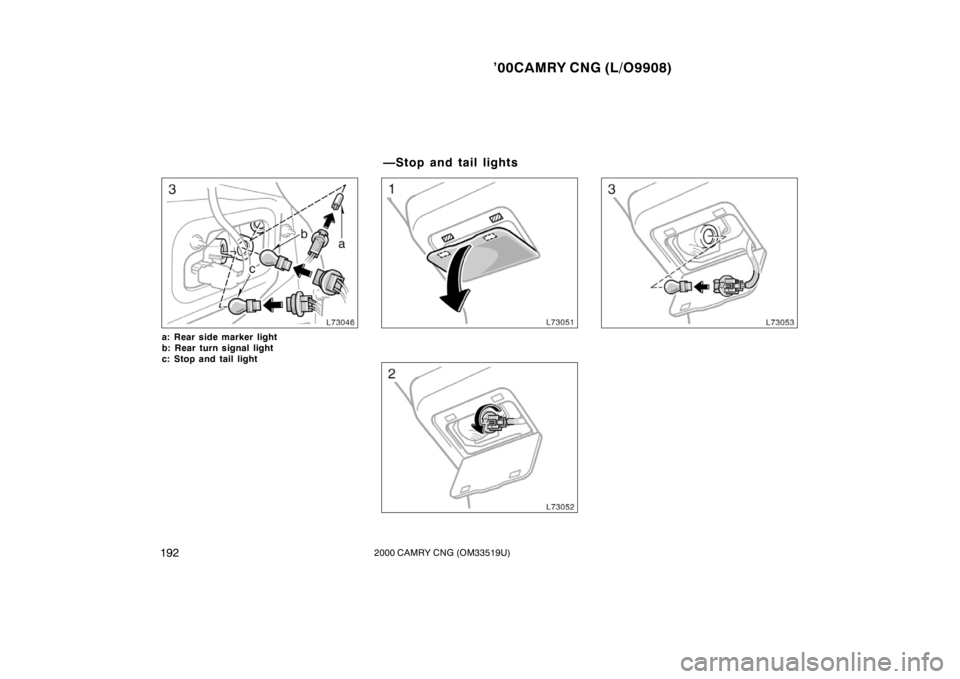

—Rear side maker, rear turn
signal, stop and tail lights

’00CAMRY CNG (L/O9908)
1922000 CAMRY CNG (OM33519U)
a: Rear side marker light
b: Rear turn signal light
c: Stop and tail light
—Stop and tail lights

’00CAMRY CNG (L/O9908)
1932000 CAMRY CNG (OM33519U)

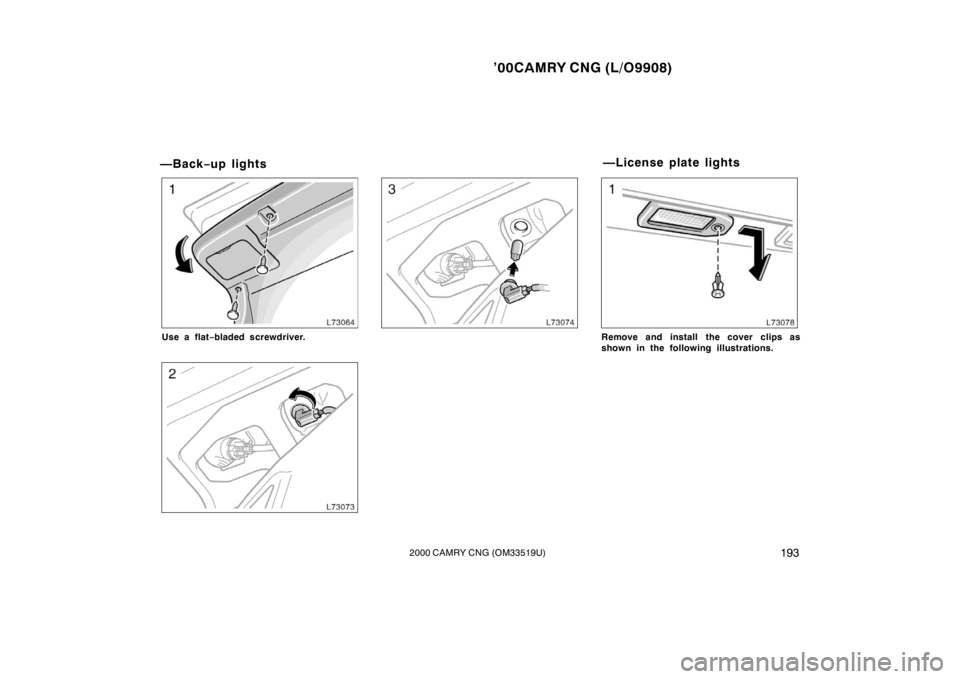

—Back−up lights
Use a flat−bladed screwdriver.Remove and install the cover clips as
shown in the following illustrations.

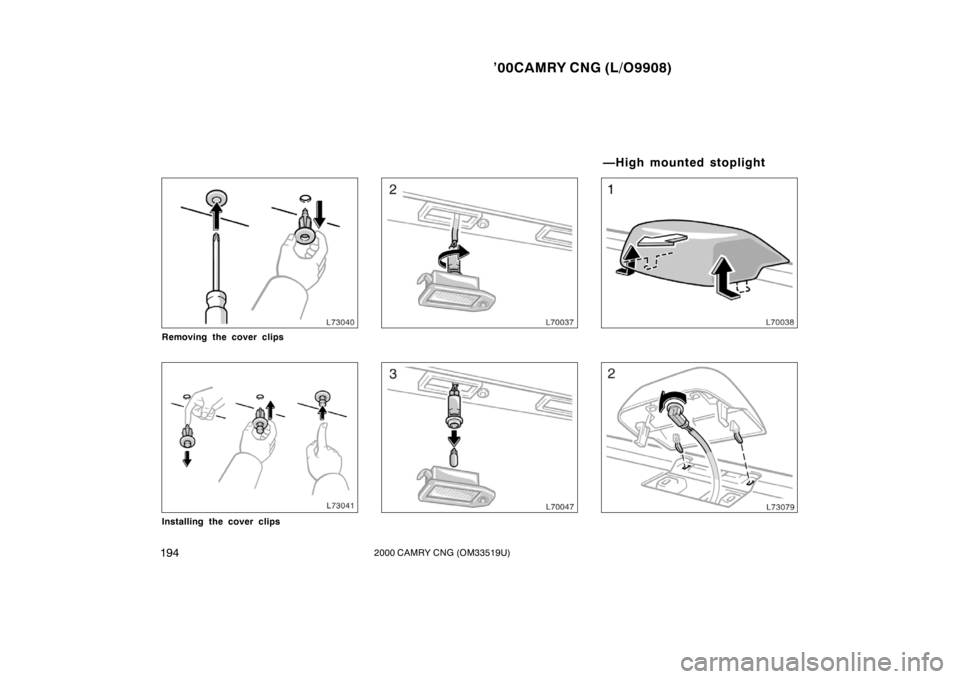

—License plate lights

’00CAMRY CNG (L/O9908)
1942000 CAMRY CNG (OM33519U)
Removing the cover clips
Installing the cover clips
—High mounted stoplight

’00CAMRY CNG (L/O9908)
1952000 CAMRY CNG (OM33519U)

’00CAMRY CNG (L/O9908)
1962000 CAMRY CNG (OM33519U)

’00CAMRY CNG (L/O9908)
1972000 CAMRY CNG (OM33519U)
SPECIFICATIONS
Dimensions and weight198 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine198 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel198 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications199 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8

’00CAMRY CNG (L/O9908)
1982000 CAMRY CNG (OM33519U)
Dimensions and weight
Overall length mm (in.) 4790 (188.6)
Overall width mm (in.) 1780 (70.1)
Overall height mm (in.) 1419 (55.9)
∗
Wheelbase mm (in.) 2670 (105.1)
Front tread mm (in.) 1548 (60.9)
Rear tread mm (in.) 1519 (59.8)
Vehicle capacity weight
(occupants + luggage)
kg (lb) 410 (900)
∗: Unladen vehicle
Engine
Model:
5S−FNE
Type:
4 cylinder in line, CNG (Compressed
Natural Gas)
Bore and stroke, mm (in.):
87.091.0 (3.433.58)
Displacement, cm
3 (cu. in.):
2164 (132.0)
Fuel
Fuel type:
Compressed natural gas
Service pressure:
24800 kPa (3600 psig)
Equivalent gasoline capacity:
43 L (11.4 gal., 9.5 lmp.gal.)
Water volume:
135 L (35.7 gal., 29.7 lmp.gal.)

’00CAMRY CNG (L/O9908)
1992000 CAMRY CNG (OM33519U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.28—0.38 (0.011—0.015)
Spark plug type:
DENSO PK20TR8−G
Spark plug gap, mm(in.):
0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT−33−73F (used belt), Ibf:
Generator belt 13010
Power steering pump belt 8020ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.6 (3.8, 3.2)
Without filter 3.4 (3.6, 3.0)
Oil grade:
API grade SJ, “Energy−Conserving” or
ILSAC multigrade engine oil is recom-
mended.

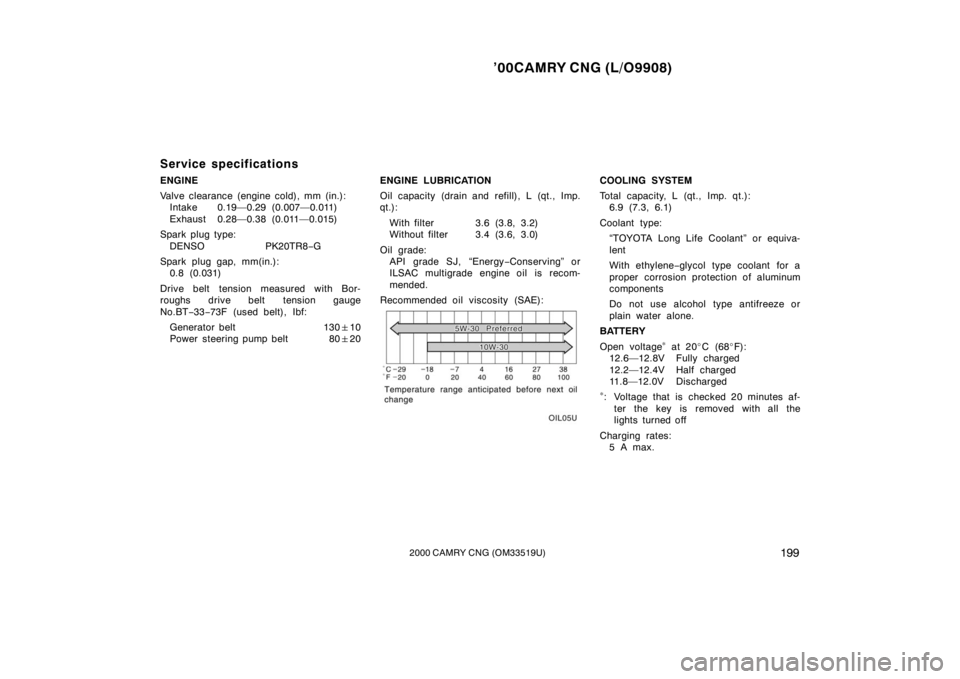

Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
6.9 (7.3, 6.1)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene−glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8V Fully charged
12.2—12.4V Half charged
11.8—12.0V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights turned off
Charging rates:
5 A max.

’00CAMRY CNG (L/O9908)
2002000 CAMRY CNG (OM33519U)
AUTOMATIC TRANSAXLE
Automatic transmission
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 2.5 (2.6, 2.2)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIIl (DEXRONII)
Differential
Fluid capacity L (qt., Imp. qt.):
1.6 (1.7, 1.4)
Fluid type:
Automatic transmission fluid D−II or
DEXRONIII (DEXRONII)
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
70 (2.8)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
5—8 clicksFluid type:
SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
