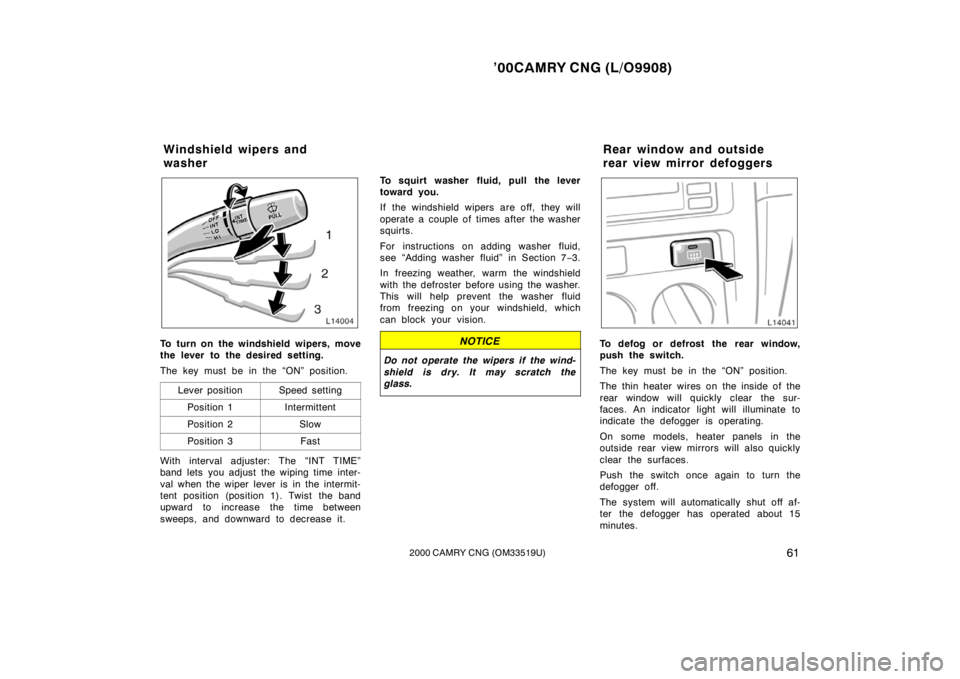

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
On some models, heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
Windshield wipers and
washerRear window and outside
rear view mirror defoggers

’00CAMRY CNG (L/O9908)
622000 CAMRY CNG (OM33519U)
CAUTION
Since the mirror surfaces can get hot
keep your hands off them when the
defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and−go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de−icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires.

’00CAMRY CNG (L/O9908)
632000 CAMRY CNG (OM33519U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 66. . . . . . . . . . . . . . . .
SECTION 1− 5

’00CAMRY CNG (L/O9908)
642000 CAMRY CNG (OM33519U)

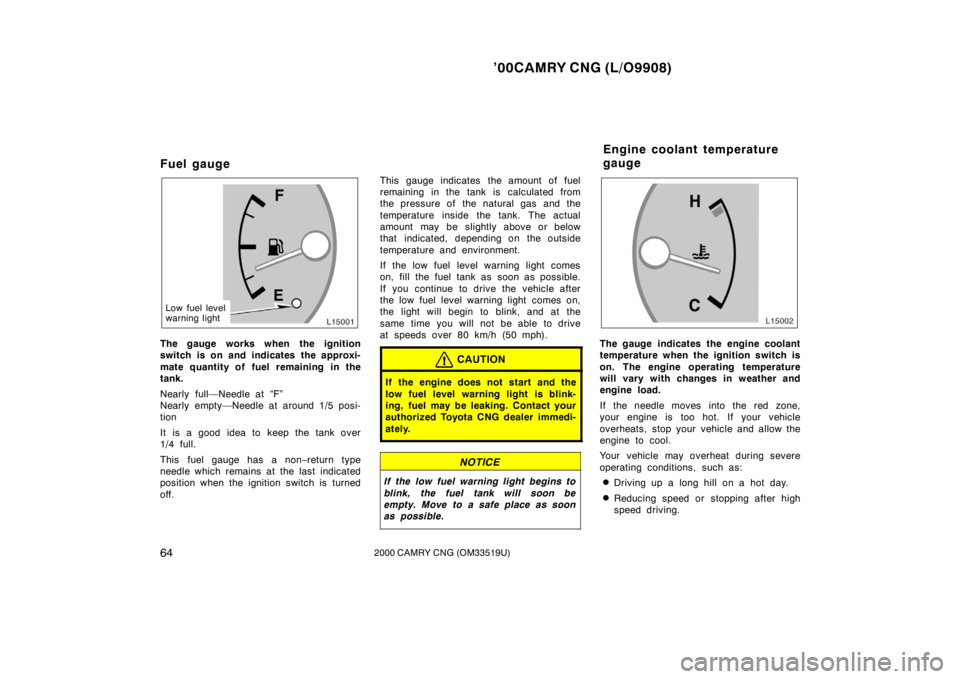

Fuel gauge
Low fuel level
warning light
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Needle at “F”
Nearly empty—Needle at around 1/5 posi-
tion
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non−return type
needle which remains at the last indicated
position when the ignition switch is turned
off.This gauge indicates the amount of fuel
remaining in the tank is calculated from
the pressure of the natural gas and the
temperature inside the tank. The actual
amount may be slightly above or below
that indicated, depending on the outside
temperature and environment.
If the low fuel level warning light comes
on, fill the fuel tank as soon as possible.
If you continue to drive the vehicle after
the low fuel level warning light comes on,
the light will begin to blink, and at the
same time you will not be able to drive
at speeds over 80 km/h (50 mph).
CAUTION
If the engine does not start and the
low fuel level warning light is blink-
ing, fuel may be leaking. Contact your
authorized Toyota CNG dealer immedi-
ately.
NOTICE
If the low fuel warning light begins to
blink, the fuel tank will soon be
empty. Move to a safe place as soon
as possible.
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Engine coolant temperature
gauge

’00CAMRY CNG (L/O9908)
652000 CAMRY CNG (OM33519U)
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm
( revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.

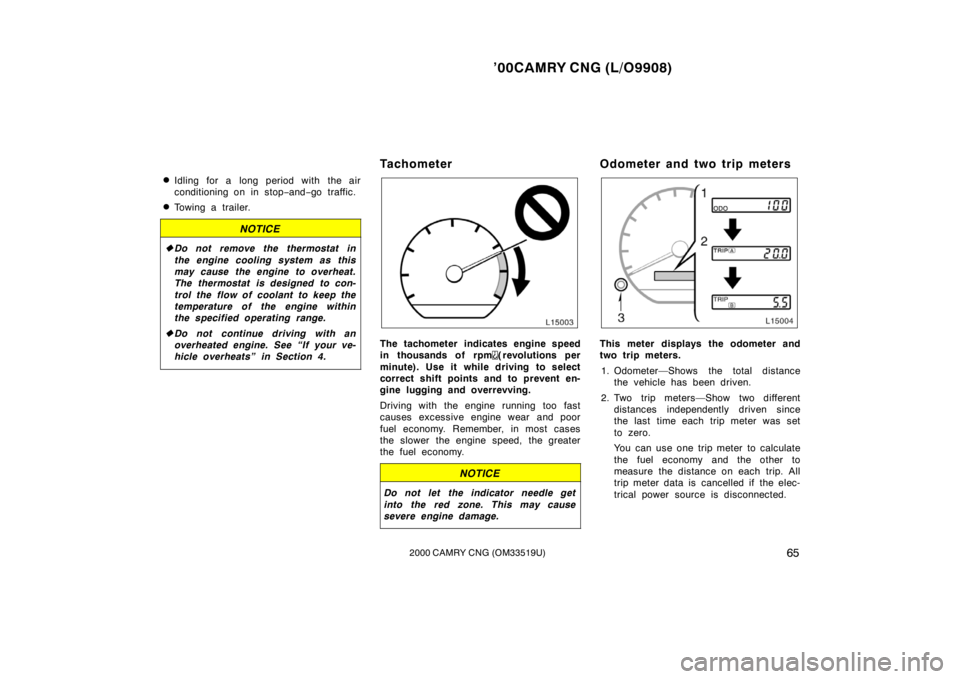

Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.

’00CAMRY CNG (L/O9908)
662000 CAMRY CNG (OM33519U)
3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.(a) If parking brake is
off, stop
immediately and
contact authorized
To y o t a C N G
dealer.
(b) Fasten seat belt.If the indicator or
buzzer below
comes on...
(c) Stop and check.
(d) Take vehicle to
authorized Toyota
CNG dealer.
(e) Fill the tank up.(indicator and buzzer)
Low fuel level
warning lightDo this.
(f) Stop and check.
(g) Take vehicle to
authorized Toyota
CNG dealer.
(h) Close all doors.
(i) Replace bulb.
(j) Take vehicle to
authorized Toyota
CNG dealer
immediately.
Do this.
(k) Add washer fluid.
(l) Remove key.Key reminder
buzzerIf the indicator or
buzzer below
comes on...
Service reminder indicators
an d warn in g bu zzers

’00CAMRY CNG (L/O9908)
672000 CAMRY CNG (OM33519U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is turned on.
When the parking brake is applied...
When the brake fluid level is low...
Have your vehicle checked at your
authorized Toyota CNG dealer in the
following case:
The light does not come on even if the
parking brake is applied with the igni-
tion “ON”.
CAUTION
If the light does not go out even after
the parking brake is released during
the engine running, immediately stop
your vehicle at a safe place and con-
tact your authorized Toyota CNG deal-
er. In this case, the brakes may not
work properly and your stopping dis-
tance will be longer. Depress the
brake pedal firmly.
(b) Seat Belt Reminder Light and Buzz-
er
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light and buzzer
come on if the driver’s seat belt is not
fastened. Unless the driver fastens the
belt, the light stays on and the buzzer
stops after about 4 to 8 seconds.
(c) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest authorized Toyota CNG dealer
or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(d) Malfunction Indicator Lamp
This lamp warns that there is a problem
somewhere in your engine or automatic
transmission electrical system.
If it comes on while you are driving, have
your vehicle checked/repaired by your au-
thorized Toyota CNG dealer as soon as
possible.
(e) Low Fuel Level Warning Light
This light comes on when the amount of
natural gas remaining in the tank drops to
about 1/5.
If you continue to drive the vehicle after
the low fuel level warning light comes on,
the light will begin to blink, and at the
same time you will not be able to drive
at speeds over 80 km/h (50 mph).
When the outside temperature is below
−30°C (−22°F), the fuel gauge may indi-
cate an amount less than actual amount
and the indicator may come on.
CAUTION
If the engine does not start and the
low fuel level warning light is blink-
ing, fuel may be leaking. Contact your
authorized Toyota CNG dealer immedi-
ately.

’00CAMRY CNG (L/O9908)
682000 CAMRY CNG (OM33519U)
NOTICE
If the low fuel warning light begins to
blink, the fuel tank will soon be
empty. Move to a safe place as soon
as possible.
(f) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call your
authorized Toyota CNG dealer or qualified
repair shop for assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(g) “ABS” Warning Light
The light comes on with the ignition key
turned to “ON”. If the anti−lock brake sys-
tem works properly, the light goes out
after a few seconds. Thereafter, if the
system malfunctions, the light comes on.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If the following conditions occur, this
indicates a malfunction somewhere in
the parts monitored by the warning
light system. Contact your authorized
Toyota CNG dealer as soon as possible
to service the vehicle.
The light does not come on with the
ignition key turned to “ON”, or remains
on.
The light comes on while driving.If the light lit during driving goes out and
does not come on again, it is a normal
operation.
(h) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(i) Rear Light Failure Warning Light
If this light comes on when the headlight
switch is turned on (at the first or second
clickstop), it indicates that one or more of
the tail lights are burned out.
If it comes on when the brake pedal is
depressed, one or more stop lights are
burned out.
Have defective bulbs replaced as soon as
possible.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ACC” or
“ON” position. After about 6 seconds,
the light will go off. This means the
systems of the airbag and front seat
belt pretensioner are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources.

’00CAMRY CNG (L/O9908)
692000 CAMRY CNG (OM33519U)
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your authorized Toyota
CNG dealer as soon as possible to ser-
vice the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position or remains on.
The light comes on or flashes while
driving.
(k) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” in Section 7−3.)
(l) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the doors.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to “ACC”.
The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
“ABS” warning light goes off after a
few seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, either the bulb is burned out or the
circuit is in need of repair. Have it
checked by your authorized Toyota CNG
dealer as soon as possible.

’00CAMRY CNG (L/O9908)
702000 CAMRY CNG (OM33519U)
