3. Trip meter reset knob—Resets the twotrip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.

’07Camry hybrid_U (L/O 0610)
140
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MessageStatusAction
aParking brake is not released.Release parking brake.
bEngine oil pressure is low.Stop and check.
cHybrid system malfunction is detected.Stop your vehicle and call a Toyota dealer.
dCoolant temperature is high.Stop your vehicle immediately.
eThe temperature for the inverter, traction motor or
motor generator is high.Stop your vehicle immediately.
—Messages

’07Camry hybrid_U (L/O 0610)
141
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MessageStatusAction
fAny of doors are opened.Close doors completely.
gTrunk is opened.Close trunk completely.
hMalfunction of VSC function is detected.Take vehicle to your Toyota dealer.
iTransmission is out of the “P” position when starting
the hybrid system.Shift the transmission to the “P” position when
starting the hybrid system.

’07Camry hybrid_U (L/O 0610)
142
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MessageStatusAction
jHybrid battery is discharged or its voltage is low.Stop and check.
kTransmission selector lever is not set “P” position.Shift the transmission selector lever to “P” position.
lBrake pedal is not depressed when starting the
hybrid system.Depress brake pedal firmly.
mTransmission selector lever is not set “P” position.Shift the transmission selector lever to “P” position.
n
“POWER” switch is not turned off when getting out
vehicle carrying the electronic key.
Electronic key is not detected in the vehicle when
“POWER” switch is set at ON.
Turn hybrid system off.
Confirm that the key is in the vehicle.
oElectronic key battery is low.Replace key battery.
pSteering lock system malfunction is detected.Contact your Toyota dealer.

’07Camry hybrid_U (L/O 0610)
143
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MessageStatusAction

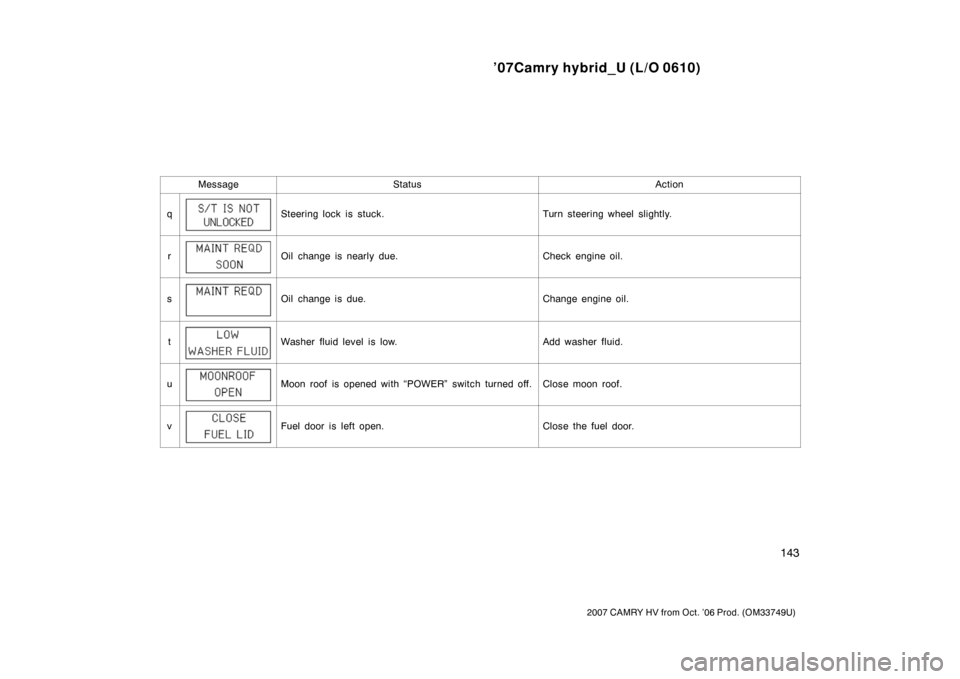

qSteering lock is stuck.Turn steering wheel slightly.
rOil change is nearly due.Check engine oil.
sOil change is due.Change engine oil.
tWasher fluid level is low.Add washer fluid.
uMoon roof is opened with “POWER” switch turned off.Close moon roof.
vFuel door is left open.Close the fuel door.

’07Camry hybrid_U (L/O 0610)
144
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

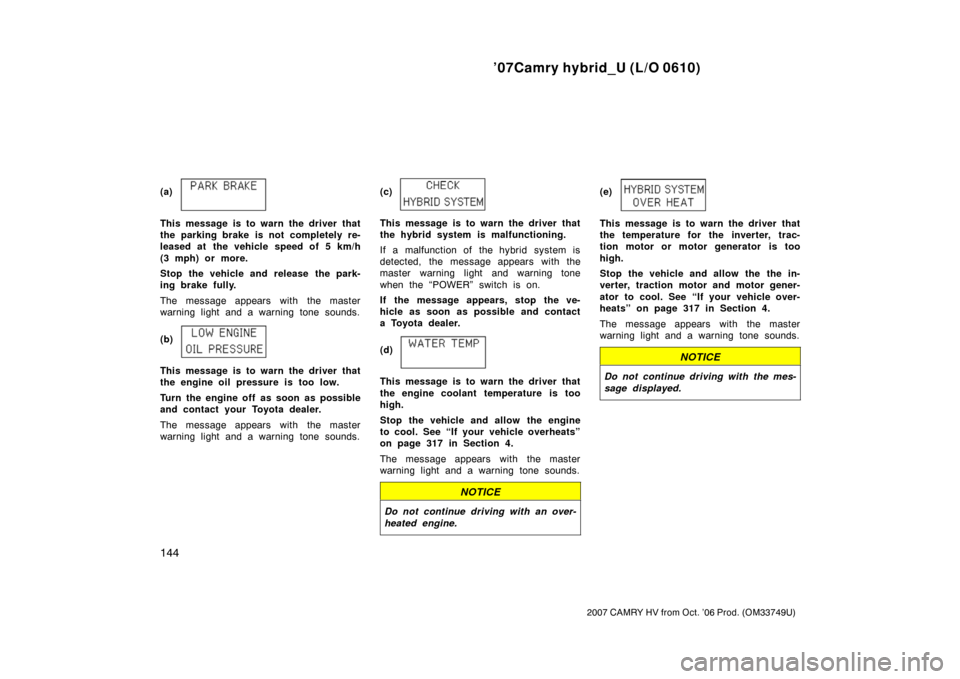

(a)
This message is to warn the driver that
the parking brake is not completely re-
leased at the vehicle speed of 5 km/h
(3 mph) or more.
Stop the vehicle and release the park-
ing brake fully.
The message appears with the master
warning light and a warning tone sounds.
(b)
This message is to warn the driver that
the engine oil pressure is too low.
Turn the engine off as soon as possible
and contact your Toyota dealer.
The message appears with the master
warning light and a warning tone sounds.(c)
This message is to warn the driver that
the hybrid system is malfunctioning.
If a malfunction of the hybrid system is
detected, the message appears with the
master warning light and warning tone
when the “POWER” switch is on.
If the message appears, stop the ve-
hicle as soon as possible and contact
a Toyota dealer.
(d)
This message is to warn the driver that
the engine coolant temperature is too
high.
Stop the vehicle and allow the engine
to cool. See “If your vehicle overheats”
on page 317 in Section 4.
The message appears with the master
warning light and a warning tone sounds.
NOTICE
Do not continue driving with an over-
heated engine.
(e)
This message is to warn the driver that
the temperature for the inverter, trac-
tion motor or motor generator is too
high.
Stop the vehicle and allow the the in-
verter, traction motor and motor gener-
ator to cool. See “If your vehicle over-
heats” on page 317 in Section 4.
The message appears with the master
warning light and a warning tone sounds.
NOTICE
Do not continue driving with the mes-
sage displayed.

’07Camry hybrid_U (L/O 0610)
145
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

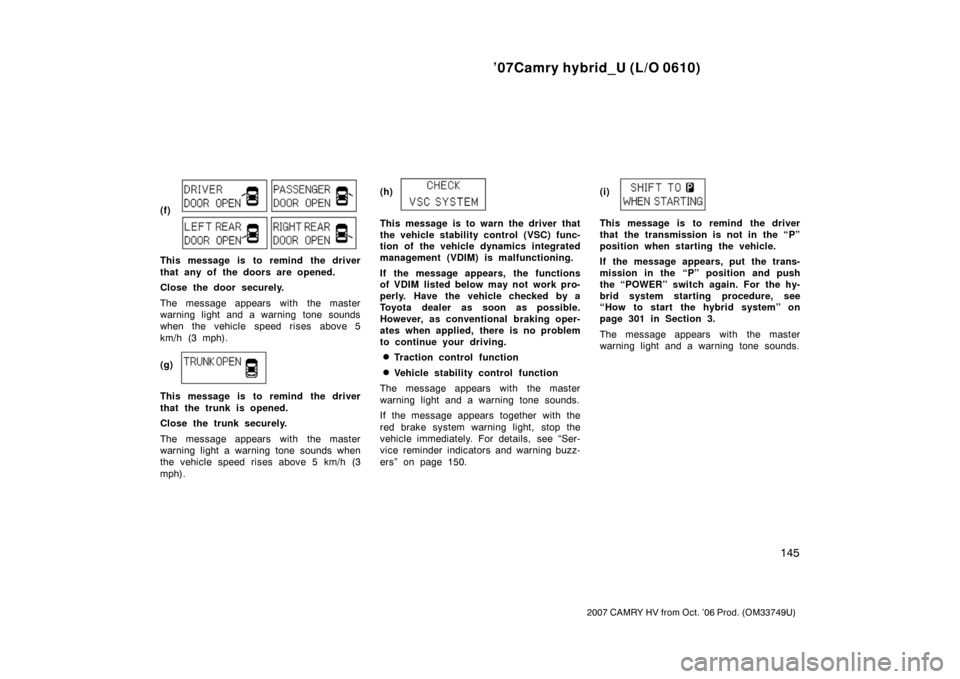

(f)
This message is to remind the driver
that any of the doors are opened.
Close the door securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).
(g)
This message is to remind the driver
that the trunk is opened.
Close the trunk securely.
The message appears with the master
warning light a warning tone sounds when
the vehicle speed rises above 5 km/h (3
mph).(h)
This message is to warn the driver that
the vehicle stability control (VSC) func-
tion of the vehicle dynamics integrated
management (VDIM) is malfunctioning.
If the message appears, the functions
of VDIM listed below may not work pro-
perly. Have the vehicle checked by a
Toyota dealer as soon as possible.
However, as conventional braking oper-
ates when applied, there is no problem
to continue your driving.
Traction control function
Vehicle stability control function
The message appears with the master
warning light and a warning tone sounds.
If the message appears together with the
red brake system warning light, stop the
vehicle immediately. For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 150. (i)
This message is to remind the driver
that the transmission is not in the “P”
position when starting the vehicle.
If the message appears, put the trans-
mission in the “P” position and push
the “POWER” switch again. For the hy-
brid system starting procedure, see
“How to start the hybrid system” on
page 301 in Section 3.
The message appears with the master
warning light and a warning tone sounds.

’07Camry hybrid_U (L/O 0610)
146
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

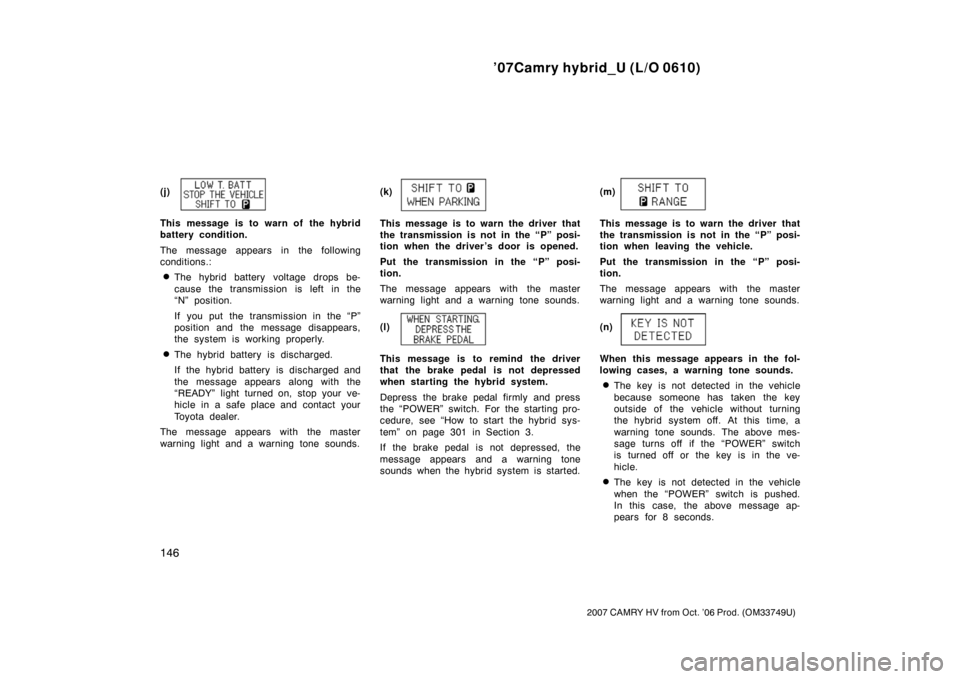

(j)
This message is to warn of the hybrid
battery condition.
The message appears in the following
conditions.:
The hybrid battery voltage drops be-
cause the transmission is left in the
“N” position.
If you put the transmission in the “P”
position and the message disappears,
the system is working properly.
The hybrid battery is discharged.
If the hybrid battery is discharged and
the message appears along with the
“READY” light turned on, stop your ve-
hicle in a safe place and contact your
Toyota dealer.
The message appears with the master
warning light and a warning tone sounds. (k)
This message is to warn the driver that
the transmission is not in the “P” posi-
tion when the driver’s door is opened.
Put the transmission in the “P” posi-
tion.
The message appears with the master
warning light and a warning tone sounds.
(l)
This message is to remind the driver
that the brake pedal is not depressed
when starting the hybrid system.
Depress the brake pedal firmly and press
the “POWER” switch. For the starting pro-
cedure, see “How to start the hybrid sys-
tem” on page 301 in Section 3.
If the brake pedal is not depressed, the
message appears and a warning tone
sounds when the hybrid system is started.(m)

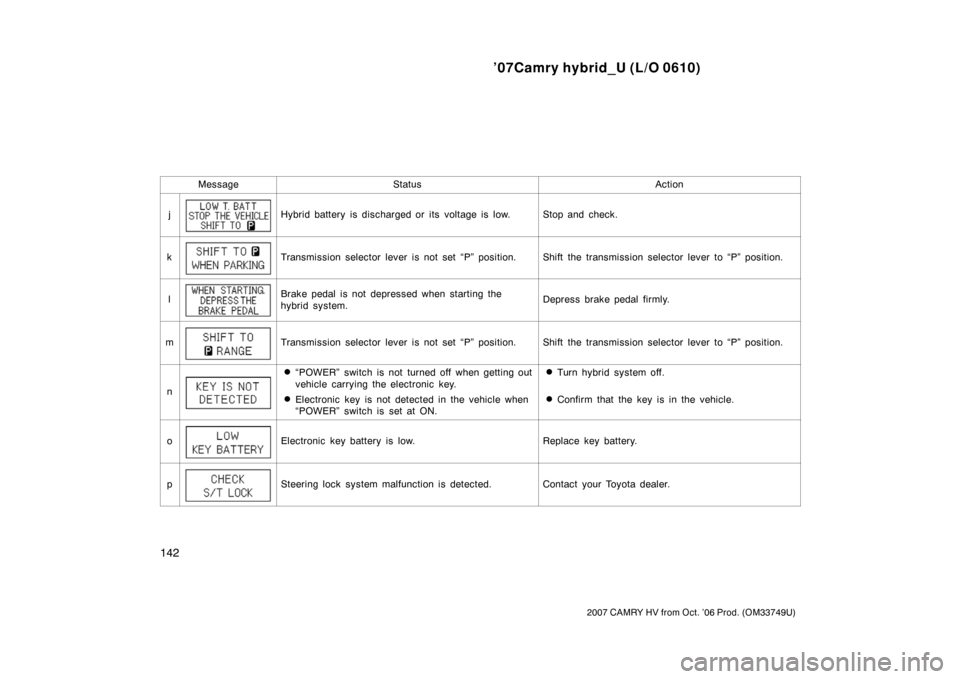

This message is to warn the driver that
the transmission is not in the “P” posi-
tion when leaving the vehicle.
Put the transmission in the “P” posi-
tion.
The message appears with the master
warning light and a warning tone sounds.
(n)
When this message appears in the fol-
lowing cases, a warning tone sounds.
The key is not detected in the vehicle
because someone has taken the key
outside of the vehicle without turning
the hybrid system off. At this time, a
warning tone sounds. The above mes-
sage turns off if the “POWER” switch
is turned off or the key is in the ve-
hicle.
The key is not detected in the vehicle
when the “POWER” switch is pushed.
In this case, the above message ap-
pears for 8 seconds.

’07Camry hybrid_U (L/O 0610)
147
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

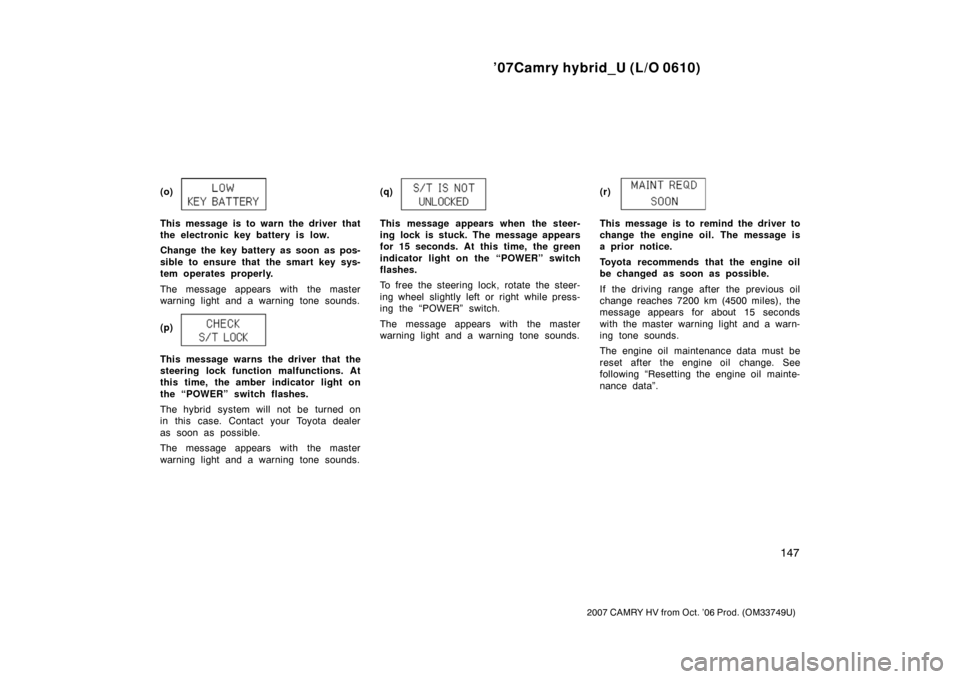

(o)
This message is to warn the driver that
the electronic key battery is low.
Change the key battery as soon as pos-
sible to ensure that the smart key sys-
tem operates properly.
The message appears with the master
warning light and a warning tone sounds.
(p)
This message warns the driver that the
steering lock function malfunctions. At
this time, the amber indicator light on
the “POWER” switch flashes.
The hybrid system will not be turned on
in this case. Contact your Toyota dealer
as soon as possible.
The message appears with the master
warning light and a warning tone sounds.(q)
This message appears when the steer-
ing lock is stuck. The message appears
for 15 seconds. At this time, the green
indicator light on the “POWER” switch
flashes.
To free the steering lock, rotate the steer-
ing wheel slightly left or right while press-
ing the “POWER” switch.
The message appears with the master
warning light and a warning tone sounds.
(r)This message is to remind the driver to
change the engine oil. The message is
a prior notice.
Toyota recommends that the engine oil
be changed as soon as possible.
If the driving range after the previous oil
change reaches 7200 km (4500 miles), the
message appears for about 15 seconds
with the master warning light and a warn-
ing tone sounds.
The engine oil maintenance data must be
reset after the engine oil change. See
following “Resetting the engine oil mainte-
nance data”.

’07Camry hybrid_U (L/O 0610)
148
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
(s)
This message is to remind the driver to
change the engine oil.
Change the engine oil as soon as pos-
sible.
If the driving range after the previous oil
change reaches 8000 km (5000 miles), the
message appears with the master warning
light and a warning tone sounds. The
message stays on with the “POWER”
switch set at ON.
The engine oil maintenance data must be
reset after the engine oil change. See
“Resetting the engine oil maintenance
data” below for the procedure to reset the
system.Resetting the engine oil maintenance
data
The engine oil maintenance data must be
reset after replacement of the engine oil.
Reset the data by the following procedure:
1. Turn off the hybrid system with the trip meter A reading shown.
For details, see “—Odometer and two trip
meters” on page 138 in this Section. 2. The “POWER” switch must be set at ON while holding down the trip meter
reset knob. A message “OIL MILEAGE
RESET MODE” will appear on the dis-
play.
3. Hold down the knob at least 5 sec- onds. A message “COMPLETE” will ap-
pear and the message “OIL MILEAGE

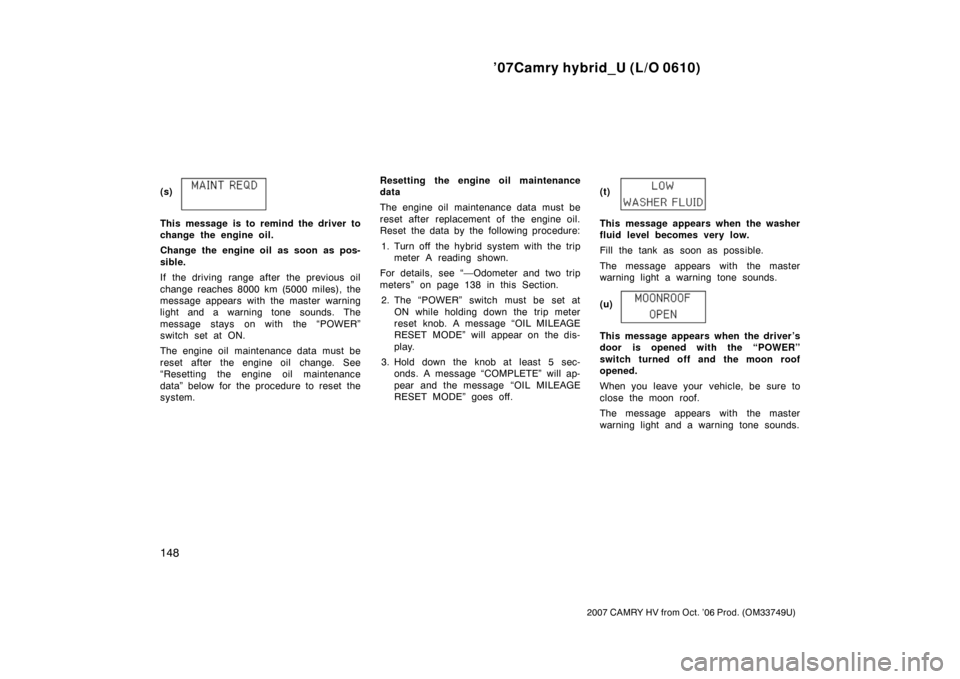

RESET MODE” goes off. (t)This message appears when the washer
fluid level becomes very low.
Fill the tank as soon as possible.
The message appears with the master
warning light a warning tone sounds.
(u)
This message appears when the driver ’s
door is opened with the “POWER”
switch turned off and the moon roof
opened.
When you leave your vehicle, be sure to
close the moon roof.
The message appears with the master
warning light and a warning tone sounds.
