TOYOTA CAMRY HYBRID 2009 XV40 / 8.G Owners Manual

251
3-5. Using the
storage features
3
Interior features
Auxiliary boxes
Driver's side instrument panel Pull the handle.
Overhead console Push the lid.
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders and auxiliary boxes

252 3-5. Using the storage features
Front consolePush the lid.
■Cable pass-through
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
■ Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
The auxiliary box of the front console is
provided with a hole that allows cables to
be passed into the cabin from the inside
power outlet and AUX adapter.
Remove the lid.
Push out and remove the outer lid.
Auxiliary boxes

253
3
Interior features
3-6. Other interior features

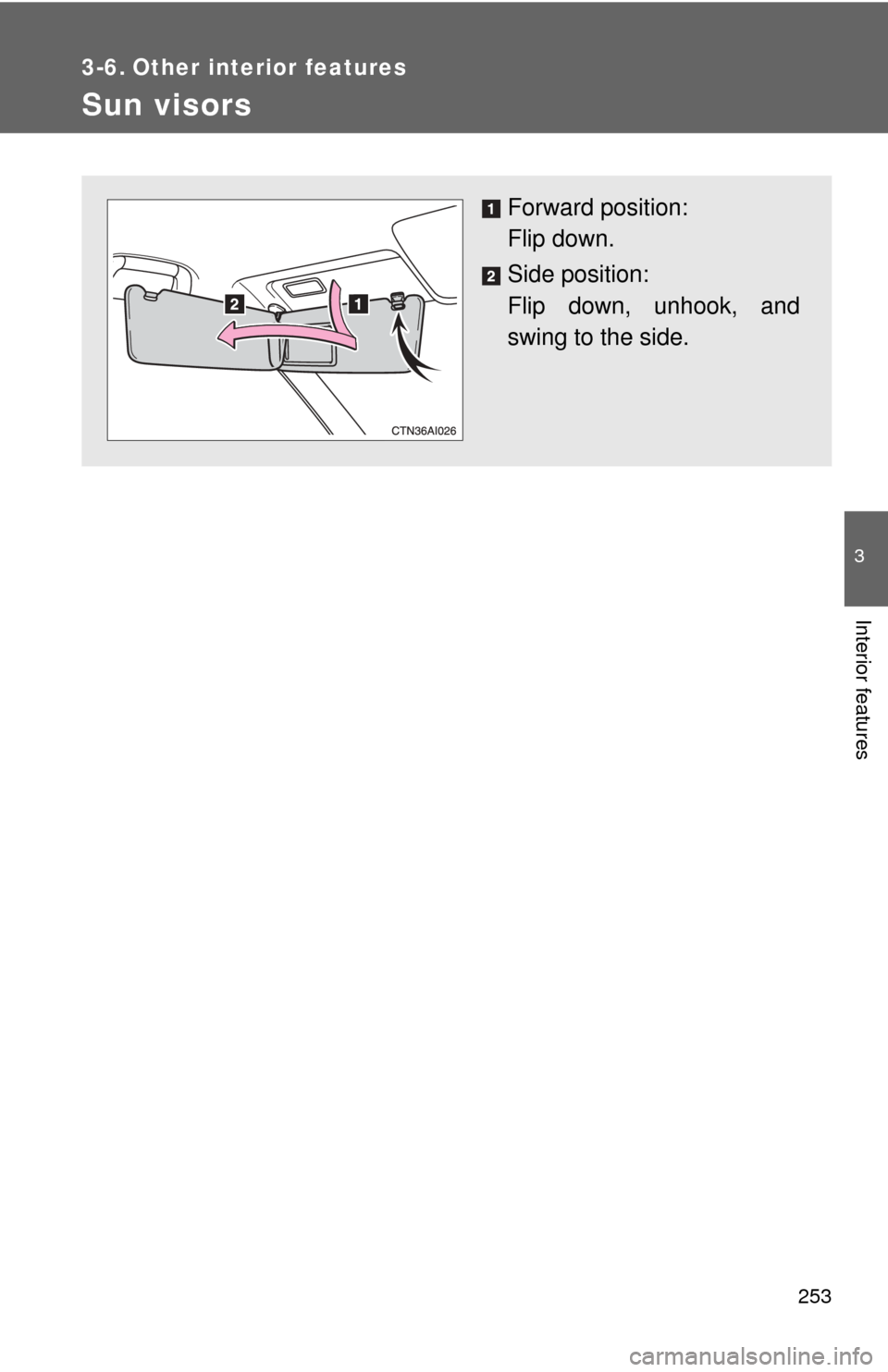

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

254
3-6. Other interior features

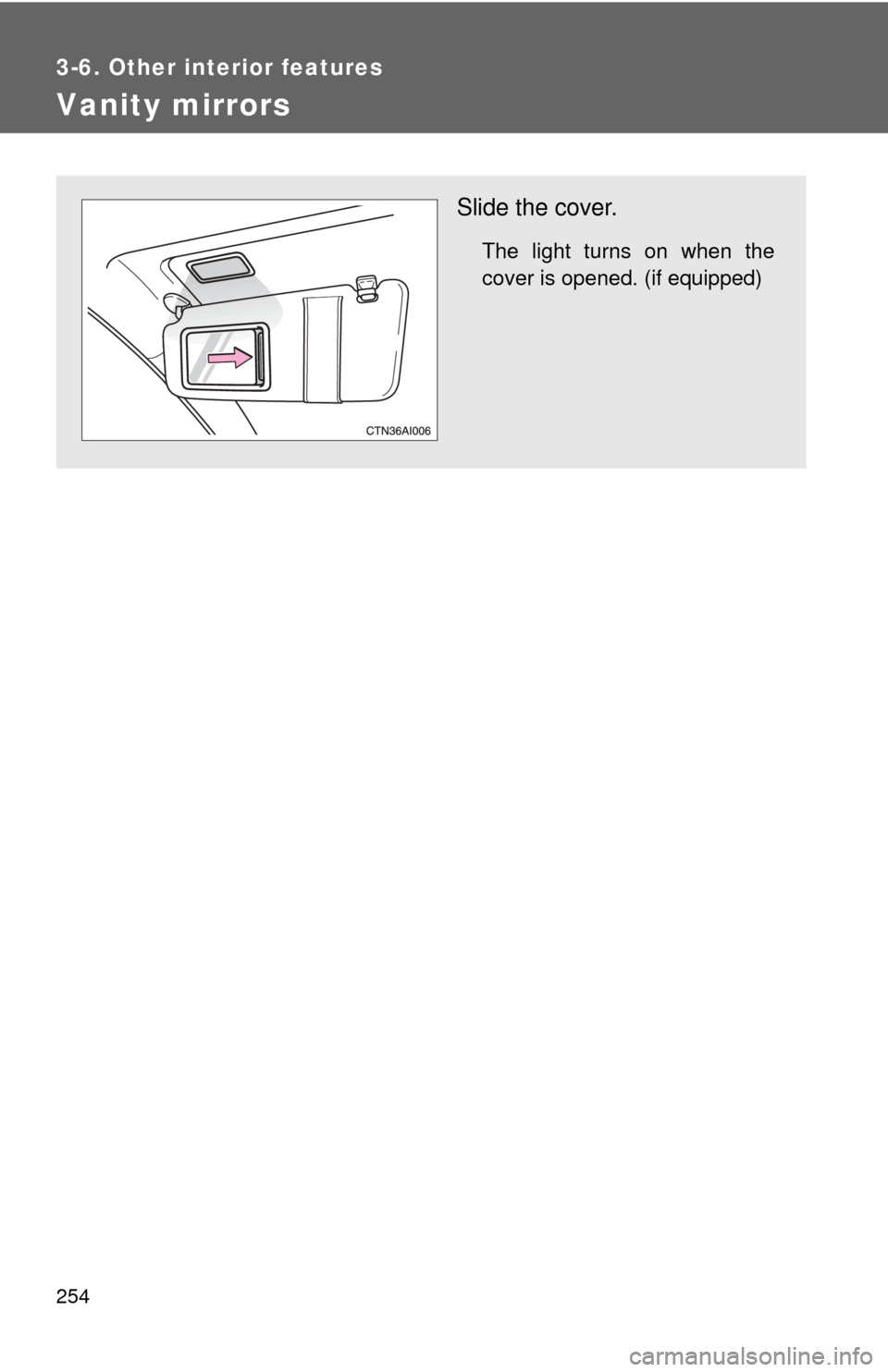

Vanity mirrors
Slide the cover.
The light turns on when the
cover is opened. (if equipped)

255
3-6. Other interior features
3
Interior features
Clock
■The clock is displayed when
The “POWER” switch is in ACCESSORY or ON mode.
Adjusts the hour.
Adjusts the minutes.

256
3-6. Other interior features
Ashtrays (if equipped)
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of an accident or sudden braking.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
An ashtray can be installed in
a cup holder. ( →P. 250)

257
3-6. Other interior features
3
Interior features
Power outlet
■The power outlet can be used when
The “POWER” switch is in ACCESSORY or ON mode.
■ Cable pass-through
Connected cables can be passed through the hole in the auxiliary box to the
front passenger’s side of the auxiliary box. ( →P. 252)
The power outlet can be used for 12 V accessories that run on less
than 10 A.
Ty p e A
Ty p e B

258 3-6. Other interior features
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent the 12-volt battery from being discharged
Do not use the power outlet longer than necessary when the hybrid system
is off.

259
3-6. Other interior features
3
Interior features
Seat heaters (if equipped)
■The seat heaters can be used when
The “POWER” switch is in ON mode.
■ When not in use
Turn the seat heater off. The indicator light turns off.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Heats the left front seat
Heats the right front seat
The indicator light comes on.

260 3-6. Other interior features
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent the 12-volt battery from being discharged
Turn the switches off when the hybrid system is off.
