TOYOTA CAMRY HYBRID 2009 XV40 / 8.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

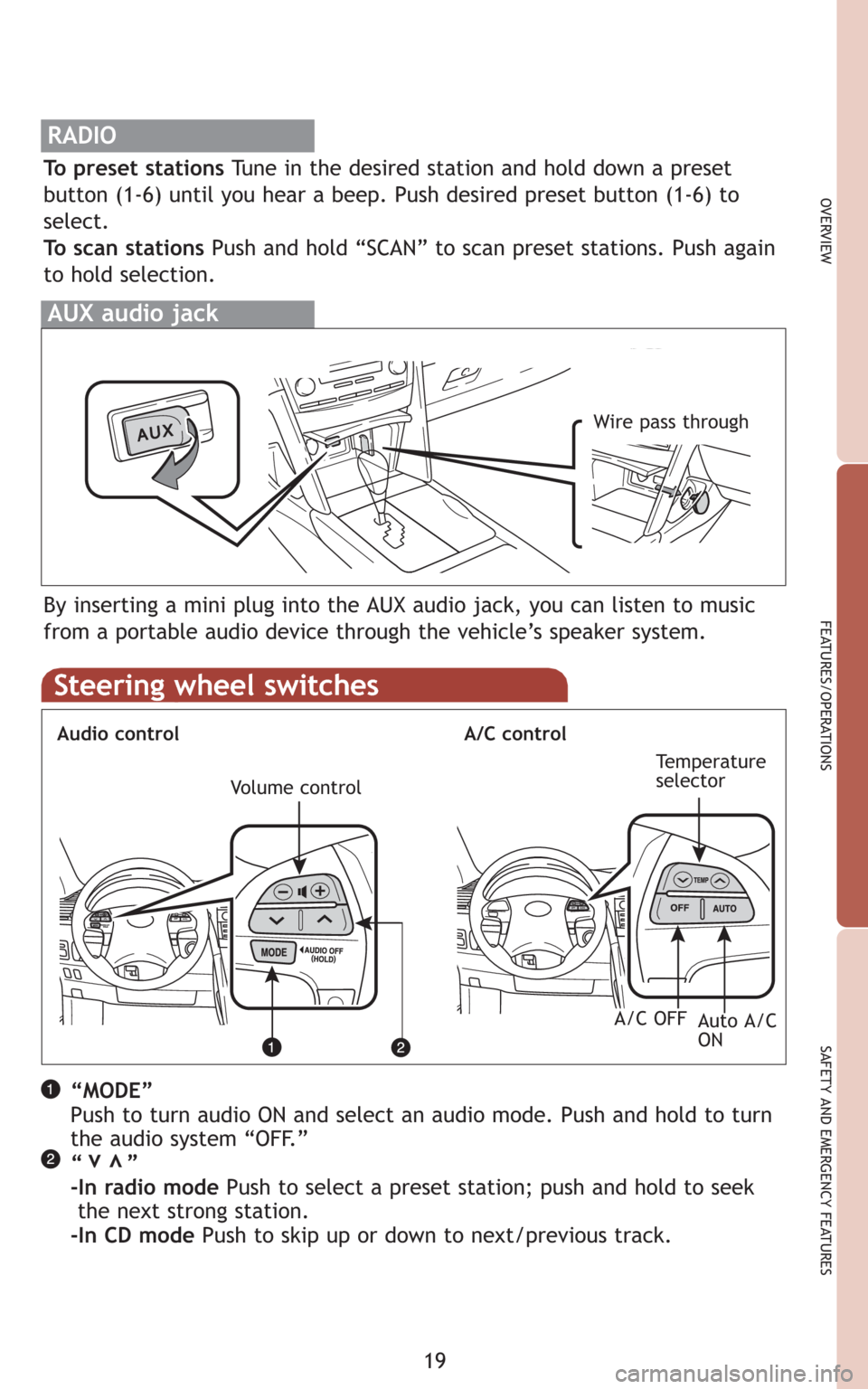

Steering wheel switches
Audio controlA/C control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system “OFF.”
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
vv
Volume controlTemperature
selector
Auto A/C
ON
A/C OFF
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system.
AUX audio jack
19
Wire pass through

20
FEATURES/OPERATIONS

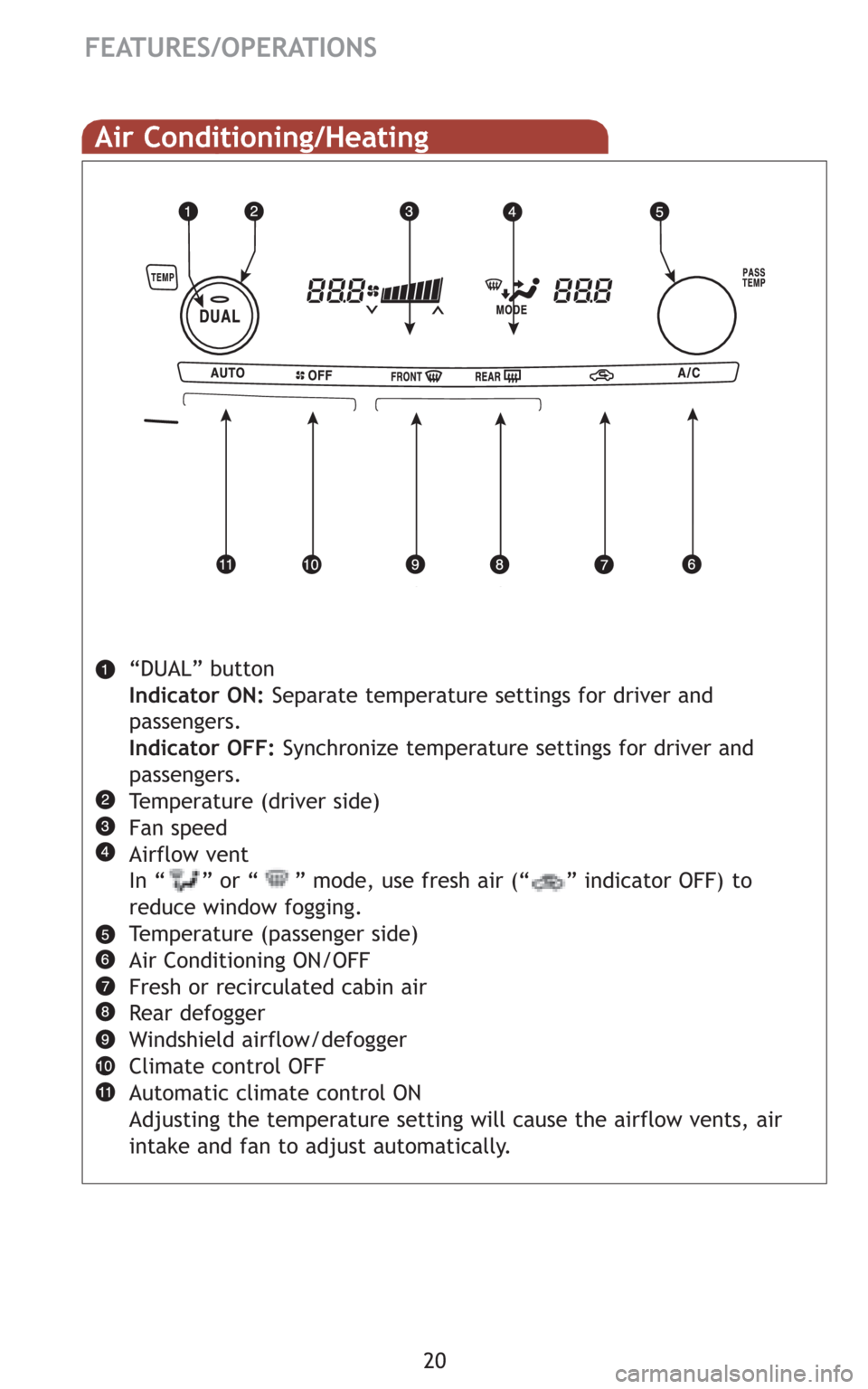

Air Conditioning/Heating
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passengers.
Indicator OFF:Synchronize temperature settings for driver and
passengers.
Temperature (driver side)
Fan speed
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Temperature (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Rear defogger
Windshield airflow/defogger
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

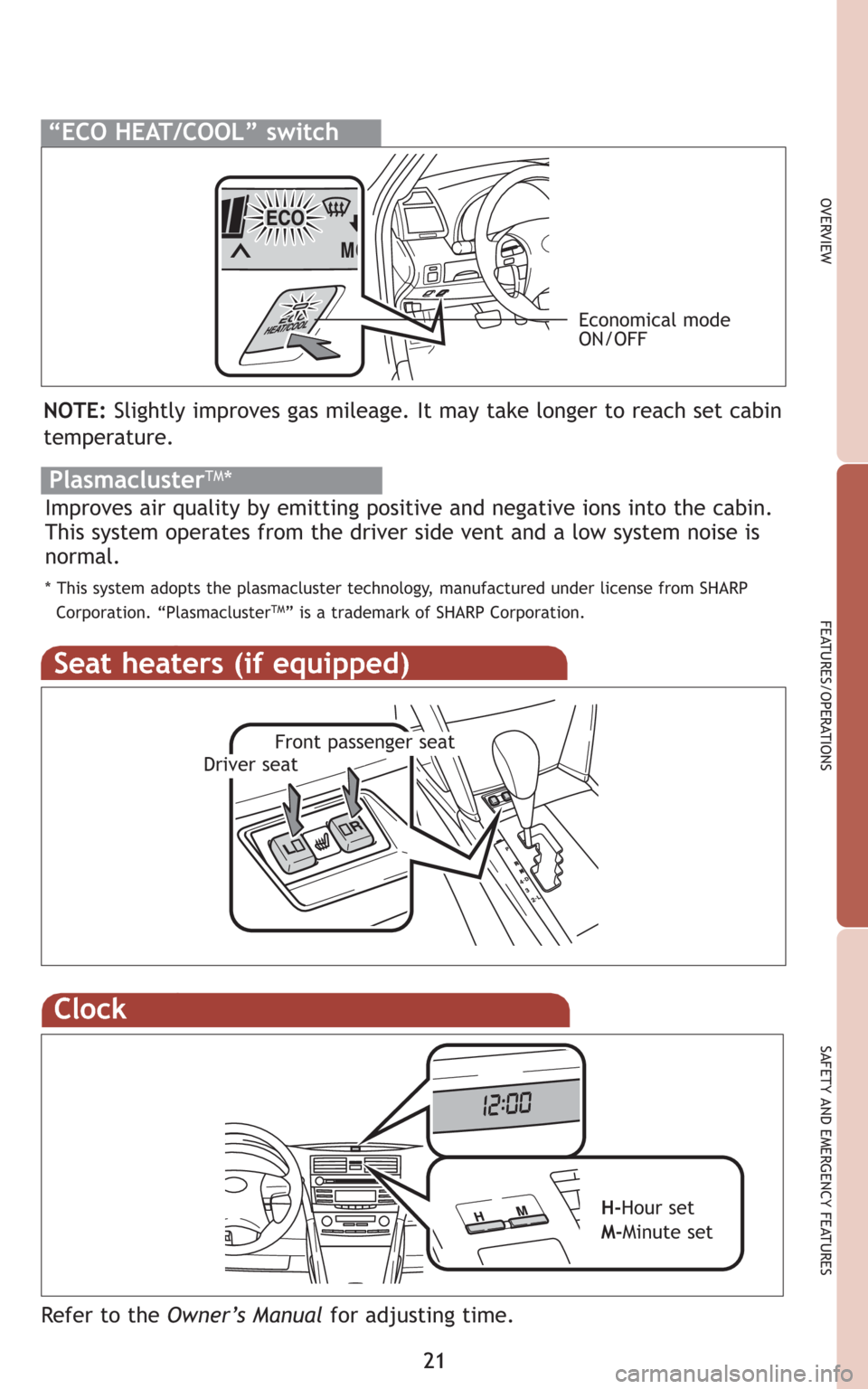

Seat heaters (if equipped)
Front passenger seatDriver seat
Clock
H-Hour set
M-Minute set
Refer to the Owner’s Manualfor adjusting time.
21
“ECO HEAT/COOL” switch
Economical mode
ON/OFF
NOTE:Slightly improves gas mileage. It may take longer to reach set cabin
temperature.
PlasmaclusterTM*
* This system adopts the plasmacluster technology, manufactured under license from SHARP
Corporation. “PlasmaclusterTM” is a trademark of SHARP Corporation.
Improves air quality by emitting positive and negative ions into the cabin.
This system operates from the driver side vent and a low system noise is
normal.

22
FEATURES/OPERATIONS

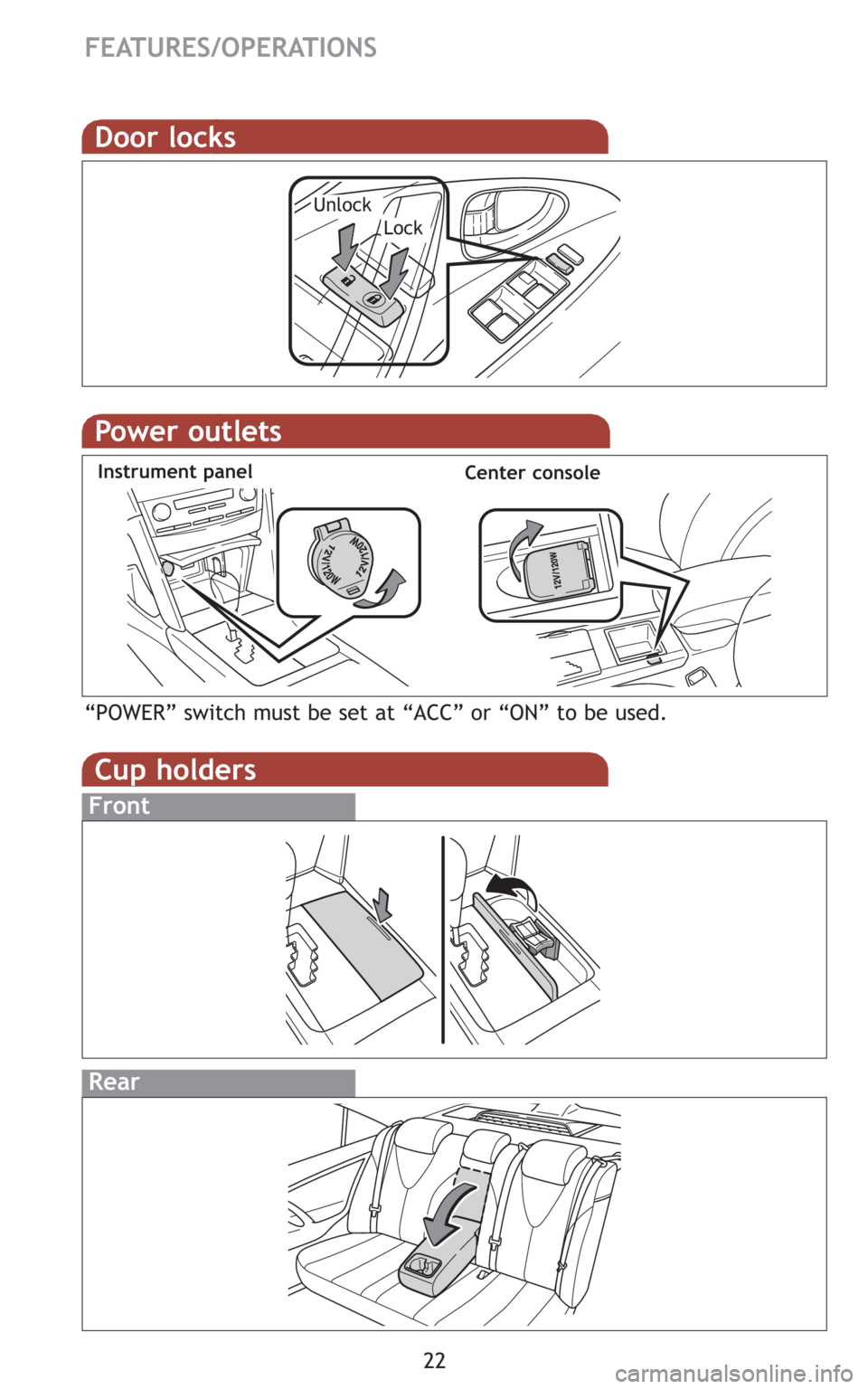

Door locks
LockUnlock
Power outlets
Instrument panel
“POWER” switch must be set at “ACC” or “ON” to be used.
Center console
Cup holders
Front
Rear

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
SAFETY AND
EMERGENCY FEATURES

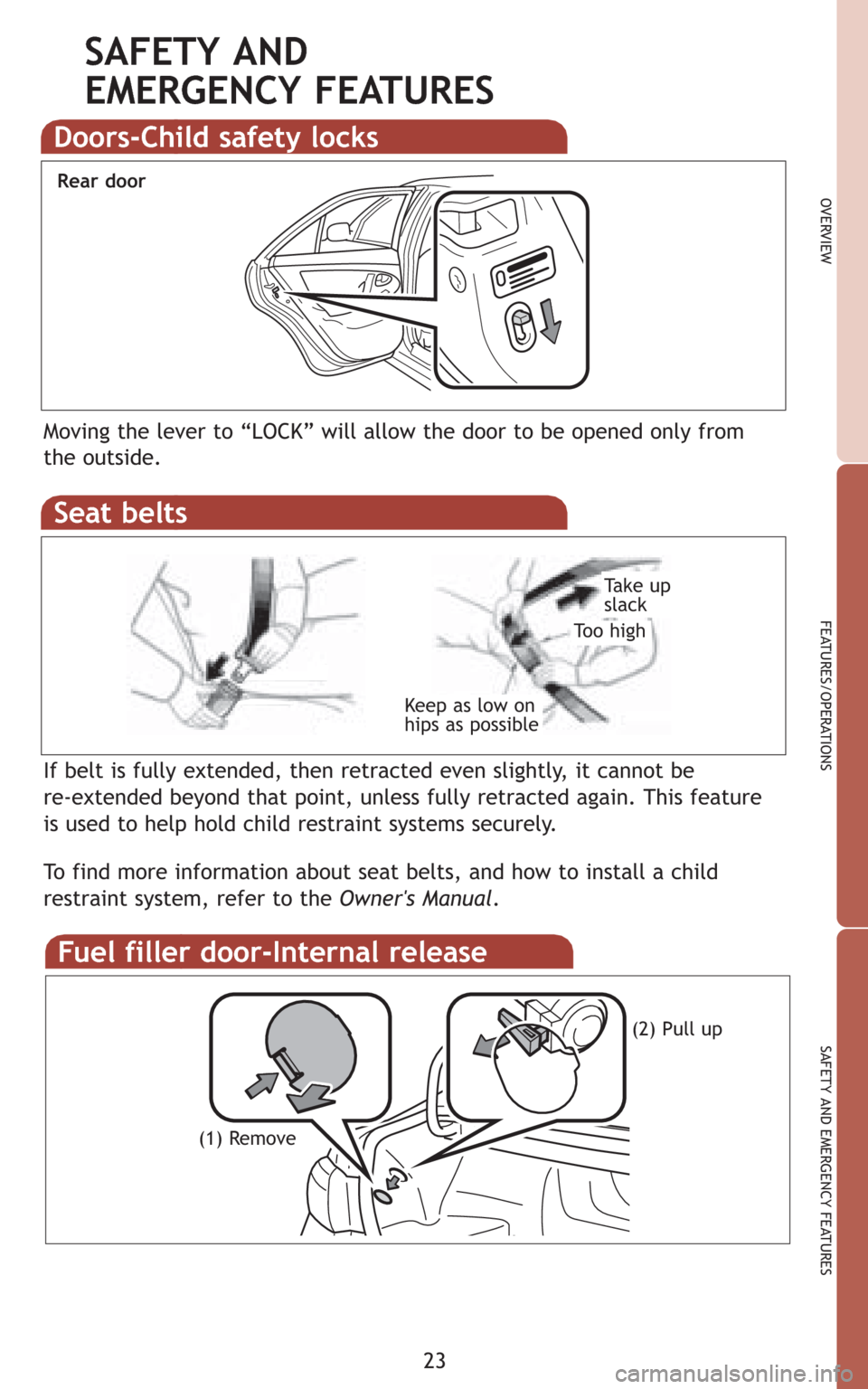

Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
Fuel filler door-Internal release
(2) Pull up
(1) Remove
23

24
SAFETY AND EMERGENCY FEATURE
Push up, or
squeeze lock
release to lower

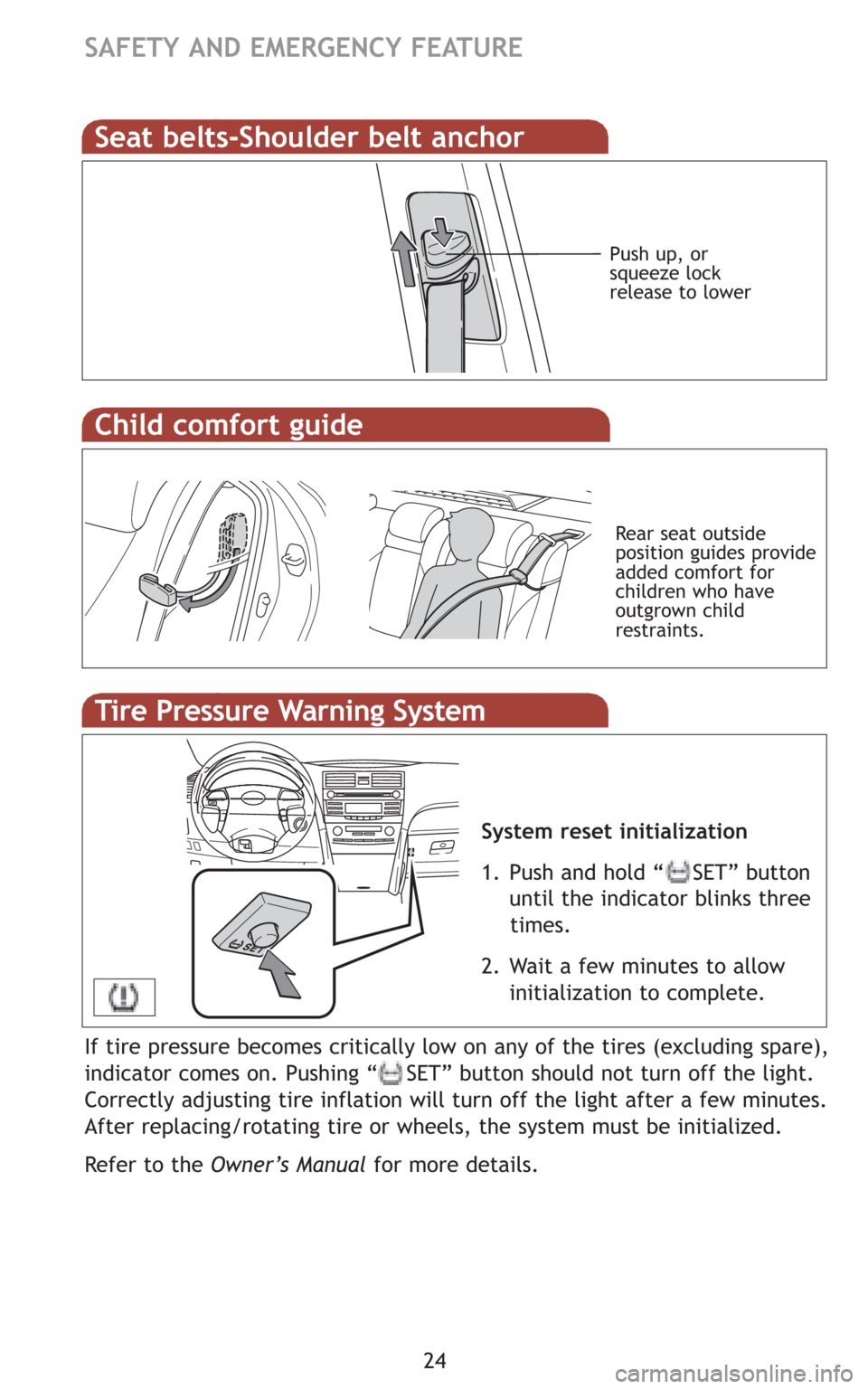

Tire Pressure Warning System
If tire pressure becomes critically low on any of the tires (excluding spare),
indicator comes on. Pushing “ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the light after a few minutes.
After replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor more details.
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Seat belts-Shoulder belt anchor
Rear seat outside
position guides provide
added comfort for
children who have
outgrown child
restraints.
Child comfort guide
