TOYOTA CAMRY HYBRID 2012 XV50 / 9.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
9
Hood release
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Pull up latch and raise hood
Pull
resize-camry.qxd 10/12/11 4:50 AM Page 9

10
FEATURES/OPERATIONS
Tr a
1 Thefro
2 Thebra
Ste
Au
Auto
turn
-
Doo
-Doo
-Doo
-Doo
doo
Refe
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “ ” will be displayed on the multi-information
display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline eng\
ine
and electric motor to provide the most efficient combination of power for t\
he
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the multi-information display and/or navigation system
screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking ener\
gy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Gent
the s
resize-camry.qxd 10/12/11 4:50 AM Page 10

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
11
Transmission
1 The “POWER” switch must be set at “ON” and the brake pedal depr\
essed to shift
from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when\
enginebraking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Turn
Push
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF and driver’s
door is opened.
Refer to the Owner’s Manual for more details.
tion
e
e
ual
.
hway.
Gently turn wheel while pressing the “POWER” switch. If the lock does no\
t release,
the switch indicator will flash green.
resize-camry.qxd 10/12/11 4:51 AM Page 11

12
FEATURES/OPERATIONS
Wi
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic operation (driver’s window only) Push the switch completely down or
pull it completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Parking brake
Set: Depress
Release: Depress again

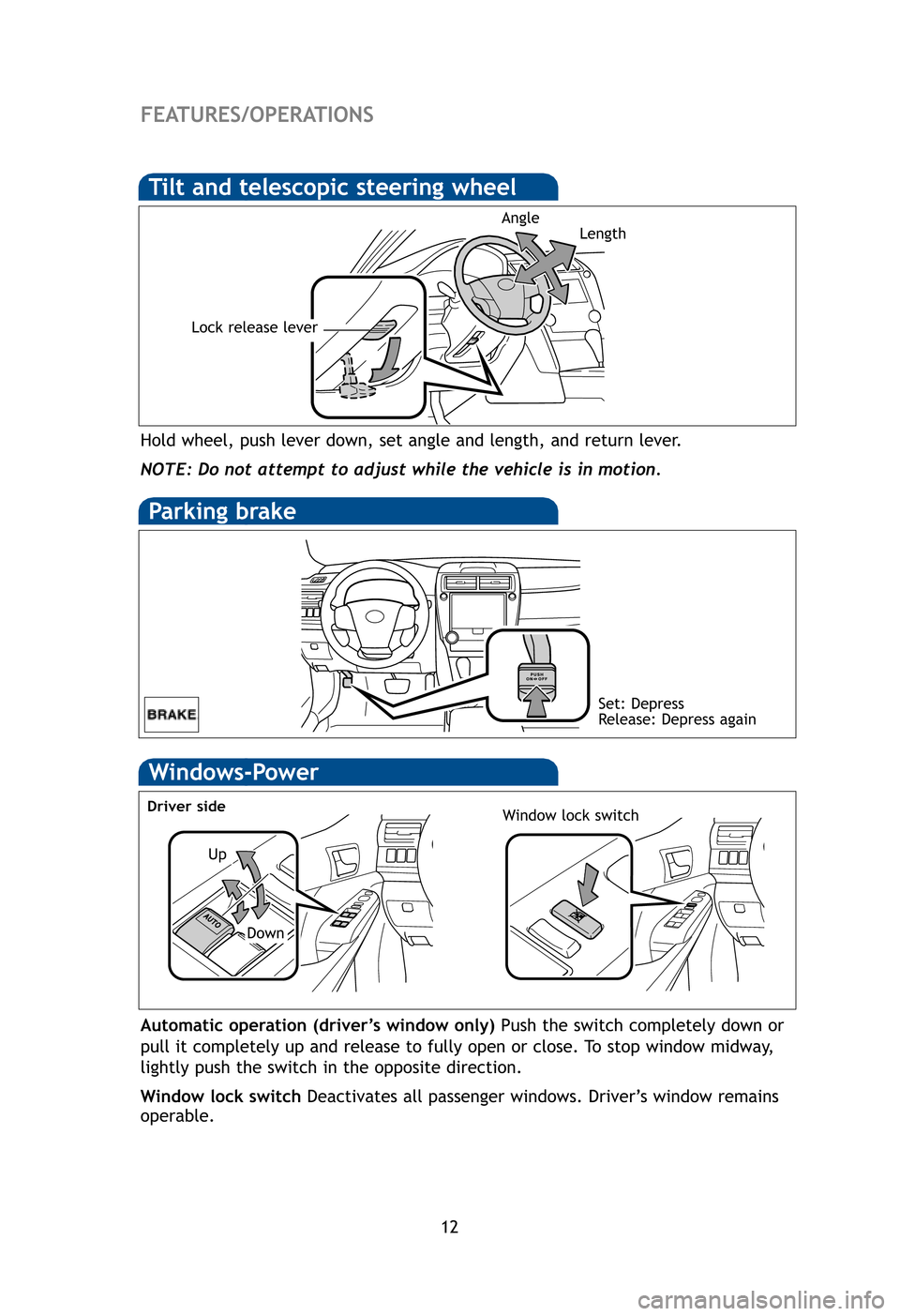

Hold wheel, push lever down, set angle and length, and return lever.
Angle Length
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lig
* In
Ro
Tu r
Hea
Fro
-Da
red
-Au aft
Par
Fron
resize-camry.qxd 10/12/11 4:51 AM Page 12

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
13

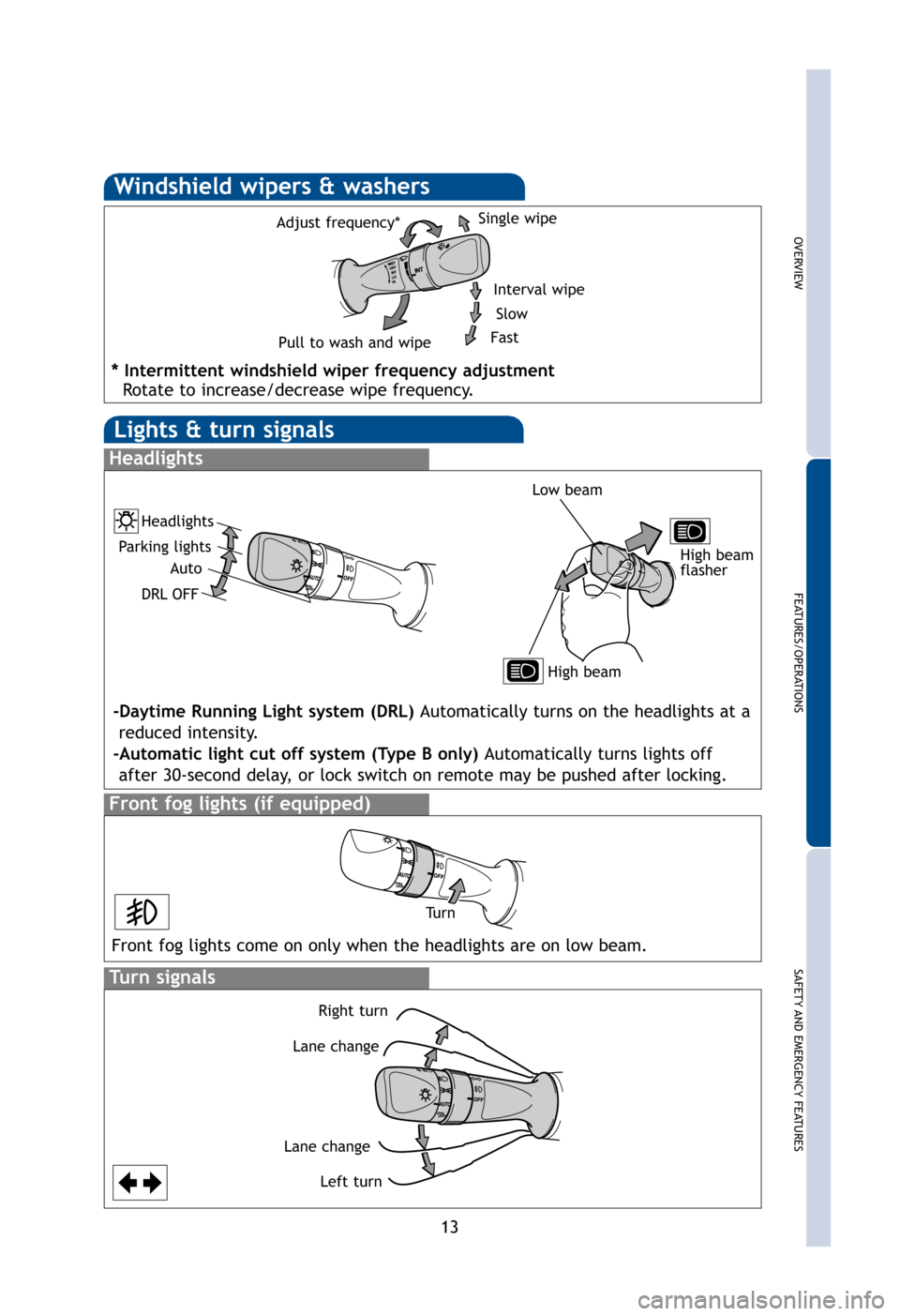

Windshield wipers & washers
or
y,
ns
Lights & turn signals
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
Adjust frequency*
Pull to wash and wipeSingle wipe
Interval wipe
Slow
Fast
Turn signals
Headlights
High beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system (Type B only) Automatically turns lights off
after 30-second delay, or lock switch on remote may be pushed after locking.
Parking lights
Right turn
Lane change
Lane change Left turn High beam
flasher
Auto
DRL OFF
Turn
Front fog lights come on only when the headlights are on low beam.
Low beam
resize-camry.qxd 10/12/11 4:51 AM Page 13

14
FEATURES/OPERATIONS

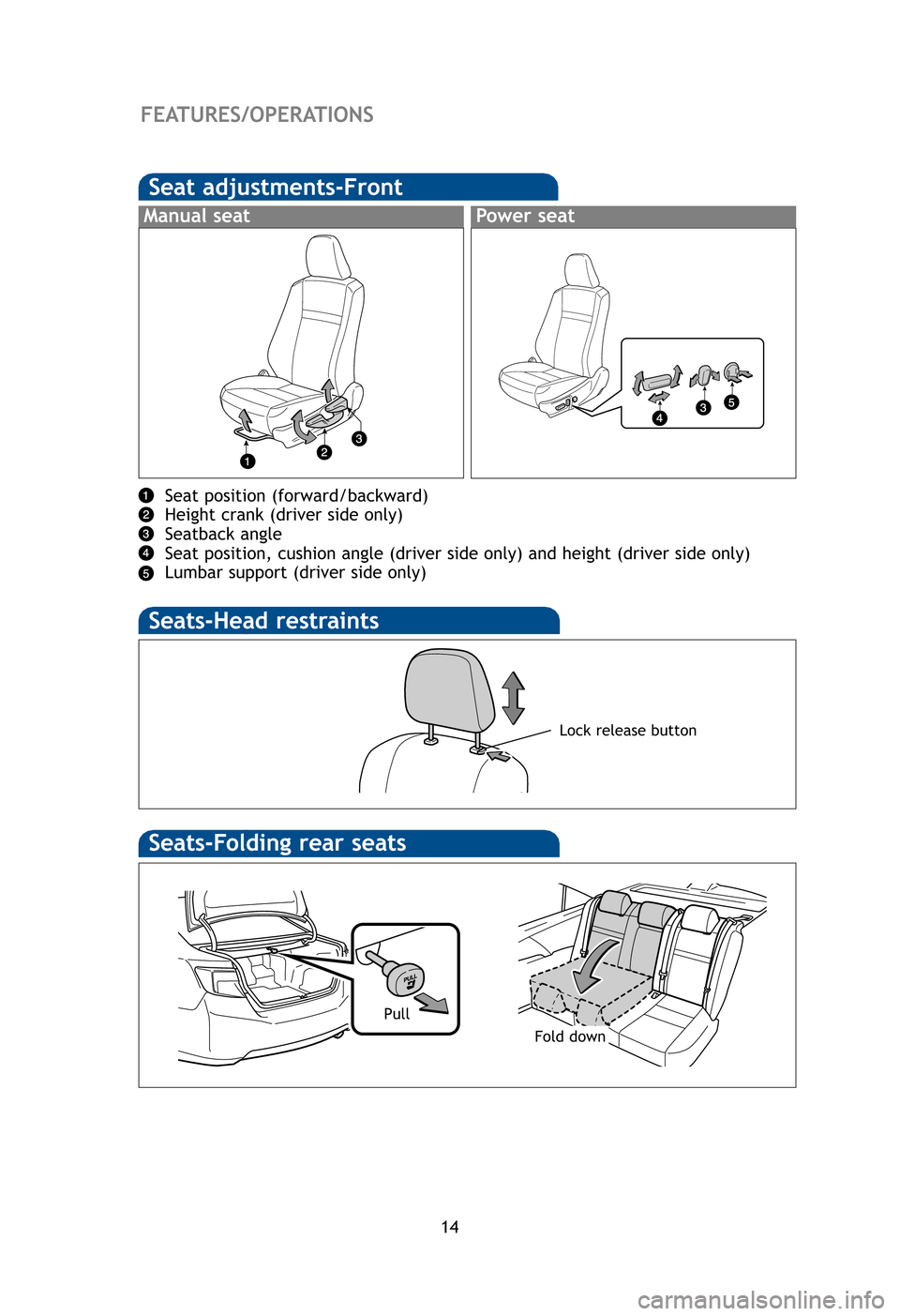

Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver side o\
nly)
Lumbar support (driver side only)
Manual seatPower seat
Seats-Head restraints
Lock release button
Pull
Seats-Folding rear seats
Ga
(if
Ga
pro
Ref
det
For
htt
* Ho
Cr
1 The2 The
Tu r
Fun
Fold down
resize-camry.qxd 10/12/11 4:52 AM Page 14

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
15
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manualfor more
details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.

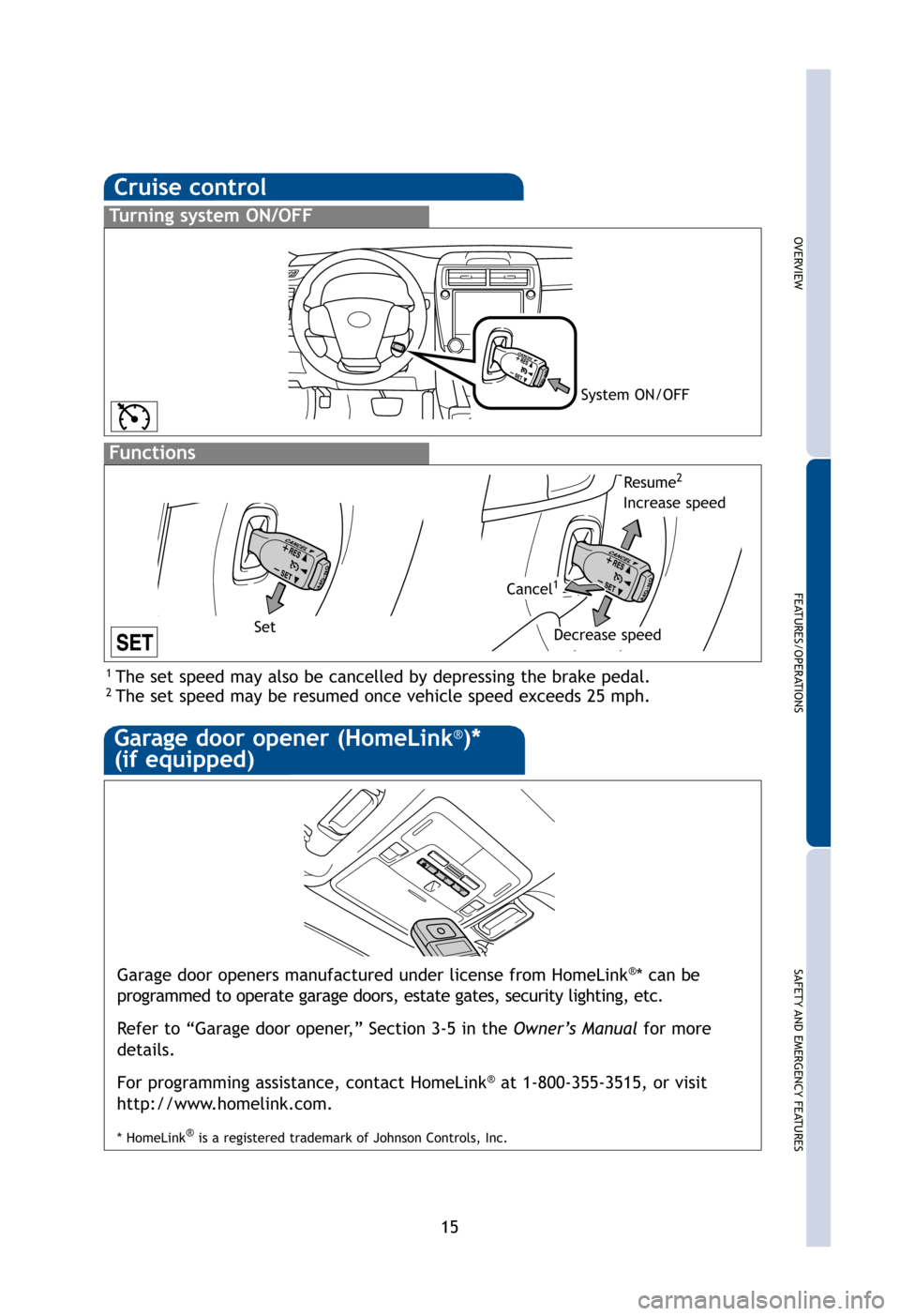

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
resize-camry.qxd 10/12/11 4:53 AM Page 15

16
FEATURES/ OPERATIONS
The Blind Spot Monitor is a system that assists the driver to confirm sa\
fety when
changing lanes. It uses radar sensors to detect vehicles that are travel\
ing in an
adjacent lane in the area that is not reflected in the outside rearview \
mirror (the
blind spot), and advises the driver of the vehicles’ existence via t\
he outside
rearview mirror indicator.
Refer to the Owner‘s Manualfor more details on this system before attempting to
use it.
Mo
Slid
Mu
Pu
(1
(2
(3
(4
(5
(6
Push
posit
BSM (Blind Spot Monitor)(if equipped)
System ON/OFF
Hill-start Assist Control (HAC)
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip ind\
icator
illuminates. HAC holds for approximately two seconds after releasing bra\
ke pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
resize-camry.r1_Layout 1 10/13/11 10:21 PM Page 16

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
17
en
the
ting
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended open
position to minimize
wind noise.
Multi-information display

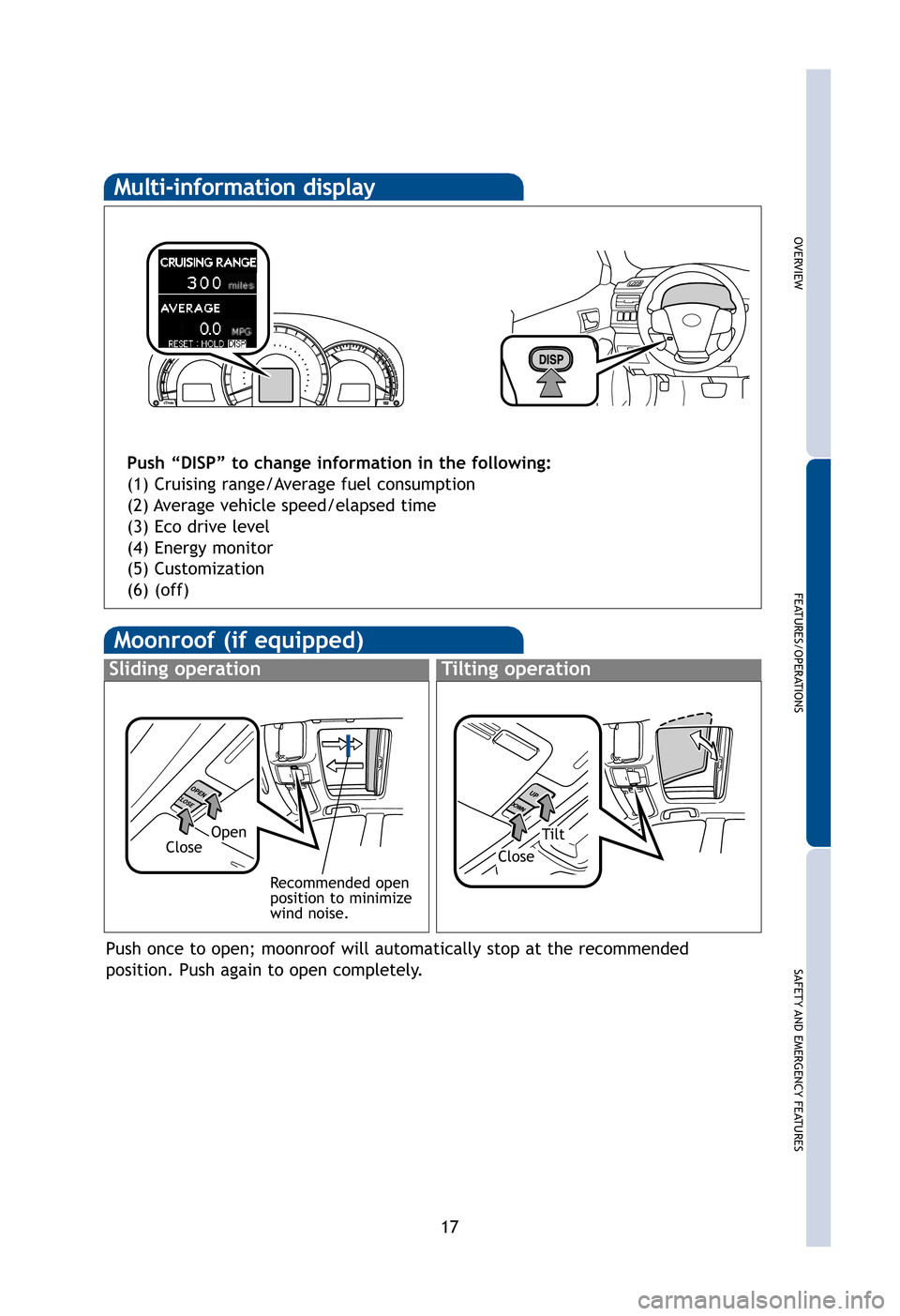

Push “DISP” to change information in the following:
(1) Cruising range/Average fuel consumption
(2) Average vehicle speed/elapsed time
(3) Eco drive level
(4) Energy monitor
(5) Customization
(6) (off)
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
wn
dal.
resize-camry.qxd 10/12/11 4:56 AM Page 17

18
FEATURES/OPERATIONS

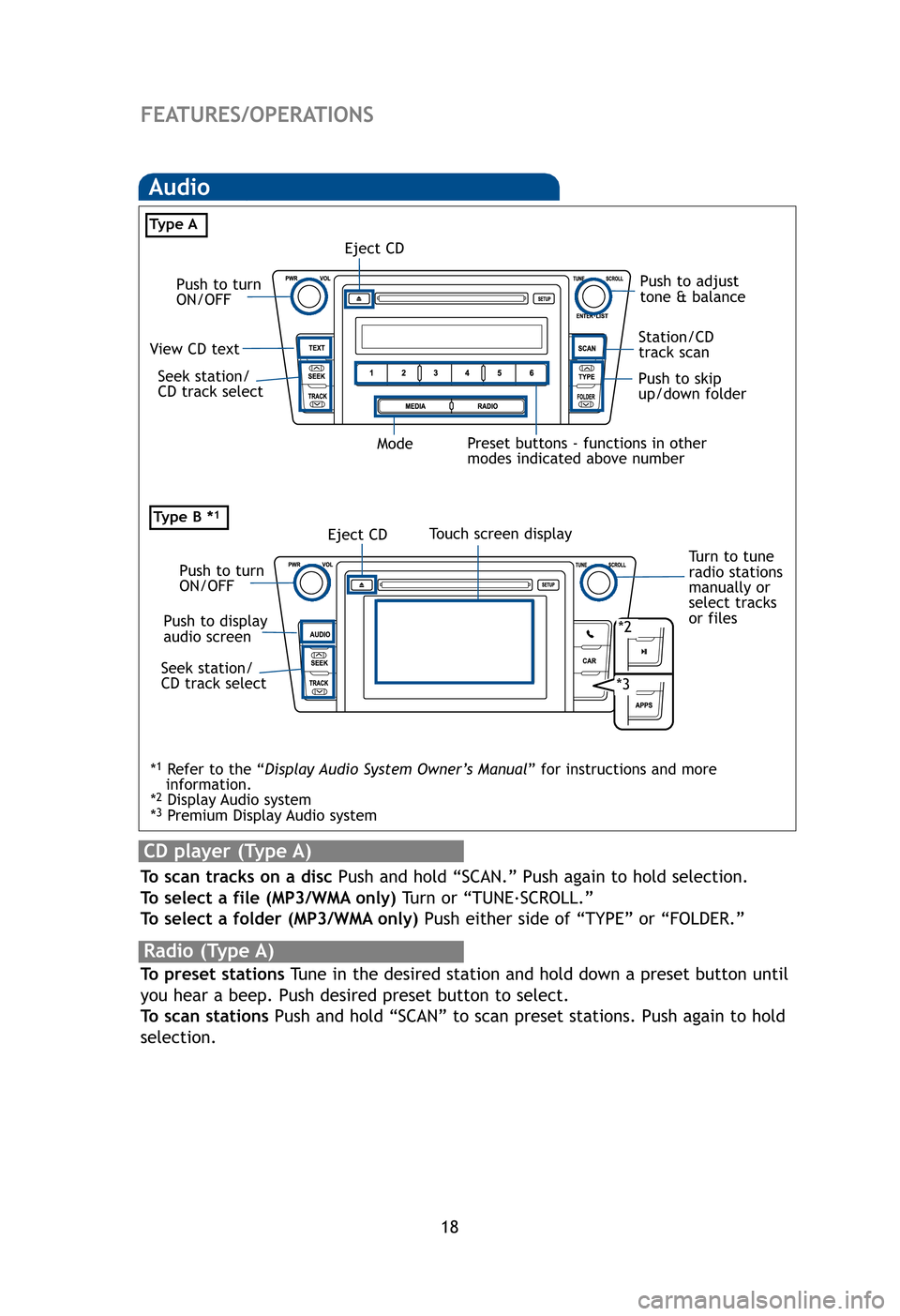

Audio
