19
ntil
old
ne ons
or
cks
Steering wheel switches (if equipped)
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.vv
Volume control

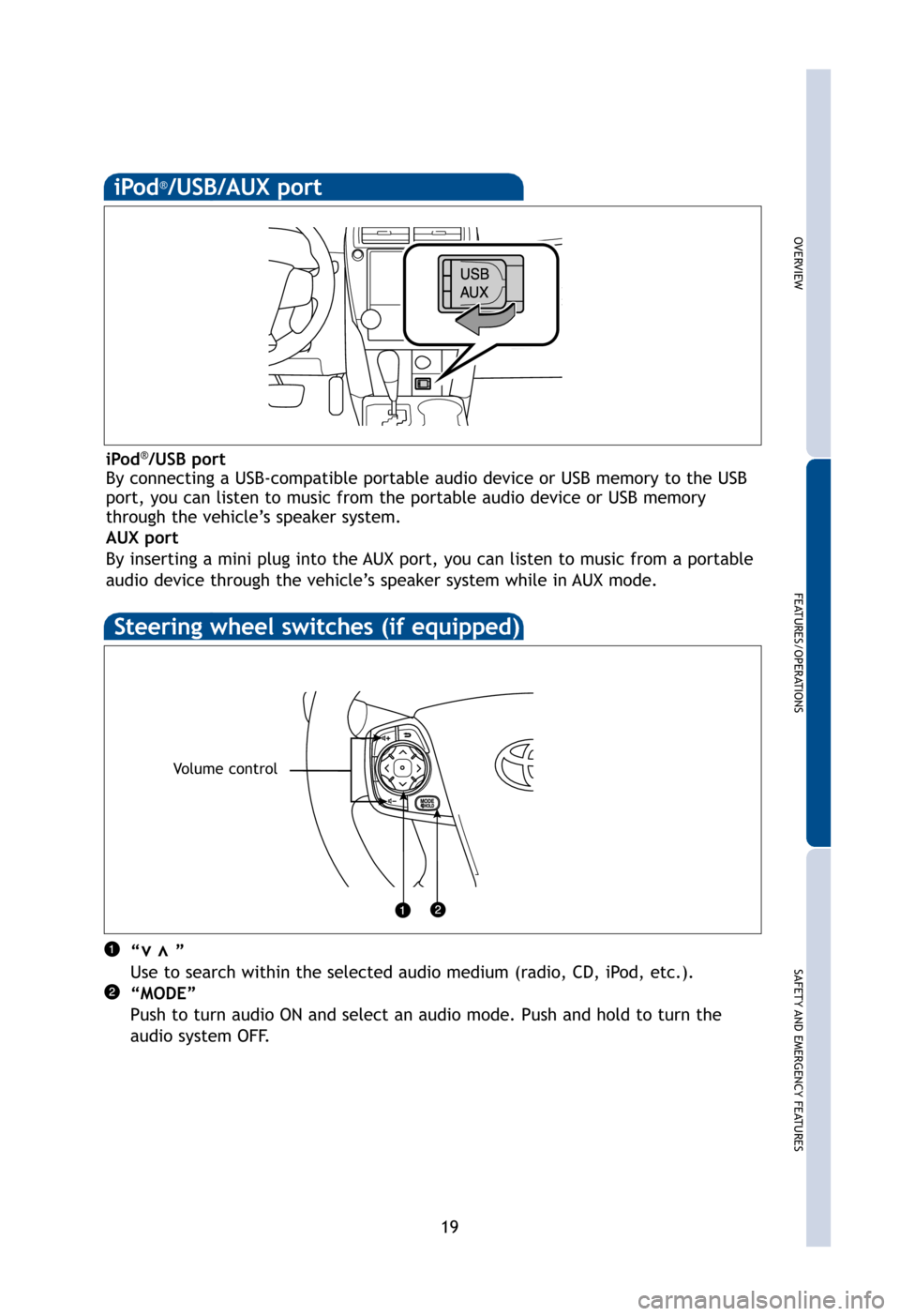

iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the \
USB
port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
iPod®/USB/AUX port
resize-camry.qxd 10/12/11 4:56 AM Page 19

20
FEATURES/OPERATIONS
Se
Clo
Refe
Air Conditioning/Heating
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector (driver side)
Temperature selector (passenger side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and passengers.
Indicator OFF: Synchronized temperature settings for driver and passengers.
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF)to reduce window
fogging. “ ” mode uses fresh air only.
Windshield airflow/defogger
Fan speed
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Po
Inst
“POW
resize-camry.qxd 10/12/11 4:57 AM Page 20

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
21

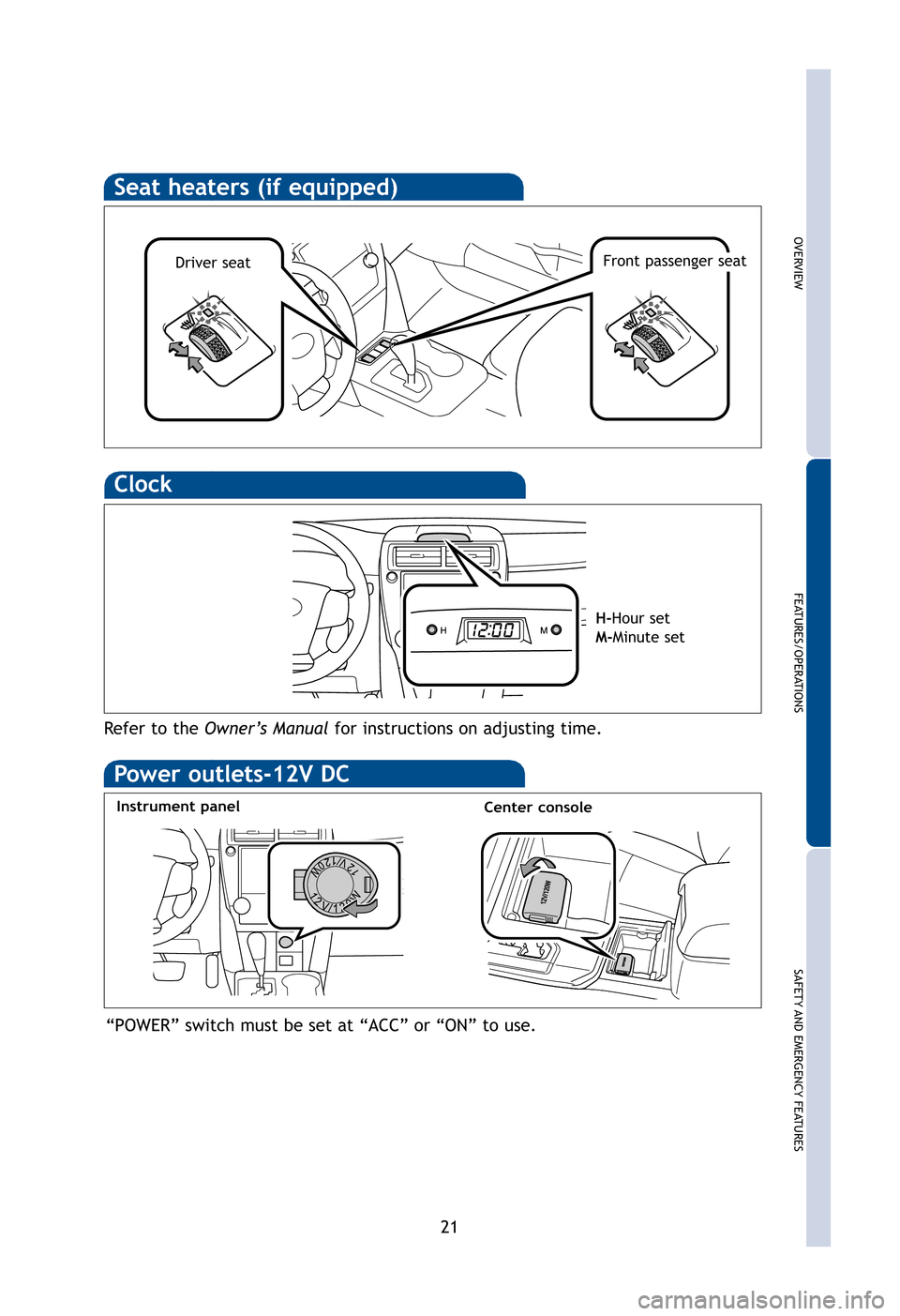

Seat heaters (if equipped)
Clock
H-Hour set
M-Minute set
Refer to the Owner’s Manual for instructions on adjusting time.
and
rs.
Driver seatFront passenger seat
Power outlets-12V DC
Instrument panel
“POWER” switch must be set at “ACC” or “ON” to use.
Center console
resize-camry.qxd 10/12/11 4:57 AM Page 21

22
FEATURES/OPERATIONSSA
Door locks
Movi
Rea
Do
If be
beyo
child
To fi
syste
SeCup holders
Lock
Unlock
FrontRear (if equipped)
Bottle holders
Rear doorFront door
Fu
resize-camry.qxd 10/12/11 4:58 AM Page 22

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
23
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from th\
e outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child rest\
raint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
To o high
Seat belts
Fuel filler door-Internal release
(2) Pull up
(1) Remove
resize-camry.qxd 10/12/11 4:58 AM Page 23

24
SAFETY AND EMERGENCYFEATURES
System reset initialization
1. Push and hold “SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow initialization to complete.
Se
Sp
Trunk-Internal release
Pull up
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced,\
turn
the POWER switch to “ON” mode, and press and hold the “ SET” button until
indicator blinks three times. Let the vehicle sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then r\
emains
on, take the vehicle to your local Toyota dealer.
NOTE : The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initializ\
ed
recently, setting the tire pressures to factory specifications should turn off th\
e
light.
To o
Rem
(1)
Refe
resize-camry.qxd 10/12/11 4:58 AM Page 24

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
25
Push up, or
squeeze lock
release to lower
n
e
Seat belts-Shoulder belt anchor

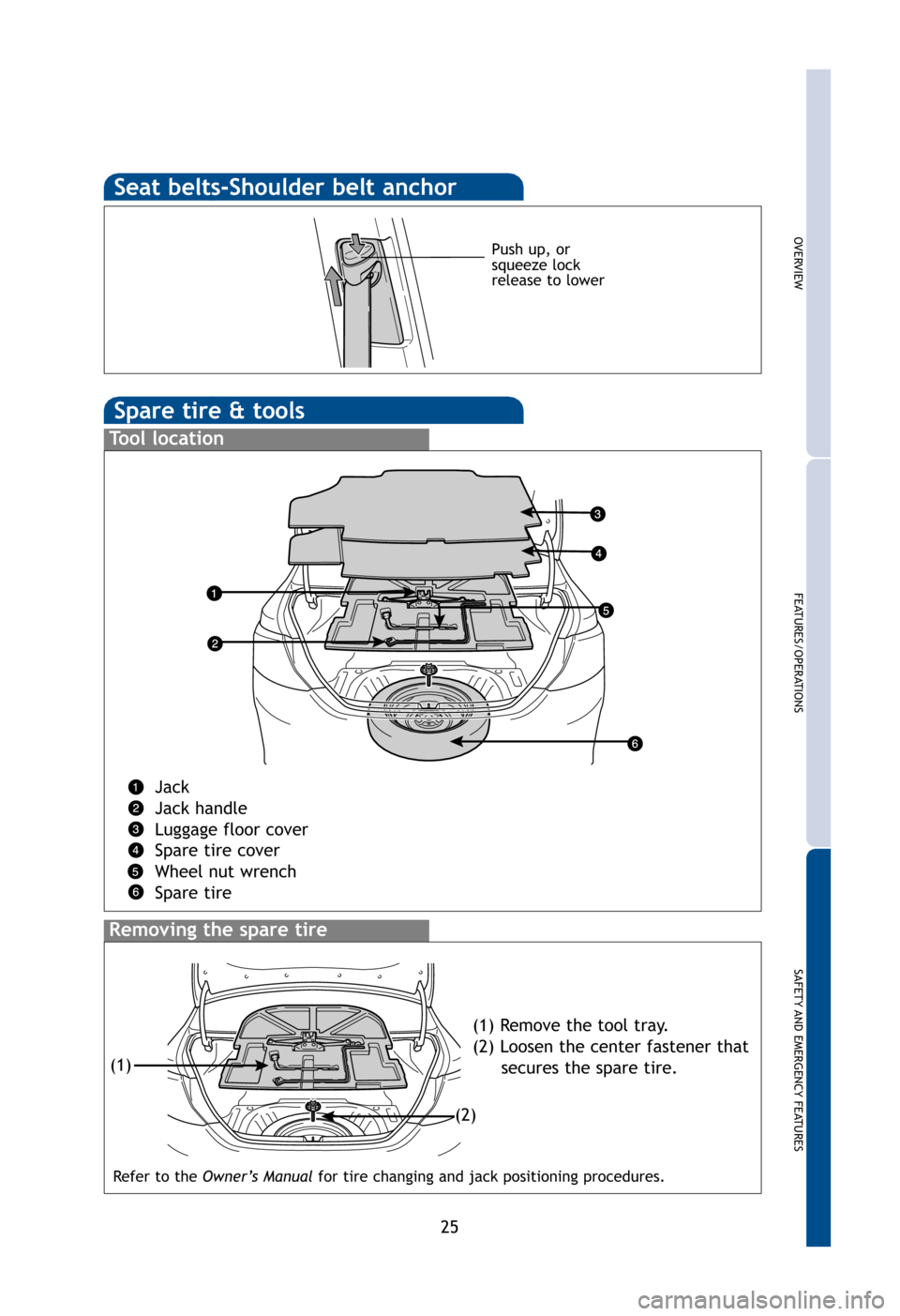

Spare tire & tools
rn
l
on
s
in
Tool location
Jack
Jack handle
Luggage floor cover
Spare tire cover
Wheel nut wrench
Spare tire
Removing the spare tire
(1) Remove the tool tray.
(2) Loosen the center fastener that secures the spare tire.
(1)
(2)
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
resize-camry.qxd 10/12/11 4:59 AM Page 25

26
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine powe\
r and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling\
.
When it senses that the front or rear wheels begin to lose traction, VSC red\
uces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by "pulsing" brake pressure to eac\
h
wheel. This limits brake lockup and provides the maximum brake effectiveness for
the current road conditions.
Toyota's ABS sensors detect which wheels are locking up and limits wheel lockup by
"pulsing" each wheel's brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the maximum
traction that the current road conditions will allow, helping you stay in control.
Brake Assist is designed to detect sudden or “panic” braking, and then add bra\
king
pressure to decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine powe\
r, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help you drive safely.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain stability and balance when braking. Abrupt stops cause the vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to sudden
stops by redistributing brake force to maximize the braking effectiveness of \
all
four wheels.
SAFETY AND EMERGENCYFEATURES
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking
System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart
Stop Technology (SST).
Ther
has m
For s
• O
•
Us pl
•In
Flo
Smar
and
SST
e
firml
SSTd
allow
back
Sma
resize-camry.qxd 10/12/11 4:59 AM Page 26

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
27
nd
.s
on
for
p by
.
king
han
and
n
.
tilt
en
king
mart
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
For safety, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat\
in place.
• Install floor mats right side up.

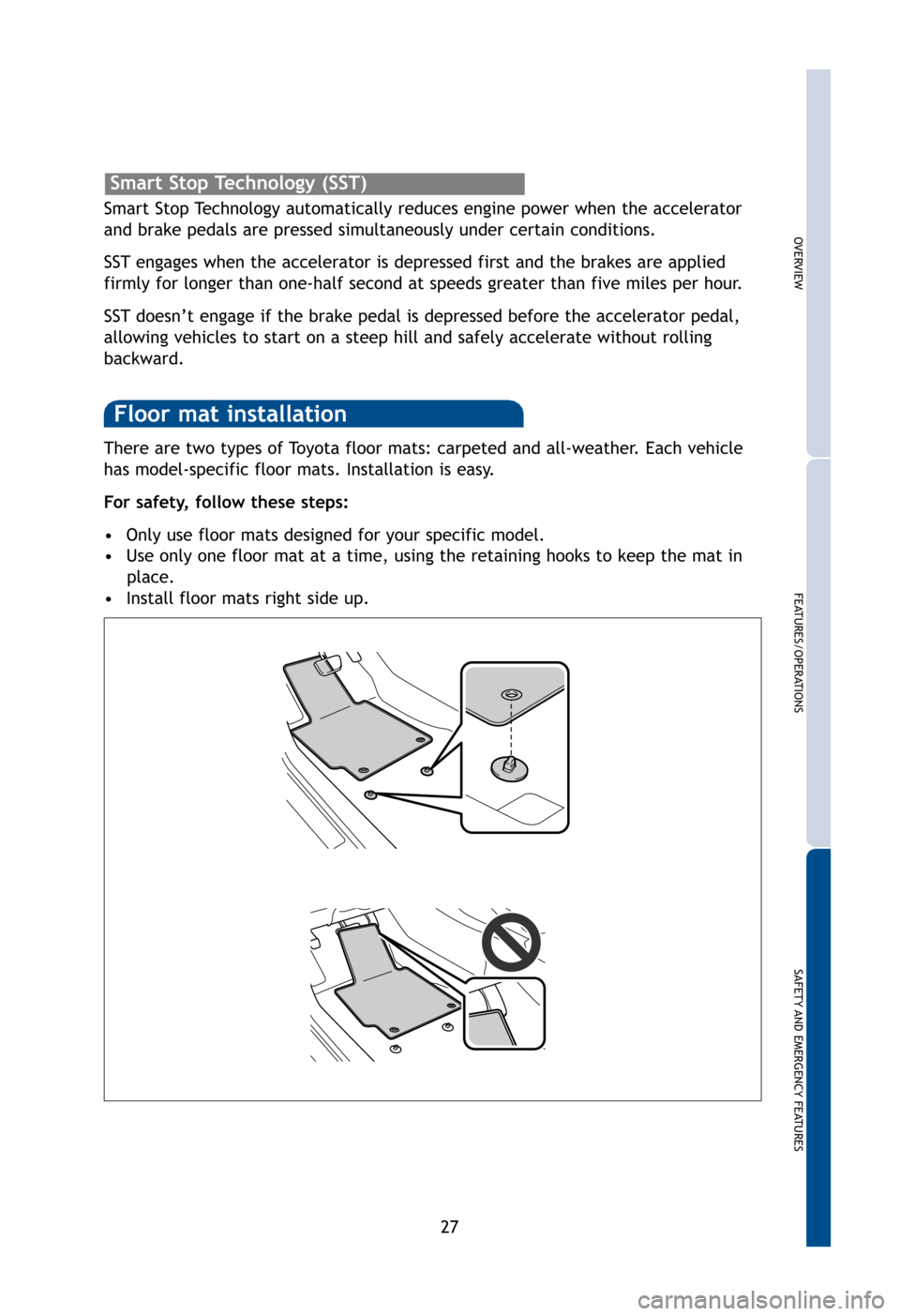

Floor mat installation
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per h\
our.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling\
backward.
Smart Stop Technology (SST)
resize-camry.qxd 10/12/11 5:00 AM Page 27
