4-3. Do-it-yourself maintenance
4
Maintenance and care
■

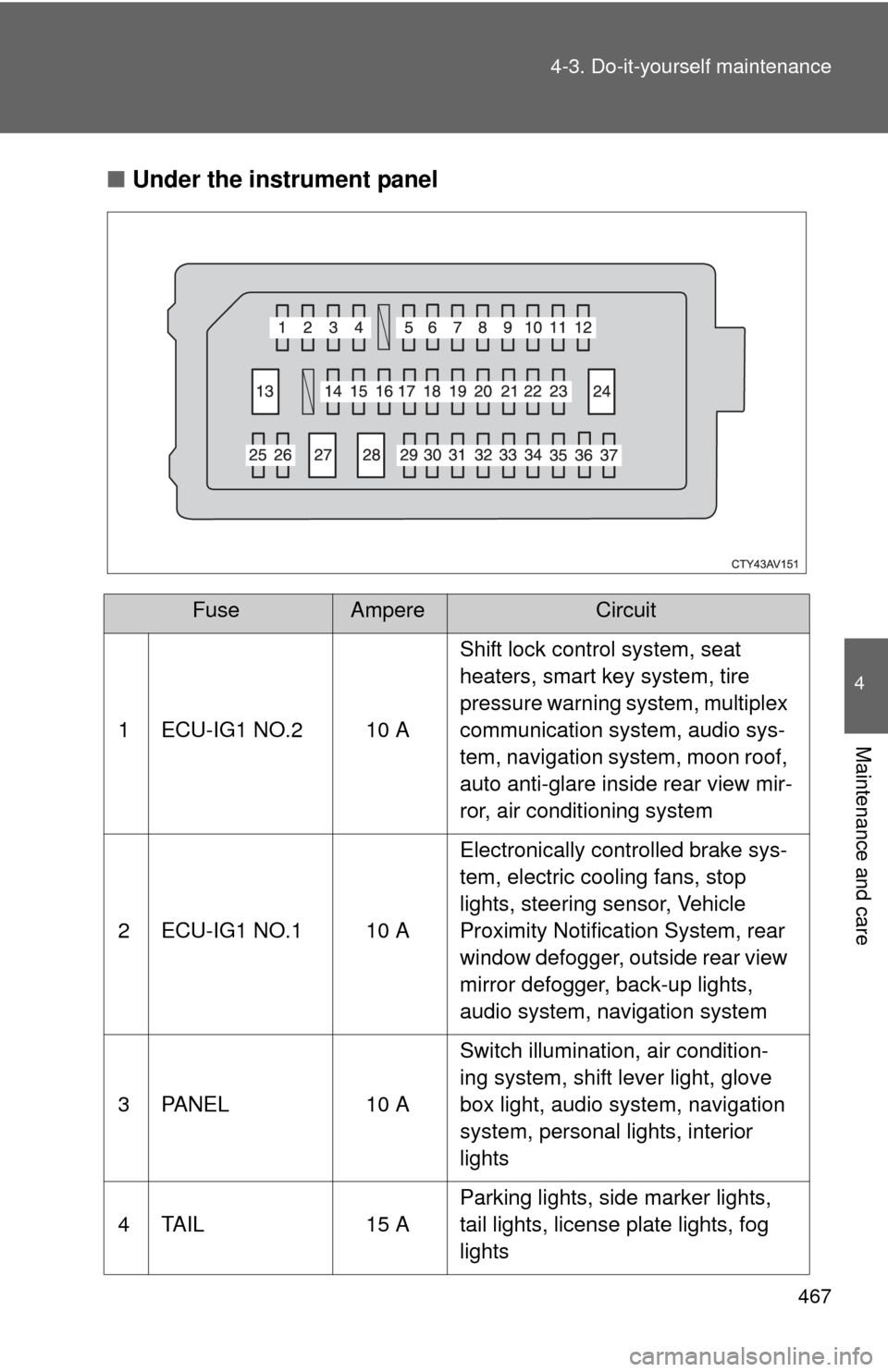

Under the instrument panel
FuseAmpereCircuit
1 ECU-IG1 NO.2 10 A Shift lock control system, seat
heaters, smart key system, tire
pressure warning system, multiplex
communication system, audio sys-
tem, navigation system, moon roof,
auto anti-glare inside rear view mir-
ror, air conditioning system
2 ECU-IG1 NO.1 10 A Electronically controlled brake sys-
tem, electric cooling fans, stop
lights, steering sensor, Vehicle
Proximity Notification System, rear
window defogger, outside rear view
mirror defogger, back-up lights,
audio system, navigation system
3 PANEL 10 A Switch illumination, air condition-
ing system, shift lever light, glove
box light, audio system, navigation
system, personal lights, interior
lights
4 TAIL 15 A Parking lights, side marker lights,
tail lights, license plate lights, fog
lights

5
When trouble arises
495
5-2. Steps to take in an emergency
■
SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag
sensors, side and curtain shield airbag sensors, curtain shield airbag sen-
sors, driver's seat belt buckle switch, front passenger occupant classification
system (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF”
indicator light, front passenger's seat belt buckle switch, seat belt preten-
sioner assemblies, airbags, interc onnecting wiring and power sources.
( P. 113)
■ Front passenger detection sensor, passenger seat belt reminder and
warning buzzer
● If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash and the warning
buzzer to sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
First check the following:
● Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after several driving trips.
If the malfunction indicator lamp does not go off even after several trips, con-
tact your Toyota dealer as soon as possible.
■
The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such
as natural air leaks and tire inflat ion pressure changes caused by tem-
perature. In this case, adjusting the tire inflation pressure will turn off the
warning light (after a few minutes).

5
When trouble arises
505
5-2. Steps to take in an emergency
(U.S.A.)
(Canada)
(Flashes)
Indicates, if the vehi-
cle reaches a speed of
3 mph (5 km/h), that
the parking brake is
still engaged.
A buzzer also sounds. Release the parking
brake.
Indicates that the
washer fluid level is
low. Add washer fluid.
(If equipped) Indicates that the
Blind Spot Monitor
sensors or the sur-
rounding area on the
bumper is dirty or
covered with ice.
Clean the sensor and
its surrounding area on
the bumper.

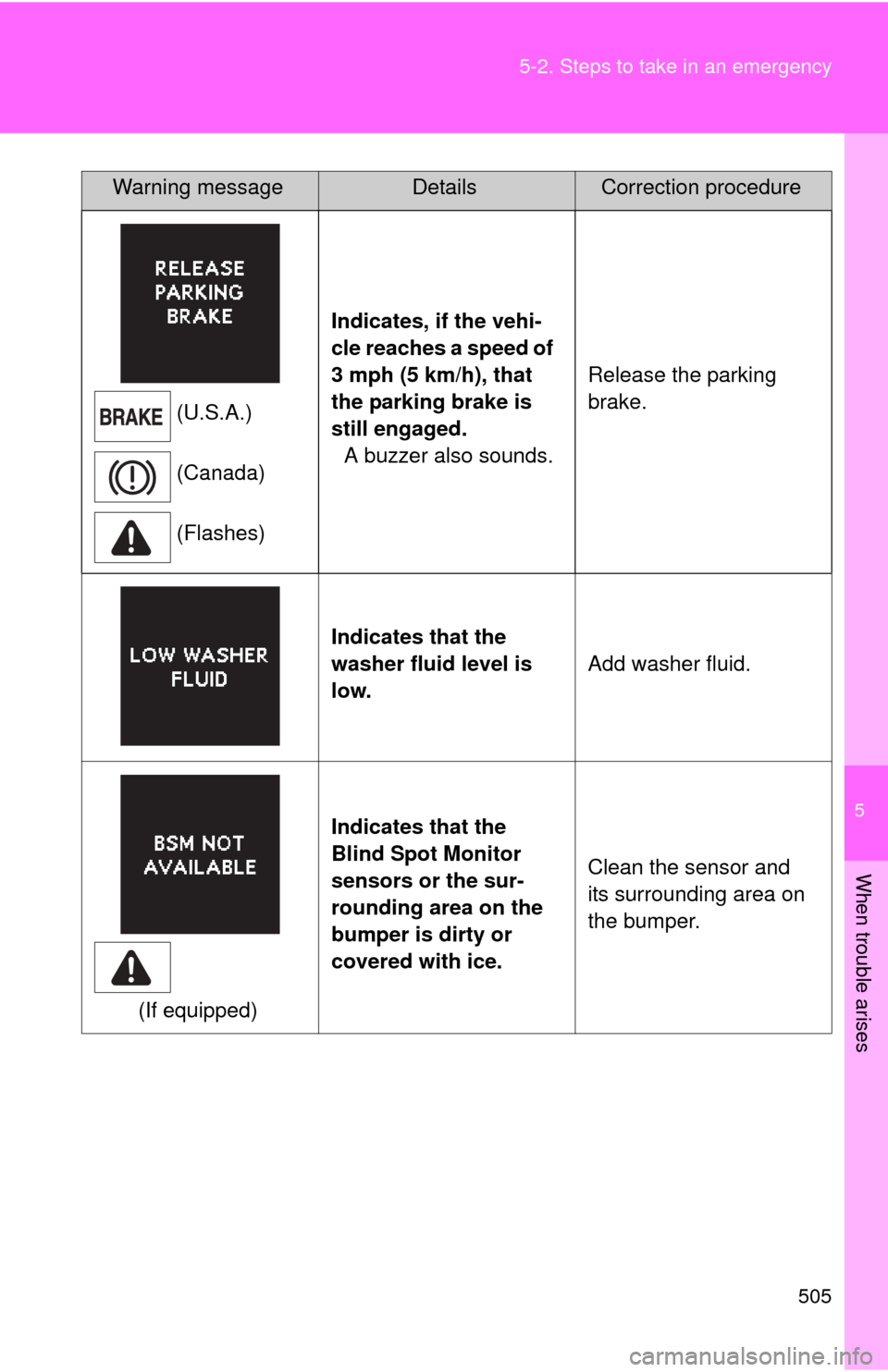

Warning messageDetailsCorrection procedure

579
6-2. Customization
6
Vehicle specifications
Door lock
(
P. 6 7 )
Unlocking
using a key
Driver's door
unlocked in
one step, all doors
unlocked in two steps All doors
unlocked in one step. —O O
Speed-detect-
ing automatic
door lock func-
tion Off On OOO
Opening
driver's door
unlocks all
doors Off On — O O
Shifting gears
to P unlocks all
doors. On Off OOO
Shifting gears
to position
other than P
locks all doors. On Off OOO
Automatic
light con-
trol system
(
P. 192) Light sensor
sensitivity
Level 3 Level 1 to 5 O O O
Time elapsed
before head-
lights automati-
cally turn off
after doors are
closed 30 seconds
Off
OOO
60 seconds
90 seconds
Lights
(
P. 192) Daytime run-
ning light sys-
tem (except
Canada)
On Off OOO
ItemFunctionDefault set-
tingCustomizedsetting

607
Alphabetical index
Tail lights
Replacing light bulbs ............ 471
Switch ................................... 192
Wattage ................................ 560
Theft deterrent system
Alarm .................................... 108
Immobilizer system............... 106
Tire inflation pressure ............ 449
Tire information
Glossary ............................... 570
Size ...................................... 567
Tire identification number ..... 566
Uniform tire quality grading ............................... 568
Tires Chains .................................. 229
Checking .............................. 443
If you have a flat tire ............. 519
Inflation pressure .................. 449
Inflation pressure sensor ...... 444
Replacing ............................. 519
Rotating tires ........................ 443
Size ...................................... 558
Snow tires............................. 229
Spare tire .............................. 519
Tire pressure warning system........................ 443, 493
Warning light ........................ 493 Tools .........................................519
Total load capacity...................228
Towing
Dinghy towing........................234
Trailer towing.........................233
TRAC .........................................208
Traction control........................208
Transmission Hybrid transmission...............168
If the shift lever cannot be shifted from P......................533
Trip information .......................185
Trip meter .........................174, 185
Trunk Opener ....................................72
Trunk light Trunk light ...............................73
Wattage .................................560
Turn signal lights Replacing light bulbs .............471
Switch....................................170
Wattage .................................560
Vanity lights Vanity lights ...........................377
Wattage .................................560
Vanity mirrors...........................377
Vehicle data recordings ............22
Vehicle identification number ...................................550
Vehicle stability control...........208
VSC............................................208T
