TOYOTA CAMRY HYBRID 2016 XV50 / 9.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9

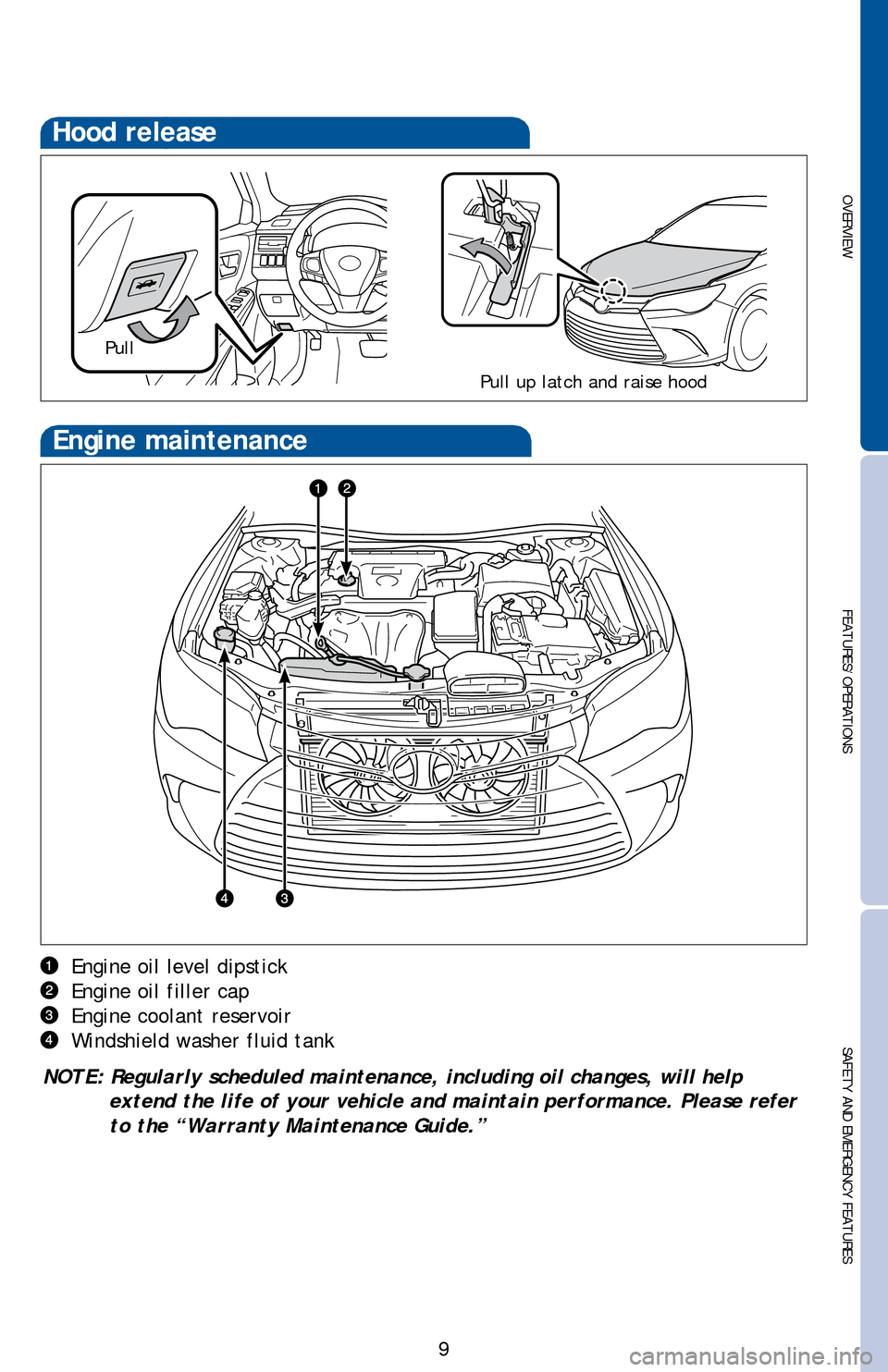

Hood release
Engine oil level dipstick
Engine oil filler cap
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Pull up latch and raise hood
Pull

10
FEATURES/OPERATIONS

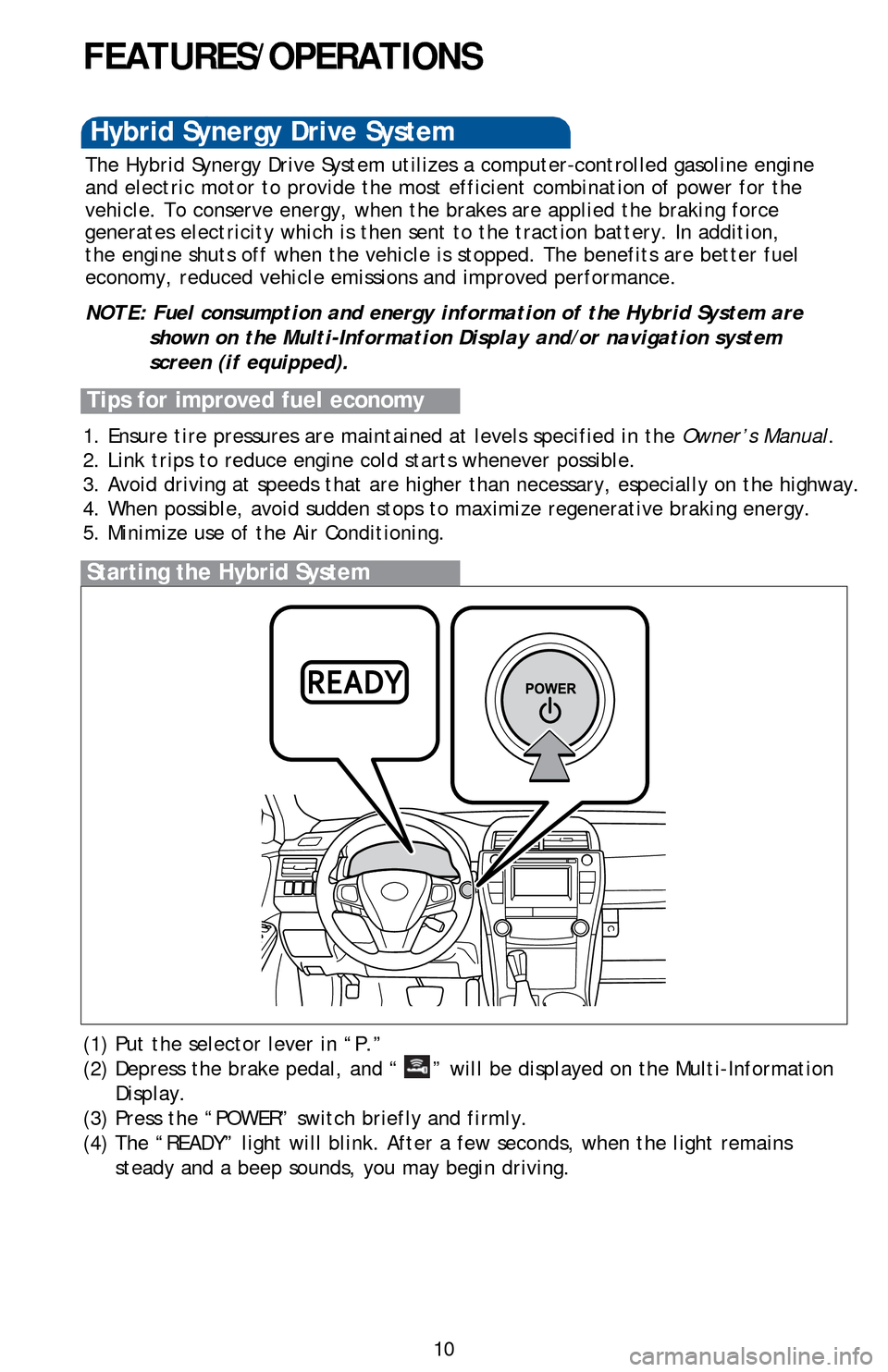

(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the \
light remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking for\
ce
generates electricity which is then sent to the traction battery. In add\
ition,
the engine shuts off when the vehicle is stopped. The benefits are bette\
r fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the Multi-Information Display and/or navigation system
screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on\
the highway.
4. When possible, avoid sudden stops to maximize regenerative braking en\
ergy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

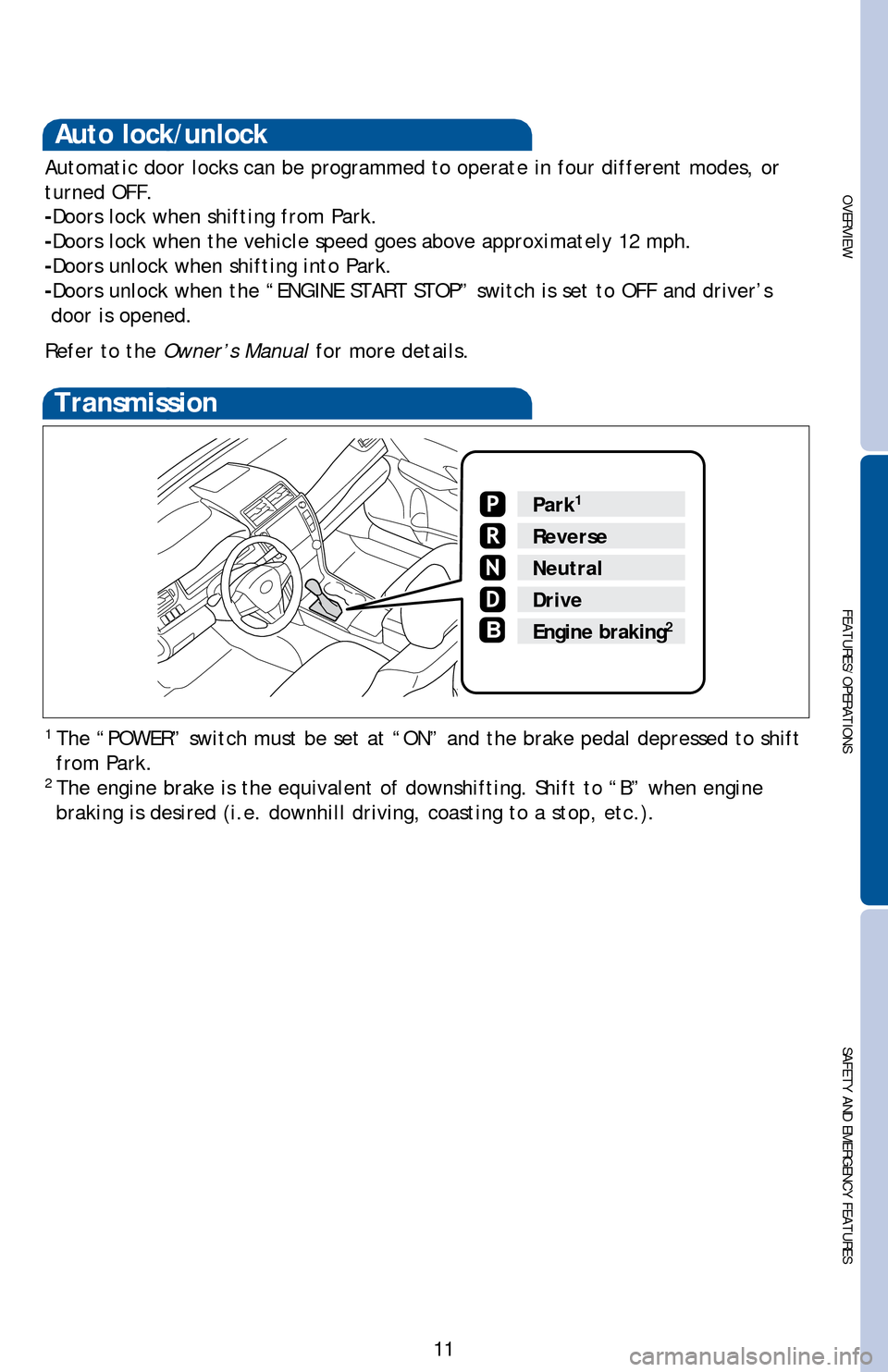

Auto lock/unlock
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and\
driver’s door is opened.
Refer to the Owner’s Manual for more details.
Transmission
1The “POWER” switch must be set at “ON” and the brake pedal d\
epressed to shift
from Park.
2The engine brake is the equivalent of downshifting. Shift to “B” w\
hen engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
B
Park1
Reverse
Neutral
Drive
Engine braking2

12
FEATURES/OPERATIONS

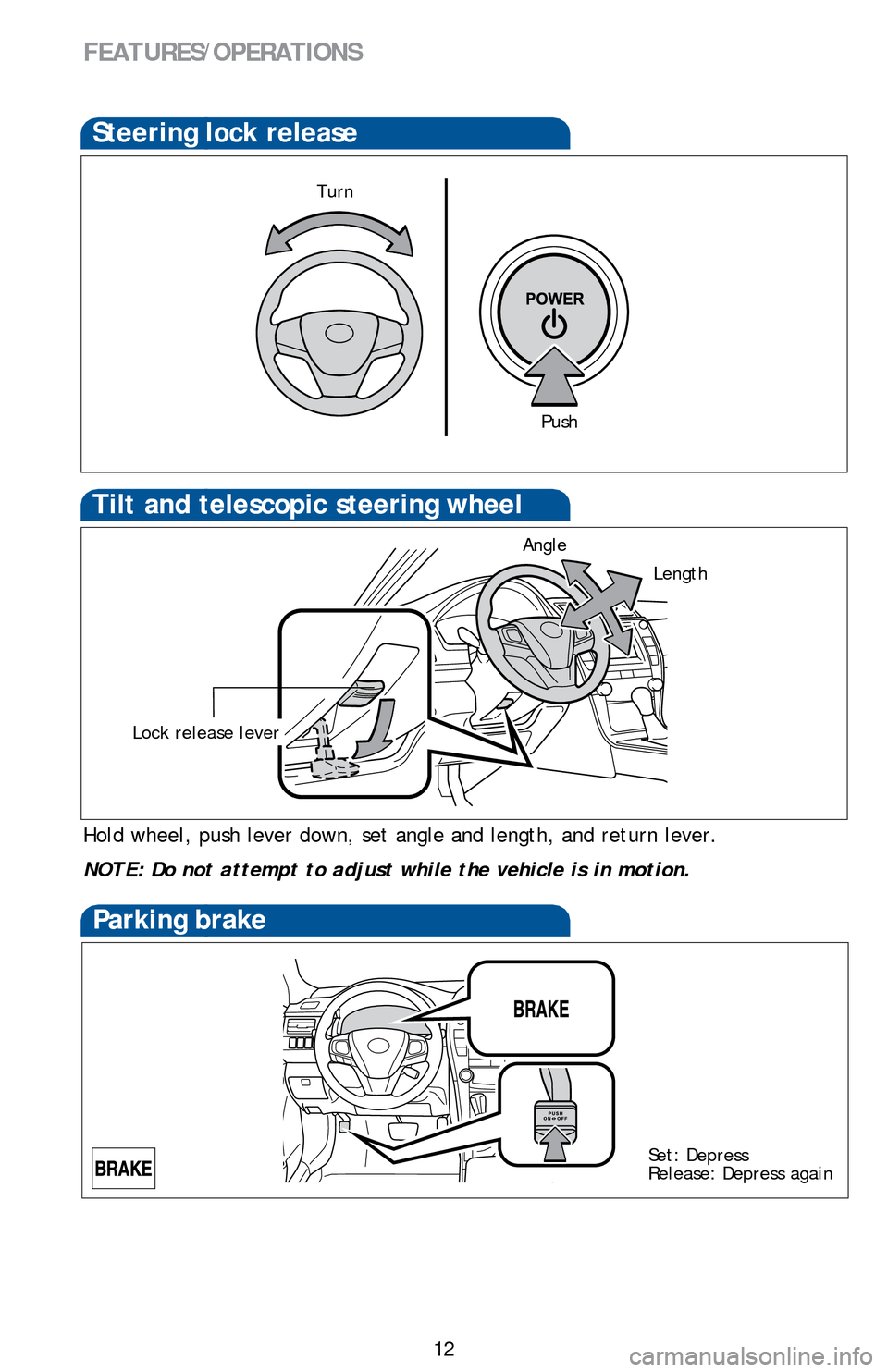

Steering lock release
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Push
Turn
Lock release lever
Angle
Length

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

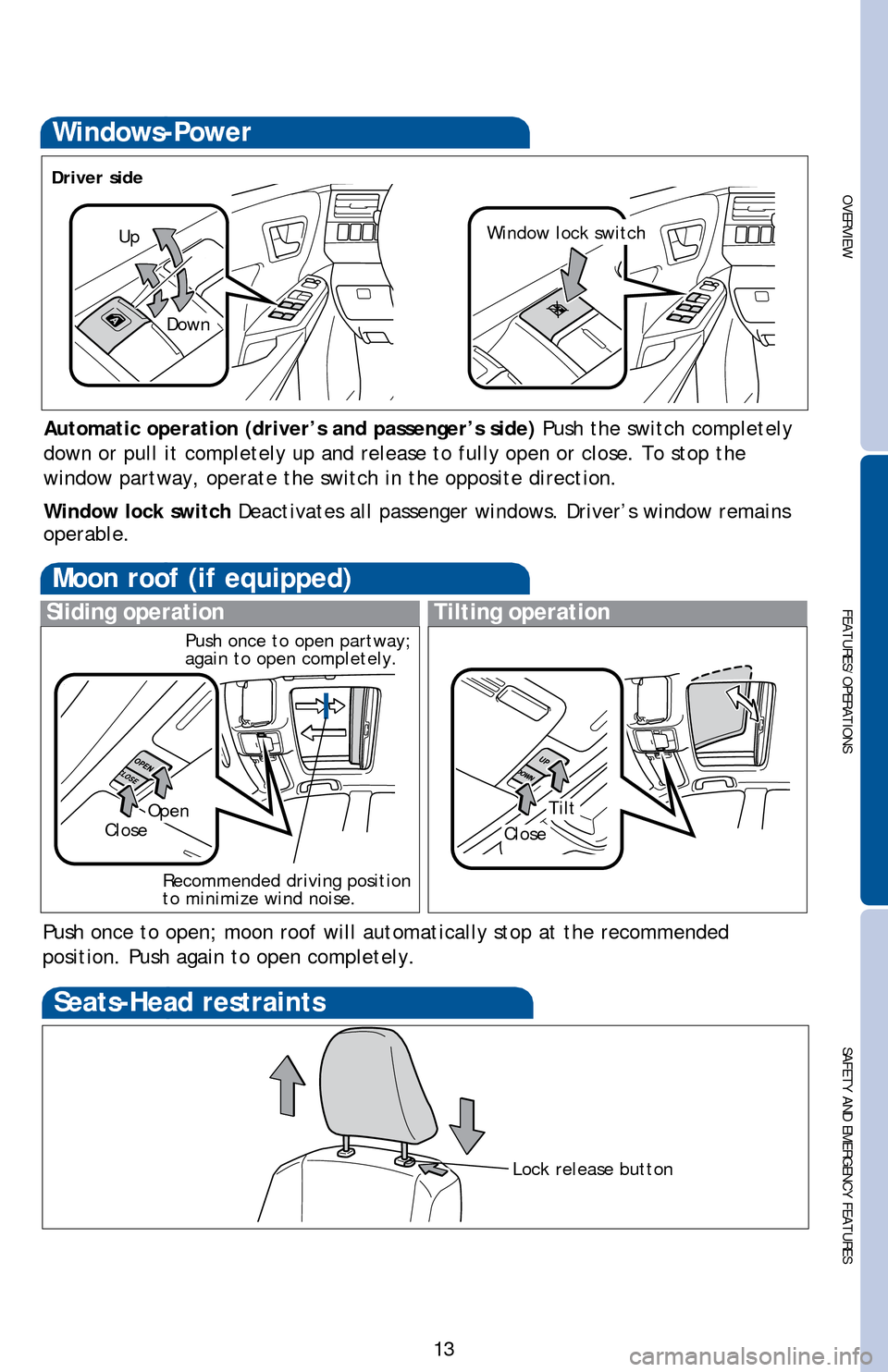

Moon roof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended driving position
to minimize wind noise.
Windows-Power
Push once to open; moon roof will automatically stop at the recommended \
position. Push again to open completely.
Push once to open partway;
again to open completely.
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s and passenger’s side) Push the switch completely
down or pull it completely up and release to fully open or close. To sto\
p the
window partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Seats-Head restraints
Lock release button

14
FEATURES/OPERATIONS
Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Height crank (driver side only)
Seat position, cushion angle (driver side only) and height (driver si\
de only)
Lumbar support (driver side only)
* Power passenger seat equipped on some models, see Owner’s Manual for more details.
Seat adjustments-Rear
Pull
Fold down
Refer to the Owner’s Manual for more details.
Manual seatPower seat*

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15

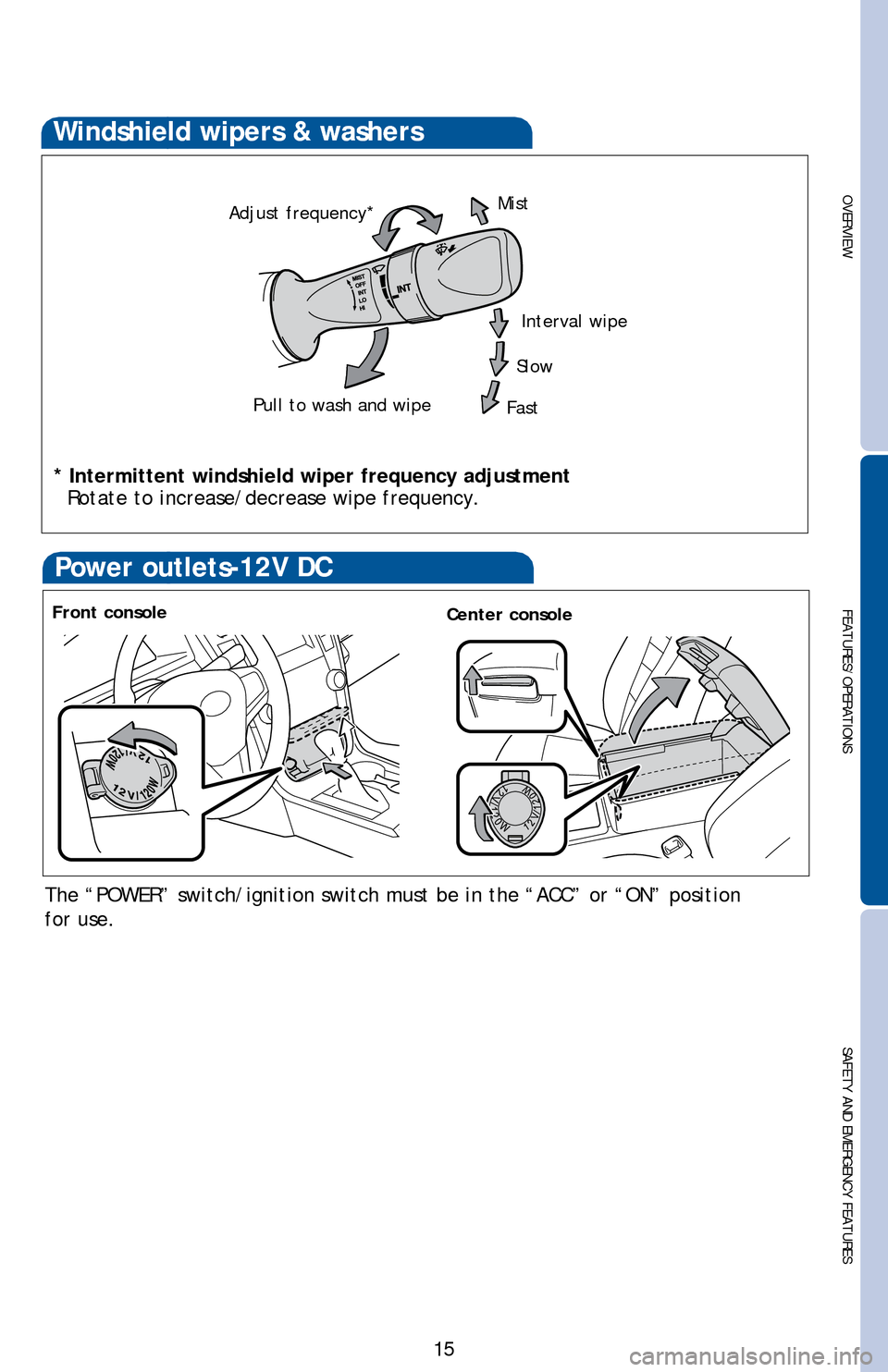

Power outlets-12V DC
Front console
The “POWER” switch/ignition switch must be in the “ACC” or “\
ON” position
for use.
Center console
Windshield wipers & washers
Adjust frequency*Pull to wash and wipeMist
Interval wipe
Slow
Fast
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.

16
FEATURES/OPERATIONS

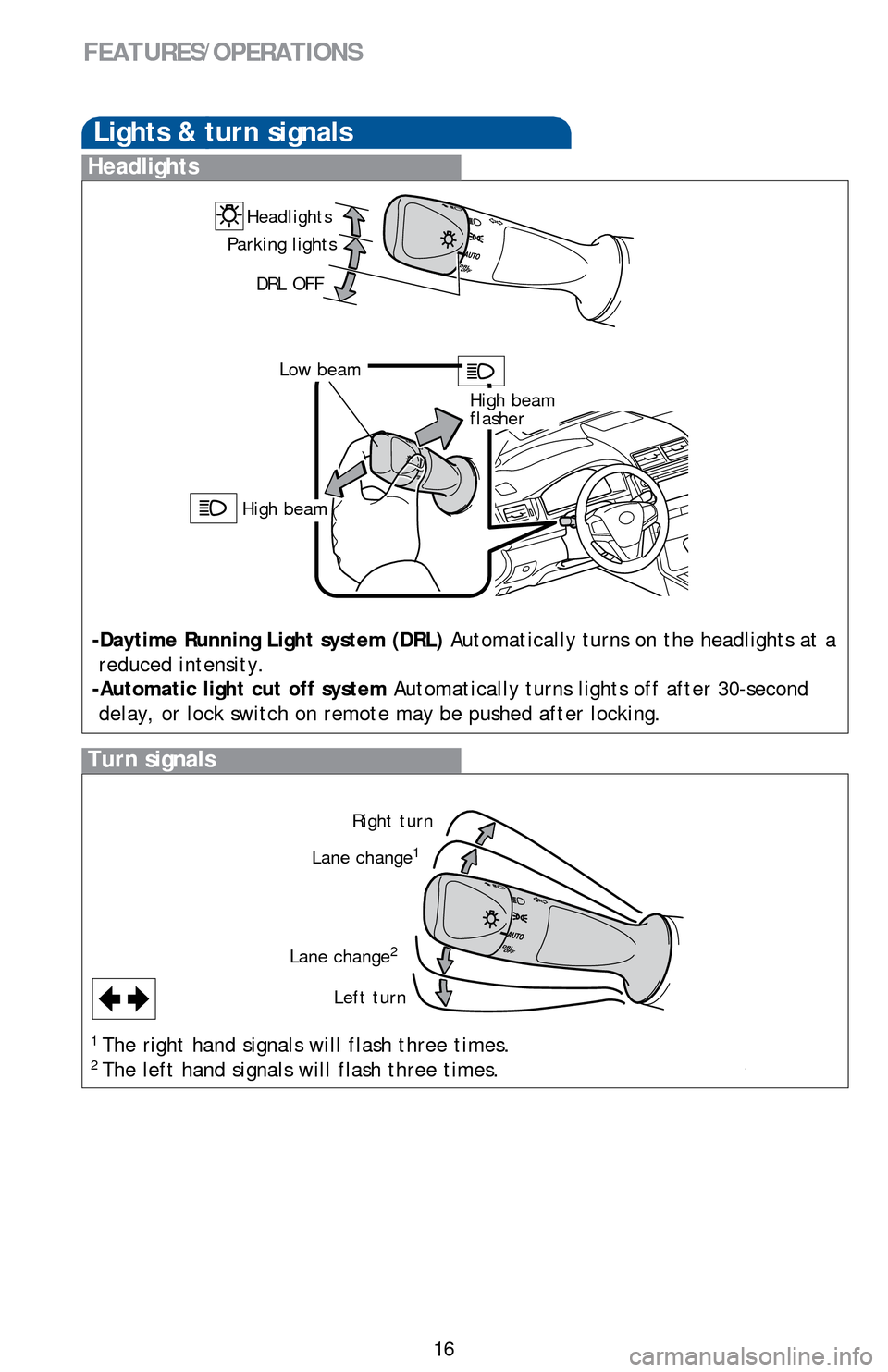

Lights & turn signals
Turn signals
Headlights
High beam
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
Right turn
Lane change
1
Lane change2
Left turn
High beam
flasher
Headlights
Parking lights
DRL OFF
Low beam
1The right hand signals will flash three times.2The left hand signals will flash three times.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

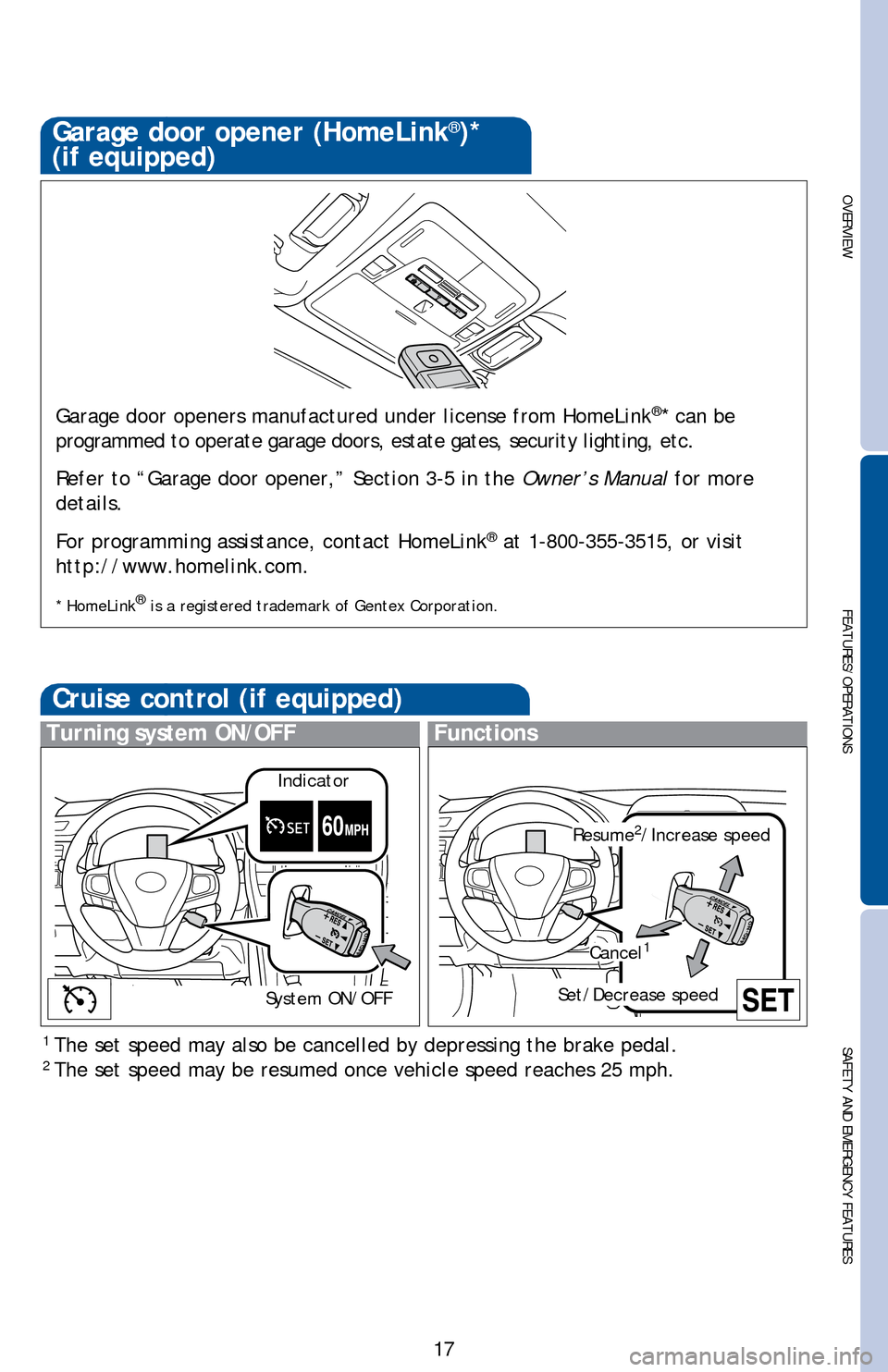

Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed reaches 25 mph.
Turning system ON/OFFFunctions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Indicator

18
Distance control mode
To set, cancel and resume a speed Refer to “Summary of Functions” in the
Cruise Control section, and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase
speed to the nearest 5 mph, and then in 5 mph increments. Pushing lever \
down
toward “- SET” will reduce speed in the same way. The distance control mode will cruise at a set speed, decelerate to main\
tain a
selected distance from a slower vehicle traveling in front of you, and a\
ccelerate
back up to the selected speed if the vehicle in front changes lanes or s\
peeds up.
To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will chang\
e
progressively from LONG to MIDDLE to SHORT.
To set, cancel and resume a speed
Refer to “Summary of Functions” in the
Cruise Control section, and to the Owner’s Manual for more details.
Switch to fixed speed mode
(1) Push
System ON/OFF
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic radar cruise control.”
Dynamic radar cruise control
(if equipped)
Push
System ON/OFF
Indicator
Indicator(2) Push and hold
Vehicle-to-vehicle distance
Push
LONG MIDDLE SHORT
