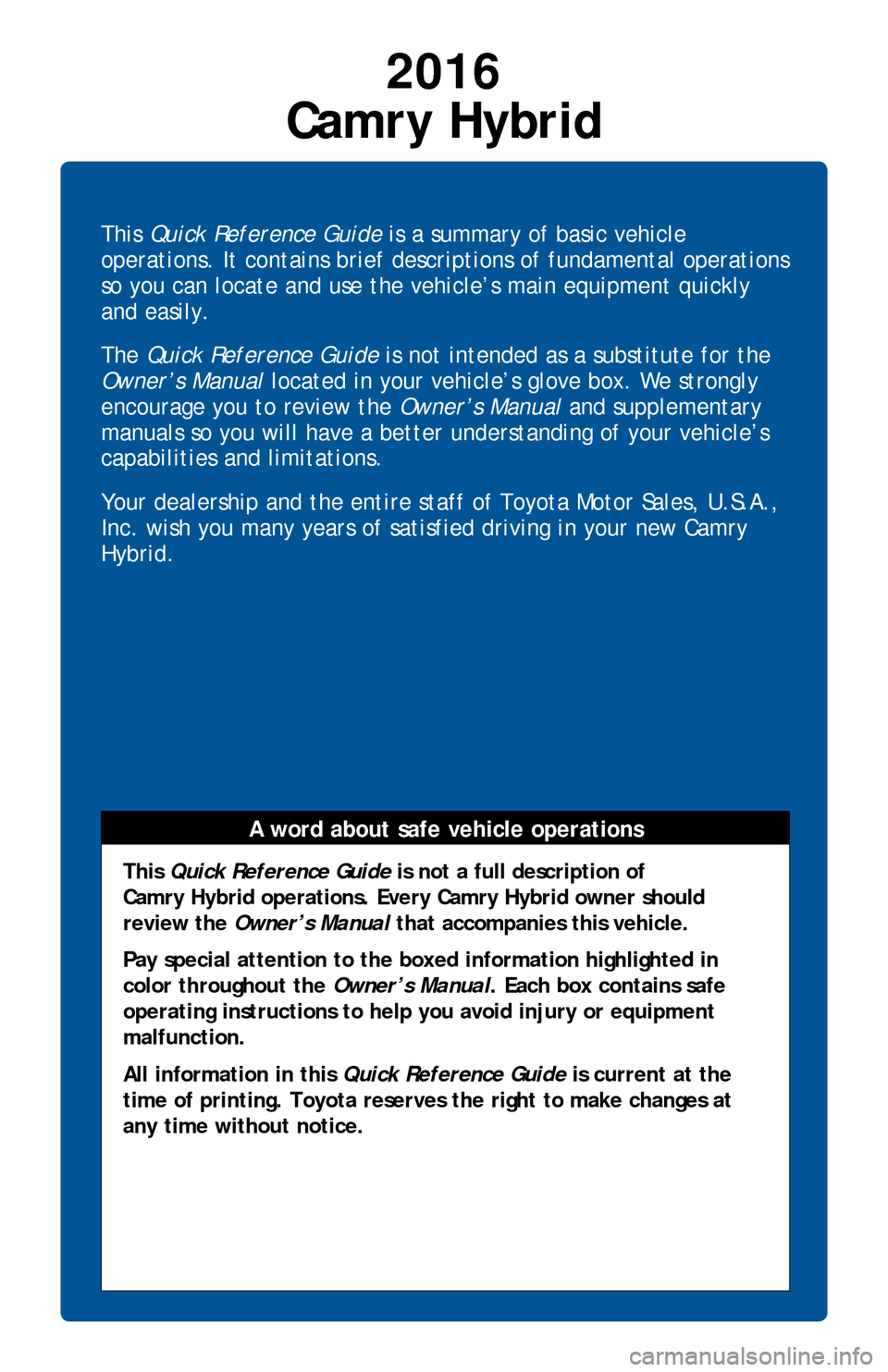

ThisQuick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Camry
Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Camry Hybrid

Engine maintenance 9
Fuel tank door release and cap 8
Hood release

9
Indicator symbols


4-5
Instrument cluster


4
Instrument panel
2-3Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key system1,2 7


Air Conditioning/Heating


20
Audio

23
Auto lock/unlock
1,2 11
Bluetooth® Pairing Section 33-42
Bottle holders/Cup holders 24
Blind
Spot Monitor (BSM)
19
Clock

20
Cruise control

17
Dynamic

radar cruise control
18
Garage

door opener (HomeLin
k®)3 17
Hybrid
Synergy Drive System

10
Lane

Departure Alert (LDA)

26
Light
s1 & turn signals 16
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Camry
Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed

information highlighted in

color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Camry Hybrid
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink ®
is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES/OPERATIONS
Moon roof 13
Multi-Information Display1 25
Parking
brake
12
Power outlets-12V
DC

15
Pre-Collision System

(PCS)

25
Rear

view monitor system

19
Seat

adjustments-Front

14
Seat

adjustments-Rear

14
Seat

heaters

21
Seats-Head

restraints

13
Steering

lock release

12
Steering

wheel audio controls and
telephone

controls (Bluetooth
®) 22
Tilt and
telescopic steering wheel 12
Transmission
11
USB/AUX port
21
Windows-Power
13
Windshield wipers & washers

15
Wireless

Charging

24



Door locks 27
Doors-Child safety locks 27
Floor
mat installation
31
Safety

Connect
28
Seat

belts
27
Seat

belts-Shoulder belt anchor
28
Spare

tire & tools
29
Star

Safety System
TM 30-31
Trunk
internal release 29
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

2
OVERVIEW

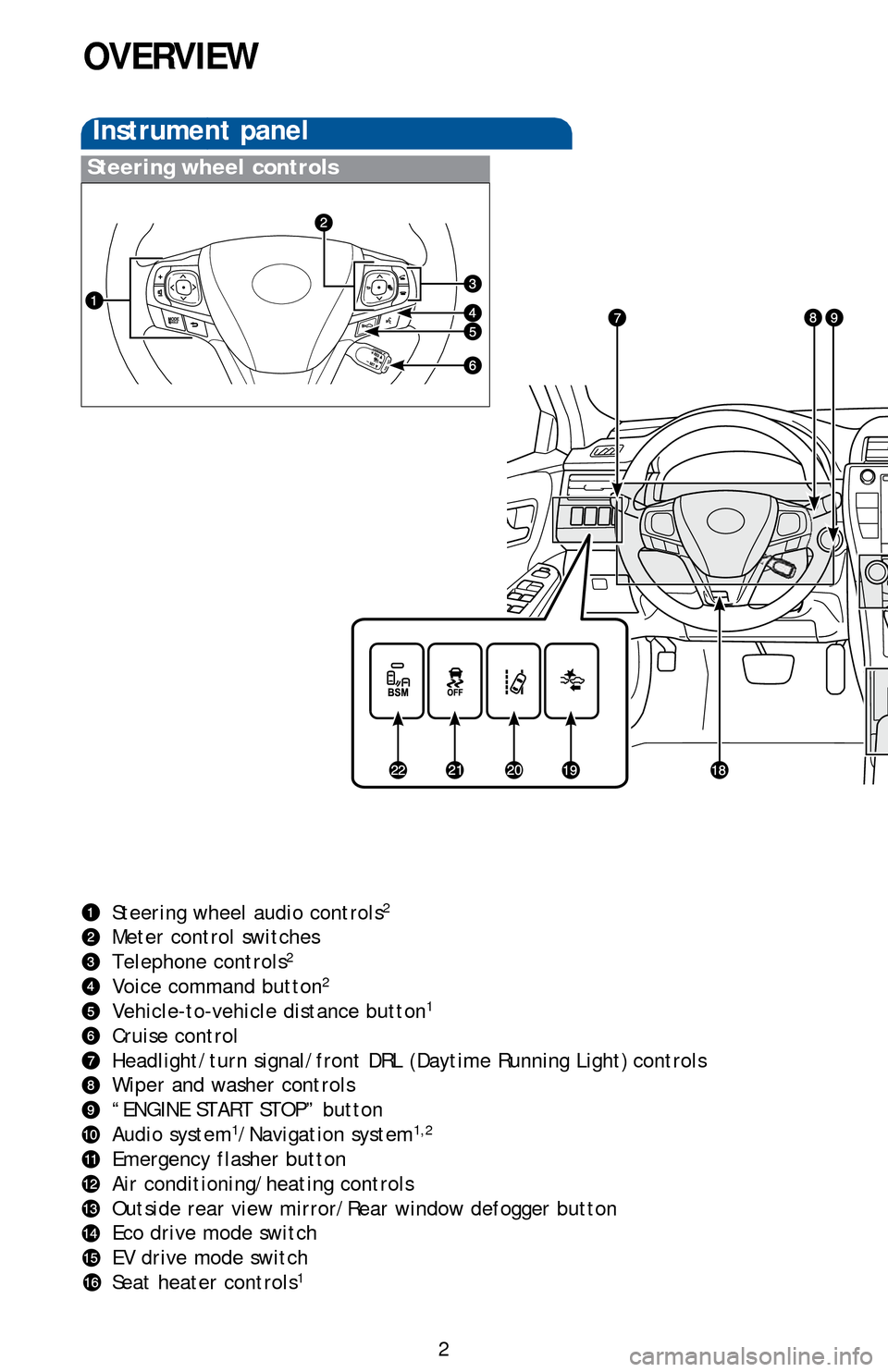

Instrument panel
Steering wheel controls
Steering wheel audio controls2
Meter control switches
Telephone controls2
Voice command button2
Vehicle-to-vehicle distance button1
Cruise control
Headlight/turn signal/front DRL (Daytime Running Light)controls
Wiper and washer controls
“ENGINE START STOP” button
Audio system
1/Navigation system1,2
Emergency flasher button
Air conditioning/heating controls
Outside rear view mirror/Rear window defogger button
Eco drive mode switch
EV drive mode switch
Seat heater controls
1

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

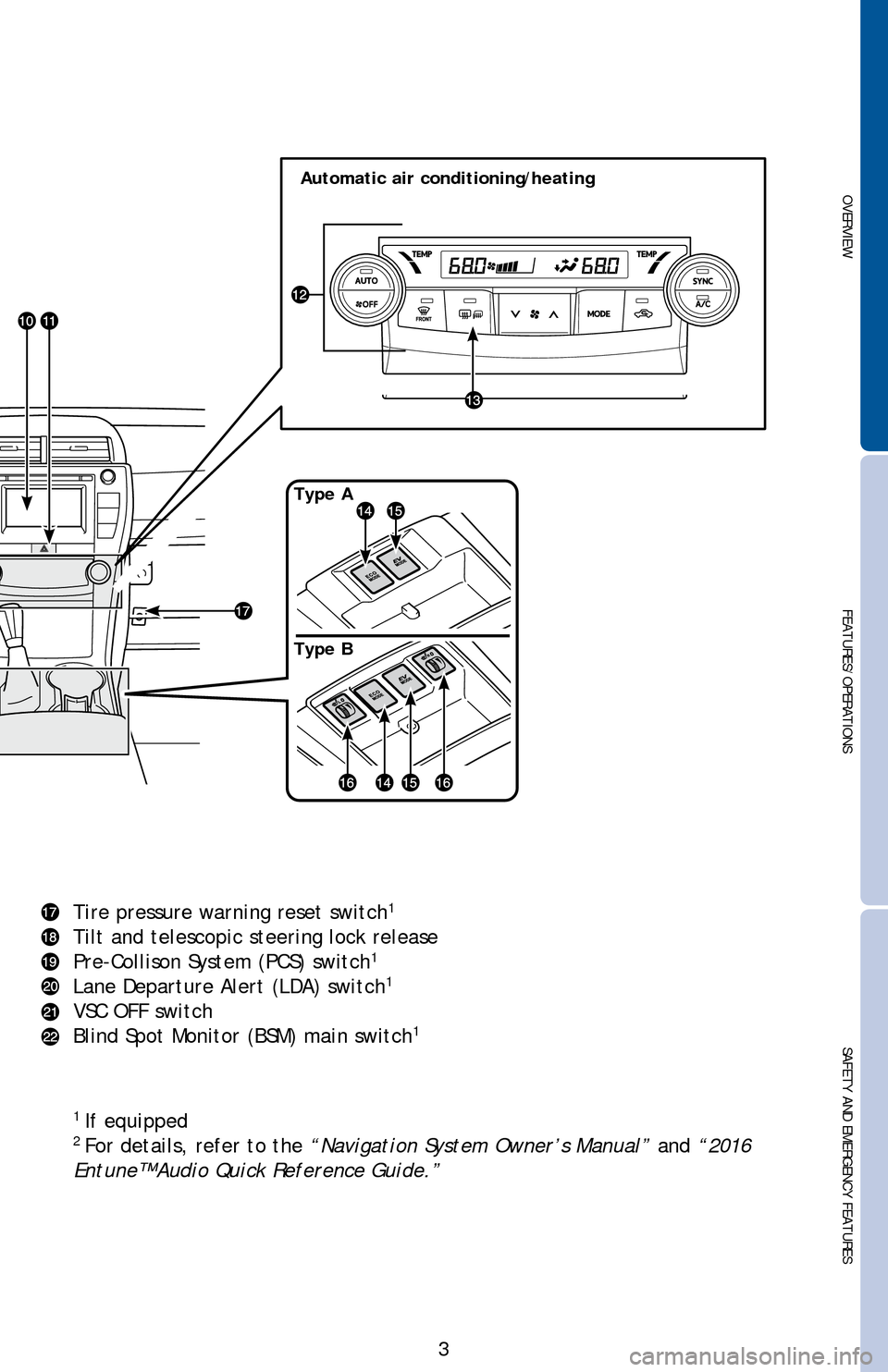

Automatic air conditioning/heating
Type B
Tire pressure warning reset switch1
Tilt and telescopic steering lock release
Pre-Collison System (PCS) switch1
Lane Departure Alert (LDA) switch1
VSC OFF switch
Blind Spot Monitor (BSM) main switch1
1
If equipped2For details, refer to the “Navigation System Owner’s Manual” and “2016
Entune™ Audio Quick Reference Guide.”
Type A

4
OVERVIEW

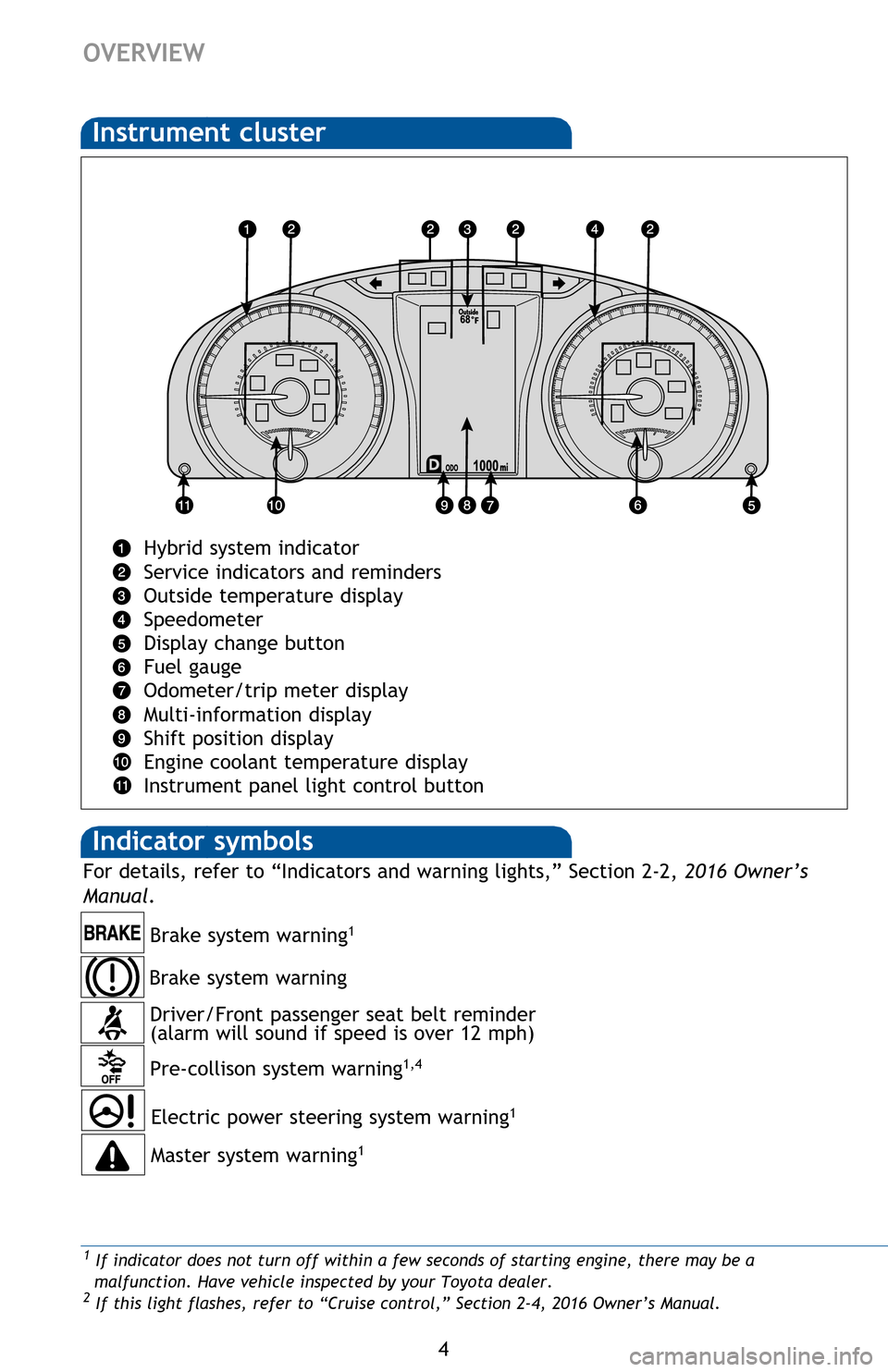

Instrument cluster
Hybrid system indicator
Service indicators and reminders
Outside temperature display
Speedometer
Display change button
Fuel gauge
Odometer/trip meter display
Multi-information display
Shift position display
Engine coolant temperature display
Instrument panel light control button
3 Light flashes in yellow to indicate a malfunction. Light flashes quickly in green to indicate that
the steering lock has not been released.
4 If equipped.
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2016 Owner’s
Manual .
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2016 Owner’s Manual.
Pre-collison system warning1,4
Electric power steering system warning1
Master system warning1
Brake system warning

2016_Camry_HV_QRG.indd 47/10/15 4:24 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
3Light flashes in yellow to indicate a malfunction. Light flashes quickly\
in green to indicate that
the steering lock has not been released.
4If equipped.

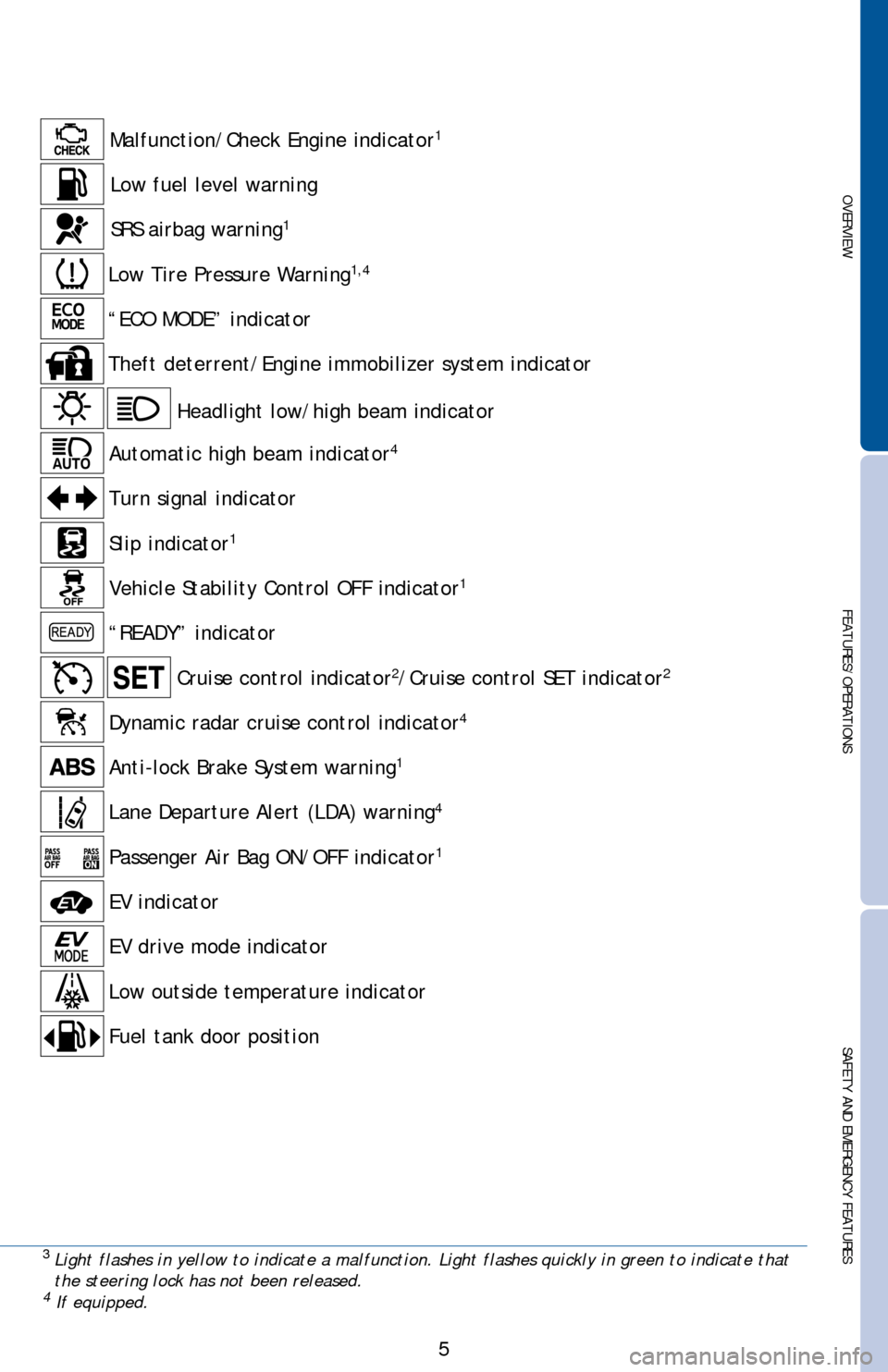

Malfunction/Check Engine indicator1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1,4
Theft deterrent/Engine immobilizer system indicator
SRS airbag warning1
Low fuel level warning
Anti-lock Brake System warning1
Vehicle Stability Control OFF indicator1
Automatic high beam indicator4
Lane Departure Alert (LDA) warning4
Passenger Air Bag ON/OFF indicator1
“ECO MODE” indicator
“READY” indicator
EV indicator
EV drive mode indicator
Low outside temperature indicator
Fuel tank door position
Dynamic radar cruise control indicator4

6
OVERVIEW
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will r\
elock for
safety.
Trunk lid
Push and hold

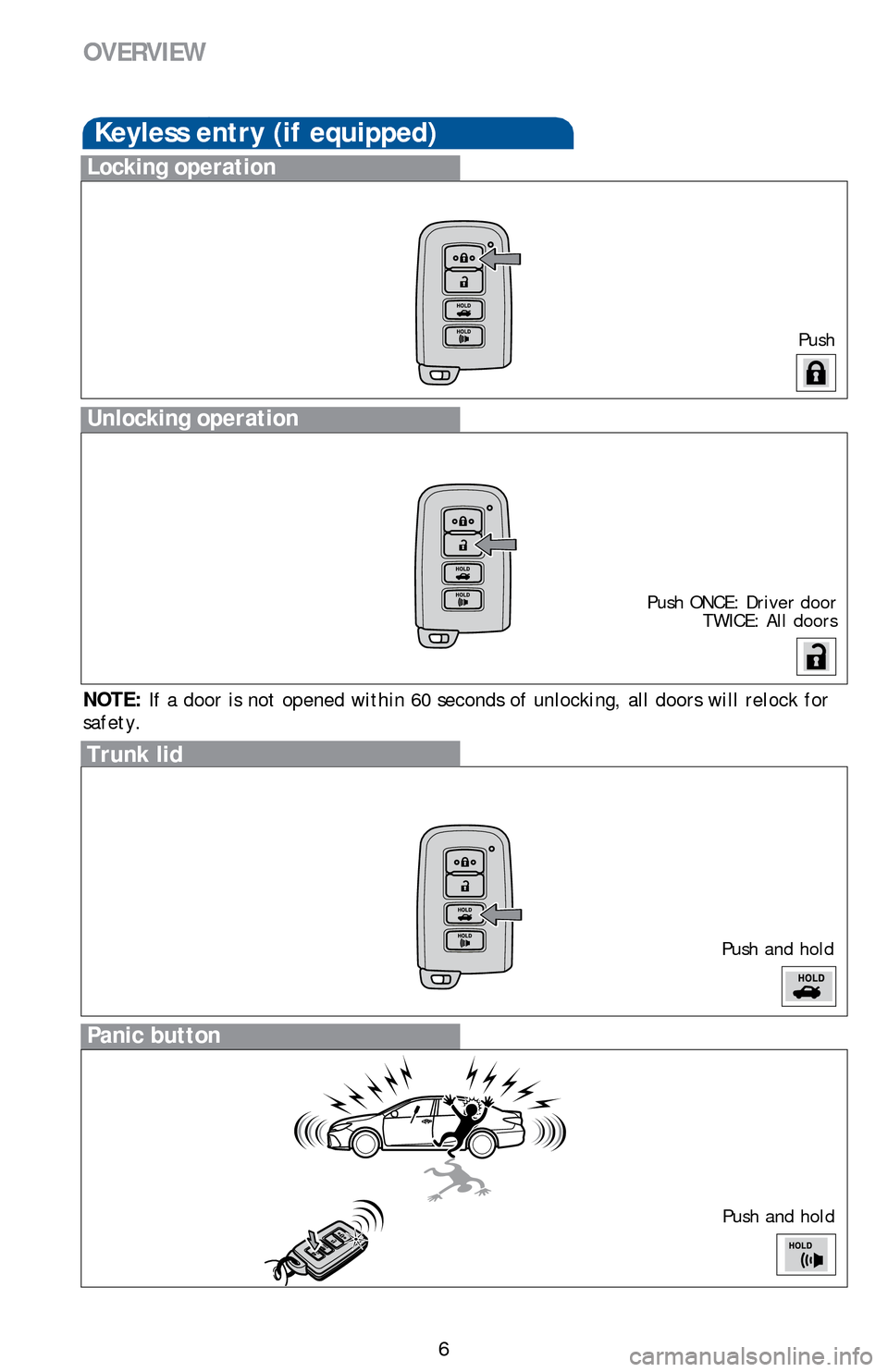

Keyless entry (if equipped)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

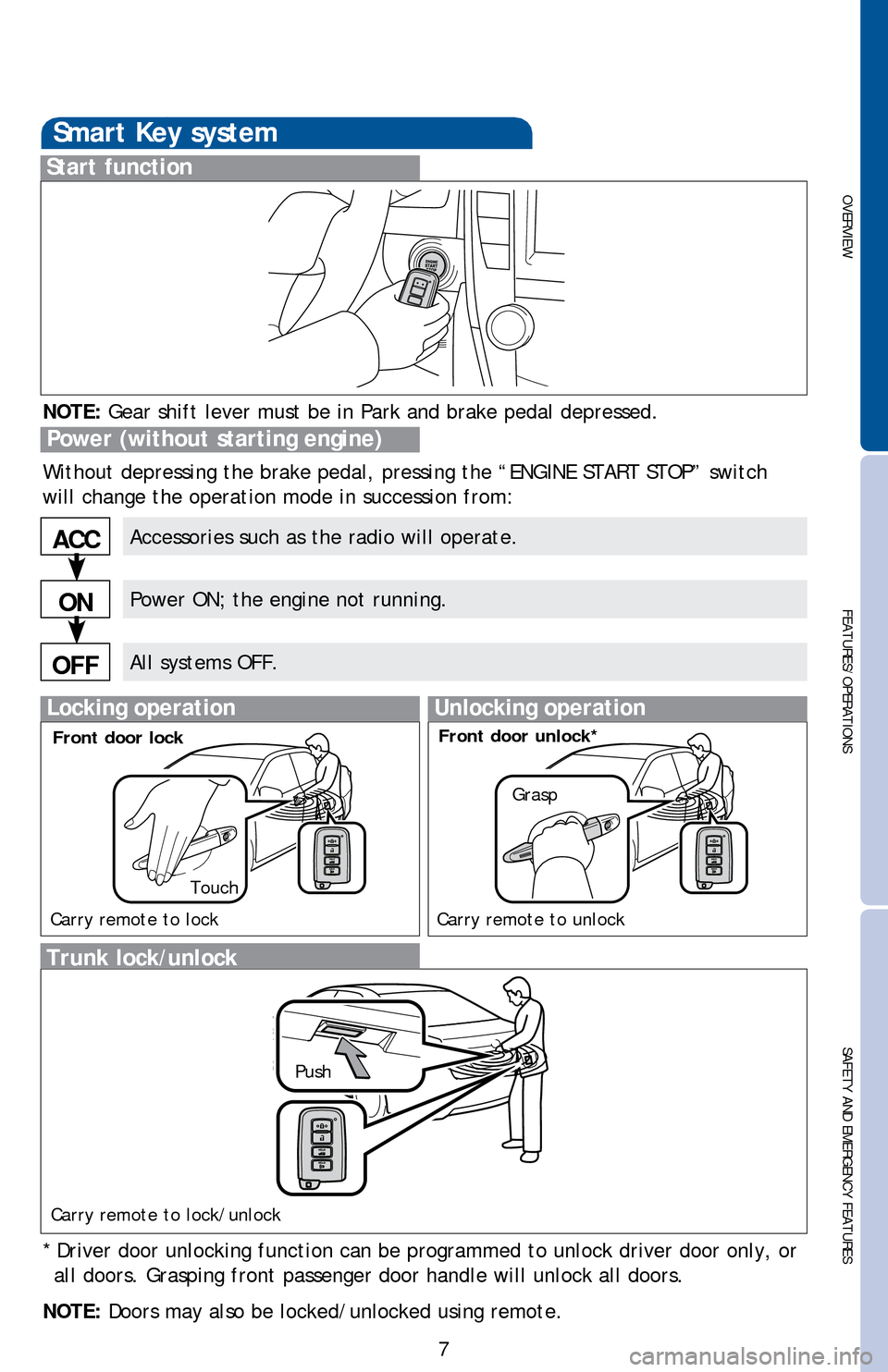

Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Trunk lock/unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to lock/unlock
Front door unlock*
TouchGrasp

8

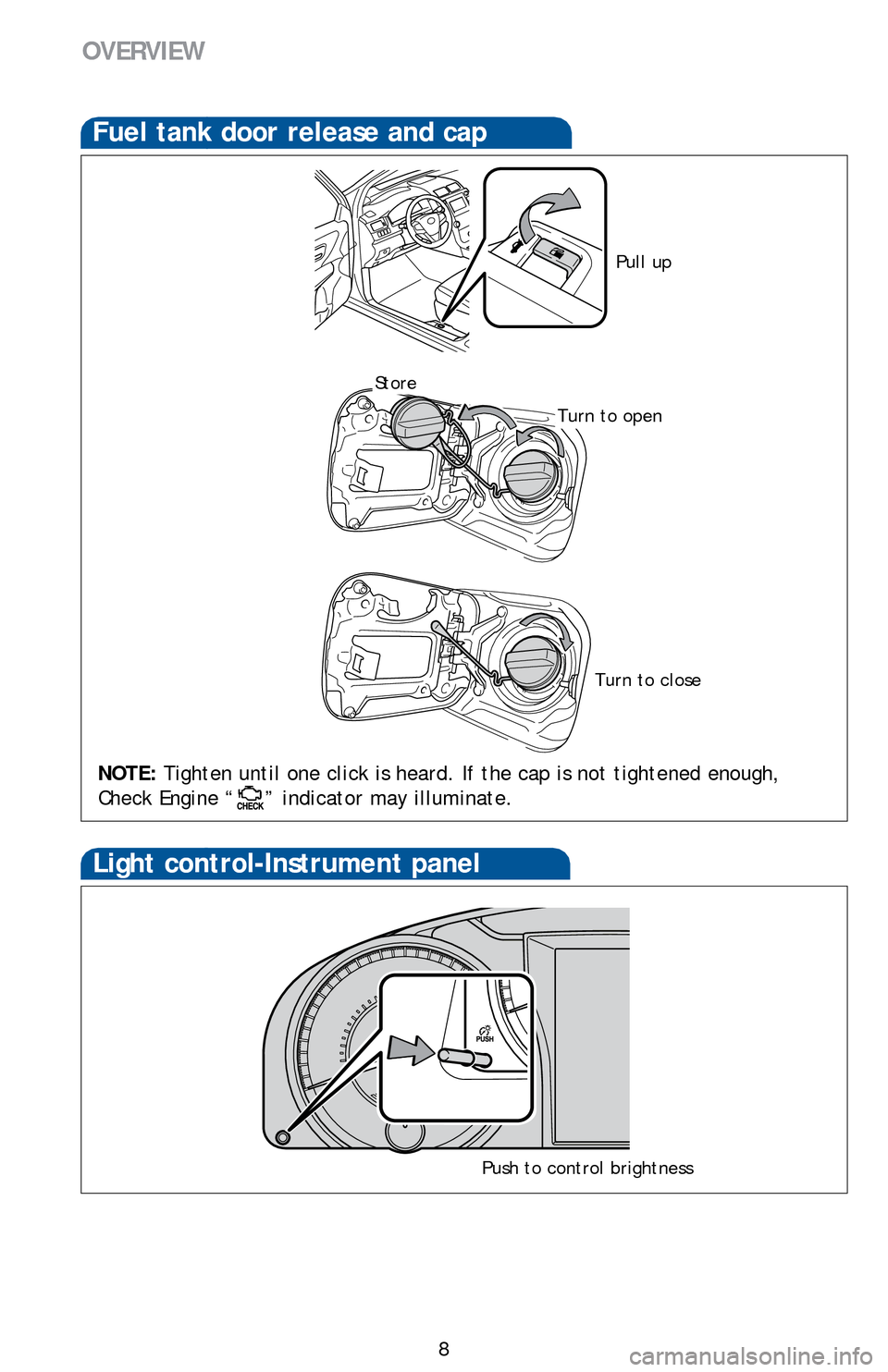

Fuel tank door release and cap
Light control-Instrument panel
OVERVIEW
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Pull up
Turn to open
Store
Turn to close
Push to control brightness
