TOYOTA CAMRY HYBRID 2020 Owners Manual (in English)

1412. Instrument cluster
2
Instrument cluster
■Multi-information display
Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.
Audio system screenMulti-information display
When the vehi-
cle is powered
by the electric
motor (traction
motor)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:

1422. Instrument cluster

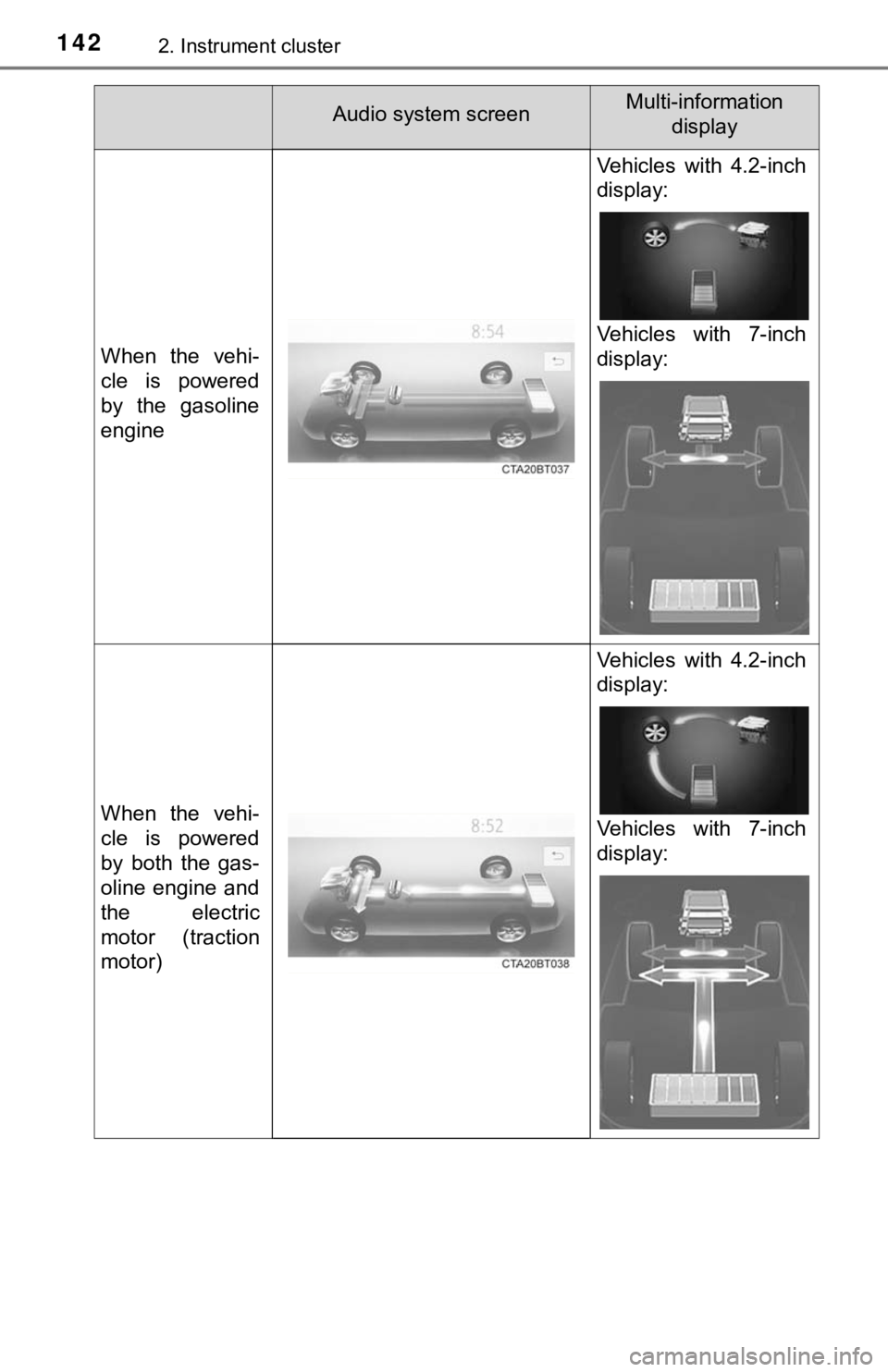

When the vehi-
cle is powered
by the gasoline
engine
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
When the vehi-
cle is powered
by both the gas-
oline engine and
the electric
motor (traction
motor)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

1432. Instrument cluster
2
Instrument cluster

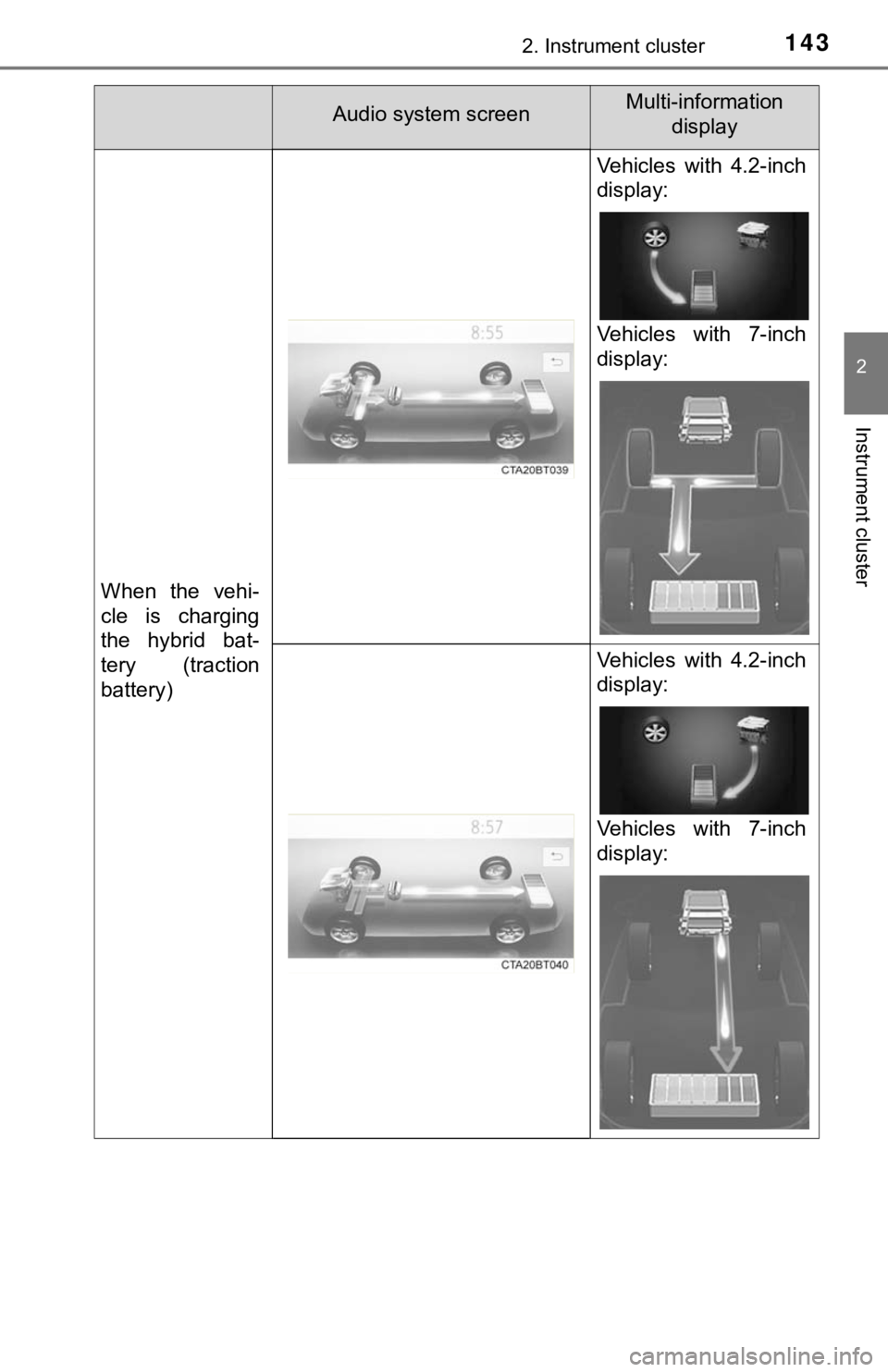

When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

1442. Instrument cluster

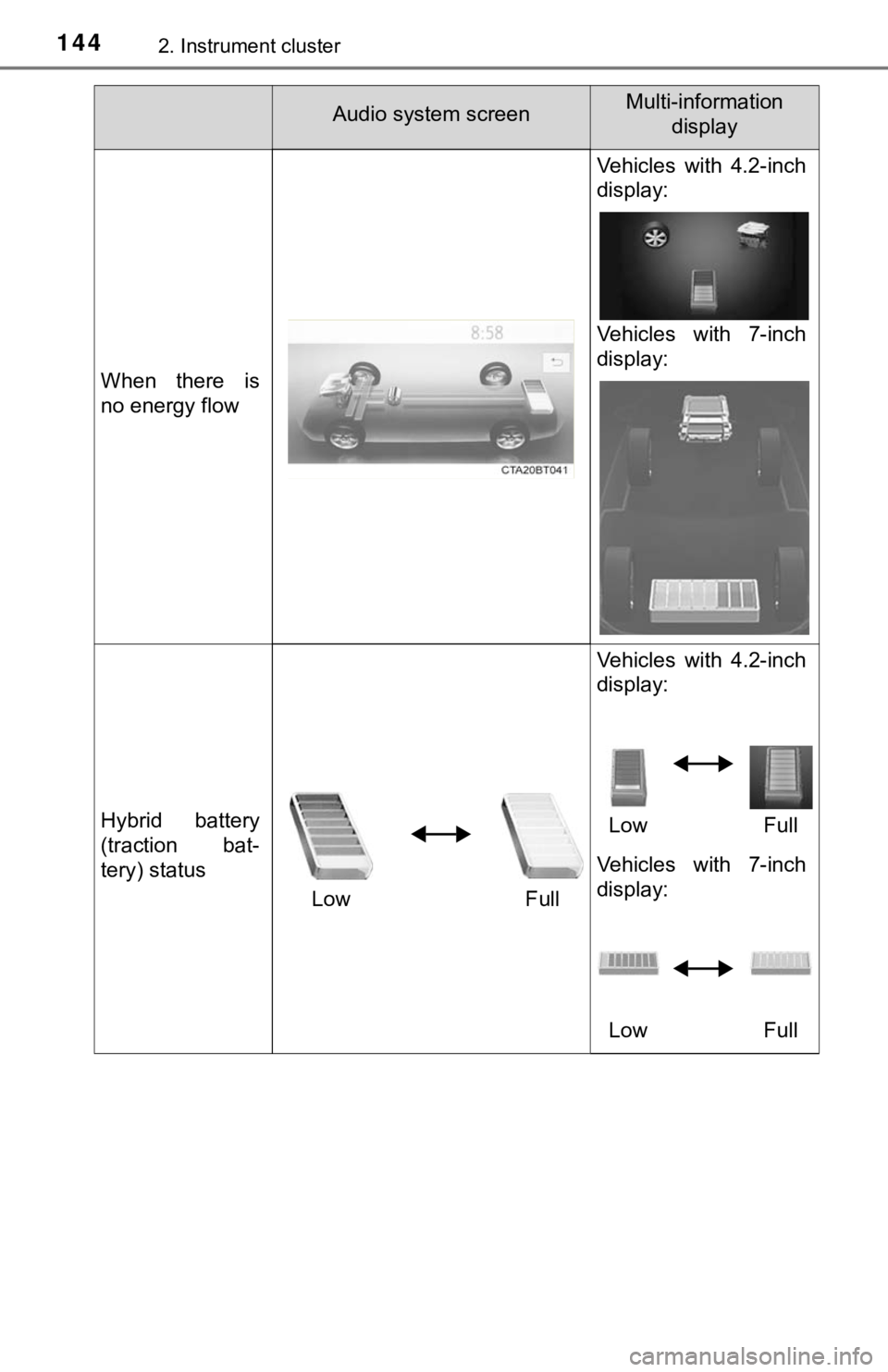

When there is
no energy flow
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Hybrid battery
(traction bat-
tery) statusLow Full Vehicles with 4.2-inch
display:
Low Full
Vehicles with 7-inch
display:
Low Full
Audio system screenMulti-information display

1452. Instrument cluster
2
Instrument cluster
■Trip information
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
If the “Energy Monitor” or “History” screen is displayed, selec t “Trip
Information”.
Audio (vehicles with Data Com munication Module), Audio Plus
(vehicles with Data Communica tion Module) and Premium Audio
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “History” screen is displayed, select “T rip Informa-
tion”.
Resetting the consumption
data
Displays the average vehicle
speed since the hybrid sys-
tem was started
Displays the elapsed time
since the hybrid system was
started
Fuel consumption in t he past 15 minutes
Cruising range
Regenerated energy i n the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual co ndi-
tions.
Current fuel consumption
Fuel consumption screen
1
2
1
2
3
1
2
3
4
5
6
7

1462. Instrument cluster
■History
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.
Audio (vehicles with Data Com munication Module), Audio Plus
(vehicles with Data Communica tion Module) and Premium Audio
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “Trip Inf ormation” screen is displayed, select “His-
tory”.
Resetting the past record
data
Best past fuel consumption
Current fuel economy
Previous fuel consumption
record
Audio or Audio Plus
Displays the daily average fuel consumption. (Instead of the da te,
“Trip 1” through “Trip 5” will be displayed.)
Premium Audio
Displays the daily average fuel consumption. Updating the average fuel consumption data
Displays a maximum of five past record of the average fuel cons ump-
tion.
The image is example only, and may vary slightly from actual co ndi-
tions.
1
2
1
2
3
1
2
3
4
5

1472. Instrument cluster
2
Instrument cluster
■Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset t he fuel consump-
tion and the regenerated energy for the past 15 minutes. Select ing “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.

1482. Instrument cluster

149
3
Operation of
each component
3-1. Key information
Keys .................................. 150
3-2. Opening, closing and locking the doors
Doors ................................ 154
Trunk ................................. 160
Smart key system ............. 164
3-3. Adjusting the seats Front seats ........................ 173
Rear seats......................... 175
Head restraints.................. 177
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 179
Inside rear view mirror ...... 181
Outside rear view mirrors .. 183
3-5. Opening and closing the windows
Power windows ................. 185
Moon roof .......................... 188

1503-1. Key information
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart key system (P. 164)
• Operating the wireless remote control function ( P. 150)
Mechanical keys
Key number plate
Locks all the doors ( P. 1 5 4 )
Unlocks all the doors ( P. 1 5 4 )
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows*2 and the
moon roof
*1, 2 (  P. 154)
Opens the trunk ( P. 1 6 0 )
Sounds the alarm ( P. 151)
*1: If equipped
*2: This setting must be customized at your Toyota dealer.
Keys
The keys
1
2
3
Wireless remote control
1
2
3
4
5
